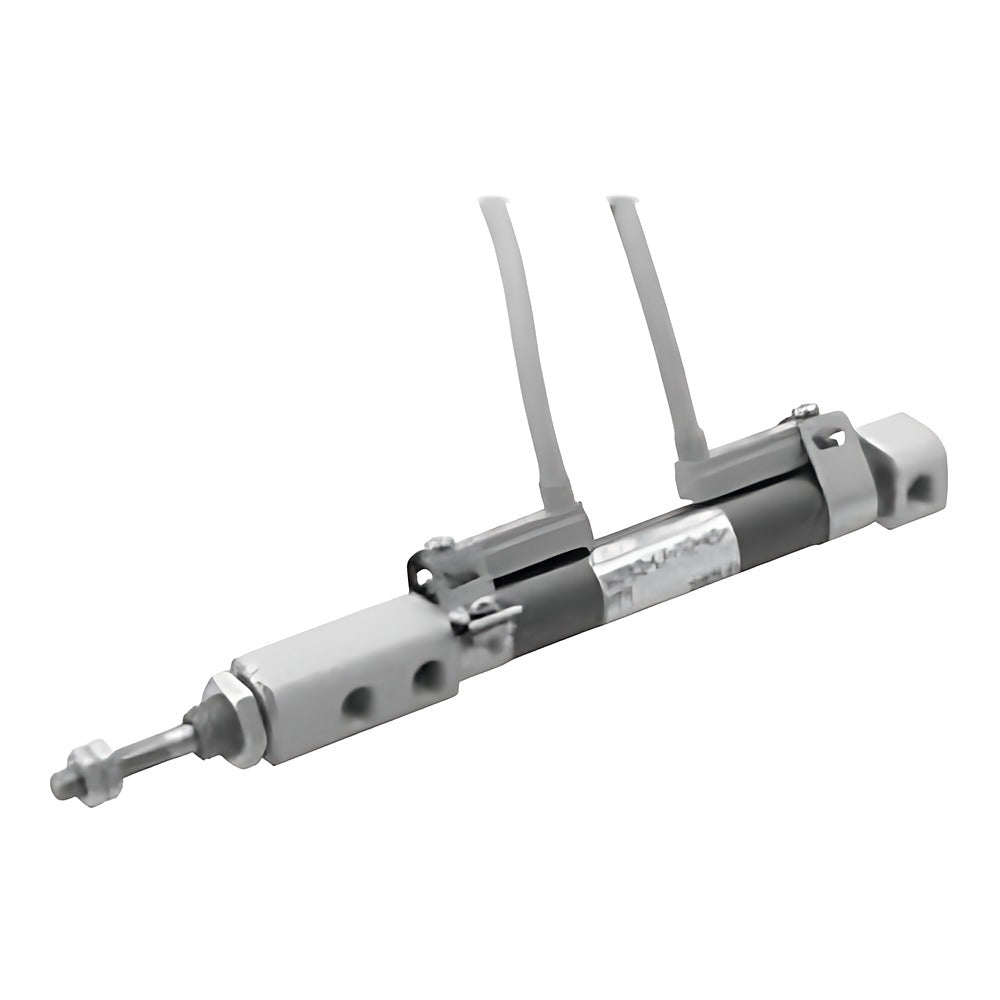

CKD SCPD3-F Pencil Cylinder (Clean Room P7, Low Speed)

CKD SCPD3-F Pencil Cylinder (Clean Room P7, Low Speed)

CKD SCPD3-F clean-room pencil cylinder for smooth low-speed operation from 1 mm/s, bore 6/10/16 mm.

Key features

  • Piston speed range 1-200 mm/s for stick-slip-free low-speed motion
  • Clean spec P7 (exhaust treatment) or P71 (vacuum suction)
  • Mounting: basic, single-side axial foot (LS) or rod-end flange (FA)
  • SCPD3-LF version has a switch magnet for T-type auto switches (ordered separately in code)
  • External dimensions identical to SCPD3 clean series

Specifications

Operation Double-acting, low speed
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (6), 0.1 MPa (10, 16)
Proof pressure 1.6 MPa
Ambient temperature 5 to 60 C
Port size M5
Piston speed 1-200 mm/s
Cushion Rubber cushion
Lubrication Not allowed
Production Made to order
Source CKD Korea catalog CB-033S-4, p. 35-41
SCPD3-F-00-6-15-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-6-15-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-6-30-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-6-30-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-6-45-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-6-45-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-6-60-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-6-60-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-10-15-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-10-15-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-10-30-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-10-30-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-10-45-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-10-45-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-10-60-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-10-60-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-16-15-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-16-15-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-16-30-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-16-30-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-16-45-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-16-45-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-16-60-P7 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-16-60-P71 Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-6-15-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-6-15-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-6-30-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-6-30-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-6-45-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-6-45-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-6-60-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-6-60-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-10-15-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-10-15-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-10-30-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-10-30-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-10-45-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-10-45-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-10-60-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-10-60-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-16-15-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-16-15-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-16-30-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-16-30-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-16-45-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-16-45-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-16-60-P7 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-16-60-P71 Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-6-15-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-6-15-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-6-30-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-6-30-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-6-45-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-6-45-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-6-60-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-6-60-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-10-15-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-10-15-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-10-30-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-10-30-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-10-45-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-10-45-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-10-60-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-10-60-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-16-15-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-16-15-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-16-30-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-16-30-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-16-45-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-16-45-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-16-60-P7 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-16-60-P71 Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-6-15-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-6-15-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-6-30-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-6-30-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-6-45-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-6-45-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-6-60-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-6-60-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-10-15-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-10-15-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-10-30-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-10-30-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-10-45-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-10-45-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-10-60-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-10-60-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-16-15-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-16-15-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-16-30-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-16-30-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-16-45-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-16-45-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-16-60-P7 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-16-60-P71 Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-6-15-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-6-15-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-6-30-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-6-30-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-6-45-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-6-45-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-6-60-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-6-60-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-10-15-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-10-15-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-10-30-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-10-30-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-10-45-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-10-45-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-10-60-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-10-60-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-16-15-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-16-15-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-16-30-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-16-30-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-16-45-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-16-45-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-16-60-P7 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-16-60-P71 Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-6-15-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-6-15-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-6-30-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-6-30-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-6-45-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-6-45-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-6-60-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-6-60-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-10-15-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-10-15-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-10-30-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-10-30-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-10-45-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-10-45-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-10-60-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-10-60-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-16-15-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-16-15-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-16-30-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-16-30-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-16-45-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-16-45-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-16-60-P7 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-16-60-P71 Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
Pneumatic CylindersCKD
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCPD3-F Pencil Cylinder (Clean Room P7, Low Speed)

Brand CKD·Pneumatic Cylinders

Available part numbers (144)

SCPD3-F-00-6-15-P7, SCPD3-F-00-6-15-P71, SCPD3-F-00-6-30-P7, SCPD3-F-00-6-30-P71, SCPD3-F-00-6-45-P7, SCPD3-F-00-6-45-P71, SCPD3-F-00-6-60-P7, SCPD3-F-00-6-60-P71, SCPD3-F-00-10-15-P7, SCPD3-F-00-10-15-P71 + 134 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCPD3-F-00-6-15-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-6-15-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-6-30-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-6-30-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-6-45-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-6-45-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-6-60-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-6-60-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-10-15-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-10-15-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-10-30-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-10-30-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-10-45-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-10-45-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-10-60-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-10-60-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-16-15-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-16-15-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-16-30-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-16-30-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-16-45-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-16-45-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-00-16-60-P7Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-00-16-60-P71Model: SCPD3-F (no switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-6-15-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-6-15-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-6-30-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-6-30-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-6-45-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-6-45-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-6-60-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-6-60-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-10-15-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-10-15-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-10-30-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-10-30-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-10-45-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-10-45-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-10-60-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-10-60-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-16-15-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-16-15-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-16-30-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-16-30-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-16-45-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-16-45-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-LS-16-60-P7Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-LS-16-60-P71Model: SCPD3-F (no switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-6-15-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-6-15-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-6-30-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-6-30-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-6-45-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-6-45-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-6-60-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-6-60-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-10-15-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-10-15-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-10-30-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-10-30-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-10-45-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-10-45-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-10-60-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-10-60-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-16-15-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-16-15-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-16-30-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-16-30-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-16-45-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-16-45-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-F-FA-16-60-P7Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-F-FA-16-60-P71Model: SCPD3-F (no switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-6-15-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-6-15-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-6-30-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-6-30-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-6-45-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-6-45-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-6-60-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-6-60-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-10-15-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-10-15-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-10-30-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-10-30-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-10-45-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-10-45-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-10-60-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-10-60-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-16-15-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-16-15-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-16-30-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-16-30-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-16-45-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-16-45-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-00-16-60-P7Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-00-16-60-P71Model: SCPD3-LF (switch magnet) | Mounting: Basic (00) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-6-15-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-6-15-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-6-30-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-6-30-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-6-45-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-6-45-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-6-60-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-6-60-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-10-15-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-10-15-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-10-30-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-10-30-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-10-45-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-10-45-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-10-60-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-10-60-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-16-15-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-16-15-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-16-30-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-16-30-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-16-45-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-16-45-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-LS-16-60-P7Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-LS-16-60-P71Model: SCPD3-LF (switch magnet) | Mounting: Single-side axial foot (LS) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-6-15-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-6-15-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-6-30-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-6-30-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-6-45-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-6-45-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-6-60-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-6-60-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 6 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-10-15-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-10-15-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-10-30-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-10-30-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-10-45-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-10-45-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-10-60-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-10-60-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 10 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-16-15-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-16-15-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-16-30-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-16-30-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-16-45-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-16-45-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 45 mm | Clean spec: P71 vacuum suction
SCPD3-LF-FA-16-60-P7Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P7 exhaust treatment
SCPD3-LF-FA-16-60-P71Model: SCPD3-LF (switch magnet) | Mounting: Rod-end flange (FA) | Bore: 16 mm | Stroke: 60 mm | Clean spec: P71 vacuum suction

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
