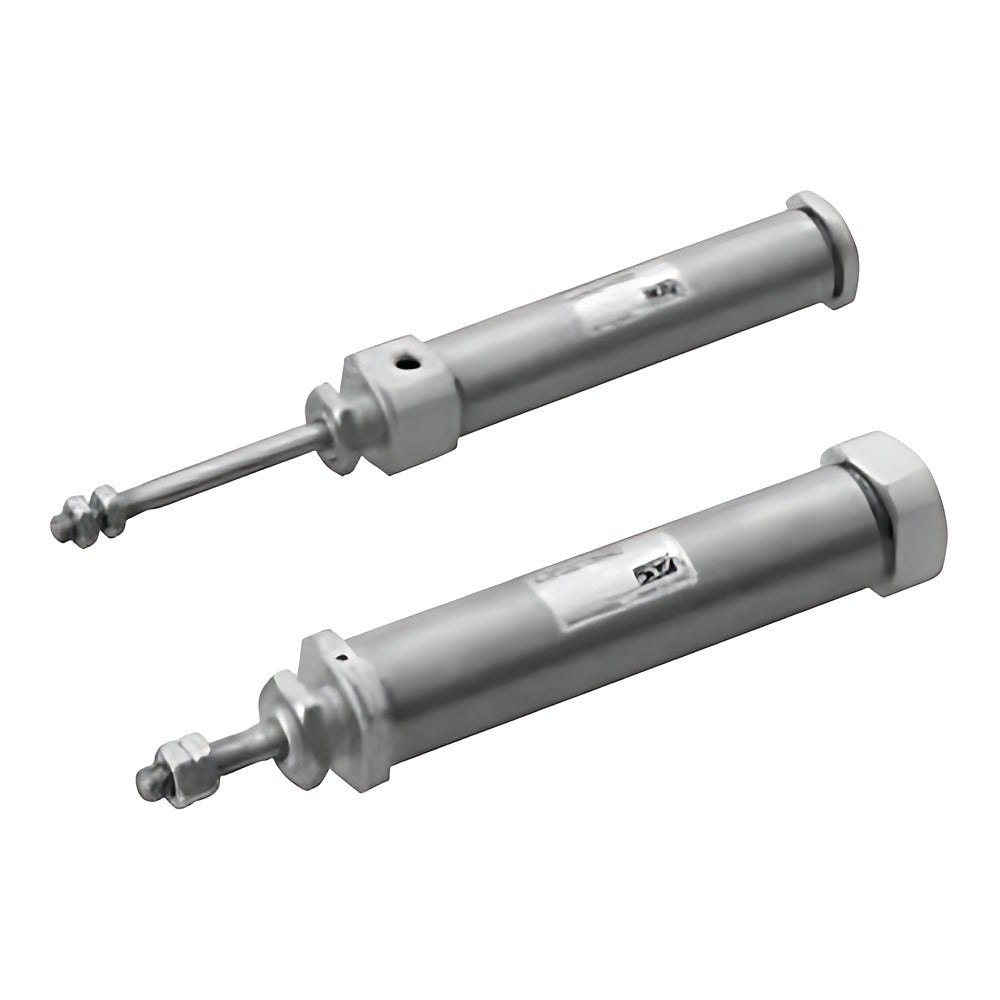

CKD SCPD3-G-FP1-HP1 Pencil Cylinder (Food Process, Strong Scraper)

CKD SCPD3-G-FP1-HP1 Pencil Cylinder (Food Process, Strong Scraper)

CKD SCPD3-G-FP1-HP1 double-acting pencil cylinder with strong scraper and NSF-H1 food-grade grease, bore ø6 to ø16.

Key features

  • Food-grade (NSF-H1) grease in sliding and flow-path parts (FP1); materials and dimensions same as standard
  • Strong scraper (G) environment-resistant construction with HP1 long-life sealing
  • SCPD3-G without magnet or SCPD3-GL with switch magnet; radial or axial (O) head port
  • Standard strokes 15/30/45/60 mm; up to 105/210/270 mm made possible
  • Example SCPD3-GL-00-10-30-O-T2H-R-FP1I-HP1; accessories P2-I/Y/B1/B2--FP1

Specifications

Specification Food process FP1 (NSF-H1 grease), HP1
Action Double acting, single rod
Max. operating pressure 1.0 MPa
Port size M5
Cushion Rubber cushion
Piston speed 50 to 750 mm/s
Version FP1
Source CKD Korea catalog CC-1421KR-7, p. 240-241
SCPD3-G-00-6-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-00-6-15-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-00-6-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-00-6-30-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-00-6-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-00-6-45-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-00-6-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-00-6-60-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-LS-6-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-LS-6-15-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-LS-6-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-LS-6-30-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-LS-6-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-LS-6-45-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-LS-6-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-LS-6-60-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-FA-6-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-FA-6-15-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-FA-6-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-FA-6-30-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-FA-6-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-FA-6-45-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-FA-6-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-FA-6-60-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-00-10-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-00-10-15-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-00-10-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-00-10-30-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-00-10-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-00-10-45-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-00-10-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-00-10-60-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-LS-10-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-LS-10-15-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-LS-10-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-LS-10-30-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-LS-10-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-LS-10-45-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-LS-10-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-LS-10-60-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-FA-10-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-FA-10-15-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-FA-10-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-FA-10-30-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-FA-10-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-FA-10-45-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-FA-10-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-FA-10-60-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-CB-10-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-CB-10-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-CB-10-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-CB-10-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-00-16-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-00-16-15-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-00-16-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-00-16-30-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-00-16-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-00-16-45-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-00-16-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-00-16-60-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-LS-16-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-LS-16-15-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-LS-16-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-LS-16-30-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-LS-16-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-LS-16-45-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-LS-16-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-LS-16-60-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-FA-16-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-FA-16-15-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-FA-16-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-FA-16-30-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-FA-16-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-FA-16-45-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-FA-16-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-FA-16-60-O-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-CB-16-15-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-CB-16-30-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-CB-16-45-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-CB-16-60-FP1-HP1 Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-6-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-00-6-15-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-00-6-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-00-6-30-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-00-6-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-00-6-45-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-00-6-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-6-60-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-LS-6-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-LS-6-15-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-LS-6-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-LS-6-30-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-LS-6-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-LS-6-45-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-LS-6-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-LS-6-60-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-FA-6-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-FA-6-15-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-FA-6-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-FA-6-30-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-FA-6-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-FA-6-45-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-FA-6-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-FA-6-60-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-00-10-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-00-10-15-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-00-10-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-00-10-30-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-00-10-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-00-10-45-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-00-10-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-10-60-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-LS-10-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-LS-10-15-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-LS-10-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-LS-10-30-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-LS-10-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-LS-10-45-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-LS-10-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-LS-10-60-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-FA-10-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-FA-10-15-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-FA-10-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-FA-10-30-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-FA-10-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-FA-10-45-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-FA-10-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-FA-10-60-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-CB-10-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-CB-10-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-CB-10-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-CB-10-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-16-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-00-16-15-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-00-16-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-00-16-30-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-00-16-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-00-16-45-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-00-16-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-16-60-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-LS-16-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-LS-16-15-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-LS-16-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-LS-16-30-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-LS-16-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-LS-16-45-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-LS-16-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-LS-16-60-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-FA-16-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-FA-16-15-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-FA-16-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-FA-16-30-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-FA-16-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-FA-16-45-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-FA-16-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-FA-16-60-O-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-CB-16-15-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-CB-16-30-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-CB-16-45-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-CB-16-60-FP1-HP1 Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
Pneumatic CylindersCKD
160 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCPD3-G-FP1-HP1 Pencil Cylinder (Food Process, Strong Scraper)

Brand CKD·Pneumatic Cylinders

Available part numbers (160)

SCPD3-G-00-6-15-FP1-HP1, SCPD3-G-00-6-15-O-FP1-HP1, SCPD3-G-00-6-30-FP1-HP1, SCPD3-G-00-6-30-O-FP1-HP1, SCPD3-G-00-6-45-FP1-HP1, SCPD3-G-00-6-45-O-FP1-HP1, SCPD3-G-00-6-60-FP1-HP1, SCPD3-G-00-6-60-O-FP1-HP1, SCPD3-G-LS-6-15-FP1-HP1, SCPD3-G-LS-6-15-O-FP1-HP1 + 150 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCPD3-G-00-6-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-00-6-15-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-00-6-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-00-6-30-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-00-6-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-00-6-45-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-00-6-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-00-6-60-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-LS-6-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-LS-6-15-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-LS-6-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-LS-6-30-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-LS-6-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-LS-6-45-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-LS-6-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-LS-6-60-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-FA-6-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-FA-6-15-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-FA-6-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-FA-6-30-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-FA-6-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-FA-6-45-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-FA-6-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-FA-6-60-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-00-10-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-00-10-15-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-00-10-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-00-10-30-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-00-10-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-00-10-45-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-00-10-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-00-10-60-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-LS-10-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-LS-10-15-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-LS-10-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-LS-10-30-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-LS-10-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-LS-10-45-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-LS-10-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-LS-10-60-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-FA-10-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-FA-10-15-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-FA-10-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-FA-10-30-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-FA-10-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-FA-10-45-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-FA-10-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-FA-10-60-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-CB-10-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-CB-10-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-CB-10-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-CB-10-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-00-16-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-00-16-15-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-00-16-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-00-16-30-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-00-16-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-00-16-45-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-00-16-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-00-16-60-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-LS-16-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-LS-16-15-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-LS-16-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-LS-16-30-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-LS-16-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-LS-16-45-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-LS-16-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-LS-16-60-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-FA-16-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-FA-16-15-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-G-FA-16-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-FA-16-30-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-G-FA-16-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-FA-16-45-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-G-FA-16-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-G-FA-16-60-O-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-G-CB-16-15-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-G-CB-16-30-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-G-CB-16-45-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-G-CB-16-60-FP1-HP1Model: SCPD3-G (no magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-6-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-00-6-15-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-00-6-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-00-6-30-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-00-6-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-00-6-45-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-00-6-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-6-60-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-LS-6-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-LS-6-15-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-LS-6-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-LS-6-30-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-LS-6-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-LS-6-45-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-LS-6-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-LS-6-60-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-FA-6-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-FA-6-15-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-FA-6-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-FA-6-30-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-FA-6-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-FA-6-45-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-FA-6-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-FA-6-60-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-00-10-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-00-10-15-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-00-10-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-00-10-30-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-00-10-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-00-10-45-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-00-10-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-10-60-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-LS-10-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-LS-10-15-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-LS-10-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-LS-10-30-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-LS-10-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-LS-10-45-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-LS-10-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-LS-10-60-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-FA-10-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-FA-10-15-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-FA-10-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-FA-10-30-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-FA-10-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-FA-10-45-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-FA-10-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-FA-10-60-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-CB-10-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-CB-10-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-CB-10-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-CB-10-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-16-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-00-16-15-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-00-16-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-00-16-30-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-00-16-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-00-16-45-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-00-16-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-00-16-60-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-LS-16-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-LS-16-15-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-LS-16-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-LS-16-30-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-LS-16-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-LS-16-45-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-LS-16-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-LS-16-60-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-FA-16-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-FA-16-15-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Head port: Axial
SCPD3-GL-FA-16-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-FA-16-30-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Head port: Axial
SCPD3-GL-FA-16-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-FA-16-45-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm | Head port: Axial
SCPD3-GL-FA-16-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm | Head port: Radial
SCPD3-GL-FA-16-60-O-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm | Head port: Axial
SCPD3-GL-CB-16-15-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm | Head port: Radial
SCPD3-GL-CB-16-30-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm | Head port: Radial
SCPD3-GL-CB-16-45-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm | Head port: Radial
SCPD3-GL-CB-16-60-FP1-HP1Model: SCPD3-GL (switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm | Head port: Radial

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
