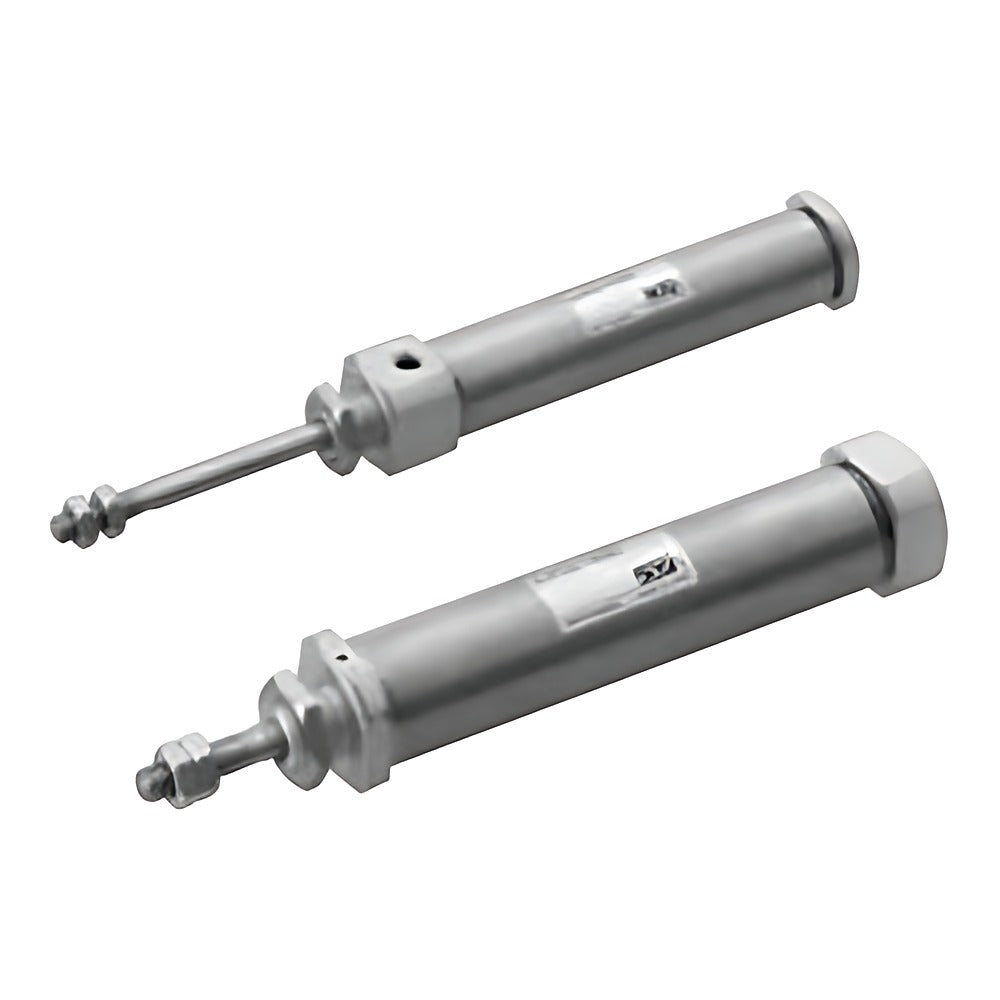

CKD SCPD3-G-HP1 Environment-resistant Pencil Cylinder (Bore 6-16)

CKD SCPD3-G-HP1 Environment-resistant Pencil Cylinder (Bore 6-16)

CKD SCPD3-G-HP1 environment-resistant long-life pencil cylinder with strong scraper, bores 6, 10 and 16 mm.

Key features

  • G-HP1 environment-resistant design: strong scraper and long-life seals for dusty / swarf environments
  • SCPD3-G (no magnet) or SCPD3-GL (switch magnet built in); basic, LS foot, FA flange or CB clevis
  • Standard strokes 15/30/45/60 mm; max. 100 (6), 200 (10), 260 mm (16) in 1 mm steps
  • Options not expanded: axial head port (O), T-type auto switches with R/H/D/T count, I/Y/B1/B2 accessories

Specifications

Operation Double acting, single rod, strong scraper
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (6), 0.1 MPa (10, 16)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size M5
Piston speed 50-750 mm/s
Cushion Rubber cushion
Code format SCPD3-G[L]-<mount>-<bore>-<stroke>-HP1
Source CKD Korea catalog CC-1421KR-7, p. 70-73
SCPD3-G-00-6-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPD3-G-00-6-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPD3-G-00-6-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPD3-G-00-6-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPD3-G-LS-6-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPD3-G-LS-6-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPD3-G-LS-6-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPD3-G-LS-6-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPD3-G-FA-6-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPD3-G-FA-6-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPD3-G-FA-6-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPD3-G-FA-6-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPD3-G-00-10-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPD3-G-00-10-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPD3-G-00-10-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPD3-G-00-10-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPD3-G-LS-10-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPD3-G-LS-10-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPD3-G-LS-10-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPD3-G-LS-10-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPD3-G-FA-10-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPD3-G-FA-10-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPD3-G-FA-10-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPD3-G-FA-10-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPD3-G-CB-10-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
SCPD3-G-CB-10-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
SCPD3-G-CB-10-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
SCPD3-G-CB-10-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
SCPD3-G-00-16-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPD3-G-00-16-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPD3-G-00-16-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPD3-G-00-16-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPD3-G-LS-16-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPD3-G-LS-16-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPD3-G-LS-16-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPD3-G-LS-16-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPD3-G-FA-16-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPD3-G-FA-16-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPD3-G-FA-16-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPD3-G-FA-16-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPD3-G-CB-16-15-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
SCPD3-G-CB-16-30-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
SCPD3-G-CB-16-45-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
SCPD3-G-CB-16-60-HP1 Model: SCPD3-G (No switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm
SCPD3-GL-00-6-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPD3-GL-00-6-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPD3-GL-00-6-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPD3-GL-00-6-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPD3-GL-LS-6-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPD3-GL-LS-6-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPD3-GL-LS-6-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPD3-GL-LS-6-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPD3-GL-FA-6-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPD3-GL-FA-6-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPD3-GL-FA-6-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPD3-GL-FA-6-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPD3-GL-00-10-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPD3-GL-00-10-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPD3-GL-00-10-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPD3-GL-00-10-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPD3-GL-LS-10-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPD3-GL-LS-10-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPD3-GL-LS-10-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPD3-GL-LS-10-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPD3-GL-FA-10-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPD3-GL-FA-10-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPD3-GL-FA-10-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPD3-GL-FA-10-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPD3-GL-CB-10-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
SCPD3-GL-CB-10-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
SCPD3-GL-CB-10-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
SCPD3-GL-CB-10-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
SCPD3-GL-00-16-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPD3-GL-00-16-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPD3-GL-00-16-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPD3-GL-00-16-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPD3-GL-LS-16-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPD3-GL-LS-16-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPD3-GL-LS-16-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPD3-GL-LS-16-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPD3-GL-FA-16-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPD3-GL-FA-16-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPD3-GL-FA-16-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPD3-GL-FA-16-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPD3-GL-CB-16-15-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
SCPD3-GL-CB-16-30-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
SCPD3-GL-CB-16-45-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
SCPD3-GL-CB-16-60-HP1 Model: SCPD3-GL (Switch magnet built in) | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm
Pneumatic CylindersCKD
88 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCPD3-G-HP1 Environment-resistant Pencil Cylinder (Bore 6-16)

Brand CKD·Pneumatic Cylinders

Available part numbers (88)

SCPD3-G-00-6-15-HP1, SCPD3-G-00-6-30-HP1, SCPD3-G-00-6-45-HP1, SCPD3-G-00-6-60-HP1, SCPD3-G-LS-6-15-HP1, SCPD3-G-LS-6-30-HP1, SCPD3-G-LS-6-45-HP1, SCPD3-G-LS-6-60-HP1, SCPD3-G-FA-6-15-HP1, SCPD3-G-FA-6-30-HP1 + 78 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
