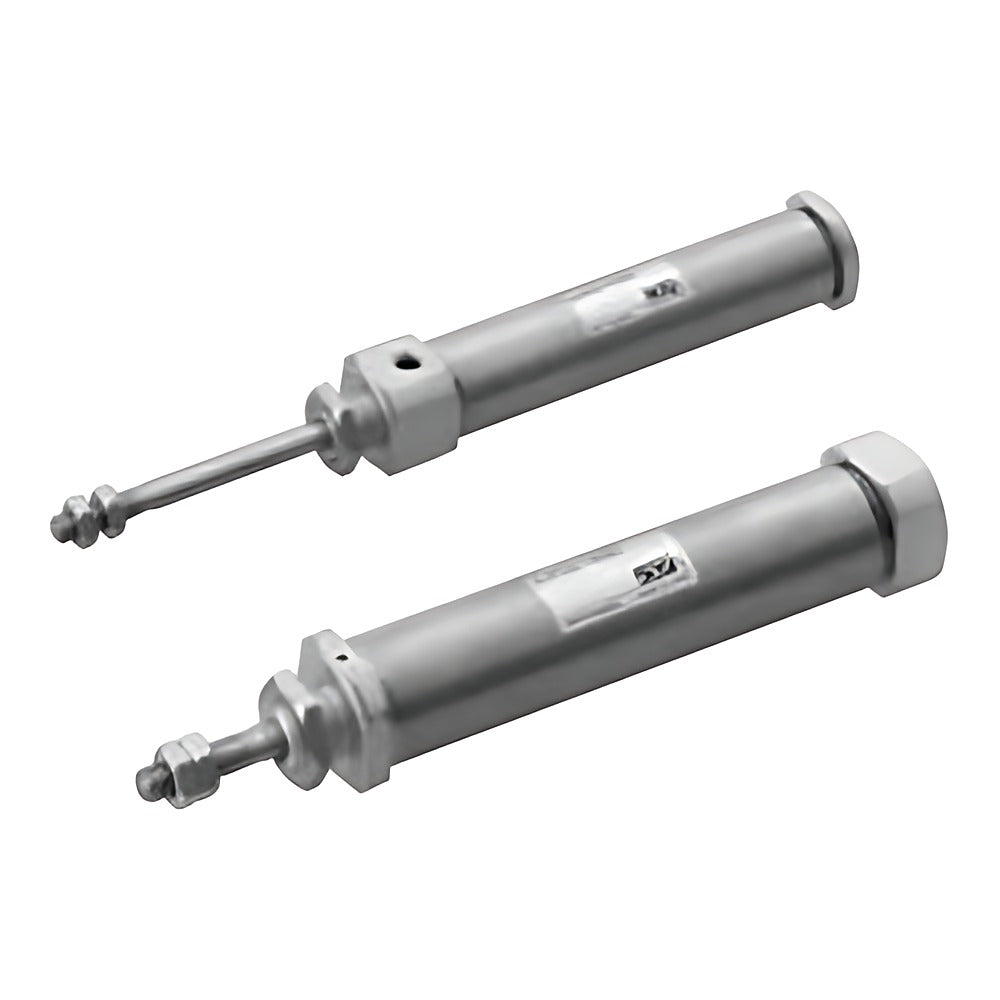

CKD SCPD3-HP1 Long-life Pencil Cylinder (Bore 6-16 mm)

CKD SCPD3-HP1 Long-life Pencil Cylinder (Bore 6-16 mm)

CKD SCPD3-HP1 long-life double-acting single-rod pencil cylinder for bores 6, 10 and 16 mm.

Key features

  • HP1 long-life design: optimised sliding parts, rated for 20 million+ cycles (about 4x conventional, CKD test conditions)
  • SCPD3 (no magnet) or SCPD3-L (switch magnet built in) with basic, LS foot, FA flange or CB clevis mounting
  • Standard strokes 15/30/45/60 mm; intermediate strokes in 1 mm steps up to 100 mm (6) / 150 mm (10, 16)
  • Options not expanded: axial head port (O), auto switches T0H/T2H/T2WH etc. with R/H/D/T count, I/Y rod-end accessories, B1/B2 brackets
  • Same external dimensions as the standard SCPD3 series

Specifications

Operation Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (6), 0.1 MPa (10, 16)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size M5
Piston speed 50-750 mm/s
Cushion Rubber cushion
Code format SCPD3[-L]-<mount>-<bore>-<stroke>-HP1
Source CKD Korea catalog CC-1421KR-7, p. 24-25
SCPD3-00-6-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPD3-00-6-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPD3-00-6-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPD3-00-6-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPD3-LS-6-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPD3-LS-6-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPD3-LS-6-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPD3-LS-6-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPD3-FA-6-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPD3-FA-6-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPD3-FA-6-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPD3-FA-6-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPD3-00-10-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPD3-00-10-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPD3-00-10-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPD3-00-10-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPD3-LS-10-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPD3-LS-10-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPD3-LS-10-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPD3-LS-10-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPD3-FA-10-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPD3-FA-10-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPD3-FA-10-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPD3-FA-10-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPD3-CB-10-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
SCPD3-CB-10-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
SCPD3-CB-10-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
SCPD3-CB-10-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
SCPD3-00-16-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPD3-00-16-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPD3-00-16-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPD3-00-16-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPD3-LS-16-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPD3-LS-16-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPD3-LS-16-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPD3-LS-16-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPD3-FA-16-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPD3-FA-16-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPD3-FA-16-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPD3-FA-16-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPD3-CB-16-15-HP1 Model: SCPD3 (No switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
SCPD3-CB-16-30-HP1 Model: SCPD3 (No switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
SCPD3-CB-16-45-HP1 Model: SCPD3 (No switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
SCPD3-CB-16-60-HP1 Model: SCPD3 (No switch magnet) | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm
SCPD3-L-00-6-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPD3-L-00-6-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPD3-L-00-6-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPD3-L-00-6-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPD3-L-LS-6-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPD3-L-LS-6-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPD3-L-LS-6-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPD3-L-LS-6-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPD3-L-FA-6-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPD3-L-FA-6-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPD3-L-FA-6-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPD3-L-FA-6-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPD3-L-00-10-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPD3-L-00-10-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPD3-L-00-10-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPD3-L-00-10-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPD3-L-LS-10-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPD3-L-LS-10-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPD3-L-LS-10-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPD3-L-LS-10-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPD3-L-FA-10-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPD3-L-FA-10-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPD3-L-FA-10-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPD3-L-FA-10-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPD3-L-CB-10-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
SCPD3-L-CB-10-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
SCPD3-L-CB-10-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
SCPD3-L-CB-10-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
SCPD3-L-00-16-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPD3-L-00-16-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPD3-L-00-16-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPD3-L-00-16-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPD3-L-LS-16-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPD3-L-LS-16-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPD3-L-LS-16-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPD3-L-LS-16-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPD3-L-FA-16-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPD3-L-FA-16-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPD3-L-FA-16-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPD3-L-FA-16-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPD3-L-CB-16-15-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
SCPD3-L-CB-16-30-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
SCPD3-L-CB-16-45-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
SCPD3-L-CB-16-60-HP1 Model: SCPD3-L (Switch magnet built in) | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm
Pneumatic CylindersCKD
88 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCPD3-HP1 Long-life Pencil Cylinder (Bore 6-16 mm)

Brand CKD·Pneumatic Cylinders

Available part numbers (88)

SCPD3-00-6-15-HP1, SCPD3-00-6-30-HP1, SCPD3-00-6-45-HP1, SCPD3-00-6-60-HP1, SCPD3-LS-6-15-HP1, SCPD3-LS-6-30-HP1, SCPD3-LS-6-45-HP1, SCPD3-LS-6-60-HP1, SCPD3-FA-6-15-HP1, SCPD3-FA-6-30-HP1 + 78 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
