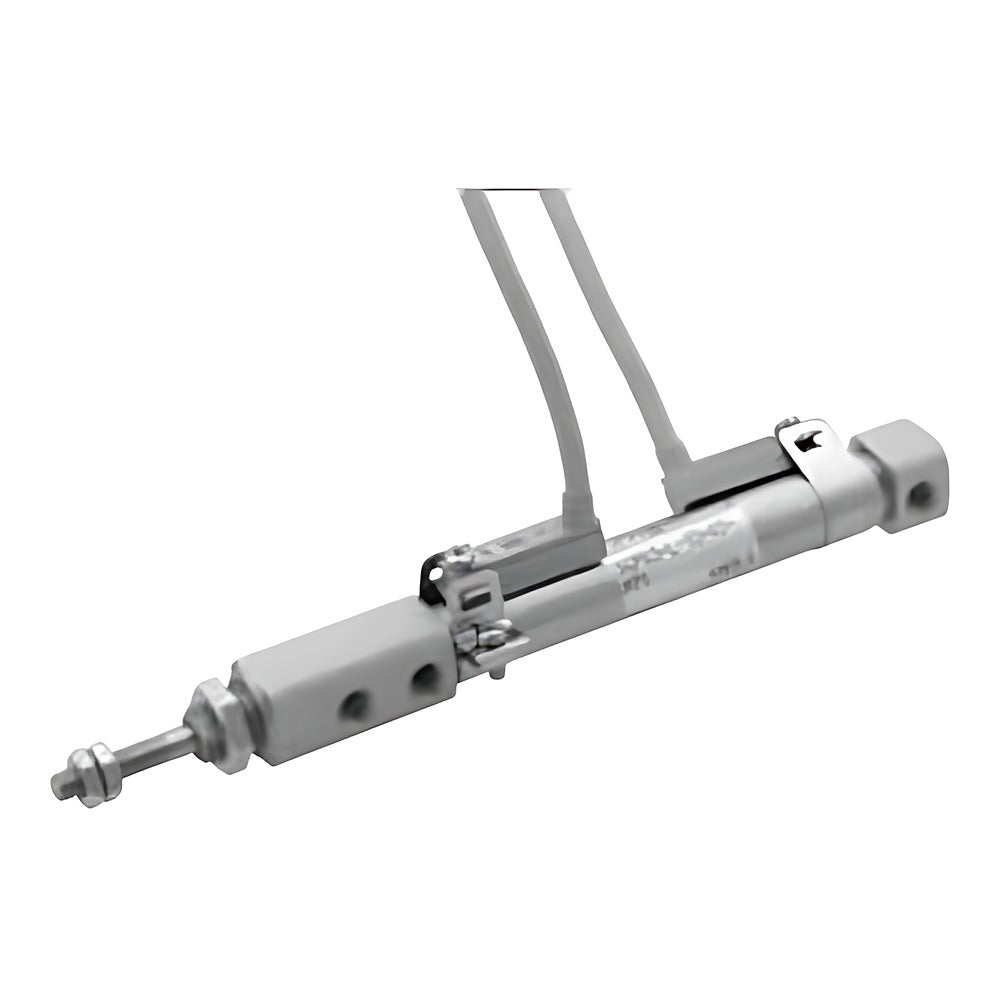

CKD SCPD3 Pencil Cylinder (Clean Room P7/P5, Double-Acting)

CKD SCPD3 clean-room pencil cylinder, double-acting single rod, bore 6/10/16 mm, with exhaust-treatment or vacuum-suction particle control.

Key features

Exhaust treatment (P7/P5) or vacuum suction (P71/P51) structure keeps particles out of the clean room
P5/P51 versions use no copper, silicone or halogen (F, Cl, Br) materials
Mounting: basic, single-side axial foot (LS) or rod-end flange (FA); brackets shipped with product
Head-cover port direction selectable: vertical (no symbol) or axial (0)
SCPD3-L has a switch magnet for T-type auto switches (T0/T5/T2/T3/T2W/T3W, ordered in code before clean suffix)
Non-standard strokes 5 mm to 100/200/260 mm in 1 mm steps (made to order)

Specifications

Operation	Double-acting, single rod
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.15 MPa (6), 0.1 MPa (10, 16)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Port size	M5
Piston speed	50-500 mm/s
Cushion	Rubber cushion
Lubrication	Not allowed
Production	Made to order
Source	CKD Korea catalog CB-033S-4, p. 29-41

SCPD3-00-6-15-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-6-15-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-6-15-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-6-15-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-6-15-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-6-15-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-6-15-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-6-15-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-6-30-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-6-30-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-6-30-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-6-30-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-6-30-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-6-30-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-6-30-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-6-30-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-6-45-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-6-45-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-6-45-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-6-45-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-6-45-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-6-45-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-6-45-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-6-45-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-6-60-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-6-60-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-6-60-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-6-60-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-6-60-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-6-60-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-6-60-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-6-60-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-10-15-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-10-15-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-10-15-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-10-15-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-10-15-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-10-15-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-10-15-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-10-15-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-10-30-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-10-30-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-10-30-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-10-30-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-10-30-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-10-30-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-10-30-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-10-30-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-10-45-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-10-45-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-10-45-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-10-45-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-10-45-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-10-45-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-10-45-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-10-45-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-10-60-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-10-60-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-10-60-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-10-60-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-10-60-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-10-60-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-10-60-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-10-60-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-16-15-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-16-15-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-16-15-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-16-15-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-16-15-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-16-15-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-16-15-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-16-15-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-16-30-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-16-30-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-16-30-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-16-30-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-16-30-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-16-30-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-16-30-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-16-30-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-16-45-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-16-45-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-16-45-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-16-45-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-16-45-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-16-45-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-16-45-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-16-45-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-16-60-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-00-16-60-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-00-16-60-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-16-60-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-00-16-60-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-00-16-60-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-00-16-60-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-00-16-60-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-6-15-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-6-15-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-6-15-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-6-15-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-6-15-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-6-15-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-6-15-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-6-15-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-6-30-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-6-30-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-6-30-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-6-30-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-6-30-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-6-30-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-6-30-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-6-30-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-6-45-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-6-45-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-6-45-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-6-45-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-6-45-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-6-45-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-6-45-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-6-45-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-6-60-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-6-60-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-6-60-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-6-60-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-6-60-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-6-60-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-6-60-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-6-60-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-10-15-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-10-15-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-10-15-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-10-15-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-10-15-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-10-15-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-10-15-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-10-15-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-10-30-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-10-30-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-10-30-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-10-30-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-10-30-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-10-30-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-10-30-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-10-30-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-10-45-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-10-45-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-10-45-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-10-45-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-10-45-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-10-45-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-10-45-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-10-45-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-10-60-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-10-60-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-10-60-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-10-60-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-10-60-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-10-60-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-10-60-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-10-60-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-16-15-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-16-15-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-16-15-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-16-15-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-16-15-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-16-15-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-16-15-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-16-15-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-16-30-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-16-30-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-16-30-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-16-30-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-16-30-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-16-30-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-16-30-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-16-30-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-16-45-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-16-45-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-16-45-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-16-45-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-16-45-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-16-45-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-16-45-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-16-45-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-16-60-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-LS-16-60-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-LS-16-60-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-16-60-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-LS-16-60-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-LS-16-60-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-LS-16-60-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-LS-16-60-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-6-15-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-6-15-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-6-15-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-6-15-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-6-15-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-6-15-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-6-15-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-6-15-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-6-30-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-6-30-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-6-30-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-6-30-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-6-30-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-6-30-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-6-30-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-6-30-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-6-45-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-6-45-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-6-45-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-6-45-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-6-45-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-6-45-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-6-45-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-6-45-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-6-60-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-6-60-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-6-60-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-6-60-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-6-60-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-6-60-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-6-60-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-6-60-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-10-15-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-10-15-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-10-15-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-10-15-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-10-15-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-10-15-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-10-15-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-10-15-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-10-30-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-10-30-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-10-30-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-10-30-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-10-30-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-10-30-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-10-30-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-10-30-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-10-45-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-10-45-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-10-45-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-10-45-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-10-45-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-10-45-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-10-45-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-10-45-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-10-60-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-10-60-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-10-60-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-10-60-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-10-60-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-10-60-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-10-60-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-10-60-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-16-15-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-16-15-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-16-15-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-16-15-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-16-15-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-16-15-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-16-15-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-16-15-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-16-30-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-16-30-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-16-30-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-16-30-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-16-30-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-16-30-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-16-30-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-16-30-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-16-45-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-16-45-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-16-45-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-16-45-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-16-45-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-16-45-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-16-45-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-16-45-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-16-60-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-FA-16-60-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-FA-16-60-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-16-60-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-FA-16-60-0-P7		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-FA-16-60-0-P71		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-FA-16-60-0-P5		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-FA-16-60-0-P51		Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-6-15-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-6-15-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-6-15-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-6-15-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-6-15-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-6-15-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-6-15-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-6-15-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-6-30-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-6-30-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-6-30-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-6-30-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-6-30-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-6-30-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-6-30-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-6-30-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-6-45-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-6-45-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-6-45-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-6-45-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-6-45-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-6-45-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-6-45-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-6-45-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-6-60-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-6-60-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-6-60-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-6-60-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-6-60-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-6-60-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-6-60-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-6-60-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-10-15-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-10-15-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-10-15-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-10-15-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-10-15-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-10-15-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-10-15-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-10-15-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-10-30-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-10-30-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-10-30-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-10-30-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-10-30-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-10-30-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-10-30-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-10-30-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-10-45-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-10-45-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-10-45-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-10-45-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-10-45-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-10-45-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-10-45-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-10-45-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-10-60-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-10-60-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-10-60-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-10-60-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-10-60-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-10-60-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-10-60-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-10-60-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-16-15-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-16-15-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-16-15-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-16-15-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-16-15-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-16-15-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-16-15-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-16-15-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-16-30-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-16-30-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-16-30-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-16-30-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-16-30-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-16-30-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-16-30-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-16-30-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-16-45-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-16-45-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-16-45-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-16-45-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-16-45-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-16-45-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-16-45-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-16-45-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-16-60-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-00-16-60-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-00-16-60-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-16-60-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-00-16-60-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-00-16-60-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-00-16-60-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-00-16-60-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-6-15-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-6-15-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-6-15-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-6-15-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-6-15-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-6-15-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-6-15-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-6-15-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-6-30-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-6-30-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-6-30-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-6-30-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-6-30-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-6-30-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-6-30-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-6-30-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-6-45-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-6-45-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-6-45-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-6-45-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-6-45-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-6-45-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-6-45-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-6-45-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-6-60-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-6-60-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-6-60-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-6-60-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-6-60-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-6-60-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-6-60-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-6-60-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-10-15-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-10-15-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-10-15-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-10-15-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-10-15-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-10-15-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-10-15-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-10-15-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-10-30-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-10-30-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-10-30-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-10-30-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-10-30-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-10-30-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-10-30-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-10-30-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-10-45-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-10-45-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-10-45-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-10-45-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-10-45-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-10-45-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-10-45-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-10-45-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-10-60-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-10-60-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-10-60-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-10-60-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-10-60-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-10-60-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-10-60-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-10-60-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-16-15-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-16-15-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-16-15-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-16-15-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-16-15-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-16-15-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-16-15-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-16-15-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-16-30-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-16-30-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-16-30-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-16-30-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-16-30-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-16-30-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-16-30-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-16-30-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-16-45-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-16-45-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-16-45-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-16-45-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-16-45-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-16-45-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-16-45-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-16-45-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-16-60-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-16-60-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-LS-16-60-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-16-60-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-LS-16-60-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-LS-16-60-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-LS-16-60-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-LS-16-60-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-6-15-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-6-15-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-6-15-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-6-15-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-6-15-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-6-15-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-6-15-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-6-15-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-6-30-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-6-30-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-6-30-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-6-30-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-6-30-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-6-30-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-6-30-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-6-30-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-6-45-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-6-45-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-6-45-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-6-45-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-6-45-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-6-45-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-6-45-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-6-45-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-6-60-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-6-60-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-6-60-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-6-60-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-6-60-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-6-60-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-6-60-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-6-60-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-10-15-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-10-15-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-10-15-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-10-15-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-10-15-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-10-15-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-10-15-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-10-15-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-10-30-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-10-30-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-10-30-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-10-30-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-10-30-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-10-30-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-10-30-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-10-30-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-10-45-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-10-45-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-10-45-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-10-45-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-10-45-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-10-45-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-10-45-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-10-45-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-10-60-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-10-60-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-10-60-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-10-60-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-10-60-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-10-60-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-10-60-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-10-60-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-16-15-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-16-15-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-16-15-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-16-15-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-16-15-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-16-15-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-16-15-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-16-15-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-16-30-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-16-30-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-16-30-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-16-30-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-16-30-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-16-30-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-16-30-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-16-30-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-16-45-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-16-45-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-16-45-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-16-45-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-16-45-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-16-45-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-16-45-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-16-45-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-16-60-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-16-60-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
SCPD3-L-FA-16-60-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-16-60-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
SCPD3-L-FA-16-60-0-P7		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
SCPD3-L-FA-16-60-0-P71		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
SCPD3-L-FA-16-60-0-P5		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
SCPD3-L-FA-16-60-0-P51		Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free

Pneumatic CylindersCKD

576 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCPD3 Pencil Cylinder (Clean Room P7/P5, Double-Acting)

Brand CKD·Pneumatic Cylinders

Available part numbers (576)

SCPD3-00-6-15-P7, SCPD3-00-6-15-P71, SCPD3-00-6-15-P5, SCPD3-00-6-15-P51, SCPD3-00-6-15-0-P7, SCPD3-00-6-15-0-P71, SCPD3-00-6-15-0-P5, SCPD3-00-6-15-0-P51, SCPD3-00-6-30-P7, SCPD3-00-6-30-P71 + 566 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCPD3-00-6-15-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-6-15-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-6-15-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-6-15-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-6-15-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-6-15-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-6-15-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-6-15-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-6-30-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-6-30-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-6-30-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-6-30-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-6-30-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-6-30-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-6-30-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-6-30-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-6-45-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-6-45-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-6-45-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-6-45-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-6-45-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-6-45-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-6-45-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-6-45-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-6-60-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-6-60-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-6-60-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-6-60-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-6-60-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-6-60-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-6-60-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-6-60-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-10-15-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-10-15-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-10-15-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-10-15-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-10-15-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-10-15-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-10-15-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-10-15-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-10-30-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-10-30-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-10-30-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-10-30-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-10-30-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-10-30-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-10-30-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-10-30-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-10-45-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-10-45-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-10-45-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-10-45-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-10-45-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-10-45-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-10-45-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-10-45-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-10-60-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-10-60-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-10-60-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-10-60-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-10-60-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-10-60-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-10-60-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-10-60-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-16-15-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-16-15-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-16-15-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-16-15-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-16-15-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-16-15-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-16-15-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-16-15-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-16-30-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-16-30-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-16-30-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-16-30-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-16-30-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-16-30-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-16-30-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-16-30-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-16-45-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-16-45-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-16-45-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-16-45-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-16-45-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-16-45-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-16-45-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-16-45-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-16-60-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-00-16-60-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-00-16-60-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-16-60-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-00-16-60-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-00-16-60-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-00-16-60-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-00-16-60-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-6-15-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-6-15-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-6-15-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-6-15-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-6-15-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-6-15-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-6-15-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-6-15-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-6-30-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-6-30-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-6-30-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-6-30-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-6-30-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-6-30-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-6-30-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-6-30-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-6-45-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-6-45-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-6-45-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-6-45-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-6-45-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-6-45-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-6-45-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-6-45-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-6-60-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-6-60-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-6-60-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-6-60-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-6-60-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-6-60-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-6-60-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-6-60-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-10-15-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-10-15-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-10-15-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-10-15-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-10-15-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-10-15-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-10-15-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-10-15-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-10-30-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-10-30-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-10-30-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-10-30-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-10-30-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-10-30-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-10-30-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-10-30-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-10-45-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-10-45-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-10-45-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-10-45-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-10-45-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-10-45-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-10-45-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-10-45-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-10-60-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-10-60-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-10-60-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-10-60-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-10-60-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-10-60-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-10-60-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-10-60-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-16-15-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-16-15-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-16-15-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-16-15-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-16-15-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-16-15-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-16-15-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-16-15-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-16-30-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-16-30-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-16-30-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-16-30-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-16-30-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-16-30-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-16-30-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-16-30-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-16-45-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-16-45-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-16-45-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-16-45-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-16-45-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-16-45-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-16-45-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-16-45-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-16-60-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-LS-16-60-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-LS-16-60-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-16-60-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-LS-16-60-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-LS-16-60-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-LS-16-60-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-LS-16-60-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-6-15-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-6-15-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-6-15-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-6-15-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-6-15-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-6-15-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-6-15-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-6-15-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-6-30-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-6-30-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-6-30-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-6-30-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-6-30-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-6-30-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-6-30-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-6-30-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-6-45-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-6-45-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-6-45-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-6-45-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-6-45-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-6-45-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-6-45-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-6-45-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-6-60-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-6-60-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-6-60-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-6-60-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-6-60-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-6-60-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-6-60-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-6-60-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-10-15-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-10-15-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-10-15-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-10-15-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-10-15-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-10-15-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-10-15-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-10-15-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-10-30-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-10-30-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-10-30-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-10-30-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-10-30-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-10-30-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-10-30-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-10-30-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-10-45-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-10-45-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-10-45-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-10-45-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-10-45-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-10-45-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-10-45-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-10-45-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-10-60-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-10-60-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-10-60-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-10-60-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-10-60-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-10-60-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-10-60-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-10-60-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-16-15-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-16-15-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-16-15-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-16-15-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-16-15-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-16-15-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-16-15-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-16-15-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-16-30-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-16-30-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-16-30-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-16-30-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-16-30-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-16-30-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-16-30-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-16-30-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-16-45-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-16-45-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-16-45-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-16-45-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-16-45-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-16-45-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-16-45-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-16-45-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-16-60-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-FA-16-60-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-FA-16-60-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-16-60-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-FA-16-60-0-P7	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-FA-16-60-0-P71	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-FA-16-60-0-P5	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-FA-16-60-0-P51	Model: SCPD3 (no switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-6-15-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-6-15-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-6-15-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-6-15-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-6-15-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-6-15-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-6-15-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-6-15-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-6-30-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-6-30-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-6-30-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-6-30-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-6-30-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-6-30-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-6-30-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-6-30-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-6-45-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-6-45-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-6-45-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-6-45-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-6-45-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-6-45-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-6-45-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-6-45-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-6-60-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-6-60-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-6-60-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-6-60-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-6-60-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-6-60-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-6-60-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-6-60-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-10-15-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-10-15-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-10-15-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-10-15-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-10-15-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-10-15-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-10-15-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-10-15-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-10-30-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-10-30-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-10-30-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-10-30-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-10-30-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-10-30-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-10-30-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-10-30-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-10-45-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-10-45-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-10-45-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-10-45-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-10-45-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-10-45-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-10-45-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-10-45-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-10-60-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-10-60-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-10-60-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-10-60-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-10-60-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-10-60-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-10-60-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-10-60-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-16-15-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-16-15-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-16-15-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-16-15-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-16-15-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-16-15-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-16-15-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-16-15-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-16-30-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-16-30-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-16-30-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-16-30-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-16-30-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-16-30-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-16-30-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-16-30-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-16-45-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-16-45-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-16-45-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-16-45-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-16-45-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-16-45-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-16-45-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-16-45-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-16-60-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-16-60-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-00-16-60-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-16-60-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-00-16-60-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-00-16-60-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-00-16-60-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-00-16-60-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Basic (00) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-6-15-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-6-15-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-6-15-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-6-15-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-6-15-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-6-15-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-6-15-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-6-15-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-6-30-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-6-30-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-6-30-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-6-30-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-6-30-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-6-30-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-6-30-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-6-30-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-6-45-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-6-45-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-6-45-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-6-45-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-6-45-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-6-45-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-6-45-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-6-45-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-6-60-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-6-60-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-6-60-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-6-60-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-6-60-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-6-60-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-6-60-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-6-60-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-10-15-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-10-15-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-10-15-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-10-15-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-10-15-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-10-15-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-10-15-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-10-15-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-10-30-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-10-30-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-10-30-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-10-30-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-10-30-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-10-30-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-10-30-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-10-30-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-10-45-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-10-45-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-10-45-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-10-45-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-10-45-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-10-45-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-10-45-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-10-45-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-10-60-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-10-60-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-10-60-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-10-60-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-10-60-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-10-60-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-10-60-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-10-60-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-16-15-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-16-15-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-16-15-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-16-15-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-16-15-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-16-15-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-16-15-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-16-15-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-16-30-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-16-30-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-16-30-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-16-30-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-16-30-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-16-30-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-16-30-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-16-30-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-16-45-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-16-45-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-16-45-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-16-45-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-16-45-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-16-45-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-16-45-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-16-45-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-16-60-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-16-60-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-16-60-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-16-60-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-LS-16-60-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-LS-16-60-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-LS-16-60-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-LS-16-60-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Single-side axial foot (LS) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-6-15-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-6-15-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-6-15-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-6-15-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-6-15-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-6-15-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-6-15-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-6-15-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-6-30-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-6-30-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-6-30-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-6-30-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-6-30-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-6-30-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-6-30-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-6-30-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-6-45-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-6-45-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-6-45-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-6-45-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-6-45-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-6-45-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-6-45-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-6-45-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-6-60-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-6-60-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-6-60-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-6-60-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-6-60-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-6-60-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-6-60-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-6-60-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 6 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-10-15-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-10-15-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-10-15-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-10-15-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-10-15-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-10-15-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-10-15-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-10-15-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-10-30-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-10-30-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-10-30-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-10-30-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-10-30-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-10-30-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-10-30-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-10-30-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-10-45-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-10-45-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-10-45-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-10-45-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-10-45-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-10-45-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-10-45-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-10-45-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-10-60-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-10-60-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-10-60-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-10-60-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-10-60-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-10-60-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-10-60-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-10-60-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 10 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-16-15-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-16-15-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-16-15-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-16-15-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-16-15-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-16-15-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-16-15-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-16-15-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 15 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-16-30-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-16-30-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-16-30-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-16-30-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-16-30-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-16-30-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-16-30-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-16-30-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 30 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-16-45-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-16-45-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-16-45-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-16-45-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-16-45-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-16-45-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-16-45-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-16-45-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 45 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-16-60-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-16-60-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-16-60-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-16-60-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Vertical \| Clean spec: P51 vacuum, Cu/Si/halogen-free
	SCPD3-L-FA-16-60-0-P7	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P7 exhaust treatment
	SCPD3-L-FA-16-60-0-P71	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P71 vacuum suction
	SCPD3-L-FA-16-60-0-P5	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P5 exhaust, Cu/Si/halogen-free
	SCPD3-L-FA-16-60-0-P51	Model: SCPD3-L (switch magnet) \| Mounting: Rod-end flange (FA) \| Bore: 16 mm \| Stroke: 60 mm \| Head port: Axial (0) \| Clean spec: P51 vacuum, Cu/Si/halogen-free

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCPD3 Pencil Cylinder (Clean Room P7/P5, Double-Acting)
