CKD SCPD3-Z Pencil Cylinder (Double-Acting, With Speed Controller)

CKD SCPD3-Z Pencil Cylinder (Double-Acting, With Speed Controller)

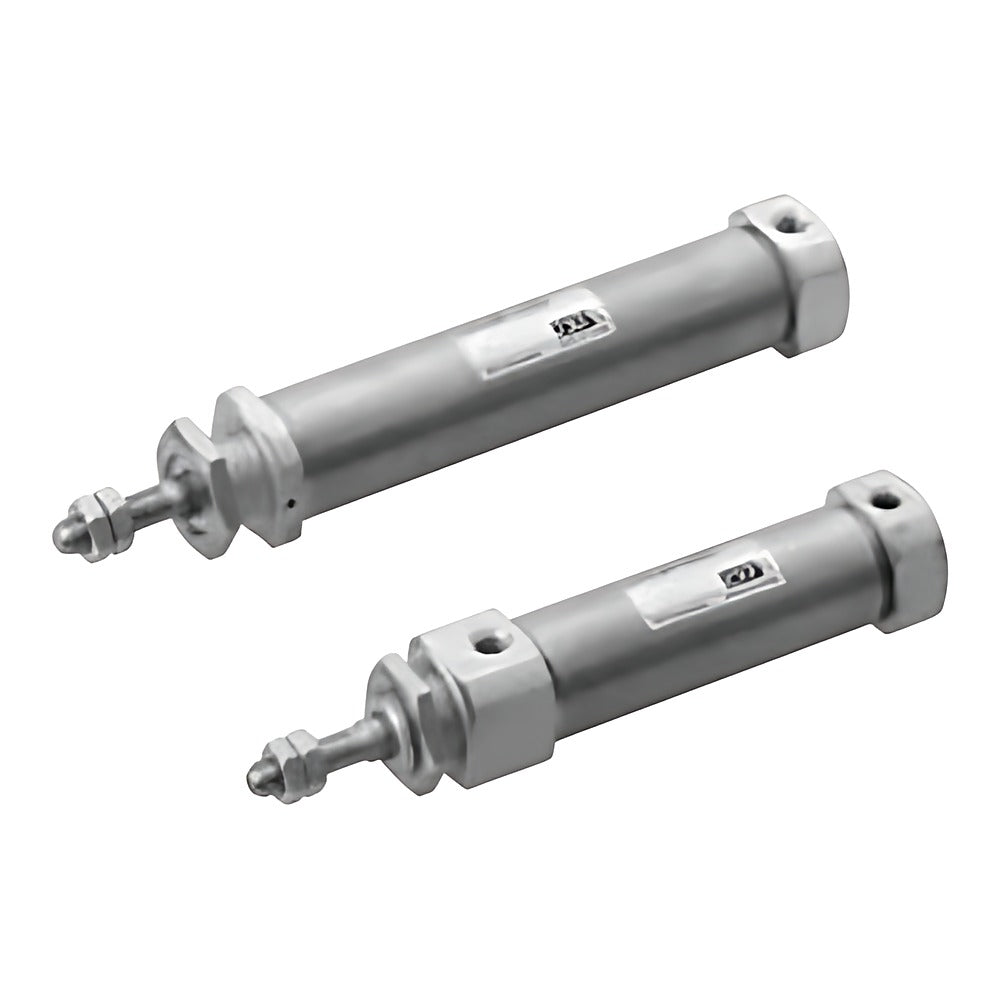

CKD SCPD3-Z double-acting pencil cylinder with speed controllers fitted to the ports, bores 10 and 16 mm (made to order).

Key features

  • Speed controllers integrated on both ports for direct speed adjustment
  • Bores 10/16 mm, standard strokes 15/30/45/60 mm (max. 200/260 mm)
  • Mounting: 00, LS, FA, CB; LS/FA brackets P2-LS-10M/16M and P2-FA-10M/16M
  • Auto switches T0H/T0V, T5H/T5V (reed), T2H/T2V, T3H/T3V, T2WH/T2WV, T3WH/T3WV (solid state) are added after the stroke on switch-ready (-L) models with switch quantity R/H/D/T; lead 1 m standard, 3 m/5 m optional
  • Made-to-order product

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Port size M5
Stroke tolerance +1.0/0 mm
Min. operating pressure 0.1 MPa
Ambient temperature -10 to 60°C
Piston speed 50 to 750 mm/s
Cushion Rubber cushion
Source CKD Korea catalog CB-029SK-9, p. 138-143
