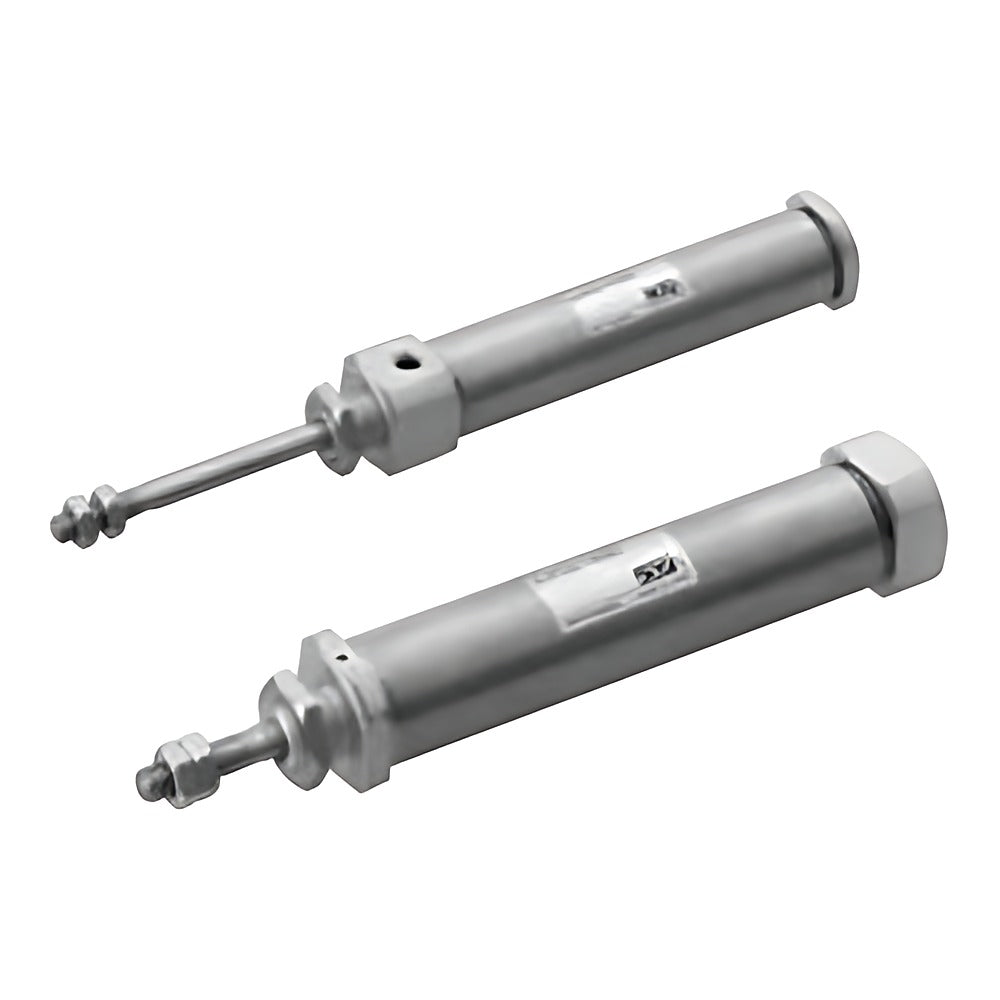

CKD SCPS3 / SCPH3 Pencil Cylinder (Single-Acting Push / Pull)

CKD SCPS3 / SCPH3 Pencil Cylinder (Single-Acting Push / Pull)

CKD SCPS3 (spring-return push) and SCPH3 (spring-return pull) single-acting pencil cylinders in bores 6/10/16 mm, plus the SCPS mini pencil cylinder in bores 2.5 and 4 mm.

Key features

  • SCPS3/SCPH3: bores 6/10/16 mm, standard strokes 15/30/45/60 mm, max. 100 mm (bore 6) or 120 mm
  • SCPS: bores 2.5/4 mm, basic mount only, strokes 5/10 (bore 2.5) and 5-20 mm (bore 4), tube fitting port
  • Mounting: 00, LS, FA, CB (CB bore 10/16 only); axial head port O not available on SCPH3
  • Auto switches T0H/T0V, T5H/T5V (reed), T2H/T2V, T3H/T3V, T2WH/T2WV, T3WH/T3WV (solid state) are added after the stroke on switch-ready (-L) models with switch quantity R/H/D/T; lead 1 m standard, 3 m/5 m optional
  • Rod-end accessories I (single knuckle), Y (double knuckle), B1/B2 (brackets) for bore 10/16 are ordered as a suffix

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Min. operating pressure SCPS 0.35; SCPS3 0.3/0.15; SCPH3 0.39/0.2 MPa
Port size M5 (SCPS: barb for 2.5x4 tube)
Ambient temperature -10 to 60°C
Piston speed 50 to 750 mm/s (SCPS 50 to 300)
Cushion Rubber cushion (SCPS none)
Source CKD Korea catalog CB-029SK-9, p. 104-113
SCPS-00-2.5-5 Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 2.5 mm | Stroke: 5 mm
SCPS-00-2.5-10 Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 2.5 mm | Stroke: 10 mm
SCPS-00-4-5 Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm
SCPS-00-4-10 Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm
SCPS-00-4-15 Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm
SCPS-00-4-20 Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 4 mm | Stroke: 20 mm
SCPS3-00-6-15 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPS3-00-6-30 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPS3-00-6-45 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPS3-00-6-60 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPS3-00-10-15 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPS3-00-10-30 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPS3-00-10-45 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPS3-00-10-60 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPS3-00-16-15 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPS3-00-16-30 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPS3-00-16-45 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPS3-00-16-60 Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPS3-LS-6-15 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPS3-LS-6-30 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPS3-LS-6-45 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPS3-LS-6-60 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPS3-LS-10-15 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPS3-LS-10-30 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPS3-LS-10-45 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPS3-LS-10-60 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPS3-LS-16-15 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPS3-LS-16-30 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPS3-LS-16-45 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPS3-LS-16-60 Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPS3-FA-6-15 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPS3-FA-6-30 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPS3-FA-6-45 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPS3-FA-6-60 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPS3-FA-10-15 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPS3-FA-10-30 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPS3-FA-10-45 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPS3-FA-10-60 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPS3-FA-16-15 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPS3-FA-16-30 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPS3-FA-16-45 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPS3-FA-16-60 Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPS3-CB-10-15 Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPS3-CB-10-30 Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPS3-CB-10-45 Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPS3-CB-10-60 Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPS3-CB-16-15 Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPS3-CB-16-30 Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPS3-CB-16-45 Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPS3-CB-16-60 Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm
SCPS3-L-00-6-15 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPS3-L-00-6-30 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPS3-L-00-6-45 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPS3-L-00-6-60 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPS3-L-00-10-15 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPS3-L-00-10-30 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPS3-L-00-10-45 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPS3-L-00-10-60 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPS3-L-00-16-15 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPS3-L-00-16-30 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPS3-L-00-16-45 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPS3-L-00-16-60 Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPS3-L-LS-6-15 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPS3-L-LS-6-30 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPS3-L-LS-6-45 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPS3-L-LS-6-60 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPS3-L-LS-10-15 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPS3-L-LS-10-30 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPS3-L-LS-10-45 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPS3-L-LS-10-60 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPS3-L-LS-16-15 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPS3-L-LS-16-30 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPS3-L-LS-16-45 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPS3-L-LS-16-60 Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPS3-L-FA-6-15 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPS3-L-FA-6-30 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPS3-L-FA-6-45 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPS3-L-FA-6-60 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPS3-L-FA-10-15 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPS3-L-FA-10-30 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPS3-L-FA-10-45 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPS3-L-FA-10-60 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPS3-L-FA-16-15 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPS3-L-FA-16-30 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPS3-L-FA-16-45 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPS3-L-FA-16-60 Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPS3-L-CB-10-15 Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPS3-L-CB-10-30 Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPS3-L-CB-10-45 Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPS3-L-CB-10-60 Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPS3-L-CB-16-15 Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPS3-L-CB-16-30 Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPS3-L-CB-16-45 Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPS3-L-CB-16-60 Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm
SCPH3-00-6-15 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPH3-00-6-30 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPH3-00-6-45 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPH3-00-6-60 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPH3-00-10-15 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPH3-00-10-30 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPH3-00-10-45 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPH3-00-10-60 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPH3-00-16-15 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPH3-00-16-30 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPH3-00-16-45 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPH3-00-16-60 Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPH3-LS-6-15 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPH3-LS-6-30 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPH3-LS-6-45 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPH3-LS-6-60 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPH3-LS-10-15 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPH3-LS-10-30 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPH3-LS-10-45 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPH3-LS-10-60 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPH3-LS-16-15 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPH3-LS-16-30 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPH3-LS-16-45 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPH3-LS-16-60 Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPH3-FA-6-15 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPH3-FA-6-30 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPH3-FA-6-45 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPH3-FA-6-60 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPH3-FA-10-15 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPH3-FA-10-30 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPH3-FA-10-45 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPH3-FA-10-60 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPH3-FA-16-15 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPH3-FA-16-30 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPH3-FA-16-45 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPH3-FA-16-60 Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPH3-CB-10-15 Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPH3-CB-10-30 Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPH3-CB-10-45 Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPH3-CB-10-60 Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPH3-CB-16-15 Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPH3-CB-16-30 Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPH3-CB-16-45 Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPH3-CB-16-60 Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm
SCPH3-L-00-6-15 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPH3-L-00-6-30 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPH3-L-00-6-45 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPH3-L-00-6-60 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPH3-L-00-10-15 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPH3-L-00-10-30 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPH3-L-00-10-45 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPH3-L-00-10-60 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPH3-L-00-16-15 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPH3-L-00-16-30 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPH3-L-00-16-45 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPH3-L-00-16-60 Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPH3-L-LS-6-15 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPH3-L-LS-6-30 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPH3-L-LS-6-45 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPH3-L-LS-6-60 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPH3-L-LS-10-15 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPH3-L-LS-10-30 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPH3-L-LS-10-45 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPH3-L-LS-10-60 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPH3-L-LS-16-15 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPH3-L-LS-16-30 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPH3-L-LS-16-45 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPH3-L-LS-16-60 Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPH3-L-FA-6-15 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPH3-L-FA-6-30 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPH3-L-FA-6-45 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPH3-L-FA-6-60 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPH3-L-FA-10-15 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPH3-L-FA-10-30 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPH3-L-FA-10-45 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPH3-L-FA-10-60 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPH3-L-FA-16-15 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPH3-L-FA-16-30 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPH3-L-FA-16-45 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPH3-L-FA-16-60 Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPH3-L-CB-10-15 Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPH3-L-CB-10-30 Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPH3-L-CB-10-45 Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPH3-L-CB-10-60 Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPH3-L-CB-16-15 Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPH3-L-CB-16-30 Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPH3-L-CB-16-45 Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPH3-L-CB-16-60 Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm
Pneumatic CylindersCKD
182 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCPS3 / SCPH3 Pencil Cylinder (Single-Acting Push / Pull)

Brand CKD·Pneumatic Cylinders

Available part numbers (182)

SCPS-00-2.5-5, SCPS-00-2.5-10, SCPS-00-4-5, SCPS-00-4-10, SCPS-00-4-15, SCPS-00-4-20, SCPS3-00-6-15, SCPS3-00-6-30, SCPS3-00-6-45, SCPS3-00-6-60 + 172 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCPS-00-2.5-5Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 2.5 mm | Stroke: 5 mm
SCPS-00-2.5-10Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 2.5 mm | Stroke: 10 mm
SCPS-00-4-5Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 4 mm | Stroke: 5 mm
SCPS-00-4-10Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 4 mm | Stroke: 10 mm
SCPS-00-4-15Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 4 mm | Stroke: 15 mm
SCPS-00-4-20Model: SCPS (push, mini bore) | Mounting: Basic | Bore: 4 mm | Stroke: 20 mm
SCPS3-00-6-15Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPS3-00-6-30Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPS3-00-6-45Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPS3-00-6-60Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPS3-00-10-15Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPS3-00-10-30Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPS3-00-10-45Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPS3-00-10-60Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPS3-00-16-15Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPS3-00-16-30Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPS3-00-16-45Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPS3-00-16-60Model: SCPS3 push (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPS3-LS-6-15Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPS3-LS-6-30Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPS3-LS-6-45Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPS3-LS-6-60Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPS3-LS-10-15Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPS3-LS-10-30Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPS3-LS-10-45Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPS3-LS-10-60Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPS3-LS-16-15Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPS3-LS-16-30Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPS3-LS-16-45Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPS3-LS-16-60Model: SCPS3 push (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPS3-FA-6-15Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPS3-FA-6-30Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPS3-FA-6-45Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPS3-FA-6-60Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPS3-FA-10-15Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPS3-FA-10-30Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPS3-FA-10-45Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPS3-FA-10-60Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPS3-FA-16-15Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPS3-FA-16-30Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPS3-FA-16-45Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPS3-FA-16-60Model: SCPS3 push (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPS3-CB-10-15Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPS3-CB-10-30Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPS3-CB-10-45Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPS3-CB-10-60Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPS3-CB-16-15Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPS3-CB-16-30Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPS3-CB-16-45Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPS3-CB-16-60Model: SCPS3 push (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm
SCPS3-L-00-6-15Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPS3-L-00-6-30Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPS3-L-00-6-45Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPS3-L-00-6-60Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPS3-L-00-10-15Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPS3-L-00-10-30Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPS3-L-00-10-45Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPS3-L-00-10-60Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPS3-L-00-16-15Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPS3-L-00-16-30Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPS3-L-00-16-45Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPS3-L-00-16-60Model: SCPS3-L push (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPS3-L-LS-6-15Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPS3-L-LS-6-30Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPS3-L-LS-6-45Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPS3-L-LS-6-60Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPS3-L-LS-10-15Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPS3-L-LS-10-30Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPS3-L-LS-10-45Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPS3-L-LS-10-60Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPS3-L-LS-16-15Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPS3-L-LS-16-30Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPS3-L-LS-16-45Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPS3-L-LS-16-60Model: SCPS3-L push (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPS3-L-FA-6-15Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPS3-L-FA-6-30Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPS3-L-FA-6-45Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPS3-L-FA-6-60Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPS3-L-FA-10-15Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPS3-L-FA-10-30Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPS3-L-FA-10-45Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPS3-L-FA-10-60Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPS3-L-FA-16-15Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPS3-L-FA-16-30Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPS3-L-FA-16-45Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPS3-L-FA-16-60Model: SCPS3-L push (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPS3-L-CB-10-15Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPS3-L-CB-10-30Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPS3-L-CB-10-45Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPS3-L-CB-10-60Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPS3-L-CB-16-15Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPS3-L-CB-16-30Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPS3-L-CB-16-45Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPS3-L-CB-16-60Model: SCPS3-L push (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm
SCPH3-00-6-15Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPH3-00-6-30Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPH3-00-6-45Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPH3-00-6-60Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPH3-00-10-15Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPH3-00-10-30Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPH3-00-10-45Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPH3-00-10-60Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPH3-00-16-15Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPH3-00-16-30Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPH3-00-16-45Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPH3-00-16-60Model: SCPH3 pull (no magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPH3-LS-6-15Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPH3-LS-6-30Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPH3-LS-6-45Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPH3-LS-6-60Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPH3-LS-10-15Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPH3-LS-10-30Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPH3-LS-10-45Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPH3-LS-10-60Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPH3-LS-16-15Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPH3-LS-16-30Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPH3-LS-16-45Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPH3-LS-16-60Model: SCPH3 pull (no magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPH3-FA-6-15Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPH3-FA-6-30Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPH3-FA-6-45Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPH3-FA-6-60Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPH3-FA-10-15Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPH3-FA-10-30Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPH3-FA-10-45Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPH3-FA-10-60Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPH3-FA-16-15Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPH3-FA-16-30Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPH3-FA-16-45Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPH3-FA-16-60Model: SCPH3 pull (no magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPH3-CB-10-15Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPH3-CB-10-30Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPH3-CB-10-45Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPH3-CB-10-60Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPH3-CB-16-15Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPH3-CB-16-30Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPH3-CB-16-45Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPH3-CB-16-60Model: SCPH3 pull (no magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm
SCPH3-L-00-6-15Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
SCPH3-L-00-6-30Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
SCPH3-L-00-6-45Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
SCPH3-L-00-6-60Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
SCPH3-L-00-10-15Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
SCPH3-L-00-10-30Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
SCPH3-L-00-10-45Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
SCPH3-L-00-10-60Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
SCPH3-L-00-16-15Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
SCPH3-L-00-16-30Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
SCPH3-L-00-16-45Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
SCPH3-L-00-16-60Model: SCPH3-L pull (switch magnet) | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
SCPH3-L-LS-6-15Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 15 mm
SCPH3-L-LS-6-30Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 30 mm
SCPH3-L-LS-6-45Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 45 mm
SCPH3-L-LS-6-60Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 6 mm | Stroke: 60 mm
SCPH3-L-LS-10-15Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 15 mm
SCPH3-L-LS-10-30Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 30 mm
SCPH3-L-LS-10-45Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 45 mm
SCPH3-L-LS-10-60Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 10 mm | Stroke: 60 mm
SCPH3-L-LS-16-15Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 15 mm
SCPH3-L-LS-16-30Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 30 mm
SCPH3-L-LS-16-45Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 45 mm
SCPH3-L-LS-16-60Model: SCPH3-L pull (switch magnet) | Mounting: Axial foot, one side | Bore: 16 mm | Stroke: 60 mm
SCPH3-L-FA-6-15Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 15 mm
SCPH3-L-FA-6-30Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 30 mm
SCPH3-L-FA-6-45Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 45 mm
SCPH3-L-FA-6-60Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 6 mm | Stroke: 60 mm
SCPH3-L-FA-10-15Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 15 mm
SCPH3-L-FA-10-30Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 30 mm
SCPH3-L-FA-10-45Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 45 mm
SCPH3-L-FA-10-60Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 10 mm | Stroke: 60 mm
SCPH3-L-FA-16-15Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 15 mm
SCPH3-L-FA-16-30Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 30 mm
SCPH3-L-FA-16-45Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 45 mm
SCPH3-L-FA-16-60Model: SCPH3-L pull (switch magnet) | Mounting: Rod-end flange | Bore: 16 mm | Stroke: 60 mm
SCPH3-L-CB-10-15Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 15 mm
SCPH3-L-CB-10-30Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 30 mm
SCPH3-L-CB-10-45Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 45 mm
SCPH3-L-CB-10-60Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 10 mm | Stroke: 60 mm
SCPH3-L-CB-16-15Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 15 mm
SCPH3-L-CB-16-30Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 30 mm
SCPH3-L-CB-16-45Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 45 mm
SCPH3-L-CB-16-60Model: SCPH3-L pull (switch magnet) | Mounting: Double clevis (pin included) | Bore: 16 mm | Stroke: 60 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
