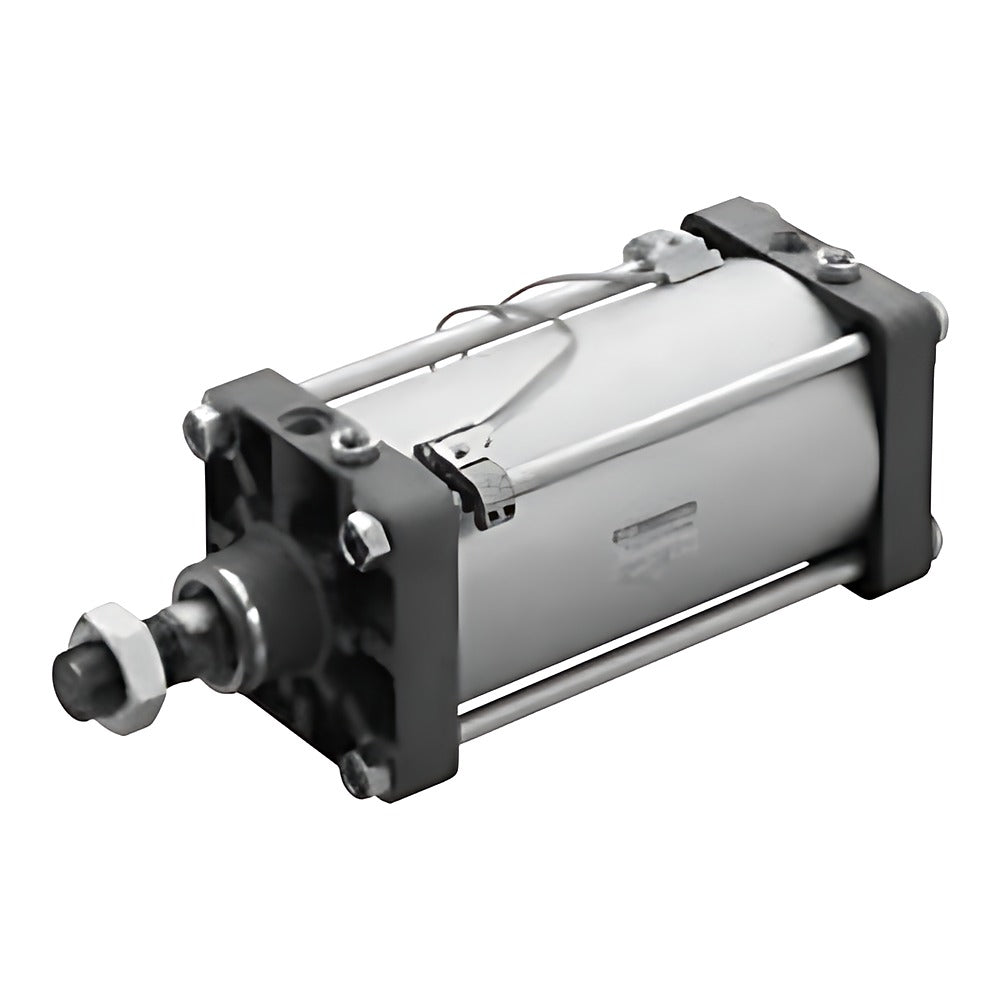

CKD SCS2-LH Selex Cylinder (Low Hydraulic, Switch Type, Bore 125-250) - Part 2

CKD SCS2-LH Selex Cylinder (Low Hydraulic, Switch Type, Bore 125-250) - Part 2

CKD SCS2-LH large-bore low-hydraulic Selex cylinder operating on hydraulic working oil at up to 1.0 MPa, bore 125 to 250 mm.

Key features

  • Operates on hydraulic working oil at low pressure; external shock absorption recommended
  • Nine mounting styles: basic, foot, rod/head flange, single/double clevis, center/rod/head trunnion
  • Cushion: both ends (B), rod end (R), head end (H) or none (N)
  • Standard strokes 50 to 300 mm (min. 20 mm); intermediate strokes in 1 mm steps
  • T-type auto switches (up to 4), options (C2 cushion check valve, J/L bellows, M stainless rod, R/S/T needle position, P6) and knuckles/brackets (I, Y, B1, B2) as suffixes
  • Made to order; -S092 suffix for SCS-LH mounting-compatible type

Specifications

Action Double acting, low hydraulic
Fluid Hydraulic working oil
Max. working pressure 1.0 MPa
Min. working pressure 0.1 MPa
Proof pressure 1.6 MPa
Ambient temperature 5 to 50 C
Piston speed Per hydraulic circuit
Lubrication Hydraulic oil medium
Cushion Cushion
Switch magnet Built in
Source CKD Korea catalog CB-029SK-9, p. 750-755
SCS2-LH-CA-180B-50 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-180B-75 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-180B-100 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-180B-150 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-180B-200 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-180B-250 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-180B-300 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-180R-50 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-180R-75 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-180R-100 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-180R-150 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-180R-200 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-180R-250 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-180R-300 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-180H-50 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-180H-75 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-180H-100 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-180H-150 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-180H-200 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-180H-250 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-180H-300 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-180N-50 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-180N-75 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-180N-100 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-180N-150 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-180N-200 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-180N-250 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-180N-300 Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-200B-50 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-200B-75 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-200B-100 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-200B-150 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-200B-200 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-200B-250 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-200B-300 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-200R-50 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-200R-75 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-200R-100 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-200R-150 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-200R-200 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-200R-250 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-200R-300 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-200H-50 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-200H-75 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-200H-100 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-200H-150 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-200H-200 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-200H-250 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-200H-300 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-200N-50 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-200N-75 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-200N-100 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-200N-150 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-200N-200 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-200N-250 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-200N-300 Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-250B-50 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-CA-250B-75 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-CA-250B-100 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-CA-250B-150 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-CA-250B-200 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-CA-250B-250 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-CA-250B-300 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-CA-250R-50 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-CA-250R-75 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-CA-250R-100 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-CA-250R-150 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-CA-250R-200 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-CA-250R-250 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-CA-250R-300 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-CA-250H-50 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-CA-250H-75 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-CA-250H-100 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-CA-250H-150 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-CA-250H-200 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-CA-250H-250 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-CA-250H-300 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-CA-250N-50 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-CA-250N-75 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-CA-250N-100 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-CA-250N-150 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-CA-250N-200 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-CA-250N-250 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-CA-250N-300 Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1
SCS2-LH-CB-125B-50 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-CB-125B-75 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-CB-125B-100 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-CB-125B-150 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-CB-125B-200 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-CB-125B-250 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-CB-125B-300 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-CB-125R-50 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-CB-125R-75 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-CB-125R-100 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-CB-125R-150 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-CB-125R-200 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-CB-125R-250 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-CB-125R-300 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-CB-125H-50 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-CB-125H-75 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-CB-125H-100 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-CB-125H-150 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-CB-125H-200 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-CB-125H-250 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-CB-125H-300 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-CB-125N-50 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-CB-125N-75 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-CB-125N-100 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-CB-125N-150 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-CB-125N-200 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-CB-125N-250 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-CB-125N-300 Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-CB-140B-50 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-140B-75 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-140B-100 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-140B-150 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-140B-200 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-140B-250 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-140B-300 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-140R-50 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-140R-75 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-140R-100 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-140R-150 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-140R-200 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-140R-250 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-140R-300 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-140H-50 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-140H-75 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-140H-100 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-140H-150 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-140H-200 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-140H-250 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-140H-300 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-140N-50 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-140N-75 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-140N-100 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-140N-150 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-140N-200 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-140N-250 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-140N-300 Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-160B-50 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-160B-75 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-160B-100 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-160B-150 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-160B-200 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-160B-250 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-160B-300 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-160R-50 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-160R-75 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-160R-100 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-160R-150 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-160R-200 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-160R-250 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-160R-300 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-160H-50 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-160H-75 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-160H-100 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-160H-150 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-160H-200 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-160H-250 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-160H-300 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-160N-50 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-160N-75 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-160N-100 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-160N-150 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-160N-200 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-160N-250 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-160N-300 Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-180B-50 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-180B-75 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-180B-100 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-180B-150 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-180B-200 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-180B-250 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-180B-300 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-180R-50 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-180R-75 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-180R-100 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-180R-150 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-180R-200 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-180R-250 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-180R-300 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-180H-50 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-180H-75 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-180H-100 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-180H-150 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-180H-200 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-180H-250 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-180H-300 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-180N-50 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-180N-75 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-180N-100 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-180N-150 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-180N-200 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-180N-250 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-180N-300 Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-200B-50 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-200B-75 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-200B-100 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-200B-150 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-200B-200 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-200B-250 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-200B-300 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-200R-50 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-200R-75 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-200R-100 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-200R-150 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-200R-200 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-200R-250 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-200R-300 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-200H-50 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-200H-75 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-200H-100 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-200H-150 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-200H-200 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-200H-250 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-200H-300 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-200N-50 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-200N-75 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-200N-100 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-200N-150 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-200N-200 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-200N-250 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-200N-300 Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-250B-50 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-CB-250B-75 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-CB-250B-100 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-CB-250B-150 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-CB-250B-200 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-CB-250B-250 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-CB-250B-300 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-CB-250R-50 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-CB-250R-75 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-CB-250R-100 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-CB-250R-150 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-CB-250R-200 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-CB-250R-250 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-CB-250R-300 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-CB-250H-50 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-CB-250H-75 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-CB-250H-100 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-CB-250H-150 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-CB-250H-200 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-CB-250H-250 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-CB-250H-300 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-CB-250N-50 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-CB-250N-75 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-CB-250N-100 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-CB-250N-150 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-CB-250N-200 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-CB-250N-250 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-CB-250N-300 Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1
SCS2-LH-TC-125B-50 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TC-125B-75 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TC-125B-100 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TC-125B-150 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TC-125B-200 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TC-125B-250 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TC-125B-300 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TC-125R-50 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TC-125R-75 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TC-125R-100 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TC-125R-150 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TC-125R-200 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TC-125R-250 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TC-125R-300 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TC-125H-50 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TC-125H-75 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TC-125H-100 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TC-125H-150 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TC-125H-200 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TC-125H-250 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TC-125H-300 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TC-125N-50 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TC-125N-75 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TC-125N-100 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TC-125N-150 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TC-125N-200 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TC-125N-250 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TC-125N-300 Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TC-140B-50 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-140B-75 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-140B-100 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-140B-150 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-140B-200 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-140B-250 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-140B-300 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-140R-50 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-140R-75 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-140R-100 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-140R-150 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-140R-200 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-140R-250 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-140R-300 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-140H-50 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-140H-75 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-140H-100 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-140H-150 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-140H-200 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-140H-250 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-140H-300 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-140N-50 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-140N-75 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-140N-100 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-140N-150 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-140N-200 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-140N-250 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-140N-300 Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-160B-50 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-160B-75 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-160B-100 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-160B-150 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-160B-200 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-160B-250 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-160B-300 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-160R-50 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-160R-75 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-160R-100 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-160R-150 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-160R-200 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-160R-250 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-160R-300 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-160H-50 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-160H-75 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-160H-100 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-160H-150 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-160H-200 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-160H-250 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-160H-300 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-160N-50 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-160N-75 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-160N-100 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-160N-150 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-160N-200 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-160N-250 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-160N-300 Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-180B-50 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-180B-75 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-180B-100 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-180B-150 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-180B-200 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-180B-250 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-180B-300 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-180R-50 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-180R-75 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-180R-100 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-180R-150 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-180R-200 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-180R-250 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-180R-300 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-180H-50 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-180H-75 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-180H-100 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-180H-150 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-180H-200 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-180H-250 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-180H-300 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-180N-50 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-180N-75 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-180N-100 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-180N-150 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-180N-200 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-180N-250 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-180N-300 Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-200B-50 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-200B-75 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-200B-100 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-200B-150 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-200B-200 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-200B-250 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-200B-300 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-200R-50 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-200R-75 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-200R-100 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-200R-150 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-200R-200 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-200R-250 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-200R-300 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-200H-50 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-200H-75 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-200H-100 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-200H-150 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-200H-200 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-200H-250 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-200H-300 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-200N-50 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-200N-75 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-200N-100 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-200N-150 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-200N-200 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-200N-250 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-200N-300 Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-250B-50 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-TC-250B-75 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-TC-250B-100 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-TC-250B-150 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-TC-250B-200 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-TC-250B-250 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-TC-250B-300 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-TC-250R-50 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TC-250R-75 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TC-250R-100 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TC-250R-150 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TC-250R-200 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TC-250R-250 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TC-250R-300 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TC-250H-50 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TC-250H-75 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TC-250H-100 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TC-250H-150 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TC-250H-200 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TC-250H-250 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TC-250H-300 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TC-250N-50 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-TC-250N-75 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-TC-250N-100 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-TC-250N-150 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-TC-250N-200 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-TC-250N-250 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-TC-250N-300 Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1
SCS2-LH-TA-125B-50 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TA-125B-75 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TA-125B-100 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TA-125B-150 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TA-125B-200 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TA-125B-250 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TA-125B-300 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TA-125R-50 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TA-125R-75 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TA-125R-100 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TA-125R-150 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TA-125R-200 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TA-125R-250 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TA-125R-300 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TA-125H-50 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TA-125H-75 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TA-125H-100 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TA-125H-150 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TA-125H-200 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TA-125H-250 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TA-125H-300 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TA-125N-50 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TA-125N-75 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TA-125N-100 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TA-125N-150 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TA-125N-200 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TA-125N-250 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TA-125N-300 Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TA-140B-50 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-140B-75 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-140B-100 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-140B-150 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-140B-200 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-140B-250 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-140B-300 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-140R-50 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-140R-75 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-140R-100 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-140R-150 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-140R-200 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-140R-250 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-140R-300 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-140H-50 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-140H-75 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-140H-100 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-140H-150 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-140H-200 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-140H-250 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-140H-300 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-140N-50 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-140N-75 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-140N-100 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-140N-150 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-140N-200 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-140N-250 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-140N-300 Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-160B-50 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-160B-75 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-160B-100 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-160B-150 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-160B-200 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-160B-250 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-160B-300 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-160R-50 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-160R-75 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-160R-100 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-160R-150 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-160R-200 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-160R-250 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-160R-300 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-160H-50 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-160H-75 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-160H-100 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-160H-150 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-160H-200 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-160H-250 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-160H-300 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-160N-50 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-160N-75 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-160N-100 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-160N-150 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-160N-200 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-160N-250 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-160N-300 Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-180B-50 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-180B-75 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-180B-100 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-180B-150 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-180B-200 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-180B-250 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-180B-300 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-180R-50 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-180R-75 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-180R-100 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-180R-150 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-180R-200 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-180R-250 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-180R-300 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-180H-50 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-180H-75 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-180H-100 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-180H-150 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-180H-200 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-180H-250 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-180H-300 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-180N-50 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-180N-75 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-180N-100 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-180N-150 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-180N-200 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-180N-250 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-180N-300 Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-200B-50 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-200B-75 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-200B-100 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-200B-150 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-200B-200 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-200B-250 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-200B-300 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-200R-50 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-200R-75 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-200R-100 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-200R-150 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-200R-200 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-200R-250 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-200R-300 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-200H-50 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-200H-75 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-200H-100 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-200H-150 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-200H-200 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-200H-250 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-200H-300 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-200N-50 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-200N-75 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-200N-100 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-200N-150 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-200N-200 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-200N-250 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-200N-300 Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-250B-50 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-TA-250B-75 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-TA-250B-100 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-TA-250B-150 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-TA-250B-200 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-TA-250B-250 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-TA-250B-300 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-TA-250R-50 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TA-250R-75 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TA-250R-100 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TA-250R-150 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TA-250R-200 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TA-250R-250 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TA-250R-300 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TA-250H-50 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TA-250H-75 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TA-250H-100 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TA-250H-150 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TA-250H-200 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TA-250H-250 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TA-250H-300 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TA-250N-50 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-TA-250N-75 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-TA-250N-100 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-TA-250N-150 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-TA-250N-200 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-TA-250N-250 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-TA-250N-300 Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1
SCS2-LH-TB-125B-50 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TB-125B-75 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TB-125B-100 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TB-125B-150 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TB-125B-200 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TB-125B-250 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TB-125B-300 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TB-125R-50 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TB-125R-75 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TB-125R-100 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TB-125R-150 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TB-125R-200 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TB-125R-250 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TB-125R-300 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TB-125H-50 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TB-125H-75 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TB-125H-100 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TB-125H-150 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TB-125H-200 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TB-125H-250 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TB-125H-300 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TB-125N-50 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TB-125N-75 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TB-125N-100 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TB-125N-150 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TB-125N-200 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TB-125N-250 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TB-125N-300 Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TB-140B-50 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-140B-75 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-140B-100 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-140B-150 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-140B-200 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-140B-250 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-140B-300 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-140R-50 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-140R-75 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-140R-100 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-140R-150 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-140R-200 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-140R-250 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-140R-300 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-140H-50 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-140H-75 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-140H-100 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-140H-150 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-140H-200 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-140H-250 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-140H-300 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-140N-50 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-140N-75 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-140N-100 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-140N-150 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-140N-200 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-140N-250 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-140N-300 Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-160B-50 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-160B-75 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-160B-100 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-160B-150 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-160B-200 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-160B-250 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-160B-300 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-160R-50 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-160R-75 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-160R-100 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-160R-150 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-160R-200 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-160R-250 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-160R-300 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-160H-50 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-160H-75 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-160H-100 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-160H-150 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-160H-200 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-160H-250 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-160H-300 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-160N-50 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-160N-75 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-160N-100 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-160N-150 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-160N-200 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-160N-250 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-160N-300 Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-180B-50 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-180B-75 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-180B-100 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-180B-150 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-180B-200 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-180B-250 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-180B-300 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-180R-50 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-180R-75 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-180R-100 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-180R-150 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-180R-200 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-180R-250 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-180R-300 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-180H-50 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-180H-75 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-180H-100 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-180H-150 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-180H-200 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-180H-250 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-180H-300 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-180N-50 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-180N-75 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-180N-100 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-180N-150 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-180N-200 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-180N-250 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-180N-300 Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-200B-50 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-200B-75 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-200B-100 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-200B-150 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-200B-200 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-200B-250 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-200B-300 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-200R-50 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-200R-75 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-200R-100 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-200R-150 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-200R-200 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-200R-250 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-200R-300 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-200H-50 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-200H-75 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-200H-100 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-200H-150 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-200H-200 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-200H-250 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-200H-300 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-200N-50 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-200N-75 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-200N-100 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-200N-150 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-200N-200 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-200N-250 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-200N-300 Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-250B-50 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-TB-250B-75 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-TB-250B-100 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-TB-250B-150 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-TB-250B-200 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-TB-250B-250 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-TB-250B-300 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-TB-250R-50 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TB-250R-75 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TB-250R-100 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TB-250R-150 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TB-250R-200 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TB-250R-250 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TB-250R-300 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TB-250H-50 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TB-250H-75 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TB-250H-100 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TB-250H-150 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TB-250H-200 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TB-250H-250 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TB-250H-300 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TB-250N-50 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-TB-250N-75 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-TB-250N-100 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-TB-250N-150 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-TB-250N-200 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-TB-250N-250 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-TB-250N-300 Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1
Pneumatic CylindersCKD
756 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCS2-LH Selex Cylinder (Low Hydraulic, Switch Type, Bore 125-250) - Part 2

Brand CKD·Pneumatic Cylinders

Available part numbers (756)

SCS2-LH-CA-180B-50, SCS2-LH-CA-180B-75, SCS2-LH-CA-180B-100, SCS2-LH-CA-180B-150, SCS2-LH-CA-180B-200, SCS2-LH-CA-180B-250, SCS2-LH-CA-180B-300, SCS2-LH-CA-180R-50, SCS2-LH-CA-180R-75, SCS2-LH-CA-180R-100 + 746 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCS2-LH-CA-180B-50Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-180B-75Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-180B-100Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-180B-150Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-180B-200Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-180B-250Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-180B-300Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-180R-50Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-180R-75Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-180R-100Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-180R-150Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-180R-200Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-180R-250Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-180R-300Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-180H-50Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-180H-75Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-180H-100Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-180H-150Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-180H-200Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-180H-250Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-180H-300Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-180N-50Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-180N-75Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-180N-100Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-180N-150Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-180N-200Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-180N-250Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-180N-300Mounting: Single clevis (CA) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-200B-50Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-200B-75Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-200B-100Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-200B-150Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-200B-200Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-200B-250Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-200B-300Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-200R-50Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-200R-75Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-200R-100Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-200R-150Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-200R-200Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-200R-250Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-200R-300Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-200H-50Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-200H-75Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-200H-100Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-200H-150Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-200H-200Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-200H-250Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-200H-300Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-200N-50Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CA-200N-75Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CA-200N-100Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CA-200N-150Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CA-200N-200Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CA-200N-250Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CA-200N-300Mounting: Single clevis (CA) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CA-250B-50Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-CA-250B-75Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-CA-250B-100Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-CA-250B-150Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-CA-250B-200Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-CA-250B-250Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-CA-250B-300Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-CA-250R-50Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-CA-250R-75Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-CA-250R-100Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-CA-250R-150Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-CA-250R-200Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-CA-250R-250Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-CA-250R-300Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-CA-250H-50Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-CA-250H-75Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-CA-250H-100Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-CA-250H-150Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-CA-250H-200Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-CA-250H-250Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-CA-250H-300Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-CA-250N-50Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-CA-250N-75Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-CA-250N-100Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-CA-250N-150Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-CA-250N-200Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-CA-250N-250Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-CA-250N-300Mounting: Single clevis (CA) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1
SCS2-LH-CB-125B-50Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-CB-125B-75Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-CB-125B-100Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-CB-125B-150Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-CB-125B-200Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-CB-125B-250Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-CB-125B-300Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-CB-125R-50Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-CB-125R-75Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-CB-125R-100Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-CB-125R-150Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-CB-125R-200Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-CB-125R-250Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-CB-125R-300Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-CB-125H-50Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-CB-125H-75Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-CB-125H-100Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-CB-125H-150Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-CB-125H-200Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-CB-125H-250Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-CB-125H-300Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-CB-125N-50Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-CB-125N-75Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-CB-125N-100Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-CB-125N-150Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-CB-125N-200Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-CB-125N-250Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-CB-125N-300Mounting: Double clevis (CB) | Bore: 125 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-CB-140B-50Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-140B-75Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-140B-100Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-140B-150Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-140B-200Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-140B-250Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-140B-300Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-140R-50Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-140R-75Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-140R-100Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-140R-150Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-140R-200Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-140R-250Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-140R-300Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-140H-50Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-140H-75Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-140H-100Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-140H-150Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-140H-200Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-140H-250Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-140H-300Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-140N-50Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-140N-75Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-140N-100Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-140N-150Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-140N-200Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-140N-250Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-140N-300Mounting: Double clevis (CB) | Bore: 140 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-160B-50Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-160B-75Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-160B-100Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-160B-150Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-160B-200Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-160B-250Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-160B-300Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-160R-50Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-160R-75Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-160R-100Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-160R-150Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-160R-200Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-160R-250Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-160R-300Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-160H-50Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-160H-75Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-160H-100Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-160H-150Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-160H-200Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-160H-250Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-160H-300Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-160N-50Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-160N-75Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-160N-100Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-160N-150Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-160N-200Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-160N-250Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-160N-300Mounting: Double clevis (CB) | Bore: 160 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-180B-50Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-180B-75Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-180B-100Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-180B-150Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-180B-200Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-180B-250Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-180B-300Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-180R-50Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-180R-75Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-180R-100Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-180R-150Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-180R-200Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-180R-250Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-180R-300Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-180H-50Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-180H-75Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-180H-100Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-180H-150Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-180H-200Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-180H-250Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-180H-300Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-180N-50Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-180N-75Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-180N-100Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-180N-150Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-180N-200Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-180N-250Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-180N-300Mounting: Double clevis (CB) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-200B-50Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-200B-75Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-200B-100Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-200B-150Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-200B-200Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-200B-250Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-200B-300Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-200R-50Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-200R-75Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-200R-100Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-200R-150Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-200R-200Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-200R-250Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-200R-300Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-200H-50Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-200H-75Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-200H-100Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-200H-150Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-200H-200Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-200H-250Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-200H-300Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-200N-50Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-CB-200N-75Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-CB-200N-100Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-CB-200N-150Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-CB-200N-200Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-CB-200N-250Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-CB-200N-300Mounting: Double clevis (CB) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-CB-250B-50Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-CB-250B-75Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-CB-250B-100Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-CB-250B-150Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-CB-250B-200Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-CB-250B-250Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-CB-250B-300Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-CB-250R-50Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-CB-250R-75Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-CB-250R-100Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-CB-250R-150Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-CB-250R-200Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-CB-250R-250Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-CB-250R-300Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-CB-250H-50Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-CB-250H-75Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-CB-250H-100Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-CB-250H-150Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-CB-250H-200Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-CB-250H-250Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-CB-250H-300Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-CB-250N-50Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-CB-250N-75Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-CB-250N-100Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-CB-250N-150Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-CB-250N-200Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-CB-250N-250Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-CB-250N-300Mounting: Double clevis (CB) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1
SCS2-LH-TC-125B-50Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TC-125B-75Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TC-125B-100Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TC-125B-150Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TC-125B-200Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TC-125B-250Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TC-125B-300Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TC-125R-50Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TC-125R-75Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TC-125R-100Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TC-125R-150Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TC-125R-200Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TC-125R-250Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TC-125R-300Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TC-125H-50Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TC-125H-75Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TC-125H-100Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TC-125H-150Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TC-125H-200Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TC-125H-250Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TC-125H-300Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TC-125N-50Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TC-125N-75Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TC-125N-100Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TC-125N-150Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TC-125N-200Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TC-125N-250Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TC-125N-300Mounting: Center trunnion (TC) | Bore: 125 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TC-140B-50Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-140B-75Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-140B-100Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-140B-150Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-140B-200Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-140B-250Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-140B-300Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-140R-50Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-140R-75Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-140R-100Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-140R-150Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-140R-200Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-140R-250Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-140R-300Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-140H-50Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-140H-75Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-140H-100Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-140H-150Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-140H-200Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-140H-250Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-140H-300Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-140N-50Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-140N-75Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-140N-100Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-140N-150Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-140N-200Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-140N-250Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-140N-300Mounting: Center trunnion (TC) | Bore: 140 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-160B-50Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-160B-75Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-160B-100Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-160B-150Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-160B-200Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-160B-250Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-160B-300Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-160R-50Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-160R-75Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-160R-100Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-160R-150Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-160R-200Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-160R-250Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-160R-300Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-160H-50Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-160H-75Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-160H-100Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-160H-150Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-160H-200Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-160H-250Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-160H-300Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-160N-50Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-160N-75Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-160N-100Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-160N-150Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-160N-200Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-160N-250Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-160N-300Mounting: Center trunnion (TC) | Bore: 160 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-180B-50Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-180B-75Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-180B-100Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-180B-150Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-180B-200Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-180B-250Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-180B-300Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-180R-50Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-180R-75Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-180R-100Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-180R-150Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-180R-200Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-180R-250Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-180R-300Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-180H-50Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-180H-75Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-180H-100Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-180H-150Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-180H-200Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-180H-250Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-180H-300Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-180N-50Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-180N-75Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-180N-100Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-180N-150Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-180N-200Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-180N-250Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-180N-300Mounting: Center trunnion (TC) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-200B-50Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-200B-75Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-200B-100Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-200B-150Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-200B-200Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-200B-250Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-200B-300Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-200R-50Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-200R-75Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-200R-100Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-200R-150Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-200R-200Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-200R-250Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-200R-300Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-200H-50Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-200H-75Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-200H-100Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-200H-150Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-200H-200Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-200H-250Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-200H-300Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-200N-50Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TC-200N-75Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TC-200N-100Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TC-200N-150Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TC-200N-200Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TC-200N-250Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TC-200N-300Mounting: Center trunnion (TC) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TC-250B-50Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-TC-250B-75Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-TC-250B-100Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-TC-250B-150Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-TC-250B-200Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-TC-250B-250Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-TC-250B-300Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-TC-250R-50Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TC-250R-75Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TC-250R-100Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TC-250R-150Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TC-250R-200Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TC-250R-250Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TC-250R-300Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TC-250H-50Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TC-250H-75Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TC-250H-100Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TC-250H-150Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TC-250H-200Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TC-250H-250Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TC-250H-300Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TC-250N-50Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-TC-250N-75Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-TC-250N-100Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-TC-250N-150Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-TC-250N-200Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-TC-250N-250Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-TC-250N-300Mounting: Center trunnion (TC) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1
SCS2-LH-TA-125B-50Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TA-125B-75Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TA-125B-100Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TA-125B-150Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TA-125B-200Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TA-125B-250Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TA-125B-300Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TA-125R-50Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TA-125R-75Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TA-125R-100Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TA-125R-150Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TA-125R-200Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TA-125R-250Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TA-125R-300Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TA-125H-50Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TA-125H-75Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TA-125H-100Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TA-125H-150Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TA-125H-200Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TA-125H-250Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TA-125H-300Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TA-125N-50Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TA-125N-75Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TA-125N-100Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TA-125N-150Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TA-125N-200Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TA-125N-250Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TA-125N-300Mounting: Rod-end trunnion (TA) | Bore: 125 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TA-140B-50Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-140B-75Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-140B-100Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-140B-150Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-140B-200Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-140B-250Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-140B-300Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-140R-50Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-140R-75Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-140R-100Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-140R-150Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-140R-200Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-140R-250Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-140R-300Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-140H-50Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-140H-75Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-140H-100Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-140H-150Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-140H-200Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-140H-250Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-140H-300Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-140N-50Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-140N-75Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-140N-100Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-140N-150Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-140N-200Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-140N-250Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-140N-300Mounting: Rod-end trunnion (TA) | Bore: 140 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-160B-50Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-160B-75Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-160B-100Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-160B-150Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-160B-200Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-160B-250Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-160B-300Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-160R-50Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-160R-75Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-160R-100Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-160R-150Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-160R-200Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-160R-250Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-160R-300Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-160H-50Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-160H-75Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-160H-100Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-160H-150Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-160H-200Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-160H-250Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-160H-300Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-160N-50Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-160N-75Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-160N-100Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-160N-150Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-160N-200Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-160N-250Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-160N-300Mounting: Rod-end trunnion (TA) | Bore: 160 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-180B-50Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-180B-75Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-180B-100Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-180B-150Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-180B-200Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-180B-250Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-180B-300Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-180R-50Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-180R-75Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-180R-100Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-180R-150Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-180R-200Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-180R-250Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-180R-300Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-180H-50Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-180H-75Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-180H-100Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-180H-150Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-180H-200Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-180H-250Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-180H-300Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-180N-50Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-180N-75Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-180N-100Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-180N-150Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-180N-200Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-180N-250Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-180N-300Mounting: Rod-end trunnion (TA) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-200B-50Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-200B-75Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-200B-100Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-200B-150Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-200B-200Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-200B-250Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-200B-300Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-200R-50Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-200R-75Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-200R-100Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-200R-150Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-200R-200Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-200R-250Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-200R-300Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-200H-50Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-200H-75Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-200H-100Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-200H-150Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-200H-200Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-200H-250Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-200H-300Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-200N-50Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TA-200N-75Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TA-200N-100Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TA-200N-150Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TA-200N-200Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TA-200N-250Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TA-200N-300Mounting: Rod-end trunnion (TA) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TA-250B-50Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-TA-250B-75Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-TA-250B-100Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-TA-250B-150Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-TA-250B-200Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-TA-250B-250Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-TA-250B-300Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-TA-250R-50Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TA-250R-75Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TA-250R-100Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TA-250R-150Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TA-250R-200Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TA-250R-250Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TA-250R-300Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TA-250H-50Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TA-250H-75Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TA-250H-100Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TA-250H-150Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TA-250H-200Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TA-250H-250Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TA-250H-300Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TA-250N-50Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-TA-250N-75Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-TA-250N-100Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-TA-250N-150Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-TA-250N-200Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-TA-250N-250Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-TA-250N-300Mounting: Rod-end trunnion (TA) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1
SCS2-LH-TB-125B-50Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TB-125B-75Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TB-125B-100Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TB-125B-150Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TB-125B-200Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TB-125B-250Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TB-125B-300Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TB-125R-50Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TB-125R-75Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TB-125R-100Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TB-125R-150Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TB-125R-200Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TB-125R-250Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TB-125R-300Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TB-125H-50Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TB-125H-75Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TB-125H-100Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TB-125H-150Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TB-125H-200Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TB-125H-250Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TB-125H-300Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TB-125N-50Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 50 mm | Port: Rc1/2
SCS2-LH-TB-125N-75Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 75 mm | Port: Rc1/2
SCS2-LH-TB-125N-100Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 100 mm | Port: Rc1/2
SCS2-LH-TB-125N-150Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 150 mm | Port: Rc1/2
SCS2-LH-TB-125N-200Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 200 mm | Port: Rc1/2
SCS2-LH-TB-125N-250Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 250 mm | Port: Rc1/2
SCS2-LH-TB-125N-300Mounting: Head-end trunnion (TB) | Bore: 125 mm | Cushion: None | Stroke: 300 mm | Port: Rc1/2
SCS2-LH-TB-140B-50Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-140B-75Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-140B-100Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-140B-150Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-140B-200Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-140B-250Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-140B-300Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-140R-50Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-140R-75Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-140R-100Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-140R-150Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-140R-200Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-140R-250Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-140R-300Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-140H-50Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-140H-75Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-140H-100Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-140H-150Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-140H-200Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-140H-250Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-140H-300Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-140N-50Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-140N-75Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-140N-100Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-140N-150Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-140N-200Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-140N-250Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-140N-300Mounting: Head-end trunnion (TB) | Bore: 140 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-160B-50Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-160B-75Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-160B-100Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-160B-150Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-160B-200Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-160B-250Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-160B-300Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-160R-50Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-160R-75Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-160R-100Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-160R-150Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-160R-200Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-160R-250Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-160R-300Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-160H-50Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-160H-75Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-160H-100Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-160H-150Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-160H-200Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-160H-250Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-160H-300Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-160N-50Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-160N-75Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-160N-100Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-160N-150Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-160N-200Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-160N-250Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-160N-300Mounting: Head-end trunnion (TB) | Bore: 160 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-180B-50Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-180B-75Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-180B-100Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-180B-150Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-180B-200Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-180B-250Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-180B-300Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-180R-50Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-180R-75Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-180R-100Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-180R-150Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-180R-200Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-180R-250Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-180R-300Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-180H-50Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-180H-75Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-180H-100Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-180H-150Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-180H-200Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-180H-250Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-180H-300Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-180N-50Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-180N-75Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-180N-100Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-180N-150Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-180N-200Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-180N-250Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-180N-300Mounting: Head-end trunnion (TB) | Bore: 180 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-200B-50Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-200B-75Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-200B-100Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-200B-150Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-200B-200Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-200B-250Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-200B-300Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-200R-50Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-200R-75Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-200R-100Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-200R-150Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-200R-200Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-200R-250Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-200R-300Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-200H-50Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-200H-75Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-200H-100Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-200H-150Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-200H-200Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-200H-250Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-200H-300Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-200N-50Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 50 mm | Port: Rc3/4
SCS2-LH-TB-200N-75Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 75 mm | Port: Rc3/4
SCS2-LH-TB-200N-100Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 100 mm | Port: Rc3/4
SCS2-LH-TB-200N-150Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 150 mm | Port: Rc3/4
SCS2-LH-TB-200N-200Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 200 mm | Port: Rc3/4
SCS2-LH-TB-200N-250Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 250 mm | Port: Rc3/4
SCS2-LH-TB-200N-300Mounting: Head-end trunnion (TB) | Bore: 200 mm | Cushion: None | Stroke: 300 mm | Port: Rc3/4
SCS2-LH-TB-250B-50Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm | Port: Rc1
SCS2-LH-TB-250B-75Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm | Port: Rc1
SCS2-LH-TB-250B-100Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm | Port: Rc1
SCS2-LH-TB-250B-150Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm | Port: Rc1
SCS2-LH-TB-250B-200Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm | Port: Rc1
SCS2-LH-TB-250B-250Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm | Port: Rc1
SCS2-LH-TB-250B-300Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm | Port: Rc1
SCS2-LH-TB-250R-50Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TB-250R-75Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TB-250R-100Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TB-250R-150Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TB-250R-200Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TB-250R-250Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TB-250R-300Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TB-250H-50Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm | Port: Rc1
SCS2-LH-TB-250H-75Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm | Port: Rc1
SCS2-LH-TB-250H-100Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm | Port: Rc1
SCS2-LH-TB-250H-150Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm | Port: Rc1
SCS2-LH-TB-250H-200Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm | Port: Rc1
SCS2-LH-TB-250H-250Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm | Port: Rc1
SCS2-LH-TB-250H-300Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm | Port: Rc1
SCS2-LH-TB-250N-50Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 50 mm | Port: Rc1
SCS2-LH-TB-250N-75Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 75 mm | Port: Rc1
SCS2-LH-TB-250N-100Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 100 mm | Port: Rc1
SCS2-LH-TB-250N-150Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 150 mm | Port: Rc1
SCS2-LH-TB-250N-200Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 200 mm | Port: Rc1
SCS2-LH-TB-250N-250Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 250 mm | Port: Rc1
SCS2-LH-TB-250N-300Mounting: Head-end trunnion (TB) | Bore: 250 mm | Cushion: None | Stroke: 300 mm | Port: Rc1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
