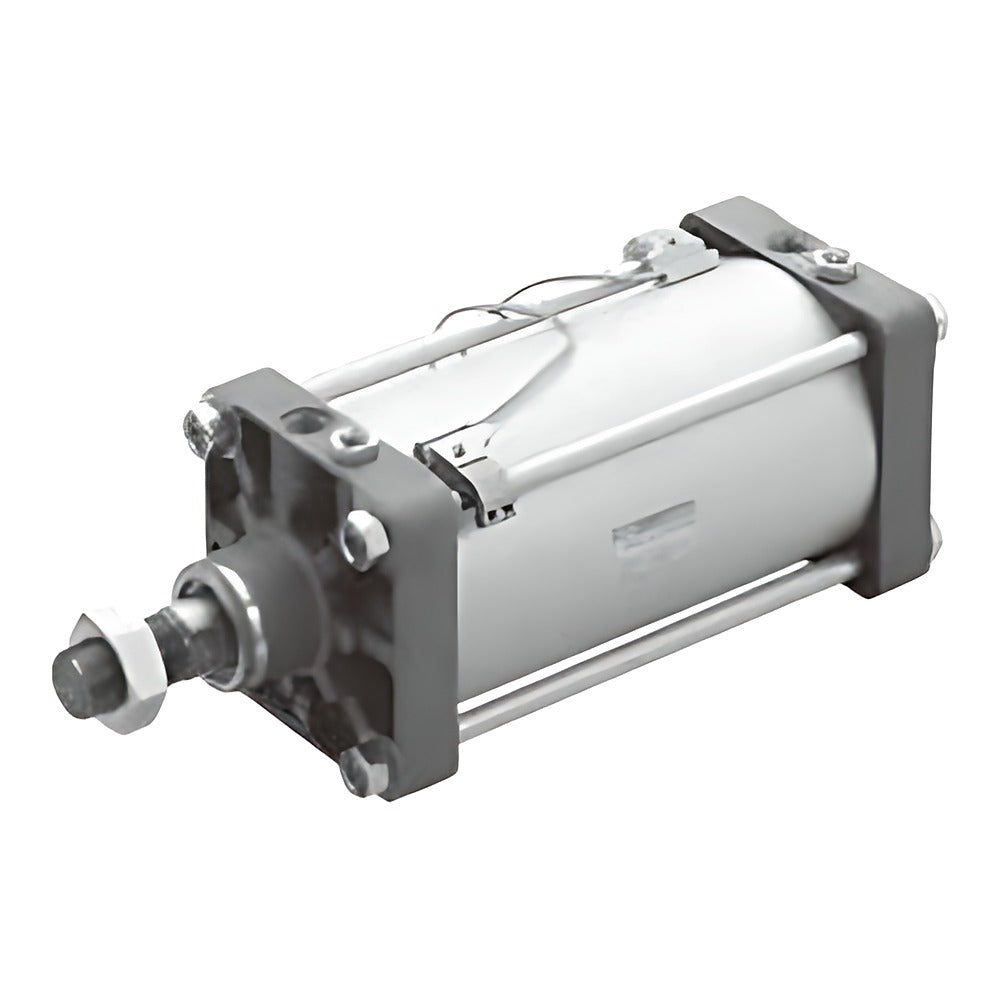

CKD SCS2-LNG-FP1 Selex Cylinder (Strong Scraper, Switch Magnet)

CKD SCS2-LNG-FP1 Selex Cylinder (Strong Scraper, Switch Magnet)

CKD SCS2-LNG-FP1 large-bore oil-free Selex cylinder (strong scraper, with switch magnet), bore 125-250 mm, with NSF H1 food-grade grease.

Key features

  • NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
  • Large bore Selex cylinder, bore 125-250 mm; non-lube type
  • Standard strokes 50-300 mm; max. 800-1200 mm by bore
  • Air cushion both ends/rod/head or none
  • Hole-type trunnions TF/TD/TE made to order; cushion check valve C2, bellows J/K/L, stainless rod M, needle position R/S/T and rod-end I/Y/B1/B2 as suffixes

Specifications

Fluid Compressed air
Type Double acting, strong scraper (G)
Switch magnet Yes (LN)
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Proof pressure 1.6 MPa
Ambient temperature -5 to 60 C
Port Rc1/2 (125), Rc3/4 (140-200), Rc1 (250)
Source CKD Korea catalog CC-1271K, p. 80-81
SCS2-LNG-00-125B-50-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-125B-75-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-125B-100-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-125B-150-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-125B-200-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-125B-250-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-125B-300-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-125R-50-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-125R-75-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-125R-100-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-125R-150-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-125R-200-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-125R-250-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-125R-300-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-125H-50-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-125H-75-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-125H-100-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-125H-150-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-125H-200-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-125H-250-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-125H-300-FP1 Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-125N-50-FP1 Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-125N-75-FP1 Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-125N-100-FP1 Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-125N-150-FP1 Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-125N-200-FP1 Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-125N-250-FP1 Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-125N-300-FP1 Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-140B-50-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-140B-75-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-140B-100-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-140B-150-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-140B-200-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-140B-250-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-140B-300-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-140R-50-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-140R-75-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-140R-100-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-140R-150-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-140R-200-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-140R-250-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-140R-300-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-140H-50-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-140H-75-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-140H-100-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-140H-150-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-140H-200-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-140H-250-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-140H-300-FP1 Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-140N-50-FP1 Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-140N-75-FP1 Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-140N-100-FP1 Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-140N-150-FP1 Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-140N-200-FP1 Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-140N-250-FP1 Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-140N-300-FP1 Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-160B-50-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-160B-75-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-160B-100-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-160B-150-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-160B-200-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-160B-250-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-160B-300-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-160R-50-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-160R-75-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-160R-100-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-160R-150-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-160R-200-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-160R-250-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-160R-300-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-160H-50-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-160H-75-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-160H-100-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-160H-150-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-160H-200-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-160H-250-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-160H-300-FP1 Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-160N-50-FP1 Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-160N-75-FP1 Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-160N-100-FP1 Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-160N-150-FP1 Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-160N-200-FP1 Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-160N-250-FP1 Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-160N-300-FP1 Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-180B-50-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-180B-75-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-180B-100-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-180B-150-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-180B-200-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-180B-250-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-180B-300-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-180R-50-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-180R-75-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-180R-100-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-180R-150-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-180R-200-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-180R-250-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-180R-300-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-180H-50-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-180H-75-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-180H-100-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-180H-150-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-180H-200-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-180H-250-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-180H-300-FP1 Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-180N-50-FP1 Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-180N-75-FP1 Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-180N-100-FP1 Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-180N-150-FP1 Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-180N-200-FP1 Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-180N-250-FP1 Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-180N-300-FP1 Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-200B-50-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-200B-75-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-200B-100-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-200B-150-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-200B-200-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-200B-250-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-200B-300-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-200R-50-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-200R-75-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-200R-100-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-200R-150-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-200R-200-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-200R-250-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-200R-300-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-200H-50-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-200H-75-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-200H-100-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-200H-150-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-200H-200-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-200H-250-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-200H-300-FP1 Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-200N-50-FP1 Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-200N-75-FP1 Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-200N-100-FP1 Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-200N-150-FP1 Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-200N-200-FP1 Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-200N-250-FP1 Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-200N-300-FP1 Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-250B-50-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-250B-75-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-250B-100-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-250B-150-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-250B-200-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-250B-250-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-250B-300-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-250R-50-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-250R-75-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-250R-100-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-250R-150-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-250R-200-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-250R-250-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-250R-300-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-250H-50-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-250H-75-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-250H-100-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-250H-150-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-250H-200-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-250H-250-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-250H-300-FP1 Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-250N-50-FP1 Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-250N-75-FP1 Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-250N-100-FP1 Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-250N-150-FP1 Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-250N-200-FP1 Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-250N-250-FP1 Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-250N-300-FP1 Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-125B-50-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-125B-75-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-125B-100-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-125B-150-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-125B-200-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-125B-250-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-125B-300-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-125R-50-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-125R-75-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-125R-100-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-125R-150-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-125R-200-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-125R-250-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-125R-300-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-125H-50-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-125H-75-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-125H-100-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-125H-150-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-125H-200-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-125H-250-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-125H-300-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-125N-50-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-125N-75-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-125N-100-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-125N-150-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-125N-200-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-125N-250-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-125N-300-FP1 Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-140B-50-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-140B-75-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-140B-100-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-140B-150-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-140B-200-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-140B-250-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-140B-300-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-140R-50-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-140R-75-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-140R-100-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-140R-150-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-140R-200-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-140R-250-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-140R-300-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-140H-50-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-140H-75-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-140H-100-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-140H-150-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-140H-200-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-140H-250-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-140H-300-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-140N-50-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-140N-75-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-140N-100-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-140N-150-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-140N-200-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-140N-250-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-140N-300-FP1 Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-160B-50-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-160B-75-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-160B-100-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-160B-150-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-160B-200-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-160B-250-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-160B-300-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-160R-50-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-160R-75-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-160R-100-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-160R-150-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-160R-200-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-160R-250-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-160R-300-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-160H-50-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-160H-75-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-160H-100-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-160H-150-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-160H-200-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-160H-250-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-160H-300-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-160N-50-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-160N-75-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-160N-100-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-160N-150-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-160N-200-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-160N-250-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-160N-300-FP1 Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-180B-50-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-180B-75-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-180B-100-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-180B-150-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-180B-200-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-180B-250-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-180B-300-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-180R-50-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-180R-75-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-180R-100-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-180R-150-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-180R-200-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-180R-250-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-180R-300-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-180H-50-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-180H-75-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-180H-100-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-180H-150-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-180H-200-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-180H-250-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-180H-300-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-180N-50-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-180N-75-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-180N-100-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-180N-150-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-180N-200-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-180N-250-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-180N-300-FP1 Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-200B-50-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-200B-75-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-200B-100-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-200B-150-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-200B-200-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-200B-250-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-200B-300-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-200R-50-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-200R-75-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-200R-100-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-200R-150-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-200R-200-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-200R-250-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-200R-300-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-200H-50-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-200H-75-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-200H-100-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-200H-150-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-200H-200-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-200H-250-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-200H-300-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-200N-50-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-200N-75-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-200N-100-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-200N-150-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-200N-200-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-200N-250-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-200N-300-FP1 Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-250B-50-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-250B-75-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-250B-100-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-250B-150-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-250B-200-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-250B-250-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-250B-300-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-250R-50-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-250R-75-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-250R-100-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-250R-150-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-250R-200-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-250R-250-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-250R-300-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-250H-50-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-250H-75-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-250H-100-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-250H-150-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-250H-200-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-250H-250-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-250H-300-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-250N-50-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-250N-75-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-250N-100-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-250N-150-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-250N-200-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-250N-250-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-250N-300-FP1 Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-125B-50-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-125B-75-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-125B-100-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-125B-150-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-125B-200-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-125B-250-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-125B-300-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-125R-50-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-125R-75-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-125R-100-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-125R-150-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-125R-200-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-125R-250-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-125R-300-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-125H-50-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-125H-75-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-125H-100-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-125H-150-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-125H-200-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-125H-250-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-125H-300-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-125N-50-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-125N-75-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-125N-100-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-125N-150-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-125N-200-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-125N-250-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-125N-300-FP1 Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-140B-50-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-140B-75-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-140B-100-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-140B-150-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-140B-200-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-140B-250-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-140B-300-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-140R-50-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-140R-75-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-140R-100-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-140R-150-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-140R-200-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-140R-250-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-140R-300-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-140H-50-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-140H-75-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-140H-100-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-140H-150-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-140H-200-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-140H-250-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-140H-300-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-140N-50-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-140N-75-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-140N-100-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-140N-150-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-140N-200-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-140N-250-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-140N-300-FP1 Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-160B-50-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-160B-75-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-160B-100-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-160B-150-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-160B-200-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-160B-250-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-160B-300-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-160R-50-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-160R-75-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-160R-100-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-160R-150-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-160R-200-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-160R-250-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-160R-300-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-160H-50-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-160H-75-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-160H-100-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-160H-150-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-160H-200-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-160H-250-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-160H-300-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-160N-50-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-160N-75-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-160N-100-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-160N-150-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-160N-200-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-160N-250-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-160N-300-FP1 Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-180B-50-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-180B-75-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-180B-100-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-180B-150-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-180B-200-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-180B-250-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-180B-300-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-180R-50-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-180R-75-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-180R-100-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-180R-150-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-180R-200-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-180R-250-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-180R-300-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-180H-50-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-180H-75-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-180H-100-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-180H-150-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-180H-200-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-180H-250-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-180H-300-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-180N-50-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-180N-75-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-180N-100-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-180N-150-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-180N-200-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-180N-250-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-180N-300-FP1 Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-200B-50-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-200B-75-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-200B-100-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-200B-150-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-200B-200-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-200B-250-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-200B-300-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-200R-50-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-200R-75-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-200R-100-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-200R-150-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-200R-200-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-200R-250-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-200R-300-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-200H-50-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-200H-75-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-200H-100-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-200H-150-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-200H-200-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-200H-250-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-200H-300-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-200N-50-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-200N-75-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-200N-100-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-200N-150-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-200N-200-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-200N-250-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-200N-300-FP1 Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-250B-50-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-250B-75-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-250B-100-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-250B-150-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-250B-200-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-250B-250-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-250B-300-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-250R-50-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-250R-75-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-250R-100-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-250R-150-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-250R-200-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-250R-250-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-250R-300-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-250H-50-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-250H-75-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-250H-100-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-250H-150-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-250H-200-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-250H-250-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-250H-300-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-250N-50-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-250N-75-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-250N-100-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-250N-150-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-250N-200-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-250N-250-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-250N-300-FP1 Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-125B-50-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-125B-75-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-125B-100-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-125B-150-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-125B-200-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-125B-250-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-125B-300-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-125R-50-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-125R-75-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-125R-100-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-125R-150-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-125R-200-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-125R-250-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-125R-300-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-125H-50-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-125H-75-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-125H-100-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-125H-150-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-125H-200-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-125H-250-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-125H-300-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-125N-50-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-125N-75-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-125N-100-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-125N-150-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-125N-200-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-125N-250-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-125N-300-FP1 Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-140B-50-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-140B-75-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-140B-100-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-140B-150-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-140B-200-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-140B-250-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-140B-300-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-140R-50-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-140R-75-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-140R-100-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-140R-150-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-140R-200-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-140R-250-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-140R-300-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-140H-50-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-140H-75-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-140H-100-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-140H-150-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-140H-200-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-140H-250-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-140H-300-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-140N-50-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-140N-75-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-140N-100-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-140N-150-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-140N-200-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-140N-250-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-140N-300-FP1 Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-160B-50-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-160B-75-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-160B-100-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-160B-150-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-160B-200-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-160B-250-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-160B-300-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-160R-50-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-160R-75-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-160R-100-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-160R-150-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-160R-200-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-160R-250-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-160R-300-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-160H-50-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-160H-75-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-160H-100-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-160H-150-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-160H-200-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-160H-250-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-160H-300-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-160N-50-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-160N-75-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-160N-100-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-160N-150-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-160N-200-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-160N-250-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-160N-300-FP1 Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-180B-50-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-180B-75-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-180B-100-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-180B-150-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-180B-200-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-180B-250-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-180B-300-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-180R-50-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-180R-75-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-180R-100-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-180R-150-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-180R-200-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-180R-250-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-180R-300-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-180H-50-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-180H-75-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-180H-100-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-180H-150-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-180H-200-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-180H-250-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-180H-300-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-180N-50-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-180N-75-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-180N-100-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-180N-150-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-180N-200-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-180N-250-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-180N-300-FP1 Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-200B-50-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-200B-75-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-200B-100-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-200B-150-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-200B-200-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-200B-250-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-200B-300-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-200R-50-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-200R-75-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-200R-100-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-200R-150-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-200R-200-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-200R-250-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-200R-300-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-200H-50-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-200H-75-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-200H-100-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-200H-150-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-200H-200-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-200H-250-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-200H-300-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-200N-50-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-200N-75-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-200N-100-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-200N-150-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-200N-200-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-200N-250-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-200N-300-FP1 Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-250B-50-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-250B-75-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-250B-100-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-250B-150-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-250B-200-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-250B-250-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-250B-300-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-250R-50-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-250R-75-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-250R-100-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-250R-150-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-250R-200-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-250R-250-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-250R-300-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-250H-50-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-250H-75-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-250H-100-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-250H-150-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-250H-200-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-250H-250-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-250H-300-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-250N-50-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-250N-75-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-250N-100-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-250N-150-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-250N-200-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-250N-250-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-250N-300-FP1 Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-CA-125B-50-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-CA-125B-75-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-CA-125B-100-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-CA-125B-150-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-CA-125B-200-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-CA-125B-250-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-CA-125B-300-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-CA-125R-50-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-CA-125R-75-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-CA-125R-100-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-CA-125R-150-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-CA-125R-200-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-CA-125R-250-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-CA-125R-300-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-CA-125H-50-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-CA-125H-75-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-CA-125H-100-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-CA-125H-150-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-CA-125H-200-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-CA-125H-250-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-CA-125H-300-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-CA-125N-50-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-CA-125N-75-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-CA-125N-100-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-CA-125N-150-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-CA-125N-200-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-CA-125N-250-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-CA-125N-300-FP1 Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-CA-140B-50-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-CA-140B-75-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-CA-140B-100-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-CA-140B-150-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-CA-140B-200-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-CA-140B-250-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-CA-140B-300-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-CA-140R-50-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-CA-140R-75-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-CA-140R-100-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-CA-140R-150-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-CA-140R-200-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-CA-140R-250-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-CA-140R-300-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-CA-140H-50-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-CA-140H-75-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-CA-140H-100-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-CA-140H-150-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-CA-140H-200-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-CA-140H-250-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-CA-140H-300-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-CA-140N-50-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-CA-140N-75-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-CA-140N-100-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-CA-140N-150-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-CA-140N-200-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-CA-140N-250-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-CA-140N-300-FP1 Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-CA-160B-50-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-CA-160B-75-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-CA-160B-100-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-CA-160B-150-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-CA-160B-200-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-CA-160B-250-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-CA-160B-300-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-CA-160R-50-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-CA-160R-75-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-CA-160R-100-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-CA-160R-150-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-CA-160R-200-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-CA-160R-250-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-CA-160R-300-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-CA-160H-50-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-CA-160H-75-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-CA-160H-100-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-CA-160H-150-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-CA-160H-200-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-CA-160H-250-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-CA-160H-300-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-CA-160N-50-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-CA-160N-75-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-CA-160N-100-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-CA-160N-150-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-CA-160N-200-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-CA-160N-250-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-CA-160N-300-FP1 Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 300 mm
Pneumatic CylindersCKD
756 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCS2-LNG-FP1 Selex Cylinder (Strong Scraper, Switch Magnet)

Brand CKD·Pneumatic Cylinders

Available part numbers (756)

SCS2-LNG-00-125B-50-FP1, SCS2-LNG-00-125B-75-FP1, SCS2-LNG-00-125B-100-FP1, SCS2-LNG-00-125B-150-FP1, SCS2-LNG-00-125B-200-FP1, SCS2-LNG-00-125B-250-FP1, SCS2-LNG-00-125B-300-FP1, SCS2-LNG-00-125R-50-FP1, SCS2-LNG-00-125R-75-FP1, SCS2-LNG-00-125R-100-FP1 + 746 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCS2-LNG-00-125B-50-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-125B-75-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-125B-100-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-125B-150-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-125B-200-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-125B-250-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-125B-300-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-125R-50-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-125R-75-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-125R-100-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-125R-150-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-125R-200-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-125R-250-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-125R-300-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-125H-50-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-125H-75-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-125H-100-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-125H-150-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-125H-200-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-125H-250-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-125H-300-FP1Mounting: Basic | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-125N-50-FP1Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-125N-75-FP1Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-125N-100-FP1Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-125N-150-FP1Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-125N-200-FP1Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-125N-250-FP1Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-125N-300-FP1Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-140B-50-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-140B-75-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-140B-100-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-140B-150-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-140B-200-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-140B-250-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-140B-300-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-140R-50-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-140R-75-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-140R-100-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-140R-150-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-140R-200-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-140R-250-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-140R-300-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-140H-50-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-140H-75-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-140H-100-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-140H-150-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-140H-200-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-140H-250-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-140H-300-FP1Mounting: Basic | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-140N-50-FP1Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-140N-75-FP1Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-140N-100-FP1Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-140N-150-FP1Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-140N-200-FP1Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-140N-250-FP1Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-140N-300-FP1Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-160B-50-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-160B-75-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-160B-100-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-160B-150-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-160B-200-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-160B-250-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-160B-300-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-160R-50-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-160R-75-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-160R-100-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-160R-150-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-160R-200-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-160R-250-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-160R-300-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-160H-50-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-160H-75-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-160H-100-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-160H-150-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-160H-200-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-160H-250-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-160H-300-FP1Mounting: Basic | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-160N-50-FP1Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-160N-75-FP1Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-160N-100-FP1Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-160N-150-FP1Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-160N-200-FP1Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-160N-250-FP1Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-160N-300-FP1Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-180B-50-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-180B-75-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-180B-100-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-180B-150-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-180B-200-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-180B-250-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-180B-300-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-180R-50-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-180R-75-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-180R-100-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-180R-150-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-180R-200-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-180R-250-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-180R-300-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-180H-50-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-180H-75-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-180H-100-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-180H-150-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-180H-200-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-180H-250-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-180H-300-FP1Mounting: Basic | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-180N-50-FP1Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-180N-75-FP1Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-180N-100-FP1Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-180N-150-FP1Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-180N-200-FP1Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-180N-250-FP1Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-180N-300-FP1Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-200B-50-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-200B-75-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-200B-100-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-200B-150-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-200B-200-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-200B-250-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-200B-300-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-200R-50-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-200R-75-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-200R-100-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-200R-150-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-200R-200-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-200R-250-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-200R-300-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-200H-50-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-200H-75-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-200H-100-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-200H-150-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-200H-200-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-200H-250-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-200H-300-FP1Mounting: Basic | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-200N-50-FP1Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-200N-75-FP1Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-200N-100-FP1Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-200N-150-FP1Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-200N-200-FP1Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-200N-250-FP1Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-200N-300-FP1Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-00-250B-50-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-00-250B-75-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-00-250B-100-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-00-250B-150-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-00-250B-200-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-00-250B-250-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-00-250B-300-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-00-250R-50-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-00-250R-75-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-00-250R-100-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-00-250R-150-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-00-250R-200-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-00-250R-250-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-00-250R-300-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-00-250H-50-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-00-250H-75-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-00-250H-100-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-00-250H-150-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-00-250H-200-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-00-250H-250-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-00-250H-300-FP1Mounting: Basic | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-00-250N-50-FP1Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-00-250N-75-FP1Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-00-250N-100-FP1Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-00-250N-150-FP1Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-00-250N-200-FP1Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-00-250N-250-FP1Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-00-250N-300-FP1Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-125B-50-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-125B-75-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-125B-100-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-125B-150-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-125B-200-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-125B-250-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-125B-300-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-125R-50-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-125R-75-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-125R-100-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-125R-150-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-125R-200-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-125R-250-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-125R-300-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-125H-50-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-125H-75-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-125H-100-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-125H-150-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-125H-200-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-125H-250-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-125H-300-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-125N-50-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-125N-75-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-125N-100-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-125N-150-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-125N-200-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-125N-250-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-125N-300-FP1Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-140B-50-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-140B-75-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-140B-100-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-140B-150-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-140B-200-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-140B-250-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-140B-300-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-140R-50-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-140R-75-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-140R-100-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-140R-150-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-140R-200-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-140R-250-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-140R-300-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-140H-50-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-140H-75-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-140H-100-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-140H-150-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-140H-200-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-140H-250-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-140H-300-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-140N-50-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-140N-75-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-140N-100-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-140N-150-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-140N-200-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-140N-250-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-140N-300-FP1Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-160B-50-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-160B-75-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-160B-100-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-160B-150-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-160B-200-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-160B-250-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-160B-300-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-160R-50-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-160R-75-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-160R-100-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-160R-150-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-160R-200-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-160R-250-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-160R-300-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-160H-50-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-160H-75-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-160H-100-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-160H-150-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-160H-200-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-160H-250-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-160H-300-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-160N-50-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-160N-75-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-160N-100-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-160N-150-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-160N-200-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-160N-250-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-160N-300-FP1Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-180B-50-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-180B-75-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-180B-100-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-180B-150-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-180B-200-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-180B-250-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-180B-300-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-180R-50-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-180R-75-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-180R-100-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-180R-150-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-180R-200-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-180R-250-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-180R-300-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-180H-50-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-180H-75-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-180H-100-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-180H-150-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-180H-200-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-180H-250-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-180H-300-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-180N-50-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-180N-75-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-180N-100-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-180N-150-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-180N-200-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-180N-250-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-180N-300-FP1Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-200B-50-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-200B-75-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-200B-100-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-200B-150-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-200B-200-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-200B-250-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-200B-300-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-200R-50-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-200R-75-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-200R-100-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-200R-150-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-200R-200-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-200R-250-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-200R-300-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-200H-50-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-200H-75-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-200H-100-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-200H-150-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-200H-200-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-200H-250-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-200H-300-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-200N-50-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-200N-75-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-200N-100-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-200N-150-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-200N-200-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-200N-250-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-200N-300-FP1Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-LB-250B-50-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-LB-250B-75-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-LB-250B-100-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-LB-250B-150-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-LB-250B-200-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-LB-250B-250-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-LB-250B-300-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-LB-250R-50-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-LB-250R-75-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-LB-250R-100-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-LB-250R-150-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-LB-250R-200-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-LB-250R-250-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-LB-250R-300-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-LB-250H-50-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-LB-250H-75-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-LB-250H-100-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-LB-250H-150-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-LB-250H-200-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-LB-250H-250-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-LB-250H-300-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-LB-250N-50-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-LB-250N-75-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-LB-250N-100-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-LB-250N-150-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-LB-250N-200-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-LB-250N-250-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-LB-250N-300-FP1Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-125B-50-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-125B-75-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-125B-100-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-125B-150-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-125B-200-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-125B-250-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-125B-300-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-125R-50-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-125R-75-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-125R-100-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-125R-150-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-125R-200-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-125R-250-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-125R-300-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-125H-50-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-125H-75-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-125H-100-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-125H-150-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-125H-200-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-125H-250-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-125H-300-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-125N-50-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-125N-75-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-125N-100-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-125N-150-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-125N-200-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-125N-250-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-125N-300-FP1Mounting: Rod-side flange | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-140B-50-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-140B-75-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-140B-100-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-140B-150-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-140B-200-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-140B-250-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-140B-300-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-140R-50-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-140R-75-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-140R-100-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-140R-150-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-140R-200-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-140R-250-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-140R-300-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-140H-50-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-140H-75-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-140H-100-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-140H-150-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-140H-200-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-140H-250-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-140H-300-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-140N-50-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-140N-75-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-140N-100-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-140N-150-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-140N-200-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-140N-250-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-140N-300-FP1Mounting: Rod-side flange | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-160B-50-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-160B-75-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-160B-100-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-160B-150-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-160B-200-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-160B-250-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-160B-300-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-160R-50-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-160R-75-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-160R-100-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-160R-150-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-160R-200-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-160R-250-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-160R-300-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-160H-50-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-160H-75-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-160H-100-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-160H-150-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-160H-200-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-160H-250-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-160H-300-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-160N-50-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-160N-75-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-160N-100-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-160N-150-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-160N-200-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-160N-250-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-160N-300-FP1Mounting: Rod-side flange | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-180B-50-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-180B-75-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-180B-100-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-180B-150-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-180B-200-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-180B-250-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-180B-300-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-180R-50-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-180R-75-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-180R-100-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-180R-150-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-180R-200-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-180R-250-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-180R-300-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-180H-50-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-180H-75-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-180H-100-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-180H-150-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-180H-200-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-180H-250-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-180H-300-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-180N-50-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-180N-75-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-180N-100-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-180N-150-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-180N-200-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-180N-250-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-180N-300-FP1Mounting: Rod-side flange | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-200B-50-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-200B-75-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-200B-100-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-200B-150-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-200B-200-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-200B-250-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-200B-300-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-200R-50-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-200R-75-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-200R-100-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-200R-150-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-200R-200-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-200R-250-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-200R-300-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-200H-50-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-200H-75-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-200H-100-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-200H-150-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-200H-200-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-200H-250-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-200H-300-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-200N-50-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-200N-75-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-200N-100-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-200N-150-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-200N-200-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-200N-250-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-200N-300-FP1Mounting: Rod-side flange | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FA-250B-50-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FA-250B-75-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FA-250B-100-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FA-250B-150-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FA-250B-200-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FA-250B-250-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FA-250B-300-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FA-250R-50-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FA-250R-75-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FA-250R-100-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FA-250R-150-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FA-250R-200-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FA-250R-250-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FA-250R-300-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FA-250H-50-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FA-250H-75-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FA-250H-100-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FA-250H-150-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FA-250H-200-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FA-250H-250-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FA-250H-300-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FA-250N-50-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FA-250N-75-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FA-250N-100-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FA-250N-150-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FA-250N-200-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FA-250N-250-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FA-250N-300-FP1Mounting: Rod-side flange | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-125B-50-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-125B-75-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-125B-100-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-125B-150-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-125B-200-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-125B-250-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-125B-300-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-125R-50-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-125R-75-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-125R-100-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-125R-150-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-125R-200-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-125R-250-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-125R-300-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-125H-50-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-125H-75-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-125H-100-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-125H-150-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-125H-200-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-125H-250-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-125H-300-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-125N-50-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-125N-75-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-125N-100-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-125N-150-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-125N-200-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-125N-250-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-125N-300-FP1Mounting: Head-side flange | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-140B-50-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-140B-75-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-140B-100-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-140B-150-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-140B-200-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-140B-250-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-140B-300-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-140R-50-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-140R-75-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-140R-100-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-140R-150-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-140R-200-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-140R-250-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-140R-300-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-140H-50-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-140H-75-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-140H-100-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-140H-150-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-140H-200-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-140H-250-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-140H-300-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-140N-50-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-140N-75-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-140N-100-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-140N-150-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-140N-200-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-140N-250-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-140N-300-FP1Mounting: Head-side flange | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-160B-50-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-160B-75-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-160B-100-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-160B-150-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-160B-200-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-160B-250-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-160B-300-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-160R-50-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-160R-75-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-160R-100-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-160R-150-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-160R-200-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-160R-250-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-160R-300-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-160H-50-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-160H-75-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-160H-100-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-160H-150-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-160H-200-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-160H-250-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-160H-300-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-160N-50-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-160N-75-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-160N-100-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-160N-150-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-160N-200-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-160N-250-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-160N-300-FP1Mounting: Head-side flange | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-180B-50-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-180B-75-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-180B-100-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-180B-150-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-180B-200-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-180B-250-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-180B-300-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-180R-50-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-180R-75-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-180R-100-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-180R-150-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-180R-200-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-180R-250-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-180R-300-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-180H-50-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-180H-75-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-180H-100-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-180H-150-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-180H-200-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-180H-250-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-180H-300-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-180N-50-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-180N-75-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-180N-100-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-180N-150-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-180N-200-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-180N-250-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-180N-300-FP1Mounting: Head-side flange | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-200B-50-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-200B-75-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-200B-100-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-200B-150-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-200B-200-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-200B-250-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-200B-300-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-200R-50-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-200R-75-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-200R-100-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-200R-150-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-200R-200-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-200R-250-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-200R-300-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-200H-50-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-200H-75-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-200H-100-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-200H-150-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-200H-200-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-200H-250-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-200H-300-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-200N-50-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-200N-75-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-200N-100-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-200N-150-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-200N-200-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-200N-250-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-200N-300-FP1Mounting: Head-side flange | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-FB-250B-50-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-FB-250B-75-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-FB-250B-100-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-FB-250B-150-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-FB-250B-200-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-FB-250B-250-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-FB-250B-300-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-FB-250R-50-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-FB-250R-75-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-FB-250R-100-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-FB-250R-150-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-FB-250R-200-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-FB-250R-250-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-FB-250R-300-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-FB-250H-50-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-FB-250H-75-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-FB-250H-100-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-FB-250H-150-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-FB-250H-200-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-FB-250H-250-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-FB-250H-300-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-FB-250N-50-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-FB-250N-75-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-FB-250N-100-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-FB-250N-150-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-FB-250N-200-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-FB-250N-250-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-FB-250N-300-FP1Mounting: Head-side flange | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-CA-125B-50-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-CA-125B-75-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-CA-125B-100-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-CA-125B-150-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-CA-125B-200-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-CA-125B-250-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-CA-125B-300-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-CA-125R-50-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-CA-125R-75-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-CA-125R-100-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-CA-125R-150-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-CA-125R-200-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-CA-125R-250-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-CA-125R-300-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-CA-125H-50-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-CA-125H-75-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-CA-125H-100-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-CA-125H-150-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-CA-125H-200-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-CA-125H-250-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-CA-125H-300-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-CA-125N-50-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-CA-125N-75-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-CA-125N-100-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-CA-125N-150-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-CA-125N-200-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-CA-125N-250-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-CA-125N-300-FP1Mounting: Single clevis | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-CA-140B-50-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-CA-140B-75-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-CA-140B-100-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-CA-140B-150-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-CA-140B-200-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-CA-140B-250-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-CA-140B-300-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-CA-140R-50-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-CA-140R-75-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-CA-140R-100-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-CA-140R-150-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-CA-140R-200-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-CA-140R-250-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-CA-140R-300-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-CA-140H-50-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-CA-140H-75-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-CA-140H-100-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-CA-140H-150-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-CA-140H-200-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-CA-140H-250-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-CA-140H-300-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-CA-140N-50-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-CA-140N-75-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-CA-140N-100-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-CA-140N-150-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-CA-140N-200-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-CA-140N-250-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-CA-140N-300-FP1Mounting: Single clevis | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-LNG-CA-160B-50-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 50 mm
SCS2-LNG-CA-160B-75-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 75 mm
SCS2-LNG-CA-160B-100-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 100 mm
SCS2-LNG-CA-160B-150-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 150 mm
SCS2-LNG-CA-160B-200-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 200 mm
SCS2-LNG-CA-160B-250-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 250 mm
SCS2-LNG-CA-160B-300-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, both ends | Stroke: 300 mm
SCS2-LNG-CA-160R-50-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 50 mm
SCS2-LNG-CA-160R-75-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 75 mm
SCS2-LNG-CA-160R-100-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 100 mm
SCS2-LNG-CA-160R-150-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 150 mm
SCS2-LNG-CA-160R-200-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 200 mm
SCS2-LNG-CA-160R-250-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 250 mm
SCS2-LNG-CA-160R-300-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, rod end | Stroke: 300 mm
SCS2-LNG-CA-160H-50-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 50 mm
SCS2-LNG-CA-160H-75-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 75 mm
SCS2-LNG-CA-160H-100-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 100 mm
SCS2-LNG-CA-160H-150-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 150 mm
SCS2-LNG-CA-160H-200-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 200 mm
SCS2-LNG-CA-160H-250-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 250 mm
SCS2-LNG-CA-160H-300-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: Air, head end | Stroke: 300 mm
SCS2-LNG-CA-160N-50-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-LNG-CA-160N-75-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-LNG-CA-160N-100-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-LNG-CA-160N-150-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-LNG-CA-160N-200-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-LNG-CA-160N-250-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-LNG-CA-160N-300-FP1Mounting: Single clevis | Bore: 160 mm | Cushion: None | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
