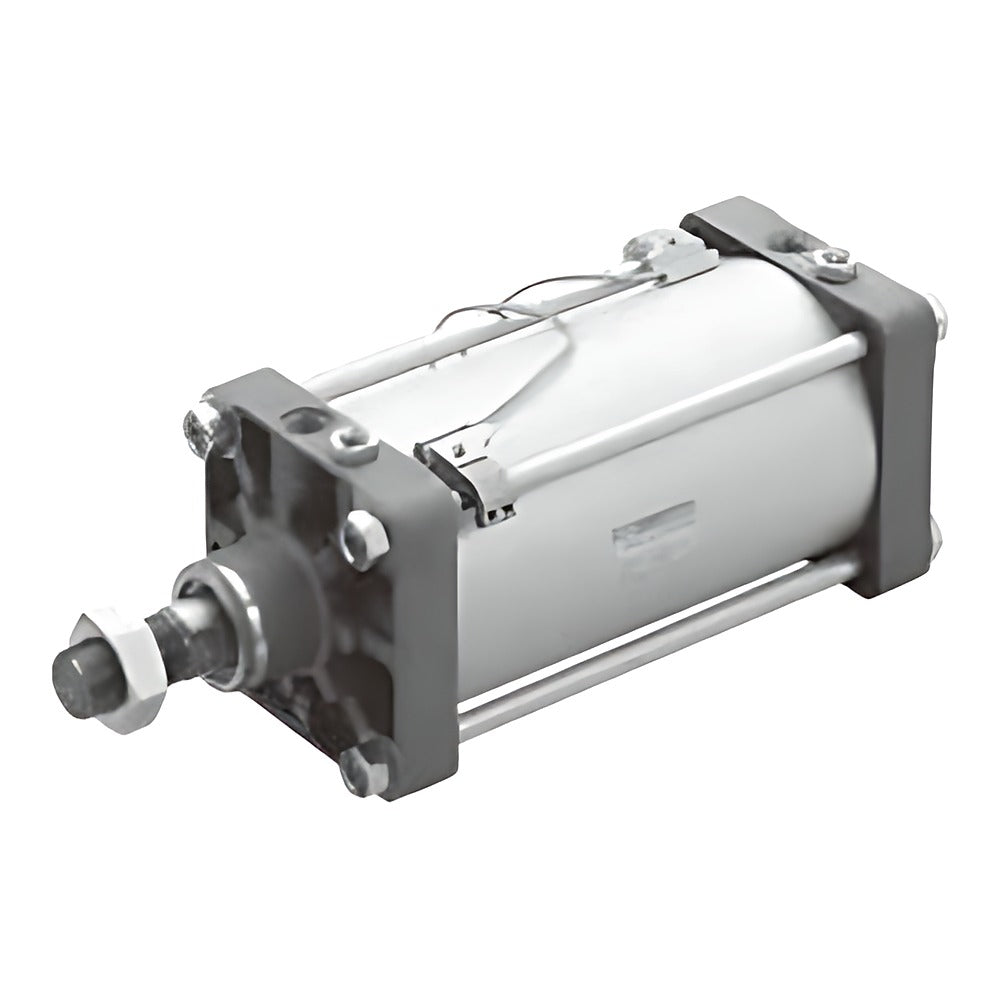

CKD SCS2-LNG-FP1 Selex Cylinder (Strong Scraper, Switch Magnet) - Part 2

CKD SCS2-LNG-FP1 large-bore oil-free Selex cylinder (strong scraper, with switch magnet), bore 125-250 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Large bore Selex cylinder, bore 125-250 mm; non-lube type
Standard strokes 50-300 mm; max. 800-1200 mm by bore
Air cushion both ends/rod/head or none
Hole-type trunnions TF/TD/TE made to order; cushion check valve C2, bellows J/K/L, stainless rod M, needle position R/S/T and rod-end I/Y/B1/B2 as suffixes

Specifications

Fluid	Compressed air
Type	Double acting, strong scraper (G)
Switch magnet	Yes (LN)
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	-5 to 60 C
Port	Rc1/2 (125), Rc3/4 (140-200), Rc1 (250)
Source	CKD Korea catalog CC-1271K, p. 80-81

SCS2-LNG-CA-180B-50-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-CA-180B-75-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-CA-180B-100-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-CA-180B-150-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-CA-180B-200-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-CA-180B-250-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-CA-180B-300-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-CA-180R-50-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-CA-180R-75-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-CA-180R-100-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-CA-180R-150-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-CA-180R-200-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-CA-180R-250-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-CA-180R-300-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-CA-180H-50-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-CA-180H-75-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-CA-180H-100-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-CA-180H-150-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-CA-180H-200-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-CA-180H-250-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-CA-180H-300-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-CA-180N-50-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-CA-180N-75-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-CA-180N-100-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-CA-180N-150-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-CA-180N-200-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-CA-180N-250-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-CA-180N-300-FP1		Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-CA-200B-50-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-CA-200B-75-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-CA-200B-100-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-CA-200B-150-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-CA-200B-200-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-CA-200B-250-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-CA-200B-300-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-CA-200R-50-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-CA-200R-75-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-CA-200R-100-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-CA-200R-150-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-CA-200R-200-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-CA-200R-250-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-CA-200R-300-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-CA-200H-50-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-CA-200H-75-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-CA-200H-100-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-CA-200H-150-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-CA-200H-200-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-CA-200H-250-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-CA-200H-300-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-CA-200N-50-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-CA-200N-75-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-CA-200N-100-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-CA-200N-150-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-CA-200N-200-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-CA-200N-250-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-CA-200N-300-FP1		Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-CA-250B-50-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-CA-250B-75-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-CA-250B-100-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-CA-250B-150-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-CA-250B-200-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-CA-250B-250-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-CA-250B-300-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-CA-250R-50-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-CA-250R-75-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-CA-250R-100-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-CA-250R-150-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-CA-250R-200-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-CA-250R-250-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-CA-250R-300-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-CA-250H-50-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-CA-250H-75-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-CA-250H-100-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-CA-250H-150-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-CA-250H-200-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-CA-250H-250-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-CA-250H-300-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-CA-250N-50-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-CA-250N-75-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-CA-250N-100-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-CA-250N-150-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-CA-250N-200-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-CA-250N-250-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-CA-250N-300-FP1		Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-CB-125B-50-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-CB-125B-75-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-CB-125B-100-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-CB-125B-150-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-CB-125B-200-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-CB-125B-250-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-CB-125B-300-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-CB-125R-50-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-CB-125R-75-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-CB-125R-100-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-CB-125R-150-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-CB-125R-200-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-CB-125R-250-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-CB-125R-300-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-CB-125H-50-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-CB-125H-75-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-CB-125H-100-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-CB-125H-150-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-CB-125H-200-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-CB-125H-250-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-CB-125H-300-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-CB-125N-50-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-CB-125N-75-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-CB-125N-100-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-CB-125N-150-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-CB-125N-200-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-CB-125N-250-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-CB-125N-300-FP1		Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-CB-140B-50-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-CB-140B-75-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-CB-140B-100-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-CB-140B-150-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-CB-140B-200-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-CB-140B-250-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-CB-140B-300-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-CB-140R-50-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-CB-140R-75-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-CB-140R-100-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-CB-140R-150-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-CB-140R-200-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-CB-140R-250-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-CB-140R-300-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-CB-140H-50-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-CB-140H-75-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-CB-140H-100-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-CB-140H-150-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-CB-140H-200-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-CB-140H-250-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-CB-140H-300-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-CB-140N-50-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-CB-140N-75-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-CB-140N-100-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-CB-140N-150-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-CB-140N-200-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-CB-140N-250-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-CB-140N-300-FP1		Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-CB-160B-50-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-CB-160B-75-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-CB-160B-100-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-CB-160B-150-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-CB-160B-200-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-CB-160B-250-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-CB-160B-300-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-CB-160R-50-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-CB-160R-75-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-CB-160R-100-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-CB-160R-150-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-CB-160R-200-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-CB-160R-250-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-CB-160R-300-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-CB-160H-50-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-CB-160H-75-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-CB-160H-100-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-CB-160H-150-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-CB-160H-200-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-CB-160H-250-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-CB-160H-300-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-CB-160N-50-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-CB-160N-75-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-CB-160N-100-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-CB-160N-150-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-CB-160N-200-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-CB-160N-250-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-CB-160N-300-FP1		Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-CB-180B-50-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-CB-180B-75-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-CB-180B-100-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-CB-180B-150-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-CB-180B-200-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-CB-180B-250-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-CB-180B-300-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-CB-180R-50-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-CB-180R-75-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-CB-180R-100-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-CB-180R-150-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-CB-180R-200-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-CB-180R-250-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-CB-180R-300-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-CB-180H-50-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-CB-180H-75-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-CB-180H-100-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-CB-180H-150-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-CB-180H-200-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-CB-180H-250-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-CB-180H-300-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-CB-180N-50-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-CB-180N-75-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-CB-180N-100-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-CB-180N-150-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-CB-180N-200-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-CB-180N-250-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-CB-180N-300-FP1		Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-CB-200B-50-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-CB-200B-75-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-CB-200B-100-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-CB-200B-150-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-CB-200B-200-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-CB-200B-250-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-CB-200B-300-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-CB-200R-50-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-CB-200R-75-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-CB-200R-100-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-CB-200R-150-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-CB-200R-200-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-CB-200R-250-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-CB-200R-300-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-CB-200H-50-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-CB-200H-75-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-CB-200H-100-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-CB-200H-150-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-CB-200H-200-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-CB-200H-250-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-CB-200H-300-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-CB-200N-50-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-CB-200N-75-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-CB-200N-100-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-CB-200N-150-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-CB-200N-200-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-CB-200N-250-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-CB-200N-300-FP1		Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-CB-250B-50-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-CB-250B-75-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-CB-250B-100-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-CB-250B-150-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-CB-250B-200-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-CB-250B-250-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-CB-250B-300-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-CB-250R-50-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-CB-250R-75-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-CB-250R-100-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-CB-250R-150-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-CB-250R-200-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-CB-250R-250-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-CB-250R-300-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-CB-250H-50-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-CB-250H-75-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-CB-250H-100-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-CB-250H-150-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-CB-250H-200-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-CB-250H-250-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-CB-250H-300-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-CB-250N-50-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-CB-250N-75-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-CB-250N-100-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-CB-250N-150-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-CB-250N-200-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-CB-250N-250-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-CB-250N-300-FP1		Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TC-125B-50-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TC-125B-75-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TC-125B-100-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TC-125B-150-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TC-125B-200-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TC-125B-250-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TC-125B-300-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TC-125R-50-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TC-125R-75-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TC-125R-100-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TC-125R-150-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TC-125R-200-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TC-125R-250-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TC-125R-300-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TC-125H-50-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TC-125H-75-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TC-125H-100-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TC-125H-150-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TC-125H-200-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TC-125H-250-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TC-125H-300-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TC-125N-50-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TC-125N-75-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TC-125N-100-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TC-125N-150-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TC-125N-200-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TC-125N-250-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TC-125N-300-FP1		Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TC-140B-50-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TC-140B-75-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TC-140B-100-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TC-140B-150-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TC-140B-200-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TC-140B-250-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TC-140B-300-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TC-140R-50-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TC-140R-75-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TC-140R-100-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TC-140R-150-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TC-140R-200-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TC-140R-250-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TC-140R-300-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TC-140H-50-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TC-140H-75-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TC-140H-100-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TC-140H-150-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TC-140H-200-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TC-140H-250-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TC-140H-300-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TC-140N-50-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TC-140N-75-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TC-140N-100-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TC-140N-150-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TC-140N-200-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TC-140N-250-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TC-140N-300-FP1		Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TC-160B-50-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TC-160B-75-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TC-160B-100-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TC-160B-150-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TC-160B-200-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TC-160B-250-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TC-160B-300-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TC-160R-50-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TC-160R-75-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TC-160R-100-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TC-160R-150-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TC-160R-200-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TC-160R-250-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TC-160R-300-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TC-160H-50-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TC-160H-75-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TC-160H-100-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TC-160H-150-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TC-160H-200-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TC-160H-250-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TC-160H-300-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TC-160N-50-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TC-160N-75-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TC-160N-100-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TC-160N-150-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TC-160N-200-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TC-160N-250-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TC-160N-300-FP1		Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TC-180B-50-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TC-180B-75-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TC-180B-100-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TC-180B-150-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TC-180B-200-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TC-180B-250-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TC-180B-300-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TC-180R-50-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TC-180R-75-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TC-180R-100-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TC-180R-150-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TC-180R-200-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TC-180R-250-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TC-180R-300-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TC-180H-50-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TC-180H-75-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TC-180H-100-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TC-180H-150-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TC-180H-200-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TC-180H-250-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TC-180H-300-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TC-180N-50-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TC-180N-75-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TC-180N-100-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TC-180N-150-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TC-180N-200-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TC-180N-250-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TC-180N-300-FP1		Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TC-200B-50-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TC-200B-75-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TC-200B-100-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TC-200B-150-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TC-200B-200-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TC-200B-250-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TC-200B-300-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TC-200R-50-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TC-200R-75-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TC-200R-100-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TC-200R-150-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TC-200R-200-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TC-200R-250-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TC-200R-300-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TC-200H-50-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TC-200H-75-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TC-200H-100-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TC-200H-150-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TC-200H-200-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TC-200H-250-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TC-200H-300-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TC-200N-50-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TC-200N-75-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TC-200N-100-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TC-200N-150-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TC-200N-200-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TC-200N-250-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TC-200N-300-FP1		Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TC-250B-50-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TC-250B-75-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TC-250B-100-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TC-250B-150-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TC-250B-200-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TC-250B-250-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TC-250B-300-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TC-250R-50-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TC-250R-75-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TC-250R-100-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TC-250R-150-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TC-250R-200-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TC-250R-250-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TC-250R-300-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TC-250H-50-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TC-250H-75-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TC-250H-100-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TC-250H-150-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TC-250H-200-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TC-250H-250-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TC-250H-300-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TC-250N-50-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TC-250N-75-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TC-250N-100-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TC-250N-150-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TC-250N-200-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TC-250N-250-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TC-250N-300-FP1		Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TA-125B-50-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TA-125B-75-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TA-125B-100-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TA-125B-150-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TA-125B-200-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TA-125B-250-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TA-125B-300-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TA-125R-50-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TA-125R-75-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TA-125R-100-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TA-125R-150-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TA-125R-200-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TA-125R-250-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TA-125R-300-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TA-125H-50-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TA-125H-75-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TA-125H-100-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TA-125H-150-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TA-125H-200-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TA-125H-250-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TA-125H-300-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TA-125N-50-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TA-125N-75-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TA-125N-100-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TA-125N-150-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TA-125N-200-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TA-125N-250-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TA-125N-300-FP1		Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TA-140B-50-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TA-140B-75-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TA-140B-100-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TA-140B-150-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TA-140B-200-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TA-140B-250-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TA-140B-300-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TA-140R-50-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TA-140R-75-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TA-140R-100-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TA-140R-150-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TA-140R-200-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TA-140R-250-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TA-140R-300-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TA-140H-50-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TA-140H-75-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TA-140H-100-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TA-140H-150-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TA-140H-200-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TA-140H-250-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TA-140H-300-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TA-140N-50-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TA-140N-75-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TA-140N-100-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TA-140N-150-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TA-140N-200-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TA-140N-250-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TA-140N-300-FP1		Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TA-160B-50-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TA-160B-75-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TA-160B-100-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TA-160B-150-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TA-160B-200-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TA-160B-250-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TA-160B-300-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TA-160R-50-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TA-160R-75-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TA-160R-100-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TA-160R-150-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TA-160R-200-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TA-160R-250-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TA-160R-300-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TA-160H-50-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TA-160H-75-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TA-160H-100-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TA-160H-150-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TA-160H-200-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TA-160H-250-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TA-160H-300-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TA-160N-50-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TA-160N-75-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TA-160N-100-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TA-160N-150-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TA-160N-200-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TA-160N-250-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TA-160N-300-FP1		Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TA-180B-50-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TA-180B-75-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TA-180B-100-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TA-180B-150-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TA-180B-200-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TA-180B-250-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TA-180B-300-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TA-180R-50-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TA-180R-75-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TA-180R-100-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TA-180R-150-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TA-180R-200-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TA-180R-250-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TA-180R-300-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TA-180H-50-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TA-180H-75-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TA-180H-100-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TA-180H-150-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TA-180H-200-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TA-180H-250-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TA-180H-300-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TA-180N-50-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TA-180N-75-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TA-180N-100-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TA-180N-150-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TA-180N-200-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TA-180N-250-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TA-180N-300-FP1		Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TA-200B-50-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TA-200B-75-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TA-200B-100-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TA-200B-150-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TA-200B-200-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TA-200B-250-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TA-200B-300-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TA-200R-50-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TA-200R-75-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TA-200R-100-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TA-200R-150-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TA-200R-200-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TA-200R-250-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TA-200R-300-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TA-200H-50-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TA-200H-75-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TA-200H-100-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TA-200H-150-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TA-200H-200-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TA-200H-250-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TA-200H-300-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TA-200N-50-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TA-200N-75-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TA-200N-100-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TA-200N-150-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TA-200N-200-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TA-200N-250-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TA-200N-300-FP1		Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TA-250B-50-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TA-250B-75-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TA-250B-100-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TA-250B-150-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TA-250B-200-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TA-250B-250-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TA-250B-300-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TA-250R-50-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TA-250R-75-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TA-250R-100-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TA-250R-150-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TA-250R-200-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TA-250R-250-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TA-250R-300-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TA-250H-50-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TA-250H-75-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TA-250H-100-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TA-250H-150-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TA-250H-200-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TA-250H-250-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TA-250H-300-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TA-250N-50-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TA-250N-75-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TA-250N-100-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TA-250N-150-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TA-250N-200-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TA-250N-250-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TA-250N-300-FP1		Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TB-125B-50-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TB-125B-75-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TB-125B-100-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TB-125B-150-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TB-125B-200-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TB-125B-250-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TB-125B-300-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TB-125R-50-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TB-125R-75-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TB-125R-100-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TB-125R-150-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TB-125R-200-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TB-125R-250-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TB-125R-300-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TB-125H-50-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TB-125H-75-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TB-125H-100-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TB-125H-150-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TB-125H-200-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TB-125H-250-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TB-125H-300-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TB-125N-50-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TB-125N-75-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TB-125N-100-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TB-125N-150-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TB-125N-200-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TB-125N-250-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TB-125N-300-FP1		Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TB-140B-50-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TB-140B-75-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TB-140B-100-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TB-140B-150-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TB-140B-200-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TB-140B-250-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TB-140B-300-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TB-140R-50-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TB-140R-75-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TB-140R-100-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TB-140R-150-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TB-140R-200-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TB-140R-250-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TB-140R-300-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TB-140H-50-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TB-140H-75-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TB-140H-100-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TB-140H-150-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TB-140H-200-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TB-140H-250-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TB-140H-300-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TB-140N-50-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TB-140N-75-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TB-140N-100-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TB-140N-150-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TB-140N-200-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TB-140N-250-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TB-140N-300-FP1		Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TB-160B-50-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TB-160B-75-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TB-160B-100-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TB-160B-150-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TB-160B-200-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TB-160B-250-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TB-160B-300-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TB-160R-50-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TB-160R-75-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TB-160R-100-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TB-160R-150-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TB-160R-200-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TB-160R-250-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TB-160R-300-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TB-160H-50-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TB-160H-75-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TB-160H-100-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TB-160H-150-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TB-160H-200-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TB-160H-250-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TB-160H-300-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TB-160N-50-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TB-160N-75-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TB-160N-100-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TB-160N-150-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TB-160N-200-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TB-160N-250-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TB-160N-300-FP1		Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TB-180B-50-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TB-180B-75-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TB-180B-100-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TB-180B-150-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TB-180B-200-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TB-180B-250-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TB-180B-300-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TB-180R-50-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TB-180R-75-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TB-180R-100-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TB-180R-150-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TB-180R-200-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TB-180R-250-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TB-180R-300-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TB-180H-50-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TB-180H-75-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TB-180H-100-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TB-180H-150-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TB-180H-200-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TB-180H-250-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TB-180H-300-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TB-180N-50-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TB-180N-75-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TB-180N-100-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TB-180N-150-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TB-180N-200-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TB-180N-250-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TB-180N-300-FP1		Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TB-200B-50-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TB-200B-75-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TB-200B-100-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TB-200B-150-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TB-200B-200-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TB-200B-250-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TB-200B-300-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TB-200R-50-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TB-200R-75-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TB-200R-100-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TB-200R-150-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TB-200R-200-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TB-200R-250-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TB-200R-300-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TB-200H-50-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TB-200H-75-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TB-200H-100-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TB-200H-150-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TB-200H-200-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TB-200H-250-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TB-200H-300-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TB-200N-50-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TB-200N-75-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TB-200N-100-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TB-200N-150-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TB-200N-200-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TB-200N-250-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TB-200N-300-FP1		Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
SCS2-LNG-TB-250B-50-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
SCS2-LNG-TB-250B-75-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
SCS2-LNG-TB-250B-100-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
SCS2-LNG-TB-250B-150-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
SCS2-LNG-TB-250B-200-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
SCS2-LNG-TB-250B-250-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
SCS2-LNG-TB-250B-300-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
SCS2-LNG-TB-250R-50-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
SCS2-LNG-TB-250R-75-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
SCS2-LNG-TB-250R-100-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
SCS2-LNG-TB-250R-150-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
SCS2-LNG-TB-250R-200-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
SCS2-LNG-TB-250R-250-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
SCS2-LNG-TB-250R-300-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
SCS2-LNG-TB-250H-50-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
SCS2-LNG-TB-250H-75-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
SCS2-LNG-TB-250H-100-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
SCS2-LNG-TB-250H-150-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
SCS2-LNG-TB-250H-200-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
SCS2-LNG-TB-250H-250-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
SCS2-LNG-TB-250H-300-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
SCS2-LNG-TB-250N-50-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
SCS2-LNG-TB-250N-75-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
SCS2-LNG-TB-250N-100-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
SCS2-LNG-TB-250N-150-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
SCS2-LNG-TB-250N-200-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
SCS2-LNG-TB-250N-250-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
SCS2-LNG-TB-250N-300-FP1		Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm

Pneumatic CylindersCKD

756 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCS2-LNG-FP1 Selex Cylinder (Strong Scraper, Switch Magnet) - Part 2

Brand CKD·Pneumatic Cylinders

Available part numbers (756)

SCS2-LNG-CA-180B-50-FP1, SCS2-LNG-CA-180B-75-FP1, SCS2-LNG-CA-180B-100-FP1, SCS2-LNG-CA-180B-150-FP1, SCS2-LNG-CA-180B-200-FP1, SCS2-LNG-CA-180B-250-FP1, SCS2-LNG-CA-180B-300-FP1, SCS2-LNG-CA-180R-50-FP1, SCS2-LNG-CA-180R-75-FP1, SCS2-LNG-CA-180R-100-FP1 + 746 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCS2-LNG-CA-180B-50-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-CA-180B-75-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-CA-180B-100-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-CA-180B-150-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-CA-180B-200-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-CA-180B-250-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-CA-180B-300-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-CA-180R-50-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-CA-180R-75-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-CA-180R-100-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-CA-180R-150-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-CA-180R-200-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-CA-180R-250-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-CA-180R-300-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-CA-180H-50-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-CA-180H-75-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-CA-180H-100-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-CA-180H-150-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-CA-180H-200-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-CA-180H-250-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-CA-180H-300-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-CA-180N-50-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-CA-180N-75-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-CA-180N-100-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-CA-180N-150-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-CA-180N-200-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-CA-180N-250-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-CA-180N-300-FP1	Mounting: Single clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-CA-200B-50-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-CA-200B-75-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-CA-200B-100-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-CA-200B-150-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-CA-200B-200-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-CA-200B-250-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-CA-200B-300-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-CA-200R-50-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-CA-200R-75-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-CA-200R-100-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-CA-200R-150-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-CA-200R-200-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-CA-200R-250-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-CA-200R-300-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-CA-200H-50-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-CA-200H-75-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-CA-200H-100-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-CA-200H-150-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-CA-200H-200-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-CA-200H-250-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-CA-200H-300-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-CA-200N-50-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-CA-200N-75-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-CA-200N-100-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-CA-200N-150-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-CA-200N-200-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-CA-200N-250-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-CA-200N-300-FP1	Mounting: Single clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-CA-250B-50-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-CA-250B-75-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-CA-250B-100-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-CA-250B-150-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-CA-250B-200-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-CA-250B-250-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-CA-250B-300-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-CA-250R-50-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-CA-250R-75-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-CA-250R-100-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-CA-250R-150-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-CA-250R-200-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-CA-250R-250-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-CA-250R-300-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-CA-250H-50-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-CA-250H-75-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-CA-250H-100-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-CA-250H-150-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-CA-250H-200-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-CA-250H-250-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-CA-250H-300-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-CA-250N-50-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-CA-250N-75-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-CA-250N-100-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-CA-250N-150-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-CA-250N-200-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-CA-250N-250-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-CA-250N-300-FP1	Mounting: Single clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-CB-125B-50-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-CB-125B-75-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-CB-125B-100-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-CB-125B-150-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-CB-125B-200-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-CB-125B-250-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-CB-125B-300-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-CB-125R-50-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-CB-125R-75-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-CB-125R-100-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-CB-125R-150-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-CB-125R-200-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-CB-125R-250-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-CB-125R-300-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-CB-125H-50-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-CB-125H-75-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-CB-125H-100-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-CB-125H-150-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-CB-125H-200-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-CB-125H-250-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-CB-125H-300-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-CB-125N-50-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-CB-125N-75-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-CB-125N-100-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-CB-125N-150-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-CB-125N-200-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-CB-125N-250-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-CB-125N-300-FP1	Mounting: Double clevis \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-CB-140B-50-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-CB-140B-75-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-CB-140B-100-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-CB-140B-150-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-CB-140B-200-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-CB-140B-250-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-CB-140B-300-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-CB-140R-50-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-CB-140R-75-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-CB-140R-100-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-CB-140R-150-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-CB-140R-200-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-CB-140R-250-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-CB-140R-300-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-CB-140H-50-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-CB-140H-75-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-CB-140H-100-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-CB-140H-150-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-CB-140H-200-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-CB-140H-250-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-CB-140H-300-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-CB-140N-50-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-CB-140N-75-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-CB-140N-100-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-CB-140N-150-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-CB-140N-200-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-CB-140N-250-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-CB-140N-300-FP1	Mounting: Double clevis \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-CB-160B-50-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-CB-160B-75-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-CB-160B-100-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-CB-160B-150-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-CB-160B-200-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-CB-160B-250-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-CB-160B-300-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-CB-160R-50-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-CB-160R-75-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-CB-160R-100-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-CB-160R-150-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-CB-160R-200-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-CB-160R-250-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-CB-160R-300-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-CB-160H-50-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-CB-160H-75-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-CB-160H-100-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-CB-160H-150-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-CB-160H-200-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-CB-160H-250-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-CB-160H-300-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-CB-160N-50-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-CB-160N-75-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-CB-160N-100-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-CB-160N-150-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-CB-160N-200-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-CB-160N-250-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-CB-160N-300-FP1	Mounting: Double clevis \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-CB-180B-50-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-CB-180B-75-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-CB-180B-100-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-CB-180B-150-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-CB-180B-200-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-CB-180B-250-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-CB-180B-300-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-CB-180R-50-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-CB-180R-75-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-CB-180R-100-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-CB-180R-150-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-CB-180R-200-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-CB-180R-250-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-CB-180R-300-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-CB-180H-50-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-CB-180H-75-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-CB-180H-100-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-CB-180H-150-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-CB-180H-200-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-CB-180H-250-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-CB-180H-300-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-CB-180N-50-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-CB-180N-75-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-CB-180N-100-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-CB-180N-150-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-CB-180N-200-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-CB-180N-250-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-CB-180N-300-FP1	Mounting: Double clevis \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-CB-200B-50-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-CB-200B-75-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-CB-200B-100-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-CB-200B-150-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-CB-200B-200-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-CB-200B-250-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-CB-200B-300-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-CB-200R-50-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-CB-200R-75-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-CB-200R-100-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-CB-200R-150-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-CB-200R-200-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-CB-200R-250-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-CB-200R-300-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-CB-200H-50-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-CB-200H-75-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-CB-200H-100-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-CB-200H-150-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-CB-200H-200-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-CB-200H-250-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-CB-200H-300-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-CB-200N-50-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-CB-200N-75-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-CB-200N-100-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-CB-200N-150-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-CB-200N-200-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-CB-200N-250-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-CB-200N-300-FP1	Mounting: Double clevis \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-CB-250B-50-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-CB-250B-75-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-CB-250B-100-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-CB-250B-150-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-CB-250B-200-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-CB-250B-250-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-CB-250B-300-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-CB-250R-50-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-CB-250R-75-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-CB-250R-100-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-CB-250R-150-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-CB-250R-200-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-CB-250R-250-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-CB-250R-300-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-CB-250H-50-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-CB-250H-75-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-CB-250H-100-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-CB-250H-150-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-CB-250H-200-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-CB-250H-250-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-CB-250H-300-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-CB-250N-50-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-CB-250N-75-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-CB-250N-100-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-CB-250N-150-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-CB-250N-200-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-CB-250N-250-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-CB-250N-300-FP1	Mounting: Double clevis \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TC-125B-50-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TC-125B-75-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TC-125B-100-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TC-125B-150-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TC-125B-200-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TC-125B-250-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TC-125B-300-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TC-125R-50-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TC-125R-75-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TC-125R-100-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TC-125R-150-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TC-125R-200-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TC-125R-250-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TC-125R-300-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TC-125H-50-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TC-125H-75-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TC-125H-100-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TC-125H-150-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TC-125H-200-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TC-125H-250-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TC-125H-300-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TC-125N-50-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TC-125N-75-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TC-125N-100-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TC-125N-150-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TC-125N-200-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TC-125N-250-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TC-125N-300-FP1	Mounting: Center trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TC-140B-50-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TC-140B-75-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TC-140B-100-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TC-140B-150-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TC-140B-200-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TC-140B-250-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TC-140B-300-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TC-140R-50-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TC-140R-75-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TC-140R-100-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TC-140R-150-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TC-140R-200-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TC-140R-250-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TC-140R-300-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TC-140H-50-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TC-140H-75-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TC-140H-100-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TC-140H-150-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TC-140H-200-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TC-140H-250-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TC-140H-300-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TC-140N-50-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TC-140N-75-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TC-140N-100-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TC-140N-150-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TC-140N-200-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TC-140N-250-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TC-140N-300-FP1	Mounting: Center trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TC-160B-50-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TC-160B-75-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TC-160B-100-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TC-160B-150-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TC-160B-200-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TC-160B-250-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TC-160B-300-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TC-160R-50-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TC-160R-75-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TC-160R-100-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TC-160R-150-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TC-160R-200-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TC-160R-250-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TC-160R-300-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TC-160H-50-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TC-160H-75-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TC-160H-100-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TC-160H-150-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TC-160H-200-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TC-160H-250-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TC-160H-300-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TC-160N-50-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TC-160N-75-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TC-160N-100-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TC-160N-150-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TC-160N-200-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TC-160N-250-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TC-160N-300-FP1	Mounting: Center trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TC-180B-50-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TC-180B-75-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TC-180B-100-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TC-180B-150-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TC-180B-200-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TC-180B-250-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TC-180B-300-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TC-180R-50-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TC-180R-75-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TC-180R-100-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TC-180R-150-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TC-180R-200-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TC-180R-250-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TC-180R-300-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TC-180H-50-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TC-180H-75-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TC-180H-100-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TC-180H-150-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TC-180H-200-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TC-180H-250-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TC-180H-300-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TC-180N-50-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TC-180N-75-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TC-180N-100-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TC-180N-150-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TC-180N-200-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TC-180N-250-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TC-180N-300-FP1	Mounting: Center trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TC-200B-50-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TC-200B-75-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TC-200B-100-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TC-200B-150-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TC-200B-200-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TC-200B-250-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TC-200B-300-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TC-200R-50-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TC-200R-75-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TC-200R-100-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TC-200R-150-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TC-200R-200-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TC-200R-250-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TC-200R-300-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TC-200H-50-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TC-200H-75-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TC-200H-100-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TC-200H-150-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TC-200H-200-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TC-200H-250-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TC-200H-300-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TC-200N-50-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TC-200N-75-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TC-200N-100-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TC-200N-150-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TC-200N-200-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TC-200N-250-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TC-200N-300-FP1	Mounting: Center trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TC-250B-50-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TC-250B-75-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TC-250B-100-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TC-250B-150-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TC-250B-200-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TC-250B-250-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TC-250B-300-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TC-250R-50-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TC-250R-75-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TC-250R-100-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TC-250R-150-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TC-250R-200-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TC-250R-250-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TC-250R-300-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TC-250H-50-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TC-250H-75-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TC-250H-100-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TC-250H-150-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TC-250H-200-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TC-250H-250-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TC-250H-300-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TC-250N-50-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TC-250N-75-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TC-250N-100-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TC-250N-150-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TC-250N-200-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TC-250N-250-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TC-250N-300-FP1	Mounting: Center trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TA-125B-50-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TA-125B-75-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TA-125B-100-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TA-125B-150-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TA-125B-200-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TA-125B-250-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TA-125B-300-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TA-125R-50-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TA-125R-75-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TA-125R-100-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TA-125R-150-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TA-125R-200-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TA-125R-250-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TA-125R-300-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TA-125H-50-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TA-125H-75-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TA-125H-100-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TA-125H-150-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TA-125H-200-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TA-125H-250-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TA-125H-300-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TA-125N-50-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TA-125N-75-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TA-125N-100-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TA-125N-150-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TA-125N-200-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TA-125N-250-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TA-125N-300-FP1	Mounting: Rod-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TA-140B-50-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TA-140B-75-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TA-140B-100-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TA-140B-150-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TA-140B-200-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TA-140B-250-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TA-140B-300-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TA-140R-50-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TA-140R-75-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TA-140R-100-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TA-140R-150-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TA-140R-200-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TA-140R-250-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TA-140R-300-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TA-140H-50-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TA-140H-75-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TA-140H-100-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TA-140H-150-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TA-140H-200-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TA-140H-250-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TA-140H-300-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TA-140N-50-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TA-140N-75-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TA-140N-100-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TA-140N-150-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TA-140N-200-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TA-140N-250-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TA-140N-300-FP1	Mounting: Rod-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TA-160B-50-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TA-160B-75-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TA-160B-100-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TA-160B-150-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TA-160B-200-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TA-160B-250-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TA-160B-300-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TA-160R-50-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TA-160R-75-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TA-160R-100-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TA-160R-150-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TA-160R-200-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TA-160R-250-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TA-160R-300-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TA-160H-50-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TA-160H-75-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TA-160H-100-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TA-160H-150-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TA-160H-200-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TA-160H-250-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TA-160H-300-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TA-160N-50-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TA-160N-75-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TA-160N-100-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TA-160N-150-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TA-160N-200-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TA-160N-250-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TA-160N-300-FP1	Mounting: Rod-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TA-180B-50-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TA-180B-75-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TA-180B-100-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TA-180B-150-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TA-180B-200-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TA-180B-250-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TA-180B-300-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TA-180R-50-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TA-180R-75-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TA-180R-100-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TA-180R-150-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TA-180R-200-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TA-180R-250-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TA-180R-300-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TA-180H-50-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TA-180H-75-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TA-180H-100-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TA-180H-150-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TA-180H-200-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TA-180H-250-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TA-180H-300-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TA-180N-50-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TA-180N-75-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TA-180N-100-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TA-180N-150-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TA-180N-200-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TA-180N-250-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TA-180N-300-FP1	Mounting: Rod-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TA-200B-50-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TA-200B-75-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TA-200B-100-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TA-200B-150-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TA-200B-200-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TA-200B-250-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TA-200B-300-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TA-200R-50-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TA-200R-75-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TA-200R-100-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TA-200R-150-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TA-200R-200-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TA-200R-250-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TA-200R-300-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TA-200H-50-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TA-200H-75-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TA-200H-100-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TA-200H-150-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TA-200H-200-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TA-200H-250-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TA-200H-300-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TA-200N-50-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TA-200N-75-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TA-200N-100-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TA-200N-150-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TA-200N-200-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TA-200N-250-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TA-200N-300-FP1	Mounting: Rod-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TA-250B-50-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TA-250B-75-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TA-250B-100-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TA-250B-150-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TA-250B-200-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TA-250B-250-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TA-250B-300-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TA-250R-50-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TA-250R-75-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TA-250R-100-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TA-250R-150-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TA-250R-200-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TA-250R-250-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TA-250R-300-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TA-250H-50-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TA-250H-75-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TA-250H-100-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TA-250H-150-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TA-250H-200-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TA-250H-250-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TA-250H-300-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TA-250N-50-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TA-250N-75-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TA-250N-100-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TA-250N-150-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TA-250N-200-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TA-250N-250-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TA-250N-300-FP1	Mounting: Rod-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TB-125B-50-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TB-125B-75-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TB-125B-100-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TB-125B-150-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TB-125B-200-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TB-125B-250-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TB-125B-300-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TB-125R-50-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TB-125R-75-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TB-125R-100-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TB-125R-150-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TB-125R-200-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TB-125R-250-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TB-125R-300-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TB-125H-50-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TB-125H-75-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TB-125H-100-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TB-125H-150-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TB-125H-200-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TB-125H-250-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TB-125H-300-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TB-125N-50-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TB-125N-75-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TB-125N-100-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TB-125N-150-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TB-125N-200-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TB-125N-250-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TB-125N-300-FP1	Mounting: Head-side trunnion \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TB-140B-50-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TB-140B-75-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TB-140B-100-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TB-140B-150-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TB-140B-200-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TB-140B-250-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TB-140B-300-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TB-140R-50-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TB-140R-75-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TB-140R-100-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TB-140R-150-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TB-140R-200-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TB-140R-250-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TB-140R-300-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TB-140H-50-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TB-140H-75-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TB-140H-100-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TB-140H-150-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TB-140H-200-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TB-140H-250-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TB-140H-300-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TB-140N-50-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TB-140N-75-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TB-140N-100-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TB-140N-150-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TB-140N-200-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TB-140N-250-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TB-140N-300-FP1	Mounting: Head-side trunnion \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TB-160B-50-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TB-160B-75-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TB-160B-100-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TB-160B-150-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TB-160B-200-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TB-160B-250-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TB-160B-300-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TB-160R-50-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TB-160R-75-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TB-160R-100-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TB-160R-150-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TB-160R-200-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TB-160R-250-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TB-160R-300-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TB-160H-50-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TB-160H-75-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TB-160H-100-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TB-160H-150-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TB-160H-200-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TB-160H-250-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TB-160H-300-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TB-160N-50-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TB-160N-75-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TB-160N-100-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TB-160N-150-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TB-160N-200-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TB-160N-250-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TB-160N-300-FP1	Mounting: Head-side trunnion \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TB-180B-50-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TB-180B-75-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TB-180B-100-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TB-180B-150-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TB-180B-200-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TB-180B-250-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TB-180B-300-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TB-180R-50-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TB-180R-75-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TB-180R-100-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TB-180R-150-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TB-180R-200-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TB-180R-250-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TB-180R-300-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TB-180H-50-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TB-180H-75-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TB-180H-100-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TB-180H-150-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TB-180H-200-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TB-180H-250-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TB-180H-300-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TB-180N-50-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TB-180N-75-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TB-180N-100-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TB-180N-150-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TB-180N-200-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TB-180N-250-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TB-180N-300-FP1	Mounting: Head-side trunnion \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TB-200B-50-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TB-200B-75-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TB-200B-100-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TB-200B-150-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TB-200B-200-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TB-200B-250-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TB-200B-300-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TB-200R-50-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TB-200R-75-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TB-200R-100-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TB-200R-150-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TB-200R-200-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TB-200R-250-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TB-200R-300-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TB-200H-50-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TB-200H-75-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TB-200H-100-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TB-200H-150-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TB-200H-200-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TB-200H-250-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TB-200H-300-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TB-200N-50-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TB-200N-75-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TB-200N-100-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TB-200N-150-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TB-200N-200-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TB-200N-250-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TB-200N-300-FP1	Mounting: Head-side trunnion \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm
	SCS2-LNG-TB-250B-50-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm
	SCS2-LNG-TB-250B-75-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm
	SCS2-LNG-TB-250B-100-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm
	SCS2-LNG-TB-250B-150-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm
	SCS2-LNG-TB-250B-200-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm
	SCS2-LNG-TB-250B-250-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm
	SCS2-LNG-TB-250B-300-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm
	SCS2-LNG-TB-250R-50-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm
	SCS2-LNG-TB-250R-75-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm
	SCS2-LNG-TB-250R-100-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm
	SCS2-LNG-TB-250R-150-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm
	SCS2-LNG-TB-250R-200-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm
	SCS2-LNG-TB-250R-250-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm
	SCS2-LNG-TB-250R-300-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm
	SCS2-LNG-TB-250H-50-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm
	SCS2-LNG-TB-250H-75-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm
	SCS2-LNG-TB-250H-100-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm
	SCS2-LNG-TB-250H-150-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm
	SCS2-LNG-TB-250H-200-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm
	SCS2-LNG-TB-250H-250-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm
	SCS2-LNG-TB-250H-300-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm
	SCS2-LNG-TB-250N-50-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm
	SCS2-LNG-TB-250N-75-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm
	SCS2-LNG-TB-250N-100-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm
	SCS2-LNG-TB-250N-150-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm
	SCS2-LNG-TB-250N-200-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm
	SCS2-LNG-TB-250N-250-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm
	SCS2-LNG-TB-250N-300-FP1	Mounting: Head-side trunnion \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCS2-LNG-FP1 Selex Cylinder (Strong Scraper, Switch Magnet) - Part 2
