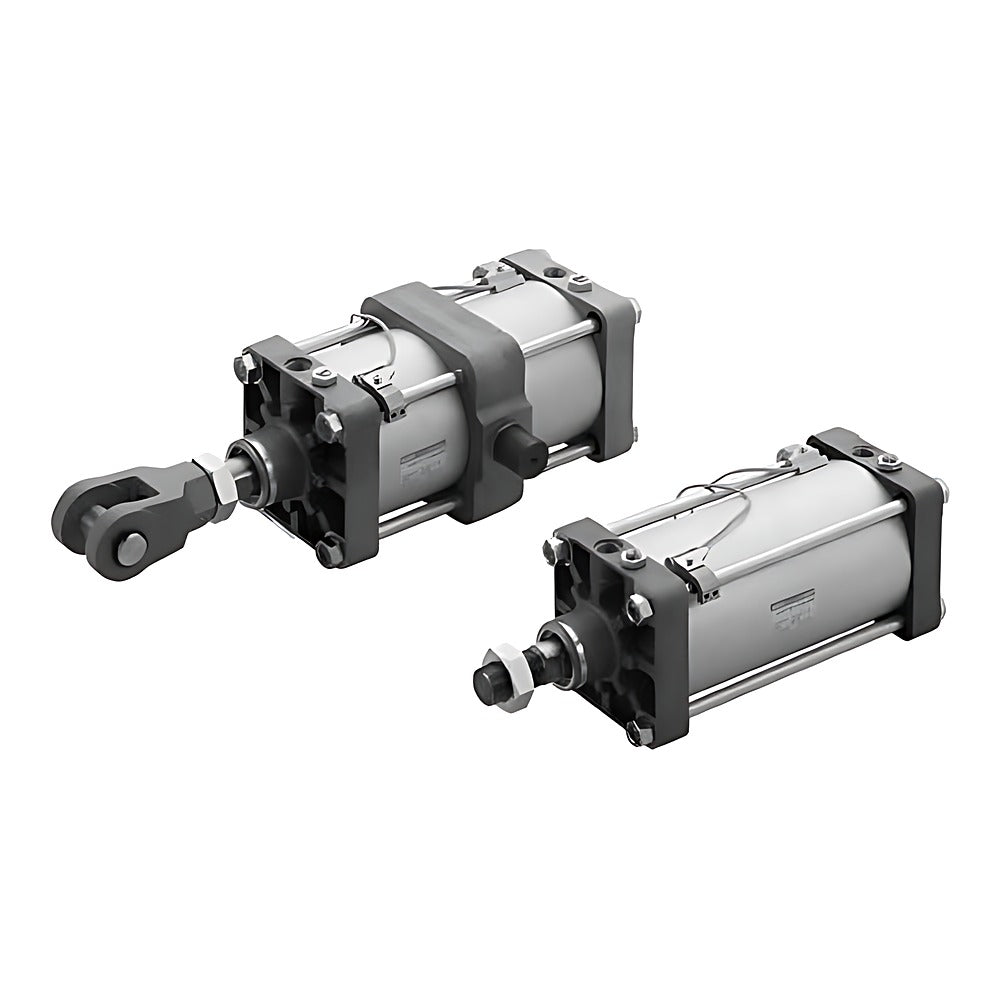

CKD SCS2-N Selex Cylinder (Non-Lube, Bore 125-250)

CKD SCS2-N large-bore Selex double-acting tie-rod cylinder, non-lube type without switch magnet, bore 125 to 250 mm.

Key features

Large-bore double-acting single-rod tie-rod cylinder, bore 125 to 250 mm
Nine mounting styles: basic, foot, rod/head flange, single/double clevis, center/rod/head trunnion
Cushion: both ends (B), rod end (R), head end (H) or none (N)
Standard strokes 50 to 300 mm; intermediate strokes in 1 mm steps (max 800-1200 mm, 2000 mm on order)
Options (C2, J/L bellows, M stainless rod, R/S/T needle position, P6) and knuckles/brackets (I, Y, B1, B2) as suffixes
Rc port thread standard; NPT (N) and G (G) threads made to order

Specifications

Action	Double acting, single rod
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	-5 to 60 C (no freezing)
Piston speed	20 to 1000 mm/s
Lubrication	Not required
Cushion	Air cushion
Switch magnet	None
Source	CKD Korea catalog CB-029SK-9, p. 709-727

SCS2-N-00-125B-50		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-00-125B-75		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-00-125B-100		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-00-125B-150		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-00-125B-200		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-00-125B-250		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-00-125B-300		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-00-125R-50		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-00-125R-75		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-00-125R-100		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-00-125R-150		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-00-125R-200		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-00-125R-250		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-00-125R-300		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-00-125H-50		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-00-125H-75		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-00-125H-100		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-00-125H-150		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-00-125H-200		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-00-125H-250		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-00-125H-300		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-00-125N-50		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-00-125N-75		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-00-125N-100		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-00-125N-150		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-00-125N-200		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-00-125N-250		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-00-125N-300		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-00-140B-50		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-140B-75		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-140B-100		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-140B-150		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-140B-200		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-140B-250		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-140B-300		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-140R-50		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-140R-75		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-140R-100		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-140R-150		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-140R-200		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-140R-250		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-140R-300		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-140H-50		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-140H-75		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-140H-100		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-140H-150		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-140H-200		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-140H-250		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-140H-300		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-140N-50		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-140N-75		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-140N-100		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-140N-150		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-140N-200		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-140N-250		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-140N-300		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-160B-50		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-160B-75		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-160B-100		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-160B-150		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-160B-200		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-160B-250		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-160B-300		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-160R-50		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-160R-75		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-160R-100		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-160R-150		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-160R-200		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-160R-250		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-160R-300		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-160H-50		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-160H-75		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-160H-100		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-160H-150		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-160H-200		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-160H-250		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-160H-300		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-160N-50		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-160N-75		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-160N-100		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-160N-150		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-160N-200		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-160N-250		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-160N-300		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-180B-50		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-180B-75		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-180B-100		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-180B-150		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-180B-200		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-180B-250		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-180B-300		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-180R-50		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-180R-75		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-180R-100		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-180R-150		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-180R-200		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-180R-250		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-180R-300		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-180H-50		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-180H-75		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-180H-100		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-180H-150		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-180H-200		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-180H-250		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-180H-300		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-180N-50		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-180N-75		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-180N-100		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-180N-150		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-180N-200		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-180N-250		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-180N-300		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-200B-50		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-200B-75		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-200B-100		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-200B-150		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-200B-200		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-200B-250		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-200B-300		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-200R-50		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-200R-75		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-200R-100		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-200R-150		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-200R-200		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-200R-250		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-200R-300		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-200H-50		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-200H-75		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-200H-100		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-200H-150		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-200H-200		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-200H-250		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-200H-300		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-200N-50		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-00-200N-75		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-00-200N-100		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-00-200N-150		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-00-200N-200		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-00-200N-250		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-00-200N-300		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-00-250B-50		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-N-00-250B-75		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-N-00-250B-100		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-N-00-250B-150		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-N-00-250B-200		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-N-00-250B-250		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-N-00-250B-300		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-N-00-250R-50		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-N-00-250R-75		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-N-00-250R-100		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-N-00-250R-150		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-N-00-250R-200		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-N-00-250R-250		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-N-00-250R-300		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-N-00-250H-50		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-N-00-250H-75		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-N-00-250H-100		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-N-00-250H-150		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-N-00-250H-200		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-N-00-250H-250		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-N-00-250H-300		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-N-00-250N-50		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-N-00-250N-75		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-N-00-250N-100		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-N-00-250N-150		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-N-00-250N-200		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-N-00-250N-250		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-N-00-250N-300		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-N-LB-125B-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-LB-125B-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-LB-125B-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-LB-125B-150		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-LB-125B-200		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-LB-125B-250		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-LB-125B-300		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-LB-125R-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-LB-125R-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-LB-125R-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-LB-125R-150		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-LB-125R-200		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-LB-125R-250		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-LB-125R-300		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-LB-125H-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-LB-125H-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-LB-125H-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-LB-125H-150		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-LB-125H-200		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-LB-125H-250		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-LB-125H-300		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-LB-125N-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-LB-125N-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-LB-125N-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-LB-125N-150		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-LB-125N-200		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-LB-125N-250		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-LB-125N-300		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-LB-140B-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-140B-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-140B-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-140B-150		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-140B-200		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-140B-250		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-140B-300		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-140R-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-140R-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-140R-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-140R-150		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-140R-200		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-140R-250		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-140R-300		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-140H-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-140H-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-140H-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-140H-150		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-140H-200		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-140H-250		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-140H-300		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-140N-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-140N-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-140N-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-140N-150		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-140N-200		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-140N-250		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-140N-300		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-160B-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-160B-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-160B-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-160B-150		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-160B-200		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-160B-250		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-160B-300		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-160R-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-160R-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-160R-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-160R-150		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-160R-200		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-160R-250		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-160R-300		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-160H-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-160H-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-160H-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-160H-150		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-160H-200		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-160H-250		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-160H-300		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-160N-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-160N-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-160N-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-160N-150		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-160N-200		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-160N-250		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-160N-300		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-180B-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-180B-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-180B-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-180B-150		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-180B-200		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-180B-250		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-180B-300		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-180R-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-180R-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-180R-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-180R-150		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-180R-200		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-180R-250		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-180R-300		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-180H-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-180H-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-180H-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-180H-150		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-180H-200		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-180H-250		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-180H-300		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-180N-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-180N-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-180N-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-180N-150		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-180N-200		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-180N-250		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-180N-300		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-200B-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-200B-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-200B-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-200B-150		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-200B-200		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-200B-250		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-200B-300		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-200R-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-200R-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-200R-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-200R-150		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-200R-200		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-200R-250		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-200R-300		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-200H-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-200H-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-200H-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-200H-150		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-200H-200		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-200H-250		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-200H-300		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-200N-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-LB-200N-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-LB-200N-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-LB-200N-150		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-LB-200N-200		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-LB-200N-250		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-LB-200N-300		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-LB-250B-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-N-LB-250B-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-N-LB-250B-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-N-LB-250B-150		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-N-LB-250B-200		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-N-LB-250B-250		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-N-LB-250B-300		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-N-LB-250R-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-N-LB-250R-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-N-LB-250R-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-N-LB-250R-150		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-N-LB-250R-200		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-N-LB-250R-250		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-N-LB-250R-300		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-N-LB-250H-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-N-LB-250H-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-N-LB-250H-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-N-LB-250H-150		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-N-LB-250H-200		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-N-LB-250H-250		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-N-LB-250H-300		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-N-LB-250N-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-N-LB-250N-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-N-LB-250N-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-N-LB-250N-150		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-N-LB-250N-200		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-N-LB-250N-250		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-N-LB-250N-300		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-N-FA-125B-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-FA-125B-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-FA-125B-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-FA-125B-150		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-FA-125B-200		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-FA-125B-250		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-FA-125B-300		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-FA-125R-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-FA-125R-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-FA-125R-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-FA-125R-150		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-FA-125R-200		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-FA-125R-250		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-FA-125R-300		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-FA-125H-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-FA-125H-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-FA-125H-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-FA-125H-150		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-FA-125H-200		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-FA-125H-250		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-FA-125H-300		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-FA-125N-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-FA-125N-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-FA-125N-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-FA-125N-150		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-FA-125N-200		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-FA-125N-250		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-FA-125N-300		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-FA-140B-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-140B-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-140B-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-140B-150		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-140B-200		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-140B-250		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-140B-300		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-140R-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-140R-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-140R-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-140R-150		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-140R-200		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-140R-250		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-140R-300		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-140H-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-140H-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-140H-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-140H-150		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-140H-200		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-140H-250		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-140H-300		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-140N-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-140N-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-140N-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-140N-150		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-140N-200		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-140N-250		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-140N-300		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-160B-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-160B-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-160B-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-160B-150		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-160B-200		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-160B-250		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-160B-300		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-160R-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-160R-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-160R-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-160R-150		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-160R-200		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-160R-250		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-160R-300		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-160H-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-160H-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-160H-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-160H-150		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-160H-200		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-160H-250		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-160H-300		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-160N-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-160N-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-160N-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-160N-150		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-160N-200		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-160N-250		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-160N-300		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-180B-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-180B-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-180B-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-180B-150		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-180B-200		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-180B-250		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-180B-300		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-180R-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-180R-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-180R-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-180R-150		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-180R-200		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-180R-250		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-180R-300		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-180H-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-180H-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-180H-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-180H-150		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-180H-200		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-180H-250		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-180H-300		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-180N-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-180N-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-180N-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-180N-150		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-180N-200		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-180N-250		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-180N-300		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-200B-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-200B-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-200B-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-200B-150		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-200B-200		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-200B-250		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-200B-300		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-200R-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-200R-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-200R-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-200R-150		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-200R-200		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-200R-250		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-200R-300		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-200H-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-200H-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-200H-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-200H-150		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-200H-200		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-200H-250		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-200H-300		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-200N-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FA-200N-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FA-200N-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FA-200N-150		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FA-200N-200		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FA-200N-250		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FA-200N-300		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FA-250B-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-N-FA-250B-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-N-FA-250B-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-N-FA-250B-150		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-N-FA-250B-200		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-N-FA-250B-250		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-N-FA-250B-300		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-N-FA-250R-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-N-FA-250R-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-N-FA-250R-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-N-FA-250R-150		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-N-FA-250R-200		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-N-FA-250R-250		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-N-FA-250R-300		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-N-FA-250H-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-N-FA-250H-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-N-FA-250H-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-N-FA-250H-150		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-N-FA-250H-200		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-N-FA-250H-250		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-N-FA-250H-300		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-N-FA-250N-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-N-FA-250N-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-N-FA-250N-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-N-FA-250N-150		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-N-FA-250N-200		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-N-FA-250N-250		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-N-FA-250N-300		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-N-FB-125B-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-FB-125B-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-FB-125B-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-FB-125B-150		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-FB-125B-200		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-FB-125B-250		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-FB-125B-300		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-FB-125R-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-FB-125R-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-FB-125R-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-FB-125R-150		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-FB-125R-200		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-FB-125R-250		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-FB-125R-300		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-FB-125H-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-FB-125H-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-FB-125H-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-FB-125H-150		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-FB-125H-200		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-FB-125H-250		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-FB-125H-300		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-FB-125N-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-FB-125N-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-FB-125N-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-FB-125N-150		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-FB-125N-200		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-FB-125N-250		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-FB-125N-300		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-FB-140B-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-140B-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-140B-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-140B-150		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-140B-200		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-140B-250		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-140B-300		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-140R-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-140R-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-140R-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-140R-150		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-140R-200		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-140R-250		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-140R-300		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-140H-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-140H-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-140H-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-140H-150		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-140H-200		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-140H-250		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-140H-300		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-140N-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-140N-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-140N-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-140N-150		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-140N-200		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-140N-250		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-140N-300		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-160B-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-160B-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-160B-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-160B-150		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-160B-200		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-160B-250		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-160B-300		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-160R-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-160R-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-160R-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-160R-150		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-160R-200		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-160R-250		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-160R-300		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-160H-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-160H-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-160H-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-160H-150		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-160H-200		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-160H-250		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-160H-300		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-160N-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-160N-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-160N-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-160N-150		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-160N-200		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-160N-250		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-160N-300		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-180B-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-180B-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-180B-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-180B-150		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-180B-200		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-180B-250		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-180B-300		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-180R-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-180R-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-180R-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-180R-150		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-180R-200		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-180R-250		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-180R-300		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-180H-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-180H-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-180H-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-180H-150		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-180H-200		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-180H-250		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-180H-300		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-180N-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-180N-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-180N-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-180N-150		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-180N-200		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-180N-250		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-180N-300		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-200B-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-200B-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-200B-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-200B-150		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-200B-200		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-200B-250		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-200B-300		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-200R-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-200R-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-200R-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-200R-150		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-200R-200		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-200R-250		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-200R-300		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-200H-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-200H-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-200H-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-200H-150		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-200H-200		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-200H-250		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-200H-300		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-200N-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-FB-200N-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-FB-200N-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-FB-200N-150		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-FB-200N-200		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-FB-200N-250		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-FB-200N-300		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-FB-250B-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-N-FB-250B-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-N-FB-250B-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-N-FB-250B-150		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-N-FB-250B-200		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-N-FB-250B-250		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-N-FB-250B-300		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-N-FB-250R-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-N-FB-250R-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-N-FB-250R-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-N-FB-250R-150		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-N-FB-250R-200		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-N-FB-250R-250		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-N-FB-250R-300		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-N-FB-250H-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-N-FB-250H-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-N-FB-250H-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-N-FB-250H-150		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-N-FB-250H-200		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-N-FB-250H-250		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-N-FB-250H-300		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-N-FB-250N-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-N-FB-250N-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-N-FB-250N-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-N-FB-250N-150		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-N-FB-250N-200		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-N-FB-250N-250		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-N-FB-250N-300		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-N-CA-125B-50		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-CA-125B-75		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-CA-125B-100		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-CA-125B-150		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-CA-125B-200		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-CA-125B-250		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-CA-125B-300		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-CA-125R-50		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-CA-125R-75		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-CA-125R-100		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-CA-125R-150		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-CA-125R-200		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-CA-125R-250		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-CA-125R-300		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-CA-125H-50		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-CA-125H-75		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-CA-125H-100		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-CA-125H-150		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-CA-125H-200		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-CA-125H-250		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-CA-125H-300		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-CA-125N-50		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-N-CA-125N-75		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-N-CA-125N-100		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-N-CA-125N-150		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-N-CA-125N-200		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-N-CA-125N-250		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-N-CA-125N-300		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-N-CA-140B-50		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-CA-140B-75		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-CA-140B-100		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-CA-140B-150		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-CA-140B-200		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-CA-140B-250		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-CA-140B-300		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-CA-140R-50		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-CA-140R-75		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-CA-140R-100		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-CA-140R-150		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-CA-140R-200		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-CA-140R-250		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-CA-140R-300		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-CA-140H-50		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-CA-140H-75		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-CA-140H-100		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-CA-140H-150		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-CA-140H-200		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-CA-140H-250		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-CA-140H-300		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-CA-140N-50		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-CA-140N-75		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-CA-140N-100		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-CA-140N-150		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-CA-140N-200		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-CA-140N-250		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-CA-140N-300		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-CA-160B-50		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-CA-160B-75		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-CA-160B-100		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-CA-160B-150		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-CA-160B-200		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-CA-160B-250		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-CA-160B-300		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-CA-160R-50		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-CA-160R-75		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-CA-160R-100		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-CA-160R-150		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-CA-160R-200		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-CA-160R-250		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-CA-160R-300		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-CA-160H-50		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-CA-160H-75		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-CA-160H-100		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-CA-160H-150		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-CA-160H-200		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-CA-160H-250		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-CA-160H-300		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-N-CA-160N-50		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-N-CA-160N-75		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-N-CA-160N-100		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-N-CA-160N-150		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-N-CA-160N-200		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-N-CA-160N-250		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-N-CA-160N-300		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4

Pneumatic CylindersCKD

756 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCS2-N Selex Cylinder (Non-Lube, Bore 125-250)

Brand CKD·Pneumatic Cylinders

Available part numbers (756)

SCS2-N-00-125B-50, SCS2-N-00-125B-75, SCS2-N-00-125B-100, SCS2-N-00-125B-150, SCS2-N-00-125B-200, SCS2-N-00-125B-250, SCS2-N-00-125B-300, SCS2-N-00-125R-50, SCS2-N-00-125R-75, SCS2-N-00-125R-100 + 746 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCS2-N-00-125B-50	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-00-125B-75	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-00-125B-100	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-00-125B-150	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-00-125B-200	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-00-125B-250	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-00-125B-300	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-00-125R-50	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-00-125R-75	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-00-125R-100	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-00-125R-150	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-00-125R-200	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-00-125R-250	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-00-125R-300	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-00-125H-50	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-00-125H-75	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-00-125H-100	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-00-125H-150	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-00-125H-200	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-00-125H-250	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-00-125H-300	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-00-125N-50	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-00-125N-75	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-00-125N-100	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-00-125N-150	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-00-125N-200	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-00-125N-250	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-00-125N-300	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-00-140B-50	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-140B-75	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-140B-100	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-140B-150	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-140B-200	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-140B-250	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-140B-300	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-140R-50	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-140R-75	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-140R-100	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-140R-150	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-140R-200	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-140R-250	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-140R-300	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-140H-50	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-140H-75	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-140H-100	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-140H-150	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-140H-200	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-140H-250	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-140H-300	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-140N-50	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-140N-75	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-140N-100	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-140N-150	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-140N-200	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-140N-250	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-140N-300	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-160B-50	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-160B-75	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-160B-100	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-160B-150	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-160B-200	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-160B-250	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-160B-300	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-160R-50	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-160R-75	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-160R-100	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-160R-150	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-160R-200	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-160R-250	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-160R-300	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-160H-50	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-160H-75	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-160H-100	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-160H-150	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-160H-200	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-160H-250	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-160H-300	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-160N-50	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-160N-75	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-160N-100	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-160N-150	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-160N-200	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-160N-250	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-160N-300	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-180B-50	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-180B-75	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-180B-100	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-180B-150	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-180B-200	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-180B-250	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-180B-300	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-180R-50	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-180R-75	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-180R-100	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-180R-150	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-180R-200	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-180R-250	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-180R-300	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-180H-50	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-180H-75	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-180H-100	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-180H-150	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-180H-200	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-180H-250	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-180H-300	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-180N-50	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-180N-75	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-180N-100	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-180N-150	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-180N-200	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-180N-250	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-180N-300	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-200B-50	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-200B-75	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-200B-100	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-200B-150	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-200B-200	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-200B-250	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-200B-300	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-200R-50	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-200R-75	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-200R-100	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-200R-150	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-200R-200	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-200R-250	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-200R-300	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-200H-50	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-200H-75	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-200H-100	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-200H-150	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-200H-200	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-200H-250	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-200H-300	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-200N-50	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-00-200N-75	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-00-200N-100	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-00-200N-150	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-00-200N-200	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-00-200N-250	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-00-200N-300	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-00-250B-50	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-00-250B-75	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-00-250B-100	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-00-250B-150	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-00-250B-200	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-00-250B-250	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-00-250B-300	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-00-250R-50	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-00-250R-75	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-00-250R-100	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-00-250R-150	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-00-250R-200	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-00-250R-250	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-00-250R-300	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-00-250H-50	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-00-250H-75	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-00-250H-100	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-00-250H-150	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-00-250H-200	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-00-250H-250	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-00-250H-300	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-00-250N-50	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-00-250N-75	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-00-250N-100	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-00-250N-150	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-00-250N-200	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-00-250N-250	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-00-250N-300	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-LB-125B-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-LB-125B-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-LB-125B-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-LB-125B-150	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-LB-125B-200	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-LB-125B-250	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-LB-125B-300	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-LB-125R-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-LB-125R-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-LB-125R-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-LB-125R-150	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-LB-125R-200	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-LB-125R-250	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-LB-125R-300	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-LB-125H-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-LB-125H-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-LB-125H-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-LB-125H-150	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-LB-125H-200	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-LB-125H-250	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-LB-125H-300	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-LB-125N-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-LB-125N-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-LB-125N-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-LB-125N-150	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-LB-125N-200	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-LB-125N-250	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-LB-125N-300	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-LB-140B-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-140B-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-140B-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-140B-150	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-140B-200	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-140B-250	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-140B-300	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-140R-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-140R-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-140R-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-140R-150	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-140R-200	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-140R-250	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-140R-300	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-140H-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-140H-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-140H-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-140H-150	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-140H-200	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-140H-250	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-140H-300	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-140N-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-140N-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-140N-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-140N-150	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-140N-200	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-140N-250	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-140N-300	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-160B-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-160B-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-160B-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-160B-150	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-160B-200	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-160B-250	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-160B-300	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-160R-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-160R-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-160R-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-160R-150	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-160R-200	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-160R-250	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-160R-300	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-160H-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-160H-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-160H-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-160H-150	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-160H-200	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-160H-250	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-160H-300	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-160N-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-160N-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-160N-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-160N-150	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-160N-200	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-160N-250	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-160N-300	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-180B-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-180B-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-180B-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-180B-150	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-180B-200	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-180B-250	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-180B-300	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-180R-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-180R-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-180R-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-180R-150	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-180R-200	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-180R-250	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-180R-300	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-180H-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-180H-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-180H-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-180H-150	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-180H-200	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-180H-250	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-180H-300	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-180N-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-180N-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-180N-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-180N-150	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-180N-200	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-180N-250	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-180N-300	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-200B-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-200B-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-200B-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-200B-150	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-200B-200	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-200B-250	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-200B-300	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-200R-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-200R-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-200R-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-200R-150	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-200R-200	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-200R-250	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-200R-300	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-200H-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-200H-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-200H-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-200H-150	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-200H-200	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-200H-250	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-200H-300	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-200N-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-LB-200N-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-LB-200N-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-LB-200N-150	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-LB-200N-200	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-LB-200N-250	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-LB-200N-300	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-LB-250B-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-LB-250B-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-LB-250B-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-LB-250B-150	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-LB-250B-200	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-LB-250B-250	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-LB-250B-300	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-LB-250R-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-LB-250R-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-LB-250R-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-LB-250R-150	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-LB-250R-200	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-LB-250R-250	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-LB-250R-300	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-LB-250H-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-LB-250H-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-LB-250H-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-LB-250H-150	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-LB-250H-200	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-LB-250H-250	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-LB-250H-300	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-LB-250N-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-LB-250N-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-LB-250N-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-LB-250N-150	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-LB-250N-200	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-LB-250N-250	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-LB-250N-300	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-FA-125B-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-FA-125B-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-FA-125B-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-FA-125B-150	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-FA-125B-200	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-FA-125B-250	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-FA-125B-300	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-FA-125R-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-FA-125R-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-FA-125R-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-FA-125R-150	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-FA-125R-200	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-FA-125R-250	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-FA-125R-300	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-FA-125H-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-FA-125H-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-FA-125H-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-FA-125H-150	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-FA-125H-200	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-FA-125H-250	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-FA-125H-300	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-FA-125N-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-FA-125N-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-FA-125N-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-FA-125N-150	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-FA-125N-200	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-FA-125N-250	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-FA-125N-300	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-FA-140B-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-140B-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-140B-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-140B-150	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-140B-200	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-140B-250	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-140B-300	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-140R-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-140R-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-140R-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-140R-150	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-140R-200	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-140R-250	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-140R-300	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-140H-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-140H-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-140H-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-140H-150	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-140H-200	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-140H-250	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-140H-300	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-140N-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-140N-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-140N-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-140N-150	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-140N-200	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-140N-250	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-140N-300	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-160B-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-160B-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-160B-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-160B-150	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-160B-200	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-160B-250	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-160B-300	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-160R-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-160R-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-160R-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-160R-150	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-160R-200	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-160R-250	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-160R-300	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-160H-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-160H-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-160H-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-160H-150	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-160H-200	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-160H-250	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-160H-300	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-160N-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-160N-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-160N-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-160N-150	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-160N-200	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-160N-250	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-160N-300	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-180B-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-180B-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-180B-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-180B-150	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-180B-200	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-180B-250	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-180B-300	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-180R-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-180R-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-180R-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-180R-150	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-180R-200	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-180R-250	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-180R-300	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-180H-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-180H-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-180H-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-180H-150	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-180H-200	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-180H-250	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-180H-300	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-180N-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-180N-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-180N-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-180N-150	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-180N-200	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-180N-250	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-180N-300	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-200B-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-200B-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-200B-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-200B-150	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-200B-200	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-200B-250	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-200B-300	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-200R-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-200R-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-200R-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-200R-150	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-200R-200	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-200R-250	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-200R-300	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-200H-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-200H-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-200H-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-200H-150	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-200H-200	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-200H-250	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-200H-300	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-200N-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FA-200N-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FA-200N-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FA-200N-150	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FA-200N-200	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FA-200N-250	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FA-200N-300	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FA-250B-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-FA-250B-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-FA-250B-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-FA-250B-150	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-FA-250B-200	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-FA-250B-250	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-FA-250B-300	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-FA-250R-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-FA-250R-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-FA-250R-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-FA-250R-150	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-FA-250R-200	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-FA-250R-250	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-FA-250R-300	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-FA-250H-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-FA-250H-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-FA-250H-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-FA-250H-150	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-FA-250H-200	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-FA-250H-250	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-FA-250H-300	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-FA-250N-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-FA-250N-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-FA-250N-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-FA-250N-150	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-FA-250N-200	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-FA-250N-250	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-FA-250N-300	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-FB-125B-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-FB-125B-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-FB-125B-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-FB-125B-150	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-FB-125B-200	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-FB-125B-250	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-FB-125B-300	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-FB-125R-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-FB-125R-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-FB-125R-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-FB-125R-150	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-FB-125R-200	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-FB-125R-250	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-FB-125R-300	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-FB-125H-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-FB-125H-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-FB-125H-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-FB-125H-150	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-FB-125H-200	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-FB-125H-250	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-FB-125H-300	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-FB-125N-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-FB-125N-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-FB-125N-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-FB-125N-150	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-FB-125N-200	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-FB-125N-250	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-FB-125N-300	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-FB-140B-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-140B-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-140B-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-140B-150	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-140B-200	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-140B-250	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-140B-300	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-140R-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-140R-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-140R-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-140R-150	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-140R-200	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-140R-250	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-140R-300	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-140H-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-140H-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-140H-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-140H-150	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-140H-200	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-140H-250	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-140H-300	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-140N-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-140N-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-140N-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-140N-150	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-140N-200	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-140N-250	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-140N-300	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-160B-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-160B-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-160B-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-160B-150	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-160B-200	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-160B-250	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-160B-300	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-160R-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-160R-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-160R-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-160R-150	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-160R-200	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-160R-250	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-160R-300	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-160H-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-160H-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-160H-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-160H-150	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-160H-200	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-160H-250	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-160H-300	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-160N-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-160N-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-160N-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-160N-150	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-160N-200	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-160N-250	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-160N-300	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-180B-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-180B-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-180B-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-180B-150	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-180B-200	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-180B-250	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-180B-300	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-180R-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-180R-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-180R-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-180R-150	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-180R-200	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-180R-250	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-180R-300	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-180H-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-180H-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-180H-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-180H-150	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-180H-200	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-180H-250	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-180H-300	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-180N-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-180N-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-180N-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-180N-150	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-180N-200	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-180N-250	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-180N-300	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-200B-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-200B-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-200B-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-200B-150	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-200B-200	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-200B-250	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-200B-300	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-200R-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-200R-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-200R-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-200R-150	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-200R-200	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-200R-250	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-200R-300	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-200H-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-200H-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-200H-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-200H-150	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-200H-200	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-200H-250	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-200H-300	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-200N-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-FB-200N-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-FB-200N-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-FB-200N-150	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-FB-200N-200	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-FB-200N-250	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-FB-200N-300	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-FB-250B-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-FB-250B-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-FB-250B-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-FB-250B-150	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-FB-250B-200	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-FB-250B-250	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-FB-250B-300	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-FB-250R-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-FB-250R-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-FB-250R-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-FB-250R-150	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-FB-250R-200	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-FB-250R-250	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-FB-250R-300	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-FB-250H-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-FB-250H-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-FB-250H-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-FB-250H-150	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-FB-250H-200	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-FB-250H-250	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-FB-250H-300	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-FB-250N-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-N-FB-250N-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-N-FB-250N-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-N-FB-250N-150	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-N-FB-250N-200	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-N-FB-250N-250	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-N-FB-250N-300	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-N-CA-125B-50	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-CA-125B-75	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-CA-125B-100	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-CA-125B-150	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-CA-125B-200	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-CA-125B-250	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-CA-125B-300	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-CA-125R-50	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-CA-125R-75	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-CA-125R-100	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-CA-125R-150	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-CA-125R-200	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-CA-125R-250	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-CA-125R-300	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-CA-125H-50	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-CA-125H-75	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-CA-125H-100	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-CA-125H-150	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-CA-125H-200	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-CA-125H-250	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-CA-125H-300	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-CA-125N-50	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-N-CA-125N-75	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-N-CA-125N-100	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-N-CA-125N-150	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-N-CA-125N-200	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-N-CA-125N-250	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-N-CA-125N-300	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-N-CA-140B-50	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-CA-140B-75	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-CA-140B-100	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-CA-140B-150	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-CA-140B-200	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-CA-140B-250	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-CA-140B-300	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-CA-140R-50	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-CA-140R-75	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-CA-140R-100	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-CA-140R-150	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-CA-140R-200	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-CA-140R-250	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-CA-140R-300	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-CA-140H-50	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-CA-140H-75	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-CA-140H-100	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-CA-140H-150	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-CA-140H-200	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-CA-140H-250	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-CA-140H-300	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-CA-140N-50	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-CA-140N-75	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-CA-140N-100	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-CA-140N-150	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-CA-140N-200	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-CA-140N-250	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-CA-140N-300	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-CA-160B-50	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-CA-160B-75	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-CA-160B-100	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-CA-160B-150	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-CA-160B-200	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-CA-160B-250	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-CA-160B-300	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-CA-160R-50	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-CA-160R-75	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-CA-160R-100	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-CA-160R-150	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-CA-160R-200	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-CA-160R-250	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-CA-160R-300	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-CA-160H-50	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-CA-160H-75	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-CA-160H-100	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-CA-160H-150	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-CA-160H-200	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-CA-160H-250	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-CA-160H-300	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-N-CA-160N-50	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-N-CA-160N-75	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-N-CA-160N-100	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-N-CA-160N-150	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-N-CA-160N-200	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-N-CA-160N-250	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-N-CA-160N-300	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCS2-N Selex Cylinder (Non-Lube, Bore 125-250)
