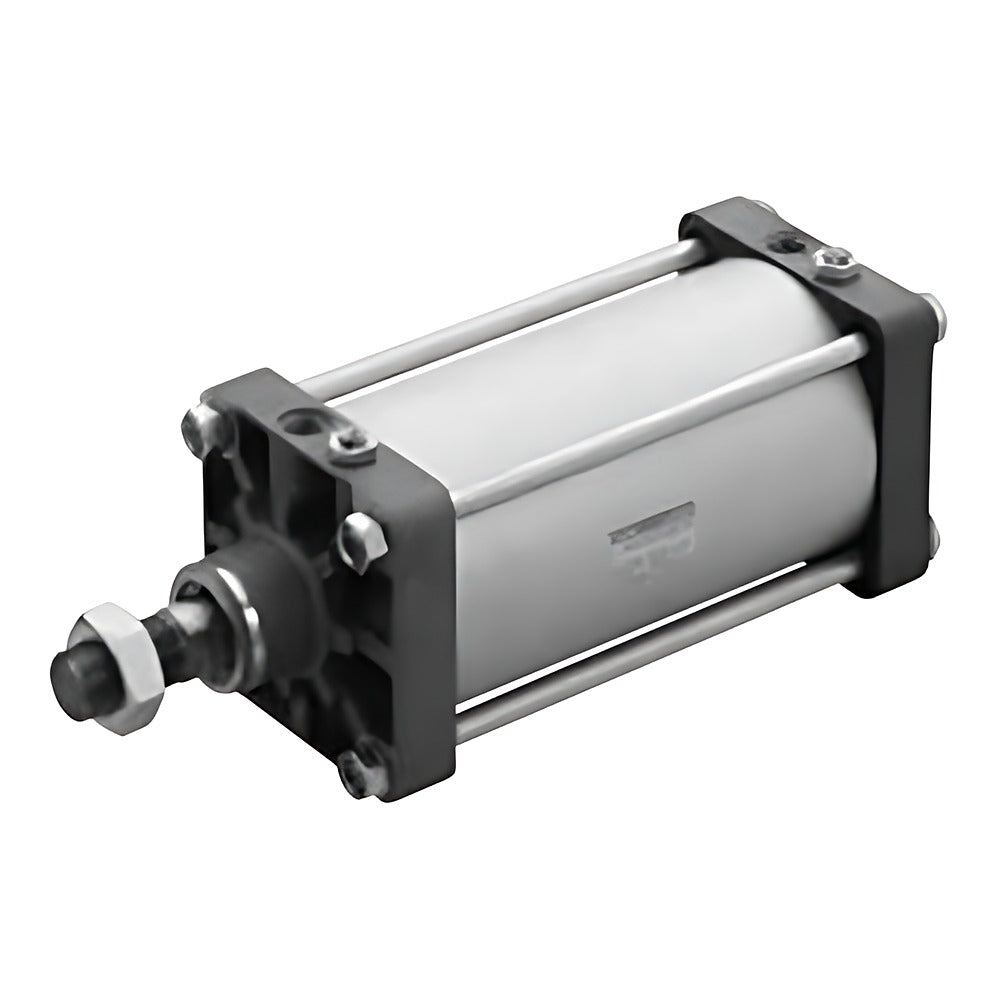

CKD SCS2-P Selex Cylinder (Stroke Adjust Extend, Bore 125-250)

CKD SCS2-P large-bore Selex cylinder with an adjustable extend stroke, bore 125 to 250 mm, adjustment range up to 100 mm.

Key features

Extend-side stroke adjustment, range 25, 50, 75 or 100 mm (rod-side cushion ineffective when adjusted)
Mountings 00, LB, FA, FB, TC, TA, TB
Listed codes use air cushion both ends (B); R, H, N cushions also available
Standard strokes 50 to 300 mm (min. 25 mm); intermediate strokes in 1 mm steps
Made to order; no switch magnet; options (C2, J/L, M, R/S/T, P6) and knuckles (I, Y) as suffixes

Specifications

Action	Double acting, stroke adjust (extend)
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.1 MPa
Proof pressure	1.6 MPa
Ambient temperature	-5 to 60 C (no freezing)
Piston speed	20 to 1000 mm/s
Lubrication	Required (turbine oil ISO VG32)
Cushion	Air cushion, both ends (B)
Switch magnet	None
Source	CKD Korea catalog CB-029SK-9, p. 728-731

SCS2-P-00-125B-50-25		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-00-125B-50-50		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-00-125B-50-75		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-00-125B-50-100		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-00-125B-75-25		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-00-125B-75-50		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-00-125B-75-75		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-00-125B-75-100		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-00-125B-100-25		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-00-125B-100-50		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-00-125B-100-75		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-00-125B-100-100		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-00-125B-150-25		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-00-125B-150-50		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-00-125B-150-75		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-00-125B-150-100		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-00-125B-200-25		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-00-125B-200-50		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-00-125B-200-75		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-00-125B-200-100		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-00-125B-250-25		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-00-125B-250-50		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-00-125B-250-75		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-00-125B-250-100		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-00-125B-300-25		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-00-125B-300-50		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-00-125B-300-75		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-00-125B-300-100		Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-00-140B-50-25		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-140B-50-50		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-140B-50-75		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-140B-50-100		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-140B-75-25		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-140B-75-50		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-140B-75-75		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-140B-75-100		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-140B-100-25		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-140B-100-50		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-140B-100-75		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-140B-100-100		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-140B-150-25		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-140B-150-50		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-140B-150-75		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-140B-150-100		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-140B-200-25		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-140B-200-50		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-140B-200-75		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-140B-200-100		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-140B-250-25		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-140B-250-50		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-140B-250-75		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-140B-250-100		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-140B-300-25		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-140B-300-50		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-140B-300-75		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-140B-300-100		Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-160B-50-25		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-160B-50-50		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-160B-50-75		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-160B-50-100		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-160B-75-25		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-160B-75-50		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-160B-75-75		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-160B-75-100		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-160B-100-25		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-160B-100-50		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-160B-100-75		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-160B-100-100		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-160B-150-25		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-160B-150-50		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-160B-150-75		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-160B-150-100		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-160B-200-25		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-160B-200-50		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-160B-200-75		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-160B-200-100		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-160B-250-25		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-160B-250-50		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-160B-250-75		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-160B-250-100		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-160B-300-25		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-160B-300-50		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-160B-300-75		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-160B-300-100		Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-180B-50-25		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-180B-50-50		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-180B-50-75		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-180B-50-100		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-180B-75-25		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-180B-75-50		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-180B-75-75		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-180B-75-100		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-180B-100-25		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-180B-100-50		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-180B-100-75		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-180B-100-100		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-180B-150-25		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-180B-150-50		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-180B-150-75		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-180B-150-100		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-180B-200-25		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-180B-200-50		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-180B-200-75		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-180B-200-100		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-180B-250-25		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-180B-250-50		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-180B-250-75		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-180B-250-100		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-180B-300-25		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-180B-300-50		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-180B-300-75		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-180B-300-100		Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-200B-50-25		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-200B-50-50		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-200B-50-75		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-200B-50-100		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-200B-75-25		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-200B-75-50		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-200B-75-75		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-200B-75-100		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-200B-100-25		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-200B-100-50		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-200B-100-75		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-200B-100-100		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-200B-150-25		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-200B-150-50		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-200B-150-75		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-200B-150-100		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-200B-200-25		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-200B-200-50		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-200B-200-75		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-200B-200-100		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-200B-250-25		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-200B-250-50		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-200B-250-75		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-200B-250-100		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-200B-300-25		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-00-200B-300-50		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-00-200B-300-75		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-00-200B-300-100		Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-00-250B-50-25		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-00-250B-50-50		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-00-250B-50-75		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-00-250B-50-100		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-00-250B-75-25		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-00-250B-75-50		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-00-250B-75-75		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-00-250B-75-100		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-00-250B-100-25		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-00-250B-100-50		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-00-250B-100-75		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-00-250B-100-100		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-00-250B-150-25		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-00-250B-150-50		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-00-250B-150-75		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-00-250B-150-100		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-00-250B-200-25		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-00-250B-200-50		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-00-250B-200-75		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-00-250B-200-100		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-00-250B-250-25		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-00-250B-250-50		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-00-250B-250-75		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-00-250B-250-100		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-00-250B-300-25		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-00-250B-300-50		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-00-250B-300-75		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-00-250B-300-100		Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-LB-125B-50-25		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-LB-125B-50-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-LB-125B-50-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-LB-125B-50-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-LB-125B-75-25		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-LB-125B-75-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-LB-125B-75-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-LB-125B-75-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-LB-125B-100-25		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-LB-125B-100-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-LB-125B-100-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-LB-125B-100-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-LB-125B-150-25		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-LB-125B-150-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-LB-125B-150-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-LB-125B-150-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-LB-125B-200-25		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-LB-125B-200-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-LB-125B-200-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-LB-125B-200-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-LB-125B-250-25		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-LB-125B-250-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-LB-125B-250-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-LB-125B-250-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-LB-125B-300-25		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-LB-125B-300-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-LB-125B-300-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-LB-125B-300-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-LB-140B-50-25		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-140B-50-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-140B-50-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-140B-50-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-140B-75-25		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-140B-75-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-140B-75-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-140B-75-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-140B-100-25		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-140B-100-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-140B-100-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-140B-100-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-140B-150-25		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-140B-150-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-140B-150-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-140B-150-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-140B-200-25		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-140B-200-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-140B-200-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-140B-200-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-140B-250-25		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-140B-250-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-140B-250-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-140B-250-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-140B-300-25		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-140B-300-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-140B-300-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-140B-300-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-160B-50-25		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-160B-50-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-160B-50-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-160B-50-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-160B-75-25		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-160B-75-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-160B-75-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-160B-75-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-160B-100-25		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-160B-100-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-160B-100-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-160B-100-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-160B-150-25		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-160B-150-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-160B-150-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-160B-150-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-160B-200-25		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-160B-200-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-160B-200-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-160B-200-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-160B-250-25		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-160B-250-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-160B-250-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-160B-250-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-160B-300-25		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-160B-300-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-160B-300-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-160B-300-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-180B-50-25		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-180B-50-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-180B-50-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-180B-50-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-180B-75-25		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-180B-75-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-180B-75-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-180B-75-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-180B-100-25		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-180B-100-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-180B-100-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-180B-100-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-180B-150-25		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-180B-150-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-180B-150-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-180B-150-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-180B-200-25		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-180B-200-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-180B-200-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-180B-200-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-180B-250-25		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-180B-250-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-180B-250-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-180B-250-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-180B-300-25		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-180B-300-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-180B-300-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-180B-300-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-200B-50-25		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-200B-50-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-200B-50-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-200B-50-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-200B-75-25		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-200B-75-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-200B-75-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-200B-75-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-200B-100-25		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-200B-100-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-200B-100-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-200B-100-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-200B-150-25		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-200B-150-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-200B-150-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-200B-150-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-200B-200-25		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-200B-200-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-200B-200-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-200B-200-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-200B-250-25		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-200B-250-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-200B-250-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-200B-250-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-200B-300-25		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-LB-200B-300-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-LB-200B-300-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-LB-200B-300-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-LB-250B-50-25		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-LB-250B-50-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-LB-250B-50-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-LB-250B-50-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-LB-250B-75-25		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-LB-250B-75-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-LB-250B-75-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-LB-250B-75-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-LB-250B-100-25		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-LB-250B-100-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-LB-250B-100-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-LB-250B-100-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-LB-250B-150-25		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-LB-250B-150-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-LB-250B-150-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-LB-250B-150-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-LB-250B-200-25		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-LB-250B-200-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-LB-250B-200-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-LB-250B-200-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-LB-250B-250-25		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-LB-250B-250-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-LB-250B-250-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-LB-250B-250-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-LB-250B-300-25		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-LB-250B-300-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-LB-250B-300-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-LB-250B-300-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FA-125B-50-25		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FA-125B-50-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FA-125B-50-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FA-125B-50-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FA-125B-75-25		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FA-125B-75-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FA-125B-75-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FA-125B-75-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FA-125B-100-25		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FA-125B-100-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FA-125B-100-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FA-125B-100-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FA-125B-150-25		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FA-125B-150-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FA-125B-150-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FA-125B-150-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FA-125B-200-25		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FA-125B-200-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FA-125B-200-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FA-125B-200-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FA-125B-250-25		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FA-125B-250-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FA-125B-250-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FA-125B-250-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FA-125B-300-25		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FA-125B-300-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FA-125B-300-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FA-125B-300-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FA-140B-50-25		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-140B-50-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-140B-50-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-140B-50-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-140B-75-25		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-140B-75-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-140B-75-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-140B-75-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-140B-100-25		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-140B-100-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-140B-100-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-140B-100-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-140B-150-25		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-140B-150-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-140B-150-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-140B-150-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-140B-200-25		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-140B-200-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-140B-200-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-140B-200-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-140B-250-25		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-140B-250-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-140B-250-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-140B-250-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-140B-300-25		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-140B-300-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-140B-300-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-140B-300-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-160B-50-25		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-160B-50-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-160B-50-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-160B-50-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-160B-75-25		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-160B-75-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-160B-75-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-160B-75-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-160B-100-25		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-160B-100-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-160B-100-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-160B-100-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-160B-150-25		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-160B-150-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-160B-150-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-160B-150-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-160B-200-25		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-160B-200-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-160B-200-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-160B-200-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-160B-250-25		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-160B-250-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-160B-250-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-160B-250-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-160B-300-25		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-160B-300-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-160B-300-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-160B-300-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-180B-50-25		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-180B-50-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-180B-50-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-180B-50-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-180B-75-25		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-180B-75-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-180B-75-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-180B-75-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-180B-100-25		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-180B-100-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-180B-100-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-180B-100-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-180B-150-25		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-180B-150-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-180B-150-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-180B-150-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-180B-200-25		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-180B-200-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-180B-200-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-180B-200-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-180B-250-25		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-180B-250-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-180B-250-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-180B-250-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-180B-300-25		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-180B-300-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-180B-300-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-180B-300-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-200B-50-25		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-200B-50-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-200B-50-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-200B-50-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-200B-75-25		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-200B-75-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-200B-75-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-200B-75-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-200B-100-25		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-200B-100-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-200B-100-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-200B-100-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-200B-150-25		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-200B-150-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-200B-150-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-200B-150-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-200B-200-25		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-200B-200-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-200B-200-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-200B-200-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-200B-250-25		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-200B-250-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-200B-250-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-200B-250-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-200B-300-25		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FA-200B-300-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FA-200B-300-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FA-200B-300-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FA-250B-50-25		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FA-250B-50-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FA-250B-50-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FA-250B-50-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FA-250B-75-25		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FA-250B-75-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FA-250B-75-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FA-250B-75-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FA-250B-100-25		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FA-250B-100-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FA-250B-100-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FA-250B-100-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FA-250B-150-25		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FA-250B-150-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FA-250B-150-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FA-250B-150-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FA-250B-200-25		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FA-250B-200-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FA-250B-200-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FA-250B-200-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FA-250B-250-25		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FA-250B-250-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FA-250B-250-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FA-250B-250-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FA-250B-300-25		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FA-250B-300-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FA-250B-300-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FA-250B-300-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FB-125B-50-25		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FB-125B-50-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FB-125B-50-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FB-125B-50-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FB-125B-75-25		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FB-125B-75-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FB-125B-75-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FB-125B-75-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FB-125B-100-25		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FB-125B-100-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FB-125B-100-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FB-125B-100-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FB-125B-150-25		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FB-125B-150-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FB-125B-150-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FB-125B-150-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FB-125B-200-25		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FB-125B-200-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FB-125B-200-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FB-125B-200-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FB-125B-250-25		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FB-125B-250-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FB-125B-250-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FB-125B-250-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FB-125B-300-25		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-FB-125B-300-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-FB-125B-300-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-FB-125B-300-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-FB-140B-50-25		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-140B-50-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-140B-50-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-140B-50-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-140B-75-25		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-140B-75-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-140B-75-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-140B-75-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-140B-100-25		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-140B-100-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-140B-100-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-140B-100-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-140B-150-25		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-140B-150-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-140B-150-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-140B-150-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-140B-200-25		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-140B-200-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-140B-200-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-140B-200-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-140B-250-25		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-140B-250-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-140B-250-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-140B-250-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-140B-300-25		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-140B-300-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-140B-300-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-140B-300-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-160B-50-25		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-160B-50-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-160B-50-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-160B-50-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-160B-75-25		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-160B-75-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-160B-75-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-160B-75-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-160B-100-25		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-160B-100-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-160B-100-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-160B-100-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-160B-150-25		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-160B-150-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-160B-150-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-160B-150-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-160B-200-25		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-160B-200-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-160B-200-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-160B-200-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-160B-250-25		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-160B-250-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-160B-250-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-160B-250-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-160B-300-25		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-160B-300-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-160B-300-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-160B-300-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-180B-50-25		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-180B-50-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-180B-50-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-180B-50-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-180B-75-25		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-180B-75-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-180B-75-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-180B-75-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-180B-100-25		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-180B-100-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-180B-100-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-180B-100-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-180B-150-25		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-180B-150-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-180B-150-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-180B-150-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-180B-200-25		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-180B-200-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-180B-200-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-180B-200-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-180B-250-25		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-180B-250-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-180B-250-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-180B-250-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-180B-300-25		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-180B-300-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-180B-300-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-180B-300-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-200B-50-25		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-200B-50-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-200B-50-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-200B-50-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-200B-75-25		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-200B-75-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-200B-75-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-200B-75-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-200B-100-25		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-200B-100-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-200B-100-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-200B-100-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-200B-150-25		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-200B-150-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-200B-150-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-200B-150-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-200B-200-25		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-200B-200-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-200B-200-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-200B-200-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-200B-250-25		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-200B-250-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-200B-250-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-200B-250-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-200B-300-25		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-FB-200B-300-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-FB-200B-300-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-FB-200B-300-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-FB-250B-50-25		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FB-250B-50-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FB-250B-50-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FB-250B-50-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FB-250B-75-25		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FB-250B-75-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FB-250B-75-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FB-250B-75-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FB-250B-100-25		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FB-250B-100-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FB-250B-100-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FB-250B-100-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FB-250B-150-25		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FB-250B-150-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FB-250B-150-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FB-250B-150-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FB-250B-200-25		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FB-250B-200-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FB-250B-200-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FB-250B-200-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FB-250B-250-25		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FB-250B-250-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FB-250B-250-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FB-250B-250-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-FB-250B-300-25		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-FB-250B-300-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-FB-250B-300-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-FB-250B-300-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TC-125B-50-25		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TC-125B-50-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TC-125B-50-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TC-125B-50-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TC-125B-75-25		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TC-125B-75-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TC-125B-75-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TC-125B-75-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TC-125B-100-25		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TC-125B-100-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TC-125B-100-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TC-125B-100-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TC-125B-150-25		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TC-125B-150-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TC-125B-150-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TC-125B-150-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TC-125B-200-25		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TC-125B-200-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TC-125B-200-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TC-125B-200-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TC-125B-250-25		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TC-125B-250-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TC-125B-250-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TC-125B-250-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TC-125B-300-25		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TC-125B-300-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TC-125B-300-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TC-125B-300-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TC-140B-50-25		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-140B-50-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-140B-50-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-140B-50-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-140B-75-25		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-140B-75-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-140B-75-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-140B-75-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-140B-100-25		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-140B-100-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-140B-100-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-140B-100-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-140B-150-25		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-140B-150-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-140B-150-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-140B-150-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-140B-200-25		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-140B-200-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-140B-200-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-140B-200-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-140B-250-25		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-140B-250-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-140B-250-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-140B-250-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-140B-300-25		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-140B-300-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-140B-300-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-140B-300-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-160B-50-25		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-160B-50-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-160B-50-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-160B-50-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-160B-75-25		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-160B-75-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-160B-75-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-160B-75-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-160B-100-25		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-160B-100-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-160B-100-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-160B-100-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-160B-150-25		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-160B-150-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-160B-150-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-160B-150-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-160B-200-25		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-160B-200-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-160B-200-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-160B-200-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-160B-250-25		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-160B-250-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-160B-250-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-160B-250-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-160B-300-25		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-160B-300-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-160B-300-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-160B-300-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-180B-50-25		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-180B-50-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-180B-50-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-180B-50-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-180B-75-25		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-180B-75-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-180B-75-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-180B-75-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-180B-100-25		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-180B-100-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-180B-100-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-180B-100-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-180B-150-25		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-180B-150-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-180B-150-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-180B-150-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-180B-200-25		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-180B-200-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-180B-200-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-180B-200-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-180B-250-25		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-180B-250-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-180B-250-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-180B-250-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-180B-300-25		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-180B-300-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-180B-300-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-180B-300-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-200B-50-25		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-200B-50-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-200B-50-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-200B-50-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-200B-75-25		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-200B-75-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-200B-75-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-200B-75-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-200B-100-25		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-200B-100-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-200B-100-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-200B-100-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-200B-150-25		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-200B-150-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-200B-150-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-200B-150-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-200B-200-25		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-200B-200-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-200B-200-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-200B-200-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-200B-250-25		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-200B-250-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-200B-250-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-200B-250-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-200B-300-25		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TC-200B-300-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TC-200B-300-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TC-200B-300-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TC-250B-50-25		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TC-250B-50-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TC-250B-50-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TC-250B-50-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TC-250B-75-25		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TC-250B-75-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TC-250B-75-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TC-250B-75-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TC-250B-100-25		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TC-250B-100-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TC-250B-100-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TC-250B-100-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TC-250B-150-25		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TC-250B-150-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TC-250B-150-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TC-250B-150-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TC-250B-200-25		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TC-250B-200-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TC-250B-200-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TC-250B-200-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TC-250B-250-25		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TC-250B-250-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TC-250B-250-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TC-250B-250-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TC-250B-300-25		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TC-250B-300-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TC-250B-300-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TC-250B-300-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TA-125B-50-25		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TA-125B-50-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TA-125B-50-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TA-125B-50-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TA-125B-75-25		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TA-125B-75-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TA-125B-75-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TA-125B-75-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TA-125B-100-25		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TA-125B-100-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TA-125B-100-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TA-125B-100-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TA-125B-150-25		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TA-125B-150-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TA-125B-150-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TA-125B-150-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TA-125B-200-25		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TA-125B-200-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TA-125B-200-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TA-125B-200-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TA-125B-250-25		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TA-125B-250-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TA-125B-250-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TA-125B-250-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TA-125B-300-25		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TA-125B-300-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TA-125B-300-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TA-125B-300-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TA-140B-50-25		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-140B-50-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-140B-50-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-140B-50-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-140B-75-25		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-140B-75-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-140B-75-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-140B-75-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-140B-100-25		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-140B-100-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-140B-100-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-140B-100-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-140B-150-25		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-140B-150-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-140B-150-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-140B-150-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-140B-200-25		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-140B-200-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-140B-200-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-140B-200-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-140B-250-25		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-140B-250-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-140B-250-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-140B-250-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-140B-300-25		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-140B-300-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-140B-300-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-140B-300-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-160B-50-25		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-160B-50-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-160B-50-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-160B-50-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-160B-75-25		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-160B-75-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-160B-75-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-160B-75-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-160B-100-25		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-160B-100-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-160B-100-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-160B-100-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-160B-150-25		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-160B-150-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-160B-150-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-160B-150-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-160B-200-25		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-160B-200-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-160B-200-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-160B-200-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-160B-250-25		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-160B-250-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-160B-250-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-160B-250-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-160B-300-25		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-160B-300-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-160B-300-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-160B-300-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-180B-50-25		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-180B-50-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-180B-50-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-180B-50-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-180B-75-25		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-180B-75-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-180B-75-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-180B-75-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-180B-100-25		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-180B-100-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-180B-100-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-180B-100-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-180B-150-25		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-180B-150-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-180B-150-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-180B-150-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-180B-200-25		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-180B-200-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-180B-200-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-180B-200-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-180B-250-25		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-180B-250-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-180B-250-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-180B-250-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-180B-300-25		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-180B-300-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-180B-300-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-180B-300-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-200B-50-25		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-200B-50-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-200B-50-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-200B-50-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-200B-75-25		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-200B-75-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-200B-75-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-200B-75-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-200B-100-25		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-200B-100-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-200B-100-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-200B-100-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-200B-150-25		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-200B-150-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-200B-150-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-200B-150-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-200B-200-25		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-200B-200-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-200B-200-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-200B-200-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-200B-250-25		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-200B-250-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-200B-250-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-200B-250-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-200B-300-25		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TA-200B-300-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TA-200B-300-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TA-200B-300-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TA-250B-50-25		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TA-250B-50-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TA-250B-50-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TA-250B-50-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TA-250B-75-25		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TA-250B-75-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TA-250B-75-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TA-250B-75-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TA-250B-100-25		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TA-250B-100-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TA-250B-100-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TA-250B-100-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TA-250B-150-25		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TA-250B-150-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TA-250B-150-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TA-250B-150-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TA-250B-200-25		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TA-250B-200-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TA-250B-200-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TA-250B-200-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TA-250B-250-25		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TA-250B-250-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TA-250B-250-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TA-250B-250-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TA-250B-300-25		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TA-250B-300-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TA-250B-300-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TA-250B-300-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TB-125B-50-25		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TB-125B-50-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TB-125B-50-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TB-125B-50-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TB-125B-75-25		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TB-125B-75-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TB-125B-75-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TB-125B-75-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TB-125B-100-25		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TB-125B-100-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TB-125B-100-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TB-125B-100-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TB-125B-150-25		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TB-125B-150-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TB-125B-150-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TB-125B-150-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TB-125B-200-25		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TB-125B-200-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TB-125B-200-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TB-125B-200-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TB-125B-250-25		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TB-125B-250-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TB-125B-250-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TB-125B-250-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TB-125B-300-25		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
SCS2-P-TB-125B-300-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
SCS2-P-TB-125B-300-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
SCS2-P-TB-125B-300-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
SCS2-P-TB-140B-50-25		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-140B-50-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-140B-50-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-140B-50-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-140B-75-25		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-140B-75-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-140B-75-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-140B-75-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-140B-100-25		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-140B-100-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-140B-100-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-140B-100-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-140B-150-25		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-140B-150-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-140B-150-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-140B-150-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-140B-200-25		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-140B-200-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-140B-200-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-140B-200-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-140B-250-25		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-140B-250-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-140B-250-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-140B-250-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-140B-300-25		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-140B-300-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-140B-300-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-140B-300-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-160B-50-25		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-160B-50-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-160B-50-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-160B-50-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-160B-75-25		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-160B-75-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-160B-75-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-160B-75-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-160B-100-25		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-160B-100-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-160B-100-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-160B-100-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-160B-150-25		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-160B-150-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-160B-150-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-160B-150-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-160B-200-25		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-160B-200-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-160B-200-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-160B-200-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-160B-250-25		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-160B-250-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-160B-250-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-160B-250-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-160B-300-25		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-160B-300-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-160B-300-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-160B-300-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-180B-50-25		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-180B-50-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-180B-50-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-180B-50-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-180B-75-25		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-180B-75-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-180B-75-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-180B-75-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-180B-100-25		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-180B-100-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-180B-100-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-180B-100-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-180B-150-25		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-180B-150-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-180B-150-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-180B-150-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-180B-200-25		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-180B-200-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-180B-200-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-180B-200-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-180B-250-25		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-180B-250-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-180B-250-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-180B-250-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-180B-300-25		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-180B-300-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-180B-300-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-180B-300-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-200B-50-25		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-200B-50-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-200B-50-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-200B-50-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-200B-75-25		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-200B-75-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-200B-75-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-200B-75-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-200B-100-25		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-200B-100-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-200B-100-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-200B-100-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-200B-150-25		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-200B-150-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-200B-150-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-200B-150-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-200B-200-25		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-200B-200-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-200B-200-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-200B-200-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-200B-250-25		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-200B-250-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-200B-250-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-200B-250-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-200B-300-25		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
SCS2-P-TB-200B-300-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
SCS2-P-TB-200B-300-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
SCS2-P-TB-200B-300-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
SCS2-P-TB-250B-50-25		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TB-250B-50-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TB-250B-50-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TB-250B-50-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TB-250B-75-25		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TB-250B-75-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TB-250B-75-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TB-250B-75-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TB-250B-100-25		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TB-250B-100-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TB-250B-100-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TB-250B-100-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TB-250B-150-25		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TB-250B-150-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TB-250B-150-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TB-250B-150-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TB-250B-200-25		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TB-250B-200-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TB-250B-200-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TB-250B-200-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TB-250B-250-25		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TB-250B-250-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TB-250B-250-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TB-250B-250-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
SCS2-P-TB-250B-300-25		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
SCS2-P-TB-250B-300-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
SCS2-P-TB-250B-300-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
SCS2-P-TB-250B-300-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1

Pneumatic CylindersCKD

1176 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCS2-P Selex Cylinder (Stroke Adjust Extend, Bore 125-250)

Brand CKD·Pneumatic Cylinders

Available part numbers (1176)

SCS2-P-00-125B-50-25, SCS2-P-00-125B-50-50, SCS2-P-00-125B-50-75, SCS2-P-00-125B-50-100, SCS2-P-00-125B-75-25, SCS2-P-00-125B-75-50, SCS2-P-00-125B-75-75, SCS2-P-00-125B-75-100, SCS2-P-00-125B-100-25, SCS2-P-00-125B-100-50 + 1166 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCS2-P-00-125B-50-25	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-00-125B-50-50	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-00-125B-50-75	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-00-125B-50-100	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-00-125B-75-25	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-00-125B-75-50	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-00-125B-75-75	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-00-125B-75-100	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-00-125B-100-25	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-00-125B-100-50	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-00-125B-100-75	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-00-125B-100-100	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-00-125B-150-25	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-00-125B-150-50	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-00-125B-150-75	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-00-125B-150-100	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-00-125B-200-25	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-00-125B-200-50	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-00-125B-200-75	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-00-125B-200-100	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-00-125B-250-25	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-00-125B-250-50	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-00-125B-250-75	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-00-125B-250-100	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-00-125B-300-25	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-00-125B-300-50	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-00-125B-300-75	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-00-125B-300-100	Mounting: Basic (00) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-00-140B-50-25	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-140B-50-50	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-140B-50-75	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-140B-50-100	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-140B-75-25	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-140B-75-50	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-140B-75-75	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-140B-75-100	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-140B-100-25	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-140B-100-50	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-140B-100-75	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-140B-100-100	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-140B-150-25	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-140B-150-50	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-140B-150-75	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-140B-150-100	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-140B-200-25	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-140B-200-50	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-140B-200-75	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-140B-200-100	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-140B-250-25	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-140B-250-50	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-140B-250-75	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-140B-250-100	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-140B-300-25	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-140B-300-50	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-140B-300-75	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-140B-300-100	Mounting: Basic (00) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-160B-50-25	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-160B-50-50	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-160B-50-75	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-160B-50-100	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-160B-75-25	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-160B-75-50	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-160B-75-75	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-160B-75-100	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-160B-100-25	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-160B-100-50	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-160B-100-75	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-160B-100-100	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-160B-150-25	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-160B-150-50	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-160B-150-75	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-160B-150-100	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-160B-200-25	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-160B-200-50	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-160B-200-75	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-160B-200-100	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-160B-250-25	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-160B-250-50	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-160B-250-75	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-160B-250-100	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-160B-300-25	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-160B-300-50	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-160B-300-75	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-160B-300-100	Mounting: Basic (00) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-180B-50-25	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-180B-50-50	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-180B-50-75	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-180B-50-100	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-180B-75-25	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-180B-75-50	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-180B-75-75	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-180B-75-100	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-180B-100-25	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-180B-100-50	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-180B-100-75	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-180B-100-100	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-180B-150-25	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-180B-150-50	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-180B-150-75	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-180B-150-100	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-180B-200-25	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-180B-200-50	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-180B-200-75	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-180B-200-100	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-180B-250-25	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-180B-250-50	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-180B-250-75	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-180B-250-100	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-180B-300-25	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-180B-300-50	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-180B-300-75	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-180B-300-100	Mounting: Basic (00) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-200B-50-25	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-200B-50-50	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-200B-50-75	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-200B-50-100	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-200B-75-25	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-200B-75-50	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-200B-75-75	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-200B-75-100	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-200B-100-25	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-200B-100-50	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-200B-100-75	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-200B-100-100	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-200B-150-25	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-200B-150-50	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-200B-150-75	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-200B-150-100	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-200B-200-25	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-200B-200-50	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-200B-200-75	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-200B-200-100	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-200B-250-25	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-200B-250-50	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-200B-250-75	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-200B-250-100	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-200B-300-25	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-00-200B-300-50	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-00-200B-300-75	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-00-200B-300-100	Mounting: Basic (00) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-00-250B-50-25	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-00-250B-50-50	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-00-250B-50-75	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-00-250B-50-100	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-00-250B-75-25	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-00-250B-75-50	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-00-250B-75-75	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-00-250B-75-100	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-00-250B-100-25	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-00-250B-100-50	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-00-250B-100-75	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-00-250B-100-100	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-00-250B-150-25	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-00-250B-150-50	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-00-250B-150-75	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-00-250B-150-100	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-00-250B-200-25	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-00-250B-200-50	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-00-250B-200-75	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-00-250B-200-100	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-00-250B-250-25	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-00-250B-250-50	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-00-250B-250-75	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-00-250B-250-100	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-00-250B-300-25	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-00-250B-300-50	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-00-250B-300-75	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-00-250B-300-100	Mounting: Basic (00) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-LB-125B-50-25	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-LB-125B-50-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-LB-125B-50-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-LB-125B-50-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-LB-125B-75-25	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-LB-125B-75-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-LB-125B-75-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-LB-125B-75-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-LB-125B-100-25	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-LB-125B-100-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-LB-125B-100-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-LB-125B-100-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-LB-125B-150-25	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-LB-125B-150-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-LB-125B-150-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-LB-125B-150-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-LB-125B-200-25	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-LB-125B-200-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-LB-125B-200-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-LB-125B-200-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-LB-125B-250-25	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-LB-125B-250-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-LB-125B-250-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-LB-125B-250-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-LB-125B-300-25	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-LB-125B-300-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-LB-125B-300-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-LB-125B-300-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-LB-140B-50-25	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-140B-50-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-140B-50-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-140B-50-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-140B-75-25	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-140B-75-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-140B-75-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-140B-75-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-140B-100-25	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-140B-100-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-140B-100-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-140B-100-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-140B-150-25	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-140B-150-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-140B-150-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-140B-150-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-140B-200-25	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-140B-200-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-140B-200-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-140B-200-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-140B-250-25	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-140B-250-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-140B-250-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-140B-250-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-140B-300-25	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-140B-300-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-140B-300-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-140B-300-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-160B-50-25	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-160B-50-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-160B-50-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-160B-50-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-160B-75-25	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-160B-75-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-160B-75-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-160B-75-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-160B-100-25	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-160B-100-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-160B-100-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-160B-100-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-160B-150-25	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-160B-150-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-160B-150-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-160B-150-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-160B-200-25	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-160B-200-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-160B-200-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-160B-200-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-160B-250-25	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-160B-250-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-160B-250-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-160B-250-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-160B-300-25	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-160B-300-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-160B-300-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-160B-300-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-180B-50-25	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-180B-50-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-180B-50-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-180B-50-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-180B-75-25	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-180B-75-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-180B-75-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-180B-75-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-180B-100-25	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-180B-100-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-180B-100-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-180B-100-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-180B-150-25	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-180B-150-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-180B-150-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-180B-150-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-180B-200-25	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-180B-200-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-180B-200-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-180B-200-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-180B-250-25	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-180B-250-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-180B-250-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-180B-250-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-180B-300-25	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-180B-300-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-180B-300-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-180B-300-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-200B-50-25	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-200B-50-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-200B-50-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-200B-50-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-200B-75-25	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-200B-75-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-200B-75-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-200B-75-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-200B-100-25	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-200B-100-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-200B-100-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-200B-100-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-200B-150-25	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-200B-150-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-200B-150-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-200B-150-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-200B-200-25	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-200B-200-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-200B-200-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-200B-200-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-200B-250-25	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-200B-250-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-200B-250-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-200B-250-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-200B-300-25	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-LB-200B-300-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-LB-200B-300-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-LB-200B-300-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-LB-250B-50-25	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-LB-250B-50-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-LB-250B-50-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-LB-250B-50-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-LB-250B-75-25	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-LB-250B-75-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-LB-250B-75-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-LB-250B-75-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-LB-250B-100-25	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-LB-250B-100-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-LB-250B-100-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-LB-250B-100-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-LB-250B-150-25	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-LB-250B-150-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-LB-250B-150-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-LB-250B-150-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-LB-250B-200-25	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-LB-250B-200-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-LB-250B-200-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-LB-250B-200-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-LB-250B-250-25	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-LB-250B-250-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-LB-250B-250-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-LB-250B-250-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-LB-250B-300-25	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-LB-250B-300-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-LB-250B-300-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-LB-250B-300-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FA-125B-50-25	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FA-125B-50-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FA-125B-50-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FA-125B-50-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FA-125B-75-25	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FA-125B-75-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FA-125B-75-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FA-125B-75-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FA-125B-100-25	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FA-125B-100-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FA-125B-100-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FA-125B-100-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FA-125B-150-25	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FA-125B-150-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FA-125B-150-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FA-125B-150-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FA-125B-200-25	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FA-125B-200-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FA-125B-200-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FA-125B-200-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FA-125B-250-25	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FA-125B-250-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FA-125B-250-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FA-125B-250-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FA-125B-300-25	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FA-125B-300-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FA-125B-300-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FA-125B-300-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FA-140B-50-25	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-140B-50-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-140B-50-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-140B-50-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-140B-75-25	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-140B-75-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-140B-75-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-140B-75-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-140B-100-25	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-140B-100-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-140B-100-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-140B-100-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-140B-150-25	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-140B-150-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-140B-150-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-140B-150-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-140B-200-25	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-140B-200-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-140B-200-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-140B-200-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-140B-250-25	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-140B-250-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-140B-250-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-140B-250-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-140B-300-25	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-140B-300-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-140B-300-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-140B-300-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-160B-50-25	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-160B-50-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-160B-50-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-160B-50-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-160B-75-25	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-160B-75-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-160B-75-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-160B-75-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-160B-100-25	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-160B-100-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-160B-100-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-160B-100-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-160B-150-25	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-160B-150-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-160B-150-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-160B-150-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-160B-200-25	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-160B-200-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-160B-200-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-160B-200-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-160B-250-25	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-160B-250-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-160B-250-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-160B-250-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-160B-300-25	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-160B-300-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-160B-300-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-160B-300-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-180B-50-25	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-180B-50-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-180B-50-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-180B-50-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-180B-75-25	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-180B-75-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-180B-75-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-180B-75-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-180B-100-25	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-180B-100-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-180B-100-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-180B-100-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-180B-150-25	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-180B-150-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-180B-150-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-180B-150-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-180B-200-25	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-180B-200-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-180B-200-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-180B-200-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-180B-250-25	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-180B-250-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-180B-250-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-180B-250-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-180B-300-25	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-180B-300-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-180B-300-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-180B-300-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-200B-50-25	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-200B-50-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-200B-50-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-200B-50-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-200B-75-25	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-200B-75-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-200B-75-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-200B-75-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-200B-100-25	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-200B-100-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-200B-100-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-200B-100-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-200B-150-25	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-200B-150-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-200B-150-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-200B-150-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-200B-200-25	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-200B-200-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-200B-200-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-200B-200-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-200B-250-25	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-200B-250-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-200B-250-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-200B-250-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-200B-300-25	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FA-200B-300-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FA-200B-300-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FA-200B-300-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FA-250B-50-25	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FA-250B-50-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FA-250B-50-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FA-250B-50-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FA-250B-75-25	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FA-250B-75-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FA-250B-75-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FA-250B-75-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FA-250B-100-25	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FA-250B-100-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FA-250B-100-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FA-250B-100-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FA-250B-150-25	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FA-250B-150-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FA-250B-150-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FA-250B-150-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FA-250B-200-25	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FA-250B-200-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FA-250B-200-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FA-250B-200-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FA-250B-250-25	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FA-250B-250-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FA-250B-250-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FA-250B-250-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FA-250B-300-25	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FA-250B-300-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FA-250B-300-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FA-250B-300-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FB-125B-50-25	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FB-125B-50-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FB-125B-50-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FB-125B-50-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FB-125B-75-25	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FB-125B-75-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FB-125B-75-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FB-125B-75-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FB-125B-100-25	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FB-125B-100-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FB-125B-100-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FB-125B-100-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FB-125B-150-25	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FB-125B-150-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FB-125B-150-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FB-125B-150-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FB-125B-200-25	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FB-125B-200-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FB-125B-200-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FB-125B-200-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FB-125B-250-25	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FB-125B-250-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FB-125B-250-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FB-125B-250-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FB-125B-300-25	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-FB-125B-300-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-FB-125B-300-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-FB-125B-300-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-FB-140B-50-25	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-140B-50-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-140B-50-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-140B-50-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-140B-75-25	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-140B-75-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-140B-75-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-140B-75-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-140B-100-25	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-140B-100-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-140B-100-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-140B-100-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-140B-150-25	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-140B-150-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-140B-150-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-140B-150-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-140B-200-25	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-140B-200-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-140B-200-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-140B-200-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-140B-250-25	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-140B-250-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-140B-250-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-140B-250-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-140B-300-25	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-140B-300-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-140B-300-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-140B-300-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-160B-50-25	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-160B-50-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-160B-50-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-160B-50-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-160B-75-25	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-160B-75-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-160B-75-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-160B-75-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-160B-100-25	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-160B-100-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-160B-100-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-160B-100-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-160B-150-25	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-160B-150-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-160B-150-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-160B-150-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-160B-200-25	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-160B-200-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-160B-200-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-160B-200-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-160B-250-25	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-160B-250-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-160B-250-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-160B-250-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-160B-300-25	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-160B-300-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-160B-300-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-160B-300-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-180B-50-25	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-180B-50-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-180B-50-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-180B-50-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-180B-75-25	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-180B-75-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-180B-75-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-180B-75-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-180B-100-25	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-180B-100-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-180B-100-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-180B-100-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-180B-150-25	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-180B-150-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-180B-150-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-180B-150-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-180B-200-25	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-180B-200-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-180B-200-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-180B-200-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-180B-250-25	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-180B-250-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-180B-250-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-180B-250-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-180B-300-25	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-180B-300-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-180B-300-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-180B-300-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-200B-50-25	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-200B-50-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-200B-50-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-200B-50-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-200B-75-25	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-200B-75-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-200B-75-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-200B-75-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-200B-100-25	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-200B-100-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-200B-100-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-200B-100-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-200B-150-25	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-200B-150-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-200B-150-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-200B-150-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-200B-200-25	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-200B-200-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-200B-200-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-200B-200-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-200B-250-25	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-200B-250-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-200B-250-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-200B-250-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-200B-300-25	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-FB-200B-300-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-FB-200B-300-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-FB-200B-300-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-FB-250B-50-25	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FB-250B-50-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FB-250B-50-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FB-250B-50-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FB-250B-75-25	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FB-250B-75-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FB-250B-75-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FB-250B-75-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FB-250B-100-25	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FB-250B-100-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FB-250B-100-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FB-250B-100-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FB-250B-150-25	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FB-250B-150-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FB-250B-150-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FB-250B-150-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FB-250B-200-25	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FB-250B-200-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FB-250B-200-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FB-250B-200-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FB-250B-250-25	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FB-250B-250-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FB-250B-250-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FB-250B-250-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-FB-250B-300-25	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-FB-250B-300-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-FB-250B-300-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-FB-250B-300-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TC-125B-50-25	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TC-125B-50-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TC-125B-50-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TC-125B-50-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TC-125B-75-25	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TC-125B-75-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TC-125B-75-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TC-125B-75-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TC-125B-100-25	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TC-125B-100-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TC-125B-100-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TC-125B-100-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TC-125B-150-25	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TC-125B-150-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TC-125B-150-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TC-125B-150-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TC-125B-200-25	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TC-125B-200-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TC-125B-200-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TC-125B-200-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TC-125B-250-25	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TC-125B-250-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TC-125B-250-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TC-125B-250-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TC-125B-300-25	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TC-125B-300-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TC-125B-300-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TC-125B-300-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TC-140B-50-25	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-140B-50-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-140B-50-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-140B-50-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-140B-75-25	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-140B-75-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-140B-75-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-140B-75-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-140B-100-25	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-140B-100-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-140B-100-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-140B-100-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-140B-150-25	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-140B-150-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-140B-150-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-140B-150-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-140B-200-25	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-140B-200-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-140B-200-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-140B-200-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-140B-250-25	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-140B-250-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-140B-250-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-140B-250-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-140B-300-25	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-140B-300-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-140B-300-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-140B-300-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-160B-50-25	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-160B-50-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-160B-50-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-160B-50-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-160B-75-25	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-160B-75-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-160B-75-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-160B-75-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-160B-100-25	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-160B-100-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-160B-100-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-160B-100-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-160B-150-25	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-160B-150-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-160B-150-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-160B-150-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-160B-200-25	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-160B-200-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-160B-200-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-160B-200-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-160B-250-25	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-160B-250-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-160B-250-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-160B-250-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-160B-300-25	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-160B-300-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-160B-300-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-160B-300-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-180B-50-25	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-180B-50-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-180B-50-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-180B-50-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-180B-75-25	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-180B-75-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-180B-75-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-180B-75-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-180B-100-25	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-180B-100-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-180B-100-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-180B-100-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-180B-150-25	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-180B-150-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-180B-150-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-180B-150-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-180B-200-25	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-180B-200-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-180B-200-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-180B-200-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-180B-250-25	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-180B-250-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-180B-250-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-180B-250-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-180B-300-25	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-180B-300-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-180B-300-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-180B-300-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-200B-50-25	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-200B-50-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-200B-50-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-200B-50-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-200B-75-25	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-200B-75-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-200B-75-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-200B-75-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-200B-100-25	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-200B-100-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-200B-100-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-200B-100-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-200B-150-25	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-200B-150-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-200B-150-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-200B-150-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-200B-200-25	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-200B-200-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-200B-200-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-200B-200-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-200B-250-25	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-200B-250-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-200B-250-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-200B-250-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-200B-300-25	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TC-200B-300-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TC-200B-300-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TC-200B-300-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TC-250B-50-25	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TC-250B-50-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TC-250B-50-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TC-250B-50-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TC-250B-75-25	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TC-250B-75-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TC-250B-75-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TC-250B-75-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TC-250B-100-25	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TC-250B-100-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TC-250B-100-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TC-250B-100-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TC-250B-150-25	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TC-250B-150-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TC-250B-150-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TC-250B-150-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TC-250B-200-25	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TC-250B-200-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TC-250B-200-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TC-250B-200-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TC-250B-250-25	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TC-250B-250-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TC-250B-250-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TC-250B-250-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TC-250B-300-25	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TC-250B-300-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TC-250B-300-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TC-250B-300-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TA-125B-50-25	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TA-125B-50-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TA-125B-50-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TA-125B-50-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TA-125B-75-25	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TA-125B-75-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TA-125B-75-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TA-125B-75-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TA-125B-100-25	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TA-125B-100-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TA-125B-100-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TA-125B-100-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TA-125B-150-25	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TA-125B-150-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TA-125B-150-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TA-125B-150-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TA-125B-200-25	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TA-125B-200-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TA-125B-200-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TA-125B-200-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TA-125B-250-25	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TA-125B-250-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TA-125B-250-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TA-125B-250-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TA-125B-300-25	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TA-125B-300-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TA-125B-300-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TA-125B-300-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TA-140B-50-25	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-140B-50-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-140B-50-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-140B-50-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-140B-75-25	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-140B-75-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-140B-75-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-140B-75-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-140B-100-25	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-140B-100-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-140B-100-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-140B-100-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-140B-150-25	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-140B-150-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-140B-150-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-140B-150-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-140B-200-25	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-140B-200-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-140B-200-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-140B-200-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-140B-250-25	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-140B-250-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-140B-250-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-140B-250-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-140B-300-25	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-140B-300-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-140B-300-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-140B-300-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-160B-50-25	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-160B-50-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-160B-50-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-160B-50-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-160B-75-25	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-160B-75-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-160B-75-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-160B-75-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-160B-100-25	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-160B-100-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-160B-100-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-160B-100-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-160B-150-25	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-160B-150-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-160B-150-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-160B-150-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-160B-200-25	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-160B-200-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-160B-200-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-160B-200-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-160B-250-25	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-160B-250-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-160B-250-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-160B-250-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-160B-300-25	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-160B-300-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-160B-300-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-160B-300-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-180B-50-25	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-180B-50-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-180B-50-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-180B-50-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-180B-75-25	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-180B-75-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-180B-75-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-180B-75-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-180B-100-25	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-180B-100-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-180B-100-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-180B-100-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-180B-150-25	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-180B-150-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-180B-150-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-180B-150-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-180B-200-25	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-180B-200-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-180B-200-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-180B-200-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-180B-250-25	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-180B-250-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-180B-250-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-180B-250-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-180B-300-25	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-180B-300-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-180B-300-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-180B-300-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-200B-50-25	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-200B-50-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-200B-50-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-200B-50-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-200B-75-25	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-200B-75-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-200B-75-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-200B-75-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-200B-100-25	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-200B-100-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-200B-100-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-200B-100-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-200B-150-25	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-200B-150-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-200B-150-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-200B-150-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-200B-200-25	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-200B-200-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-200B-200-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-200B-200-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-200B-250-25	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-200B-250-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-200B-250-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-200B-250-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-200B-300-25	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TA-200B-300-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TA-200B-300-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TA-200B-300-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TA-250B-50-25	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TA-250B-50-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TA-250B-50-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TA-250B-50-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TA-250B-75-25	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TA-250B-75-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TA-250B-75-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TA-250B-75-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TA-250B-100-25	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TA-250B-100-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TA-250B-100-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TA-250B-100-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TA-250B-150-25	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TA-250B-150-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TA-250B-150-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TA-250B-150-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TA-250B-200-25	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TA-250B-200-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TA-250B-200-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TA-250B-200-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TA-250B-250-25	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TA-250B-250-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TA-250B-250-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TA-250B-250-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TA-250B-300-25	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TA-250B-300-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TA-250B-300-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TA-250B-300-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TB-125B-50-25	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TB-125B-50-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TB-125B-50-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TB-125B-50-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TB-125B-75-25	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TB-125B-75-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TB-125B-75-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TB-125B-75-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TB-125B-100-25	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TB-125B-100-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TB-125B-100-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TB-125B-100-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TB-125B-150-25	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TB-125B-150-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TB-125B-150-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TB-125B-150-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TB-125B-200-25	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TB-125B-200-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TB-125B-200-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TB-125B-200-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TB-125B-250-25	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TB-125B-250-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TB-125B-250-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TB-125B-250-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TB-125B-300-25	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1/2
	SCS2-P-TB-125B-300-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1/2
	SCS2-P-TB-125B-300-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1/2
	SCS2-P-TB-125B-300-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1/2
	SCS2-P-TB-140B-50-25	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-140B-50-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-140B-50-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-140B-50-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-140B-75-25	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-140B-75-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-140B-75-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-140B-75-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-140B-100-25	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-140B-100-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-140B-100-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-140B-100-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-140B-150-25	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-140B-150-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-140B-150-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-140B-150-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-140B-200-25	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-140B-200-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-140B-200-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-140B-200-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-140B-250-25	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-140B-250-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-140B-250-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-140B-250-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-140B-300-25	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-140B-300-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-140B-300-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-140B-300-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-160B-50-25	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-160B-50-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-160B-50-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-160B-50-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-160B-75-25	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-160B-75-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-160B-75-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-160B-75-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-160B-100-25	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-160B-100-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-160B-100-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-160B-100-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-160B-150-25	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-160B-150-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-160B-150-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-160B-150-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-160B-200-25	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-160B-200-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-160B-200-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-160B-200-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-160B-250-25	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-160B-250-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-160B-250-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-160B-250-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-160B-300-25	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-160B-300-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-160B-300-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-160B-300-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-180B-50-25	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-180B-50-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-180B-50-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-180B-50-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-180B-75-25	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-180B-75-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-180B-75-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-180B-75-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-180B-100-25	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-180B-100-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-180B-100-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-180B-100-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-180B-150-25	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-180B-150-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-180B-150-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-180B-150-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-180B-200-25	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-180B-200-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-180B-200-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-180B-200-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-180B-250-25	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-180B-250-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-180B-250-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-180B-250-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-180B-300-25	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-180B-300-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-180B-300-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-180B-300-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-200B-50-25	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-200B-50-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-200B-50-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-200B-50-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-200B-75-25	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-200B-75-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-200B-75-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-200B-75-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-200B-100-25	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-200B-100-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-200B-100-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-200B-100-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-200B-150-25	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-200B-150-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-200B-150-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-200B-150-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-200B-200-25	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-200B-200-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-200B-200-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-200B-200-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-200B-250-25	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-200B-250-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-200B-250-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-200B-250-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-200B-300-25	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc3/4
	SCS2-P-TB-200B-300-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc3/4
	SCS2-P-TB-200B-300-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc3/4
	SCS2-P-TB-200B-300-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc3/4
	SCS2-P-TB-250B-50-25	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TB-250B-50-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TB-250B-50-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TB-250B-50-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 50 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TB-250B-75-25	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TB-250B-75-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TB-250B-75-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TB-250B-75-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 75 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TB-250B-100-25	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TB-250B-100-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TB-250B-100-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TB-250B-100-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 100 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TB-250B-150-25	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TB-250B-150-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TB-250B-150-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TB-250B-150-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 150 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TB-250B-200-25	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TB-250B-200-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TB-250B-200-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TB-250B-200-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 200 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TB-250B-250-25	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TB-250B-250-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TB-250B-250-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TB-250B-250-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 250 mm \| Adjust range: 100 mm \| Port: Rc1
	SCS2-P-TB-250B-300-25	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 25 mm \| Port: Rc1
	SCS2-P-TB-250B-300-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 50 mm \| Port: Rc1
	SCS2-P-TB-250B-300-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 75 mm \| Port: Rc1
	SCS2-P-TB-250B-300-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Stroke: 300 mm \| Adjust range: 100 mm \| Port: Rc1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCS2-P Selex Cylinder (Stroke Adjust Extend, Bore 125-250)
