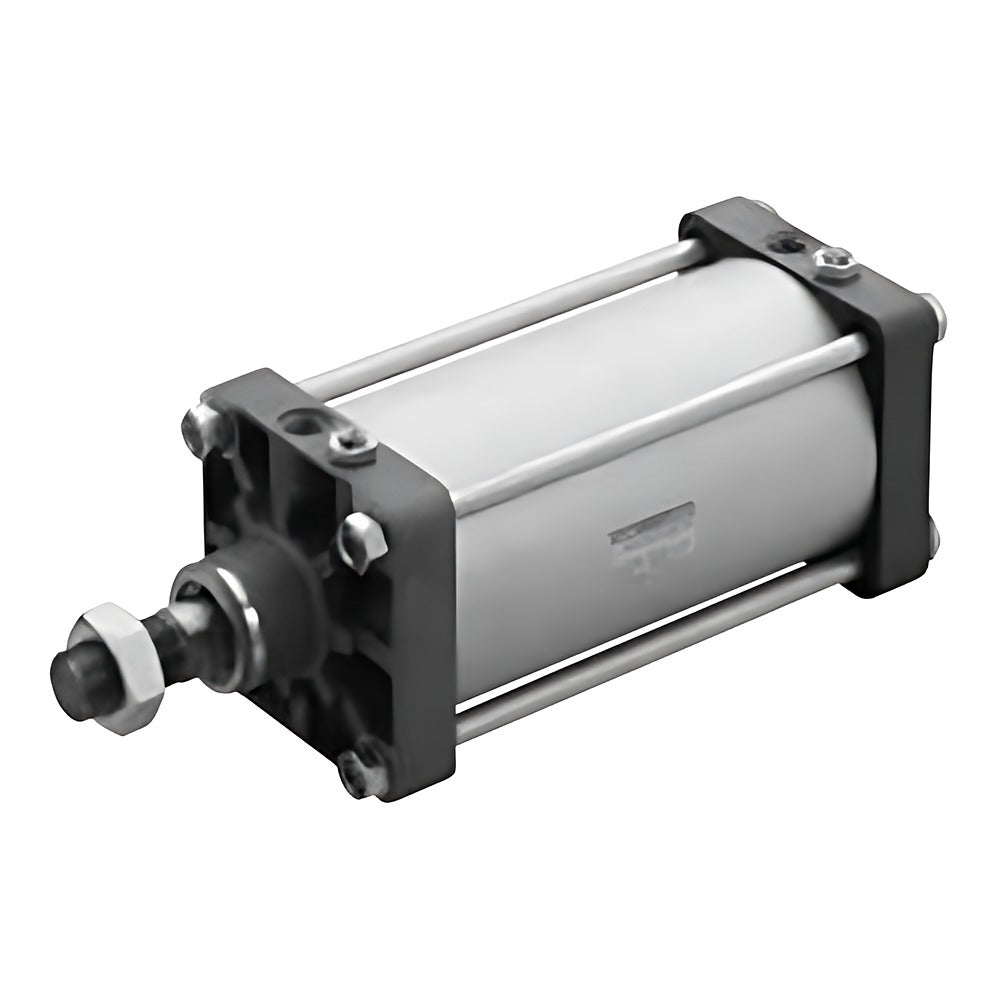

CKD SCS2-T Selex Cylinder (Heat Resistant 120 C, Bore 125-250)

CKD SCS2-T large-bore heat-resistant Selex cylinder for ambient temperatures from 5 to 120 C, bore 125 to 250 mm.

Key features

Heat-resistant seals for ambient 5 to 120 C; no lubrication, regular greasing of the tube
Nine mounting styles: basic, foot, rod/head flange, single/double clevis, center/rod/head trunnion
Cushion: both ends (B), rod end (R), head end (H) or none (N)
Standard strokes 50 to 300 mm; intermediate strokes in 1 mm steps (max 800-1200 mm)
No switch magnet; options (C2, L bellows, M stainless rod, R/S/T) and knuckles/brackets (I, Y, B1, B2) as suffixes

Specifications

Action	Double acting, heat resistant
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	5 to 120 C
Piston speed	20 to 1000 mm/s
Lubrication	Not allowed
Cushion	Air cushion
Switch magnet	None
Source	CKD Korea catalog CB-029SK-9, p. 732-735

SCS2-T-00-125B-50		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-00-125B-75		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-00-125B-100		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-00-125B-150		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-00-125B-200		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-00-125B-250		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-00-125B-300		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-00-125R-50		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-00-125R-75		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-00-125R-100		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-00-125R-150		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-00-125R-200		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-00-125R-250		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-00-125R-300		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-00-125H-50		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-00-125H-75		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-00-125H-100		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-00-125H-150		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-00-125H-200		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-00-125H-250		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-00-125H-300		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-00-125N-50		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-00-125N-75		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-00-125N-100		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-00-125N-150		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-00-125N-200		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-00-125N-250		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-00-125N-300		Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-00-140B-50		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-140B-75		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-140B-100		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-140B-150		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-140B-200		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-140B-250		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-140B-300		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-140R-50		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-140R-75		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-140R-100		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-140R-150		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-140R-200		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-140R-250		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-140R-300		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-140H-50		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-140H-75		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-140H-100		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-140H-150		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-140H-200		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-140H-250		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-140H-300		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-140N-50		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-140N-75		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-140N-100		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-140N-150		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-140N-200		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-140N-250		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-140N-300		Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-160B-50		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-160B-75		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-160B-100		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-160B-150		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-160B-200		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-160B-250		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-160B-300		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-160R-50		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-160R-75		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-160R-100		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-160R-150		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-160R-200		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-160R-250		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-160R-300		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-160H-50		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-160H-75		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-160H-100		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-160H-150		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-160H-200		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-160H-250		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-160H-300		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-160N-50		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-160N-75		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-160N-100		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-160N-150		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-160N-200		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-160N-250		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-160N-300		Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-180B-50		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-180B-75		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-180B-100		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-180B-150		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-180B-200		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-180B-250		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-180B-300		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-180R-50		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-180R-75		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-180R-100		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-180R-150		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-180R-200		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-180R-250		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-180R-300		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-180H-50		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-180H-75		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-180H-100		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-180H-150		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-180H-200		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-180H-250		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-180H-300		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-180N-50		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-180N-75		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-180N-100		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-180N-150		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-180N-200		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-180N-250		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-180N-300		Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-200B-50		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-200B-75		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-200B-100		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-200B-150		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-200B-200		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-200B-250		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-200B-300		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-200R-50		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-200R-75		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-200R-100		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-200R-150		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-200R-200		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-200R-250		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-200R-300		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-200H-50		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-200H-75		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-200H-100		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-200H-150		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-200H-200		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-200H-250		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-200H-300		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-200N-50		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-00-200N-75		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-00-200N-100		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-00-200N-150		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-00-200N-200		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-00-200N-250		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-00-200N-300		Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-00-250B-50		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-T-00-250B-75		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-T-00-250B-100		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-T-00-250B-150		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-T-00-250B-200		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-T-00-250B-250		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-T-00-250B-300		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-T-00-250R-50		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-00-250R-75		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-00-250R-100		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-00-250R-150		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-00-250R-200		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-00-250R-250		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-00-250R-300		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-00-250H-50		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-00-250H-75		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-00-250H-100		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-00-250H-150		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-00-250H-200		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-00-250H-250		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-00-250H-300		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-00-250N-50		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-T-00-250N-75		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-T-00-250N-100		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-T-00-250N-150		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-T-00-250N-200		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-T-00-250N-250		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-T-00-250N-300		Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-T-LB-125B-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-LB-125B-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-LB-125B-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-LB-125B-150		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-LB-125B-200		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-LB-125B-250		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-LB-125B-300		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-LB-125R-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-LB-125R-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-LB-125R-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-LB-125R-150		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-LB-125R-200		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-LB-125R-250		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-LB-125R-300		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-LB-125H-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-LB-125H-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-LB-125H-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-LB-125H-150		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-LB-125H-200		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-LB-125H-250		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-LB-125H-300		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-LB-125N-50		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-LB-125N-75		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-LB-125N-100		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-LB-125N-150		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-LB-125N-200		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-LB-125N-250		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-LB-125N-300		Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-LB-140B-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-140B-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-140B-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-140B-150		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-140B-200		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-140B-250		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-140B-300		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-140R-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-140R-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-140R-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-140R-150		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-140R-200		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-140R-250		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-140R-300		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-140H-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-140H-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-140H-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-140H-150		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-140H-200		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-140H-250		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-140H-300		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-140N-50		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-140N-75		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-140N-100		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-140N-150		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-140N-200		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-140N-250		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-140N-300		Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-160B-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-160B-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-160B-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-160B-150		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-160B-200		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-160B-250		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-160B-300		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-160R-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-160R-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-160R-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-160R-150		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-160R-200		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-160R-250		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-160R-300		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-160H-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-160H-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-160H-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-160H-150		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-160H-200		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-160H-250		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-160H-300		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-160N-50		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-160N-75		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-160N-100		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-160N-150		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-160N-200		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-160N-250		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-160N-300		Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-180B-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-180B-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-180B-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-180B-150		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-180B-200		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-180B-250		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-180B-300		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-180R-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-180R-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-180R-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-180R-150		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-180R-200		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-180R-250		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-180R-300		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-180H-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-180H-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-180H-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-180H-150		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-180H-200		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-180H-250		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-180H-300		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-180N-50		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-180N-75		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-180N-100		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-180N-150		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-180N-200		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-180N-250		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-180N-300		Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-200B-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-200B-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-200B-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-200B-150		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-200B-200		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-200B-250		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-200B-300		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-200R-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-200R-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-200R-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-200R-150		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-200R-200		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-200R-250		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-200R-300		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-200H-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-200H-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-200H-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-200H-150		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-200H-200		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-200H-250		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-200H-300		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-200N-50		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-LB-200N-75		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-LB-200N-100		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-LB-200N-150		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-LB-200N-200		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-LB-200N-250		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-LB-200N-300		Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-LB-250B-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-T-LB-250B-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-T-LB-250B-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-T-LB-250B-150		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-T-LB-250B-200		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-T-LB-250B-250		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-T-LB-250B-300		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-T-LB-250R-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-LB-250R-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-LB-250R-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-LB-250R-150		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-LB-250R-200		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-LB-250R-250		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-LB-250R-300		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-LB-250H-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-LB-250H-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-LB-250H-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-LB-250H-150		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-LB-250H-200		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-LB-250H-250		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-LB-250H-300		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-LB-250N-50		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-T-LB-250N-75		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-T-LB-250N-100		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-T-LB-250N-150		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-T-LB-250N-200		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-T-LB-250N-250		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-T-LB-250N-300		Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-T-FA-125B-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-FA-125B-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-FA-125B-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-FA-125B-150		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-FA-125B-200		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-FA-125B-250		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-FA-125B-300		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-FA-125R-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-FA-125R-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-FA-125R-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-FA-125R-150		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-FA-125R-200		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-FA-125R-250		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-FA-125R-300		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-FA-125H-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-FA-125H-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-FA-125H-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-FA-125H-150		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-FA-125H-200		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-FA-125H-250		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-FA-125H-300		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-FA-125N-50		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-FA-125N-75		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-FA-125N-100		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-FA-125N-150		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-FA-125N-200		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-FA-125N-250		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-FA-125N-300		Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-FA-140B-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-140B-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-140B-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-140B-150		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-140B-200		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-140B-250		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-140B-300		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-140R-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-140R-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-140R-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-140R-150		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-140R-200		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-140R-250		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-140R-300		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-140H-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-140H-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-140H-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-140H-150		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-140H-200		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-140H-250		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-140H-300		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-140N-50		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-140N-75		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-140N-100		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-140N-150		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-140N-200		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-140N-250		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-140N-300		Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-160B-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-160B-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-160B-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-160B-150		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-160B-200		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-160B-250		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-160B-300		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-160R-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-160R-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-160R-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-160R-150		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-160R-200		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-160R-250		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-160R-300		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-160H-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-160H-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-160H-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-160H-150		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-160H-200		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-160H-250		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-160H-300		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-160N-50		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-160N-75		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-160N-100		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-160N-150		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-160N-200		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-160N-250		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-160N-300		Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-180B-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-180B-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-180B-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-180B-150		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-180B-200		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-180B-250		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-180B-300		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-180R-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-180R-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-180R-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-180R-150		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-180R-200		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-180R-250		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-180R-300		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-180H-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-180H-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-180H-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-180H-150		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-180H-200		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-180H-250		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-180H-300		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-180N-50		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-180N-75		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-180N-100		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-180N-150		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-180N-200		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-180N-250		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-180N-300		Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-200B-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-200B-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-200B-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-200B-150		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-200B-200		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-200B-250		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-200B-300		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-200R-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-200R-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-200R-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-200R-150		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-200R-200		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-200R-250		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-200R-300		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-200H-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-200H-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-200H-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-200H-150		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-200H-200		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-200H-250		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-200H-300		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-200N-50		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FA-200N-75		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FA-200N-100		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FA-200N-150		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FA-200N-200		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FA-200N-250		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FA-200N-300		Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FA-250B-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-T-FA-250B-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-T-FA-250B-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-T-FA-250B-150		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-T-FA-250B-200		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-T-FA-250B-250		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-T-FA-250B-300		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-T-FA-250R-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-FA-250R-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-FA-250R-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-FA-250R-150		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-FA-250R-200		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-FA-250R-250		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-FA-250R-300		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-FA-250H-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-FA-250H-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-FA-250H-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-FA-250H-150		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-FA-250H-200		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-FA-250H-250		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-FA-250H-300		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-FA-250N-50		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-T-FA-250N-75		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-T-FA-250N-100		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-T-FA-250N-150		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-T-FA-250N-200		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-T-FA-250N-250		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-T-FA-250N-300		Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-T-FB-125B-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-FB-125B-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-FB-125B-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-FB-125B-150		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-FB-125B-200		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-FB-125B-250		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-FB-125B-300		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-FB-125R-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-FB-125R-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-FB-125R-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-FB-125R-150		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-FB-125R-200		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-FB-125R-250		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-FB-125R-300		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-FB-125H-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-FB-125H-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-FB-125H-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-FB-125H-150		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-FB-125H-200		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-FB-125H-250		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-FB-125H-300		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-FB-125N-50		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-FB-125N-75		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-FB-125N-100		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-FB-125N-150		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-FB-125N-200		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-FB-125N-250		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-FB-125N-300		Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-FB-140B-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-140B-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-140B-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-140B-150		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-140B-200		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-140B-250		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-140B-300		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-140R-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-140R-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-140R-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-140R-150		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-140R-200		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-140R-250		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-140R-300		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-140H-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-140H-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-140H-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-140H-150		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-140H-200		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-140H-250		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-140H-300		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-140N-50		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-140N-75		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-140N-100		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-140N-150		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-140N-200		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-140N-250		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-140N-300		Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-160B-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-160B-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-160B-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-160B-150		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-160B-200		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-160B-250		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-160B-300		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-160R-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-160R-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-160R-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-160R-150		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-160R-200		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-160R-250		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-160R-300		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-160H-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-160H-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-160H-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-160H-150		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-160H-200		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-160H-250		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-160H-300		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-160N-50		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-160N-75		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-160N-100		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-160N-150		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-160N-200		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-160N-250		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-160N-300		Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-180B-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-180B-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-180B-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-180B-150		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-180B-200		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-180B-250		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-180B-300		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-180R-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-180R-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-180R-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-180R-150		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-180R-200		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-180R-250		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-180R-300		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-180H-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-180H-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-180H-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-180H-150		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-180H-200		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-180H-250		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-180H-300		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-180N-50		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-180N-75		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-180N-100		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-180N-150		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-180N-200		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-180N-250		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-180N-300		Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-200B-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-200B-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-200B-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-200B-150		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-200B-200		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-200B-250		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-200B-300		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-200R-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-200R-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-200R-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-200R-150		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-200R-200		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-200R-250		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-200R-300		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-200H-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-200H-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-200H-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-200H-150		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-200H-200		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-200H-250		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-200H-300		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-200N-50		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-FB-200N-75		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-FB-200N-100		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-FB-200N-150		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-FB-200N-200		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-FB-200N-250		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-FB-200N-300		Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-FB-250B-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-T-FB-250B-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-T-FB-250B-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-T-FB-250B-150		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-T-FB-250B-200		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-T-FB-250B-250		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-T-FB-250B-300		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-T-FB-250R-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-FB-250R-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-FB-250R-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-FB-250R-150		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-FB-250R-200		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-FB-250R-250		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-FB-250R-300		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-FB-250H-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-FB-250H-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-FB-250H-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-FB-250H-150		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-FB-250H-200		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-FB-250H-250		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-FB-250H-300		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-FB-250N-50		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-T-FB-250N-75		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-T-FB-250N-100		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-T-FB-250N-150		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-T-FB-250N-200		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-T-FB-250N-250		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-T-FB-250N-300		Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-T-CA-125B-50		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-CA-125B-75		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-CA-125B-100		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-CA-125B-150		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-CA-125B-200		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-CA-125B-250		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-CA-125B-300		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-CA-125R-50		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-CA-125R-75		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-CA-125R-100		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-CA-125R-150		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-CA-125R-200		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-CA-125R-250		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-CA-125R-300		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-CA-125H-50		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-CA-125H-75		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-CA-125H-100		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-CA-125H-150		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-CA-125H-200		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-CA-125H-250		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-CA-125H-300		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-CA-125N-50		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-CA-125N-75		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-CA-125N-100		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-CA-125N-150		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-CA-125N-200		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-CA-125N-250		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-CA-125N-300		Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-CA-140B-50		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-140B-75		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-140B-100		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-140B-150		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-140B-200		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-140B-250		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-140B-300		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-140R-50		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-140R-75		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-140R-100		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-140R-150		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-140R-200		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-140R-250		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-140R-300		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-140H-50		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-140H-75		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-140H-100		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-140H-150		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-140H-200		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-140H-250		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-140H-300		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-140N-50		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-140N-75		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-140N-100		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-140N-150		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-140N-200		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-140N-250		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-140N-300		Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-160B-50		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-160B-75		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-160B-100		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-160B-150		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-160B-200		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-160B-250		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-160B-300		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-160R-50		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-160R-75		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-160R-100		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-160R-150		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-160R-200		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-160R-250		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-160R-300		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-160H-50		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-160H-75		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-160H-100		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-160H-150		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-160H-200		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-160H-250		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-160H-300		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-160N-50		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-160N-75		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-160N-100		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-160N-150		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-160N-200		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-160N-250		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-160N-300		Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4

Pneumatic CylindersCKD

756 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCS2-T Selex Cylinder (Heat Resistant 120 C, Bore 125-250)

Brand CKD·Pneumatic Cylinders

Available part numbers (756)

SCS2-T-00-125B-50, SCS2-T-00-125B-75, SCS2-T-00-125B-100, SCS2-T-00-125B-150, SCS2-T-00-125B-200, SCS2-T-00-125B-250, SCS2-T-00-125B-300, SCS2-T-00-125R-50, SCS2-T-00-125R-75, SCS2-T-00-125R-100 + 746 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCS2-T-00-125B-50	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-00-125B-75	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-00-125B-100	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-00-125B-150	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-00-125B-200	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-00-125B-250	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-00-125B-300	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-00-125R-50	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-00-125R-75	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-00-125R-100	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-00-125R-150	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-00-125R-200	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-00-125R-250	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-00-125R-300	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-00-125H-50	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-00-125H-75	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-00-125H-100	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-00-125H-150	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-00-125H-200	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-00-125H-250	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-00-125H-300	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-00-125N-50	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-00-125N-75	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-00-125N-100	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-00-125N-150	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-00-125N-200	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-00-125N-250	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-00-125N-300	Mounting: Basic (00) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-00-140B-50	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-140B-75	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-140B-100	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-140B-150	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-140B-200	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-140B-250	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-140B-300	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-140R-50	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-140R-75	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-140R-100	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-140R-150	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-140R-200	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-140R-250	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-140R-300	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-140H-50	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-140H-75	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-140H-100	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-140H-150	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-140H-200	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-140H-250	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-140H-300	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-140N-50	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-140N-75	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-140N-100	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-140N-150	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-140N-200	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-140N-250	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-140N-300	Mounting: Basic (00) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-160B-50	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-160B-75	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-160B-100	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-160B-150	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-160B-200	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-160B-250	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-160B-300	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-160R-50	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-160R-75	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-160R-100	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-160R-150	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-160R-200	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-160R-250	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-160R-300	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-160H-50	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-160H-75	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-160H-100	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-160H-150	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-160H-200	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-160H-250	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-160H-300	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-160N-50	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-160N-75	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-160N-100	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-160N-150	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-160N-200	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-160N-250	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-160N-300	Mounting: Basic (00) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-180B-50	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-180B-75	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-180B-100	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-180B-150	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-180B-200	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-180B-250	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-180B-300	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-180R-50	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-180R-75	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-180R-100	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-180R-150	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-180R-200	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-180R-250	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-180R-300	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-180H-50	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-180H-75	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-180H-100	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-180H-150	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-180H-200	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-180H-250	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-180H-300	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-180N-50	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-180N-75	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-180N-100	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-180N-150	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-180N-200	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-180N-250	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-180N-300	Mounting: Basic (00) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-200B-50	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-200B-75	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-200B-100	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-200B-150	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-200B-200	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-200B-250	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-200B-300	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-200R-50	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-200R-75	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-200R-100	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-200R-150	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-200R-200	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-200R-250	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-200R-300	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-200H-50	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-200H-75	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-200H-100	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-200H-150	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-200H-200	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-200H-250	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-200H-300	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-200N-50	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-00-200N-75	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-00-200N-100	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-00-200N-150	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-00-200N-200	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-00-200N-250	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-00-200N-300	Mounting: Basic (00) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-00-250B-50	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-00-250B-75	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-00-250B-100	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-00-250B-150	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-00-250B-200	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-00-250B-250	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-00-250B-300	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-00-250R-50	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-00-250R-75	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-00-250R-100	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-00-250R-150	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-00-250R-200	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-00-250R-250	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-00-250R-300	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-00-250H-50	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-00-250H-75	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-00-250H-100	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-00-250H-150	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-00-250H-200	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-00-250H-250	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-00-250H-300	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-00-250N-50	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-00-250N-75	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-00-250N-100	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-00-250N-150	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-00-250N-200	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-00-250N-250	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-00-250N-300	Mounting: Basic (00) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-LB-125B-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-LB-125B-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-LB-125B-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-LB-125B-150	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-LB-125B-200	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-LB-125B-250	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-LB-125B-300	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-LB-125R-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-LB-125R-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-LB-125R-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-LB-125R-150	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-LB-125R-200	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-LB-125R-250	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-LB-125R-300	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-LB-125H-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-LB-125H-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-LB-125H-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-LB-125H-150	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-LB-125H-200	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-LB-125H-250	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-LB-125H-300	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-LB-125N-50	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-LB-125N-75	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-LB-125N-100	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-LB-125N-150	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-LB-125N-200	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-LB-125N-250	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-LB-125N-300	Mounting: Axial foot (LB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-LB-140B-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-140B-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-140B-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-140B-150	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-140B-200	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-140B-250	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-140B-300	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-140R-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-140R-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-140R-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-140R-150	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-140R-200	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-140R-250	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-140R-300	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-140H-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-140H-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-140H-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-140H-150	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-140H-200	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-140H-250	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-140H-300	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-140N-50	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-140N-75	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-140N-100	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-140N-150	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-140N-200	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-140N-250	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-140N-300	Mounting: Axial foot (LB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-160B-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-160B-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-160B-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-160B-150	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-160B-200	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-160B-250	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-160B-300	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-160R-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-160R-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-160R-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-160R-150	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-160R-200	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-160R-250	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-160R-300	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-160H-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-160H-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-160H-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-160H-150	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-160H-200	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-160H-250	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-160H-300	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-160N-50	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-160N-75	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-160N-100	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-160N-150	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-160N-200	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-160N-250	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-160N-300	Mounting: Axial foot (LB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-180B-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-180B-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-180B-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-180B-150	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-180B-200	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-180B-250	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-180B-300	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-180R-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-180R-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-180R-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-180R-150	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-180R-200	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-180R-250	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-180R-300	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-180H-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-180H-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-180H-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-180H-150	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-180H-200	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-180H-250	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-180H-300	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-180N-50	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-180N-75	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-180N-100	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-180N-150	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-180N-200	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-180N-250	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-180N-300	Mounting: Axial foot (LB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-200B-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-200B-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-200B-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-200B-150	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-200B-200	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-200B-250	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-200B-300	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-200R-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-200R-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-200R-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-200R-150	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-200R-200	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-200R-250	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-200R-300	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-200H-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-200H-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-200H-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-200H-150	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-200H-200	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-200H-250	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-200H-300	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-200N-50	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-LB-200N-75	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-LB-200N-100	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-LB-200N-150	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-LB-200N-200	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-LB-200N-250	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-LB-200N-300	Mounting: Axial foot (LB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-LB-250B-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-LB-250B-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-LB-250B-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-LB-250B-150	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-LB-250B-200	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-LB-250B-250	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-LB-250B-300	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-LB-250R-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-LB-250R-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-LB-250R-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-LB-250R-150	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-LB-250R-200	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-LB-250R-250	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-LB-250R-300	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-LB-250H-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-LB-250H-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-LB-250H-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-LB-250H-150	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-LB-250H-200	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-LB-250H-250	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-LB-250H-300	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-LB-250N-50	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-LB-250N-75	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-LB-250N-100	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-LB-250N-150	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-LB-250N-200	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-LB-250N-250	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-LB-250N-300	Mounting: Axial foot (LB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-FA-125B-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-FA-125B-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-FA-125B-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-FA-125B-150	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-FA-125B-200	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-FA-125B-250	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-FA-125B-300	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-FA-125R-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-FA-125R-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-FA-125R-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-FA-125R-150	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-FA-125R-200	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-FA-125R-250	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-FA-125R-300	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-FA-125H-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-FA-125H-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-FA-125H-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-FA-125H-150	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-FA-125H-200	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-FA-125H-250	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-FA-125H-300	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-FA-125N-50	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-FA-125N-75	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-FA-125N-100	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-FA-125N-150	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-FA-125N-200	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-FA-125N-250	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-FA-125N-300	Mounting: Rod-end flange (FA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-FA-140B-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-140B-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-140B-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-140B-150	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-140B-200	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-140B-250	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-140B-300	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-140R-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-140R-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-140R-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-140R-150	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-140R-200	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-140R-250	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-140R-300	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-140H-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-140H-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-140H-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-140H-150	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-140H-200	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-140H-250	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-140H-300	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-140N-50	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-140N-75	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-140N-100	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-140N-150	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-140N-200	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-140N-250	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-140N-300	Mounting: Rod-end flange (FA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-160B-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-160B-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-160B-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-160B-150	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-160B-200	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-160B-250	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-160B-300	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-160R-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-160R-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-160R-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-160R-150	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-160R-200	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-160R-250	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-160R-300	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-160H-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-160H-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-160H-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-160H-150	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-160H-200	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-160H-250	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-160H-300	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-160N-50	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-160N-75	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-160N-100	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-160N-150	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-160N-200	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-160N-250	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-160N-300	Mounting: Rod-end flange (FA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-180B-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-180B-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-180B-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-180B-150	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-180B-200	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-180B-250	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-180B-300	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-180R-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-180R-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-180R-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-180R-150	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-180R-200	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-180R-250	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-180R-300	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-180H-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-180H-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-180H-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-180H-150	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-180H-200	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-180H-250	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-180H-300	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-180N-50	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-180N-75	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-180N-100	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-180N-150	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-180N-200	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-180N-250	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-180N-300	Mounting: Rod-end flange (FA) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-200B-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-200B-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-200B-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-200B-150	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-200B-200	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-200B-250	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-200B-300	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-200R-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-200R-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-200R-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-200R-150	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-200R-200	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-200R-250	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-200R-300	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-200H-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-200H-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-200H-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-200H-150	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-200H-200	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-200H-250	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-200H-300	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-200N-50	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FA-200N-75	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FA-200N-100	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FA-200N-150	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FA-200N-200	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FA-200N-250	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FA-200N-300	Mounting: Rod-end flange (FA) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FA-250B-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-FA-250B-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-FA-250B-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-FA-250B-150	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-FA-250B-200	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-FA-250B-250	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-FA-250B-300	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-FA-250R-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-FA-250R-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-FA-250R-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-FA-250R-150	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-FA-250R-200	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-FA-250R-250	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-FA-250R-300	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-FA-250H-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-FA-250H-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-FA-250H-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-FA-250H-150	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-FA-250H-200	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-FA-250H-250	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-FA-250H-300	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-FA-250N-50	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-FA-250N-75	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-FA-250N-100	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-FA-250N-150	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-FA-250N-200	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-FA-250N-250	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-FA-250N-300	Mounting: Rod-end flange (FA) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-FB-125B-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-FB-125B-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-FB-125B-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-FB-125B-150	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-FB-125B-200	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-FB-125B-250	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-FB-125B-300	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-FB-125R-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-FB-125R-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-FB-125R-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-FB-125R-150	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-FB-125R-200	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-FB-125R-250	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-FB-125R-300	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-FB-125H-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-FB-125H-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-FB-125H-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-FB-125H-150	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-FB-125H-200	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-FB-125H-250	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-FB-125H-300	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-FB-125N-50	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-FB-125N-75	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-FB-125N-100	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-FB-125N-150	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-FB-125N-200	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-FB-125N-250	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-FB-125N-300	Mounting: Head-end flange (FB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-FB-140B-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-140B-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-140B-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-140B-150	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-140B-200	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-140B-250	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-140B-300	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-140R-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-140R-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-140R-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-140R-150	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-140R-200	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-140R-250	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-140R-300	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-140H-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-140H-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-140H-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-140H-150	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-140H-200	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-140H-250	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-140H-300	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-140N-50	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-140N-75	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-140N-100	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-140N-150	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-140N-200	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-140N-250	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-140N-300	Mounting: Head-end flange (FB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-160B-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-160B-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-160B-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-160B-150	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-160B-200	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-160B-250	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-160B-300	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-160R-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-160R-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-160R-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-160R-150	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-160R-200	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-160R-250	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-160R-300	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-160H-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-160H-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-160H-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-160H-150	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-160H-200	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-160H-250	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-160H-300	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-160N-50	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-160N-75	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-160N-100	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-160N-150	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-160N-200	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-160N-250	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-160N-300	Mounting: Head-end flange (FB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-180B-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-180B-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-180B-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-180B-150	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-180B-200	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-180B-250	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-180B-300	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-180R-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-180R-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-180R-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-180R-150	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-180R-200	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-180R-250	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-180R-300	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-180H-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-180H-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-180H-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-180H-150	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-180H-200	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-180H-250	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-180H-300	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-180N-50	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-180N-75	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-180N-100	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-180N-150	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-180N-200	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-180N-250	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-180N-300	Mounting: Head-end flange (FB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-200B-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-200B-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-200B-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-200B-150	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-200B-200	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-200B-250	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-200B-300	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-200R-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-200R-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-200R-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-200R-150	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-200R-200	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-200R-250	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-200R-300	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-200H-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-200H-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-200H-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-200H-150	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-200H-200	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-200H-250	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-200H-300	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-200N-50	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-FB-200N-75	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-FB-200N-100	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-FB-200N-150	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-FB-200N-200	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-FB-200N-250	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-FB-200N-300	Mounting: Head-end flange (FB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-FB-250B-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-FB-250B-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-FB-250B-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-FB-250B-150	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-FB-250B-200	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-FB-250B-250	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-FB-250B-300	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-FB-250R-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-FB-250R-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-FB-250R-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-FB-250R-150	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-FB-250R-200	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-FB-250R-250	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-FB-250R-300	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-FB-250H-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-FB-250H-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-FB-250H-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-FB-250H-150	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-FB-250H-200	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-FB-250H-250	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-FB-250H-300	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-FB-250N-50	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-FB-250N-75	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-FB-250N-100	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-FB-250N-150	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-FB-250N-200	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-FB-250N-250	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-FB-250N-300	Mounting: Head-end flange (FB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-CA-125B-50	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-CA-125B-75	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-CA-125B-100	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-CA-125B-150	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-CA-125B-200	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-CA-125B-250	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-CA-125B-300	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-CA-125R-50	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-CA-125R-75	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-CA-125R-100	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-CA-125R-150	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-CA-125R-200	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-CA-125R-250	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-CA-125R-300	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-CA-125H-50	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-CA-125H-75	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-CA-125H-100	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-CA-125H-150	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-CA-125H-200	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-CA-125H-250	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-CA-125H-300	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-CA-125N-50	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-CA-125N-75	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-CA-125N-100	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-CA-125N-150	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-CA-125N-200	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-CA-125N-250	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-CA-125N-300	Mounting: Single clevis (CA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-CA-140B-50	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-140B-75	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-140B-100	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-140B-150	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-140B-200	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-140B-250	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-140B-300	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-140R-50	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-140R-75	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-140R-100	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-140R-150	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-140R-200	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-140R-250	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-140R-300	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-140H-50	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-140H-75	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-140H-100	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-140H-150	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-140H-200	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-140H-250	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-140H-300	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-140N-50	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-140N-75	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-140N-100	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-140N-150	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-140N-200	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-140N-250	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-140N-300	Mounting: Single clevis (CA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-160B-50	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-160B-75	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-160B-100	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-160B-150	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-160B-200	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-160B-250	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-160B-300	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-160R-50	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-160R-75	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-160R-100	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-160R-150	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-160R-200	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-160R-250	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-160R-300	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-160H-50	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-160H-75	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-160H-100	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-160H-150	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-160H-200	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-160H-250	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-160H-300	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-160N-50	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-160N-75	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-160N-100	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-160N-150	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-160N-200	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-160N-250	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-160N-300	Mounting: Single clevis (CA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCS2-T Selex Cylinder (Heat Resistant 120 C, Bore 125-250)
