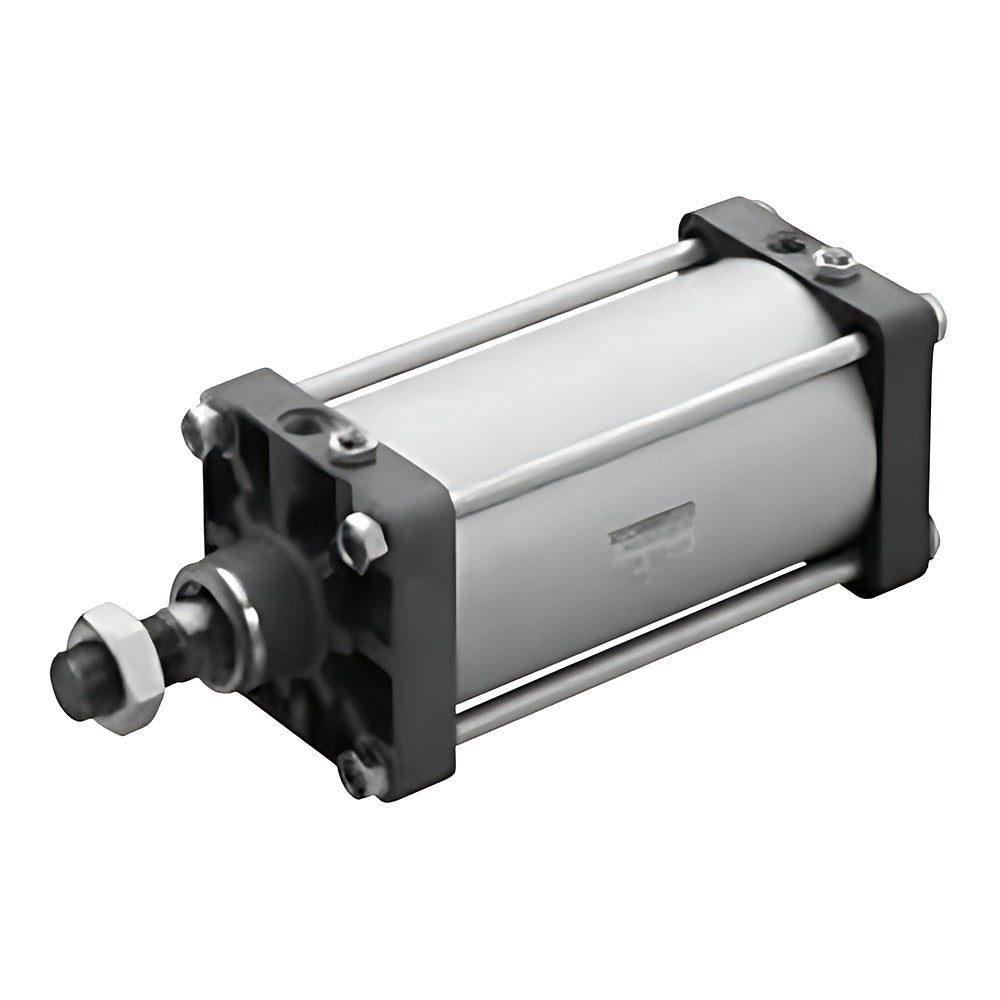

CKD SCS2-T Selex Cylinder (Heat Resistant 120 C, Bore 125-250) - Part 2

CKD SCS2-T large-bore heat-resistant Selex cylinder for ambient temperatures from 5 to 120 C, bore 125 to 250 mm.

Key features

Heat-resistant seals for ambient 5 to 120 C; no lubrication, regular greasing of the tube
Nine mounting styles: basic, foot, rod/head flange, single/double clevis, center/rod/head trunnion
Cushion: both ends (B), rod end (R), head end (H) or none (N)
Standard strokes 50 to 300 mm; intermediate strokes in 1 mm steps (max 800-1200 mm)
No switch magnet; options (C2, L bellows, M stainless rod, R/S/T) and knuckles/brackets (I, Y, B1, B2) as suffixes

Specifications

Action	Double acting, heat resistant
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	5 to 120 C
Piston speed	20 to 1000 mm/s
Lubrication	Not allowed
Cushion	Air cushion
Switch magnet	None
Source	CKD Korea catalog CB-029SK-9, p. 732-735

SCS2-T-CA-180B-50		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-180B-75		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-180B-100		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-180B-150		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-180B-200		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-180B-250		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-180B-300		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-180R-50		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-180R-75		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-180R-100		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-180R-150		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-180R-200		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-180R-250		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-180R-300		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-180H-50		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-180H-75		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-180H-100		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-180H-150		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-180H-200		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-180H-250		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-180H-300		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-180N-50		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-180N-75		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-180N-100		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-180N-150		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-180N-200		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-180N-250		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-180N-300		Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-200B-50		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-200B-75		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-200B-100		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-200B-150		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-200B-200		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-200B-250		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-200B-300		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-200R-50		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-200R-75		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-200R-100		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-200R-150		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-200R-200		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-200R-250		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-200R-300		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-200H-50		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-200H-75		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-200H-100		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-200H-150		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-200H-200		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-200H-250		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-200H-300		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-200N-50		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CA-200N-75		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CA-200N-100		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CA-200N-150		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CA-200N-200		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CA-200N-250		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CA-200N-300		Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CA-250B-50		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-T-CA-250B-75		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-T-CA-250B-100		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-T-CA-250B-150		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-T-CA-250B-200		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-T-CA-250B-250		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-T-CA-250B-300		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-T-CA-250R-50		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-CA-250R-75		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-CA-250R-100		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-CA-250R-150		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-CA-250R-200		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-CA-250R-250		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-CA-250R-300		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-CA-250H-50		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-CA-250H-75		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-CA-250H-100		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-CA-250H-150		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-CA-250H-200		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-CA-250H-250		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-CA-250H-300		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-CA-250N-50		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-T-CA-250N-75		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-T-CA-250N-100		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-T-CA-250N-150		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-T-CA-250N-200		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-T-CA-250N-250		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-T-CA-250N-300		Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-T-CB-125B-50		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-CB-125B-75		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-CB-125B-100		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-CB-125B-150		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-CB-125B-200		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-CB-125B-250		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-CB-125B-300		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-CB-125R-50		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-CB-125R-75		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-CB-125R-100		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-CB-125R-150		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-CB-125R-200		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-CB-125R-250		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-CB-125R-300		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-CB-125H-50		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-CB-125H-75		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-CB-125H-100		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-CB-125H-150		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-CB-125H-200		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-CB-125H-250		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-CB-125H-300		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-CB-125N-50		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-CB-125N-75		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-CB-125N-100		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-CB-125N-150		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-CB-125N-200		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-CB-125N-250		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-CB-125N-300		Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-CB-140B-50		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-140B-75		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-140B-100		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-140B-150		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-140B-200		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-140B-250		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-140B-300		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-140R-50		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-140R-75		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-140R-100		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-140R-150		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-140R-200		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-140R-250		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-140R-300		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-140H-50		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-140H-75		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-140H-100		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-140H-150		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-140H-200		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-140H-250		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-140H-300		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-140N-50		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-140N-75		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-140N-100		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-140N-150		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-140N-200		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-140N-250		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-140N-300		Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-160B-50		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-160B-75		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-160B-100		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-160B-150		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-160B-200		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-160B-250		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-160B-300		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-160R-50		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-160R-75		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-160R-100		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-160R-150		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-160R-200		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-160R-250		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-160R-300		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-160H-50		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-160H-75		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-160H-100		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-160H-150		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-160H-200		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-160H-250		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-160H-300		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-160N-50		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-160N-75		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-160N-100		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-160N-150		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-160N-200		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-160N-250		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-160N-300		Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-180B-50		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-180B-75		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-180B-100		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-180B-150		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-180B-200		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-180B-250		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-180B-300		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-180R-50		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-180R-75		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-180R-100		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-180R-150		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-180R-200		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-180R-250		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-180R-300		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-180H-50		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-180H-75		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-180H-100		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-180H-150		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-180H-200		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-180H-250		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-180H-300		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-180N-50		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-180N-75		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-180N-100		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-180N-150		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-180N-200		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-180N-250		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-180N-300		Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-200B-50		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-200B-75		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-200B-100		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-200B-150		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-200B-200		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-200B-250		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-200B-300		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-200R-50		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-200R-75		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-200R-100		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-200R-150		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-200R-200		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-200R-250		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-200R-300		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-200H-50		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-200H-75		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-200H-100		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-200H-150		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-200H-200		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-200H-250		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-200H-300		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-200N-50		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-CB-200N-75		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-CB-200N-100		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-CB-200N-150		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-CB-200N-200		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-CB-200N-250		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-CB-200N-300		Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-CB-250B-50		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-T-CB-250B-75		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-T-CB-250B-100		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-T-CB-250B-150		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-T-CB-250B-200		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-T-CB-250B-250		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-T-CB-250B-300		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-T-CB-250R-50		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-CB-250R-75		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-CB-250R-100		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-CB-250R-150		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-CB-250R-200		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-CB-250R-250		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-CB-250R-300		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-CB-250H-50		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-CB-250H-75		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-CB-250H-100		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-CB-250H-150		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-CB-250H-200		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-CB-250H-250		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-CB-250H-300		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-CB-250N-50		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-T-CB-250N-75		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-T-CB-250N-100		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-T-CB-250N-150		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-T-CB-250N-200		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-T-CB-250N-250		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-T-CB-250N-300		Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TC-125B-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TC-125B-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TC-125B-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TC-125B-150		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TC-125B-200		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TC-125B-250		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TC-125B-300		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TC-125R-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TC-125R-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TC-125R-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TC-125R-150		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TC-125R-200		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TC-125R-250		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TC-125R-300		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TC-125H-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TC-125H-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TC-125H-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TC-125H-150		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TC-125H-200		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TC-125H-250		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TC-125H-300		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TC-125N-50		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TC-125N-75		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TC-125N-100		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TC-125N-150		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TC-125N-200		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TC-125N-250		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TC-125N-300		Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TC-140B-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-140B-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-140B-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-140B-150		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-140B-200		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-140B-250		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-140B-300		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-140R-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-140R-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-140R-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-140R-150		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-140R-200		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-140R-250		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-140R-300		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-140H-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-140H-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-140H-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-140H-150		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-140H-200		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-140H-250		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-140H-300		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-140N-50		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-140N-75		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-140N-100		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-140N-150		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-140N-200		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-140N-250		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-140N-300		Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-160B-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-160B-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-160B-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-160B-150		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-160B-200		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-160B-250		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-160B-300		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-160R-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-160R-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-160R-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-160R-150		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-160R-200		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-160R-250		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-160R-300		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-160H-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-160H-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-160H-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-160H-150		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-160H-200		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-160H-250		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-160H-300		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-160N-50		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-160N-75		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-160N-100		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-160N-150		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-160N-200		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-160N-250		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-160N-300		Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-180B-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-180B-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-180B-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-180B-150		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-180B-200		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-180B-250		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-180B-300		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-180R-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-180R-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-180R-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-180R-150		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-180R-200		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-180R-250		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-180R-300		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-180H-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-180H-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-180H-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-180H-150		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-180H-200		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-180H-250		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-180H-300		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-180N-50		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-180N-75		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-180N-100		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-180N-150		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-180N-200		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-180N-250		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-180N-300		Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-200B-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-200B-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-200B-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-200B-150		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-200B-200		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-200B-250		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-200B-300		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-200R-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-200R-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-200R-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-200R-150		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-200R-200		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-200R-250		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-200R-300		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-200H-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-200H-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-200H-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-200H-150		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-200H-200		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-200H-250		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-200H-300		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-200N-50		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TC-200N-75		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TC-200N-100		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TC-200N-150		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TC-200N-200		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TC-200N-250		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TC-200N-300		Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TC-250B-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TC-250B-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TC-250B-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TC-250B-150		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TC-250B-200		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TC-250B-250		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TC-250B-300		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TC-250R-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TC-250R-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TC-250R-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TC-250R-150		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TC-250R-200		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TC-250R-250		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TC-250R-300		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TC-250H-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TC-250H-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TC-250H-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TC-250H-150		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TC-250H-200		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TC-250H-250		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TC-250H-300		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TC-250N-50		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TC-250N-75		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TC-250N-100		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TC-250N-150		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TC-250N-200		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TC-250N-250		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TC-250N-300		Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TA-125B-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TA-125B-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TA-125B-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TA-125B-150		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TA-125B-200		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TA-125B-250		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TA-125B-300		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TA-125R-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TA-125R-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TA-125R-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TA-125R-150		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TA-125R-200		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TA-125R-250		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TA-125R-300		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TA-125H-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TA-125H-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TA-125H-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TA-125H-150		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TA-125H-200		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TA-125H-250		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TA-125H-300		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TA-125N-50		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TA-125N-75		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TA-125N-100		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TA-125N-150		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TA-125N-200		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TA-125N-250		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TA-125N-300		Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TA-140B-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-140B-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-140B-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-140B-150		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-140B-200		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-140B-250		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-140B-300		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-140R-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-140R-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-140R-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-140R-150		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-140R-200		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-140R-250		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-140R-300		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-140H-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-140H-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-140H-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-140H-150		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-140H-200		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-140H-250		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-140H-300		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-140N-50		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-140N-75		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-140N-100		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-140N-150		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-140N-200		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-140N-250		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-140N-300		Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-160B-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-160B-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-160B-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-160B-150		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-160B-200		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-160B-250		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-160B-300		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-160R-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-160R-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-160R-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-160R-150		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-160R-200		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-160R-250		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-160R-300		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-160H-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-160H-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-160H-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-160H-150		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-160H-200		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-160H-250		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-160H-300		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-160N-50		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-160N-75		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-160N-100		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-160N-150		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-160N-200		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-160N-250		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-160N-300		Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-180B-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-180B-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-180B-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-180B-150		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-180B-200		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-180B-250		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-180B-300		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-180R-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-180R-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-180R-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-180R-150		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-180R-200		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-180R-250		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-180R-300		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-180H-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-180H-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-180H-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-180H-150		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-180H-200		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-180H-250		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-180H-300		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-180N-50		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-180N-75		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-180N-100		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-180N-150		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-180N-200		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-180N-250		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-180N-300		Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-200B-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-200B-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-200B-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-200B-150		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-200B-200		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-200B-250		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-200B-300		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-200R-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-200R-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-200R-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-200R-150		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-200R-200		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-200R-250		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-200R-300		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-200H-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-200H-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-200H-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-200H-150		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-200H-200		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-200H-250		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-200H-300		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-200N-50		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TA-200N-75		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TA-200N-100		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TA-200N-150		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TA-200N-200		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TA-200N-250		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TA-200N-300		Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TA-250B-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TA-250B-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TA-250B-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TA-250B-150		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TA-250B-200		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TA-250B-250		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TA-250B-300		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TA-250R-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TA-250R-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TA-250R-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TA-250R-150		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TA-250R-200		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TA-250R-250		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TA-250R-300		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TA-250H-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TA-250H-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TA-250H-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TA-250H-150		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TA-250H-200		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TA-250H-250		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TA-250H-300		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TA-250N-50		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TA-250N-75		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TA-250N-100		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TA-250N-150		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TA-250N-200		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TA-250N-250		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TA-250N-300		Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TB-125B-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TB-125B-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TB-125B-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TB-125B-150		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TB-125B-200		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TB-125B-250		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TB-125B-300		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TB-125R-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TB-125R-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TB-125R-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TB-125R-150		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TB-125R-200		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TB-125R-250		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TB-125R-300		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TB-125H-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TB-125H-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TB-125H-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TB-125H-150		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TB-125H-200		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TB-125H-250		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TB-125H-300		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TB-125N-50		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
SCS2-T-TB-125N-75		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
SCS2-T-TB-125N-100		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
SCS2-T-TB-125N-150		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
SCS2-T-TB-125N-200		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
SCS2-T-TB-125N-250		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
SCS2-T-TB-125N-300		Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
SCS2-T-TB-140B-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-140B-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-140B-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-140B-150		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-140B-200		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-140B-250		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-140B-300		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-140R-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-140R-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-140R-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-140R-150		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-140R-200		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-140R-250		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-140R-300		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-140H-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-140H-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-140H-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-140H-150		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-140H-200		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-140H-250		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-140H-300		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-140N-50		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-140N-75		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-140N-100		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-140N-150		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-140N-200		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-140N-250		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-140N-300		Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-160B-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-160B-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-160B-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-160B-150		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-160B-200		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-160B-250		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-160B-300		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-160R-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-160R-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-160R-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-160R-150		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-160R-200		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-160R-250		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-160R-300		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-160H-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-160H-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-160H-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-160H-150		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-160H-200		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-160H-250		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-160H-300		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-160N-50		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-160N-75		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-160N-100		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-160N-150		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-160N-200		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-160N-250		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-160N-300		Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-180B-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-180B-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-180B-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-180B-150		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-180B-200		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-180B-250		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-180B-300		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-180R-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-180R-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-180R-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-180R-150		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-180R-200		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-180R-250		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-180R-300		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-180H-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-180H-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-180H-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-180H-150		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-180H-200		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-180H-250		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-180H-300		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-180N-50		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-180N-75		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-180N-100		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-180N-150		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-180N-200		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-180N-250		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-180N-300		Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-200B-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-200B-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-200B-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-200B-150		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-200B-200		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-200B-250		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-200B-300		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-200R-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-200R-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-200R-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-200R-150		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-200R-200		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-200R-250		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-200R-300		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-200H-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-200H-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-200H-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-200H-150		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-200H-200		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-200H-250		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-200H-300		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-200N-50		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
SCS2-T-TB-200N-75		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
SCS2-T-TB-200N-100		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
SCS2-T-TB-200N-150		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
SCS2-T-TB-200N-200		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
SCS2-T-TB-200N-250		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
SCS2-T-TB-200N-300		Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
SCS2-T-TB-250B-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TB-250B-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TB-250B-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TB-250B-150		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TB-250B-200		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TB-250B-250		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TB-250B-300		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TB-250R-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TB-250R-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TB-250R-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TB-250R-150		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TB-250R-200		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TB-250R-250		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TB-250R-300		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TB-250H-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TB-250H-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TB-250H-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TB-250H-150		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TB-250H-200		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TB-250H-250		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TB-250H-300		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
SCS2-T-TB-250N-50		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
SCS2-T-TB-250N-75		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
SCS2-T-TB-250N-100		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
SCS2-T-TB-250N-150		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
SCS2-T-TB-250N-200		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
SCS2-T-TB-250N-250		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
SCS2-T-TB-250N-300		Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1

Pneumatic CylindersCKD

756 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCS2-T Selex Cylinder (Heat Resistant 120 C, Bore 125-250) - Part 2

Brand CKD·Pneumatic Cylinders

Available part numbers (756)

SCS2-T-CA-180B-50, SCS2-T-CA-180B-75, SCS2-T-CA-180B-100, SCS2-T-CA-180B-150, SCS2-T-CA-180B-200, SCS2-T-CA-180B-250, SCS2-T-CA-180B-300, SCS2-T-CA-180R-50, SCS2-T-CA-180R-75, SCS2-T-CA-180R-100 + 746 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCS2-T-CA-180B-50	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-180B-75	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-180B-100	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-180B-150	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-180B-200	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-180B-250	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-180B-300	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-180R-50	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-180R-75	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-180R-100	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-180R-150	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-180R-200	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-180R-250	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-180R-300	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-180H-50	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-180H-75	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-180H-100	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-180H-150	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-180H-200	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-180H-250	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-180H-300	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-180N-50	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-180N-75	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-180N-100	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-180N-150	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-180N-200	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-180N-250	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-180N-300	Mounting: Single clevis (CA) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-200B-50	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-200B-75	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-200B-100	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-200B-150	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-200B-200	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-200B-250	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-200B-300	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-200R-50	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-200R-75	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-200R-100	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-200R-150	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-200R-200	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-200R-250	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-200R-300	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-200H-50	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-200H-75	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-200H-100	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-200H-150	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-200H-200	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-200H-250	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-200H-300	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-200N-50	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CA-200N-75	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CA-200N-100	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CA-200N-150	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CA-200N-200	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CA-200N-250	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CA-200N-300	Mounting: Single clevis (CA) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CA-250B-50	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-CA-250B-75	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-CA-250B-100	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-CA-250B-150	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-CA-250B-200	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-CA-250B-250	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-CA-250B-300	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-CA-250R-50	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-CA-250R-75	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-CA-250R-100	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-CA-250R-150	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-CA-250R-200	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-CA-250R-250	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-CA-250R-300	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-CA-250H-50	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-CA-250H-75	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-CA-250H-100	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-CA-250H-150	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-CA-250H-200	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-CA-250H-250	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-CA-250H-300	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-CA-250N-50	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-CA-250N-75	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-CA-250N-100	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-CA-250N-150	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-CA-250N-200	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-CA-250N-250	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-CA-250N-300	Mounting: Single clevis (CA) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-CB-125B-50	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-CB-125B-75	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-CB-125B-100	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-CB-125B-150	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-CB-125B-200	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-CB-125B-250	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-CB-125B-300	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-CB-125R-50	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-CB-125R-75	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-CB-125R-100	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-CB-125R-150	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-CB-125R-200	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-CB-125R-250	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-CB-125R-300	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-CB-125H-50	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-CB-125H-75	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-CB-125H-100	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-CB-125H-150	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-CB-125H-200	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-CB-125H-250	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-CB-125H-300	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-CB-125N-50	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-CB-125N-75	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-CB-125N-100	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-CB-125N-150	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-CB-125N-200	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-CB-125N-250	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-CB-125N-300	Mounting: Double clevis (CB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-CB-140B-50	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-140B-75	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-140B-100	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-140B-150	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-140B-200	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-140B-250	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-140B-300	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-140R-50	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-140R-75	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-140R-100	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-140R-150	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-140R-200	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-140R-250	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-140R-300	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-140H-50	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-140H-75	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-140H-100	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-140H-150	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-140H-200	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-140H-250	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-140H-300	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-140N-50	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-140N-75	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-140N-100	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-140N-150	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-140N-200	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-140N-250	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-140N-300	Mounting: Double clevis (CB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-160B-50	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-160B-75	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-160B-100	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-160B-150	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-160B-200	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-160B-250	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-160B-300	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-160R-50	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-160R-75	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-160R-100	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-160R-150	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-160R-200	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-160R-250	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-160R-300	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-160H-50	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-160H-75	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-160H-100	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-160H-150	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-160H-200	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-160H-250	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-160H-300	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-160N-50	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-160N-75	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-160N-100	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-160N-150	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-160N-200	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-160N-250	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-160N-300	Mounting: Double clevis (CB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-180B-50	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-180B-75	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-180B-100	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-180B-150	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-180B-200	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-180B-250	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-180B-300	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-180R-50	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-180R-75	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-180R-100	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-180R-150	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-180R-200	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-180R-250	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-180R-300	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-180H-50	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-180H-75	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-180H-100	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-180H-150	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-180H-200	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-180H-250	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-180H-300	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-180N-50	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-180N-75	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-180N-100	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-180N-150	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-180N-200	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-180N-250	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-180N-300	Mounting: Double clevis (CB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-200B-50	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-200B-75	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-200B-100	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-200B-150	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-200B-200	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-200B-250	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-200B-300	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-200R-50	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-200R-75	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-200R-100	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-200R-150	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-200R-200	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-200R-250	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-200R-300	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-200H-50	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-200H-75	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-200H-100	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-200H-150	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-200H-200	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-200H-250	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-200H-300	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-200N-50	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-CB-200N-75	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-CB-200N-100	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-CB-200N-150	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-CB-200N-200	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-CB-200N-250	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-CB-200N-300	Mounting: Double clevis (CB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-CB-250B-50	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-CB-250B-75	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-CB-250B-100	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-CB-250B-150	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-CB-250B-200	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-CB-250B-250	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-CB-250B-300	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-CB-250R-50	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-CB-250R-75	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-CB-250R-100	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-CB-250R-150	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-CB-250R-200	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-CB-250R-250	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-CB-250R-300	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-CB-250H-50	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-CB-250H-75	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-CB-250H-100	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-CB-250H-150	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-CB-250H-200	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-CB-250H-250	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-CB-250H-300	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-CB-250N-50	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-CB-250N-75	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-CB-250N-100	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-CB-250N-150	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-CB-250N-200	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-CB-250N-250	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-CB-250N-300	Mounting: Double clevis (CB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TC-125B-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TC-125B-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TC-125B-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TC-125B-150	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TC-125B-200	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TC-125B-250	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TC-125B-300	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TC-125R-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TC-125R-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TC-125R-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TC-125R-150	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TC-125R-200	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TC-125R-250	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TC-125R-300	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TC-125H-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TC-125H-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TC-125H-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TC-125H-150	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TC-125H-200	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TC-125H-250	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TC-125H-300	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TC-125N-50	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TC-125N-75	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TC-125N-100	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TC-125N-150	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TC-125N-200	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TC-125N-250	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TC-125N-300	Mounting: Center trunnion (TC) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TC-140B-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-140B-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-140B-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-140B-150	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-140B-200	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-140B-250	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-140B-300	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-140R-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-140R-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-140R-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-140R-150	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-140R-200	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-140R-250	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-140R-300	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-140H-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-140H-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-140H-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-140H-150	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-140H-200	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-140H-250	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-140H-300	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-140N-50	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-140N-75	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-140N-100	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-140N-150	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-140N-200	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-140N-250	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-140N-300	Mounting: Center trunnion (TC) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-160B-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-160B-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-160B-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-160B-150	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-160B-200	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-160B-250	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-160B-300	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-160R-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-160R-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-160R-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-160R-150	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-160R-200	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-160R-250	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-160R-300	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-160H-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-160H-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-160H-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-160H-150	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-160H-200	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-160H-250	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-160H-300	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-160N-50	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-160N-75	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-160N-100	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-160N-150	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-160N-200	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-160N-250	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-160N-300	Mounting: Center trunnion (TC) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-180B-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-180B-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-180B-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-180B-150	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-180B-200	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-180B-250	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-180B-300	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-180R-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-180R-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-180R-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-180R-150	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-180R-200	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-180R-250	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-180R-300	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-180H-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-180H-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-180H-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-180H-150	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-180H-200	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-180H-250	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-180H-300	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-180N-50	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-180N-75	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-180N-100	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-180N-150	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-180N-200	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-180N-250	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-180N-300	Mounting: Center trunnion (TC) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-200B-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-200B-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-200B-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-200B-150	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-200B-200	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-200B-250	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-200B-300	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-200R-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-200R-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-200R-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-200R-150	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-200R-200	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-200R-250	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-200R-300	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-200H-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-200H-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-200H-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-200H-150	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-200H-200	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-200H-250	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-200H-300	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-200N-50	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TC-200N-75	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TC-200N-100	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TC-200N-150	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TC-200N-200	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TC-200N-250	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TC-200N-300	Mounting: Center trunnion (TC) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TC-250B-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TC-250B-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TC-250B-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TC-250B-150	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TC-250B-200	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TC-250B-250	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TC-250B-300	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TC-250R-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TC-250R-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TC-250R-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TC-250R-150	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TC-250R-200	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TC-250R-250	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TC-250R-300	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TC-250H-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TC-250H-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TC-250H-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TC-250H-150	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TC-250H-200	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TC-250H-250	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TC-250H-300	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TC-250N-50	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TC-250N-75	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TC-250N-100	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TC-250N-150	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TC-250N-200	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TC-250N-250	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TC-250N-300	Mounting: Center trunnion (TC) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TA-125B-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TA-125B-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TA-125B-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TA-125B-150	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TA-125B-200	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TA-125B-250	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TA-125B-300	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TA-125R-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TA-125R-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TA-125R-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TA-125R-150	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TA-125R-200	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TA-125R-250	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TA-125R-300	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TA-125H-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TA-125H-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TA-125H-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TA-125H-150	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TA-125H-200	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TA-125H-250	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TA-125H-300	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TA-125N-50	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TA-125N-75	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TA-125N-100	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TA-125N-150	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TA-125N-200	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TA-125N-250	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TA-125N-300	Mounting: Rod-end trunnion (TA) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TA-140B-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-140B-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-140B-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-140B-150	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-140B-200	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-140B-250	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-140B-300	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-140R-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-140R-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-140R-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-140R-150	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-140R-200	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-140R-250	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-140R-300	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-140H-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-140H-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-140H-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-140H-150	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-140H-200	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-140H-250	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-140H-300	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-140N-50	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-140N-75	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-140N-100	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-140N-150	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-140N-200	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-140N-250	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-140N-300	Mounting: Rod-end trunnion (TA) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-160B-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-160B-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-160B-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-160B-150	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-160B-200	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-160B-250	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-160B-300	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-160R-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-160R-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-160R-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-160R-150	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-160R-200	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-160R-250	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-160R-300	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-160H-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-160H-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-160H-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-160H-150	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-160H-200	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-160H-250	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-160H-300	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-160N-50	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-160N-75	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-160N-100	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-160N-150	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-160N-200	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-160N-250	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-160N-300	Mounting: Rod-end trunnion (TA) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-180B-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-180B-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-180B-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-180B-150	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-180B-200	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-180B-250	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-180B-300	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-180R-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-180R-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-180R-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-180R-150	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-180R-200	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-180R-250	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-180R-300	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-180H-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-180H-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-180H-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-180H-150	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-180H-200	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-180H-250	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-180H-300	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-180N-50	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-180N-75	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-180N-100	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-180N-150	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-180N-200	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-180N-250	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-180N-300	Mounting: Rod-end trunnion (TA) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-200B-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-200B-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-200B-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-200B-150	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-200B-200	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-200B-250	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-200B-300	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-200R-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-200R-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-200R-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-200R-150	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-200R-200	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-200R-250	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-200R-300	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-200H-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-200H-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-200H-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-200H-150	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-200H-200	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-200H-250	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-200H-300	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-200N-50	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TA-200N-75	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TA-200N-100	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TA-200N-150	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TA-200N-200	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TA-200N-250	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TA-200N-300	Mounting: Rod-end trunnion (TA) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TA-250B-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TA-250B-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TA-250B-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TA-250B-150	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TA-250B-200	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TA-250B-250	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TA-250B-300	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TA-250R-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TA-250R-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TA-250R-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TA-250R-150	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TA-250R-200	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TA-250R-250	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TA-250R-300	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TA-250H-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TA-250H-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TA-250H-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TA-250H-150	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TA-250H-200	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TA-250H-250	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TA-250H-300	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TA-250N-50	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TA-250N-75	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TA-250N-100	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TA-250N-150	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TA-250N-200	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TA-250N-250	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TA-250N-300	Mounting: Rod-end trunnion (TA) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TB-125B-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TB-125B-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TB-125B-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TB-125B-150	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TB-125B-200	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TB-125B-250	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TB-125B-300	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TB-125R-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TB-125R-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TB-125R-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TB-125R-150	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TB-125R-200	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TB-125R-250	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TB-125R-300	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TB-125H-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TB-125H-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TB-125H-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TB-125H-150	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TB-125H-200	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TB-125H-250	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TB-125H-300	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TB-125N-50	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1/2
	SCS2-T-TB-125N-75	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1/2
	SCS2-T-TB-125N-100	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1/2
	SCS2-T-TB-125N-150	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1/2
	SCS2-T-TB-125N-200	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1/2
	SCS2-T-TB-125N-250	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1/2
	SCS2-T-TB-125N-300	Mounting: Head-end trunnion (TB) \| Bore: 125 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1/2
	SCS2-T-TB-140B-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-140B-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-140B-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-140B-150	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-140B-200	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-140B-250	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-140B-300	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-140R-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-140R-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-140R-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-140R-150	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-140R-200	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-140R-250	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-140R-300	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-140H-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-140H-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-140H-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-140H-150	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-140H-200	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-140H-250	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-140H-300	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-140N-50	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-140N-75	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-140N-100	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-140N-150	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-140N-200	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-140N-250	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-140N-300	Mounting: Head-end trunnion (TB) \| Bore: 140 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-160B-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-160B-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-160B-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-160B-150	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-160B-200	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-160B-250	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-160B-300	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-160R-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-160R-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-160R-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-160R-150	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-160R-200	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-160R-250	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-160R-300	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-160H-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-160H-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-160H-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-160H-150	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-160H-200	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-160H-250	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-160H-300	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-160N-50	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-160N-75	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-160N-100	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-160N-150	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-160N-200	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-160N-250	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-160N-300	Mounting: Head-end trunnion (TB) \| Bore: 160 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-180B-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-180B-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-180B-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-180B-150	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-180B-200	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-180B-250	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-180B-300	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-180R-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-180R-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-180R-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-180R-150	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-180R-200	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-180R-250	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-180R-300	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-180H-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-180H-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-180H-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-180H-150	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-180H-200	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-180H-250	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-180H-300	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-180N-50	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-180N-75	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-180N-100	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-180N-150	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-180N-200	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-180N-250	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-180N-300	Mounting: Head-end trunnion (TB) \| Bore: 180 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-200B-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-200B-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-200B-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-200B-150	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-200B-200	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-200B-250	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-200B-300	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-200R-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-200R-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-200R-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-200R-150	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-200R-200	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-200R-250	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-200R-300	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-200H-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-200H-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-200H-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-200H-150	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-200H-200	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-200H-250	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-200H-300	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-200N-50	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc3/4
	SCS2-T-TB-200N-75	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc3/4
	SCS2-T-TB-200N-100	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc3/4
	SCS2-T-TB-200N-150	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc3/4
	SCS2-T-TB-200N-200	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc3/4
	SCS2-T-TB-200N-250	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc3/4
	SCS2-T-TB-200N-300	Mounting: Head-end trunnion (TB) \| Bore: 200 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc3/4
	SCS2-T-TB-250B-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TB-250B-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TB-250B-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TB-250B-150	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TB-250B-200	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TB-250B-250	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TB-250B-300	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, both ends \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TB-250R-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TB-250R-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TB-250R-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TB-250R-150	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TB-250R-200	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TB-250R-250	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TB-250R-300	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, rod end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TB-250H-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TB-250H-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TB-250H-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TB-250H-150	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TB-250H-200	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TB-250H-250	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TB-250H-300	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: Air, head end \| Stroke: 300 mm \| Port: Rc1
	SCS2-T-TB-250N-50	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 50 mm \| Port: Rc1
	SCS2-T-TB-250N-75	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 75 mm \| Port: Rc1
	SCS2-T-TB-250N-100	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 100 mm \| Port: Rc1
	SCS2-T-TB-250N-150	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 150 mm \| Port: Rc1
	SCS2-T-TB-250N-200	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 200 mm \| Port: Rc1
	SCS2-T-TB-250N-250	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 250 mm \| Port: Rc1
	SCS2-T-TB-250N-300	Mounting: Head-end trunnion (TB) \| Bore: 250 mm \| Cushion: None \| Stroke: 300 mm \| Port: Rc1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCS2-T Selex Cylinder (Heat Resistant 120 C, Bore 125-250) - Part 2
