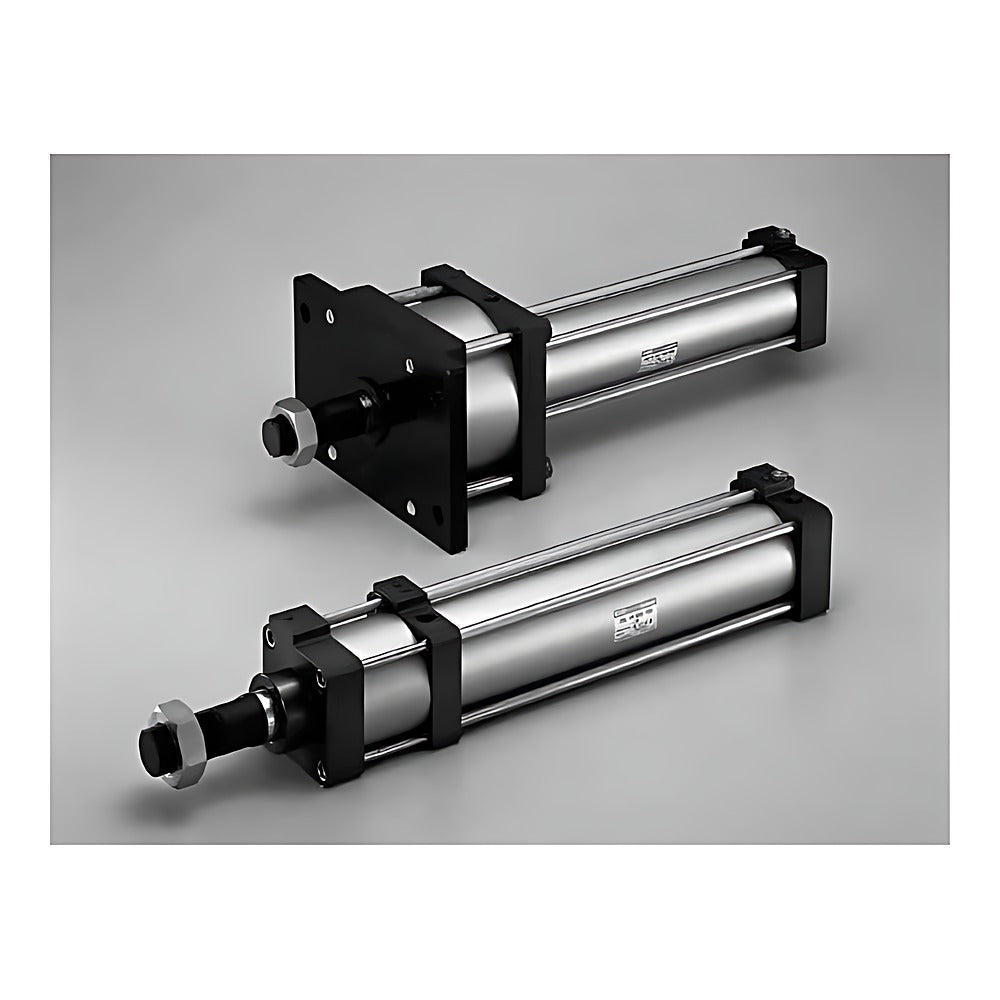

CKD SHC-K Shovic Power Boost Cylinder (Double Acting, 4x Force)

CKD SHC-K Shovic Power Boost Cylinder (Double Acting, 4x Force)

CKD SHC-K Shovic cylinder: a double-acting pneumatic cylinder whose built-in booster quadruples the thrust at the stroke end, bore equivalent 40 to 100 mm.

Key features

  • Booster mechanism gives 4x thrust over the last 10 or 20 mm of stroke (e.g. bore 50 replaces a conventional bore 100)
  • Stroke in the code is the full stroke (travel + boost); intermediate strokes in 5 mm steps up to 700-1000 mm
  • Switch magnet built in; R-type switches (R0, R1-R6, R2Y, R3Y) or strong-magnetic-field H0 (SHC-L2 code) appended
  • Mountings: axial foot (LB), rod-end flange (FA), rod-end trunnion (TA); options J/L, F, R/S/T, G1, P6, A; accessories I, Y, B12, B22

Specifications

Action Double acting, 4x boost at stroke end
Fluid Compressed air
Operating pressure 0.2 (bore 40) / 0.15 to 0.9 MPa
Proof pressure 1.35 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size Rc1/8 (40), Rc1/4 (50, 63), Rc3/8 (80, 100)
Piston speed Cylinder 50-500 mm/s; boost 10-30 mm/s
Cushion Air cushion (head end)
Lubrication Not required
Max. stroke 700 (40, 50), 800 (63), 900 (80), 1000 (100) mm
Source CKD Korea catalog CB-030SK-9, p. 1242-1249
SHC-K-LB-40H-100-10 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-40H-100-20 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-40H-150-10 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-40H-150-20 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-40H-200-10 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-40H-200-20 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-40H-250-10 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-40H-250-20 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-40H-300-10 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-40H-300-20 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-40H-400-10 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-40H-400-20 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-40H-500-10 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-40H-500-20 Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-40N-100-10 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-40N-100-20 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-40N-150-10 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-40N-150-20 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-40N-200-10 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-40N-200-20 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-40N-250-10 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-40N-250-20 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-40N-300-10 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-40N-300-20 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-40N-400-10 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-40N-400-20 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-40N-500-10 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-40N-500-20 Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-50H-100-10 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-50H-100-20 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-50H-150-10 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-50H-150-20 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-50H-200-10 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-50H-200-20 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-50H-250-10 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-50H-250-20 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-50H-300-10 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-50H-300-20 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-50H-400-10 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-50H-400-20 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-50H-500-10 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-50H-500-20 Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-50N-100-10 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-50N-100-20 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-50N-150-10 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-50N-150-20 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-50N-200-10 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-50N-200-20 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-50N-250-10 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-50N-250-20 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-50N-300-10 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-50N-300-20 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-50N-400-10 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-50N-400-20 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-50N-500-10 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-50N-500-20 Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-63H-100-10 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-63H-100-20 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-63H-150-10 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-63H-150-20 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-63H-200-10 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-63H-200-20 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-63H-250-10 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-63H-250-20 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-63H-300-10 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-63H-300-20 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-63H-400-10 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-63H-400-20 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-63H-500-10 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-63H-500-20 Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-63N-100-10 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-63N-100-20 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-63N-150-10 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-63N-150-20 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-63N-200-10 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-63N-200-20 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-63N-250-10 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-63N-250-20 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-63N-300-10 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-63N-300-20 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-63N-400-10 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-63N-400-20 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-63N-500-10 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-63N-500-20 Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-80H-100-10 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-80H-100-20 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-80H-150-10 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-80H-150-20 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-80H-200-10 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-80H-200-20 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-80H-250-10 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-80H-250-20 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-80H-300-10 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-80H-300-20 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-80H-400-10 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-80H-400-20 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-80H-500-10 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-80H-500-20 Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-80N-100-10 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-80N-100-20 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-80N-150-10 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-80N-150-20 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-80N-200-10 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-80N-200-20 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-80N-250-10 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-80N-250-20 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-80N-300-10 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-80N-300-20 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-80N-400-10 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-80N-400-20 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-80N-500-10 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-80N-500-20 Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-100H-100-10 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-100H-100-20 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-100H-150-10 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-100H-150-20 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-100H-200-10 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-100H-200-20 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-100H-250-10 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-100H-250-20 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-100H-300-10 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-100H-300-20 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-100H-400-10 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-100H-400-20 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-100H-500-10 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-100H-500-20 Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-100N-100-10 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-100N-100-20 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-100N-150-10 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-100N-150-20 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-100N-200-10 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-100N-200-20 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-100N-250-10 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-100N-250-20 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-100N-300-10 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-100N-300-20 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-100N-400-10 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-100N-400-20 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-100N-500-10 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-100N-500-20 Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-40H-100-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-40H-100-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-40H-150-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-40H-150-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-40H-200-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-40H-200-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-40H-250-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-40H-250-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-40H-300-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-40H-300-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-40H-400-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-40H-400-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-40H-500-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-40H-500-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-40N-100-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-40N-100-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-40N-150-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-40N-150-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-40N-200-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-40N-200-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-40N-250-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-40N-250-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-40N-300-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-40N-300-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-40N-400-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-40N-400-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-40N-500-10 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-40N-500-20 Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-50H-100-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-50H-100-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-50H-150-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-50H-150-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-50H-200-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-50H-200-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-50H-250-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-50H-250-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-50H-300-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-50H-300-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-50H-400-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-50H-400-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-50H-500-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-50H-500-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-50N-100-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-50N-100-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-50N-150-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-50N-150-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-50N-200-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-50N-200-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-50N-250-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-50N-250-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-50N-300-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-50N-300-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-50N-400-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-50N-400-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-50N-500-10 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-50N-500-20 Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-63H-100-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-63H-100-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-63H-150-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-63H-150-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-63H-200-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-63H-200-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-63H-250-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-63H-250-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-63H-300-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-63H-300-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-63H-400-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-63H-400-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-63H-500-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-63H-500-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-63N-100-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-63N-100-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-63N-150-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-63N-150-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-63N-200-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-63N-200-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-63N-250-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-63N-250-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-63N-300-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-63N-300-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-63N-400-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-63N-400-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-63N-500-10 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-63N-500-20 Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-80H-100-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-80H-100-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-80H-150-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-80H-150-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-80H-200-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-80H-200-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-80H-250-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-80H-250-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-80H-300-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-80H-300-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-80H-400-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-80H-400-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-80H-500-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-80H-500-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-80N-100-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-80N-100-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-80N-150-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-80N-150-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-80N-200-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-80N-200-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-80N-250-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-80N-250-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-80N-300-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-80N-300-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-80N-400-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-80N-400-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-80N-500-10 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-80N-500-20 Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-100H-100-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-100H-100-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-100H-150-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-100H-150-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-100H-200-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-100H-200-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-100H-250-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-100H-250-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-100H-300-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-100H-300-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-100H-400-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-100H-400-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-100H-500-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-100H-500-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-100N-100-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-100N-100-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-100N-150-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-100N-150-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-100N-200-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-100N-200-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-100N-250-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-100N-250-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-100N-300-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-100N-300-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-100N-400-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-100N-400-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-100N-500-10 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-100N-500-20 Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-40H-100-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-40H-100-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-40H-150-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-40H-150-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-40H-200-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-40H-200-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-40H-250-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-40H-250-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-40H-300-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-40H-300-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-40H-400-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-40H-400-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-40H-500-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-40H-500-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-40N-100-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-40N-100-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-40N-150-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-40N-150-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-40N-200-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-40N-200-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-40N-250-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-40N-250-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-40N-300-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-40N-300-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-40N-400-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-40N-400-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-40N-500-10 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-40N-500-20 Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-50H-100-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-50H-100-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-50H-150-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-50H-150-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-50H-200-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-50H-200-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-50H-250-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-50H-250-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-50H-300-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-50H-300-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-50H-400-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-50H-400-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-50H-500-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-50H-500-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-50N-100-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-50N-100-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-50N-150-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-50N-150-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-50N-200-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-50N-200-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-50N-250-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-50N-250-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-50N-300-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-50N-300-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-50N-400-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-50N-400-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-50N-500-10 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-50N-500-20 Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-63H-100-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-63H-100-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-63H-150-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-63H-150-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-63H-200-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-63H-200-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-63H-250-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-63H-250-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-63H-300-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-63H-300-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-63H-400-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-63H-400-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-63H-500-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-63H-500-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-63N-100-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-63N-100-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-63N-150-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-63N-150-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-63N-200-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-63N-200-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-63N-250-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-63N-250-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-63N-300-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-63N-300-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-63N-400-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-63N-400-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-63N-500-10 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-63N-500-20 Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-80H-100-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-80H-100-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-80H-150-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-80H-150-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-80H-200-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-80H-200-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-80H-250-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-80H-250-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-80H-300-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-80H-300-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-80H-400-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-80H-400-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-80H-500-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-80H-500-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-80N-100-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-80N-100-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-80N-150-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-80N-150-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-80N-200-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-80N-200-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-80N-250-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-80N-250-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-80N-300-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-80N-300-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-80N-400-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-80N-400-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-80N-500-10 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-80N-500-20 Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-100H-100-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-100H-100-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-100H-150-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-100H-150-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-100H-200-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-100H-200-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-100H-250-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-100H-250-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-100H-300-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-100H-300-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-100H-400-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-100H-400-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-100H-500-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-100H-500-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-100N-100-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-100N-100-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-100N-150-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-100N-150-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-100N-200-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-100N-200-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-100N-250-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-100N-250-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-100N-300-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-100N-300-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-100N-400-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-100N-400-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-100N-500-10 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-100N-500-20 Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
Pneumatic CylindersCKD
420 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SHC-K Shovic Power Boost Cylinder (Double Acting, 4x Force)

Brand CKD·Pneumatic Cylinders

Available part numbers (420)

SHC-K-LB-40H-100-10, SHC-K-LB-40H-100-20, SHC-K-LB-40H-150-10, SHC-K-LB-40H-150-20, SHC-K-LB-40H-200-10, SHC-K-LB-40H-200-20, SHC-K-LB-40H-250-10, SHC-K-LB-40H-250-20, SHC-K-LB-40H-300-10, SHC-K-LB-40H-300-20 + 410 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHC-K-LB-40H-100-10Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-40H-100-20Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-40H-150-10Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-40H-150-20Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-40H-200-10Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-40H-200-20Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-40H-250-10Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-40H-250-20Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-40H-300-10Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-40H-300-20Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-40H-400-10Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-40H-400-20Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-40H-500-10Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-40H-500-20Mounting: Axial foot | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-40N-100-10Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-40N-100-20Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-40N-150-10Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-40N-150-20Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-40N-200-10Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-40N-200-20Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-40N-250-10Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-40N-250-20Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-40N-300-10Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-40N-300-20Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-40N-400-10Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-40N-400-20Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-40N-500-10Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-40N-500-20Mounting: Axial foot | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-50H-100-10Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-50H-100-20Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-50H-150-10Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-50H-150-20Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-50H-200-10Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-50H-200-20Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-50H-250-10Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-50H-250-20Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-50H-300-10Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-50H-300-20Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-50H-400-10Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-50H-400-20Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-50H-500-10Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-50H-500-20Mounting: Axial foot | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-50N-100-10Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-50N-100-20Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-50N-150-10Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-50N-150-20Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-50N-200-10Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-50N-200-20Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-50N-250-10Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-50N-250-20Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-50N-300-10Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-50N-300-20Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-50N-400-10Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-50N-400-20Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-50N-500-10Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-50N-500-20Mounting: Axial foot | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-63H-100-10Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-63H-100-20Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-63H-150-10Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-63H-150-20Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-63H-200-10Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-63H-200-20Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-63H-250-10Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-63H-250-20Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-63H-300-10Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-63H-300-20Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-63H-400-10Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-63H-400-20Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-63H-500-10Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-63H-500-20Mounting: Axial foot | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-63N-100-10Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-63N-100-20Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-63N-150-10Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-63N-150-20Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-63N-200-10Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-63N-200-20Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-63N-250-10Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-63N-250-20Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-63N-300-10Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-63N-300-20Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-63N-400-10Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-63N-400-20Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-63N-500-10Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-63N-500-20Mounting: Axial foot | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-80H-100-10Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-80H-100-20Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-80H-150-10Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-80H-150-20Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-80H-200-10Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-80H-200-20Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-80H-250-10Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-80H-250-20Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-80H-300-10Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-80H-300-20Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-80H-400-10Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-80H-400-20Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-80H-500-10Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-80H-500-20Mounting: Axial foot | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-80N-100-10Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-80N-100-20Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-80N-150-10Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-80N-150-20Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-80N-200-10Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-80N-200-20Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-80N-250-10Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-80N-250-20Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-80N-300-10Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-80N-300-20Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-80N-400-10Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-80N-400-20Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-80N-500-10Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-80N-500-20Mounting: Axial foot | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-100H-100-10Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-100H-100-20Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-100H-150-10Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-100H-150-20Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-100H-200-10Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-100H-200-20Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-100H-250-10Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-100H-250-20Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-100H-300-10Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-100H-300-20Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-100H-400-10Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-100H-400-20Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-100H-500-10Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-100H-500-20Mounting: Axial foot | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-LB-100N-100-10Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-LB-100N-100-20Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-LB-100N-150-10Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-LB-100N-150-20Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-LB-100N-200-10Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-LB-100N-200-20Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-LB-100N-250-10Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-LB-100N-250-20Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-LB-100N-300-10Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-LB-100N-300-20Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-LB-100N-400-10Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-LB-100N-400-20Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-LB-100N-500-10Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-LB-100N-500-20Mounting: Axial foot | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-40H-100-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-40H-100-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-40H-150-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-40H-150-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-40H-200-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-40H-200-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-40H-250-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-40H-250-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-40H-300-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-40H-300-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-40H-400-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-40H-400-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-40H-500-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-40H-500-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-40N-100-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-40N-100-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-40N-150-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-40N-150-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-40N-200-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-40N-200-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-40N-250-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-40N-250-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-40N-300-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-40N-300-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-40N-400-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-40N-400-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-40N-500-10Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-40N-500-20Mounting: Rod-end flange | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-50H-100-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-50H-100-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-50H-150-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-50H-150-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-50H-200-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-50H-200-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-50H-250-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-50H-250-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-50H-300-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-50H-300-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-50H-400-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-50H-400-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-50H-500-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-50H-500-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-50N-100-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-50N-100-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-50N-150-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-50N-150-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-50N-200-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-50N-200-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-50N-250-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-50N-250-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-50N-300-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-50N-300-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-50N-400-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-50N-400-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-50N-500-10Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-50N-500-20Mounting: Rod-end flange | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-63H-100-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-63H-100-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-63H-150-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-63H-150-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-63H-200-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-63H-200-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-63H-250-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-63H-250-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-63H-300-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-63H-300-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-63H-400-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-63H-400-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-63H-500-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-63H-500-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-63N-100-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-63N-100-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-63N-150-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-63N-150-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-63N-200-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-63N-200-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-63N-250-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-63N-250-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-63N-300-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-63N-300-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-63N-400-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-63N-400-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-63N-500-10Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-63N-500-20Mounting: Rod-end flange | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-80H-100-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-80H-100-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-80H-150-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-80H-150-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-80H-200-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-80H-200-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-80H-250-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-80H-250-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-80H-300-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-80H-300-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-80H-400-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-80H-400-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-80H-500-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-80H-500-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-80N-100-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-80N-100-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-80N-150-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-80N-150-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-80N-200-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-80N-200-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-80N-250-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-80N-250-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-80N-300-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-80N-300-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-80N-400-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-80N-400-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-80N-500-10Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-80N-500-20Mounting: Rod-end flange | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-100H-100-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-100H-100-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-100H-150-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-100H-150-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-100H-200-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-100H-200-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-100H-250-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-100H-250-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-100H-300-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-100H-300-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-100H-400-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-100H-400-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-100H-500-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-100H-500-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-FA-100N-100-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-FA-100N-100-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-FA-100N-150-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-FA-100N-150-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-FA-100N-200-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-FA-100N-200-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-FA-100N-250-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-FA-100N-250-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-FA-100N-300-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-FA-100N-300-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-FA-100N-400-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-FA-100N-400-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-FA-100N-500-10Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-FA-100N-500-20Mounting: Rod-end flange | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-40H-100-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-40H-100-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-40H-150-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-40H-150-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-40H-200-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-40H-200-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-40H-250-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-40H-250-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-40H-300-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-40H-300-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-40H-400-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-40H-400-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-40H-500-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-40H-500-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-40N-100-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-40N-100-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-40N-150-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-40N-150-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-40N-200-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-40N-200-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-40N-250-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-40N-250-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-40N-300-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-40N-300-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-40N-400-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-40N-400-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-40N-500-10Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-40N-500-20Mounting: Rod-end trunnion | Bore: 40 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-50H-100-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-50H-100-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-50H-150-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-50H-150-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-50H-200-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-50H-200-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-50H-250-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-50H-250-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-50H-300-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-50H-300-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-50H-400-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-50H-400-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-50H-500-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-50H-500-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-50N-100-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-50N-100-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-50N-150-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-50N-150-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-50N-200-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-50N-200-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-50N-250-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-50N-250-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-50N-300-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-50N-300-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-50N-400-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-50N-400-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-50N-500-10Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-50N-500-20Mounting: Rod-end trunnion | Bore: 50 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-63H-100-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-63H-100-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-63H-150-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-63H-150-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-63H-200-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-63H-200-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-63H-250-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-63H-250-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-63H-300-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-63H-300-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-63H-400-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-63H-400-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-63H-500-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-63H-500-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-63N-100-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-63N-100-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-63N-150-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-63N-150-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-63N-200-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-63N-200-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-63N-250-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-63N-250-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-63N-300-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-63N-300-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-63N-400-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-63N-400-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-63N-500-10Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-63N-500-20Mounting: Rod-end trunnion | Bore: 63 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-80H-100-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-80H-100-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-80H-150-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-80H-150-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-80H-200-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-80H-200-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-80H-250-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-80H-250-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-80H-300-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-80H-300-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-80H-400-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-80H-400-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-80H-500-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-80H-500-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-80N-100-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-80N-100-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-80N-150-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-80N-150-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-80N-200-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-80N-200-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-80N-250-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-80N-250-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-80N-300-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-80N-300-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-80N-400-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-80N-400-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-80N-500-10Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-80N-500-20Mounting: Rod-end trunnion | Bore: 80 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-100H-100-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-100H-100-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-100H-150-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-100H-150-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-100H-200-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-100H-200-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-100H-250-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-100H-250-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-100H-300-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-100H-300-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-100H-400-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-100H-400-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-100H-500-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-100H-500-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: Head-end air cushion | Full stroke: 500 mm | Boost stroke: 20 mm
SHC-K-TA-100N-100-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 10 mm
SHC-K-TA-100N-100-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 100 mm | Boost stroke: 20 mm
SHC-K-TA-100N-150-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 10 mm
SHC-K-TA-100N-150-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 150 mm | Boost stroke: 20 mm
SHC-K-TA-100N-200-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 10 mm
SHC-K-TA-100N-200-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 200 mm | Boost stroke: 20 mm
SHC-K-TA-100N-250-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 10 mm
SHC-K-TA-100N-250-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 250 mm | Boost stroke: 20 mm
SHC-K-TA-100N-300-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 10 mm
SHC-K-TA-100N-300-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 300 mm | Boost stroke: 20 mm
SHC-K-TA-100N-400-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 10 mm
SHC-K-TA-100N-400-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 400 mm | Boost stroke: 20 mm
SHC-K-TA-100N-500-10Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 10 mm
SHC-K-TA-100N-500-20Mounting: Rod-end trunnion | Bore: 100 mm | Cushion: No cushion | Full stroke: 500 mm | Boost stroke: 20 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
