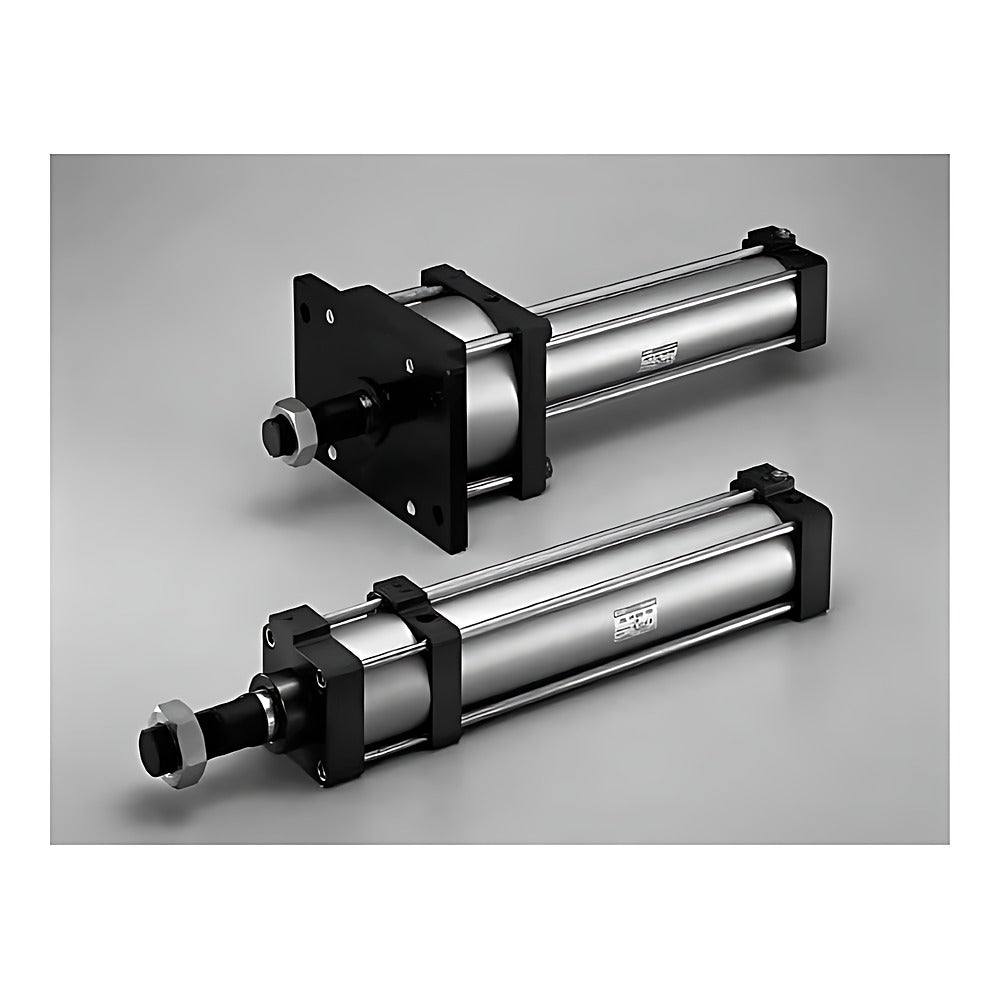

CKD SHC Shovic Power Boost Cylinder (Double Acting, 2x Force)

CKD SHC Shovic cylinder: a double-acting pneumatic cylinder whose built-in booster doubles the thrust at the stroke end, giving large-bore force from a bore equivalent of 40 to 100 mm.

Key features

Booster mechanism multiplies thrust at the stroke end: travel at normal speed, then boost over the last 10 or 20 mm
Equivalent force of a much larger bore with lower air consumption and installation space
Stroke in the code is the full stroke (travel + boost); intermediate strokes in 5 mm steps up to 700-1000 mm
Switch magnet built in; R-type switches (R0, R1-R6, R2Y, R3Y) or strong-magnetic-field H0 (SHC-L2 code) appended
Options: bellows J/L, flange rod end F, port position R/S/T, metal scraper G1, non-puffer P6, boost-section independent control port A; knuckles/brackets I, Y, B11-B22

Specifications

Action	Double acting, 2x boost at stroke end
Fluid	Compressed air
Operating pressure	0.2 (bore 40) / 0.15 to 0.9 MPa
Proof pressure	1.35 MPa
Ambient temperature	-10 to 60 C (no freezing)
Port size	Rc1/8 (40), Rc1/4 (50, 63), Rc3/8 (80, 100)
Piston speed	Cylinder 50-500 mm/s; boost 40-70 mm/s
Cushion	Air cushion (head end)
Lubrication	Not required
Max. stroke	700 (40, 50), 800 (63), 900 (80), 1000 (100) mm
Source	CKD Korea catalog CB-030SK-9, p. 1225-1241

SHC-00-40H-100-10		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-40H-100-20		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-40H-150-10		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-40H-150-20		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-40H-200-10		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-40H-200-20		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-40H-250-10		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-40H-250-20		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-40H-300-10		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-40H-300-20		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-40H-400-10		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-40H-400-20		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-40H-500-10		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-40H-500-20		Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-00-40N-100-10		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-40N-100-20		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-40N-150-10		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-40N-150-20		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-40N-200-10		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-40N-200-20		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-40N-250-10		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-40N-250-20		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-40N-300-10		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-40N-300-20		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-40N-400-10		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-40N-400-20		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-40N-500-10		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-40N-500-20		Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-00-50H-100-10		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-50H-100-20		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-50H-150-10		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-50H-150-20		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-50H-200-10		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-50H-200-20		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-50H-250-10		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-50H-250-20		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-50H-300-10		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-50H-300-20		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-50H-400-10		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-50H-400-20		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-50H-500-10		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-50H-500-20		Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-00-50N-100-10		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-50N-100-20		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-50N-150-10		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-50N-150-20		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-50N-200-10		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-50N-200-20		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-50N-250-10		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-50N-250-20		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-50N-300-10		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-50N-300-20		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-50N-400-10		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-50N-400-20		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-50N-500-10		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-50N-500-20		Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-00-63H-100-10		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-63H-100-20		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-63H-150-10		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-63H-150-20		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-63H-200-10		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-63H-200-20		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-63H-250-10		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-63H-250-20		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-63H-300-10		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-63H-300-20		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-63H-400-10		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-63H-400-20		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-63H-500-10		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-63H-500-20		Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-00-63N-100-10		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-63N-100-20		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-63N-150-10		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-63N-150-20		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-63N-200-10		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-63N-200-20		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-63N-250-10		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-63N-250-20		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-63N-300-10		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-63N-300-20		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-63N-400-10		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-63N-400-20		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-63N-500-10		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-63N-500-20		Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-00-80H-100-10		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-80H-100-20		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-80H-150-10		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-80H-150-20		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-80H-200-10		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-80H-200-20		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-80H-250-10		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-80H-250-20		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-80H-300-10		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-80H-300-20		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-80H-400-10		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-80H-400-20		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-80H-500-10		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-80H-500-20		Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-00-80N-100-10		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-80N-100-20		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-80N-150-10		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-80N-150-20		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-80N-200-10		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-80N-200-20		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-80N-250-10		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-80N-250-20		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-80N-300-10		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-80N-300-20		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-80N-400-10		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-80N-400-20		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-80N-500-10		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-80N-500-20		Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-00-100H-100-10		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-100H-100-20		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-100H-150-10		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-100H-150-20		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-100H-200-10		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-100H-200-20		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-100H-250-10		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-100H-250-20		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-100H-300-10		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-100H-300-20		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-100H-400-10		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-100H-400-20		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-100H-500-10		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-100H-500-20		Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-00-100N-100-10		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-00-100N-100-20		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-00-100N-150-10		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-00-100N-150-20		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-00-100N-200-10		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-00-100N-200-20		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-00-100N-250-10		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-00-100N-250-20		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-00-100N-300-10		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-00-100N-300-20		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-00-100N-400-10		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-00-100N-400-20		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-00-100N-500-10		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-00-100N-500-20		Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-40H-100-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-40H-100-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-40H-150-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-40H-150-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-40H-200-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-40H-200-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-40H-250-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-40H-250-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-40H-300-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-40H-300-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-40H-400-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-40H-400-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-40H-500-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-40H-500-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-40N-100-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-40N-100-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-40N-150-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-40N-150-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-40N-200-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-40N-200-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-40N-250-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-40N-250-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-40N-300-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-40N-300-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-40N-400-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-40N-400-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-40N-500-10		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-40N-500-20		Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-50H-100-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-50H-100-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-50H-150-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-50H-150-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-50H-200-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-50H-200-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-50H-250-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-50H-250-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-50H-300-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-50H-300-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-50H-400-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-50H-400-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-50H-500-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-50H-500-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-50N-100-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-50N-100-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-50N-150-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-50N-150-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-50N-200-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-50N-200-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-50N-250-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-50N-250-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-50N-300-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-50N-300-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-50N-400-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-50N-400-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-50N-500-10		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-50N-500-20		Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-63H-100-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-63H-100-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-63H-150-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-63H-150-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-63H-200-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-63H-200-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-63H-250-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-63H-250-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-63H-300-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-63H-300-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-63H-400-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-63H-400-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-63H-500-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-63H-500-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-63N-100-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-63N-100-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-63N-150-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-63N-150-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-63N-200-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-63N-200-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-63N-250-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-63N-250-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-63N-300-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-63N-300-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-63N-400-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-63N-400-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-63N-500-10		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-63N-500-20		Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-80H-100-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-80H-100-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-80H-150-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-80H-150-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-80H-200-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-80H-200-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-80H-250-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-80H-250-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-80H-300-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-80H-300-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-80H-400-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-80H-400-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-80H-500-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-80H-500-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-80N-100-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-80N-100-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-80N-150-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-80N-150-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-80N-200-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-80N-200-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-80N-250-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-80N-250-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-80N-300-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-80N-300-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-80N-400-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-80N-400-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-80N-500-10		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-80N-500-20		Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-100H-100-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-100H-100-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-100H-150-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-100H-150-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-100H-200-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-100H-200-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-100H-250-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-100H-250-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-100H-300-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-100H-300-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-100H-400-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-100H-400-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-100H-500-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-100H-500-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-LB-100N-100-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-LB-100N-100-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-LB-100N-150-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-LB-100N-150-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-LB-100N-200-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-LB-100N-200-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-LB-100N-250-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-LB-100N-250-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-LB-100N-300-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-LB-100N-300-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-LB-100N-400-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-LB-100N-400-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-LB-100N-500-10		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-LB-100N-500-20		Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-40H-100-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-40H-100-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-40H-150-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-40H-150-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-40H-200-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-40H-200-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-40H-250-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-40H-250-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-40H-300-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-40H-300-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-40H-400-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-40H-400-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-40H-500-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-40H-500-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-40N-100-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-40N-100-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-40N-150-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-40N-150-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-40N-200-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-40N-200-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-40N-250-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-40N-250-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-40N-300-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-40N-300-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-40N-400-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-40N-400-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-40N-500-10		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-40N-500-20		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-50H-100-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-50H-100-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-50H-150-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-50H-150-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-50H-200-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-50H-200-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-50H-250-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-50H-250-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-50H-300-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-50H-300-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-50H-400-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-50H-400-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-50H-500-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-50H-500-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-50N-100-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-50N-100-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-50N-150-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-50N-150-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-50N-200-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-50N-200-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-50N-250-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-50N-250-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-50N-300-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-50N-300-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-50N-400-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-50N-400-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-50N-500-10		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-50N-500-20		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-63H-100-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-63H-100-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-63H-150-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-63H-150-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-63H-200-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-63H-200-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-63H-250-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-63H-250-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-63H-300-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-63H-300-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-63H-400-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-63H-400-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-63H-500-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-63H-500-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-63N-100-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-63N-100-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-63N-150-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-63N-150-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-63N-200-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-63N-200-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-63N-250-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-63N-250-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-63N-300-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-63N-300-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-63N-400-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-63N-400-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-63N-500-10		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-63N-500-20		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-80H-100-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-80H-100-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-80H-150-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-80H-150-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-80H-200-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-80H-200-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-80H-250-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-80H-250-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-80H-300-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-80H-300-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-80H-400-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-80H-400-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-80H-500-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-80H-500-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-80N-100-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-80N-100-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-80N-150-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-80N-150-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-80N-200-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-80N-200-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-80N-250-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-80N-250-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-80N-300-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-80N-300-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-80N-400-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-80N-400-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-80N-500-10		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-80N-500-20		Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-100H-100-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-100H-100-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-100H-150-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-100H-150-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-100H-200-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-100H-200-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-100H-250-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-100H-250-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-100H-300-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-100H-300-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-100H-400-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-100H-400-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-100H-500-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-100H-500-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FA-100N-100-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FA-100N-100-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FA-100N-150-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FA-100N-150-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FA-100N-200-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FA-100N-200-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FA-100N-250-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FA-100N-250-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FA-100N-300-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FA-100N-300-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FA-100N-400-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FA-100N-400-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FA-100N-500-10		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FA-100N-500-20		Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-40H-100-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-40H-100-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-40H-150-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-40H-150-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-40H-200-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-40H-200-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-40H-250-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-40H-250-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-40H-300-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-40H-300-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-40H-400-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-40H-400-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-40H-500-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-40H-500-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-40N-100-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-40N-100-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-40N-150-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-40N-150-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-40N-200-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-40N-200-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-40N-250-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-40N-250-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-40N-300-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-40N-300-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-40N-400-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-40N-400-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-40N-500-10		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-40N-500-20		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-50H-100-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-50H-100-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-50H-150-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-50H-150-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-50H-200-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-50H-200-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-50H-250-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-50H-250-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-50H-300-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-50H-300-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-50H-400-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-50H-400-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-50H-500-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-50H-500-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-50N-100-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-50N-100-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-50N-150-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-50N-150-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-50N-200-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-50N-200-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-50N-250-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-50N-250-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-50N-300-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-50N-300-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-50N-400-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-50N-400-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-50N-500-10		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-50N-500-20		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-63H-100-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-63H-100-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-63H-150-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-63H-150-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-63H-200-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-63H-200-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-63H-250-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-63H-250-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-63H-300-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-63H-300-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-63H-400-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-63H-400-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-63H-500-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-63H-500-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-63N-100-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-63N-100-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-63N-150-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-63N-150-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-63N-200-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-63N-200-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-63N-250-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-63N-250-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-63N-300-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-63N-300-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-63N-400-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-63N-400-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-63N-500-10		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-63N-500-20		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-80H-100-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-80H-100-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-80H-150-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-80H-150-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-80H-200-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-80H-200-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-80H-250-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-80H-250-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-80H-300-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-80H-300-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-80H-400-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-80H-400-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-80H-500-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-80H-500-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-80N-100-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-80N-100-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-80N-150-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-80N-150-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-80N-200-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-80N-200-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-80N-250-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-80N-250-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-80N-300-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-80N-300-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-80N-400-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-80N-400-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-80N-500-10		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-80N-500-20		Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-100H-100-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-100H-100-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-100H-150-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-100H-150-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-100H-200-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-100H-200-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-100H-250-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-100H-250-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-100H-300-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-100H-300-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-100H-400-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-100H-400-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-100H-500-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-100H-500-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-FB-100N-100-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-FB-100N-100-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-FB-100N-150-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-FB-100N-150-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-FB-100N-200-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-FB-100N-200-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-FB-100N-250-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-FB-100N-250-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-FB-100N-300-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-FB-100N-300-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-FB-100N-400-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-FB-100N-400-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-FB-100N-500-10		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-FB-100N-500-20		Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-40H-100-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-40H-100-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-40H-150-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-40H-150-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-40H-200-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-40H-200-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-40H-250-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-40H-250-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-40H-300-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-40H-300-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-40H-400-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-40H-400-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-40H-500-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-40H-500-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-40N-100-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-40N-100-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-40N-150-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-40N-150-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-40N-200-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-40N-200-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-40N-250-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-40N-250-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-40N-300-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-40N-300-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-40N-400-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-40N-400-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-40N-500-10		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-40N-500-20		Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-50H-100-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-50H-100-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-50H-150-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-50H-150-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-50H-200-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-50H-200-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-50H-250-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-50H-250-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-50H-300-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-50H-300-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-50H-400-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-50H-400-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-50H-500-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-50H-500-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-50N-100-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-50N-100-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-50N-150-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-50N-150-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-50N-200-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-50N-200-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-50N-250-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-50N-250-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-50N-300-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-50N-300-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-50N-400-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-50N-400-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-50N-500-10		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-50N-500-20		Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-63H-100-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-63H-100-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-63H-150-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-63H-150-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-63H-200-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-63H-200-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-63H-250-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-63H-250-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-63H-300-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-63H-300-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-63H-400-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-63H-400-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-63H-500-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-63H-500-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-63N-100-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-63N-100-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-63N-150-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-63N-150-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-63N-200-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-63N-200-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-63N-250-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-63N-250-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-63N-300-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-63N-300-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-63N-400-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-63N-400-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-63N-500-10		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-63N-500-20		Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-80H-100-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-80H-100-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-80H-150-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-80H-150-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-80H-200-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-80H-200-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-80H-250-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-80H-250-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-80H-300-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-80H-300-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-80H-400-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-80H-400-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-80H-500-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-80H-500-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-80N-100-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-80N-100-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-80N-150-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-80N-150-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-80N-200-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-80N-200-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-80N-250-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-80N-250-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-80N-300-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-80N-300-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-80N-400-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-80N-400-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-80N-500-10		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-80N-500-20		Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-100H-100-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-100H-100-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-100H-150-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-100H-150-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-100H-200-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-100H-200-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-100H-250-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-100H-250-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-100H-300-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-100H-300-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-100H-400-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-100H-400-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-100H-500-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-100H-500-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CA-100N-100-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CA-100N-100-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CA-100N-150-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CA-100N-150-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CA-100N-200-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CA-100N-200-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CA-100N-250-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CA-100N-250-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CA-100N-300-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CA-100N-300-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CA-100N-400-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CA-100N-400-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CA-100N-500-10		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CA-100N-500-20		Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-40H-100-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-40H-100-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-40H-150-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-40H-150-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-40H-200-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-40H-200-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-40H-250-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-40H-250-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-40H-300-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-40H-300-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-40H-400-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-40H-400-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-40H-500-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-40H-500-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-40N-100-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-40N-100-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-40N-150-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-40N-150-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-40N-200-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-40N-200-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-40N-250-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-40N-250-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-40N-300-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-40N-300-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-40N-400-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-40N-400-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-40N-500-10		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-40N-500-20		Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-50H-100-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-50H-100-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-50H-150-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-50H-150-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-50H-200-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-50H-200-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-50H-250-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-50H-250-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-50H-300-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-50H-300-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-50H-400-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-50H-400-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-50H-500-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-50H-500-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-50N-100-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-50N-100-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-50N-150-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-50N-150-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-50N-200-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-50N-200-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-50N-250-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-50N-250-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-50N-300-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-50N-300-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-50N-400-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-50N-400-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-50N-500-10		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-50N-500-20		Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-63H-100-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-63H-100-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-63H-150-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-63H-150-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-63H-200-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-63H-200-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-63H-250-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-63H-250-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-63H-300-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-63H-300-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-63H-400-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-63H-400-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-63H-500-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-63H-500-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-63N-100-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-63N-100-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-63N-150-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-63N-150-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-63N-200-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-63N-200-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-63N-250-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-63N-250-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-63N-300-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-63N-300-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-63N-400-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-63N-400-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-63N-500-10		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-63N-500-20		Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-80H-100-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-80H-100-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-80H-150-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-80H-150-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-80H-200-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-80H-200-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-80H-250-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-80H-250-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-80H-300-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-80H-300-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-80H-400-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-80H-400-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-80H-500-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-80H-500-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-80N-100-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-80N-100-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-80N-150-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-80N-150-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-80N-200-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-80N-200-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-80N-250-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-80N-250-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-80N-300-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-80N-300-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-80N-400-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-80N-400-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-80N-500-10		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-80N-500-20		Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-100H-100-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-100H-100-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-100H-150-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-100H-150-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-100H-200-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-100H-200-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-100H-250-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-100H-250-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-100H-300-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-100H-300-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-100H-400-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-100H-400-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-100H-500-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-100H-500-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-CB-100N-100-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-CB-100N-100-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-CB-100N-150-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-CB-100N-150-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-CB-100N-200-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-CB-100N-200-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-CB-100N-250-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-CB-100N-250-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-CB-100N-300-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-CB-100N-300-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-CB-100N-400-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-CB-100N-400-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-CB-100N-500-10		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-CB-100N-500-20		Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-40H-100-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-40H-100-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-40H-150-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-40H-150-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-40H-200-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-40H-200-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-40H-250-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-40H-250-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-40H-300-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-40H-300-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-40H-400-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-40H-400-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-40H-500-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-40H-500-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-40N-100-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-40N-100-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-40N-150-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-40N-150-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-40N-200-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-40N-200-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-40N-250-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-40N-250-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-40N-300-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-40N-300-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-40N-400-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-40N-400-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-40N-500-10		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-40N-500-20		Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-50H-100-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-50H-100-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-50H-150-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-50H-150-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-50H-200-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-50H-200-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-50H-250-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-50H-250-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-50H-300-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-50H-300-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-50H-400-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-50H-400-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-50H-500-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-50H-500-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-50N-100-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-50N-100-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-50N-150-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-50N-150-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-50N-200-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-50N-200-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-50N-250-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-50N-250-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-50N-300-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-50N-300-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-50N-400-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-50N-400-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-50N-500-10		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-50N-500-20		Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-63H-100-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-63H-100-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-63H-150-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-63H-150-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-63H-200-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-63H-200-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-63H-250-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-63H-250-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-63H-300-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-63H-300-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-63H-400-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-63H-400-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-63H-500-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-63H-500-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-63N-100-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-63N-100-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-63N-150-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-63N-150-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-63N-200-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-63N-200-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-63N-250-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-63N-250-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-63N-300-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-63N-300-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-63N-400-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-63N-400-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-63N-500-10		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-63N-500-20		Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-80H-100-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-80H-100-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-80H-150-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-80H-150-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-80H-200-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-80H-200-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-80H-250-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-80H-250-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-80H-300-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-80H-300-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-80H-400-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-80H-400-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-80H-500-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-80H-500-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-80N-100-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-80N-100-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-80N-150-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-80N-150-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-80N-200-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-80N-200-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-80N-250-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-80N-250-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-80N-300-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-80N-300-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-80N-400-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-80N-400-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-80N-500-10		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-80N-500-20		Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-100H-100-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-100H-100-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-100H-150-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-100H-150-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-100H-200-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-100H-200-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-100H-250-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-100H-250-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-100H-300-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-100H-300-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-100H-400-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-100H-400-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-100H-500-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-100H-500-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TA-100N-100-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TA-100N-100-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TA-100N-150-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TA-100N-150-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TA-100N-200-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TA-100N-200-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TA-100N-250-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TA-100N-250-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TA-100N-300-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TA-100N-300-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TA-100N-400-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TA-100N-400-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TA-100N-500-10		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TA-100N-500-20		Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-40H-100-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-40H-100-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-40H-150-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-40H-150-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-40H-200-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-40H-200-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-40H-250-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-40H-250-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-40H-300-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-40H-300-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-40H-400-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-40H-400-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-40H-500-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-40H-500-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-40N-100-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-40N-100-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-40N-150-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-40N-150-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-40N-200-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-40N-200-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-40N-250-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-40N-250-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-40N-300-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-40N-300-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-40N-400-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-40N-400-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-40N-500-10		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-40N-500-20		Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-50H-100-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-50H-100-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-50H-150-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-50H-150-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-50H-200-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-50H-200-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-50H-250-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-50H-250-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-50H-300-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-50H-300-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-50H-400-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-50H-400-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-50H-500-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-50H-500-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-50N-100-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-50N-100-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-50N-150-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-50N-150-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-50N-200-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-50N-200-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-50N-250-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-50N-250-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-50N-300-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-50N-300-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-50N-400-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-50N-400-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-50N-500-10		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-50N-500-20		Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-63H-100-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-63H-100-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-63H-150-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-63H-150-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-63H-200-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-63H-200-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-63H-250-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-63H-250-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-63H-300-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-63H-300-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-63H-400-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-63H-400-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-63H-500-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-63H-500-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-63N-100-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-63N-100-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-63N-150-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-63N-150-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-63N-200-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-63N-200-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-63N-250-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-63N-250-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-63N-300-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-63N-300-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-63N-400-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-63N-400-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-63N-500-10		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-63N-500-20		Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-80H-100-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-80H-100-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-80H-150-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-80H-150-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-80H-200-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-80H-200-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-80H-250-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-80H-250-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-80H-300-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-80H-300-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-80H-400-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-80H-400-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-80H-500-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-80H-500-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-80N-100-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-80N-100-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-80N-150-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-80N-150-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-80N-200-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-80N-200-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-80N-250-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-80N-250-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-80N-300-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-80N-300-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-80N-400-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-80N-400-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-80N-500-10		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-80N-500-20		Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-100H-100-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-100H-100-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-100H-150-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-100H-150-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-100H-200-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-100H-200-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-100H-250-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-100H-250-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-100H-300-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-100H-300-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-100H-400-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-100H-400-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-100H-500-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-100H-500-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TB-100N-100-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TB-100N-100-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TB-100N-150-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TB-100N-150-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TB-100N-200-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TB-100N-200-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TB-100N-250-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TB-100N-250-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TB-100N-300-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TB-100N-300-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TB-100N-400-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TB-100N-400-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TB-100N-500-10		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TB-100N-500-20		Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-40H-100-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-40H-100-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-40H-150-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-40H-150-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-40H-200-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-40H-200-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-40H-250-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-40H-250-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-40H-300-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-40H-300-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-40H-400-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-40H-400-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-40H-500-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-40H-500-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-40N-100-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-40N-100-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-40N-150-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-40N-150-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-40N-200-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-40N-200-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-40N-250-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-40N-250-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-40N-300-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-40N-300-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-40N-400-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-40N-400-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-40N-500-10		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-40N-500-20		Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-50H-100-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-50H-100-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-50H-150-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-50H-150-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-50H-200-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-50H-200-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-50H-250-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-50H-250-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-50H-300-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-50H-300-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-50H-400-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-50H-400-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-50H-500-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-50H-500-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-50N-100-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-50N-100-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-50N-150-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-50N-150-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-50N-200-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-50N-200-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-50N-250-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-50N-250-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-50N-300-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-50N-300-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-50N-400-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-50N-400-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-50N-500-10		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-50N-500-20		Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-63H-100-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-63H-100-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-63H-150-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-63H-150-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-63H-200-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-63H-200-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-63H-250-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-63H-250-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-63H-300-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-63H-300-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-63H-400-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-63H-400-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-63H-500-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-63H-500-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-63N-100-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-63N-100-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-63N-150-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-63N-150-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-63N-200-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-63N-200-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-63N-250-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-63N-250-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-63N-300-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-63N-300-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-63N-400-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-63N-400-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-63N-500-10		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-63N-500-20		Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-80H-100-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-80H-100-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-80H-150-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-80H-150-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-80H-200-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-80H-200-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-80H-250-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-80H-250-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-80H-300-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-80H-300-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-80H-400-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-80H-400-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-80H-500-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-80H-500-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-80N-100-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-80N-100-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-80N-150-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-80N-150-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-80N-200-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-80N-200-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-80N-250-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-80N-250-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-80N-300-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-80N-300-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-80N-400-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-80N-400-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-80N-500-10		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-80N-500-20		Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-100H-100-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-100H-100-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-100H-150-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-100H-150-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-100H-200-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-100H-200-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-100H-250-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-100H-250-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-100H-300-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-100H-300-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-100H-400-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-100H-400-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-100H-500-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-100H-500-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
SHC-TC-100N-100-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
SHC-TC-100N-100-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
SHC-TC-100N-150-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
SHC-TC-100N-150-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
SHC-TC-100N-200-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
SHC-TC-100N-200-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
SHC-TC-100N-250-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
SHC-TC-100N-250-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
SHC-TC-100N-300-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
SHC-TC-100N-300-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
SHC-TC-100N-400-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
SHC-TC-100N-400-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
SHC-TC-100N-500-10		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
SHC-TC-100N-500-20		Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm

Pneumatic CylindersCKD

1260 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SHC Shovic Power Boost Cylinder (Double Acting, 2x Force)

Brand CKD·Pneumatic Cylinders

Available part numbers (1260)

SHC-00-40H-100-10, SHC-00-40H-100-20, SHC-00-40H-150-10, SHC-00-40H-150-20, SHC-00-40H-200-10, SHC-00-40H-200-20, SHC-00-40H-250-10, SHC-00-40H-250-20, SHC-00-40H-300-10, SHC-00-40H-300-20 + 1250 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SHC-00-40H-100-10	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-40H-100-20	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-40H-150-10	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-40H-150-20	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-40H-200-10	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-40H-200-20	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-40H-250-10	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-40H-250-20	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-40H-300-10	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-40H-300-20	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-40H-400-10	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-40H-400-20	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-40H-500-10	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-40H-500-20	Mounting: Basic \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-00-40N-100-10	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-40N-100-20	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-40N-150-10	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-40N-150-20	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-40N-200-10	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-40N-200-20	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-40N-250-10	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-40N-250-20	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-40N-300-10	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-40N-300-20	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-40N-400-10	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-40N-400-20	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-40N-500-10	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-40N-500-20	Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-00-50H-100-10	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-50H-100-20	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-50H-150-10	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-50H-150-20	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-50H-200-10	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-50H-200-20	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-50H-250-10	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-50H-250-20	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-50H-300-10	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-50H-300-20	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-50H-400-10	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-50H-400-20	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-50H-500-10	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-50H-500-20	Mounting: Basic \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-00-50N-100-10	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-50N-100-20	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-50N-150-10	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-50N-150-20	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-50N-200-10	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-50N-200-20	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-50N-250-10	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-50N-250-20	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-50N-300-10	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-50N-300-20	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-50N-400-10	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-50N-400-20	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-50N-500-10	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-50N-500-20	Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-00-63H-100-10	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-63H-100-20	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-63H-150-10	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-63H-150-20	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-63H-200-10	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-63H-200-20	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-63H-250-10	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-63H-250-20	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-63H-300-10	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-63H-300-20	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-63H-400-10	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-63H-400-20	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-63H-500-10	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-63H-500-20	Mounting: Basic \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-00-63N-100-10	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-63N-100-20	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-63N-150-10	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-63N-150-20	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-63N-200-10	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-63N-200-20	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-63N-250-10	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-63N-250-20	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-63N-300-10	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-63N-300-20	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-63N-400-10	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-63N-400-20	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-63N-500-10	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-63N-500-20	Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-00-80H-100-10	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-80H-100-20	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-80H-150-10	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-80H-150-20	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-80H-200-10	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-80H-200-20	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-80H-250-10	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-80H-250-20	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-80H-300-10	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-80H-300-20	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-80H-400-10	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-80H-400-20	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-80H-500-10	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-80H-500-20	Mounting: Basic \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-00-80N-100-10	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-80N-100-20	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-80N-150-10	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-80N-150-20	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-80N-200-10	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-80N-200-20	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-80N-250-10	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-80N-250-20	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-80N-300-10	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-80N-300-20	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-80N-400-10	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-80N-400-20	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-80N-500-10	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-80N-500-20	Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-00-100H-100-10	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-100H-100-20	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-100H-150-10	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-100H-150-20	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-100H-200-10	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-100H-200-20	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-100H-250-10	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-100H-250-20	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-100H-300-10	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-100H-300-20	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-100H-400-10	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-100H-400-20	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-100H-500-10	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-100H-500-20	Mounting: Basic \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-00-100N-100-10	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-00-100N-100-20	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-00-100N-150-10	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-00-100N-150-20	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-00-100N-200-10	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-00-100N-200-20	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-00-100N-250-10	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-00-100N-250-20	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-00-100N-300-10	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-00-100N-300-20	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-00-100N-400-10	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-00-100N-400-20	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-00-100N-500-10	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-00-100N-500-20	Mounting: Basic \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-40H-100-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-40H-100-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-40H-150-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-40H-150-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-40H-200-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-40H-200-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-40H-250-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-40H-250-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-40H-300-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-40H-300-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-40H-400-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-40H-400-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-40H-500-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-40H-500-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-40N-100-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-40N-100-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-40N-150-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-40N-150-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-40N-200-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-40N-200-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-40N-250-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-40N-250-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-40N-300-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-40N-300-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-40N-400-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-40N-400-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-40N-500-10	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-40N-500-20	Mounting: Axial foot \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-50H-100-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-50H-100-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-50H-150-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-50H-150-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-50H-200-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-50H-200-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-50H-250-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-50H-250-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-50H-300-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-50H-300-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-50H-400-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-50H-400-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-50H-500-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-50H-500-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-50N-100-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-50N-100-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-50N-150-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-50N-150-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-50N-200-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-50N-200-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-50N-250-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-50N-250-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-50N-300-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-50N-300-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-50N-400-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-50N-400-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-50N-500-10	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-50N-500-20	Mounting: Axial foot \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-63H-100-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-63H-100-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-63H-150-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-63H-150-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-63H-200-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-63H-200-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-63H-250-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-63H-250-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-63H-300-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-63H-300-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-63H-400-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-63H-400-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-63H-500-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-63H-500-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-63N-100-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-63N-100-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-63N-150-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-63N-150-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-63N-200-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-63N-200-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-63N-250-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-63N-250-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-63N-300-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-63N-300-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-63N-400-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-63N-400-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-63N-500-10	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-63N-500-20	Mounting: Axial foot \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-80H-100-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-80H-100-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-80H-150-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-80H-150-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-80H-200-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-80H-200-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-80H-250-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-80H-250-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-80H-300-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-80H-300-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-80H-400-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-80H-400-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-80H-500-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-80H-500-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-80N-100-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-80N-100-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-80N-150-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-80N-150-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-80N-200-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-80N-200-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-80N-250-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-80N-250-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-80N-300-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-80N-300-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-80N-400-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-80N-400-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-80N-500-10	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-80N-500-20	Mounting: Axial foot \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-100H-100-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-100H-100-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-100H-150-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-100H-150-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-100H-200-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-100H-200-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-100H-250-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-100H-250-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-100H-300-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-100H-300-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-100H-400-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-100H-400-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-100H-500-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-100H-500-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-LB-100N-100-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-LB-100N-100-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-LB-100N-150-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-LB-100N-150-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-LB-100N-200-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-LB-100N-200-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-LB-100N-250-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-LB-100N-250-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-LB-100N-300-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-LB-100N-300-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-LB-100N-400-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-LB-100N-400-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-LB-100N-500-10	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-LB-100N-500-20	Mounting: Axial foot \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-40H-100-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-40H-100-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-40H-150-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-40H-150-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-40H-200-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-40H-200-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-40H-250-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-40H-250-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-40H-300-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-40H-300-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-40H-400-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-40H-400-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-40H-500-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-40H-500-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-40N-100-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-40N-100-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-40N-150-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-40N-150-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-40N-200-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-40N-200-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-40N-250-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-40N-250-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-40N-300-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-40N-300-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-40N-400-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-40N-400-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-40N-500-10	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-40N-500-20	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-50H-100-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-50H-100-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-50H-150-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-50H-150-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-50H-200-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-50H-200-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-50H-250-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-50H-250-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-50H-300-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-50H-300-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-50H-400-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-50H-400-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-50H-500-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-50H-500-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-50N-100-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-50N-100-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-50N-150-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-50N-150-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-50N-200-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-50N-200-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-50N-250-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-50N-250-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-50N-300-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-50N-300-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-50N-400-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-50N-400-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-50N-500-10	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-50N-500-20	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-63H-100-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-63H-100-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-63H-150-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-63H-150-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-63H-200-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-63H-200-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-63H-250-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-63H-250-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-63H-300-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-63H-300-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-63H-400-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-63H-400-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-63H-500-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-63H-500-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-63N-100-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-63N-100-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-63N-150-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-63N-150-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-63N-200-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-63N-200-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-63N-250-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-63N-250-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-63N-300-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-63N-300-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-63N-400-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-63N-400-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-63N-500-10	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-63N-500-20	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-80H-100-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-80H-100-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-80H-150-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-80H-150-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-80H-200-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-80H-200-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-80H-250-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-80H-250-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-80H-300-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-80H-300-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-80H-400-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-80H-400-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-80H-500-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-80H-500-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-80N-100-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-80N-100-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-80N-150-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-80N-150-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-80N-200-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-80N-200-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-80N-250-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-80N-250-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-80N-300-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-80N-300-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-80N-400-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-80N-400-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-80N-500-10	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-80N-500-20	Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-100H-100-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-100H-100-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-100H-150-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-100H-150-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-100H-200-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-100H-200-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-100H-250-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-100H-250-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-100H-300-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-100H-300-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-100H-400-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-100H-400-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-100H-500-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-100H-500-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FA-100N-100-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FA-100N-100-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FA-100N-150-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FA-100N-150-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FA-100N-200-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FA-100N-200-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FA-100N-250-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FA-100N-250-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FA-100N-300-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FA-100N-300-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FA-100N-400-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FA-100N-400-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FA-100N-500-10	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FA-100N-500-20	Mounting: Rod-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-40H-100-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-40H-100-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-40H-150-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-40H-150-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-40H-200-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-40H-200-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-40H-250-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-40H-250-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-40H-300-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-40H-300-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-40H-400-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-40H-400-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-40H-500-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-40H-500-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-40N-100-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-40N-100-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-40N-150-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-40N-150-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-40N-200-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-40N-200-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-40N-250-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-40N-250-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-40N-300-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-40N-300-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-40N-400-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-40N-400-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-40N-500-10	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-40N-500-20	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-50H-100-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-50H-100-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-50H-150-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-50H-150-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-50H-200-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-50H-200-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-50H-250-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-50H-250-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-50H-300-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-50H-300-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-50H-400-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-50H-400-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-50H-500-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-50H-500-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-50N-100-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-50N-100-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-50N-150-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-50N-150-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-50N-200-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-50N-200-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-50N-250-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-50N-250-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-50N-300-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-50N-300-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-50N-400-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-50N-400-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-50N-500-10	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-50N-500-20	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-63H-100-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-63H-100-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-63H-150-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-63H-150-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-63H-200-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-63H-200-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-63H-250-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-63H-250-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-63H-300-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-63H-300-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-63H-400-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-63H-400-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-63H-500-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-63H-500-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-63N-100-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-63N-100-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-63N-150-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-63N-150-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-63N-200-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-63N-200-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-63N-250-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-63N-250-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-63N-300-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-63N-300-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-63N-400-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-63N-400-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-63N-500-10	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-63N-500-20	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-80H-100-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-80H-100-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-80H-150-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-80H-150-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-80H-200-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-80H-200-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-80H-250-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-80H-250-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-80H-300-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-80H-300-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-80H-400-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-80H-400-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-80H-500-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-80H-500-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-80N-100-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-80N-100-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-80N-150-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-80N-150-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-80N-200-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-80N-200-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-80N-250-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-80N-250-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-80N-300-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-80N-300-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-80N-400-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-80N-400-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-80N-500-10	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-80N-500-20	Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-100H-100-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-100H-100-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-100H-150-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-100H-150-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-100H-200-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-100H-200-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-100H-250-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-100H-250-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-100H-300-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-100H-300-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-100H-400-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-100H-400-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-100H-500-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-100H-500-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-FB-100N-100-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-FB-100N-100-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-FB-100N-150-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-FB-100N-150-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-FB-100N-200-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-FB-100N-200-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-FB-100N-250-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-FB-100N-250-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-FB-100N-300-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-FB-100N-300-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-FB-100N-400-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-FB-100N-400-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-FB-100N-500-10	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-FB-100N-500-20	Mounting: Head-end flange \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-40H-100-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-40H-100-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-40H-150-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-40H-150-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-40H-200-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-40H-200-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-40H-250-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-40H-250-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-40H-300-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-40H-300-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-40H-400-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-40H-400-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-40H-500-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-40H-500-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-40N-100-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-40N-100-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-40N-150-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-40N-150-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-40N-200-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-40N-200-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-40N-250-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-40N-250-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-40N-300-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-40N-300-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-40N-400-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-40N-400-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-40N-500-10	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-40N-500-20	Mounting: Single clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-50H-100-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-50H-100-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-50H-150-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-50H-150-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-50H-200-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-50H-200-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-50H-250-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-50H-250-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-50H-300-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-50H-300-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-50H-400-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-50H-400-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-50H-500-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-50H-500-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-50N-100-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-50N-100-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-50N-150-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-50N-150-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-50N-200-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-50N-200-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-50N-250-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-50N-250-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-50N-300-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-50N-300-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-50N-400-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-50N-400-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-50N-500-10	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-50N-500-20	Mounting: Single clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-63H-100-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-63H-100-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-63H-150-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-63H-150-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-63H-200-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-63H-200-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-63H-250-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-63H-250-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-63H-300-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-63H-300-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-63H-400-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-63H-400-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-63H-500-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-63H-500-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-63N-100-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-63N-100-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-63N-150-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-63N-150-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-63N-200-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-63N-200-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-63N-250-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-63N-250-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-63N-300-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-63N-300-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-63N-400-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-63N-400-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-63N-500-10	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-63N-500-20	Mounting: Single clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-80H-100-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-80H-100-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-80H-150-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-80H-150-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-80H-200-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-80H-200-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-80H-250-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-80H-250-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-80H-300-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-80H-300-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-80H-400-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-80H-400-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-80H-500-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-80H-500-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-80N-100-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-80N-100-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-80N-150-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-80N-150-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-80N-200-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-80N-200-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-80N-250-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-80N-250-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-80N-300-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-80N-300-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-80N-400-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-80N-400-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-80N-500-10	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-80N-500-20	Mounting: Single clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-100H-100-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-100H-100-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-100H-150-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-100H-150-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-100H-200-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-100H-200-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-100H-250-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-100H-250-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-100H-300-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-100H-300-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-100H-400-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-100H-400-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-100H-500-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-100H-500-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CA-100N-100-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CA-100N-100-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CA-100N-150-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CA-100N-150-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CA-100N-200-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CA-100N-200-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CA-100N-250-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CA-100N-250-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CA-100N-300-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CA-100N-300-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CA-100N-400-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CA-100N-400-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CA-100N-500-10	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CA-100N-500-20	Mounting: Single clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-40H-100-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-40H-100-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-40H-150-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-40H-150-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-40H-200-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-40H-200-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-40H-250-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-40H-250-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-40H-300-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-40H-300-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-40H-400-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-40H-400-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-40H-500-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-40H-500-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-40N-100-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-40N-100-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-40N-150-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-40N-150-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-40N-200-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-40N-200-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-40N-250-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-40N-250-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-40N-300-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-40N-300-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-40N-400-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-40N-400-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-40N-500-10	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-40N-500-20	Mounting: Double clevis \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-50H-100-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-50H-100-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-50H-150-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-50H-150-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-50H-200-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-50H-200-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-50H-250-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-50H-250-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-50H-300-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-50H-300-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-50H-400-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-50H-400-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-50H-500-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-50H-500-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-50N-100-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-50N-100-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-50N-150-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-50N-150-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-50N-200-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-50N-200-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-50N-250-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-50N-250-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-50N-300-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-50N-300-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-50N-400-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-50N-400-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-50N-500-10	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-50N-500-20	Mounting: Double clevis \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-63H-100-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-63H-100-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-63H-150-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-63H-150-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-63H-200-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-63H-200-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-63H-250-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-63H-250-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-63H-300-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-63H-300-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-63H-400-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-63H-400-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-63H-500-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-63H-500-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-63N-100-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-63N-100-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-63N-150-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-63N-150-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-63N-200-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-63N-200-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-63N-250-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-63N-250-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-63N-300-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-63N-300-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-63N-400-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-63N-400-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-63N-500-10	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-63N-500-20	Mounting: Double clevis \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-80H-100-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-80H-100-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-80H-150-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-80H-150-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-80H-200-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-80H-200-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-80H-250-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-80H-250-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-80H-300-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-80H-300-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-80H-400-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-80H-400-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-80H-500-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-80H-500-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-80N-100-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-80N-100-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-80N-150-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-80N-150-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-80N-200-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-80N-200-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-80N-250-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-80N-250-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-80N-300-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-80N-300-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-80N-400-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-80N-400-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-80N-500-10	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-80N-500-20	Mounting: Double clevis \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-100H-100-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-100H-100-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-100H-150-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-100H-150-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-100H-200-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-100H-200-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-100H-250-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-100H-250-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-100H-300-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-100H-300-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-100H-400-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-100H-400-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-100H-500-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-100H-500-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-CB-100N-100-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-CB-100N-100-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-CB-100N-150-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-CB-100N-150-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-CB-100N-200-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-CB-100N-200-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-CB-100N-250-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-CB-100N-250-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-CB-100N-300-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-CB-100N-300-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-CB-100N-400-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-CB-100N-400-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-CB-100N-500-10	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-CB-100N-500-20	Mounting: Double clevis \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-40H-100-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-40H-100-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-40H-150-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-40H-150-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-40H-200-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-40H-200-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-40H-250-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-40H-250-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-40H-300-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-40H-300-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-40H-400-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-40H-400-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-40H-500-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-40H-500-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-40N-100-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-40N-100-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-40N-150-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-40N-150-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-40N-200-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-40N-200-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-40N-250-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-40N-250-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-40N-300-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-40N-300-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-40N-400-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-40N-400-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-40N-500-10	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-40N-500-20	Mounting: Rod-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-50H-100-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-50H-100-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-50H-150-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-50H-150-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-50H-200-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-50H-200-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-50H-250-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-50H-250-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-50H-300-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-50H-300-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-50H-400-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-50H-400-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-50H-500-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-50H-500-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-50N-100-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-50N-100-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-50N-150-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-50N-150-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-50N-200-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-50N-200-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-50N-250-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-50N-250-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-50N-300-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-50N-300-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-50N-400-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-50N-400-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-50N-500-10	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-50N-500-20	Mounting: Rod-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-63H-100-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-63H-100-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-63H-150-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-63H-150-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-63H-200-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-63H-200-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-63H-250-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-63H-250-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-63H-300-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-63H-300-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-63H-400-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-63H-400-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-63H-500-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-63H-500-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-63N-100-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-63N-100-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-63N-150-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-63N-150-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-63N-200-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-63N-200-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-63N-250-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-63N-250-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-63N-300-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-63N-300-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-63N-400-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-63N-400-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-63N-500-10	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-63N-500-20	Mounting: Rod-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-80H-100-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-80H-100-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-80H-150-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-80H-150-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-80H-200-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-80H-200-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-80H-250-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-80H-250-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-80H-300-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-80H-300-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-80H-400-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-80H-400-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-80H-500-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-80H-500-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-80N-100-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-80N-100-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-80N-150-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-80N-150-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-80N-200-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-80N-200-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-80N-250-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-80N-250-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-80N-300-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-80N-300-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-80N-400-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-80N-400-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-80N-500-10	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-80N-500-20	Mounting: Rod-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-100H-100-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-100H-100-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-100H-150-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-100H-150-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-100H-200-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-100H-200-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-100H-250-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-100H-250-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-100H-300-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-100H-300-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-100H-400-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-100H-400-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-100H-500-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-100H-500-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TA-100N-100-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TA-100N-100-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TA-100N-150-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TA-100N-150-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TA-100N-200-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TA-100N-200-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TA-100N-250-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TA-100N-250-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TA-100N-300-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TA-100N-300-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TA-100N-400-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TA-100N-400-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TA-100N-500-10	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TA-100N-500-20	Mounting: Rod-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-40H-100-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-40H-100-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-40H-150-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-40H-150-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-40H-200-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-40H-200-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-40H-250-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-40H-250-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-40H-300-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-40H-300-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-40H-400-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-40H-400-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-40H-500-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-40H-500-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-40N-100-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-40N-100-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-40N-150-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-40N-150-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-40N-200-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-40N-200-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-40N-250-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-40N-250-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-40N-300-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-40N-300-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-40N-400-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-40N-400-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-40N-500-10	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-40N-500-20	Mounting: Head-end trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-50H-100-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-50H-100-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-50H-150-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-50H-150-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-50H-200-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-50H-200-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-50H-250-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-50H-250-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-50H-300-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-50H-300-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-50H-400-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-50H-400-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-50H-500-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-50H-500-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-50N-100-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-50N-100-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-50N-150-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-50N-150-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-50N-200-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-50N-200-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-50N-250-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-50N-250-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-50N-300-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-50N-300-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-50N-400-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-50N-400-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-50N-500-10	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-50N-500-20	Mounting: Head-end trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-63H-100-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-63H-100-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-63H-150-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-63H-150-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-63H-200-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-63H-200-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-63H-250-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-63H-250-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-63H-300-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-63H-300-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-63H-400-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-63H-400-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-63H-500-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-63H-500-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-63N-100-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-63N-100-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-63N-150-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-63N-150-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-63N-200-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-63N-200-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-63N-250-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-63N-250-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-63N-300-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-63N-300-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-63N-400-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-63N-400-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-63N-500-10	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-63N-500-20	Mounting: Head-end trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-80H-100-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-80H-100-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-80H-150-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-80H-150-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-80H-200-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-80H-200-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-80H-250-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-80H-250-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-80H-300-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-80H-300-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-80H-400-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-80H-400-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-80H-500-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-80H-500-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-80N-100-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-80N-100-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-80N-150-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-80N-150-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-80N-200-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-80N-200-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-80N-250-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-80N-250-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-80N-300-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-80N-300-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-80N-400-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-80N-400-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-80N-500-10	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-80N-500-20	Mounting: Head-end trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-100H-100-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-100H-100-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-100H-150-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-100H-150-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-100H-200-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-100H-200-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-100H-250-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-100H-250-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-100H-300-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-100H-300-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-100H-400-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-100H-400-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-100H-500-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-100H-500-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TB-100N-100-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TB-100N-100-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TB-100N-150-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TB-100N-150-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TB-100N-200-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TB-100N-200-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TB-100N-250-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TB-100N-250-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TB-100N-300-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TB-100N-300-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TB-100N-400-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TB-100N-400-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TB-100N-500-10	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TB-100N-500-20	Mounting: Head-end trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-40H-100-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-40H-100-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-40H-150-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-40H-150-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-40H-200-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-40H-200-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-40H-250-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-40H-250-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-40H-300-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-40H-300-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-40H-400-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-40H-400-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-40H-500-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-40H-500-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-40N-100-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-40N-100-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-40N-150-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-40N-150-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-40N-200-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-40N-200-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-40N-250-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-40N-250-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-40N-300-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-40N-300-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-40N-400-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-40N-400-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-40N-500-10	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-40N-500-20	Mounting: Intermediate trunnion \| Bore: 40 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-50H-100-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-50H-100-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-50H-150-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-50H-150-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-50H-200-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-50H-200-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-50H-250-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-50H-250-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-50H-300-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-50H-300-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-50H-400-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-50H-400-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-50H-500-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-50H-500-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-50N-100-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-50N-100-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-50N-150-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-50N-150-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-50N-200-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-50N-200-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-50N-250-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-50N-250-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-50N-300-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-50N-300-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-50N-400-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-50N-400-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-50N-500-10	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-50N-500-20	Mounting: Intermediate trunnion \| Bore: 50 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-63H-100-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-63H-100-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-63H-150-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-63H-150-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-63H-200-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-63H-200-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-63H-250-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-63H-250-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-63H-300-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-63H-300-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-63H-400-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-63H-400-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-63H-500-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-63H-500-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-63N-100-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-63N-100-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-63N-150-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-63N-150-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-63N-200-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-63N-200-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-63N-250-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-63N-250-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-63N-300-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-63N-300-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-63N-400-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-63N-400-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-63N-500-10	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-63N-500-20	Mounting: Intermediate trunnion \| Bore: 63 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-80H-100-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-80H-100-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-80H-150-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-80H-150-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-80H-200-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-80H-200-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-80H-250-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-80H-250-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-80H-300-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-80H-300-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-80H-400-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-80H-400-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-80H-500-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-80H-500-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-80N-100-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-80N-100-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-80N-150-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-80N-150-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-80N-200-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-80N-200-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-80N-250-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-80N-250-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-80N-300-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-80N-300-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-80N-400-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-80N-400-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-80N-500-10	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-80N-500-20	Mounting: Intermediate trunnion \| Bore: 80 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-100H-100-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-100H-100-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-100H-150-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-100H-150-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-100H-200-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-100H-200-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-100H-250-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-100H-250-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-100H-300-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-100H-300-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-100H-400-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-100H-400-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-100H-500-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-100H-500-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: Head-end air cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm
	SHC-TC-100N-100-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 10 mm
	SHC-TC-100N-100-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 100 mm \| Boost stroke: 20 mm
	SHC-TC-100N-150-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 10 mm
	SHC-TC-100N-150-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 150 mm \| Boost stroke: 20 mm
	SHC-TC-100N-200-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 10 mm
	SHC-TC-100N-200-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 200 mm \| Boost stroke: 20 mm
	SHC-TC-100N-250-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 10 mm
	SHC-TC-100N-250-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 250 mm \| Boost stroke: 20 mm
	SHC-TC-100N-300-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 10 mm
	SHC-TC-100N-300-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 300 mm \| Boost stroke: 20 mm
	SHC-TC-100N-400-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 10 mm
	SHC-TC-100N-400-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 400 mm \| Boost stroke: 20 mm
	SHC-TC-100N-500-10	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 10 mm
	SHC-TC-100N-500-20	Mounting: Intermediate trunnion \| Bore: 100 mm \| Cushion: No cushion \| Full stroke: 500 mm \| Boost stroke: 20 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SHC Shovic Power Boost Cylinder (Double Acting, 2x Force)
