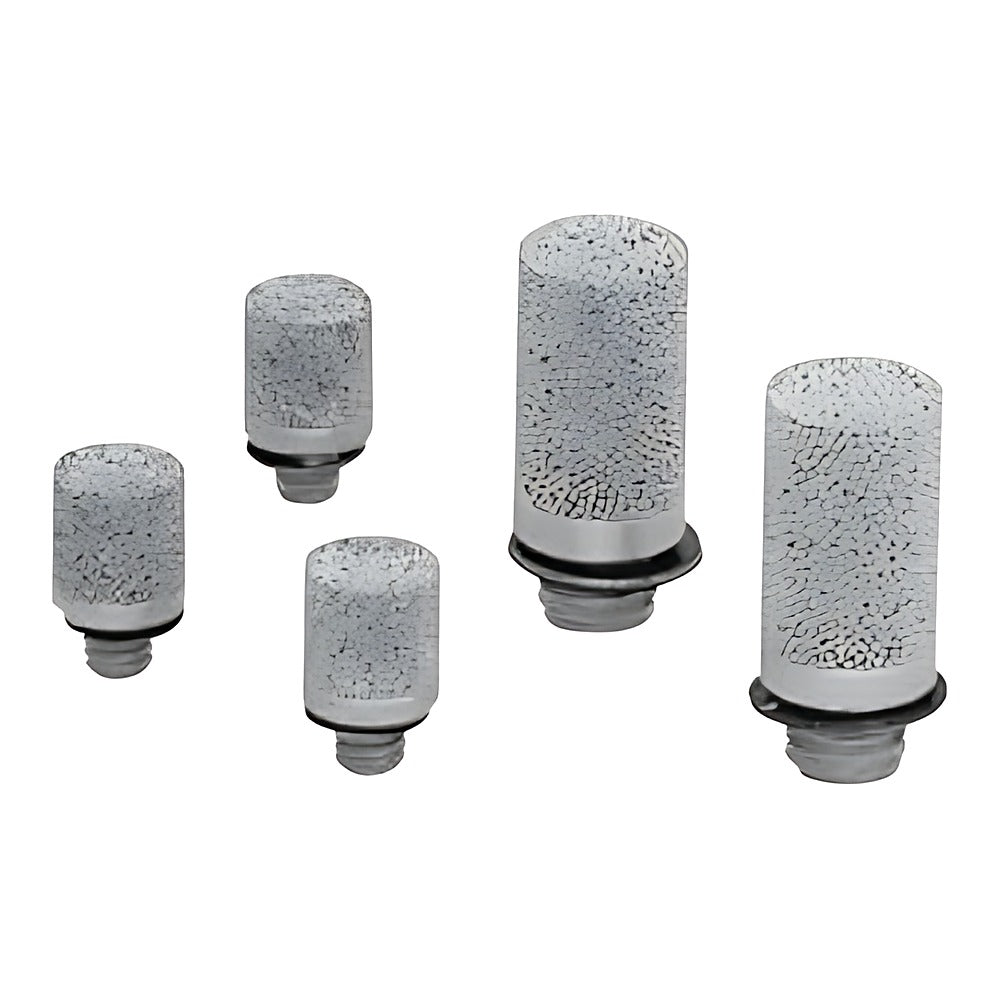

CKD SL-W Silencer (Metal Body, Outdoor Series, R1/4-R1/2)

CKD SL-W Silencer (Metal Body, Outdoor Series, R1/4-R1/2)

CKD SL-A-W outdoor series metal body silencers with stainless steel punched metal and mesh.

Key features

  • Outdoor specification: stainless snap ring, punched metal and mesh, aluminium body
  • Replacement element SL-A-EL (same as standard SL)
  • Noise reduction 20 dB(A) or more
  • Do not install with the exhaust port facing upward

Specifications

Fluid Compressed air
Min. operating pressure 0 MPa
Ambient temperature -10 to 60 C (no freezing)
Max. operating pressure 0.9 MPa
Proof pressure 1.35 MPa
Fluid temperature 5 to 60 C
Source CKD Korea catalog CB-023SK-9, p. 1968-1968
SL-8A-W Port: R1/4 | Flow: 2.4 m3/min (ANR) | Eff. area: 36 mm2 | Cylinder bore: 50-100 mm
SL-10A-W Port: R3/8 | Flow: 3.2 m3/min (ANR) | Eff. area: 48 mm2 | Cylinder bore: 63-140 mm
SL-15A-W Port: R1/2 | Flow: 4.1 m3/min (ANR) | Eff. area: 61 mm2 | Cylinder bore: 75-180 mm
SilencersCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SL-W Silencer (Metal Body, Outdoor Series, R1/4-R1/2)

Brand CKD·Silencers

Available part numbers (3)

SL-8A-W, SL-10A-W, SL-15A-W

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SL-8A-WPort: R1/4 | Flow: 2.4 m3/min (ANR) | Eff. area: 36 mm2 | Cylinder bore: 50-100 mm
SL-10A-WPort: R3/8 | Flow: 3.2 m3/min (ANR) | Eff. area: 48 mm2 | Cylinder bore: 63-140 mm
SL-15A-WPort: R1/2 | Flow: 4.1 m3/min (ANR) | Eff. area: 61 mm2 | Cylinder bore: 75-180 mm
