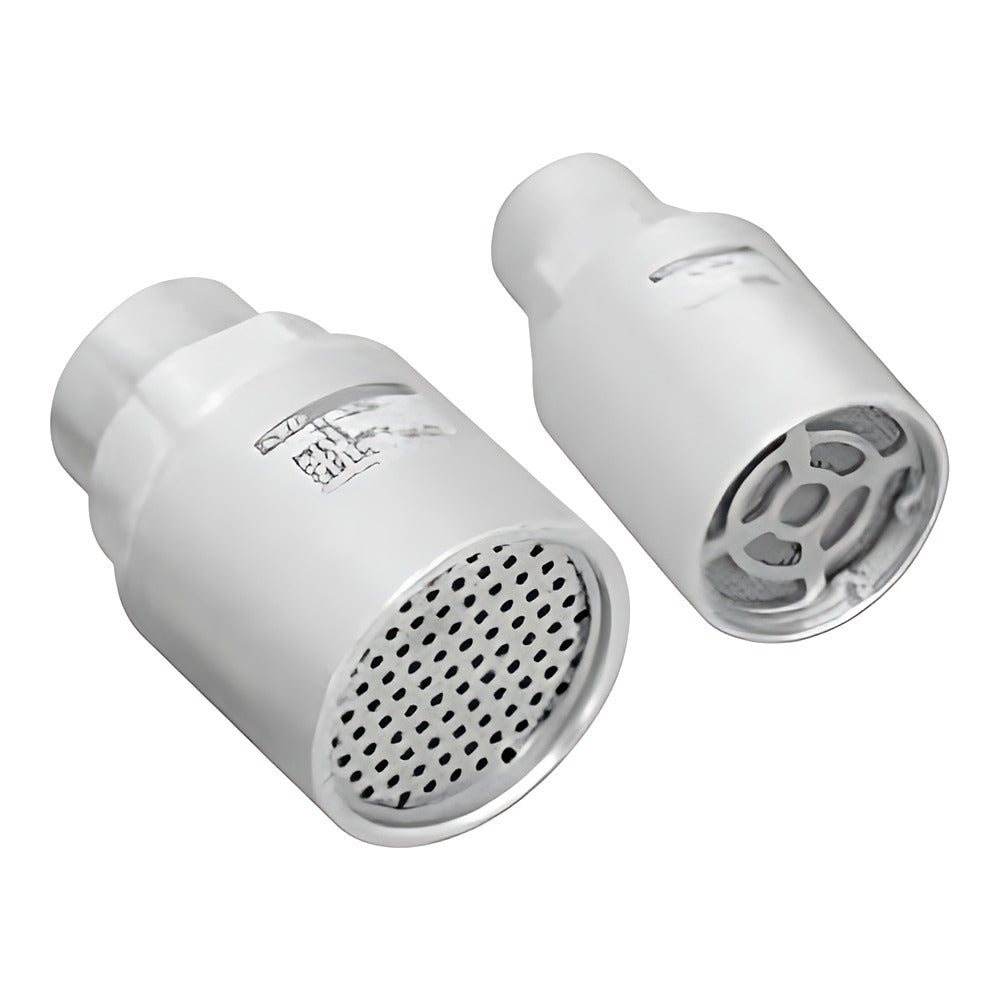

CKD SLM Silencer (Ultra-Compact, M3, M5)

CKD SLM ultra-compact metal silencers for M3 and M5 ports.

Key features

Copper alloy body with sintered bronze element
Noise reduction 20 dB(A) or more
Gasket (NBR + steel) included
Sales unit: 10 pcs/set

Specifications

Fluid	Compressed air
Min. operating pressure	0 MPa
Ambient temperature	-10 to 60 C (no freezing)
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temperature	5 to 60 C (no freezing)
Source	CKD Korea catalog CB-023SK-9, p. 1965-1965

SLM-M3

Port: M3x0.5 | Flow: 60 L/min (ANR) | Eff. area: 1 mm2 | Cylinder bore: 6 mm or less

SilencersCKD

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SLM Silencer (Ultra-Compact, M3, M5)

Brand CKD·Silencers

Available part numbers (1)

SLM-M3

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
