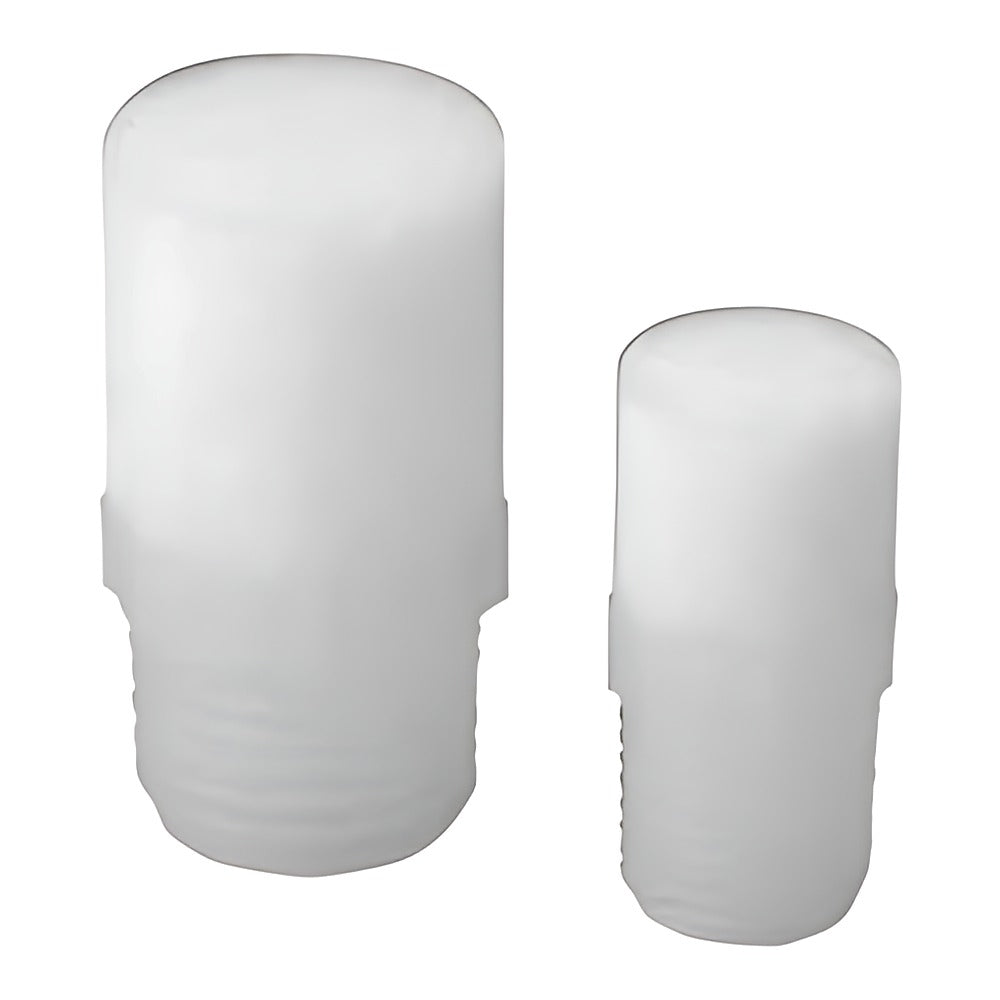

CKD SLW-L Silencer (Large Flow, Resin Body, R1/4, R3/8)

CKD SLW-L large flow small resin body silencers, noise reduction 30 dB(A) or more.

Key features

Large flow: 2000 / 4000 L/min (ANR)
Noise reduction 30 dB(A) or more
Flame-retardant polyamide body (UL94 V-0 equivalent)

Specifications

Fluid	Compressed air
Min. operating pressure	0 MPa
Ambient temperature	-10 to 60 C (no freezing)
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temperature	5 to 60 C (no freezing)
Source	CKD Korea catalog CB-023SK-9, p. 1961-1961

SLW-8L

Port: R1/4 | Flow: 2000 L/min (ANR) | Eff. area: 30 mm2 | Cylinder bore: 32-80 mm | Mass: 15 g

SilencersCKD

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SLW-L Silencer (Large Flow, Resin Body, R1/4, R3/8)

Brand CKD·Silencers

Available part numbers (1)

SLW-8L

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
