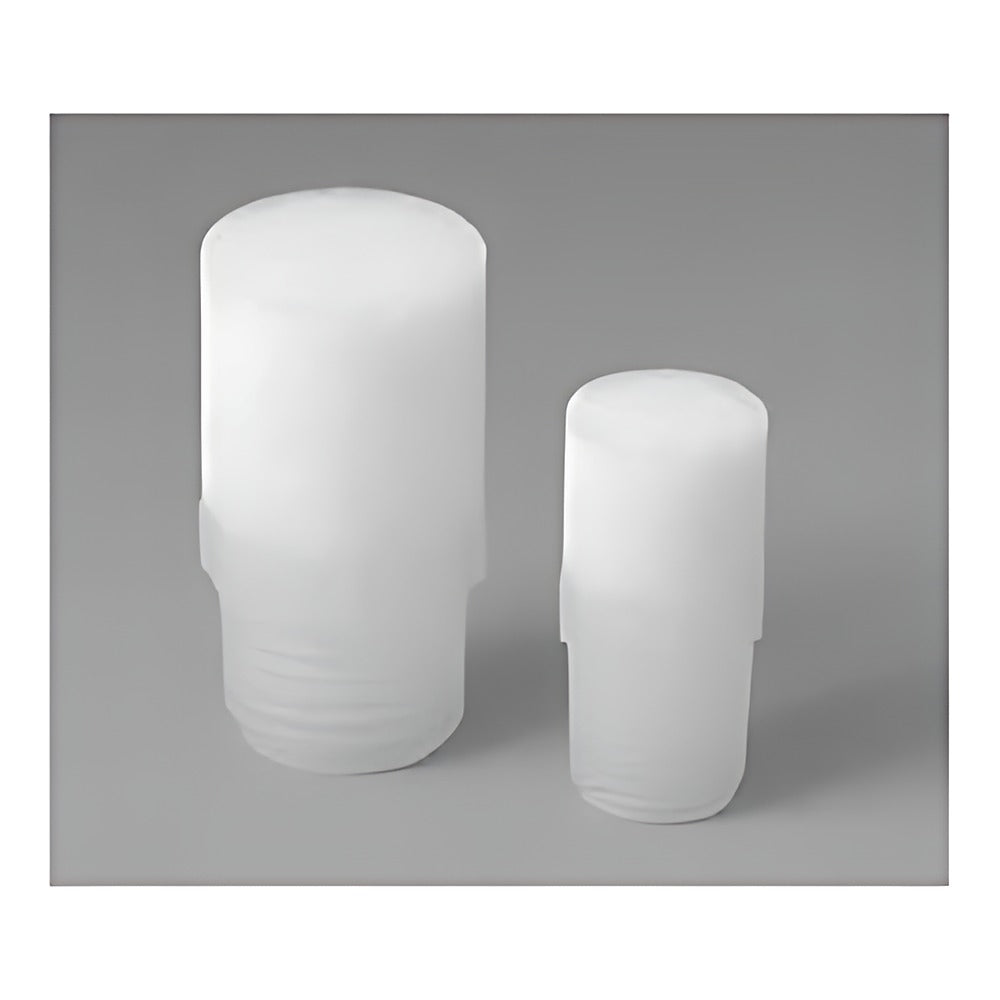

CKD SLW-S Silencer (High Noise Reduction, Compact, R1/8-R3/4)

CKD SLW-6S/8S and SLW-20S compact, lightweight high noise reduction silencers.

Key features

Compact and lightweight (1 to 20 g)
SLW-6S/8S: noise reduction 25/28 dB(A) or more, PP body
SLW-20S: R3/4, 6000 L/min, noise reduction 30 dB(A), flame-retardant polyamide body
Hand-tighten to the printed torque

Specifications

Fluid	Compressed air
Min. operating pressure	0 MPa
Ambient temperature	-10 to 60 C (no freezing)
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temperature	5 to 60 C (no freezing)
Source	CKD Korea catalog CB-023SK-9, p. 1962-1963

SLW-20S

Port: R3/4 | Flow: 6000 L/min (ANR) | Eff. area: 90 mm2 | Cylinder bore: 100-200 mm | Mass: 20 g

SilencersCKD

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SLW-S Silencer (High Noise Reduction, Compact, R1/8-R3/4)

Brand CKD·Silencers

Available part numbers (1)

SLW-20S

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
