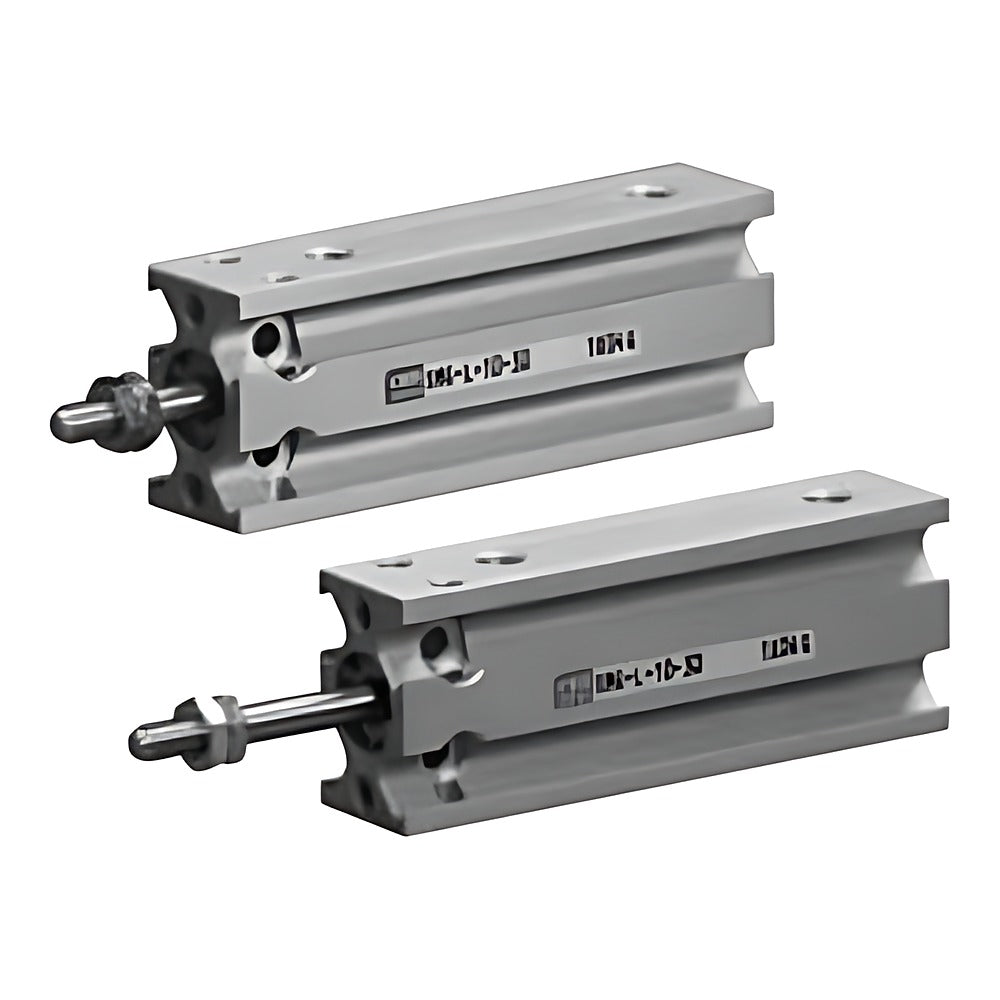

CKD SMG-F Super Mount Cylinder (Clean Room P7, Low Speed)

CKD SMG-F Super Mount Cylinder (Clean Room P7, Low Speed)

CKD SMG-F clean-room super mount square cylinder, double-acting, bore 6-25 mm, low-speed type.

Key features

  • Square compact body with integrated mount block: direct mounting from 5 faces
  • Low-speed type: piston speed 1-200 mm/s
  • Bore 6-25 mm; standard strokes 5-30 mm (6-16) and 5-50 mm (20, 25)
  • Clean spec P7 (exhaust treatment) or P71 (vacuum suction)
  • Switch-magnet model accepts K-type auto switches (K0/K5/K2/K3/K3P/K2Y/K3Y)
  • Intermediate strokes in 5 mm steps; fluorine grease used in P7 series

Specifications

Operation Double-acting, single rod
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.12 (6), 0.06 (10, 16), 0.05 MPa (20, 25)
Proof pressure 1.05 MPa
Ambient temperature 5 to 60 C
Port size M5
Piston speed 1-200 mm/s
Cushion Rubber cushion
Lubrication Not allowed
Production Made to order
Source CKD Korea catalog CB-033S-4, p. 89-96
SMG-F-6-5-P7 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-6-5-P71 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-6-10-P7 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-6-10-P71 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-6-15-P7 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-6-15-P71 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-6-20-P7 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-6-20-P71 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-6-25-P7 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-6-25-P71 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-6-30-P7 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-6-30-P71 Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-10-5-P7 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-10-5-P71 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-10-10-P7 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-10-10-P71 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-10-15-P7 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-10-15-P71 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-10-20-P7 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-10-20-P71 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-10-25-P7 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-10-25-P71 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-10-30-P7 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-10-30-P71 Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-16-5-P7 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-16-5-P71 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-16-10-P7 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-16-10-P71 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-16-15-P7 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-16-15-P71 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-16-20-P7 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-16-20-P71 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-16-25-P7 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-16-25-P71 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-16-30-P7 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-16-30-P71 Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-20-5-P7 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-20-5-P71 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-20-10-P7 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-20-10-P71 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-20-15-P7 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-20-15-P71 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-20-20-P7 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-20-20-P71 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-20-25-P7 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-20-25-P71 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-20-30-P7 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-20-30-P71 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-20-40-P7 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-F-20-40-P71 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-F-20-50-P7 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-F-20-50-P71 Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-F-25-5-P7 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-25-5-P71 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-25-10-P7 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-25-10-P71 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-25-15-P7 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-25-15-P71 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-25-20-P7 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-25-20-P71 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-25-25-P7 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-25-25-P71 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-25-30-P7 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-25-30-P71 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-25-40-P7 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-F-25-40-P71 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-F-25-50-P7 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-F-25-50-P71 Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-LF-6-5-P7 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-5-P71 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-6-10-P7 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-10-P71 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-6-15-P7 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-15-P71 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-6-20-P7 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-20-P71 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-6-25-P7 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-25-P71 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-6-30-P7 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-30-P71 Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-10-5-P7 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-5-P71 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-10-10-P7 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-10-P71 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-10-15-P7 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-15-P71 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-10-20-P7 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-20-P71 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-10-25-P7 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-25-P71 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-10-30-P7 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-30-P71 Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-16-5-P7 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-5-P71 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-16-10-P7 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-10-P71 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-16-15-P7 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-15-P71 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-16-20-P7 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-20-P71 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-16-25-P7 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-25-P71 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-16-30-P7 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-30-P71 Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-20-5-P7 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-5-P71 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-20-10-P7 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-10-P71 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-20-15-P7 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-15-P71 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-20-20-P7 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-20-P71 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-20-25-P7 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-25-P71 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-20-30-P7 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-30-P71 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-20-40-P7 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-40-P71 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-LF-20-50-P7 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-50-P71 Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-LF-25-5-P7 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-5-P71 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-25-10-P7 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-10-P71 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-25-15-P7 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-15-P71 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-25-20-P7 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-20-P71 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-25-25-P7 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-25-P71 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-25-30-P7 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-30-P71 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-25-40-P7 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-40-P71 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-LF-25-50-P7 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-50-P71 Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
Compact CylindersCKD
136 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SMG-F Super Mount Cylinder (Clean Room P7, Low Speed)

Brand CKD·Compact Cylinders

Available part numbers (136)

SMG-F-6-5-P7, SMG-F-6-5-P71, SMG-F-6-10-P7, SMG-F-6-10-P71, SMG-F-6-15-P7, SMG-F-6-15-P71, SMG-F-6-20-P7, SMG-F-6-20-P71, SMG-F-6-25-P7, SMG-F-6-25-P71 + 126 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMG-F-6-5-P7Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-6-5-P71Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-6-10-P7Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-6-10-P71Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-6-15-P7Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-6-15-P71Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-6-20-P7Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-6-20-P71Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-6-25-P7Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-6-25-P71Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-6-30-P7Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-6-30-P71Model: SMG-F (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-10-5-P7Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-10-5-P71Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-10-10-P7Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-10-10-P71Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-10-15-P7Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-10-15-P71Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-10-20-P7Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-10-20-P71Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-10-25-P7Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-10-25-P71Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-10-30-P7Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-10-30-P71Model: SMG-F (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-16-5-P7Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-16-5-P71Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-16-10-P7Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-16-10-P71Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-16-15-P7Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-16-15-P71Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-16-20-P7Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-16-20-P71Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-16-25-P7Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-16-25-P71Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-16-30-P7Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-16-30-P71Model: SMG-F (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-20-5-P7Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-20-5-P71Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-20-10-P7Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-20-10-P71Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-20-15-P7Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-20-15-P71Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-20-20-P7Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-20-20-P71Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-20-25-P7Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-20-25-P71Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-20-30-P7Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-20-30-P71Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-20-40-P7Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-F-20-40-P71Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-F-20-50-P7Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-F-20-50-P71Model: SMG-F (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-F-25-5-P7Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-F-25-5-P71Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-F-25-10-P7Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-F-25-10-P71Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-F-25-15-P7Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-F-25-15-P71Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-F-25-20-P7Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-F-25-20-P71Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-F-25-25-P7Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-F-25-25-P71Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-F-25-30-P7Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-F-25-30-P71Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-F-25-40-P7Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-F-25-40-P71Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-F-25-50-P7Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-F-25-50-P71Model: SMG-F (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-LF-6-5-P7Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-5-P71Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-6-10-P7Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-10-P71Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-6-15-P7Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-15-P71Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-6-20-P7Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-20-P71Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-6-25-P7Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-25-P71Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-6-30-P7Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-6-30-P71Model: SMG-LF (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-10-5-P7Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-5-P71Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-10-10-P7Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-10-P71Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-10-15-P7Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-15-P71Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-10-20-P7Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-20-P71Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-10-25-P7Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-25-P71Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-10-30-P7Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-10-30-P71Model: SMG-LF (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-16-5-P7Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-5-P71Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-16-10-P7Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-10-P71Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-16-15-P7Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-15-P71Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-16-20-P7Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-20-P71Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-16-25-P7Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-25-P71Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-16-30-P7Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-16-30-P71Model: SMG-LF (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-20-5-P7Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-5-P71Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-20-10-P7Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-10-P71Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-20-15-P7Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-15-P71Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-20-20-P7Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-20-P71Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-20-25-P7Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-25-P71Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-20-30-P7Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-30-P71Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-20-40-P7Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-40-P71Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-LF-20-50-P7Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-LF-20-50-P71Model: SMG-LF (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-LF-25-5-P7Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-5-P71Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-LF-25-10-P7Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-10-P71Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-LF-25-15-P7Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-15-P71Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-LF-25-20-P7Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-20-P71Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-LF-25-25-P7Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-25-P71Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-LF-25-30-P7Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-30-P71Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-LF-25-40-P7Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-40-P71Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-LF-25-50-P7Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-LF-25-50-P71Model: SMG-LF (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
