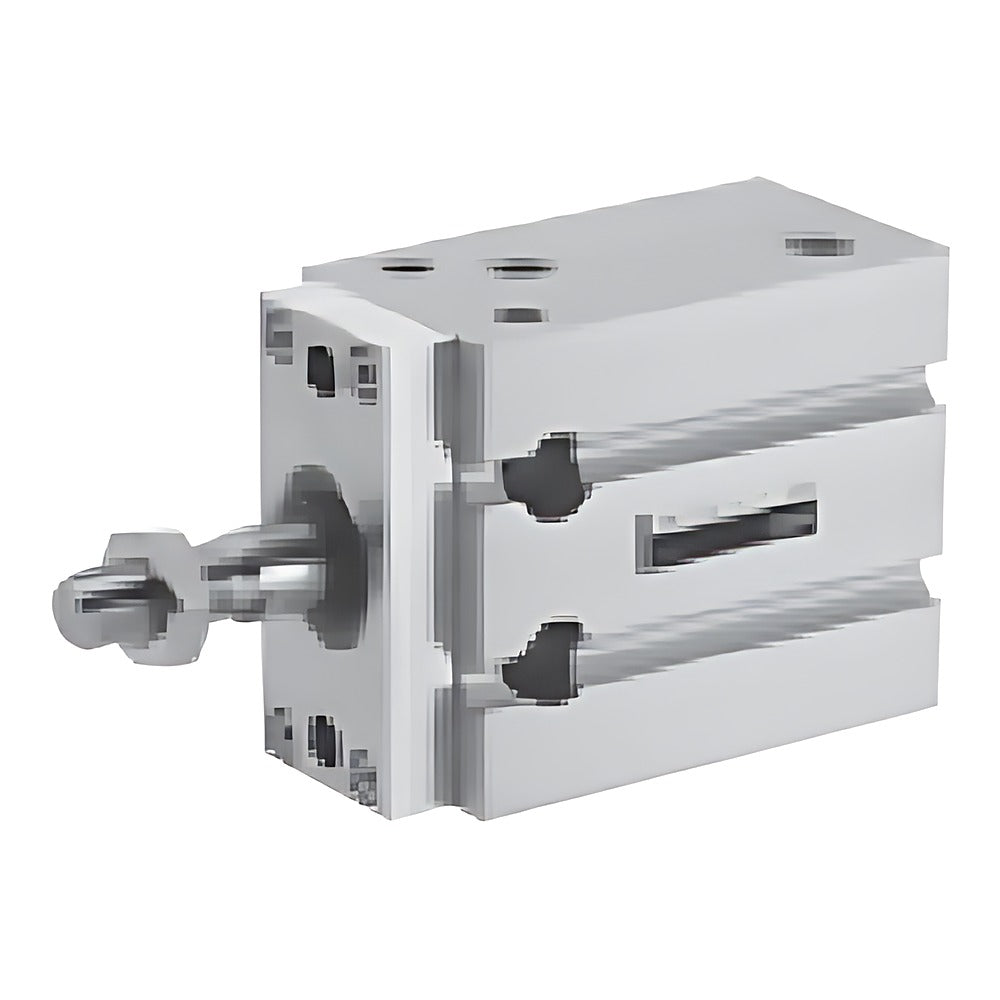

CKD SMG-G-HP1 Environment-resistant Super Mount Cylinder (Bore 6-32)

CKD SMG-G-HP1 Environment-resistant Super Mount Cylinder (Bore 6-32)

CKD SMG-G-HP1 environment-resistant long-life super mount cylinder with strong scraper, bores 6-32 mm.

Key features

  • G-HP1 environment-resistant design: strong scraper and long-life seals for dusty / swarf environments
  • SMG-G (no magnet) or SMG-GL (switch magnet built in)
  • Standard strokes 5-60 mm (6-16) and 5-100 mm (20-32); intermediate strokes in 5 mm steps
  • Options not expanded: NN/GN threads (32), K-type auto switches with R/H/D count

Specifications

Operation Double acting, single rod, strong scraper
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.12 MPa (6), 0.06 MPa (10, 16), 0.15 MPa (20-32)
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size M5 (6-25), Rc1/8 (32)
Piston speed 50-500 mm/s
Cushion Rubber cushion
Code format SMG-G[L]-<bore>-<stroke>-HP1
Source CKD Korea catalog CC-1421KR-7, p. 92-95
SMG-G-6-5-HP1 Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 5 mm
SMG-G-6-10-HP1 Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 10 mm
SMG-G-6-15-HP1 Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 15 mm
SMG-G-6-20-HP1 Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 20 mm
SMG-G-6-25-HP1 Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 25 mm
SMG-G-6-30-HP1 Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 30 mm
SMG-G-6-40-HP1 Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 40 mm
SMG-G-6-50-HP1 Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 50 mm
SMG-G-6-60-HP1 Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 60 mm
SMG-G-10-5-HP1 Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 5 mm
SMG-G-10-10-HP1 Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 10 mm
SMG-G-10-15-HP1 Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 15 mm
SMG-G-10-20-HP1 Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 20 mm
SMG-G-10-25-HP1 Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 25 mm
SMG-G-10-30-HP1 Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 30 mm
SMG-G-10-40-HP1 Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 40 mm
SMG-G-10-50-HP1 Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 50 mm
SMG-G-10-60-HP1 Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 60 mm
SMG-G-16-5-HP1 Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 5 mm
SMG-G-16-10-HP1 Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 10 mm
SMG-G-16-15-HP1 Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 15 mm
SMG-G-16-20-HP1 Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 20 mm
SMG-G-16-25-HP1 Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 25 mm
SMG-G-16-30-HP1 Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 30 mm
SMG-G-16-40-HP1 Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 40 mm
SMG-G-16-50-HP1 Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 50 mm
SMG-G-16-60-HP1 Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 60 mm
SMG-G-20-5-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 5 mm
SMG-G-20-10-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 10 mm
SMG-G-20-15-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 15 mm
SMG-G-20-20-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 20 mm
SMG-G-20-25-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 25 mm
SMG-G-20-30-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 30 mm
SMG-G-20-40-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 40 mm
SMG-G-20-50-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 50 mm
SMG-G-20-60-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 60 mm
SMG-G-20-70-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 70 mm
SMG-G-20-80-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 80 mm
SMG-G-20-90-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 90 mm
SMG-G-20-100-HP1 Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 100 mm
SMG-G-25-5-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 5 mm
SMG-G-25-10-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 10 mm
SMG-G-25-15-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 15 mm
SMG-G-25-20-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 20 mm
SMG-G-25-25-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 25 mm
SMG-G-25-30-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 30 mm
SMG-G-25-40-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 40 mm
SMG-G-25-50-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 50 mm
SMG-G-25-60-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 60 mm
SMG-G-25-70-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 70 mm
SMG-G-25-80-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 80 mm
SMG-G-25-90-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 90 mm
SMG-G-25-100-HP1 Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 100 mm
SMG-G-32-5-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 5 mm
SMG-G-32-10-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 10 mm
SMG-G-32-15-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 15 mm
SMG-G-32-20-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 20 mm
SMG-G-32-25-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 25 mm
SMG-G-32-30-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 30 mm
SMG-G-32-40-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 40 mm
SMG-G-32-50-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 50 mm
SMG-G-32-60-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 60 mm
SMG-G-32-70-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 70 mm
SMG-G-32-80-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 80 mm
SMG-G-32-90-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 90 mm
SMG-G-32-100-HP1 Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 100 mm
SMG-GL-6-5-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 5 mm
SMG-GL-6-10-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 10 mm
SMG-GL-6-15-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 15 mm
SMG-GL-6-20-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 20 mm
SMG-GL-6-25-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 25 mm
SMG-GL-6-30-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 30 mm
SMG-GL-6-40-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 40 mm
SMG-GL-6-50-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 50 mm
SMG-GL-6-60-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 60 mm
SMG-GL-10-5-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 5 mm
SMG-GL-10-10-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 10 mm
SMG-GL-10-15-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 15 mm
SMG-GL-10-20-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 20 mm
SMG-GL-10-25-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 25 mm
SMG-GL-10-30-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 30 mm
SMG-GL-10-40-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 40 mm
SMG-GL-10-50-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 50 mm
SMG-GL-10-60-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 60 mm
SMG-GL-16-5-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm
SMG-GL-16-10-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm
SMG-GL-16-15-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm
SMG-GL-16-20-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm
SMG-GL-16-25-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm
SMG-GL-16-30-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm
SMG-GL-16-40-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 40 mm
SMG-GL-16-50-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 50 mm
SMG-GL-16-60-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 60 mm
SMG-GL-20-5-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm
SMG-GL-20-10-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm
SMG-GL-20-15-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm
SMG-GL-20-20-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm
SMG-GL-20-25-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm
SMG-GL-20-30-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm
SMG-GL-20-40-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm
SMG-GL-20-50-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm
SMG-GL-20-60-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 60 mm
SMG-GL-20-70-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 70 mm
SMG-GL-20-80-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 80 mm
SMG-GL-20-90-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 90 mm
SMG-GL-20-100-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 100 mm
SMG-GL-25-5-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm
SMG-GL-25-10-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm
SMG-GL-25-15-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm
SMG-GL-25-20-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm
SMG-GL-25-25-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm
SMG-GL-25-30-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm
SMG-GL-25-40-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm
SMG-GL-25-50-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm
SMG-GL-25-60-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 60 mm
SMG-GL-25-70-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 70 mm
SMG-GL-25-80-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 80 mm
SMG-GL-25-90-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 90 mm
SMG-GL-25-100-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 100 mm
SMG-GL-32-5-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm
SMG-GL-32-10-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm
SMG-GL-32-15-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm
SMG-GL-32-20-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm
SMG-GL-32-25-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm
SMG-GL-32-30-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm
SMG-GL-32-40-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm
SMG-GL-32-50-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm
SMG-GL-32-60-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 60 mm
SMG-GL-32-70-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 70 mm
SMG-GL-32-80-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 80 mm
SMG-GL-32-90-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 90 mm
SMG-GL-32-100-HP1 Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm
Compact CylindersCKD
132 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SMG-G-HP1 Environment-resistant Super Mount Cylinder (Bore 6-32)

Brand CKD·Compact Cylinders

Available part numbers (132)

SMG-G-6-5-HP1, SMG-G-6-10-HP1, SMG-G-6-15-HP1, SMG-G-6-20-HP1, SMG-G-6-25-HP1, SMG-G-6-30-HP1, SMG-G-6-40-HP1, SMG-G-6-50-HP1, SMG-G-6-60-HP1, SMG-G-10-5-HP1 + 122 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMG-G-6-5-HP1Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 5 mm
SMG-G-6-10-HP1Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 10 mm
SMG-G-6-15-HP1Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 15 mm
SMG-G-6-20-HP1Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 20 mm
SMG-G-6-25-HP1Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 25 mm
SMG-G-6-30-HP1Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 30 mm
SMG-G-6-40-HP1Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 40 mm
SMG-G-6-50-HP1Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 50 mm
SMG-G-6-60-HP1Model: SMG-G (No switch magnet) | Bore: 6 mm | Stroke: 60 mm
SMG-G-10-5-HP1Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 5 mm
SMG-G-10-10-HP1Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 10 mm
SMG-G-10-15-HP1Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 15 mm
SMG-G-10-20-HP1Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 20 mm
SMG-G-10-25-HP1Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 25 mm
SMG-G-10-30-HP1Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 30 mm
SMG-G-10-40-HP1Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 40 mm
SMG-G-10-50-HP1Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 50 mm
SMG-G-10-60-HP1Model: SMG-G (No switch magnet) | Bore: 10 mm | Stroke: 60 mm
SMG-G-16-5-HP1Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 5 mm
SMG-G-16-10-HP1Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 10 mm
SMG-G-16-15-HP1Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 15 mm
SMG-G-16-20-HP1Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 20 mm
SMG-G-16-25-HP1Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 25 mm
SMG-G-16-30-HP1Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 30 mm
SMG-G-16-40-HP1Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 40 mm
SMG-G-16-50-HP1Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 50 mm
SMG-G-16-60-HP1Model: SMG-G (No switch magnet) | Bore: 16 mm | Stroke: 60 mm
SMG-G-20-5-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 5 mm
SMG-G-20-10-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 10 mm
SMG-G-20-15-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 15 mm
SMG-G-20-20-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 20 mm
SMG-G-20-25-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 25 mm
SMG-G-20-30-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 30 mm
SMG-G-20-40-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 40 mm
SMG-G-20-50-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 50 mm
SMG-G-20-60-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 60 mm
SMG-G-20-70-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 70 mm
SMG-G-20-80-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 80 mm
SMG-G-20-90-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 90 mm
SMG-G-20-100-HP1Model: SMG-G (No switch magnet) | Bore: 20 mm | Stroke: 100 mm
SMG-G-25-5-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 5 mm
SMG-G-25-10-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 10 mm
SMG-G-25-15-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 15 mm
SMG-G-25-20-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 20 mm
SMG-G-25-25-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 25 mm
SMG-G-25-30-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 30 mm
SMG-G-25-40-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 40 mm
SMG-G-25-50-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 50 mm
SMG-G-25-60-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 60 mm
SMG-G-25-70-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 70 mm
SMG-G-25-80-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 80 mm
SMG-G-25-90-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 90 mm
SMG-G-25-100-HP1Model: SMG-G (No switch magnet) | Bore: 25 mm | Stroke: 100 mm
SMG-G-32-5-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 5 mm
SMG-G-32-10-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 10 mm
SMG-G-32-15-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 15 mm
SMG-G-32-20-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 20 mm
SMG-G-32-25-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 25 mm
SMG-G-32-30-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 30 mm
SMG-G-32-40-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 40 mm
SMG-G-32-50-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 50 mm
SMG-G-32-60-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 60 mm
SMG-G-32-70-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 70 mm
SMG-G-32-80-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 80 mm
SMG-G-32-90-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 90 mm
SMG-G-32-100-HP1Model: SMG-G (No switch magnet) | Bore: 32 mm | Stroke: 100 mm
SMG-GL-6-5-HP1Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 5 mm
SMG-GL-6-10-HP1Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 10 mm
SMG-GL-6-15-HP1Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 15 mm
SMG-GL-6-20-HP1Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 20 mm
SMG-GL-6-25-HP1Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 25 mm
SMG-GL-6-30-HP1Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 30 mm
SMG-GL-6-40-HP1Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 40 mm
SMG-GL-6-50-HP1Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 50 mm
SMG-GL-6-60-HP1Model: SMG-GL (Switch magnet built in) | Bore: 6 mm | Stroke: 60 mm
SMG-GL-10-5-HP1Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 5 mm
SMG-GL-10-10-HP1Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 10 mm
SMG-GL-10-15-HP1Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 15 mm
SMG-GL-10-20-HP1Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 20 mm
SMG-GL-10-25-HP1Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 25 mm
SMG-GL-10-30-HP1Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 30 mm
SMG-GL-10-40-HP1Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 40 mm
SMG-GL-10-50-HP1Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 50 mm
SMG-GL-10-60-HP1Model: SMG-GL (Switch magnet built in) | Bore: 10 mm | Stroke: 60 mm
SMG-GL-16-5-HP1Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 5 mm
SMG-GL-16-10-HP1Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 10 mm
SMG-GL-16-15-HP1Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 15 mm
SMG-GL-16-20-HP1Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 20 mm
SMG-GL-16-25-HP1Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 25 mm
SMG-GL-16-30-HP1Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 30 mm
SMG-GL-16-40-HP1Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 40 mm
SMG-GL-16-50-HP1Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 50 mm
SMG-GL-16-60-HP1Model: SMG-GL (Switch magnet built in) | Bore: 16 mm | Stroke: 60 mm
SMG-GL-20-5-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 5 mm
SMG-GL-20-10-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 10 mm
SMG-GL-20-15-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 15 mm
SMG-GL-20-20-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 20 mm
SMG-GL-20-25-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 25 mm
SMG-GL-20-30-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 30 mm
SMG-GL-20-40-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 40 mm
SMG-GL-20-50-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 50 mm
SMG-GL-20-60-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 60 mm
SMG-GL-20-70-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 70 mm
SMG-GL-20-80-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 80 mm
SMG-GL-20-90-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 90 mm
SMG-GL-20-100-HP1Model: SMG-GL (Switch magnet built in) | Bore: 20 mm | Stroke: 100 mm
SMG-GL-25-5-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 5 mm
SMG-GL-25-10-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 10 mm
SMG-GL-25-15-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 15 mm
SMG-GL-25-20-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 20 mm
SMG-GL-25-25-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 25 mm
SMG-GL-25-30-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 30 mm
SMG-GL-25-40-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 40 mm
SMG-GL-25-50-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 50 mm
SMG-GL-25-60-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 60 mm
SMG-GL-25-70-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 70 mm
SMG-GL-25-80-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 80 mm
SMG-GL-25-90-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 90 mm
SMG-GL-25-100-HP1Model: SMG-GL (Switch magnet built in) | Bore: 25 mm | Stroke: 100 mm
SMG-GL-32-5-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 5 mm
SMG-GL-32-10-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 10 mm
SMG-GL-32-15-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 15 mm
SMG-GL-32-20-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 20 mm
SMG-GL-32-25-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 25 mm
SMG-GL-32-30-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 30 mm
SMG-GL-32-40-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 40 mm
SMG-GL-32-50-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 50 mm
SMG-GL-32-60-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 60 mm
SMG-GL-32-70-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 70 mm
SMG-GL-32-80-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 80 mm
SMG-GL-32-90-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 90 mm
SMG-GL-32-100-HP1Model: SMG-GL (Switch magnet built in) | Bore: 32 mm | Stroke: 100 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
