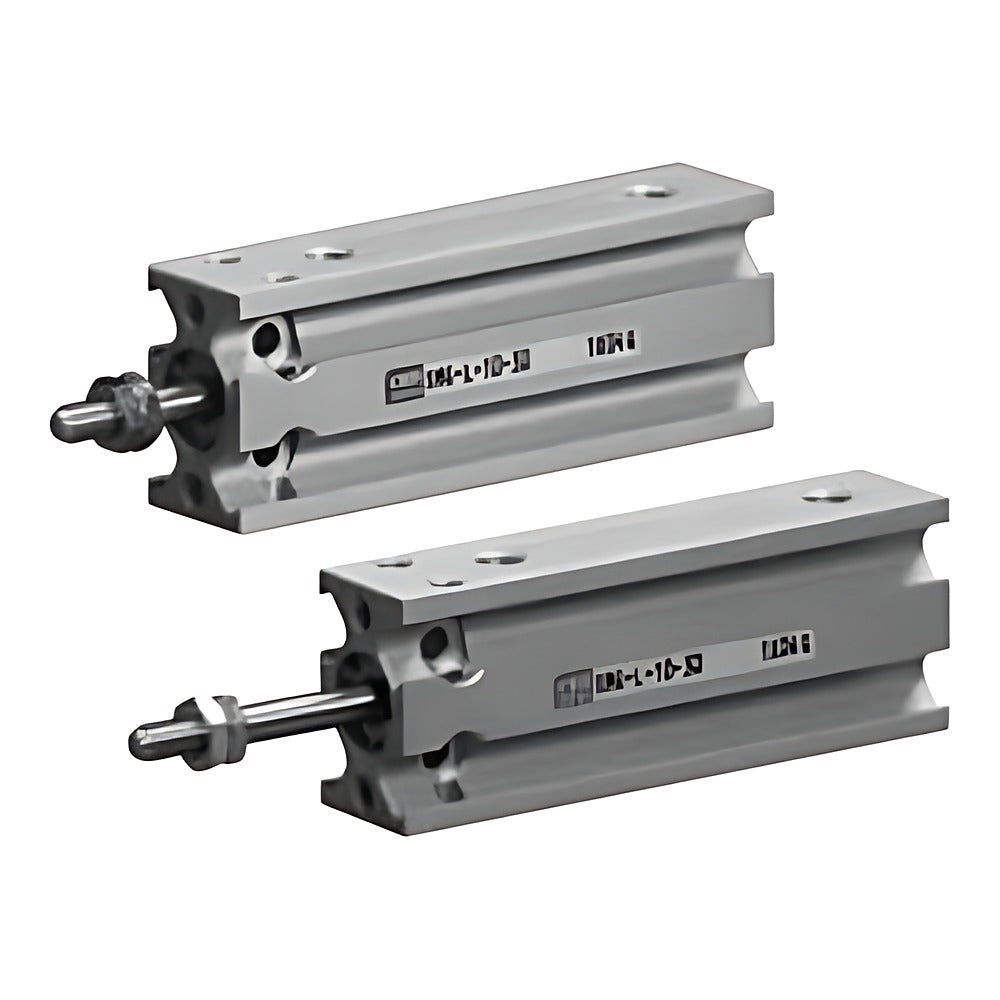

CKD SMG-P4/P40-HP1 Super Mount Cylinder (Secondary Battery)

CKD SMG-P4/P40-HP1 Super Mount Cylinder (Secondary Battery)

CKD SMG-P4/P40-HP1 double-acting super mount cylinder for secondary-battery production, bore ø6 to ø32.

Key features

  • Secondary-battery (P4 series) material restrictions: copper, zinc and nickel based materials and Zn/electroless Ni plating limited
  • Ultra-low dew point grease: long life even at -70°C dew point, durability 10 million cycles or more (CKD conditions)
  • Without switch only P40 is listed (switch-less HP1 is already P4 compliant); SMG-L in P4 and P40
  • Standard strokes 5-60 (ø6-ø16) and 5-100 mm (ø20-ø32); intermediate 5 mm steps
  • Rubber cushion; switches per correspondence table (e.g. SW51)

Specifications

Specification Secondary-battery P4/P40, long-life HP1
Action Double acting, single rod
Max. operating pressure 0.7 MPa
Port size M5 / Rc1/8
Cushion Rubber cushion
Source CKD Korea catalog CC-1421KR-7, p. 204-205
SMG-6-5-P40-HP1 Model: SMG (no magnet) | Bore: 6 mm | Stroke: 5 mm | Version: P40
SMG-6-10-P40-HP1 Model: SMG (no magnet) | Bore: 6 mm | Stroke: 10 mm | Version: P40
SMG-6-15-P40-HP1 Model: SMG (no magnet) | Bore: 6 mm | Stroke: 15 mm | Version: P40
SMG-6-20-P40-HP1 Model: SMG (no magnet) | Bore: 6 mm | Stroke: 20 mm | Version: P40
SMG-6-25-P40-HP1 Model: SMG (no magnet) | Bore: 6 mm | Stroke: 25 mm | Version: P40
SMG-6-30-P40-HP1 Model: SMG (no magnet) | Bore: 6 mm | Stroke: 30 mm | Version: P40
SMG-6-40-P40-HP1 Model: SMG (no magnet) | Bore: 6 mm | Stroke: 40 mm | Version: P40
SMG-6-50-P40-HP1 Model: SMG (no magnet) | Bore: 6 mm | Stroke: 50 mm | Version: P40
SMG-6-60-P40-HP1 Model: SMG (no magnet) | Bore: 6 mm | Stroke: 60 mm | Version: P40
SMG-10-5-P40-HP1 Model: SMG (no magnet) | Bore: 10 mm | Stroke: 5 mm | Version: P40
SMG-10-10-P40-HP1 Model: SMG (no magnet) | Bore: 10 mm | Stroke: 10 mm | Version: P40
SMG-10-15-P40-HP1 Model: SMG (no magnet) | Bore: 10 mm | Stroke: 15 mm | Version: P40
SMG-10-20-P40-HP1 Model: SMG (no magnet) | Bore: 10 mm | Stroke: 20 mm | Version: P40
SMG-10-25-P40-HP1 Model: SMG (no magnet) | Bore: 10 mm | Stroke: 25 mm | Version: P40
SMG-10-30-P40-HP1 Model: SMG (no magnet) | Bore: 10 mm | Stroke: 30 mm | Version: P40
SMG-10-40-P40-HP1 Model: SMG (no magnet) | Bore: 10 mm | Stroke: 40 mm | Version: P40
SMG-10-50-P40-HP1 Model: SMG (no magnet) | Bore: 10 mm | Stroke: 50 mm | Version: P40
SMG-10-60-P40-HP1 Model: SMG (no magnet) | Bore: 10 mm | Stroke: 60 mm | Version: P40
SMG-16-5-P40-HP1 Model: SMG (no magnet) | Bore: 16 mm | Stroke: 5 mm | Version: P40
SMG-16-10-P40-HP1 Model: SMG (no magnet) | Bore: 16 mm | Stroke: 10 mm | Version: P40
SMG-16-15-P40-HP1 Model: SMG (no magnet) | Bore: 16 mm | Stroke: 15 mm | Version: P40
SMG-16-20-P40-HP1 Model: SMG (no magnet) | Bore: 16 mm | Stroke: 20 mm | Version: P40
SMG-16-25-P40-HP1 Model: SMG (no magnet) | Bore: 16 mm | Stroke: 25 mm | Version: P40
SMG-16-30-P40-HP1 Model: SMG (no magnet) | Bore: 16 mm | Stroke: 30 mm | Version: P40
SMG-16-40-P40-HP1 Model: SMG (no magnet) | Bore: 16 mm | Stroke: 40 mm | Version: P40
SMG-16-50-P40-HP1 Model: SMG (no magnet) | Bore: 16 mm | Stroke: 50 mm | Version: P40
SMG-16-60-P40-HP1 Model: SMG (no magnet) | Bore: 16 mm | Stroke: 60 mm | Version: P40
SMG-20-5-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 5 mm | Version: P40
SMG-20-10-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 10 mm | Version: P40
SMG-20-15-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 15 mm | Version: P40
SMG-20-20-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 20 mm | Version: P40
SMG-20-25-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 25 mm | Version: P40
SMG-20-30-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 30 mm | Version: P40
SMG-20-40-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 40 mm | Version: P40
SMG-20-50-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 50 mm | Version: P40
SMG-20-60-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 60 mm | Version: P40
SMG-20-70-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 70 mm | Version: P40
SMG-20-80-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 80 mm | Version: P40
SMG-20-90-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 90 mm | Version: P40
SMG-20-100-P40-HP1 Model: SMG (no magnet) | Bore: 20 mm | Stroke: 100 mm | Version: P40
SMG-25-5-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 5 mm | Version: P40
SMG-25-10-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 10 mm | Version: P40
SMG-25-15-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 15 mm | Version: P40
SMG-25-20-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 20 mm | Version: P40
SMG-25-25-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 25 mm | Version: P40
SMG-25-30-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 30 mm | Version: P40
SMG-25-40-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 40 mm | Version: P40
SMG-25-50-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 50 mm | Version: P40
SMG-25-60-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 60 mm | Version: P40
SMG-25-70-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 70 mm | Version: P40
SMG-25-80-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 80 mm | Version: P40
SMG-25-90-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 90 mm | Version: P40
SMG-25-100-P40-HP1 Model: SMG (no magnet) | Bore: 25 mm | Stroke: 100 mm | Version: P40
SMG-32-5-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 5 mm | Version: P40
SMG-32-10-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 10 mm | Version: P40
SMG-32-15-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 15 mm | Version: P40
SMG-32-20-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 20 mm | Version: P40
SMG-32-25-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 25 mm | Version: P40
SMG-32-30-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 30 mm | Version: P40
SMG-32-40-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 40 mm | Version: P40
SMG-32-50-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 50 mm | Version: P40
SMG-32-60-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 60 mm | Version: P40
SMG-32-70-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 70 mm | Version: P40
SMG-32-80-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 80 mm | Version: P40
SMG-32-90-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 90 mm | Version: P40
SMG-32-100-P40-HP1 Model: SMG (no magnet) | Bore: 32 mm | Stroke: 100 mm | Version: P40
SMG-L-6-5-P4-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Version: P4
SMG-L-6-5-P40-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Version: P40
SMG-L-6-10-P4-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Version: P4
SMG-L-6-10-P40-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Version: P40
SMG-L-6-15-P4-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Version: P4
SMG-L-6-15-P40-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Version: P40
SMG-L-6-20-P4-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Version: P4
SMG-L-6-20-P40-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Version: P40
SMG-L-6-25-P4-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Version: P4
SMG-L-6-25-P40-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Version: P40
SMG-L-6-30-P4-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Version: P4
SMG-L-6-30-P40-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Version: P40
SMG-L-6-40-P4-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 40 mm | Version: P4
SMG-L-6-40-P40-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 40 mm | Version: P40
SMG-L-6-50-P4-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 50 mm | Version: P4
SMG-L-6-50-P40-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 50 mm | Version: P40
SMG-L-6-60-P4-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 60 mm | Version: P4
SMG-L-6-60-P40-HP1 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 60 mm | Version: P40
SMG-L-10-5-P4-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Version: P4
SMG-L-10-5-P40-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Version: P40
SMG-L-10-10-P4-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Version: P4
SMG-L-10-10-P40-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Version: P40
SMG-L-10-15-P4-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Version: P4
SMG-L-10-15-P40-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Version: P40
SMG-L-10-20-P4-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Version: P4
SMG-L-10-20-P40-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Version: P40
SMG-L-10-25-P4-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Version: P4
SMG-L-10-25-P40-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Version: P40
SMG-L-10-30-P4-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Version: P4
SMG-L-10-30-P40-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Version: P40
SMG-L-10-40-P4-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 40 mm | Version: P4
SMG-L-10-40-P40-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 40 mm | Version: P40
SMG-L-10-50-P4-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 50 mm | Version: P4
SMG-L-10-50-P40-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 50 mm | Version: P40
SMG-L-10-60-P4-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 60 mm | Version: P4
SMG-L-10-60-P40-HP1 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 60 mm | Version: P40
SMG-L-16-5-P4-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Version: P4
SMG-L-16-5-P40-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Version: P40
SMG-L-16-10-P4-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Version: P4
SMG-L-16-10-P40-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Version: P40
SMG-L-16-15-P4-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Version: P4
SMG-L-16-15-P40-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Version: P40
SMG-L-16-20-P4-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Version: P4
SMG-L-16-20-P40-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Version: P40
SMG-L-16-25-P4-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Version: P4
SMG-L-16-25-P40-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Version: P40
SMG-L-16-30-P4-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Version: P4
SMG-L-16-30-P40-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Version: P40
SMG-L-16-40-P4-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 40 mm | Version: P4
SMG-L-16-40-P40-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 40 mm | Version: P40
SMG-L-16-50-P4-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 50 mm | Version: P4
SMG-L-16-50-P40-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 50 mm | Version: P40
SMG-L-16-60-P4-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 60 mm | Version: P4
SMG-L-16-60-P40-HP1 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 60 mm | Version: P40
SMG-L-20-5-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Version: P4
SMG-L-20-5-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Version: P40
SMG-L-20-10-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Version: P4
SMG-L-20-10-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Version: P40
SMG-L-20-15-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Version: P4
SMG-L-20-15-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Version: P40
SMG-L-20-20-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Version: P4
SMG-L-20-20-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Version: P40
SMG-L-20-25-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Version: P4
SMG-L-20-25-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Version: P40
SMG-L-20-30-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Version: P4
SMG-L-20-30-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Version: P40
SMG-L-20-40-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Version: P4
SMG-L-20-40-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Version: P40
SMG-L-20-50-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Version: P4
SMG-L-20-50-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Version: P40
SMG-L-20-60-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 60 mm | Version: P4
SMG-L-20-60-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 60 mm | Version: P40
SMG-L-20-70-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 70 mm | Version: P4
SMG-L-20-70-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 70 mm | Version: P40
SMG-L-20-80-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 80 mm | Version: P4
SMG-L-20-80-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 80 mm | Version: P40
SMG-L-20-90-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 90 mm | Version: P4
SMG-L-20-90-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 90 mm | Version: P40
SMG-L-20-100-P4-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 100 mm | Version: P4
SMG-L-20-100-P40-HP1 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 100 mm | Version: P40
SMG-L-25-5-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Version: P4
SMG-L-25-5-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Version: P40
SMG-L-25-10-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Version: P4
SMG-L-25-10-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Version: P40
SMG-L-25-15-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Version: P4
SMG-L-25-15-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Version: P40
SMG-L-25-20-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Version: P4
SMG-L-25-20-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Version: P40
SMG-L-25-25-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Version: P4
SMG-L-25-25-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Version: P40
SMG-L-25-30-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Version: P4
SMG-L-25-30-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Version: P40
SMG-L-25-40-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Version: P4
SMG-L-25-40-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Version: P40
SMG-L-25-50-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Version: P4
SMG-L-25-50-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Version: P40
SMG-L-25-60-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 60 mm | Version: P4
SMG-L-25-60-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 60 mm | Version: P40
SMG-L-25-70-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 70 mm | Version: P4
SMG-L-25-70-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 70 mm | Version: P40
SMG-L-25-80-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 80 mm | Version: P4
SMG-L-25-80-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 80 mm | Version: P40
SMG-L-25-90-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 90 mm | Version: P4
SMG-L-25-90-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 90 mm | Version: P40
SMG-L-25-100-P4-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 100 mm | Version: P4
SMG-L-25-100-P40-HP1 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 100 mm | Version: P40
SMG-L-32-5-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Version: P4
SMG-L-32-5-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Version: P40
SMG-L-32-10-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Version: P4
SMG-L-32-10-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Version: P40
SMG-L-32-15-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Version: P4
SMG-L-32-15-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Version: P40
SMG-L-32-20-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Version: P4
SMG-L-32-20-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Version: P40
SMG-L-32-25-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Version: P4
SMG-L-32-25-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Version: P40
SMG-L-32-30-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Version: P4
SMG-L-32-30-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Version: P40
SMG-L-32-40-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Version: P4
SMG-L-32-40-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Version: P40
SMG-L-32-50-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Version: P4
SMG-L-32-50-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Version: P40
SMG-L-32-60-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 60 mm | Version: P4
SMG-L-32-60-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 60 mm | Version: P40
SMG-L-32-70-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 70 mm | Version: P4
SMG-L-32-70-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 70 mm | Version: P40
SMG-L-32-80-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 80 mm | Version: P4
SMG-L-32-80-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 80 mm | Version: P40
SMG-L-32-90-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 90 mm | Version: P4
SMG-L-32-90-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 90 mm | Version: P40
SMG-L-32-100-P4-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 100 mm | Version: P4
SMG-L-32-100-P40-HP1 Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 100 mm | Version: P40
Compact CylindersCKD
198 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SMG-P4/P40-HP1 Super Mount Cylinder (Secondary Battery)

Brand CKD·Compact Cylinders

Available part numbers (198)

SMG-6-5-P40-HP1, SMG-6-10-P40-HP1, SMG-6-15-P40-HP1, SMG-6-20-P40-HP1, SMG-6-25-P40-HP1, SMG-6-30-P40-HP1, SMG-6-40-P40-HP1, SMG-6-50-P40-HP1, SMG-6-60-P40-HP1, SMG-10-5-P40-HP1 + 188 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMG-6-5-P40-HP1Model: SMG (no magnet) | Bore: 6 mm | Stroke: 5 mm | Version: P40
SMG-6-10-P40-HP1Model: SMG (no magnet) | Bore: 6 mm | Stroke: 10 mm | Version: P40
SMG-6-15-P40-HP1Model: SMG (no magnet) | Bore: 6 mm | Stroke: 15 mm | Version: P40
SMG-6-20-P40-HP1Model: SMG (no magnet) | Bore: 6 mm | Stroke: 20 mm | Version: P40
SMG-6-25-P40-HP1Model: SMG (no magnet) | Bore: 6 mm | Stroke: 25 mm | Version: P40
SMG-6-30-P40-HP1Model: SMG (no magnet) | Bore: 6 mm | Stroke: 30 mm | Version: P40
SMG-6-40-P40-HP1Model: SMG (no magnet) | Bore: 6 mm | Stroke: 40 mm | Version: P40
SMG-6-50-P40-HP1Model: SMG (no magnet) | Bore: 6 mm | Stroke: 50 mm | Version: P40
SMG-6-60-P40-HP1Model: SMG (no magnet) | Bore: 6 mm | Stroke: 60 mm | Version: P40
SMG-10-5-P40-HP1Model: SMG (no magnet) | Bore: 10 mm | Stroke: 5 mm | Version: P40
SMG-10-10-P40-HP1Model: SMG (no magnet) | Bore: 10 mm | Stroke: 10 mm | Version: P40
SMG-10-15-P40-HP1Model: SMG (no magnet) | Bore: 10 mm | Stroke: 15 mm | Version: P40
SMG-10-20-P40-HP1Model: SMG (no magnet) | Bore: 10 mm | Stroke: 20 mm | Version: P40
SMG-10-25-P40-HP1Model: SMG (no magnet) | Bore: 10 mm | Stroke: 25 mm | Version: P40
SMG-10-30-P40-HP1Model: SMG (no magnet) | Bore: 10 mm | Stroke: 30 mm | Version: P40
SMG-10-40-P40-HP1Model: SMG (no magnet) | Bore: 10 mm | Stroke: 40 mm | Version: P40
SMG-10-50-P40-HP1Model: SMG (no magnet) | Bore: 10 mm | Stroke: 50 mm | Version: P40
SMG-10-60-P40-HP1Model: SMG (no magnet) | Bore: 10 mm | Stroke: 60 mm | Version: P40
SMG-16-5-P40-HP1Model: SMG (no magnet) | Bore: 16 mm | Stroke: 5 mm | Version: P40
SMG-16-10-P40-HP1Model: SMG (no magnet) | Bore: 16 mm | Stroke: 10 mm | Version: P40
SMG-16-15-P40-HP1Model: SMG (no magnet) | Bore: 16 mm | Stroke: 15 mm | Version: P40
SMG-16-20-P40-HP1Model: SMG (no magnet) | Bore: 16 mm | Stroke: 20 mm | Version: P40
SMG-16-25-P40-HP1Model: SMG (no magnet) | Bore: 16 mm | Stroke: 25 mm | Version: P40
SMG-16-30-P40-HP1Model: SMG (no magnet) | Bore: 16 mm | Stroke: 30 mm | Version: P40
SMG-16-40-P40-HP1Model: SMG (no magnet) | Bore: 16 mm | Stroke: 40 mm | Version: P40
SMG-16-50-P40-HP1Model: SMG (no magnet) | Bore: 16 mm | Stroke: 50 mm | Version: P40
SMG-16-60-P40-HP1Model: SMG (no magnet) | Bore: 16 mm | Stroke: 60 mm | Version: P40
SMG-20-5-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 5 mm | Version: P40
SMG-20-10-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 10 mm | Version: P40
SMG-20-15-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 15 mm | Version: P40
SMG-20-20-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 20 mm | Version: P40
SMG-20-25-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 25 mm | Version: P40
SMG-20-30-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 30 mm | Version: P40
SMG-20-40-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 40 mm | Version: P40
SMG-20-50-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 50 mm | Version: P40
SMG-20-60-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 60 mm | Version: P40
SMG-20-70-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 70 mm | Version: P40
SMG-20-80-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 80 mm | Version: P40
SMG-20-90-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 90 mm | Version: P40
SMG-20-100-P40-HP1Model: SMG (no magnet) | Bore: 20 mm | Stroke: 100 mm | Version: P40
SMG-25-5-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 5 mm | Version: P40
SMG-25-10-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 10 mm | Version: P40
SMG-25-15-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 15 mm | Version: P40
SMG-25-20-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 20 mm | Version: P40
SMG-25-25-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 25 mm | Version: P40
SMG-25-30-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 30 mm | Version: P40
SMG-25-40-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 40 mm | Version: P40
SMG-25-50-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 50 mm | Version: P40
SMG-25-60-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 60 mm | Version: P40
SMG-25-70-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 70 mm | Version: P40
SMG-25-80-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 80 mm | Version: P40
SMG-25-90-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 90 mm | Version: P40
SMG-25-100-P40-HP1Model: SMG (no magnet) | Bore: 25 mm | Stroke: 100 mm | Version: P40
SMG-32-5-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 5 mm | Version: P40
SMG-32-10-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 10 mm | Version: P40
SMG-32-15-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 15 mm | Version: P40
SMG-32-20-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 20 mm | Version: P40
SMG-32-25-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 25 mm | Version: P40
SMG-32-30-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 30 mm | Version: P40
SMG-32-40-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 40 mm | Version: P40
SMG-32-50-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 50 mm | Version: P40
SMG-32-60-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 60 mm | Version: P40
SMG-32-70-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 70 mm | Version: P40
SMG-32-80-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 80 mm | Version: P40
SMG-32-90-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 90 mm | Version: P40
SMG-32-100-P40-HP1Model: SMG (no magnet) | Bore: 32 mm | Stroke: 100 mm | Version: P40
SMG-L-6-5-P4-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Version: P4
SMG-L-6-5-P40-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Version: P40
SMG-L-6-10-P4-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Version: P4
SMG-L-6-10-P40-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Version: P40
SMG-L-6-15-P4-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Version: P4
SMG-L-6-15-P40-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Version: P40
SMG-L-6-20-P4-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Version: P4
SMG-L-6-20-P40-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Version: P40
SMG-L-6-25-P4-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Version: P4
SMG-L-6-25-P40-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Version: P40
SMG-L-6-30-P4-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Version: P4
SMG-L-6-30-P40-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Version: P40
SMG-L-6-40-P4-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 40 mm | Version: P4
SMG-L-6-40-P40-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 40 mm | Version: P40
SMG-L-6-50-P4-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 50 mm | Version: P4
SMG-L-6-50-P40-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 50 mm | Version: P40
SMG-L-6-60-P4-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 60 mm | Version: P4
SMG-L-6-60-P40-HP1Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 60 mm | Version: P40
SMG-L-10-5-P4-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Version: P4
SMG-L-10-5-P40-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Version: P40
SMG-L-10-10-P4-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Version: P4
SMG-L-10-10-P40-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Version: P40
SMG-L-10-15-P4-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Version: P4
SMG-L-10-15-P40-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Version: P40
SMG-L-10-20-P4-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Version: P4
SMG-L-10-20-P40-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Version: P40
SMG-L-10-25-P4-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Version: P4
SMG-L-10-25-P40-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Version: P40
SMG-L-10-30-P4-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Version: P4
SMG-L-10-30-P40-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Version: P40
SMG-L-10-40-P4-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 40 mm | Version: P4
SMG-L-10-40-P40-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 40 mm | Version: P40
SMG-L-10-50-P4-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 50 mm | Version: P4
SMG-L-10-50-P40-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 50 mm | Version: P40
SMG-L-10-60-P4-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 60 mm | Version: P4
SMG-L-10-60-P40-HP1Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 60 mm | Version: P40
SMG-L-16-5-P4-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Version: P4
SMG-L-16-5-P40-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Version: P40
SMG-L-16-10-P4-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Version: P4
SMG-L-16-10-P40-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Version: P40
SMG-L-16-15-P4-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Version: P4
SMG-L-16-15-P40-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Version: P40
SMG-L-16-20-P4-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Version: P4
SMG-L-16-20-P40-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Version: P40
SMG-L-16-25-P4-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Version: P4
SMG-L-16-25-P40-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Version: P40
SMG-L-16-30-P4-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Version: P4
SMG-L-16-30-P40-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Version: P40
SMG-L-16-40-P4-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 40 mm | Version: P4
SMG-L-16-40-P40-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 40 mm | Version: P40
SMG-L-16-50-P4-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 50 mm | Version: P4
SMG-L-16-50-P40-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 50 mm | Version: P40
SMG-L-16-60-P4-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 60 mm | Version: P4
SMG-L-16-60-P40-HP1Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 60 mm | Version: P40
SMG-L-20-5-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Version: P4
SMG-L-20-5-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Version: P40
SMG-L-20-10-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Version: P4
SMG-L-20-10-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Version: P40
SMG-L-20-15-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Version: P4
SMG-L-20-15-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Version: P40
SMG-L-20-20-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Version: P4
SMG-L-20-20-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Version: P40
SMG-L-20-25-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Version: P4
SMG-L-20-25-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Version: P40
SMG-L-20-30-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Version: P4
SMG-L-20-30-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Version: P40
SMG-L-20-40-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Version: P4
SMG-L-20-40-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Version: P40
SMG-L-20-50-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Version: P4
SMG-L-20-50-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Version: P40
SMG-L-20-60-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 60 mm | Version: P4
SMG-L-20-60-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 60 mm | Version: P40
SMG-L-20-70-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 70 mm | Version: P4
SMG-L-20-70-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 70 mm | Version: P40
SMG-L-20-80-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 80 mm | Version: P4
SMG-L-20-80-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 80 mm | Version: P40
SMG-L-20-90-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 90 mm | Version: P4
SMG-L-20-90-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 90 mm | Version: P40
SMG-L-20-100-P4-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 100 mm | Version: P4
SMG-L-20-100-P40-HP1Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 100 mm | Version: P40
SMG-L-25-5-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Version: P4
SMG-L-25-5-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Version: P40
SMG-L-25-10-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Version: P4
SMG-L-25-10-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Version: P40
SMG-L-25-15-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Version: P4
SMG-L-25-15-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Version: P40
SMG-L-25-20-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Version: P4
SMG-L-25-20-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Version: P40
SMG-L-25-25-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Version: P4
SMG-L-25-25-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Version: P40
SMG-L-25-30-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Version: P4
SMG-L-25-30-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Version: P40
SMG-L-25-40-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Version: P4
SMG-L-25-40-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Version: P40
SMG-L-25-50-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Version: P4
SMG-L-25-50-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Version: P40
SMG-L-25-60-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 60 mm | Version: P4
SMG-L-25-60-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 60 mm | Version: P40
SMG-L-25-70-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 70 mm | Version: P4
SMG-L-25-70-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 70 mm | Version: P40
SMG-L-25-80-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 80 mm | Version: P4
SMG-L-25-80-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 80 mm | Version: P40
SMG-L-25-90-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 90 mm | Version: P4
SMG-L-25-90-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 90 mm | Version: P40
SMG-L-25-100-P4-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 100 mm | Version: P4
SMG-L-25-100-P40-HP1Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 100 mm | Version: P40
SMG-L-32-5-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Version: P4
SMG-L-32-5-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Version: P40
SMG-L-32-10-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Version: P4
SMG-L-32-10-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Version: P40
SMG-L-32-15-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Version: P4
SMG-L-32-15-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Version: P40
SMG-L-32-20-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Version: P4
SMG-L-32-20-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Version: P40
SMG-L-32-25-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Version: P4
SMG-L-32-25-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Version: P40
SMG-L-32-30-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Version: P4
SMG-L-32-30-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Version: P40
SMG-L-32-40-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Version: P4
SMG-L-32-40-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Version: P40
SMG-L-32-50-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Version: P4
SMG-L-32-50-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Version: P40
SMG-L-32-60-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 60 mm | Version: P4
SMG-L-32-60-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 60 mm | Version: P40
SMG-L-32-70-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 70 mm | Version: P4
SMG-L-32-70-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 70 mm | Version: P40
SMG-L-32-80-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 80 mm | Version: P4
SMG-L-32-80-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 80 mm | Version: P40
SMG-L-32-90-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 90 mm | Version: P4
SMG-L-32-90-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 90 mm | Version: P40
SMG-L-32-100-P4-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 100 mm | Version: P4
SMG-L-32-100-P40-HP1Model: SMG-L (switch magnet) | Bore: 32 mm | Stroke: 100 mm | Version: P40

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
