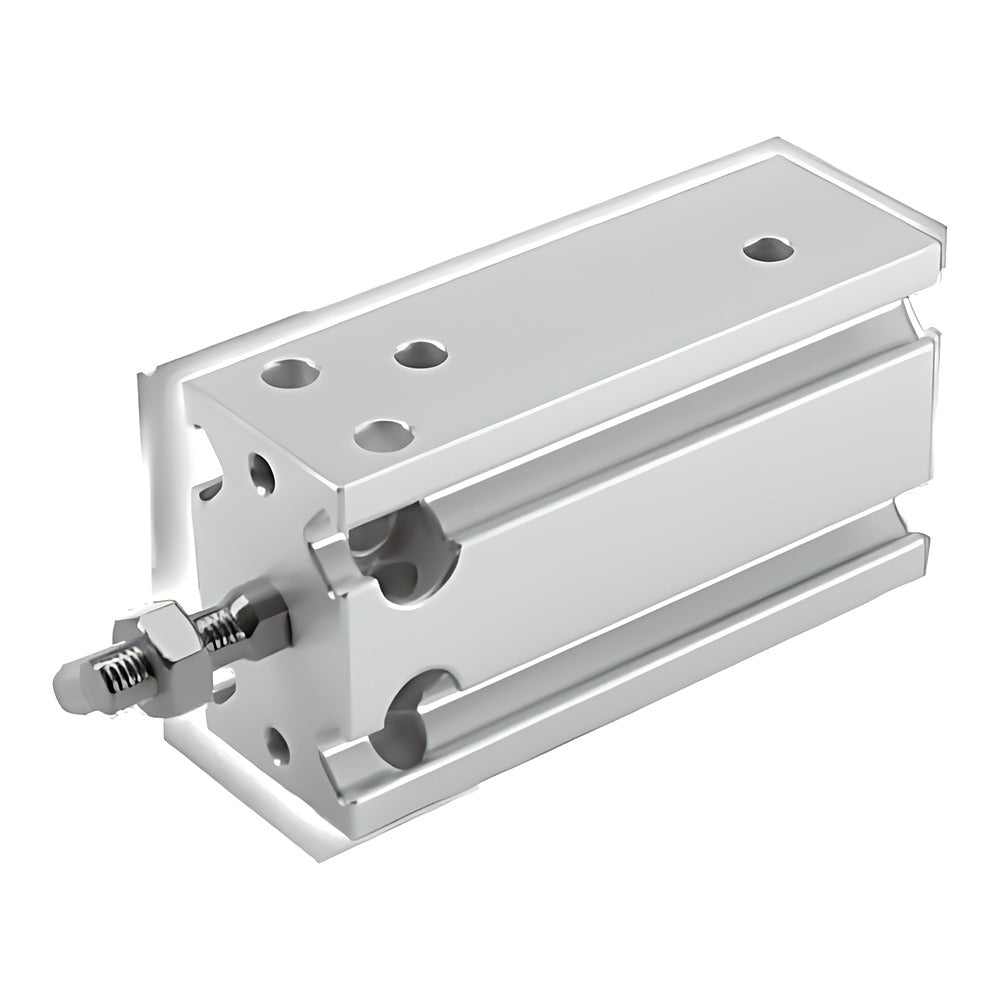

CKD SMG Super Mount Cylinder (Clean Room P7/P5)

CKD SMG Super Mount Cylinder (Clean Room P7/P5)

CKD SMG clean-room super mount square cylinder, double-acting, bore 6-25 mm.

Key features

  • Square compact body with integrated mount block: direct mounting from 5 faces
  • Bore 6-25 mm; standard strokes 5-30 mm (6-16) and 5-50 mm (20, 25)
  • Clean spec P7 (exhaust treatment) or P71 (vacuum suction); P5/P51 copper/silicone/halogen-free
  • Switch-magnet model accepts K-type auto switches (K0/K5/K2/K3/K3P/K2Y/K3Y)
  • Intermediate strokes in 5 mm steps; fluorine grease used in P7 series

Specifications

Operation Double-acting, single rod
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.12 (6), 0.06 (10, 16), 0.05 MPa (20, 25)
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C
Port size M5
Piston speed 50-500 mm/s
Cushion Rubber cushion
Lubrication Not required
Production Made to order
Source CKD Korea catalog CB-033S-4, p. 83-96
SMG-6-5-P7 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-6-5-P71 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-6-5-P5 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-5-P51 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-10-P7 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-6-10-P71 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-6-10-P5 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-10-P51 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-15-P7 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-6-15-P71 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-6-15-P5 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-15-P51 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-20-P7 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-6-20-P71 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-6-20-P5 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-20-P51 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-25-P7 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-6-25-P71 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-6-25-P5 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-25-P51 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-30-P7 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-6-30-P71 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-6-30-P5 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-30-P51 Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-5-P7 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-10-5-P71 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-10-5-P5 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-5-P51 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-10-P7 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-10-10-P71 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-10-10-P5 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-10-P51 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-15-P7 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-10-15-P71 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-10-15-P5 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-15-P51 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-20-P7 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-10-20-P71 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-10-20-P5 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-20-P51 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-25-P7 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-10-25-P71 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-10-25-P5 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-25-P51 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-30-P7 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-10-30-P71 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-10-30-P5 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-30-P51 Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-5-P7 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-16-5-P71 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-16-5-P5 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-5-P51 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-10-P7 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-16-10-P71 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-16-10-P5 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-10-P51 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-15-P7 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-16-15-P71 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-16-15-P5 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-15-P51 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-20-P7 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-16-20-P71 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-16-20-P5 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-20-P51 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-25-P7 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-16-25-P71 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-16-25-P5 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-25-P51 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-30-P7 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-16-30-P71 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-16-30-P5 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-30-P51 Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-5-P7 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-20-5-P71 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-20-5-P5 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-5-P51 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-10-P7 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-20-10-P71 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-20-10-P5 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-10-P51 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-15-P7 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-20-15-P71 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-20-15-P5 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-15-P51 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-20-P7 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-20-20-P71 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-20-20-P5 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-20-P51 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-25-P7 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-20-25-P71 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-20-25-P5 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-25-P51 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-30-P7 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-20-30-P71 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-20-30-P5 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-30-P51 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-40-P7 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-20-40-P71 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-20-40-P5 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-40-P51 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-50-P7 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-20-50-P71 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-20-50-P5 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-50-P51 Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-5-P7 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-25-5-P71 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-25-5-P5 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-5-P51 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-10-P7 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-25-10-P71 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-25-10-P5 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-10-P51 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-15-P7 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-25-15-P71 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-25-15-P5 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-15-P51 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-20-P7 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-25-20-P71 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-25-20-P5 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-20-P51 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-25-P7 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-25-25-P71 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-25-25-P5 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-25-P51 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-30-P7 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-25-30-P71 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-25-30-P5 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-30-P51 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-40-P7 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-25-40-P71 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-25-40-P5 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-40-P51 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-50-P7 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-25-50-P71 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-25-50-P5 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-50-P51 Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-5-P7 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-6-5-P71 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-6-5-P5 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-5-P51 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-10-P7 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-6-10-P71 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-6-10-P5 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-10-P51 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-15-P7 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-6-15-P71 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-6-15-P5 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-15-P51 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-20-P7 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-6-20-P71 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-6-20-P5 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-20-P51 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-25-P7 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-6-25-P71 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-6-25-P5 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-25-P51 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-30-P7 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-6-30-P71 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-6-30-P5 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-30-P51 Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-5-P7 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-10-5-P71 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-10-5-P5 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-5-P51 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-10-P7 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-10-10-P71 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-10-10-P5 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-10-P51 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-15-P7 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-10-15-P71 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-10-15-P5 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-15-P51 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-20-P7 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-10-20-P71 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-10-20-P5 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-20-P51 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-25-P7 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-10-25-P71 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-10-25-P5 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-25-P51 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-30-P7 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-10-30-P71 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-10-30-P5 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-30-P51 Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-5-P7 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-16-5-P71 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-16-5-P5 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-5-P51 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-10-P7 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-16-10-P71 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-16-10-P5 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-10-P51 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-15-P7 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-16-15-P71 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-16-15-P5 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-15-P51 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-20-P7 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-16-20-P71 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-16-20-P5 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-20-P51 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-25-P7 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-16-25-P71 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-16-25-P5 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-25-P51 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-30-P7 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-16-30-P71 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-16-30-P5 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-30-P51 Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-5-P7 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-20-5-P71 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-20-5-P5 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-5-P51 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-10-P7 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-20-10-P71 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-20-10-P5 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-10-P51 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-15-P7 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-20-15-P71 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-20-15-P5 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-15-P51 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-20-P7 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-20-20-P71 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-20-20-P5 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-20-P51 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-25-P7 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-20-25-P71 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-20-25-P5 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-25-P51 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-30-P7 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-20-30-P71 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-20-30-P5 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-30-P51 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-40-P7 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-L-20-40-P71 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-L-20-40-P5 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-40-P51 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-50-P7 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-L-20-50-P71 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-L-20-50-P5 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-50-P51 Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-5-P7 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-25-5-P71 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-25-5-P5 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-5-P51 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-10-P7 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-25-10-P71 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-25-10-P5 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-10-P51 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-15-P7 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-25-15-P71 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-25-15-P5 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-15-P51 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-20-P7 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-25-20-P71 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-25-20-P5 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-20-P51 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-25-P7 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-25-25-P71 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-25-25-P5 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-25-P51 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-30-P7 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-25-30-P71 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-25-30-P5 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-30-P51 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-40-P7 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-L-25-40-P71 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-L-25-40-P5 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-40-P51 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-50-P7 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-L-25-50-P71 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-L-25-50-P5 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-50-P51 Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
Compact CylindersCKD
272 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SMG Super Mount Cylinder (Clean Room P7/P5)

Brand CKD·Compact Cylinders

Available part numbers (272)

SMG-6-5-P7, SMG-6-5-P71, SMG-6-5-P5, SMG-6-5-P51, SMG-6-10-P7, SMG-6-10-P71, SMG-6-10-P5, SMG-6-10-P51, SMG-6-15-P7, SMG-6-15-P71 + 262 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMG-6-5-P7Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-6-5-P71Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-6-5-P5Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-5-P51Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-10-P7Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-6-10-P71Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-6-10-P5Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-10-P51Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-15-P7Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-6-15-P71Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-6-15-P5Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-15-P51Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-20-P7Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-6-20-P71Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-6-20-P5Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-20-P51Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-25-P7Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-6-25-P71Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-6-25-P5Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-25-P51Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-6-30-P7Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-6-30-P71Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-6-30-P5Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-6-30-P51Model: SMG (no switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-5-P7Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-10-5-P71Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-10-5-P5Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-5-P51Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-10-P7Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-10-10-P71Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-10-10-P5Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-10-P51Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-15-P7Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-10-15-P71Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-10-15-P5Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-15-P51Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-20-P7Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-10-20-P71Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-10-20-P5Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-20-P51Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-25-P7Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-10-25-P71Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-10-25-P5Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-25-P51Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-10-30-P7Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-10-30-P71Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-10-30-P5Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-10-30-P51Model: SMG (no switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-5-P7Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-16-5-P71Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-16-5-P5Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-5-P51Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-10-P7Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-16-10-P71Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-16-10-P5Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-10-P51Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-15-P7Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-16-15-P71Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-16-15-P5Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-15-P51Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-20-P7Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-16-20-P71Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-16-20-P5Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-20-P51Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-25-P7Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-16-25-P71Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-16-25-P5Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-25-P51Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-16-30-P7Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-16-30-P71Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-16-30-P5Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-16-30-P51Model: SMG (no switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-5-P7Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-20-5-P71Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-20-5-P5Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-5-P51Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-10-P7Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-20-10-P71Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-20-10-P5Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-10-P51Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-15-P7Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-20-15-P71Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-20-15-P5Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-15-P51Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-20-P7Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-20-20-P71Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-20-20-P5Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-20-P51Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-25-P7Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-20-25-P71Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-20-25-P5Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-25-P51Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-30-P7Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-20-30-P71Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-20-30-P5Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-30-P51Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-40-P7Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-20-40-P71Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-20-40-P5Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-40-P51Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-20-50-P7Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-20-50-P71Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-20-50-P5Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-20-50-P51Model: SMG (no switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-5-P7Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-25-5-P71Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-25-5-P5Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-5-P51Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-10-P7Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-25-10-P71Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-25-10-P5Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-10-P51Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-15-P7Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-25-15-P71Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-25-15-P5Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-15-P51Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-20-P7Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-25-20-P71Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-25-20-P5Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-20-P51Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-25-P7Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-25-25-P71Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-25-25-P5Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-25-P51Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-30-P7Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-25-30-P71Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-25-30-P5Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-30-P51Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-40-P7Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-25-40-P71Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-25-40-P5Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-40-P51Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-25-50-P7Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-25-50-P71Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-25-50-P5Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-25-50-P51Model: SMG (no switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-5-P7Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-6-5-P71Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-6-5-P5Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-5-P51Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-10-P7Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-6-10-P71Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-6-10-P5Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-10-P51Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-15-P7Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-6-15-P71Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-6-15-P5Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-15-P51Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-20-P7Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-6-20-P71Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-6-20-P5Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-20-P51Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-25-P7Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-6-25-P71Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-6-25-P5Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-25-P51Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-6-30-P7Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-6-30-P71Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-6-30-P5Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-6-30-P51Model: SMG-L (switch magnet) | Bore: 6 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-5-P7Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-10-5-P71Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-10-5-P5Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-5-P51Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-10-P7Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-10-10-P71Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-10-10-P5Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-10-P51Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-15-P7Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-10-15-P71Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-10-15-P5Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-15-P51Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-20-P7Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-10-20-P71Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-10-20-P5Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-20-P51Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-25-P7Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-10-25-P71Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-10-25-P5Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-25-P51Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-10-30-P7Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-10-30-P71Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-10-30-P5Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-10-30-P51Model: SMG-L (switch magnet) | Bore: 10 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-5-P7Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-16-5-P71Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-16-5-P5Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-5-P51Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-10-P7Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-16-10-P71Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-16-10-P5Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-10-P51Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-15-P7Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-16-15-P71Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-16-15-P5Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-15-P51Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-20-P7Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-16-20-P71Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-16-20-P5Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-20-P51Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-25-P7Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-16-25-P71Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-16-25-P5Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-25-P51Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-16-30-P7Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-16-30-P71Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-16-30-P5Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-16-30-P51Model: SMG-L (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-5-P7Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-20-5-P71Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-20-5-P5Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-5-P51Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-10-P7Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-20-10-P71Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-20-10-P5Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-10-P51Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-15-P7Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-20-15-P71Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-20-15-P5Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-15-P51Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-20-P7Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-20-20-P71Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-20-20-P5Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-20-P51Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-25-P7Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-20-25-P71Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-20-25-P5Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-25-P51Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-30-P7Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-20-30-P71Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-20-30-P5Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-30-P51Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-40-P7Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-L-20-40-P71Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-L-20-40-P5Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-40-P51Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-20-50-P7Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-L-20-50-P71Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-L-20-50-P5Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-20-50-P51Model: SMG-L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-5-P7Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P7 exhaust treatment
SMG-L-25-5-P71Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P71 vacuum suction
SMG-L-25-5-P5Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-5-P51Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-10-P7Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
SMG-L-25-10-P71Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
SMG-L-25-10-P5Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-10-P51Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-15-P7Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P7 exhaust treatment
SMG-L-25-15-P71Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P71 vacuum suction
SMG-L-25-15-P5Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-15-P51Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-20-P7Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P7 exhaust treatment
SMG-L-25-20-P71Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P71 vacuum suction
SMG-L-25-20-P5Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-20-P51Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-25-P7Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P7 exhaust treatment
SMG-L-25-25-P71Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P71 vacuum suction
SMG-L-25-25-P5Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-25-P51Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-30-P7Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P7 exhaust treatment
SMG-L-25-30-P71Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P71 vacuum suction
SMG-L-25-30-P5Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-30-P51Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-40-P7Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P7 exhaust treatment
SMG-L-25-40-P71Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P71 vacuum suction
SMG-L-25-40-P5Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-40-P51Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free
SMG-L-25-50-P7Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P7 exhaust treatment
SMG-L-25-50-P71Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P71 vacuum suction
SMG-L-25-50-P5Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P5 exhaust, Cu/Si/halogen-free
SMG-L-25-50-P51Model: SMG-L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P51 vacuum, Cu/Si/halogen-free

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
