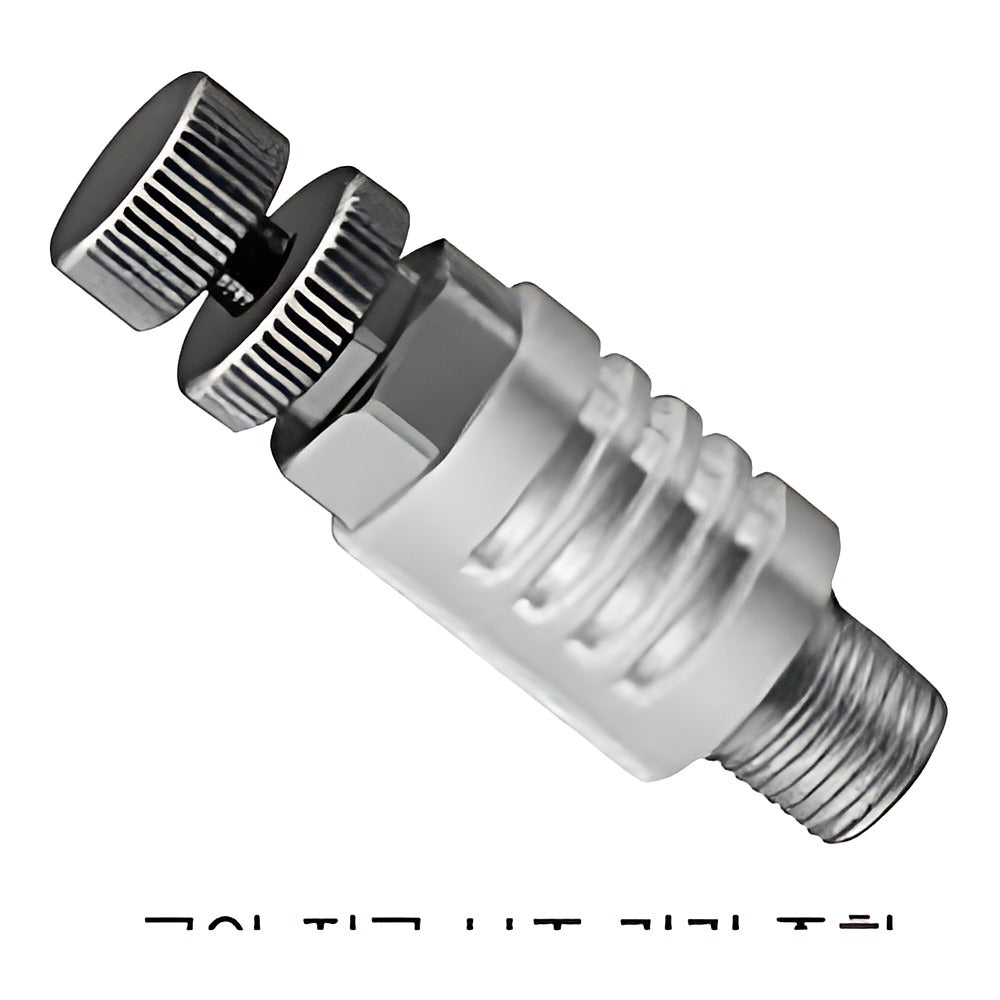

CKD SMW-FP1 Metering Valve with Silencer (Food Grade, R3/8-1/2)

CKD SMW-FP1 exhaust metering valves with built-in silencer for valve exhaust ports, adjusting cylinder speed while reducing noise.

Key features

FP1 food-processing series using NSF H1 registered grease
Noise reduction 20 dB or more
19 needle turns
For cylinders 50 to 100 mm bore

Specifications

Fluid	Compressed air
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Needle turns	19
Cylinder bore	50 to 100 mm
Source	CKD Korea catalog CC-1271K-5, p. 308

SMW-10A-FP1		Port: R3/8 \| Flow: 1700 L/min \| Mass: 125 g
SMW-15A-FP1		Port: R1/2 \| Flow: 2600 L/min \| Mass: 170 g

Speed ControllersCKD

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SMW-FP1 Metering Valve with Silencer (Food Grade, R3/8-1/2)

Brand CKD·Speed Controllers

Available part numbers (2)

SMW-10A-FP1, SMW-15A-FP1

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
