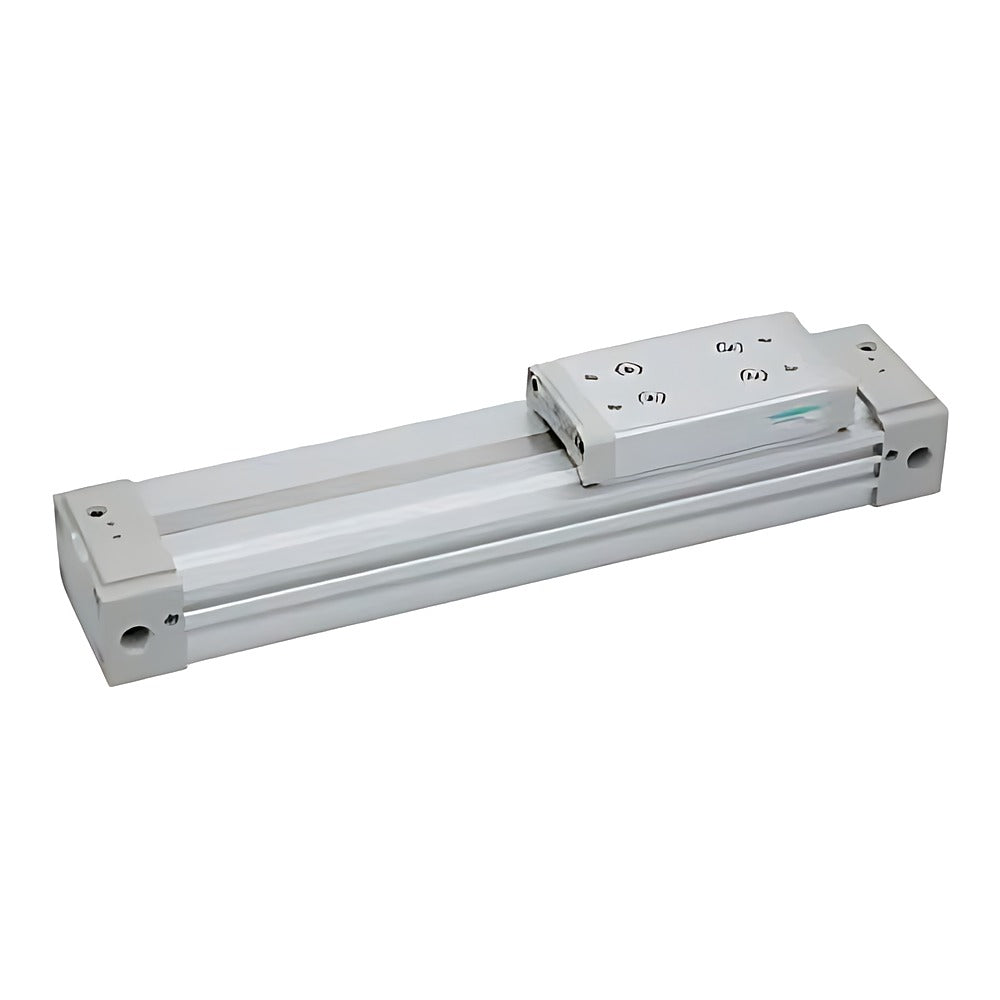

CKD SRG3 Super Rodless Cylinder (High-Precision Guide)

CKD SRG3 Super Rodless Cylinder (High-Precision Guide)

CKD SRG3 super rodless cylinder with integrated high-precision linear guide, bores 12-25 mm equivalent.

Key features

  • SRL3 slit-type rodless cylinder combined with a high-precision guide for moment loads
  • Standard strokes 200-400 mm (12), 200-800 mm (16, 20), 200-1000 mm (25); intermediate strokes in 1 mm steps
  • Mounting basic (00), axial foot LB or LB1; cushion both ends, R or L only, or none; switch magnet built in
  • M-type and T-type cylinder switches (incl. T2YD AC-field) ordered in the code, mounted R/L/D/T/4+
  • Options (not expanded): A/A1/A2/A3 full-stroke adjustment, H table thread size up, R/B/T/D port positions; repeatability +/-0.05 mm with shock absorbers

Specifications

Actuation Double acting, air cushion
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 (12-20) / 0.1 MPa (25)
Proof pressure 1.05 MPa
Ambient temperature 5 to 60 C
Piston speed 50-1000 mm/s
Repeatability +/-0.05 mm (with shock absorber)
Code format SRG3-<mount>-<bore><cushion>-<stroke>-<switch>-<qty>-<option> (e.g. SRG3-00-25B-200-M0H-R-A)
Source CKD Korea catalog CB-029SK-9, p. 1733-1760
SRG3-00-12B-200 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-00-12B-300 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-00-12B-400 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-00-12R-200 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-00-12R-300 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-00-12R-400 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-00-12L-200 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-00-12L-300 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-00-12L-400 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-00-12N-200 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-00-12N-300 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-00-12N-400 Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-LB-12B-200 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB-12B-300 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB-12B-400 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB-12R-200 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-LB-12R-300 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-LB-12R-400 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-LB-12L-200 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-LB-12L-300 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-LB-12L-400 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-LB-12N-200 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-LB-12N-300 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-LB-12N-400 Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-LB1-12B-200 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB1-12B-300 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB1-12B-400 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB1-12R-200 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-LB1-12R-300 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-LB1-12R-400 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-LB1-12L-200 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-LB1-12L-300 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-LB1-12L-400 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-LB1-12N-200 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-LB1-12N-300 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-LB1-12N-400 Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-00-16B-200 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-00-16B-300 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-00-16B-400 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-00-16B-500 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 500 mm
SRG3-00-16B-600 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 600 mm
SRG3-00-16B-700 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 700 mm
SRG3-00-16B-800 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 800 mm
SRG3-00-16R-200 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-00-16R-300 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-00-16R-400 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-00-16R-500 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 500 mm
SRG3-00-16R-600 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 600 mm
SRG3-00-16R-700 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 700 mm
SRG3-00-16R-800 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 800 mm
SRG3-00-16L-200 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-00-16L-300 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-00-16L-400 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-00-16L-500 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 500 mm
SRG3-00-16L-600 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 600 mm
SRG3-00-16L-700 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 700 mm
SRG3-00-16L-800 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 800 mm
SRG3-00-16N-200 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-00-16N-300 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-00-16N-400 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-00-16N-500 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 500 mm
SRG3-00-16N-600 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 600 mm
SRG3-00-16N-700 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 700 mm
SRG3-00-16N-800 Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 800 mm
SRG3-LB-16B-200 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB-16B-300 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB-16B-400 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB-16B-500 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB-16B-600 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB-16B-700 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB-16B-800 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB-16R-200 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-LB-16R-300 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-LB-16R-400 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-LB-16R-500 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 500 mm
SRG3-LB-16R-600 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 600 mm
SRG3-LB-16R-700 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 700 mm
SRG3-LB-16R-800 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 800 mm
SRG3-LB-16L-200 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-LB-16L-300 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-LB-16L-400 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-LB-16L-500 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 500 mm
SRG3-LB-16L-600 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 600 mm
SRG3-LB-16L-700 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 700 mm
SRG3-LB-16L-800 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 800 mm
SRG3-LB-16N-200 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-LB-16N-300 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-LB-16N-400 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-LB-16N-500 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 500 mm
SRG3-LB-16N-600 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 600 mm
SRG3-LB-16N-700 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 700 mm
SRG3-LB-16N-800 Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 800 mm
SRG3-LB1-16B-200 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB1-16B-300 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB1-16B-400 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB1-16B-500 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB1-16B-600 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB1-16B-700 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB1-16B-800 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB1-16R-200 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-LB1-16R-300 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-LB1-16R-400 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-LB1-16R-500 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 500 mm
SRG3-LB1-16R-600 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 600 mm
SRG3-LB1-16R-700 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 700 mm
SRG3-LB1-16R-800 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 800 mm
SRG3-LB1-16L-200 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-LB1-16L-300 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-LB1-16L-400 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-LB1-16L-500 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 500 mm
SRG3-LB1-16L-600 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 600 mm
SRG3-LB1-16L-700 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 700 mm
SRG3-LB1-16L-800 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 800 mm
SRG3-LB1-16N-200 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-LB1-16N-300 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-LB1-16N-400 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-LB1-16N-500 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 500 mm
SRG3-LB1-16N-600 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 600 mm
SRG3-LB1-16N-700 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 700 mm
SRG3-LB1-16N-800 Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 800 mm
SRG3-00-20B-200 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-00-20B-300 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-00-20B-400 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-00-20B-500 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-00-20B-600 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-00-20B-700 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-00-20B-800 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-00-20R-200 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-00-20R-300 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-00-20R-400 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-00-20R-500 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-00-20R-600 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-00-20R-700 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-00-20R-800 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-00-20L-200 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-00-20L-300 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-00-20L-400 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-00-20L-500 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-00-20L-600 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-00-20L-700 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-00-20L-800 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-00-20N-200 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-00-20N-300 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-00-20N-400 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-00-20N-500 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-00-20N-600 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-00-20N-700 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-00-20N-800 Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-LB-20B-200 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB-20B-300 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB-20B-400 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB-20B-500 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB-20B-600 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB-20B-700 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB-20B-800 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB-20R-200 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-LB-20R-300 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-LB-20R-400 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-LB-20R-500 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-LB-20R-600 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-LB-20R-700 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-LB-20R-800 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-LB-20L-200 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-LB-20L-300 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-LB-20L-400 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-LB-20L-500 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-LB-20L-600 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-LB-20L-700 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-LB-20L-800 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-LB-20N-200 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-LB-20N-300 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-LB-20N-400 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-LB-20N-500 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-LB-20N-600 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-LB-20N-700 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-LB-20N-800 Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-LB1-20B-200 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB1-20B-300 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB1-20B-400 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB1-20B-500 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB1-20B-600 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB1-20B-700 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB1-20B-800 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB1-20R-200 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-LB1-20R-300 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-LB1-20R-400 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-LB1-20R-500 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-LB1-20R-600 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-LB1-20R-700 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-LB1-20R-800 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-LB1-20L-200 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-LB1-20L-300 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-LB1-20L-400 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-LB1-20L-500 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-LB1-20L-600 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-LB1-20L-700 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-LB1-20L-800 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-LB1-20N-200 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-LB1-20N-300 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-LB1-20N-400 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-LB1-20N-500 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-LB1-20N-600 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-LB1-20N-700 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-LB1-20N-800 Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-00-25B-200 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-00-25B-300 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-00-25B-400 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-00-25B-500 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-00-25B-600 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-00-25B-700 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-00-25B-800 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-00-25B-900 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 900 mm
SRG3-00-25B-1000 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 1000 mm
SRG3-00-25R-200 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-00-25R-300 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-00-25R-400 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-00-25R-500 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-00-25R-600 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-00-25R-700 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-00-25R-800 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-00-25R-900 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 900 mm
SRG3-00-25R-1000 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 1000 mm
SRG3-00-25L-200 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-00-25L-300 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-00-25L-400 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-00-25L-500 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-00-25L-600 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-00-25L-700 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-00-25L-800 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-00-25L-900 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 900 mm
SRG3-00-25L-1000 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 1000 mm
SRG3-00-25N-200 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-00-25N-300 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-00-25N-400 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-00-25N-500 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-00-25N-600 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-00-25N-700 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-00-25N-800 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-00-25N-900 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 900 mm
SRG3-00-25N-1000 Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 1000 mm
SRG3-LB-25B-200 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB-25B-300 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB-25B-400 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB-25B-500 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB-25B-600 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB-25B-700 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB-25B-800 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB-25B-900 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 900 mm
SRG3-LB-25B-1000 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 1000 mm
SRG3-LB-25R-200 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-LB-25R-300 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-LB-25R-400 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-LB-25R-500 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-LB-25R-600 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-LB-25R-700 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-LB-25R-800 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-LB-25R-900 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 900 mm
SRG3-LB-25R-1000 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 1000 mm
SRG3-LB-25L-200 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-LB-25L-300 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-LB-25L-400 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-LB-25L-500 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-LB-25L-600 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-LB-25L-700 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-LB-25L-800 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-LB-25L-900 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 900 mm
SRG3-LB-25L-1000 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 1000 mm
SRG3-LB-25N-200 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-LB-25N-300 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-LB-25N-400 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-LB-25N-500 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-LB-25N-600 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-LB-25N-700 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-LB-25N-800 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-LB-25N-900 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 900 mm
SRG3-LB-25N-1000 Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 1000 mm
SRG3-LB1-25B-200 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB1-25B-300 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB1-25B-400 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB1-25B-500 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB1-25B-600 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB1-25B-700 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB1-25B-800 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB1-25B-900 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 900 mm
SRG3-LB1-25B-1000 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 1000 mm
SRG3-LB1-25R-200 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-LB1-25R-300 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-LB1-25R-400 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-LB1-25R-500 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-LB1-25R-600 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-LB1-25R-700 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-LB1-25R-800 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-LB1-25R-900 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 900 mm
SRG3-LB1-25R-1000 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 1000 mm
SRG3-LB1-25L-200 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-LB1-25L-300 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-LB1-25L-400 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-LB1-25L-500 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-LB1-25L-600 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-LB1-25L-700 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-LB1-25L-800 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-LB1-25L-900 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 900 mm
SRG3-LB1-25L-1000 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 1000 mm
SRG3-LB1-25N-200 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-LB1-25N-300 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-LB1-25N-400 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-LB1-25N-500 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-LB1-25N-600 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-LB1-25N-700 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-LB1-25N-800 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-LB1-25N-900 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 900 mm
SRG3-LB1-25N-1000 Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 1000 mm
Rodless CylindersCKD
312 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SRG3 Super Rodless Cylinder (High-Precision Guide)

Brand CKD·Rodless Cylinders

Available part numbers (312)

SRG3-00-12B-200, SRG3-00-12B-300, SRG3-00-12B-400, SRG3-00-12R-200, SRG3-00-12R-300, SRG3-00-12R-400, SRG3-00-12L-200, SRG3-00-12L-300, SRG3-00-12L-400, SRG3-00-12N-200 + 302 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRG3-00-12B-200Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-00-12B-300Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-00-12B-400Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-00-12R-200Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-00-12R-300Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-00-12R-400Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-00-12L-200Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-00-12L-300Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-00-12L-400Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-00-12N-200Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-00-12N-300Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-00-12N-400Mounting: Basic | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-LB-12B-200Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB-12B-300Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB-12B-400Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB-12R-200Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-LB-12R-300Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-LB-12R-400Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-LB-12L-200Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-LB-12L-300Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-LB-12L-400Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-LB-12N-200Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-LB-12N-300Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-LB-12N-400Mounting: Axial foot | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-LB1-12B-200Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB1-12B-300Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB1-12B-400Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB1-12R-200Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-LB1-12R-300Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-LB1-12R-400Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-LB1-12L-200Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-LB1-12L-300Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-LB1-12L-400Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-LB1-12N-200Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-LB1-12N-300Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-LB1-12N-400Mounting: Axial foot (LB1) | Bore: 12 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-00-16B-200Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-00-16B-300Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-00-16B-400Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-00-16B-500Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 500 mm
SRG3-00-16B-600Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 600 mm
SRG3-00-16B-700Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 700 mm
SRG3-00-16B-800Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 800 mm
SRG3-00-16R-200Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-00-16R-300Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-00-16R-400Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-00-16R-500Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 500 mm
SRG3-00-16R-600Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 600 mm
SRG3-00-16R-700Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 700 mm
SRG3-00-16R-800Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 800 mm
SRG3-00-16L-200Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-00-16L-300Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-00-16L-400Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-00-16L-500Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 500 mm
SRG3-00-16L-600Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 600 mm
SRG3-00-16L-700Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 700 mm
SRG3-00-16L-800Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 800 mm
SRG3-00-16N-200Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-00-16N-300Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-00-16N-400Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-00-16N-500Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 500 mm
SRG3-00-16N-600Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 600 mm
SRG3-00-16N-700Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 700 mm
SRG3-00-16N-800Mounting: Basic | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 800 mm
SRG3-LB-16B-200Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB-16B-300Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB-16B-400Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB-16B-500Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB-16B-600Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB-16B-700Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB-16B-800Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB-16R-200Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-LB-16R-300Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-LB-16R-400Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-LB-16R-500Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 500 mm
SRG3-LB-16R-600Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 600 mm
SRG3-LB-16R-700Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 700 mm
SRG3-LB-16R-800Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 800 mm
SRG3-LB-16L-200Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-LB-16L-300Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-LB-16L-400Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-LB-16L-500Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 500 mm
SRG3-LB-16L-600Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 600 mm
SRG3-LB-16L-700Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 700 mm
SRG3-LB-16L-800Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 800 mm
SRG3-LB-16N-200Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-LB-16N-300Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-LB-16N-400Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-LB-16N-500Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 500 mm
SRG3-LB-16N-600Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 600 mm
SRG3-LB-16N-700Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 700 mm
SRG3-LB-16N-800Mounting: Axial foot | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 800 mm
SRG3-LB1-16B-200Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB1-16B-300Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB1-16B-400Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB1-16B-500Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB1-16B-600Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB1-16B-700Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB1-16B-800Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB1-16R-200Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 200 mm
SRG3-LB1-16R-300Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 300 mm
SRG3-LB1-16R-400Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 400 mm
SRG3-LB1-16R-500Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 500 mm
SRG3-LB1-16R-600Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 600 mm
SRG3-LB1-16R-700Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 700 mm
SRG3-LB1-16R-800Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: R side only | Stroke: 800 mm
SRG3-LB1-16L-200Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 200 mm
SRG3-LB1-16L-300Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 300 mm
SRG3-LB1-16L-400Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 400 mm
SRG3-LB1-16L-500Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 500 mm
SRG3-LB1-16L-600Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 600 mm
SRG3-LB1-16L-700Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 700 mm
SRG3-LB1-16L-800Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: L side only | Stroke: 800 mm
SRG3-LB1-16N-200Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 200 mm
SRG3-LB1-16N-300Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 300 mm
SRG3-LB1-16N-400Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 400 mm
SRG3-LB1-16N-500Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 500 mm
SRG3-LB1-16N-600Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 600 mm
SRG3-LB1-16N-700Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 700 mm
SRG3-LB1-16N-800Mounting: Axial foot (LB1) | Bore: 16 mm equiv. | Port: M5 | Cushion: None | Stroke: 800 mm
SRG3-00-20B-200Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-00-20B-300Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-00-20B-400Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-00-20B-500Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-00-20B-600Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-00-20B-700Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-00-20B-800Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-00-20R-200Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-00-20R-300Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-00-20R-400Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-00-20R-500Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-00-20R-600Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-00-20R-700Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-00-20R-800Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-00-20L-200Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-00-20L-300Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-00-20L-400Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-00-20L-500Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-00-20L-600Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-00-20L-700Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-00-20L-800Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-00-20N-200Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-00-20N-300Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-00-20N-400Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-00-20N-500Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-00-20N-600Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-00-20N-700Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-00-20N-800Mounting: Basic | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-LB-20B-200Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB-20B-300Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB-20B-400Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB-20B-500Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB-20B-600Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB-20B-700Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB-20B-800Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB-20R-200Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-LB-20R-300Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-LB-20R-400Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-LB-20R-500Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-LB-20R-600Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-LB-20R-700Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-LB-20R-800Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-LB-20L-200Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-LB-20L-300Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-LB-20L-400Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-LB-20L-500Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-LB-20L-600Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-LB-20L-700Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-LB-20L-800Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-LB-20N-200Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-LB-20N-300Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-LB-20N-400Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-LB-20N-500Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-LB-20N-600Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-LB-20N-700Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-LB-20N-800Mounting: Axial foot | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-LB1-20B-200Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB1-20B-300Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB1-20B-400Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB1-20B-500Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB1-20B-600Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB1-20B-700Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB1-20B-800Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB1-20R-200Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-LB1-20R-300Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-LB1-20R-400Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-LB1-20R-500Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-LB1-20R-600Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-LB1-20R-700Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-LB1-20R-800Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-LB1-20L-200Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-LB1-20L-300Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-LB1-20L-400Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-LB1-20L-500Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-LB1-20L-600Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-LB1-20L-700Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-LB1-20L-800Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-LB1-20N-200Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-LB1-20N-300Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-LB1-20N-400Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-LB1-20N-500Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-LB1-20N-600Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-LB1-20N-700Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-LB1-20N-800Mounting: Axial foot (LB1) | Bore: 20 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-00-25B-200Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-00-25B-300Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-00-25B-400Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-00-25B-500Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-00-25B-600Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-00-25B-700Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-00-25B-800Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-00-25B-900Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 900 mm
SRG3-00-25B-1000Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 1000 mm
SRG3-00-25R-200Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-00-25R-300Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-00-25R-400Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-00-25R-500Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-00-25R-600Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-00-25R-700Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-00-25R-800Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-00-25R-900Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 900 mm
SRG3-00-25R-1000Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 1000 mm
SRG3-00-25L-200Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-00-25L-300Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-00-25L-400Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-00-25L-500Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-00-25L-600Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-00-25L-700Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-00-25L-800Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-00-25L-900Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 900 mm
SRG3-00-25L-1000Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 1000 mm
SRG3-00-25N-200Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-00-25N-300Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-00-25N-400Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-00-25N-500Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-00-25N-600Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-00-25N-700Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-00-25N-800Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-00-25N-900Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 900 mm
SRG3-00-25N-1000Mounting: Basic | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 1000 mm
SRG3-LB-25B-200Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB-25B-300Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB-25B-400Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB-25B-500Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB-25B-600Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB-25B-700Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB-25B-800Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB-25B-900Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 900 mm
SRG3-LB-25B-1000Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 1000 mm
SRG3-LB-25R-200Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-LB-25R-300Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-LB-25R-400Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-LB-25R-500Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-LB-25R-600Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-LB-25R-700Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-LB-25R-800Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-LB-25R-900Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 900 mm
SRG3-LB-25R-1000Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 1000 mm
SRG3-LB-25L-200Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-LB-25L-300Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-LB-25L-400Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-LB-25L-500Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-LB-25L-600Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-LB-25L-700Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-LB-25L-800Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-LB-25L-900Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 900 mm
SRG3-LB-25L-1000Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 1000 mm
SRG3-LB-25N-200Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-LB-25N-300Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-LB-25N-400Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-LB-25N-500Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-LB-25N-600Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-LB-25N-700Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-LB-25N-800Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-LB-25N-900Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 900 mm
SRG3-LB-25N-1000Mounting: Axial foot | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 1000 mm
SRG3-LB1-25B-200Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 200 mm
SRG3-LB1-25B-300Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 300 mm
SRG3-LB1-25B-400Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 400 mm
SRG3-LB1-25B-500Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 500 mm
SRG3-LB1-25B-600Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 600 mm
SRG3-LB1-25B-700Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 700 mm
SRG3-LB1-25B-800Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 800 mm
SRG3-LB1-25B-900Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 900 mm
SRG3-LB1-25B-1000Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: Both ends | Stroke: 1000 mm
SRG3-LB1-25R-200Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 200 mm
SRG3-LB1-25R-300Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 300 mm
SRG3-LB1-25R-400Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 400 mm
SRG3-LB1-25R-500Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 500 mm
SRG3-LB1-25R-600Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 600 mm
SRG3-LB1-25R-700Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 700 mm
SRG3-LB1-25R-800Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 800 mm
SRG3-LB1-25R-900Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 900 mm
SRG3-LB1-25R-1000Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: R side only | Stroke: 1000 mm
SRG3-LB1-25L-200Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 200 mm
SRG3-LB1-25L-300Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 300 mm
SRG3-LB1-25L-400Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 400 mm
SRG3-LB1-25L-500Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 500 mm
SRG3-LB1-25L-600Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 600 mm
SRG3-LB1-25L-700Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 700 mm
SRG3-LB1-25L-800Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 800 mm
SRG3-LB1-25L-900Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 900 mm
SRG3-LB1-25L-1000Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: L side only | Stroke: 1000 mm
SRG3-LB1-25N-200Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 200 mm
SRG3-LB1-25N-300Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 300 mm
SRG3-LB1-25N-400Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 400 mm
SRG3-LB1-25N-500Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 500 mm
SRG3-LB1-25N-600Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 600 mm
SRG3-LB1-25N-700Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 700 mm
SRG3-LB1-25N-800Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 800 mm
SRG3-LB1-25N-900Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 900 mm
SRG3-LB1-25N-1000Mounting: Axial foot (LB1) | Bore: 25 mm equiv. | Port: Rc1/8 | Cushion: None | Stroke: 1000 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
