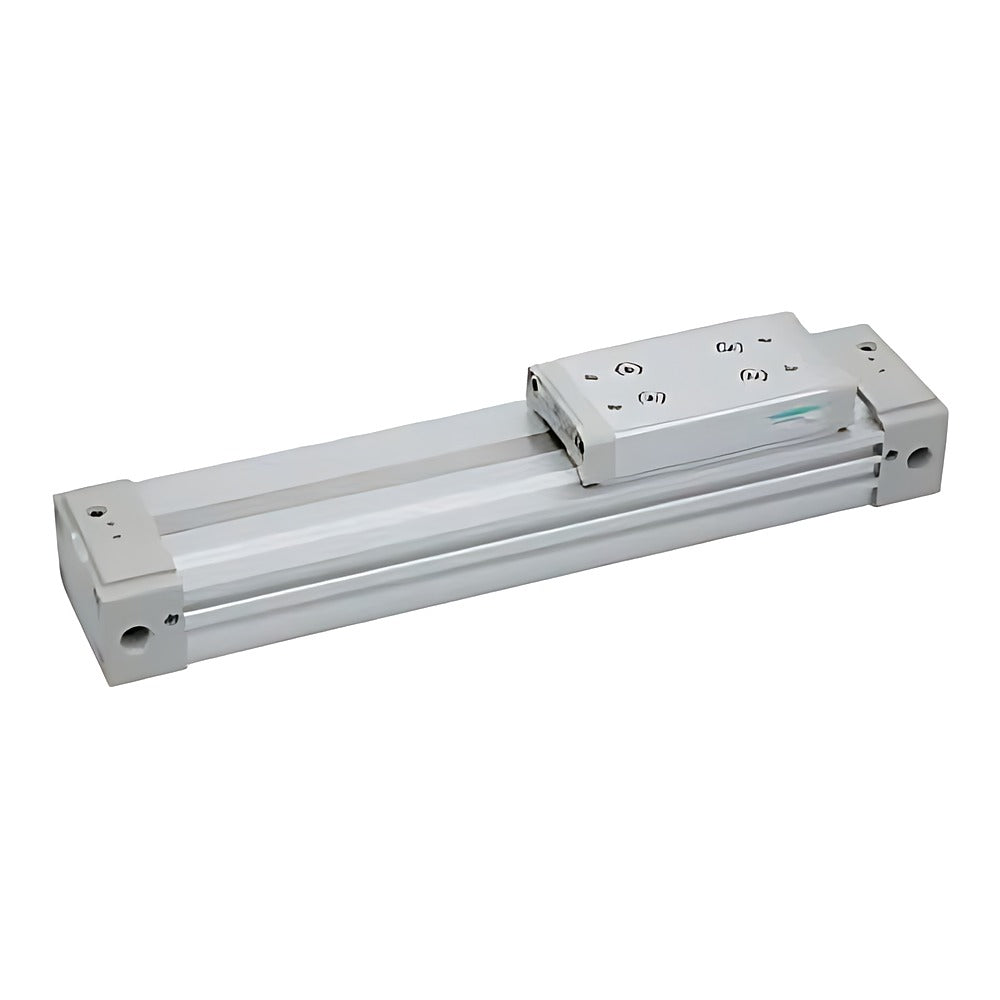

CKD SRL3 Super Rodless Cylinder (Standard)

CKD SRL3 super rodless cylinder: double acting, slit type with air cushion, bores 12-100 mm equivalent, strokes up to 5000 mm.

Key features

Double acting, slit type with air cushion; switch magnet built in as standard
Bores 12-100 mm equivalent; standard strokes 200-1000 mm in 100 mm steps, any intermediate stroke to 5000 mm
Mounting: basic (00), axial foot LB, or LB1 foot (bores 12-32); cushion both ends, R or L side only, or none
Cylinder switches ordered in the code: M-type (M0/M5 reed, M2/M3/M2W/M3W solid state) and T-type (T2W/T2Y/T3W/T3Y, T2YD/T2YDT AC-field) switches, mounted R/L/D/T/4+; lead 1/3/5 m
Options (not expanded): A/A1/A2/A3 full-stroke adjustment with shock absorbers, Y/Y1 floating joint, L/N intermediate supports, H table thread size up, U height plate, R/B/T/D/S/X port and needle positions
Rc port thread standard (M5 on 12/16); NPT (N) and G (G) threads made to order; consumable kit SRL3-<bore>K-<stroke>; secondary-battery spec -P4 available

Specifications

Actuation	Double acting, slit type with air cushion
Fluid	Compressed air
Max. operating pressure	0.7 MPa
Min. operating pressure	0.2 (12-20) / 0.1 (25-40) / 0.05 MPa (50-100)
Proof pressure	1.05 MPa
Ambient temperature	5 to 60 C
Piston speed	50-2000 mm/s (standard port)
Stroke range	1 mm to 5000 mm (1 mm steps)
Code format	SRL3-<mount>-<bore><cushion>-<stroke>-<switch>-<qty>-<option> (e.g. SRL3-00-12B-200-M0H-R-B)
Source	CKD Korea catalog CB-029SK-9, p. 1658-1677

SRL3-00-12B-200		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-12B-300		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-12B-400		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-12B-500		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-12B-600		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-12B-700		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-12B-800		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-12B-900		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-12B-1000		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-12R-200		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-12R-300		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-12R-400		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-12R-500		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-12R-600		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-12R-700		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-12R-800		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-12R-900		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-12R-1000		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-12L-200		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-12L-300		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-12L-400		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-12L-500		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-12L-600		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-12L-700		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-12L-800		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-12L-900		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-12L-1000		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-12N-200		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
SRL3-00-12N-300		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
SRL3-00-12N-400		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
SRL3-00-12N-500		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
SRL3-00-12N-600		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
SRL3-00-12N-700		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
SRL3-00-12N-800		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
SRL3-00-12N-900		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
SRL3-00-12N-1000		Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-12B-200		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-12B-300		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-12B-400		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-12B-500		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-12B-600		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-12B-700		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-12B-800		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-12B-900		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-12B-1000		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-12R-200		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-12R-300		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-12R-400		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-12R-500		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-12R-600		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-12R-700		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-12R-800		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-12R-900		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-12R-1000		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-12L-200		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-12L-300		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-12L-400		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-12L-500		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-12L-600		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-12L-700		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-12L-800		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-12L-900		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-12L-1000		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-12N-200		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-12N-300		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-12N-400		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-12N-500		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-12N-600		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-12N-700		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-12N-800		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-12N-900		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-12N-1000		Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB1-12B-200		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB1-12B-300		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB1-12B-400		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB1-12B-500		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB1-12B-600		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB1-12B-700		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB1-12B-800		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB1-12B-900		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB1-12B-1000		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB1-12R-200		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB1-12R-300		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB1-12R-400		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB1-12R-500		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB1-12R-600		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB1-12R-700		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB1-12R-800		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB1-12R-900		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB1-12R-1000		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB1-12L-200		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB1-12L-300		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB1-12L-400		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB1-12L-500		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB1-12L-600		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB1-12L-700		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB1-12L-800		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB1-12L-900		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB1-12L-1000		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB1-12N-200		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
SRL3-LB1-12N-300		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
SRL3-LB1-12N-400		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
SRL3-LB1-12N-500		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
SRL3-LB1-12N-600		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
SRL3-LB1-12N-700		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
SRL3-LB1-12N-800		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
SRL3-LB1-12N-900		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
SRL3-LB1-12N-1000		Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
SRL3-00-16B-200		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-16B-300		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-16B-400		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-16B-500		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-16B-600		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-16B-700		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-16B-800		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-16B-900		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-16B-1000		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-16R-200		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-16R-300		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-16R-400		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-16R-500		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-16R-600		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-16R-700		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-16R-800		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-16R-900		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-16R-1000		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-16L-200		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-16L-300		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-16L-400		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-16L-500		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-16L-600		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-16L-700		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-16L-800		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-16L-900		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-16L-1000		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-16N-200		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
SRL3-00-16N-300		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
SRL3-00-16N-400		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
SRL3-00-16N-500		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
SRL3-00-16N-600		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
SRL3-00-16N-700		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
SRL3-00-16N-800		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
SRL3-00-16N-900		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
SRL3-00-16N-1000		Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-16B-200		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-16B-300		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-16B-400		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-16B-500		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-16B-600		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-16B-700		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-16B-800		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-16B-900		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-16B-1000		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-16R-200		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-16R-300		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-16R-400		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-16R-500		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-16R-600		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-16R-700		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-16R-800		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-16R-900		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-16R-1000		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-16L-200		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-16L-300		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-16L-400		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-16L-500		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-16L-600		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-16L-700		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-16L-800		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-16L-900		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-16L-1000		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-16N-200		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-16N-300		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-16N-400		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-16N-500		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-16N-600		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-16N-700		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-16N-800		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-16N-900		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-16N-1000		Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB1-16B-200		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB1-16B-300		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB1-16B-400		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB1-16B-500		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB1-16B-600		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB1-16B-700		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB1-16B-800		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB1-16B-900		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB1-16B-1000		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB1-16R-200		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB1-16R-300		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB1-16R-400		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB1-16R-500		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB1-16R-600		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB1-16R-700		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB1-16R-800		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB1-16R-900		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB1-16R-1000		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB1-16L-200		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB1-16L-300		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB1-16L-400		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB1-16L-500		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB1-16L-600		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB1-16L-700		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB1-16L-800		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB1-16L-900		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB1-16L-1000		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB1-16N-200		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
SRL3-LB1-16N-300		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
SRL3-LB1-16N-400		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
SRL3-LB1-16N-500		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
SRL3-LB1-16N-600		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
SRL3-LB1-16N-700		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
SRL3-LB1-16N-800		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
SRL3-LB1-16N-900		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
SRL3-LB1-16N-1000		Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
SRL3-00-20B-200		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-20B-300		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-20B-400		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-20B-500		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-20B-600		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-20B-700		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-20B-800		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-20B-900		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-20B-1000		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-20R-200		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-20R-300		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-20R-400		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-20R-500		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-20R-600		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-20R-700		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-20R-800		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-20R-900		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-20R-1000		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-20L-200		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-20L-300		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-20L-400		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-20L-500		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-20L-600		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-20L-700		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-20L-800		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-20L-900		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-20L-1000		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-20N-200		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
SRL3-00-20N-300		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
SRL3-00-20N-400		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
SRL3-00-20N-500		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
SRL3-00-20N-600		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
SRL3-00-20N-700		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
SRL3-00-20N-800		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
SRL3-00-20N-900		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
SRL3-00-20N-1000		Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-20B-200		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-20B-300		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-20B-400		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-20B-500		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-20B-600		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-20B-700		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-20B-800		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-20B-900		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-20B-1000		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-20R-200		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-20R-300		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-20R-400		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-20R-500		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-20R-600		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-20R-700		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-20R-800		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-20R-900		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-20R-1000		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-20L-200		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-20L-300		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-20L-400		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-20L-500		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-20L-600		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-20L-700		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-20L-800		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-20L-900		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-20L-1000		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-20N-200		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-20N-300		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-20N-400		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-20N-500		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-20N-600		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-20N-700		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-20N-800		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-20N-900		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-20N-1000		Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB1-20B-200		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB1-20B-300		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB1-20B-400		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB1-20B-500		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB1-20B-600		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB1-20B-700		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB1-20B-800		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB1-20B-900		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB1-20B-1000		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB1-20R-200		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB1-20R-300		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB1-20R-400		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB1-20R-500		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB1-20R-600		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB1-20R-700		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB1-20R-800		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB1-20R-900		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB1-20R-1000		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB1-20L-200		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB1-20L-300		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB1-20L-400		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB1-20L-500		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB1-20L-600		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB1-20L-700		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB1-20L-800		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB1-20L-900		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB1-20L-1000		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB1-20N-200		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
SRL3-LB1-20N-300		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
SRL3-LB1-20N-400		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
SRL3-LB1-20N-500		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
SRL3-LB1-20N-600		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
SRL3-LB1-20N-700		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
SRL3-LB1-20N-800		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
SRL3-LB1-20N-900		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
SRL3-LB1-20N-1000		Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-00-25B-200		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-25B-300		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-25B-400		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-25B-500		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-25B-600		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-25B-700		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-25B-800		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-25B-900		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-25B-1000		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-25R-200		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-25R-300		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-25R-400		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-25R-500		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-25R-600		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-25R-700		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-25R-800		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-25R-900		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-25R-1000		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-25L-200		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-25L-300		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-25L-400		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-25L-500		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-25L-600		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-25L-700		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-25L-800		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-25L-900		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-25L-1000		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-25N-200		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
SRL3-00-25N-300		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
SRL3-00-25N-400		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
SRL3-00-25N-500		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
SRL3-00-25N-600		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
SRL3-00-25N-700		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
SRL3-00-25N-800		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
SRL3-00-25N-900		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
SRL3-00-25N-1000		Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-25B-200		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-25B-300		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-25B-400		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-25B-500		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-25B-600		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-25B-700		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-25B-800		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-25B-900		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-25B-1000		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-25R-200		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-25R-300		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-25R-400		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-25R-500		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-25R-600		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-25R-700		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-25R-800		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-25R-900		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-25R-1000		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-25L-200		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-25L-300		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-25L-400		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-25L-500		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-25L-600		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-25L-700		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-25L-800		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-25L-900		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-25L-1000		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-25N-200		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-25N-300		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-25N-400		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-25N-500		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-25N-600		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-25N-700		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-25N-800		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-25N-900		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-25N-1000		Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB1-25B-200		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB1-25B-300		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB1-25B-400		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB1-25B-500		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB1-25B-600		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB1-25B-700		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB1-25B-800		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB1-25B-900		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB1-25B-1000		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB1-25R-200		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB1-25R-300		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB1-25R-400		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB1-25R-500		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB1-25R-600		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB1-25R-700		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB1-25R-800		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB1-25R-900		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB1-25R-1000		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB1-25L-200		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB1-25L-300		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB1-25L-400		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB1-25L-500		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB1-25L-600		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB1-25L-700		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB1-25L-800		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB1-25L-900		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB1-25L-1000		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB1-25N-200		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
SRL3-LB1-25N-300		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
SRL3-LB1-25N-400		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
SRL3-LB1-25N-500		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
SRL3-LB1-25N-600		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
SRL3-LB1-25N-700		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
SRL3-LB1-25N-800		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
SRL3-LB1-25N-900		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
SRL3-LB1-25N-1000		Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-00-32B-200		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-32B-300		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-32B-400		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-32B-500		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-32B-600		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-32B-700		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-32B-800		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-32B-900		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-32B-1000		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-32R-200		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-32R-300		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-32R-400		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-32R-500		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-32R-600		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-32R-700		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-32R-800		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-32R-900		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-32R-1000		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-32L-200		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-32L-300		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-32L-400		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-32L-500		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-32L-600		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-32L-700		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-32L-800		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-32L-900		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-32L-1000		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-32N-200		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
SRL3-00-32N-300		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
SRL3-00-32N-400		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
SRL3-00-32N-500		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
SRL3-00-32N-600		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
SRL3-00-32N-700		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
SRL3-00-32N-800		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
SRL3-00-32N-900		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
SRL3-00-32N-1000		Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-32B-200		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-32B-300		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-32B-400		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-32B-500		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-32B-600		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-32B-700		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-32B-800		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-32B-900		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-32B-1000		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-32R-200		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-32R-300		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-32R-400		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-32R-500		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-32R-600		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-32R-700		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-32R-800		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-32R-900		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-32R-1000		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-32L-200		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-32L-300		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-32L-400		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-32L-500		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-32L-600		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-32L-700		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-32L-800		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-32L-900		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-32L-1000		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-32N-200		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-32N-300		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-32N-400		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-32N-500		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-32N-600		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-32N-700		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-32N-800		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-32N-900		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-32N-1000		Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB1-32B-200		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB1-32B-300		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB1-32B-400		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB1-32B-500		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB1-32B-600		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB1-32B-700		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB1-32B-800		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB1-32B-900		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB1-32B-1000		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB1-32R-200		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB1-32R-300		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB1-32R-400		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB1-32R-500		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB1-32R-600		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB1-32R-700		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB1-32R-800		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB1-32R-900		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB1-32R-1000		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB1-32L-200		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB1-32L-300		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB1-32L-400		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB1-32L-500		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB1-32L-600		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB1-32L-700		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB1-32L-800		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB1-32L-900		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB1-32L-1000		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB1-32N-200		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
SRL3-LB1-32N-300		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
SRL3-LB1-32N-400		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
SRL3-LB1-32N-500		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
SRL3-LB1-32N-600		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
SRL3-LB1-32N-700		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
SRL3-LB1-32N-800		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
SRL3-LB1-32N-900		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
SRL3-LB1-32N-1000		Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
SRL3-00-40B-200		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-40B-300		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-40B-400		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-40B-500		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-40B-600		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-40B-700		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-40B-800		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-40B-900		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-40B-1000		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-40R-200		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-40R-300		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-40R-400		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-40R-500		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-40R-600		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-40R-700		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-40R-800		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-40R-900		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-40R-1000		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-40L-200		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-40L-300		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-40L-400		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-40L-500		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-40L-600		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-40L-700		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-40L-800		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-40L-900		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-40L-1000		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-40N-200		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
SRL3-00-40N-300		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
SRL3-00-40N-400		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
SRL3-00-40N-500		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
SRL3-00-40N-600		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
SRL3-00-40N-700		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
SRL3-00-40N-800		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
SRL3-00-40N-900		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
SRL3-00-40N-1000		Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-40B-200		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-40B-300		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-40B-400		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-40B-500		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-40B-600		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-40B-700		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-40B-800		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-40B-900		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-40B-1000		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-40R-200		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-40R-300		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-40R-400		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-40R-500		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-40R-600		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-40R-700		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-40R-800		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-40R-900		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-40R-1000		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-40L-200		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-40L-300		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-40L-400		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-40L-500		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-40L-600		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-40L-700		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-40L-800		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-40L-900		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-40L-1000		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-40N-200		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-40N-300		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-40N-400		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-40N-500		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-40N-600		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-40N-700		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-40N-800		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-40N-900		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-40N-1000		Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
SRL3-00-50B-200		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-50B-300		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-50B-400		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-50B-500		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-50B-600		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-50B-700		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-50B-800		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-50B-900		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-50B-1000		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-50R-200		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-50R-300		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-50R-400		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-50R-500		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-50R-600		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-50R-700		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-50R-800		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-50R-900		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-50R-1000		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-50L-200		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-50L-300		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-50L-400		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-50L-500		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-50L-600		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-50L-700		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-50L-800		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-50L-900		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-50L-1000		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-50N-200		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 200 mm
SRL3-00-50N-300		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 300 mm
SRL3-00-50N-400		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 400 mm
SRL3-00-50N-500		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 500 mm
SRL3-00-50N-600		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 600 mm
SRL3-00-50N-700		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 700 mm
SRL3-00-50N-800		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 800 mm
SRL3-00-50N-900		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 900 mm
SRL3-00-50N-1000		Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-50B-200		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-50B-300		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-50B-400		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-50B-500		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-50B-600		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-50B-700		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-50B-800		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-50B-900		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-50B-1000		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-50R-200		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-50R-300		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-50R-400		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-50R-500		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-50R-600		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-50R-700		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-50R-800		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-50R-900		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-50R-1000		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-50L-200		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-50L-300		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-50L-400		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-50L-500		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-50L-600		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-50L-700		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-50L-800		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-50L-900		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-50L-1000		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-50N-200		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-50N-300		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-50N-400		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-50N-500		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-50N-600		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-50N-700		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-50N-800		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-50N-900		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-50N-1000		Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-00-63B-200		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-63B-300		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-63B-400		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-63B-500		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-63B-600		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-63B-700		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-63B-800		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-63B-900		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-63B-1000		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-63R-200		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-63R-300		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-63R-400		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-63R-500		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-63R-600		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-63R-700		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-63R-800		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-63R-900		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-63R-1000		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-63L-200		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-63L-300		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-63L-400		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-63L-500		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-63L-600		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-63L-700		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-63L-800		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-63L-900		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-63L-1000		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-63N-200		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 200 mm
SRL3-00-63N-300		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 300 mm
SRL3-00-63N-400		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 400 mm
SRL3-00-63N-500		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 500 mm
SRL3-00-63N-600		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 600 mm
SRL3-00-63N-700		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 700 mm
SRL3-00-63N-800		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 800 mm
SRL3-00-63N-900		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 900 mm
SRL3-00-63N-1000		Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-63B-200		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-63B-300		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-63B-400		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-63B-500		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-63B-600		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-63B-700		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-63B-800		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-63B-900		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-63B-1000		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-63R-200		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-63R-300		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-63R-400		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-63R-500		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-63R-600		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-63R-700		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-63R-800		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-63R-900		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-63R-1000		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-63L-200		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-63L-300		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-63L-400		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-63L-500		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-63L-600		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-63L-700		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-63L-800		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-63L-900		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-63L-1000		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-63N-200		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-63N-300		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-63N-400		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-63N-500		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-63N-600		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-63N-700		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-63N-800		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-63N-900		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-63N-1000		Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 1000 mm
SRL3-00-80B-200		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-80B-300		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-80B-400		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-80B-500		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-80B-600		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-80B-700		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-80B-800		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-80B-900		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-80B-1000		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-80R-200		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-80R-300		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-80R-400		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-80R-500		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-80R-600		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-80R-700		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-80R-800		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-80R-900		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-80R-1000		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-80L-200		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-80L-300		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-80L-400		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-80L-500		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-80L-600		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-80L-700		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-80L-800		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-80L-900		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-80L-1000		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-80N-200		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 200 mm
SRL3-00-80N-300		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 300 mm
SRL3-00-80N-400		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 400 mm
SRL3-00-80N-500		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 500 mm
SRL3-00-80N-600		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 600 mm
SRL3-00-80N-700		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 700 mm
SRL3-00-80N-800		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 800 mm
SRL3-00-80N-900		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 900 mm
SRL3-00-80N-1000		Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-80B-200		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-80B-300		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-80B-400		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-80B-500		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-80B-600		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-80B-700		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-80B-800		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-80B-900		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-80B-1000		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-80R-200		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-80R-300		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-80R-400		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-80R-500		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-80R-600		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-80R-700		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-80R-800		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-80R-900		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-80R-1000		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-80L-200		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-80L-300		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-80L-400		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-80L-500		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-80L-600		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-80L-700		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-80L-800		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-80L-900		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-80L-1000		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-80N-200		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-80N-300		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-80N-400		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-80N-500		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-80N-600		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-80N-700		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-80N-800		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-80N-900		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-80N-1000		Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 1000 mm
SRL3-00-100B-200		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-00-100B-300		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-00-100B-400		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-00-100B-500		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-00-100B-600		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-00-100B-700		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-00-100B-800		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-00-100B-900		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-00-100B-1000		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-00-100R-200		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 200 mm
SRL3-00-100R-300		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 300 mm
SRL3-00-100R-400		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 400 mm
SRL3-00-100R-500		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 500 mm
SRL3-00-100R-600		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 600 mm
SRL3-00-100R-700		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 700 mm
SRL3-00-100R-800		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 800 mm
SRL3-00-100R-900		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 900 mm
SRL3-00-100R-1000		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-00-100L-200		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 200 mm
SRL3-00-100L-300		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 300 mm
SRL3-00-100L-400		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 400 mm
SRL3-00-100L-500		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 500 mm
SRL3-00-100L-600		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 600 mm
SRL3-00-100L-700		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 700 mm
SRL3-00-100L-800		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 800 mm
SRL3-00-100L-900		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 900 mm
SRL3-00-100L-1000		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-00-100N-200		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 200 mm
SRL3-00-100N-300		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 300 mm
SRL3-00-100N-400		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 400 mm
SRL3-00-100N-500		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 500 mm
SRL3-00-100N-600		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 600 mm
SRL3-00-100N-700		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 700 mm
SRL3-00-100N-800		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 800 mm
SRL3-00-100N-900		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 900 mm
SRL3-00-100N-1000		Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 1000 mm
SRL3-LB-100B-200		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 200 mm
SRL3-LB-100B-300		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 300 mm
SRL3-LB-100B-400		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 400 mm
SRL3-LB-100B-500		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 500 mm
SRL3-LB-100B-600		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 600 mm
SRL3-LB-100B-700		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 700 mm
SRL3-LB-100B-800		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 800 mm
SRL3-LB-100B-900		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 900 mm
SRL3-LB-100B-1000		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 1000 mm
SRL3-LB-100R-200		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 200 mm
SRL3-LB-100R-300		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 300 mm
SRL3-LB-100R-400		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 400 mm
SRL3-LB-100R-500		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 500 mm
SRL3-LB-100R-600		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 600 mm
SRL3-LB-100R-700		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 700 mm
SRL3-LB-100R-800		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 800 mm
SRL3-LB-100R-900		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 900 mm
SRL3-LB-100R-1000		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 1000 mm
SRL3-LB-100L-200		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 200 mm
SRL3-LB-100L-300		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 300 mm
SRL3-LB-100L-400		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 400 mm
SRL3-LB-100L-500		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 500 mm
SRL3-LB-100L-600		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 600 mm
SRL3-LB-100L-700		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 700 mm
SRL3-LB-100L-800		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 800 mm
SRL3-LB-100L-900		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 900 mm
SRL3-LB-100L-1000		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 1000 mm
SRL3-LB-100N-200		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 200 mm
SRL3-LB-100N-300		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 300 mm
SRL3-LB-100N-400		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 400 mm
SRL3-LB-100N-500		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 500 mm
SRL3-LB-100N-600		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 600 mm
SRL3-LB-100N-700		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 700 mm
SRL3-LB-100N-800		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 800 mm
SRL3-LB-100N-900		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 900 mm
SRL3-LB-100N-1000		Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 1000 mm

Rodless CylindersCKD

900 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SRL3 Super Rodless Cylinder (Standard)

Brand CKD·Rodless Cylinders

Available part numbers (900)

SRL3-00-12B-200, SRL3-00-12B-300, SRL3-00-12B-400, SRL3-00-12B-500, SRL3-00-12B-600, SRL3-00-12B-700, SRL3-00-12B-800, SRL3-00-12B-900, SRL3-00-12B-1000, SRL3-00-12R-200 + 890 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SRL3-00-12B-200	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-12B-300	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-12B-400	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-12B-500	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-12B-600	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-12B-700	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-12B-800	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-12B-900	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-12B-1000	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-12R-200	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-12R-300	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-12R-400	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-12R-500	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-12R-600	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-12R-700	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-12R-800	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-12R-900	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-12R-1000	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-12L-200	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-12L-300	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-12L-400	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-12L-500	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-12L-600	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-12L-700	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-12L-800	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-12L-900	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-12L-1000	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-12N-200	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-12N-300	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-12N-400	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-12N-500	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-12N-600	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-12N-700	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-12N-800	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-12N-900	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-12N-1000	Mounting: Basic \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-12B-200	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-12B-300	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-12B-400	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-12B-500	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-12B-600	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-12B-700	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-12B-800	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-12B-900	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-12B-1000	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-12R-200	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-12R-300	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-12R-400	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-12R-500	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-12R-600	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-12R-700	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-12R-800	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-12R-900	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-12R-1000	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-12L-200	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-12L-300	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-12L-400	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-12L-500	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-12L-600	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-12L-700	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-12L-800	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-12L-900	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-12L-1000	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-12N-200	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-12N-300	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-12N-400	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-12N-500	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-12N-600	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-12N-700	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-12N-800	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-12N-900	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-12N-1000	Mounting: Axial foot \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB1-12B-200	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB1-12B-300	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB1-12B-400	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB1-12B-500	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB1-12B-600	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB1-12B-700	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB1-12B-800	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB1-12B-900	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB1-12B-1000	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB1-12R-200	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB1-12R-300	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB1-12R-400	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB1-12R-500	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB1-12R-600	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB1-12R-700	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB1-12R-800	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB1-12R-900	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB1-12R-1000	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB1-12L-200	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB1-12L-300	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB1-12L-400	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB1-12L-500	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB1-12L-600	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB1-12L-700	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB1-12L-800	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB1-12L-900	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB1-12L-1000	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB1-12N-200	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB1-12N-300	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB1-12N-400	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB1-12N-500	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB1-12N-600	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB1-12N-700	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB1-12N-800	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB1-12N-900	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB1-12N-1000	Mounting: Axial foot (LB1) \| Bore: 12 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
	SRL3-00-16B-200	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-16B-300	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-16B-400	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-16B-500	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-16B-600	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-16B-700	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-16B-800	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-16B-900	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-16B-1000	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-16R-200	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-16R-300	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-16R-400	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-16R-500	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-16R-600	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-16R-700	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-16R-800	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-16R-900	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-16R-1000	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-16L-200	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-16L-300	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-16L-400	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-16L-500	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-16L-600	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-16L-700	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-16L-800	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-16L-900	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-16L-1000	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-16N-200	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-16N-300	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-16N-400	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-16N-500	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-16N-600	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-16N-700	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-16N-800	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-16N-900	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-16N-1000	Mounting: Basic \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-16B-200	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-16B-300	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-16B-400	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-16B-500	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-16B-600	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-16B-700	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-16B-800	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-16B-900	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-16B-1000	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-16R-200	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-16R-300	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-16R-400	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-16R-500	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-16R-600	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-16R-700	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-16R-800	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-16R-900	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-16R-1000	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-16L-200	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-16L-300	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-16L-400	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-16L-500	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-16L-600	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-16L-700	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-16L-800	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-16L-900	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-16L-1000	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-16N-200	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-16N-300	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-16N-400	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-16N-500	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-16N-600	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-16N-700	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-16N-800	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-16N-900	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-16N-1000	Mounting: Axial foot \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB1-16B-200	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB1-16B-300	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB1-16B-400	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB1-16B-500	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB1-16B-600	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB1-16B-700	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB1-16B-800	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB1-16B-900	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB1-16B-1000	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB1-16R-200	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB1-16R-300	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB1-16R-400	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB1-16R-500	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB1-16R-600	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB1-16R-700	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB1-16R-800	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB1-16R-900	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB1-16R-1000	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB1-16L-200	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB1-16L-300	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB1-16L-400	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB1-16L-500	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB1-16L-600	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB1-16L-700	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB1-16L-800	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB1-16L-900	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB1-16L-1000	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB1-16N-200	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB1-16N-300	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB1-16N-400	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB1-16N-500	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB1-16N-600	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB1-16N-700	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB1-16N-800	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB1-16N-900	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB1-16N-1000	Mounting: Axial foot (LB1) \| Bore: 16 mm equiv. \| Port: M5 \| Cushion: None \| Stroke: 1000 mm
	SRL3-00-20B-200	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-20B-300	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-20B-400	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-20B-500	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-20B-600	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-20B-700	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-20B-800	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-20B-900	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-20B-1000	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-20R-200	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-20R-300	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-20R-400	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-20R-500	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-20R-600	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-20R-700	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-20R-800	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-20R-900	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-20R-1000	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-20L-200	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-20L-300	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-20L-400	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-20L-500	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-20L-600	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-20L-700	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-20L-800	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-20L-900	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-20L-1000	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-20N-200	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-20N-300	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-20N-400	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-20N-500	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-20N-600	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-20N-700	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-20N-800	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-20N-900	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-20N-1000	Mounting: Basic \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-20B-200	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-20B-300	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-20B-400	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-20B-500	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-20B-600	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-20B-700	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-20B-800	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-20B-900	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-20B-1000	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-20R-200	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-20R-300	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-20R-400	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-20R-500	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-20R-600	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-20R-700	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-20R-800	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-20R-900	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-20R-1000	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-20L-200	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-20L-300	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-20L-400	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-20L-500	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-20L-600	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-20L-700	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-20L-800	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-20L-900	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-20L-1000	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-20N-200	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-20N-300	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-20N-400	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-20N-500	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-20N-600	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-20N-700	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-20N-800	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-20N-900	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-20N-1000	Mounting: Axial foot \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB1-20B-200	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB1-20B-300	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB1-20B-400	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB1-20B-500	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB1-20B-600	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB1-20B-700	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB1-20B-800	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB1-20B-900	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB1-20B-1000	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB1-20R-200	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB1-20R-300	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB1-20R-400	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB1-20R-500	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB1-20R-600	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB1-20R-700	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB1-20R-800	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB1-20R-900	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB1-20R-1000	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB1-20L-200	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB1-20L-300	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB1-20L-400	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB1-20L-500	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB1-20L-600	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB1-20L-700	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB1-20L-800	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB1-20L-900	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB1-20L-1000	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB1-20N-200	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB1-20N-300	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB1-20N-400	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB1-20N-500	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB1-20N-600	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB1-20N-700	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB1-20N-800	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB1-20N-900	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB1-20N-1000	Mounting: Axial foot (LB1) \| Bore: 20 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-00-25B-200	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-25B-300	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-25B-400	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-25B-500	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-25B-600	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-25B-700	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-25B-800	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-25B-900	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-25B-1000	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-25R-200	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-25R-300	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-25R-400	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-25R-500	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-25R-600	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-25R-700	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-25R-800	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-25R-900	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-25R-1000	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-25L-200	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-25L-300	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-25L-400	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-25L-500	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-25L-600	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-25L-700	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-25L-800	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-25L-900	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-25L-1000	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-25N-200	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-25N-300	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-25N-400	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-25N-500	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-25N-600	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-25N-700	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-25N-800	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-25N-900	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-25N-1000	Mounting: Basic \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-25B-200	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-25B-300	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-25B-400	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-25B-500	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-25B-600	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-25B-700	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-25B-800	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-25B-900	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-25B-1000	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-25R-200	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-25R-300	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-25R-400	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-25R-500	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-25R-600	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-25R-700	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-25R-800	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-25R-900	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-25R-1000	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-25L-200	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-25L-300	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-25L-400	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-25L-500	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-25L-600	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-25L-700	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-25L-800	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-25L-900	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-25L-1000	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-25N-200	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-25N-300	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-25N-400	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-25N-500	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-25N-600	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-25N-700	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-25N-800	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-25N-900	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-25N-1000	Mounting: Axial foot \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB1-25B-200	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB1-25B-300	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB1-25B-400	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB1-25B-500	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB1-25B-600	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB1-25B-700	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB1-25B-800	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB1-25B-900	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB1-25B-1000	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB1-25R-200	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB1-25R-300	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB1-25R-400	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB1-25R-500	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB1-25R-600	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB1-25R-700	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB1-25R-800	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB1-25R-900	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB1-25R-1000	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB1-25L-200	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB1-25L-300	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB1-25L-400	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB1-25L-500	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB1-25L-600	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB1-25L-700	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB1-25L-800	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB1-25L-900	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB1-25L-1000	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB1-25N-200	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB1-25N-300	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB1-25N-400	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB1-25N-500	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB1-25N-600	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB1-25N-700	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB1-25N-800	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB1-25N-900	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB1-25N-1000	Mounting: Axial foot (LB1) \| Bore: 25 mm equiv. \| Port: Rc1/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-00-32B-200	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-32B-300	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-32B-400	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-32B-500	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-32B-600	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-32B-700	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-32B-800	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-32B-900	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-32B-1000	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-32R-200	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-32R-300	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-32R-400	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-32R-500	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-32R-600	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-32R-700	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-32R-800	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-32R-900	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-32R-1000	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-32L-200	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-32L-300	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-32L-400	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-32L-500	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-32L-600	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-32L-700	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-32L-800	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-32L-900	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-32L-1000	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-32N-200	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-32N-300	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-32N-400	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-32N-500	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-32N-600	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-32N-700	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-32N-800	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-32N-900	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-32N-1000	Mounting: Basic \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-32B-200	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-32B-300	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-32B-400	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-32B-500	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-32B-600	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-32B-700	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-32B-800	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-32B-900	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-32B-1000	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-32R-200	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-32R-300	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-32R-400	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-32R-500	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-32R-600	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-32R-700	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-32R-800	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-32R-900	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-32R-1000	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-32L-200	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-32L-300	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-32L-400	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-32L-500	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-32L-600	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-32L-700	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-32L-800	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-32L-900	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-32L-1000	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-32N-200	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-32N-300	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-32N-400	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-32N-500	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-32N-600	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-32N-700	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-32N-800	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-32N-900	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-32N-1000	Mounting: Axial foot \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB1-32B-200	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB1-32B-300	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB1-32B-400	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB1-32B-500	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB1-32B-600	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB1-32B-700	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB1-32B-800	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB1-32B-900	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB1-32B-1000	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB1-32R-200	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB1-32R-300	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB1-32R-400	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB1-32R-500	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB1-32R-600	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB1-32R-700	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB1-32R-800	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB1-32R-900	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB1-32R-1000	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB1-32L-200	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB1-32L-300	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB1-32L-400	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB1-32L-500	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB1-32L-600	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB1-32L-700	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB1-32L-800	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB1-32L-900	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB1-32L-1000	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB1-32N-200	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB1-32N-300	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB1-32N-400	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB1-32N-500	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB1-32N-600	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB1-32N-700	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB1-32N-800	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB1-32N-900	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB1-32N-1000	Mounting: Axial foot (LB1) \| Bore: 32 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
	SRL3-00-40B-200	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-40B-300	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-40B-400	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-40B-500	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-40B-600	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-40B-700	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-40B-800	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-40B-900	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-40B-1000	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-40R-200	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-40R-300	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-40R-400	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-40R-500	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-40R-600	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-40R-700	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-40R-800	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-40R-900	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-40R-1000	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-40L-200	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-40L-300	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-40L-400	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-40L-500	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-40L-600	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-40L-700	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-40L-800	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-40L-900	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-40L-1000	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-40N-200	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-40N-300	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-40N-400	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-40N-500	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-40N-600	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-40N-700	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-40N-800	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-40N-900	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-40N-1000	Mounting: Basic \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-40B-200	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-40B-300	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-40B-400	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-40B-500	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-40B-600	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-40B-700	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-40B-800	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-40B-900	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-40B-1000	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-40R-200	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-40R-300	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-40R-400	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-40R-500	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-40R-600	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-40R-700	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-40R-800	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-40R-900	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-40R-1000	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-40L-200	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-40L-300	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-40L-400	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-40L-500	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-40L-600	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-40L-700	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-40L-800	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-40L-900	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-40L-1000	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-40N-200	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-40N-300	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-40N-400	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-40N-500	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-40N-600	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-40N-700	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-40N-800	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-40N-900	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-40N-1000	Mounting: Axial foot \| Bore: 40 mm equiv. \| Port: Rc1/4 \| Cushion: None \| Stroke: 1000 mm
	SRL3-00-50B-200	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-50B-300	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-50B-400	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-50B-500	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-50B-600	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-50B-700	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-50B-800	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-50B-900	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-50B-1000	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-50R-200	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-50R-300	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-50R-400	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-50R-500	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-50R-600	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-50R-700	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-50R-800	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-50R-900	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-50R-1000	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-50L-200	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-50L-300	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-50L-400	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-50L-500	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-50L-600	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-50L-700	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-50L-800	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-50L-900	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-50L-1000	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-50N-200	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-50N-300	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-50N-400	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-50N-500	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-50N-600	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-50N-700	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-50N-800	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-50N-900	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-50N-1000	Mounting: Basic \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-50B-200	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-50B-300	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-50B-400	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-50B-500	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-50B-600	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-50B-700	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-50B-800	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-50B-900	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-50B-1000	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-50R-200	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-50R-300	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-50R-400	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-50R-500	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-50R-600	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-50R-700	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-50R-800	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-50R-900	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-50R-1000	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-50L-200	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-50L-300	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-50L-400	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-50L-500	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-50L-600	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-50L-700	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-50L-800	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-50L-900	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-50L-1000	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-50N-200	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-50N-300	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-50N-400	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-50N-500	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-50N-600	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-50N-700	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-50N-800	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-50N-900	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-50N-1000	Mounting: Axial foot \| Bore: 50 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-00-63B-200	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-63B-300	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-63B-400	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-63B-500	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-63B-600	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-63B-700	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-63B-800	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-63B-900	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-63B-1000	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-63R-200	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-63R-300	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-63R-400	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-63R-500	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-63R-600	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-63R-700	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-63R-800	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-63R-900	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-63R-1000	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-63L-200	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-63L-300	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-63L-400	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-63L-500	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-63L-600	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-63L-700	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-63L-800	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-63L-900	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-63L-1000	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-63N-200	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-63N-300	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-63N-400	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-63N-500	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-63N-600	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-63N-700	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-63N-800	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-63N-900	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-63N-1000	Mounting: Basic \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-63B-200	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-63B-300	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-63B-400	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-63B-500	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-63B-600	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-63B-700	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-63B-800	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-63B-900	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-63B-1000	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-63R-200	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-63R-300	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-63R-400	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-63R-500	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-63R-600	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-63R-700	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-63R-800	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-63R-900	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-63R-1000	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-63L-200	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-63L-300	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-63L-400	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-63L-500	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-63L-600	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-63L-700	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-63L-800	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-63L-900	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-63L-1000	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-63N-200	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-63N-300	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-63N-400	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-63N-500	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-63N-600	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-63N-700	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-63N-800	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-63N-900	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-63N-1000	Mounting: Axial foot \| Bore: 63 mm equiv. \| Port: Rc3/8 \| Cushion: None \| Stroke: 1000 mm
	SRL3-00-80B-200	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-80B-300	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-80B-400	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-80B-500	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-80B-600	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-80B-700	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-80B-800	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-80B-900	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-80B-1000	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-80R-200	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-80R-300	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-80R-400	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-80R-500	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-80R-600	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-80R-700	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-80R-800	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-80R-900	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-80R-1000	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-80L-200	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-80L-300	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-80L-400	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-80L-500	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-80L-600	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-80L-700	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-80L-800	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-80L-900	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-80L-1000	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-80N-200	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-80N-300	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-80N-400	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-80N-500	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-80N-600	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-80N-700	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-80N-800	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-80N-900	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-80N-1000	Mounting: Basic \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-80B-200	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-80B-300	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-80B-400	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-80B-500	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-80B-600	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-80B-700	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-80B-800	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-80B-900	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-80B-1000	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-80R-200	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-80R-300	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-80R-400	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-80R-500	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-80R-600	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-80R-700	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-80R-800	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-80R-900	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-80R-1000	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-80L-200	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-80L-300	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-80L-400	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-80L-500	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-80L-600	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-80L-700	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-80L-800	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-80L-900	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-80L-1000	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-80N-200	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-80N-300	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-80N-400	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-80N-500	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-80N-600	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-80N-700	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-80N-800	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-80N-900	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-80N-1000	Mounting: Axial foot \| Bore: 80 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 1000 mm
	SRL3-00-100B-200	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-00-100B-300	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-00-100B-400	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-00-100B-500	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-00-100B-600	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-00-100B-700	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-00-100B-800	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-00-100B-900	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-00-100B-1000	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-00-100R-200	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-00-100R-300	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-00-100R-400	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-00-100R-500	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-00-100R-600	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-00-100R-700	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-00-100R-800	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-00-100R-900	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-00-100R-1000	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-00-100L-200	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-00-100L-300	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-00-100L-400	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-00-100L-500	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-00-100L-600	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-00-100L-700	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-00-100L-800	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-00-100L-900	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-00-100L-1000	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-00-100N-200	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 200 mm
	SRL3-00-100N-300	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 300 mm
	SRL3-00-100N-400	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 400 mm
	SRL3-00-100N-500	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 500 mm
	SRL3-00-100N-600	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 600 mm
	SRL3-00-100N-700	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 700 mm
	SRL3-00-100N-800	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 800 mm
	SRL3-00-100N-900	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 900 mm
	SRL3-00-100N-1000	Mounting: Basic \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 1000 mm
	SRL3-LB-100B-200	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 200 mm
	SRL3-LB-100B-300	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 300 mm
	SRL3-LB-100B-400	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 400 mm
	SRL3-LB-100B-500	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 500 mm
	SRL3-LB-100B-600	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 600 mm
	SRL3-LB-100B-700	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 700 mm
	SRL3-LB-100B-800	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 800 mm
	SRL3-LB-100B-900	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 900 mm
	SRL3-LB-100B-1000	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: Both ends \| Stroke: 1000 mm
	SRL3-LB-100R-200	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 200 mm
	SRL3-LB-100R-300	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 300 mm
	SRL3-LB-100R-400	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 400 mm
	SRL3-LB-100R-500	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 500 mm
	SRL3-LB-100R-600	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 600 mm
	SRL3-LB-100R-700	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 700 mm
	SRL3-LB-100R-800	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 800 mm
	SRL3-LB-100R-900	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 900 mm
	SRL3-LB-100R-1000	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: R side only \| Stroke: 1000 mm
	SRL3-LB-100L-200	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 200 mm
	SRL3-LB-100L-300	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 300 mm
	SRL3-LB-100L-400	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 400 mm
	SRL3-LB-100L-500	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 500 mm
	SRL3-LB-100L-600	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 600 mm
	SRL3-LB-100L-700	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 700 mm
	SRL3-LB-100L-800	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 800 mm
	SRL3-LB-100L-900	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 900 mm
	SRL3-LB-100L-1000	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: L side only \| Stroke: 1000 mm
	SRL3-LB-100N-200	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 200 mm
	SRL3-LB-100N-300	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 300 mm
	SRL3-LB-100N-400	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 400 mm
	SRL3-LB-100N-500	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 500 mm
	SRL3-LB-100N-600	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 600 mm
	SRL3-LB-100N-700	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 700 mm
	SRL3-LB-100N-800	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 800 mm
	SRL3-LB-100N-900	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 900 mm
	SRL3-LB-100N-1000	Mounting: Axial foot \| Bore: 100 mm equiv. \| Port: Rc1/2 \| Cushion: None \| Stroke: 1000 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SRL3 Super Rodless Cylinder (Standard)
