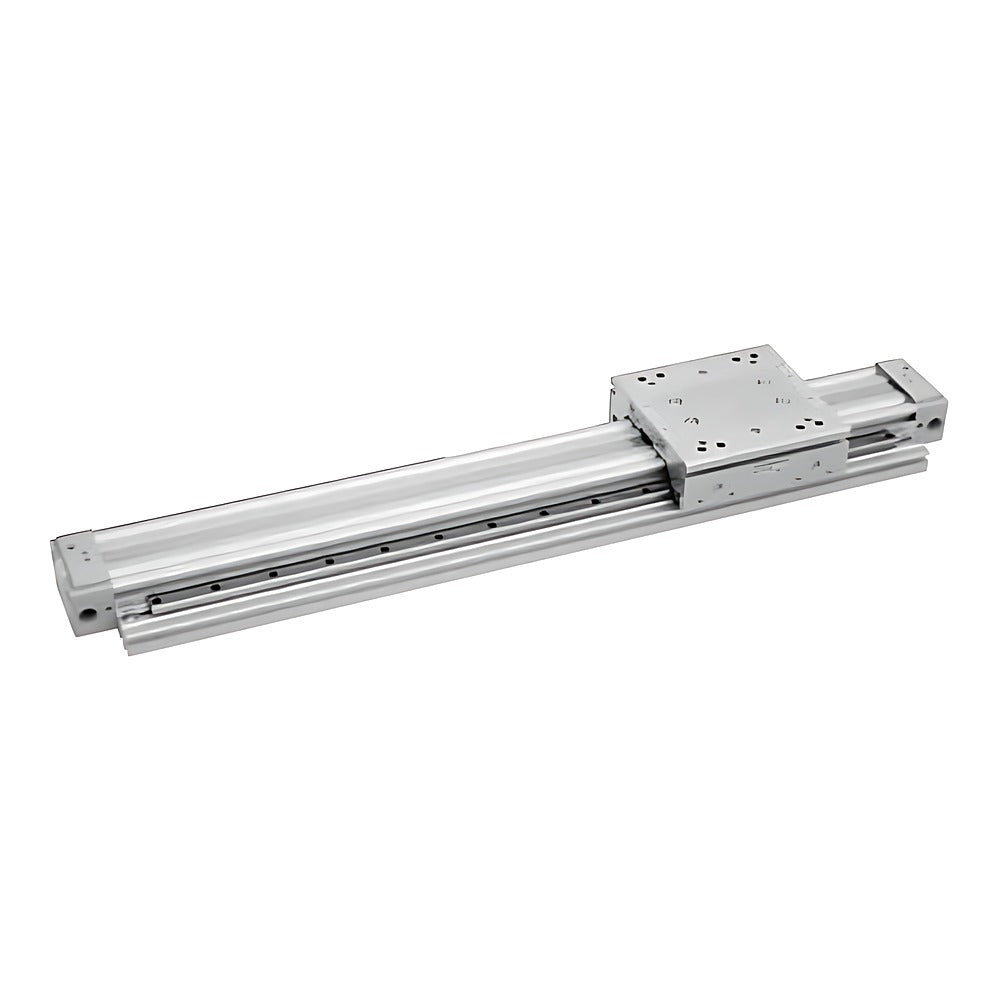

CKD SRM3 Super Rodless Cylinder (High-Precision Guide, ø25-ø63)

CKD SRM3 super rodless cylinder with two integrated high-precision linear guides for accurate, rigid transfer of parts; SRM3-Q adds a mechanical drop-prevention lock.

Key features

Two high-precision linear guides integrated with the slit-type rodless cylinder; strong against bending moments, slim design
SRM3-Q drop-prevention type can be mechanically locked at any position within the full stroke
Air cushion on both ends, R side, L side or none; switch magnet always built in (C0 reed / C1 solid state when ordered without switches)
Options: full-stroke adjustment with shock absorber (A/A1/A2) or light-load shock absorber (E/E1/E2), extra-bracket type A3, port positions R/B/T/D/S
Cylinder switches T0H/V, T5H/V, T8H/V, T2WH/V, T2YH/V, T3WH/V, T3YH/V, T2YD, T2YDT ordered as suffix with quantity R/L/D/T/4
Intermediate strokes in 1 mm steps (ø25/32: 50-1000 mm, ø40/63: 80-2000 mm); P4 secondary-battery spec available

Specifications

Operation	Double acting
Fluid	Compressed air
Max. operating pressure	0.7 MPa
Min. operating pressure	0.15 MPa (ø63: 0.1 MPa)
Proof pressure	1.05 MPa
Ambient temperature	5 to 60°C
Port size	Rc1/8 (ø25), Rc1/4 (ø32/40), Rc3/8 (ø63)
Piston speed	50 to 1500 mm/s
Repeatability	±0.03 mm
Lubrication	Not required
Source	CKD Korea catalog CB-029SK-9, p. 1761-1790

SRM3-25B-200-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-25B-200-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-25B-300-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-25B-300-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-25B-400-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-25B-400-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-25B-500-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-25B-500-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-25B-600-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-25B-600-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-25B-700-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-25B-700-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-25B-800-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-25B-800-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-25B-900-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-25B-900-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-25B-1000-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-25B-1000-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-25R-200-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-25R-200-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-25R-300-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-25R-300-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-25R-400-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-25R-400-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-25R-500-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-25R-500-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-25R-600-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-25R-600-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-25R-700-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-25R-700-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-25R-800-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-25R-800-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-25R-900-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-25R-900-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-25R-1000-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-25R-1000-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-25L-200-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-25L-200-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-25L-300-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-25L-300-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-25L-400-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-25L-400-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-25L-500-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-25L-500-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-25L-600-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-25L-600-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-25L-700-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-25L-700-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-25L-800-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-25L-800-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-25L-900-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-25L-900-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-25L-1000-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-25L-1000-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-25N-200-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-25N-200-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-25N-300-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-25N-300-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-25N-400-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-25N-400-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-25N-500-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-25N-500-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-25N-600-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-25N-600-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-25N-700-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-25N-700-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-25N-800-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-25N-800-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-25N-900-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-25N-900-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-25N-1000-C0		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-25N-1000-C1		Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-32B-200-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-32B-200-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-32B-300-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-32B-300-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-32B-400-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-32B-400-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-32B-500-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-32B-500-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-32B-600-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-32B-600-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-32B-700-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-32B-700-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-32B-800-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-32B-800-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-32B-900-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-32B-900-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-32B-1000-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-32B-1000-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-32R-200-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-32R-200-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-32R-300-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-32R-300-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-32R-400-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-32R-400-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-32R-500-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-32R-500-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-32R-600-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-32R-600-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-32R-700-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-32R-700-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-32R-800-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-32R-800-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-32R-900-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-32R-900-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-32R-1000-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-32R-1000-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-32L-200-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-32L-200-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-32L-300-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-32L-300-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-32L-400-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-32L-400-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-32L-500-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-32L-500-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-32L-600-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-32L-600-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-32L-700-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-32L-700-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-32L-800-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-32L-800-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-32L-900-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-32L-900-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-32L-1000-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-32L-1000-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-32N-200-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-32N-200-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-32N-300-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-32N-300-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-32N-400-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-32N-400-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-32N-500-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-32N-500-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-32N-600-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-32N-600-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-32N-700-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-32N-700-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-32N-800-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-32N-800-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-32N-900-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-32N-900-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-32N-1000-C0		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-32N-1000-C1		Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-200-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-40B-200-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-300-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-40B-300-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-400-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-40B-400-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-500-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-40B-500-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-600-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-40B-600-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-700-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-40B-700-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-800-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-40B-800-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-900-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-40B-900-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1000-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1000-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1100-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1100-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1200-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1200-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1300-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1300-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1400-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1400-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1500-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1500-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1600-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1600-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1700-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1700-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1800-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1800-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-1900-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-40B-1900-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-40B-2000-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-40B-2000-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-200-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-40R-200-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-300-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-40R-300-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-400-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-40R-400-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-500-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-40R-500-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-600-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-40R-600-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-700-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-40R-700-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-800-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-40R-800-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-900-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-40R-900-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1000-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1000-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1100-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1100-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1200-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1200-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1300-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1300-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1400-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1400-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1500-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1500-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1600-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1600-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1700-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1700-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1800-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1800-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-1900-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-40R-1900-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-40R-2000-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-40R-2000-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-200-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-40L-200-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-300-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-40L-300-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-400-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-40L-400-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-500-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-40L-500-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-600-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-40L-600-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-700-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-40L-700-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-800-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-40L-800-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-900-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-40L-900-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1000-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1000-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1100-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1100-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1200-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1200-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1300-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1300-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1400-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1400-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1500-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1500-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1600-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1600-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1700-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1700-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1800-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1800-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-1900-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-40L-1900-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-40L-2000-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-40L-2000-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-200-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-40N-200-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-300-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-40N-300-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-400-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-40N-400-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-500-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-40N-500-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-600-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-40N-600-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-700-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-40N-700-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-800-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-40N-800-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-900-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-40N-900-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1000-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1000-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1100-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1100-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1200-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1200-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1300-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1300-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1400-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1400-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1500-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1500-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1600-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1600-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1700-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1700-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1800-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1800-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-1900-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-40N-1900-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-40N-2000-C0		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-40N-2000-C1		Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-200-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-63B-200-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-300-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-63B-300-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-400-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-63B-400-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-500-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-63B-500-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-600-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-63B-600-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-700-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-63B-700-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-800-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-63B-800-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-900-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-63B-900-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1000-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1000-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1100-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1100-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1200-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1200-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1300-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1300-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1400-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1400-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1500-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1500-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1600-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1600-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1700-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1700-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1800-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1800-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-1900-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-63B-1900-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-63B-2000-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-63B-2000-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-200-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-63R-200-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-300-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-63R-300-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-400-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-63R-400-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-500-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-63R-500-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-600-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-63R-600-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-700-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-63R-700-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-800-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-63R-800-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-900-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-63R-900-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1000-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1000-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1100-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1100-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1200-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1200-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1300-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1300-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1400-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1400-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1500-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1500-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1600-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1600-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1700-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1700-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1800-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1800-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-1900-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-63R-1900-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-63R-2000-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-63R-2000-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-200-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-63L-200-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-300-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-63L-300-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-400-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-63L-400-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-500-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-63L-500-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-600-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-63L-600-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-700-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-63L-700-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-800-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-63L-800-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-900-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-63L-900-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1000-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1000-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1100-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1100-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1200-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1200-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1300-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1300-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1400-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1400-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1500-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1500-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1600-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1600-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1700-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1700-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1800-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1800-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-1900-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-63L-1900-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-63L-2000-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-63L-2000-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-200-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-63N-200-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-300-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-63N-300-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-400-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-63N-400-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-500-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-63N-500-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-600-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-63N-600-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-700-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-63N-700-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-800-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-63N-800-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-900-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-63N-900-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1000-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1000-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1100-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1100-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1200-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1200-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1300-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1300-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1400-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1400-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1500-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1500-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1600-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1600-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1700-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1700-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1800-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1800-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-1900-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-63N-1900-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-63N-2000-C0		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-63N-2000-C1		Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25B-200-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25B-200-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25B-300-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25B-300-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25B-400-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25B-400-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25B-500-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25B-500-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25B-600-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25B-600-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25B-700-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25B-700-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25B-800-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25B-800-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25B-900-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25B-900-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25B-1000-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25B-1000-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25R-200-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25R-200-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25R-300-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25R-300-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25R-400-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25R-400-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25R-500-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25R-500-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25R-600-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25R-600-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25R-700-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25R-700-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25R-800-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25R-800-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25R-900-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25R-900-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25R-1000-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25R-1000-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25L-200-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25L-200-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25L-300-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25L-300-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25L-400-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25L-400-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25L-500-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25L-500-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25L-600-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25L-600-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25L-700-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25L-700-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25L-800-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25L-800-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25L-900-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25L-900-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25L-1000-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25L-1000-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25N-200-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25N-200-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25N-300-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25N-300-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25N-400-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25N-400-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25N-500-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25N-500-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25N-600-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25N-600-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25N-700-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25N-700-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25N-800-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25N-800-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25N-900-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25N-900-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-25N-1000-C0		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-25N-1000-C1		Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32B-200-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32B-200-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32B-300-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32B-300-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32B-400-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32B-400-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32B-500-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32B-500-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32B-600-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32B-600-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32B-700-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32B-700-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32B-800-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32B-800-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32B-900-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32B-900-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32B-1000-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32B-1000-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32R-200-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32R-200-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32R-300-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32R-300-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32R-400-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32R-400-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32R-500-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32R-500-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32R-600-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32R-600-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32R-700-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32R-700-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32R-800-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32R-800-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32R-900-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32R-900-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32R-1000-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32R-1000-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32L-200-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32L-200-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32L-300-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32L-300-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32L-400-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32L-400-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32L-500-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32L-500-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32L-600-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32L-600-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32L-700-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32L-700-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32L-800-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32L-800-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32L-900-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32L-900-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32L-1000-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32L-1000-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32N-200-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32N-200-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32N-300-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32N-300-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32N-400-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32N-400-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32N-500-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32N-500-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32N-600-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32N-600-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32N-700-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32N-700-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32N-800-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32N-800-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32N-900-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32N-900-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-32N-1000-C0		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-32N-1000-C1		Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-200-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-200-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-300-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-300-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-400-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-400-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-500-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-500-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-600-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-600-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-700-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-700-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-800-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-800-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-900-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-900-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1000-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1000-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1100-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1100-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1200-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1200-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1300-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1300-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1400-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1400-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1500-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1500-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1600-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1600-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1700-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1700-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1800-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1800-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-1900-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-1900-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40B-2000-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40B-2000-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-200-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-200-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-300-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-300-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-400-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-400-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-500-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-500-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-600-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-600-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-700-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-700-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-800-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-800-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-900-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-900-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1000-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1000-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1100-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1100-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1200-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1200-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1300-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1300-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1400-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1400-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1500-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1500-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1600-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1600-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1700-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1700-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1800-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1800-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-1900-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-1900-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40R-2000-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40R-2000-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-200-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-200-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-300-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-300-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-400-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-400-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-500-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-500-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-600-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-600-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-700-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-700-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-800-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-800-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-900-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-900-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1000-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1000-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1100-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1100-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1200-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1200-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1300-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1300-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1400-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1400-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1500-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1500-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1600-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1600-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1700-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1700-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1800-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1800-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-1900-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-1900-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40L-2000-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40L-2000-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-200-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-200-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-300-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-300-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-400-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-400-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-500-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-500-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-600-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-600-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-700-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-700-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-800-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-800-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-900-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-900-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1000-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1000-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1100-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1100-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1200-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1200-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1300-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1300-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1400-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1400-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1500-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1500-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1600-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1600-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1700-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1700-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1800-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1800-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-1900-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-1900-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-40N-2000-C0		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-40N-2000-C1		Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-200-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-200-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-300-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-300-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-400-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-400-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-500-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-500-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-600-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-600-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-700-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-700-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-800-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-800-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-900-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-900-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1000-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1000-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1100-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1100-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1200-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1200-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1300-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1300-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1400-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1400-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1500-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1500-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1600-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1600-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1700-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1700-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1800-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1800-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-1900-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-1900-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63B-2000-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63B-2000-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-200-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-200-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-300-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-300-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-400-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-400-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-500-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-500-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-600-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-600-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-700-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-700-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-800-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-800-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-900-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-900-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1000-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1000-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1100-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1100-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1200-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1200-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1300-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1300-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1400-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1400-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1500-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1500-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1600-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1600-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1700-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1700-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1800-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1800-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-1900-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-1900-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63R-2000-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63R-2000-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-200-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-200-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-300-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-300-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-400-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-400-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-500-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-500-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-600-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-600-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-700-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-700-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-800-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-800-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-900-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-900-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1000-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1000-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1100-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1100-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1200-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1200-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1300-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1300-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1400-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1400-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1500-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1500-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1600-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1600-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1700-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1700-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1800-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1800-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-1900-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-1900-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63L-2000-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63L-2000-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-200-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-200-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-300-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-300-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-400-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-400-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-500-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-500-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-600-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-600-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-700-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-700-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-800-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-800-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-900-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-900-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1000-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1000-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1100-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1100-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1200-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1200-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1300-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1300-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1400-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1400-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1500-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1500-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1600-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1600-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1700-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1700-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1800-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1800-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-1900-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-1900-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
SRM3-Q-63N-2000-C0		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
SRM3-Q-63N-2000-C1		Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.

Rodless CylindersCKD

896 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SRM3 Super Rodless Cylinder (High-Precision Guide, ø25-ø63)

Brand CKD·Rodless Cylinders

Available part numbers (896)

SRM3-25B-200-C0, SRM3-25B-200-C1, SRM3-25B-300-C0, SRM3-25B-300-C1, SRM3-25B-400-C0, SRM3-25B-400-C1, SRM3-25B-500-C0, SRM3-25B-500-C1, SRM3-25B-600-C0, SRM3-25B-600-C1 + 886 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SRM3-25B-200-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-25B-200-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25B-300-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-25B-300-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25B-400-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-25B-400-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25B-500-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-25B-500-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25B-600-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-25B-600-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25B-700-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-25B-700-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25B-800-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-25B-800-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25B-900-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-25B-900-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25B-1000-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-25B-1000-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25R-200-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-25R-200-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25R-300-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-25R-300-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25R-400-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-25R-400-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25R-500-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-25R-500-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25R-600-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-25R-600-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25R-700-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-25R-700-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25R-800-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-25R-800-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25R-900-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-25R-900-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25R-1000-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-25R-1000-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25L-200-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-25L-200-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25L-300-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-25L-300-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25L-400-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-25L-400-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25L-500-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-25L-500-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25L-600-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-25L-600-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25L-700-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-25L-700-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25L-800-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-25L-800-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25L-900-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-25L-900-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25L-1000-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-25L-1000-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25N-200-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-25N-200-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25N-300-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-25N-300-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25N-400-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-25N-400-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25N-500-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-25N-500-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25N-600-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-25N-600-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25N-700-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-25N-700-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25N-800-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-25N-800-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25N-900-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-25N-900-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-25N-1000-C0	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-25N-1000-C1	Type: Double acting \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32B-200-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-32B-200-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32B-300-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-32B-300-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32B-400-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-32B-400-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32B-500-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-32B-500-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32B-600-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-32B-600-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32B-700-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-32B-700-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32B-800-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-32B-800-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32B-900-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-32B-900-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32B-1000-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-32B-1000-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32R-200-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-32R-200-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32R-300-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-32R-300-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32R-400-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-32R-400-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32R-500-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-32R-500-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32R-600-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-32R-600-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32R-700-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-32R-700-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32R-800-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-32R-800-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32R-900-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-32R-900-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32R-1000-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-32R-1000-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32L-200-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-32L-200-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32L-300-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-32L-300-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32L-400-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-32L-400-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32L-500-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-32L-500-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32L-600-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-32L-600-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32L-700-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-32L-700-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32L-800-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-32L-800-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32L-900-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-32L-900-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32L-1000-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-32L-1000-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32N-200-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-32N-200-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32N-300-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-32N-300-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32N-400-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-32N-400-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32N-500-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-32N-500-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32N-600-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-32N-600-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32N-700-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-32N-700-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32N-800-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-32N-800-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32N-900-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-32N-900-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-32N-1000-C0	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-32N-1000-C1	Type: Double acting \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-200-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-200-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-300-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-300-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-400-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-400-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-500-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-500-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-600-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-600-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-700-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-700-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-800-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-800-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-900-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-900-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1000-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1000-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1100-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1100-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1200-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1200-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1300-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1300-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1400-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1400-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1500-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1500-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1600-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1600-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1700-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1700-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1800-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1800-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-1900-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-1900-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40B-2000-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-40B-2000-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-200-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-200-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-300-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-300-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-400-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-400-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-500-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-500-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-600-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-600-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-700-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-700-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-800-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-800-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-900-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-900-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1000-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1000-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1100-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1100-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1200-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1200-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1300-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1300-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1400-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1400-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1500-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1500-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1600-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1600-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1700-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1700-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1800-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1800-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-1900-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-1900-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40R-2000-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-40R-2000-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-200-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-200-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-300-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-300-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-400-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-400-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-500-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-500-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-600-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-600-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-700-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-700-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-800-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-800-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-900-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-900-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1000-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1000-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1100-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1100-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1200-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1200-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1300-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1300-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1400-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1400-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1500-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1500-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1600-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1600-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1700-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1700-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1800-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1800-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-1900-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-1900-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40L-2000-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-40L-2000-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-200-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-200-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-300-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-300-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-400-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-400-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-500-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-500-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-600-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-600-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-700-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-700-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-800-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-800-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-900-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-900-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1000-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1000-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1100-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1100-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1200-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1200-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1300-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1300-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1400-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1400-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1500-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1500-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1600-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1600-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1700-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1700-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1800-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1800-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-1900-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-1900-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-40N-2000-C0	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-40N-2000-C1	Type: Double acting \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-200-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-200-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-300-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-300-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-400-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-400-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-500-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-500-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-600-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-600-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-700-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-700-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-800-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-800-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-900-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-900-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1000-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1000-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1100-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1100-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1200-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1200-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1300-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1300-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1400-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1400-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1500-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1500-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1600-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1600-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1700-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1700-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1800-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1800-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-1900-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-1900-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63B-2000-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-63B-2000-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-200-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-200-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-300-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-300-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-400-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-400-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-500-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-500-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-600-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-600-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-700-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-700-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-800-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-800-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-900-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-900-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1000-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1000-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1100-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1100-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1200-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1200-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1300-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1300-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1400-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1400-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1500-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1500-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1600-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1600-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1700-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1700-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1800-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1800-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-1900-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-1900-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63R-2000-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-63R-2000-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-200-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-200-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-300-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-300-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-400-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-400-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-500-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-500-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-600-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-600-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-700-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-700-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-800-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-800-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-900-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-900-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1000-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1000-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1100-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1100-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1200-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1200-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1300-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1300-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1400-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1400-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1500-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1500-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1600-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1600-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1700-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1700-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1800-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1800-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-1900-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-1900-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63L-2000-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-63L-2000-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-200-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-200-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-300-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-300-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-400-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-400-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-500-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-500-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-600-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-600-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-700-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-700-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-800-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-800-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-900-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-900-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1000-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1000-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1100-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1100-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1200-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1200-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1300-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1300-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1400-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1400-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1500-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1500-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1600-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1600-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1700-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1700-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1800-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1800-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-1900-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-1900-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-63N-2000-C0	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-63N-2000-C1	Type: Double acting \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25B-200-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25B-200-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25B-300-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25B-300-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25B-400-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25B-400-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25B-500-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25B-500-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25B-600-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25B-600-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25B-700-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25B-700-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25B-800-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25B-800-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25B-900-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25B-900-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25B-1000-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25B-1000-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25R-200-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25R-200-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25R-300-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25R-300-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25R-400-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25R-400-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25R-500-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25R-500-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25R-600-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25R-600-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25R-700-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25R-700-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25R-800-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25R-800-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25R-900-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25R-900-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25R-1000-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25R-1000-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25L-200-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25L-200-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25L-300-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25L-300-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25L-400-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25L-400-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25L-500-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25L-500-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25L-600-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25L-600-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25L-700-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25L-700-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25L-800-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25L-800-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25L-900-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25L-900-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25L-1000-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25L-1000-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25N-200-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25N-200-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25N-300-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25N-300-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25N-400-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25N-400-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25N-500-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25N-500-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25N-600-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25N-600-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25N-700-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25N-700-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25N-800-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25N-800-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25N-900-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25N-900-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-25N-1000-C0	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-25N-1000-C1	Type: Double acting, drop prevention \| Bore: ø25 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32B-200-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32B-200-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32B-300-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32B-300-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32B-400-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32B-400-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32B-500-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32B-500-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32B-600-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32B-600-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32B-700-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32B-700-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32B-800-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32B-800-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32B-900-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32B-900-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32B-1000-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32B-1000-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32R-200-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32R-200-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32R-300-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32R-300-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32R-400-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32R-400-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32R-500-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32R-500-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32R-600-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32R-600-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32R-700-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32R-700-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32R-800-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32R-800-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32R-900-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32R-900-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32R-1000-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32R-1000-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32L-200-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32L-200-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32L-300-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32L-300-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32L-400-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32L-400-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32L-500-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32L-500-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32L-600-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32L-600-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32L-700-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32L-700-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32L-800-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32L-800-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32L-900-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32L-900-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32L-1000-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32L-1000-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32N-200-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32N-200-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32N-300-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32N-300-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32N-400-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32N-400-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32N-500-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32N-500-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32N-600-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32N-600-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32N-700-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32N-700-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32N-800-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32N-800-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32N-900-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32N-900-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-32N-1000-C0	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-32N-1000-C1	Type: Double acting, drop prevention \| Bore: ø32 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-200-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-200-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-300-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-300-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-400-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-400-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-500-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-500-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-600-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-600-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-700-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-700-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-800-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-800-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-900-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-900-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1000-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1000-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1100-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1100-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1200-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1200-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1300-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1300-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1400-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1400-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1500-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1500-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1600-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1600-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1700-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1700-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1800-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1800-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-1900-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-1900-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40B-2000-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40B-2000-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-200-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-200-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-300-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-300-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-400-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-400-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-500-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-500-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-600-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-600-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-700-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-700-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-800-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-800-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-900-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-900-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1000-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1000-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1100-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1100-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1200-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1200-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1300-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1300-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1400-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1400-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1500-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1500-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1600-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1600-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1700-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1700-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1800-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1800-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-1900-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-1900-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40R-2000-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40R-2000-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-200-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-200-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-300-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-300-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-400-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-400-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-500-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-500-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-600-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-600-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-700-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-700-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-800-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-800-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-900-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-900-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1000-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1000-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1100-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1100-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1200-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1200-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1300-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1300-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1400-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1400-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1500-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1500-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1600-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1600-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1700-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1700-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1800-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1800-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-1900-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-1900-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40L-2000-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40L-2000-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-200-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-200-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-300-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-300-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-400-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-400-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-500-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-500-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-600-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-600-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-700-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-700-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-800-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-800-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-900-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-900-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1000-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1000-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1100-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1100-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1200-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1200-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1300-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1300-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1400-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1400-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1500-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1500-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1600-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1600-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1700-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1700-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1800-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1800-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-1900-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-1900-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-40N-2000-C0	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-40N-2000-C1	Type: Double acting, drop prevention \| Bore: ø40 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-200-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-200-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-300-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-300-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-400-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-400-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-500-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-500-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-600-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-600-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-700-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-700-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-800-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-800-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-900-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-900-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1000-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1000-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1100-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1100-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1200-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1200-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1300-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1300-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1400-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1400-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1500-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1500-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1600-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1600-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1700-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1700-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1800-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1800-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-1900-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-1900-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63B-2000-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63B-2000-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: Both ends \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-200-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-200-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-300-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-300-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-400-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-400-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-500-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-500-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-600-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-600-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-700-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-700-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-800-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-800-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-900-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-900-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1000-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1000-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1100-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1100-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1200-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1200-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1300-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1300-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1400-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1400-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1500-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1500-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1600-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1600-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1700-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1700-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1800-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1800-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-1900-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-1900-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63R-2000-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63R-2000-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: R side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-200-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-200-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-300-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-300-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-400-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-400-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-500-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-500-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-600-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-600-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-700-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-700-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-800-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-800-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-900-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-900-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1000-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1000-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1100-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1100-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1200-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1200-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1300-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1300-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1400-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1400-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1500-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1500-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1600-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1600-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1700-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1700-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1800-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1800-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-1900-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-1900-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63L-2000-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63L-2000-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: L side only \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-200-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-200-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-300-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-300-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-400-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-400-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-500-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-500-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-600-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-600-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-700-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-700-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-800-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-800-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-900-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-900-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1000-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1000-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1000 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1100-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1100-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1100 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1200-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1200-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1200 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1300-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1300-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1300 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1400-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1400-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1400 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1500-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1500-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1500 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1600-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1600-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1600 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1700-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1700-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1700 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1800-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1800-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1800 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-1900-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-1900-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 1900 mm \| Magnet: Built-in, for solid state sw.
	SRM3-Q-63N-2000-C0	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for reed switch
	SRM3-Q-63N-2000-C1	Type: Double acting, drop prevention \| Bore: ø63 equiv. \| Cushion: None \| Stroke: 2000 mm \| Magnet: Built-in, for solid state sw.

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SRM3 Super Rodless Cylinder (High-Precision Guide, ø25-ø63)
