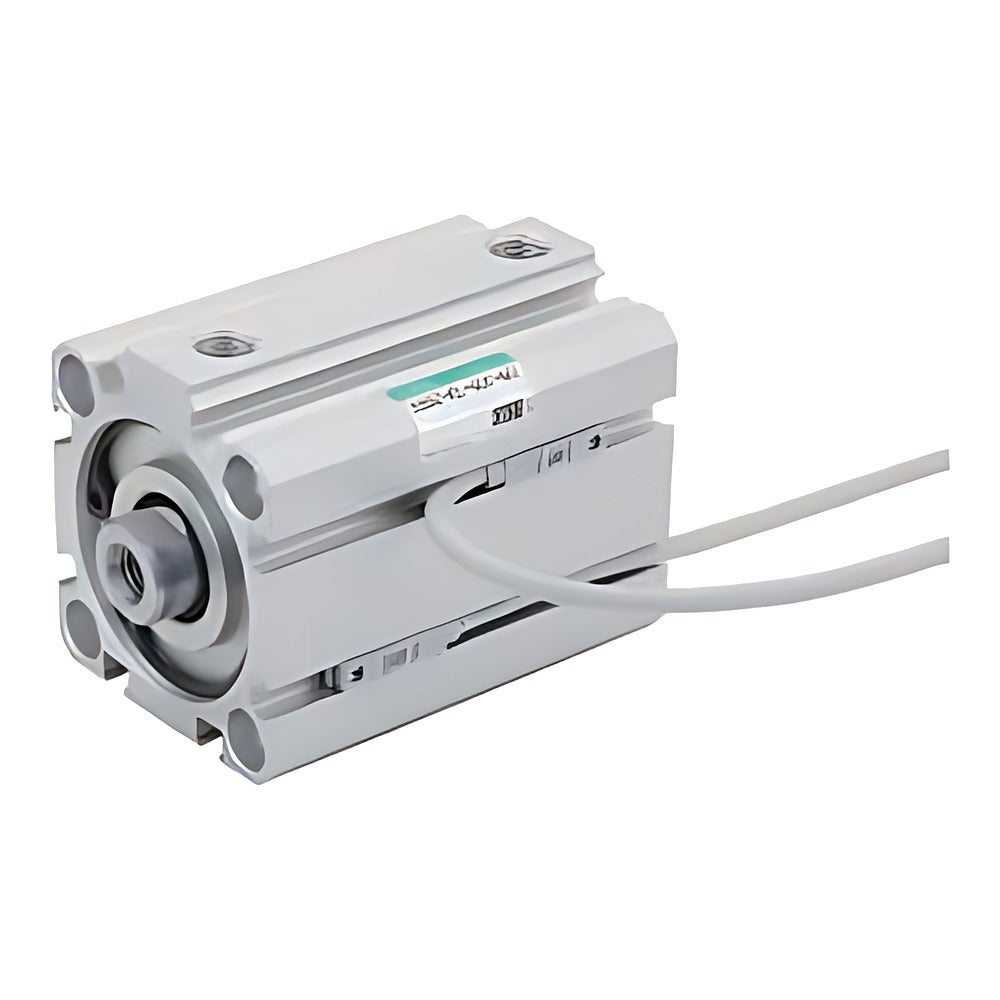

CKD SSD-F Super Compact Cylinder (Double Acting, Ultra Low Speed)

CKD SSD-F Super Compact Cylinder (Double Acting, Ultra Low Speed)

CKD SSD-F super compact cylinder, double acting ultra-low-speed type for smooth motion from 1 mm/s, bore 12 to 100 mm.

Key features

  • Stable operation at piston speeds of 1 to 200 mm/s without stick-slip
  • Switch-ready version (L) has a built-in magnet for T-type auto switches (T0H, T2H, T2YH, T3H etc.)
  • SSD-L1F: bore 12/16 version for 2-colour, off-delay or T1 switches (stroke 10 mm and over)
  • Standard strokes 5 to 50 mm, intermediate strokes in 1 mm steps
  • Lubrication not allowed; clean-room version (P7) available

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (12-50), 0.05 MPa (63-100)
Proof pressure 1.6 MPa
Ambient temperature 5 to 60°C
Piston speed 1-200 mm/s
Cushion None
Stroke tolerance +1.0/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1260-1265
SSD-F-12-5 Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-F-12-10 Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-F-12-15 Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-F-12-20 Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-F-12-25 Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-F-12-30 Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-F-16-5 Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-F-16-10 Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-F-16-15 Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-F-16-20 Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-F-16-25 Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-F-16-30 Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-F-20-5 Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-F-20-10 Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-F-20-15 Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-F-20-20 Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-F-20-25 Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-F-20-30 Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-F-25-5 Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-F-25-10 Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-F-25-15 Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-F-25-20 Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-F-25-25 Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-F-25-30 Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-F-25-40 Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-F-25-50 Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-F-32-5 Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-F-32-10 Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-F-32-15 Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-F-32-20 Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-F-32-25 Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-F-32-30 Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-F-32-40 Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-F-32-50 Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-F-40-5 Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-F-40-10 Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-F-40-15 Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-F-40-20 Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-F-40-25 Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-F-40-30 Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-F-40-40 Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-F-40-50 Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-F-50-5 Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-F-50-10 Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-F-50-15 Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-F-50-20 Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-F-50-25 Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-F-50-30 Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-F-50-40 Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-F-50-50 Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-F-63-5 Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-F-63-10 Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-F-63-20 Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-F-63-30 Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-F-63-40 Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-F-63-50 Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-F-80-5 Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-F-80-10 Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-F-80-20 Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-F-80-30 Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-F-80-40 Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-F-80-50 Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-F-100-5 Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-F-100-10 Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-F-100-20 Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-F-100-30 Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-F-100-40 Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-F-100-50 Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-LF-12-5 Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-LF-12-10 Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-LF-12-15 Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-LF-12-20 Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-LF-12-25 Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-LF-12-30 Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-LF-16-5 Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-LF-16-10 Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-LF-16-15 Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-LF-16-20 Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-LF-16-25 Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-LF-16-30 Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-LF-20-5 Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-LF-20-10 Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-LF-20-15 Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-LF-20-20 Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-LF-20-25 Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-LF-20-30 Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-LF-25-5 Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-LF-25-10 Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-LF-25-15 Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-LF-25-20 Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-LF-25-25 Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-LF-25-30 Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-LF-25-40 Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-LF-25-50 Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-LF-32-5 Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-LF-32-10 Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-LF-32-15 Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-LF-32-20 Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-LF-32-25 Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-LF-32-30 Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-LF-32-40 Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-LF-32-50 Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-LF-40-5 Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-LF-40-10 Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-LF-40-15 Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-LF-40-20 Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-LF-40-25 Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-LF-40-30 Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-LF-40-40 Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-LF-40-50 Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-LF-50-5 Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-LF-50-10 Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-LF-50-15 Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-LF-50-20 Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-LF-50-25 Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-LF-50-30 Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-LF-50-40 Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-LF-50-50 Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-LF-63-5 Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-LF-63-10 Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-LF-63-20 Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-LF-63-30 Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-LF-63-40 Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-LF-63-50 Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-LF-80-5 Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-LF-80-10 Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-LF-80-20 Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-LF-80-30 Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-LF-80-40 Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-LF-80-50 Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-LF-100-5 Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-LF-100-10 Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-LF-100-20 Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-LF-100-30 Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-LF-100-40 Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-LF-100-50 Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-L1F-12-10 Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-L1F-12-15 Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-L1F-12-20 Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-L1F-12-25 Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-L1F-12-30 Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-L1F-16-10 Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-L1F-16-15 Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-L1F-16-20 Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-L1F-16-25 Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-L1F-16-30 Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 30 mm | Port: M5
Compact CylindersCKD
146 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-F Super Compact Cylinder (Double Acting, Ultra Low Speed)

Brand CKD·Compact Cylinders

Available part numbers (146)

SSD-F-12-5, SSD-F-12-10, SSD-F-12-15, SSD-F-12-20, SSD-F-12-25, SSD-F-12-30, SSD-F-16-5, SSD-F-16-10, SSD-F-16-15, SSD-F-16-20 + 136 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD-F-12-5Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-F-12-10Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-F-12-15Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-F-12-20Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-F-12-25Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-F-12-30Model: SSD-F (no magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-F-16-5Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-F-16-10Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-F-16-15Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-F-16-20Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-F-16-25Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-F-16-30Model: SSD-F (no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-F-20-5Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-F-20-10Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-F-20-15Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-F-20-20Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-F-20-25Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-F-20-30Model: SSD-F (no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-F-25-5Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-F-25-10Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-F-25-15Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-F-25-20Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-F-25-25Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-F-25-30Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-F-25-40Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-F-25-50Model: SSD-F (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-F-32-5Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-F-32-10Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-F-32-15Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-F-32-20Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-F-32-25Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-F-32-30Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-F-32-40Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-F-32-50Model: SSD-F (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-F-40-5Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-F-40-10Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-F-40-15Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-F-40-20Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-F-40-25Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-F-40-30Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-F-40-40Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-F-40-50Model: SSD-F (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-F-50-5Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-F-50-10Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-F-50-15Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-F-50-20Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-F-50-25Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-F-50-30Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-F-50-40Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-F-50-50Model: SSD-F (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-F-63-5Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-F-63-10Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-F-63-20Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-F-63-30Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-F-63-40Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-F-63-50Model: SSD-F (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-F-80-5Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-F-80-10Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-F-80-20Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-F-80-30Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-F-80-40Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-F-80-50Model: SSD-F (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-F-100-5Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-F-100-10Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-F-100-20Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-F-100-30Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-F-100-40Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-F-100-50Model: SSD-F (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-LF-12-5Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-LF-12-10Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-LF-12-15Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-LF-12-20Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-LF-12-25Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-LF-12-30Model: SSD-LF (switch magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-LF-16-5Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-LF-16-10Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-LF-16-15Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-LF-16-20Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-LF-16-25Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-LF-16-30Model: SSD-LF (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-LF-20-5Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-LF-20-10Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-LF-20-15Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-LF-20-20Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-LF-20-25Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-LF-20-30Model: SSD-LF (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-LF-25-5Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-LF-25-10Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-LF-25-15Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-LF-25-20Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-LF-25-25Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-LF-25-30Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-LF-25-40Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-LF-25-50Model: SSD-LF (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-LF-32-5Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-LF-32-10Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-LF-32-15Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-LF-32-20Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-LF-32-25Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-LF-32-30Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-LF-32-40Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-LF-32-50Model: SSD-LF (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-LF-40-5Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-LF-40-10Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-LF-40-15Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-LF-40-20Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-LF-40-25Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-LF-40-30Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-LF-40-40Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-LF-40-50Model: SSD-LF (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-LF-50-5Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-LF-50-10Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-LF-50-15Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-LF-50-20Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-LF-50-25Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-LF-50-30Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-LF-50-40Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-LF-50-50Model: SSD-LF (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-LF-63-5Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-LF-63-10Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-LF-63-20Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-LF-63-30Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-LF-63-40Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-LF-63-50Model: SSD-LF (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-LF-80-5Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-LF-80-10Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-LF-80-20Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-LF-80-30Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-LF-80-40Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-LF-80-50Model: SSD-LF (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-LF-100-5Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-LF-100-10Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-LF-100-20Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-LF-100-30Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-LF-100-40Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-LF-100-50Model: SSD-LF (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-L1F-12-10Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-L1F-12-15Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-L1F-12-20Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-L1F-12-25Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-L1F-12-30Model: SSD-L1F (T1 2-colour switch) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-L1F-16-10Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-L1F-16-15Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-L1F-16-20Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-L1F-16-25Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-L1F-16-30Model: SSD-L1F (T1 2-colour switch) | Bore: 16 mm | Stroke: 30 mm | Port: M5

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
