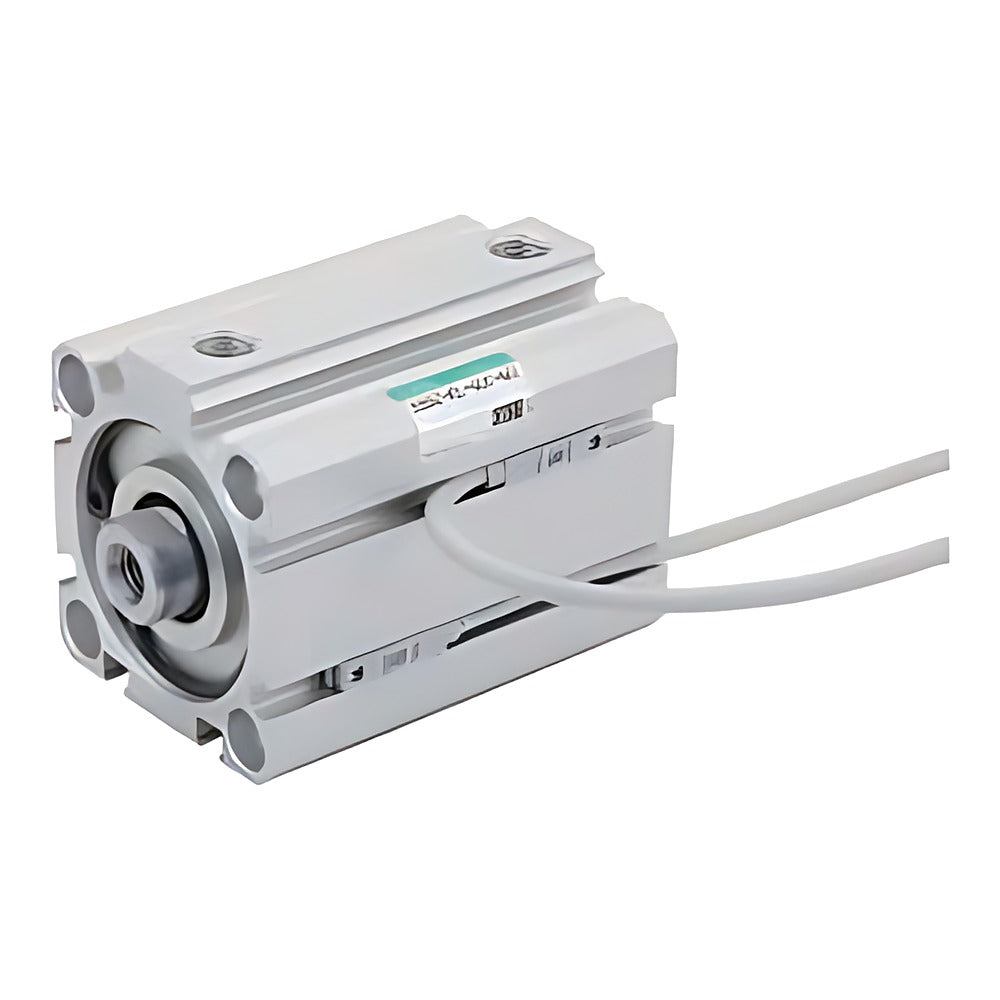

CKD SSD-G1 Super Compact Cylinder (Double Acting, Coil Scraper)

CKD SSD-G1 Super Compact Cylinder (Double Acting, Coil Scraper)

CKD SSD-G1 super compact cylinder, double acting single rod type with coil scraper that removes chips and spatter from the rod, bore 25 to 100 mm.

Key features

  • Coil scraper on the rod for harsh chip/spatter environments
  • Switch-ready version SSD-G1L for AC magnetic field resistant switches T2YD/T2YDT (min. stroke 10 mm)
  • Standard strokes 5 to 50 mm; strokes above standard become the high-load (K) type
  • No cushion; non-lube
  • Mounting brackets shipped attached; rod-end accessories ordered as code suffixes

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (25-50), 0.1 MPa (63-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50-500 mm/s (25-50), 50-300 mm/s (63-100)
Cushion None
Stroke tolerance +1.0/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1334-1341
SSD-G1-25-5 Model: SSD-G1 (no magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-G1-25-10 Model: SSD-G1 (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-G1-25-15 Model: SSD-G1 (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-G1-25-20 Model: SSD-G1 (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-G1-25-25 Model: SSD-G1 (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-G1-25-30 Model: SSD-G1 (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-G1-25-40 Model: SSD-G1 (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-G1-25-50 Model: SSD-G1 (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-G1-32-5 Model: SSD-G1 (no magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-G1-32-10 Model: SSD-G1 (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-G1-32-15 Model: SSD-G1 (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-G1-32-20 Model: SSD-G1 (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-G1-32-25 Model: SSD-G1 (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-G1-32-30 Model: SSD-G1 (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-G1-32-40 Model: SSD-G1 (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-G1-32-50 Model: SSD-G1 (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-G1-40-5 Model: SSD-G1 (no magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-G1-40-10 Model: SSD-G1 (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-G1-40-15 Model: SSD-G1 (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-G1-40-20 Model: SSD-G1 (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-G1-40-25 Model: SSD-G1 (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-G1-40-30 Model: SSD-G1 (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-G1-40-40 Model: SSD-G1 (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-G1-40-50 Model: SSD-G1 (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-G1-50-5 Model: SSD-G1 (no magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-G1-50-10 Model: SSD-G1 (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-G1-50-15 Model: SSD-G1 (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-G1-50-20 Model: SSD-G1 (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-G1-50-25 Model: SSD-G1 (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-G1-50-30 Model: SSD-G1 (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-G1-50-40 Model: SSD-G1 (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-G1-50-50 Model: SSD-G1 (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-G1-63-5 Model: SSD-G1 (no magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-G1-63-10 Model: SSD-G1 (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-G1-63-20 Model: SSD-G1 (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-G1-63-30 Model: SSD-G1 (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-G1-63-40 Model: SSD-G1 (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-G1-63-50 Model: SSD-G1 (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-G1-80-5 Model: SSD-G1 (no magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-G1-80-10 Model: SSD-G1 (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-G1-80-20 Model: SSD-G1 (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-G1-80-30 Model: SSD-G1 (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-G1-80-40 Model: SSD-G1 (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-G1-80-50 Model: SSD-G1 (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-G1-100-5 Model: SSD-G1 (no magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-G1-100-10 Model: SSD-G1 (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-G1-100-20 Model: SSD-G1 (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-G1-100-30 Model: SSD-G1 (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-G1-100-40 Model: SSD-G1 (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-G1-100-50 Model: SSD-G1 (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-G1L-25-10 Model: SSD-G1L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-G1L-25-15 Model: SSD-G1L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-G1L-25-20 Model: SSD-G1L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-G1L-25-25 Model: SSD-G1L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-G1L-25-30 Model: SSD-G1L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-G1L-25-40 Model: SSD-G1L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-G1L-25-50 Model: SSD-G1L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-G1L-32-10 Model: SSD-G1L (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-G1L-32-15 Model: SSD-G1L (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-G1L-32-20 Model: SSD-G1L (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-G1L-32-25 Model: SSD-G1L (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-G1L-32-30 Model: SSD-G1L (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-G1L-32-40 Model: SSD-G1L (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-G1L-32-50 Model: SSD-G1L (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-G1L-40-10 Model: SSD-G1L (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-G1L-40-15 Model: SSD-G1L (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-G1L-40-20 Model: SSD-G1L (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-G1L-40-25 Model: SSD-G1L (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-G1L-40-30 Model: SSD-G1L (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-G1L-40-40 Model: SSD-G1L (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-G1L-40-50 Model: SSD-G1L (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-G1L-50-10 Model: SSD-G1L (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-G1L-50-15 Model: SSD-G1L (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-G1L-50-20 Model: SSD-G1L (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-G1L-50-25 Model: SSD-G1L (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-G1L-50-30 Model: SSD-G1L (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-G1L-50-40 Model: SSD-G1L (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-G1L-50-50 Model: SSD-G1L (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-G1L-63-10 Model: SSD-G1L (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-G1L-63-20 Model: SSD-G1L (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-G1L-63-30 Model: SSD-G1L (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-G1L-63-40 Model: SSD-G1L (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-G1L-63-50 Model: SSD-G1L (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-G1L-80-10 Model: SSD-G1L (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-G1L-80-20 Model: SSD-G1L (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-G1L-80-30 Model: SSD-G1L (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-G1L-80-40 Model: SSD-G1L (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-G1L-80-50 Model: SSD-G1L (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-G1L-100-10 Model: SSD-G1L (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-G1L-100-20 Model: SSD-G1L (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-G1L-100-30 Model: SSD-G1L (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-G1L-100-40 Model: SSD-G1L (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-G1L-100-50 Model: SSD-G1L (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
Compact CylindersCKD
93 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-G1 Super Compact Cylinder (Double Acting, Coil Scraper)

Brand CKD·Compact Cylinders

Available part numbers (93)

SSD-G1-25-5, SSD-G1-25-10, SSD-G1-25-15, SSD-G1-25-20, SSD-G1-25-25, SSD-G1-25-30, SSD-G1-25-40, SSD-G1-25-50, SSD-G1-32-5, SSD-G1-32-10 + 83 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
