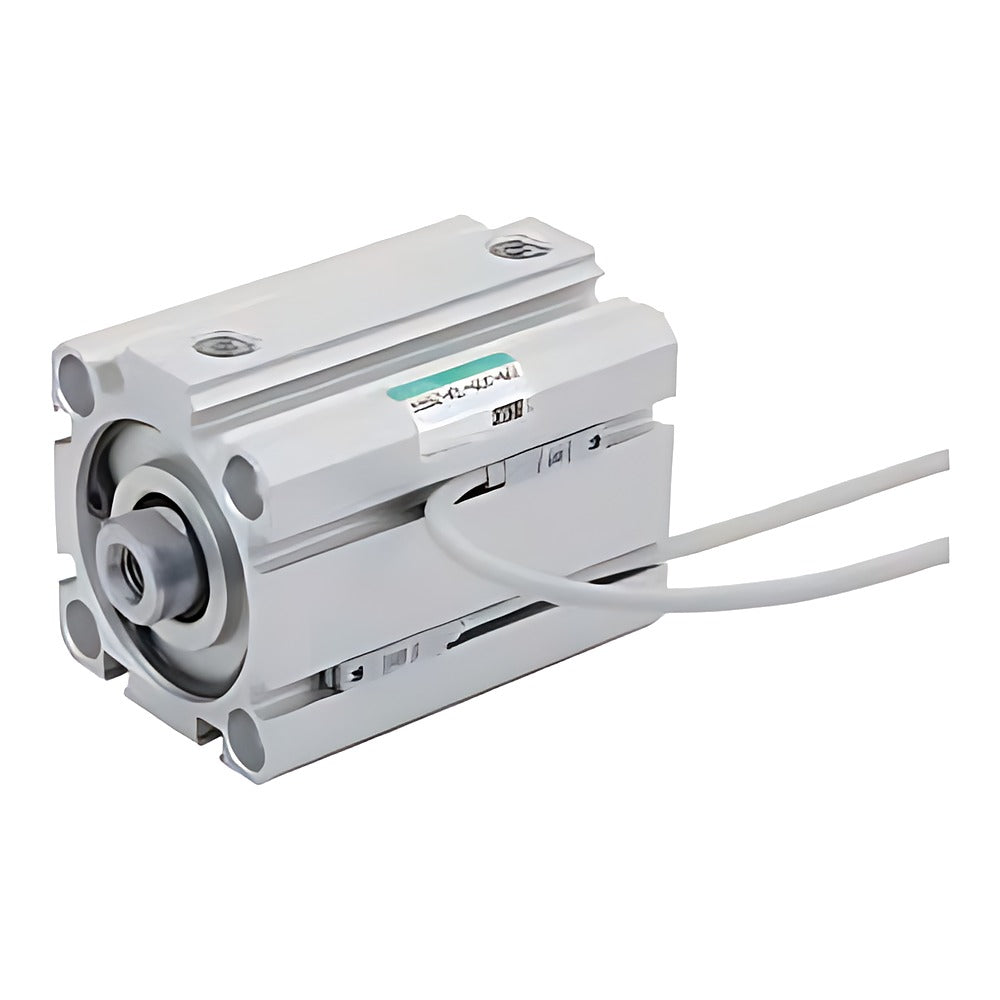

CKD SSD-G1L4 Super Compact Cylinder (Mag. Field Switch, Coil Scraper)

CKD SSD-G1L4 Super Compact Cylinder (Mag. Field Switch, Coil Scraper)

CKD SSD-G1L4 super compact cylinder, double-acting single-rod type with coil scraper and built-in V0 switch resistant to strong magnetic fields, bore 40 to 100 mm.

Key features

  • Supplied with V0 reed switch(es) resistant to strong magnetic fields (welding); 1, 2 or 3 switches (3 switches: min. stroke 35 mm)
  • Coil scraper on the piston rod removes welding spatter
  • Standard strokes 20, 30, 40, 50 mm; intermediate strokes in 1 mm steps (min. 20, max. 50 mm)
  • Mounting LB/LB2/CB/CB2/FA/FB, rod end male thread (N) and accessories I/I2/Y/Y2 as code suffixes; lead wire 3 m/5 m optional

Specifications

Action Double-acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Lubrication Not required (turbine oil ISO VG32 if used)
Min. operating pressure 0.15 MPa (40-50), 0.1 MPa (63-100)
Cushion None
Piston speed 50-500 mm/s (40-50), 50-300 mm/s (63-100)
Stroke tolerance +1.0/0 mm
Switch V0 reed switch (strong magnetic field resistant), 1-colour LED, AC/DC, 2-wire
Source CKD Korea catalog CB-029SK-9, p. 1294-1299
