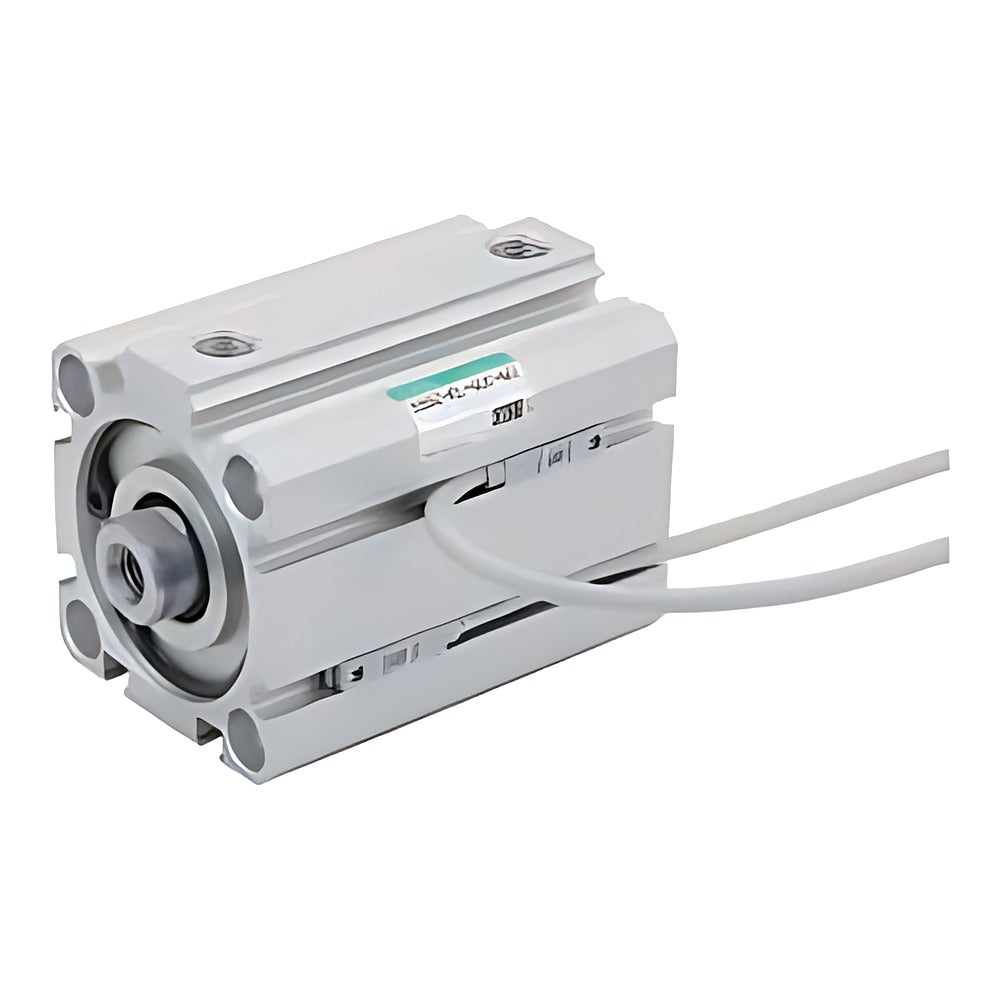

CKD SSD-G5 Super Compact Cylinder (Environment-Resistant Scraper)

CKD SSD-G5 Super Compact Cylinder (Environment-Resistant Scraper)

CKD SSD-G5 super compact cylinder, double-acting single-rod type with environment-resistant scraper for coolant and dusty environments, bore 20 to 100 mm (made to order).

Key features

  • Environment-resistant scraper protects the rod seal from coolant, chips and dust
  • SSD-G5L has a built-in switch magnet; T0/T5/T8 reed and T1/T2/T3/T2W/T2Y/T3W/T3Y/T2J/T2YD solid-state switches
  • Standard strokes 5-50 mm in 1 mm steps; longer strokes become the high-load SSD-KG5 type
  • NPT (NN) or G (GN) port threads for bore 32 and above made to order
  • Mounting brackets LB/LB2 (foot), CB/CB2 (clevis), FA/FB (flange) are a code suffix, shipped attached; rod end male thread (N) and rod-end accessories I/I2/Y/Y2 are options

Specifications

Action Double-acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Lubrication Not required (turbine oil ISO VG32 if used)
Min. operating pressure 0.2 MPa (20-50), 0.15 MPa (63-100)
Cushion None
Piston speed 50-500 mm/s (20-50), 50-300 mm/s (63-100)
Stroke tolerance +1.0/0 mm
Availability Made to order
Source CKD Korea catalog CB-029SK-9, p. 1272-1279
SSD-G5-20-5 Model: G5 (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-G5-20-10 Model: G5 (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-G5-20-15 Model: G5 (no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-G5-20-20 Model: G5 (no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-G5-20-25 Model: G5 (no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-G5-20-30 Model: G5 (no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-G5-20-40 Model: G5 (no magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-G5-20-50 Model: G5 (no magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-G5-25-5 Model: G5 (no magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-G5-25-10 Model: G5 (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-G5-25-15 Model: G5 (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-G5-25-20 Model: G5 (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-G5-25-25 Model: G5 (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-G5-25-30 Model: G5 (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-G5-25-40 Model: G5 (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-G5-25-50 Model: G5 (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-G5-32-5 Model: G5 (no magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-G5-32-10 Model: G5 (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-G5-32-15 Model: G5 (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-G5-32-20 Model: G5 (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-G5-32-25 Model: G5 (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-G5-32-30 Model: G5 (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-G5-32-40 Model: G5 (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-G5-32-50 Model: G5 (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-G5-40-5 Model: G5 (no magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-G5-40-10 Model: G5 (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-G5-40-15 Model: G5 (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-G5-40-20 Model: G5 (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-G5-40-25 Model: G5 (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-G5-40-30 Model: G5 (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-G5-40-40 Model: G5 (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-G5-40-50 Model: G5 (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-G5-50-5 Model: G5 (no magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-G5-50-10 Model: G5 (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-G5-50-15 Model: G5 (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-G5-50-20 Model: G5 (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-G5-50-25 Model: G5 (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-G5-50-30 Model: G5 (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-G5-50-40 Model: G5 (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-G5-50-50 Model: G5 (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-G5-63-5 Model: G5 (no magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-G5-63-10 Model: G5 (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-G5-63-20 Model: G5 (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-G5-63-30 Model: G5 (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-G5-63-40 Model: G5 (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-G5-63-50 Model: G5 (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-G5-80-5 Model: G5 (no magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-G5-80-10 Model: G5 (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-G5-80-20 Model: G5 (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-G5-80-30 Model: G5 (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-G5-80-40 Model: G5 (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-G5-80-50 Model: G5 (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-G5-100-5 Model: G5 (no magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-G5-100-10 Model: G5 (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-G5-100-20 Model: G5 (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-G5-100-30 Model: G5 (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-G5-100-40 Model: G5 (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-G5-100-50 Model: G5 (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-G5L-20-5 Model: G5L (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-G5L-20-10 Model: G5L (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-G5L-20-15 Model: G5L (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-G5L-20-20 Model: G5L (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-G5L-20-25 Model: G5L (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-G5L-20-30 Model: G5L (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-G5L-20-40 Model: G5L (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-G5L-20-50 Model: G5L (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-G5L-25-5 Model: G5L (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-G5L-25-10 Model: G5L (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-G5L-25-15 Model: G5L (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-G5L-25-20 Model: G5L (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-G5L-25-25 Model: G5L (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-G5L-25-30 Model: G5L (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-G5L-25-40 Model: G5L (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-G5L-25-50 Model: G5L (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-G5L-32-5 Model: G5L (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-G5L-32-10 Model: G5L (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-G5L-32-15 Model: G5L (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-G5L-32-20 Model: G5L (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-G5L-32-25 Model: G5L (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-G5L-32-30 Model: G5L (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-G5L-32-40 Model: G5L (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-G5L-32-50 Model: G5L (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-G5L-40-5 Model: G5L (switch magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-G5L-40-10 Model: G5L (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-G5L-40-15 Model: G5L (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-G5L-40-20 Model: G5L (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-G5L-40-25 Model: G5L (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-G5L-40-30 Model: G5L (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-G5L-40-40 Model: G5L (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-G5L-40-50 Model: G5L (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-G5L-50-5 Model: G5L (switch magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-G5L-50-10 Model: G5L (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-G5L-50-15 Model: G5L (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-G5L-50-20 Model: G5L (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-G5L-50-25 Model: G5L (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-G5L-50-30 Model: G5L (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-G5L-50-40 Model: G5L (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-G5L-50-50 Model: G5L (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-G5L-63-5 Model: G5L (switch magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-G5L-63-10 Model: G5L (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-G5L-63-20 Model: G5L (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-G5L-63-30 Model: G5L (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-G5L-63-40 Model: G5L (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-G5L-63-50 Model: G5L (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-G5L-80-5 Model: G5L (switch magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-G5L-80-10 Model: G5L (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-G5L-80-20 Model: G5L (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-G5L-80-30 Model: G5L (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-G5L-80-40 Model: G5L (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-G5L-80-50 Model: G5L (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-G5L-100-5 Model: G5L (switch magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-G5L-100-10 Model: G5L (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-G5L-100-20 Model: G5L (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-G5L-100-30 Model: G5L (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-G5L-100-40 Model: G5L (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-G5L-100-50 Model: G5L (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
