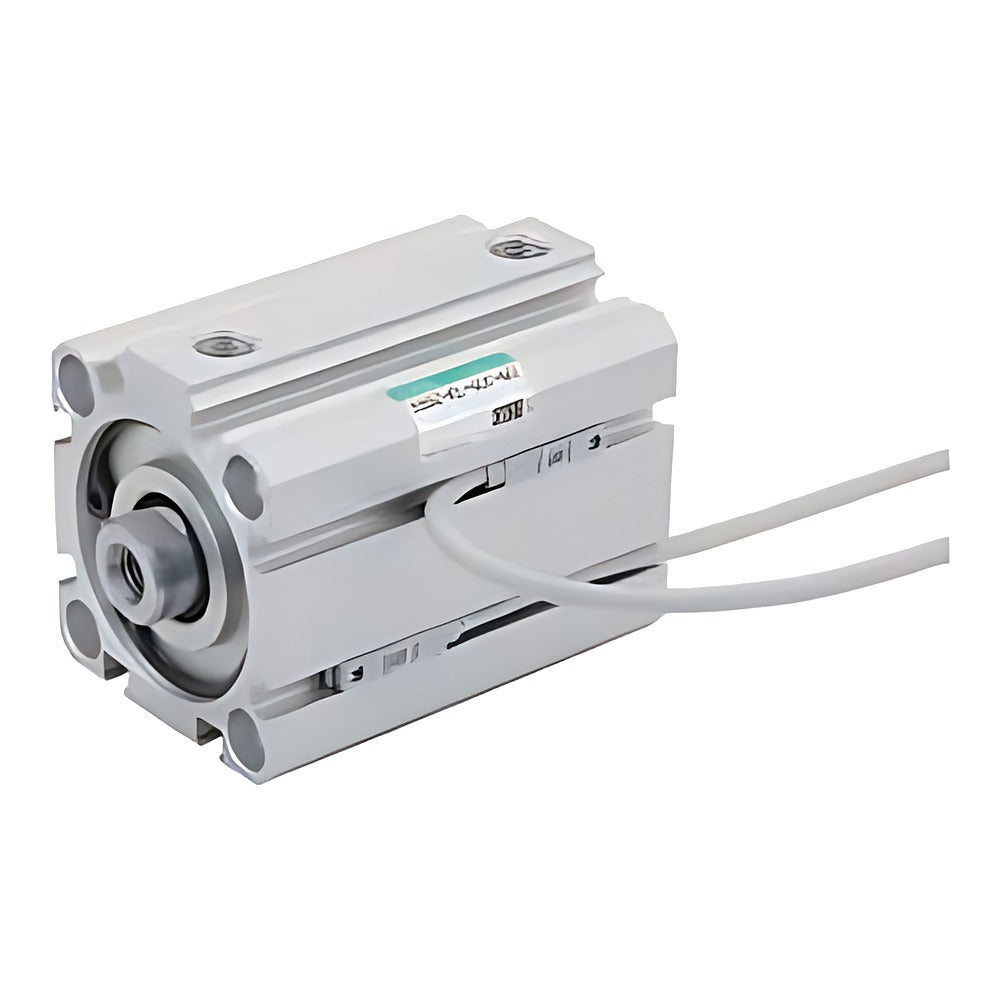

CKD SSD-K-C Super Compact Cylinder (High Load, Rubber Air Cushion)

CKD SSD-K-C Super Compact Cylinder (High Load, Rubber Air Cushion)

CKD SSD-K-C super compact cylinder, high-load type with rubber air cushion that lowers impact noise and shock at stroke end, bore 20 to 100 mm.

Key features

  • Rubber air cushion: rubber cushion plus air cushion formed when the piston seals on the cushion ring
  • Lower collision noise and impact acceleration than a standard rubber-cushion cylinder
  • Switch-ready version (L) has a built-in magnet for T-type auto switches (T0H, T2H, T2YH, T3H etc.)
  • Standard strokes 5 to 100 mm; max. 200 mm (bore 20) and 300 mm (25-100) on order
  • Mounting brackets and rod-end accessories ordered as code suffixes

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.25 MPa (20/25), 0.2 MPa (32-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50-500 mm/s (20-50), 50-300 mm/s (63-100)
Cushion Rubber air cushion
Stroke tolerance +2.0/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1238-1246
SSD-K-20C-5 Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: Rc1/8
SSD-K-20C-10 Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-20C-15 Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-20C-20 Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-20C-25 Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-20C-30 Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-20C-40 Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-20C-50 Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-25C-10 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-25C-15 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-25C-20 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-25C-25 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-25C-30 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-25C-40 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-25C-50 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-25C-60 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-25C-70 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-25C-80 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-25C-90 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-25C-100 Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-32C-10 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-32C-15 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-32C-20 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-32C-25 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-32C-30 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-32C-40 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-32C-50 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-32C-60 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-32C-70 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-32C-80 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-32C-90 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-32C-100 Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-40C-10 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-40C-15 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-40C-20 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-40C-25 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-40C-30 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-40C-40 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-40C-50 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-40C-60 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-40C-70 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-40C-80 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-40C-90 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-40C-100 Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-50C-10 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-K-50C-15 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-K-50C-20 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-K-50C-25 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-K-50C-30 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-K-50C-40 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-K-50C-50 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-K-50C-60 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-K-50C-70 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-K-50C-80 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-K-50C-90 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-K-50C-100 Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-K-63C-10 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-K-63C-20 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-K-63C-30 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-K-63C-40 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-K-63C-50 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-K-63C-60 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-K-63C-70 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-K-63C-80 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-K-63C-90 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-K-63C-100 Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-K-80C-10 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-K-80C-20 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-K-80C-30 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-K-80C-40 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-K-80C-50 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-K-80C-60 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-K-80C-70 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-K-80C-80 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-K-80C-90 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-K-80C-100 Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-K-100C-10 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-K-100C-20 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-K-100C-30 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-K-100C-40 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-K-100C-50 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-K-100C-60 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-K-100C-70 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-K-100C-80 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-K-100C-90 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-K-100C-100 Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KL-20C-5 Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: Rc1/8
SSD-KL-20C-10 Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-20C-15 Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-20C-20 Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-20C-25 Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-20C-30 Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-20C-40 Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-20C-50 Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-25C-10 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-25C-15 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-25C-20 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-25C-25 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-25C-30 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-25C-40 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-25C-50 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-25C-60 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-25C-70 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-25C-80 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-25C-90 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-25C-100 Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-32C-10 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-32C-15 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-32C-20 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-32C-25 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-32C-30 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-32C-40 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-32C-50 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-32C-60 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-32C-70 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-32C-80 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-32C-90 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-32C-100 Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-40C-10 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-40C-15 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-40C-20 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-40C-25 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-40C-30 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-40C-40 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-40C-50 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-40C-60 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-40C-70 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-40C-80 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-40C-90 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-40C-100 Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-50C-10 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KL-50C-15 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KL-50C-20 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KL-50C-25 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KL-50C-30 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KL-50C-40 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KL-50C-50 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KL-50C-60 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KL-50C-70 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KL-50C-80 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KL-50C-90 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KL-50C-100 Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KL-63C-10 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KL-63C-20 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KL-63C-30 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KL-63C-40 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KL-63C-50 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KL-63C-60 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KL-63C-70 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KL-63C-80 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KL-63C-90 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KL-63C-100 Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KL-80C-10 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KL-80C-20 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KL-80C-30 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KL-80C-40 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KL-80C-50 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KL-80C-60 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KL-80C-70 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KL-80C-80 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KL-80C-90 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KL-80C-100 Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KL-100C-10 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KL-100C-20 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KL-100C-30 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KL-100C-40 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KL-100C-50 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KL-100C-60 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KL-100C-70 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KL-100C-80 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KL-100C-90 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KL-100C-100 Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
Compact CylindersCKD
172 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-K-C Super Compact Cylinder (High Load, Rubber Air Cushion)

Brand CKD·Compact Cylinders

Available part numbers (172)

SSD-K-20C-5, SSD-K-20C-10, SSD-K-20C-15, SSD-K-20C-20, SSD-K-20C-25, SSD-K-20C-30, SSD-K-20C-40, SSD-K-20C-50, SSD-K-25C-10, SSD-K-25C-15 + 162 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD-K-20C-5Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: Rc1/8
SSD-K-20C-10Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-20C-15Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-20C-20Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-20C-25Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-20C-30Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-20C-40Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-20C-50Model: SSD-K-C (no magnet) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-25C-10Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-25C-15Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-25C-20Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-25C-25Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-25C-30Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-25C-40Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-25C-50Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-25C-60Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-25C-70Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-25C-80Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-25C-90Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-25C-100Model: SSD-K-C (no magnet) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-32C-10Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-32C-15Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-32C-20Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-32C-25Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-32C-30Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-32C-40Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-32C-50Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-32C-60Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-32C-70Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-32C-80Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-32C-90Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-32C-100Model: SSD-K-C (no magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-40C-10Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-40C-15Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-40C-20Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-40C-25Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-40C-30Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-40C-40Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-40C-50Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-40C-60Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-40C-70Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-40C-80Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-40C-90Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-40C-100Model: SSD-K-C (no magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-50C-10Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-K-50C-15Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-K-50C-20Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-K-50C-25Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-K-50C-30Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-K-50C-40Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-K-50C-50Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-K-50C-60Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-K-50C-70Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-K-50C-80Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-K-50C-90Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-K-50C-100Model: SSD-K-C (no magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-K-63C-10Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-K-63C-20Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-K-63C-30Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-K-63C-40Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-K-63C-50Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-K-63C-60Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-K-63C-70Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-K-63C-80Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-K-63C-90Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-K-63C-100Model: SSD-K-C (no magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-K-80C-10Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-K-80C-20Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-K-80C-30Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-K-80C-40Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-K-80C-50Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-K-80C-60Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-K-80C-70Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-K-80C-80Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-K-80C-90Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-K-80C-100Model: SSD-K-C (no magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-K-100C-10Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-K-100C-20Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-K-100C-30Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-K-100C-40Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-K-100C-50Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-K-100C-60Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-K-100C-70Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-K-100C-80Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-K-100C-90Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-K-100C-100Model: SSD-K-C (no magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KL-20C-5Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: Rc1/8
SSD-KL-20C-10Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-20C-15Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-20C-20Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-20C-25Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-20C-30Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-20C-40Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-20C-50Model: SSD-KL-C (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-25C-10Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-25C-15Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-25C-20Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-25C-25Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-25C-30Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-25C-40Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-25C-50Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-25C-60Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-25C-70Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-25C-80Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-25C-90Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-25C-100Model: SSD-KL-C (switch magnet) | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-32C-10Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-32C-15Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-32C-20Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-32C-25Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-32C-30Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-32C-40Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-32C-50Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-32C-60Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-32C-70Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-32C-80Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-32C-90Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-32C-100Model: SSD-KL-C (switch magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-40C-10Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-40C-15Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-40C-20Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-40C-25Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-40C-30Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-40C-40Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-40C-50Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-40C-60Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-40C-70Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-40C-80Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-40C-90Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-40C-100Model: SSD-KL-C (switch magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-50C-10Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KL-50C-15Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KL-50C-20Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KL-50C-25Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KL-50C-30Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KL-50C-40Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KL-50C-50Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KL-50C-60Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KL-50C-70Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KL-50C-80Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KL-50C-90Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KL-50C-100Model: SSD-KL-C (switch magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KL-63C-10Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KL-63C-20Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KL-63C-30Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KL-63C-40Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KL-63C-50Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KL-63C-60Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KL-63C-70Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KL-63C-80Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KL-63C-90Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KL-63C-100Model: SSD-KL-C (switch magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KL-80C-10Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KL-80C-20Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KL-80C-30Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KL-80C-40Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KL-80C-50Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KL-80C-60Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KL-80C-70Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KL-80C-80Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KL-80C-90Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KL-80C-100Model: SSD-KL-C (switch magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KL-100C-10Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KL-100C-20Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KL-100C-30Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KL-100C-40Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KL-100C-50Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KL-100C-60Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KL-100C-70Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KL-100C-80Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KL-100C-90Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KL-100C-100Model: SSD-KL-C (switch magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
