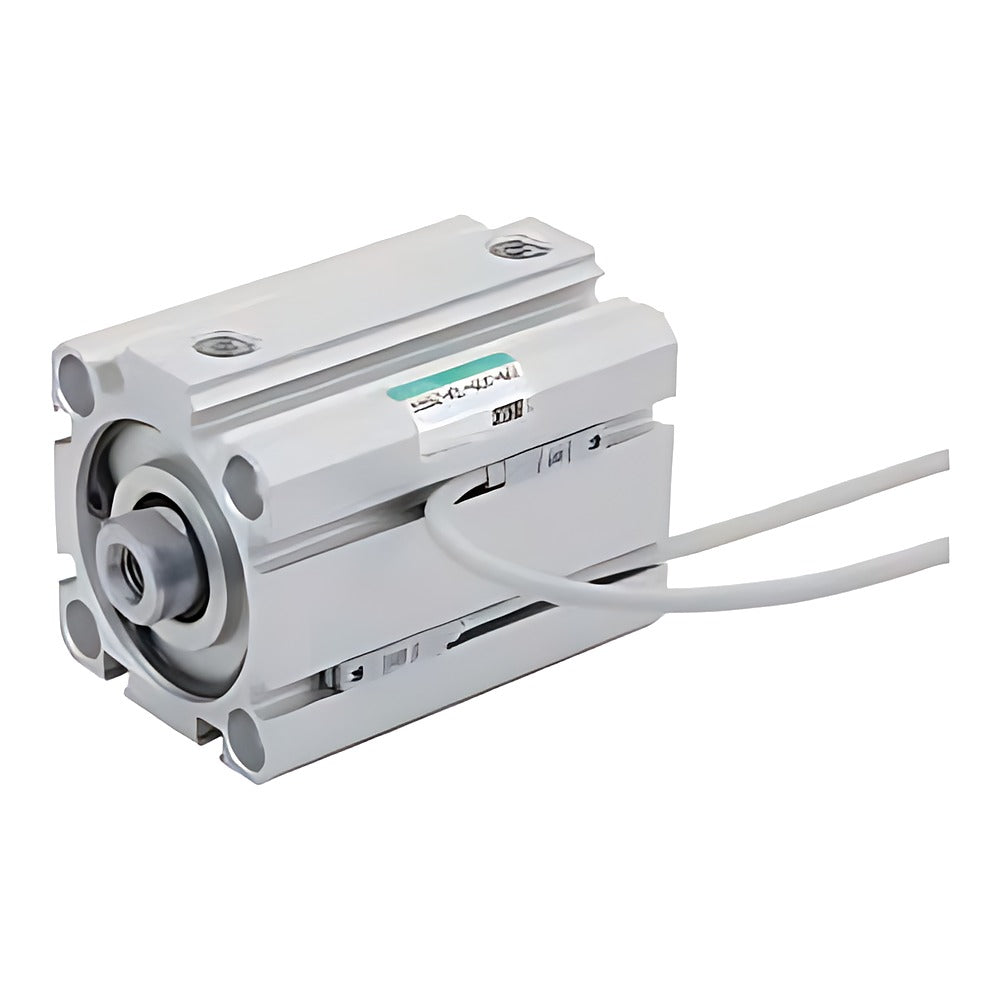

CKD SSD-K Super Compact Cylinder (Double Acting, High Load)

CKD SSD-K Super Compact Cylinder (Double Acting, High Load)

CKD SSD-K super compact cylinder, double acting single rod high-load type with rubber cushions, bore 12 to 100 mm.

Key features

  • High-load body with larger rod and bearing, rubber cushion standard
  • Switch-ready version (L) has a built-in magnet for T-type auto switches (T0H, T2H, T2YH, T3H etc.)
  • Standard strokes 5 to 100 mm; intermediate strokes in 1 mm steps by spacer or dedicated body (-S)
  • Longer strokes up to 100 mm (bore 12/16), 200 mm (bore 20) and 300 mm (bore 25-100) on order
  • Clean-room (P7, P5), grease-scatter prevention (P12) and secondary-battery (P4) versions available
  • Non-lube; mounting brackets and rod-end accessories ordered as code suffixes

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (bore 12-50), 0.05 MPa (63-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50-500 mm/s (12-50), 50-300 mm/s (63-100)
Cushion Rubber cushion
Stroke tolerance +2.0/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1204-1213
SSD-K-12-5 Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-K-12-10 Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-K-12-15 Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-K-12-20 Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-K-12-25 Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-K-12-30 Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-K-12-40 Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 40 mm | Port: M5
SSD-K-12-50 Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 50 mm | Port: M5
SSD-K-16-5 Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-K-16-10 Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-K-16-15 Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-K-16-20 Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-K-16-25 Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-K-16-30 Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-K-16-40 Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-K-16-50 Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-K-20-5 Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-K-20-10 Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-K-20-15 Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-K-20-20 Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-K-20-25 Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-K-20-30 Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-K-20-40 Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-K-20-50 Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-K-25-10 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-K-25-15 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-K-25-20 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-K-25-25 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-K-25-30 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-K-25-40 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-K-25-50 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-K-25-60 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-K-25-70 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-K-25-80 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-K-25-90 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-K-25-100 Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-K-32-10 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-32-15 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-32-20 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-32-25 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-32-30 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-32-40 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-32-50 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-32-60 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-32-70 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-32-80 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-32-90 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-32-100 Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-40-10 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-40-15 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-40-20 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-40-25 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-40-30 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-40-40 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-40-50 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-40-60 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-40-70 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-40-80 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-40-90 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-40-100 Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-50-10 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-K-50-15 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-K-50-20 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-K-50-25 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-K-50-30 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-K-50-40 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-K-50-50 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-K-50-60 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-K-50-70 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-K-50-80 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-K-50-90 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-K-50-100 Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-K-63-10 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-K-63-20 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-K-63-30 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-K-63-40 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-K-63-50 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-K-63-60 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-K-63-70 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-K-63-80 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-K-63-90 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-K-63-100 Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-K-80-10 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-K-80-20 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-K-80-30 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-K-80-40 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-K-80-50 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-K-80-60 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-K-80-70 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-K-80-80 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-K-80-90 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-K-80-100 Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-K-100-10 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-K-100-20 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-K-100-30 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-K-100-40 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-K-100-50 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-K-100-60 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-K-100-70 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-K-100-80 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-K-100-90 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-K-100-100 Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KL-12-5 Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-KL-12-10 Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-KL-12-15 Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-KL-12-20 Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-KL-12-25 Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-KL-12-30 Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-KL-12-40 Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 40 mm | Port: M5
SSD-KL-12-50 Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 50 mm | Port: M5
SSD-KL-16-5 Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-KL-16-10 Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KL-16-15 Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KL-16-20 Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KL-16-25 Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KL-16-30 Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KL-16-40 Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KL-16-50 Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KL-20-5 Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-KL-20-10 Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KL-20-15 Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KL-20-20 Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KL-20-25 Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KL-20-30 Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KL-20-40 Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KL-20-50 Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KL-25-10 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KL-25-15 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KL-25-20 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KL-25-25 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KL-25-30 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KL-25-40 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KL-25-50 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KL-25-60 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KL-25-70 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KL-25-80 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KL-25-90 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KL-25-100 Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KL-32-10 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-32-15 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-32-20 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-32-25 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-32-30 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-32-40 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-32-50 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-32-60 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-32-70 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-32-80 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-32-90 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-32-100 Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-40-10 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-40-15 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-40-20 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-40-25 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-40-30 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-40-40 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-40-50 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-40-60 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-40-70 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-40-80 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-40-90 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-40-100 Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-50-10 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KL-50-15 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KL-50-20 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KL-50-25 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KL-50-30 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KL-50-40 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KL-50-50 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KL-50-60 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KL-50-70 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KL-50-80 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KL-50-90 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KL-50-100 Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KL-63-10 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KL-63-20 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KL-63-30 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KL-63-40 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KL-63-50 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KL-63-60 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KL-63-70 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KL-63-80 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KL-63-90 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KL-63-100 Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KL-80-10 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KL-80-20 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KL-80-30 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KL-80-40 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KL-80-50 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KL-80-60 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KL-80-70 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KL-80-80 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KL-80-90 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KL-80-100 Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KL-100-10 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KL-100-20 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KL-100-30 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KL-100-40 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KL-100-50 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KL-100-60 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KL-100-70 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KL-100-80 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KL-100-90 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KL-100-100 Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
Compact CylindersCKD
204 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-K Super Compact Cylinder (Double Acting, High Load)

Brand CKD·Compact Cylinders

Available part numbers (204)

SSD-K-12-5, SSD-K-12-10, SSD-K-12-15, SSD-K-12-20, SSD-K-12-25, SSD-K-12-30, SSD-K-12-40, SSD-K-12-50, SSD-K-16-5, SSD-K-16-10 + 194 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD-K-12-5Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-K-12-10Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-K-12-15Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-K-12-20Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-K-12-25Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-K-12-30Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-K-12-40Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 40 mm | Port: M5
SSD-K-12-50Model: SSD-K (no magnet) | Bore: 12 mm | Stroke: 50 mm | Port: M5
SSD-K-16-5Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-K-16-10Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-K-16-15Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-K-16-20Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-K-16-25Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-K-16-30Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-K-16-40Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-K-16-50Model: SSD-K (no magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-K-20-5Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-K-20-10Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-K-20-15Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-K-20-20Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-K-20-25Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-K-20-30Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-K-20-40Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-K-20-50Model: SSD-K (no magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-K-25-10Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-K-25-15Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-K-25-20Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-K-25-25Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-K-25-30Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-K-25-40Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-K-25-50Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-K-25-60Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-K-25-70Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-K-25-80Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-K-25-90Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-K-25-100Model: SSD-K (no magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-K-32-10Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-32-15Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-32-20Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-32-25Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-32-30Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-32-40Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-32-50Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-32-60Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-32-70Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-32-80Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-32-90Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-32-100Model: SSD-K (no magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-40-10Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-K-40-15Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-K-40-20Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-K-40-25Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-K-40-30Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-K-40-40Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-K-40-50Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-K-40-60Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-K-40-70Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-K-40-80Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-K-40-90Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-K-40-100Model: SSD-K (no magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-K-50-10Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-K-50-15Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-K-50-20Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-K-50-25Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-K-50-30Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-K-50-40Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-K-50-50Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-K-50-60Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-K-50-70Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-K-50-80Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-K-50-90Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-K-50-100Model: SSD-K (no magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-K-63-10Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-K-63-20Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-K-63-30Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-K-63-40Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-K-63-50Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-K-63-60Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-K-63-70Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-K-63-80Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-K-63-90Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-K-63-100Model: SSD-K (no magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-K-80-10Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-K-80-20Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-K-80-30Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-K-80-40Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-K-80-50Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-K-80-60Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-K-80-70Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-K-80-80Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-K-80-90Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-K-80-100Model: SSD-K (no magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-K-100-10Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-K-100-20Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-K-100-30Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-K-100-40Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-K-100-50Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-K-100-60Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-K-100-70Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-K-100-80Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-K-100-90Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-K-100-100Model: SSD-K (no magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KL-12-5Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-KL-12-10Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-KL-12-15Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-KL-12-20Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-KL-12-25Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-KL-12-30Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-KL-12-40Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 40 mm | Port: M5
SSD-KL-12-50Model: SSD-KL (switch magnet) | Bore: 12 mm | Stroke: 50 mm | Port: M5
SSD-KL-16-5Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-KL-16-10Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KL-16-15Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KL-16-20Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KL-16-25Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KL-16-30Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KL-16-40Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KL-16-50Model: SSD-KL (switch magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KL-20-5Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-KL-20-10Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KL-20-15Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KL-20-20Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KL-20-25Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KL-20-30Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KL-20-40Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KL-20-50Model: SSD-KL (switch magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KL-25-10Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KL-25-15Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KL-25-20Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KL-25-25Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KL-25-30Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KL-25-40Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KL-25-50Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KL-25-60Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KL-25-70Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KL-25-80Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KL-25-90Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KL-25-100Model: SSD-KL (switch magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KL-32-10Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-32-15Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-32-20Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-32-25Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-32-30Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-32-40Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-32-50Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-32-60Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-32-70Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-32-80Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-32-90Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-32-100Model: SSD-KL (switch magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-40-10Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KL-40-15Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KL-40-20Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KL-40-25Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KL-40-30Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KL-40-40Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KL-40-50Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KL-40-60Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KL-40-70Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KL-40-80Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KL-40-90Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KL-40-100Model: SSD-KL (switch magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KL-50-10Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KL-50-15Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KL-50-20Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KL-50-25Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KL-50-30Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KL-50-40Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KL-50-50Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KL-50-60Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KL-50-70Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KL-50-80Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KL-50-90Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KL-50-100Model: SSD-KL (switch magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KL-63-10Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KL-63-20Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KL-63-30Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KL-63-40Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KL-63-50Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KL-63-60Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KL-63-70Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KL-63-80Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KL-63-90Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KL-63-100Model: SSD-KL (switch magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KL-80-10Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KL-80-20Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KL-80-30Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KL-80-40Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KL-80-50Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KL-80-60Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KL-80-70Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KL-80-80Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KL-80-90Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KL-80-100Model: SSD-KL (switch magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KL-100-10Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KL-100-20Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KL-100-30Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KL-100-40Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KL-100-50Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KL-100-60Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KL-100-70Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KL-100-80Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KL-100-90Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KL-100-100Model: SSD-KL (switch magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
