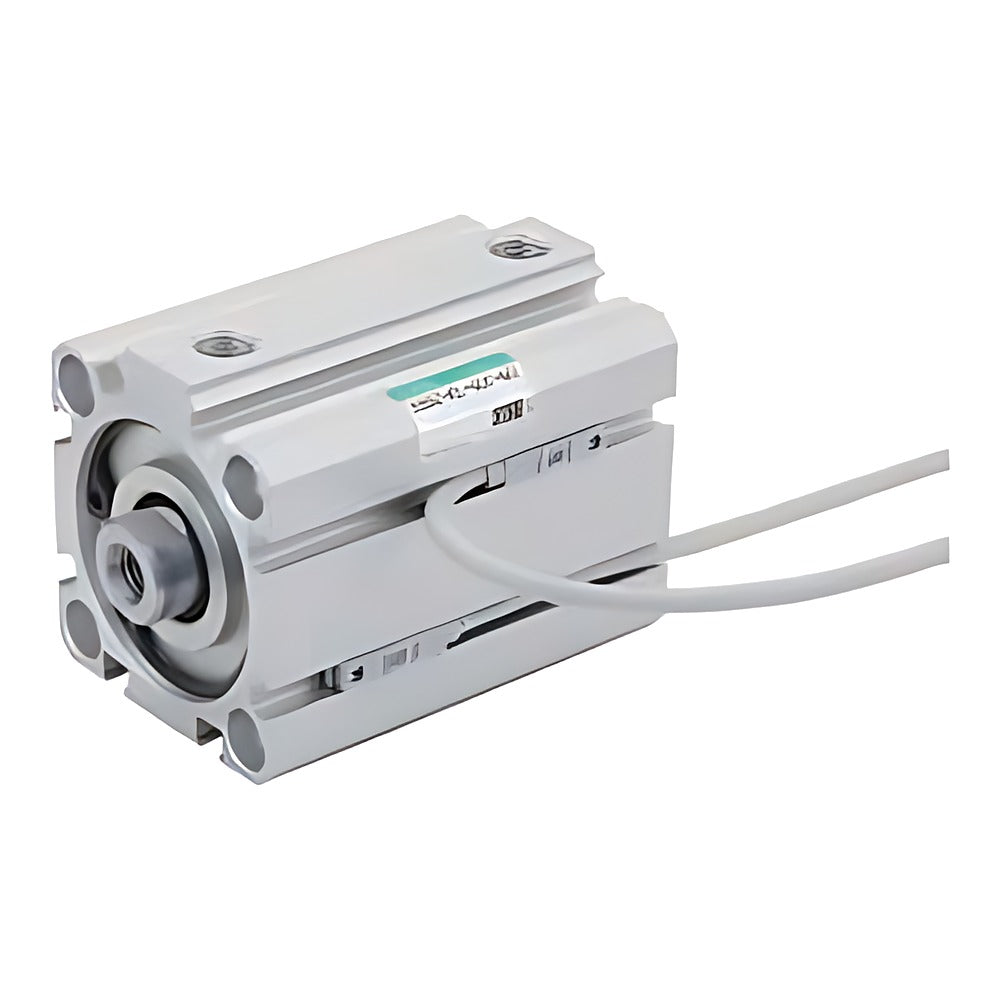

CKD SSD Super Compact Cylinder Repair Seal Kits (KG1/DG1/G5/KG5/L4)

CKD SSD Super Compact Cylinder Repair Seal Kits (KG1/DG1/G5/KG5/L4)

CKD repair seal kits (consumable parts) for SSD super compact cylinder variants KG1/KG4, DG1/DG4, G5, KG5 and the strong-magnetic-field switch L4 series.

Key features

  • Kit numbers as printed in the consumable parts lists of each series
  • Kits contain the rod packing, piston packing, scraper and gaskets listed for each bore
  • SSD-KG1-*K kits also serve SSD-KG1L4 (bore 40-100)
  • SSD-40K to 100K (L4), SSD-G1-*K (G1L4) and SSD-K-*K (KL4) are shared with the base SSD, SSD-G1 and SSD-K series

Specifications

Product Repair seal kit (consumable parts)
Brand CKD
Applicable SSD super compact cylinder variants
Order unit 1 kit per cylinder
Seal material Nitrile / urethane rubber per series
Ordering Kit number by series and bore
Source CKD Korea catalog CB-029SK-9, p. 1258-1304
SSD-KG1-25K Cylinder series: SSD-KG1/KG1L/KG1L4 | Construction: High load, coil scraper | Bore: 25 mm
SSD-KG1-32K Cylinder series: SSD-KG1/KG1L/KG1L4 | Construction: High load, coil scraper | Bore: 32 mm
SSD-KG1-40K Cylinder series: SSD-KG1/KG1L/KG1L4 | Construction: High load, coil scraper | Bore: 40 mm
SSD-KG1-50K Cylinder series: SSD-KG1/KG1L/KG1L4 | Construction: High load, coil scraper | Bore: 50 mm
SSD-KG1-63K Cylinder series: SSD-KG1/KG1L/KG1L4 | Construction: High load, coil scraper | Bore: 63 mm
SSD-KG1-80K Cylinder series: SSD-KG1/KG1L/KG1L4 | Construction: High load, coil scraper | Bore: 80 mm
SSD-KG1-100K Cylinder series: SSD-KG1/KG1L/KG1L4 | Construction: High load, coil scraper | Bore: 100 mm
SSD-DG1-25K Cylinder series: SSD-DG1/DG1L | Construction: Double rod, coil scraper | Bore: 25 mm
SSD-DG1-32K Cylinder series: SSD-DG1/DG1L | Construction: Double rod, coil scraper | Bore: 32 mm
SSD-DG1-40K Cylinder series: SSD-DG1/DG1L | Construction: Double rod, coil scraper | Bore: 40 mm
SSD-DG1-50K Cylinder series: SSD-DG1/DG1L | Construction: Double rod, coil scraper | Bore: 50 mm
SSD-DG1-63K Cylinder series: SSD-DG1/DG1L | Construction: Double rod, coil scraper | Bore: 63 mm
SSD-DG1-80K Cylinder series: SSD-DG1/DG1L | Construction: Double rod, coil scraper | Bore: 80 mm
SSD-DG1-100K Cylinder series: SSD-DG1/DG1L | Construction: Double rod, coil scraper | Bore: 100 mm
SSD-G5-20K Cylinder series: SSD-G5/G5L | Construction: Env.-resistant scraper | Bore: 20 mm
SSD-G5-25K Cylinder series: SSD-G5/G5L | Construction: Env.-resistant scraper | Bore: 25 mm
SSD-G5-32K Cylinder series: SSD-G5/G5L | Construction: Env.-resistant scraper | Bore: 32 mm
SSD-G5-40K Cylinder series: SSD-G5/G5L | Construction: Env.-resistant scraper | Bore: 40 mm
SSD-G5-50K Cylinder series: SSD-G5/G5L | Construction: Env.-resistant scraper | Bore: 50 mm
SSD-G5-63K Cylinder series: SSD-G5/G5L | Construction: Env.-resistant scraper | Bore: 63 mm
SSD-G5-80K Cylinder series: SSD-G5/G5L | Construction: Env.-resistant scraper | Bore: 80 mm
SSD-G5-100K Cylinder series: SSD-G5/G5L | Construction: Env.-resistant scraper | Bore: 100 mm
SSD-KG5-20K Cylinder series: SSD-KG5/KG5L | Construction: High load, env. scraper | Bore: 20 mm
SSD-KG5-25K Cylinder series: SSD-KG5/KG5L | Construction: High load, env. scraper | Bore: 25 mm
SSD-KG5-32K Cylinder series: SSD-KG5/KG5L | Construction: High load, env. scraper | Bore: 32 mm
SSD-KG5-40K Cylinder series: SSD-KG5/KG5L | Construction: High load, env. scraper | Bore: 40 mm
SSD-KG5-50K Cylinder series: SSD-KG5/KG5L | Construction: High load, env. scraper | Bore: 50 mm
SSD-KG5-63K Cylinder series: SSD-KG5/KG5L | Construction: High load, env. scraper | Bore: 63 mm
SSD-KG5-80K Cylinder series: SSD-KG5/KG5L | Construction: High load, env. scraper | Bore: 80 mm
SSD-KG5-100K Cylinder series: SSD-KG5/KG5L | Construction: High load, env. scraper | Bore: 100 mm
SSD-G1-40K Cylinder series: SSD-G1L4 | Construction: Coil scraper (V0 switch type) | Bore: 40 mm
SSD-G1-50K Cylinder series: SSD-G1L4 | Construction: Coil scraper (V0 switch type) | Bore: 50 mm
SSD-G1-63K Cylinder series: SSD-G1L4 | Construction: Coil scraper (V0 switch type) | Bore: 63 mm
SSD-G1-80K Cylinder series: SSD-G1L4 | Construction: Coil scraper (V0 switch type) | Bore: 80 mm
SSD-G1-100K Cylinder series: SSD-G1L4 | Construction: Coil scraper (V0 switch type) | Bore: 100 mm
SSD-K-40K Cylinder series: SSD-KL4 | Construction: High load (V0 switch type) | Bore: 40 mm
SSD-K-50K Cylinder series: SSD-KL4 | Construction: High load (V0 switch type) | Bore: 50 mm
SSD-K-63K Cylinder series: SSD-KL4 | Construction: High load (V0 switch type) | Bore: 63 mm
SSD-K-80K Cylinder series: SSD-KL4 | Construction: High load (V0 switch type) | Bore: 80 mm
SSD-K-100K Cylinder series: SSD-KL4 | Construction: High load (V0 switch type) | Bore: 100 mm
