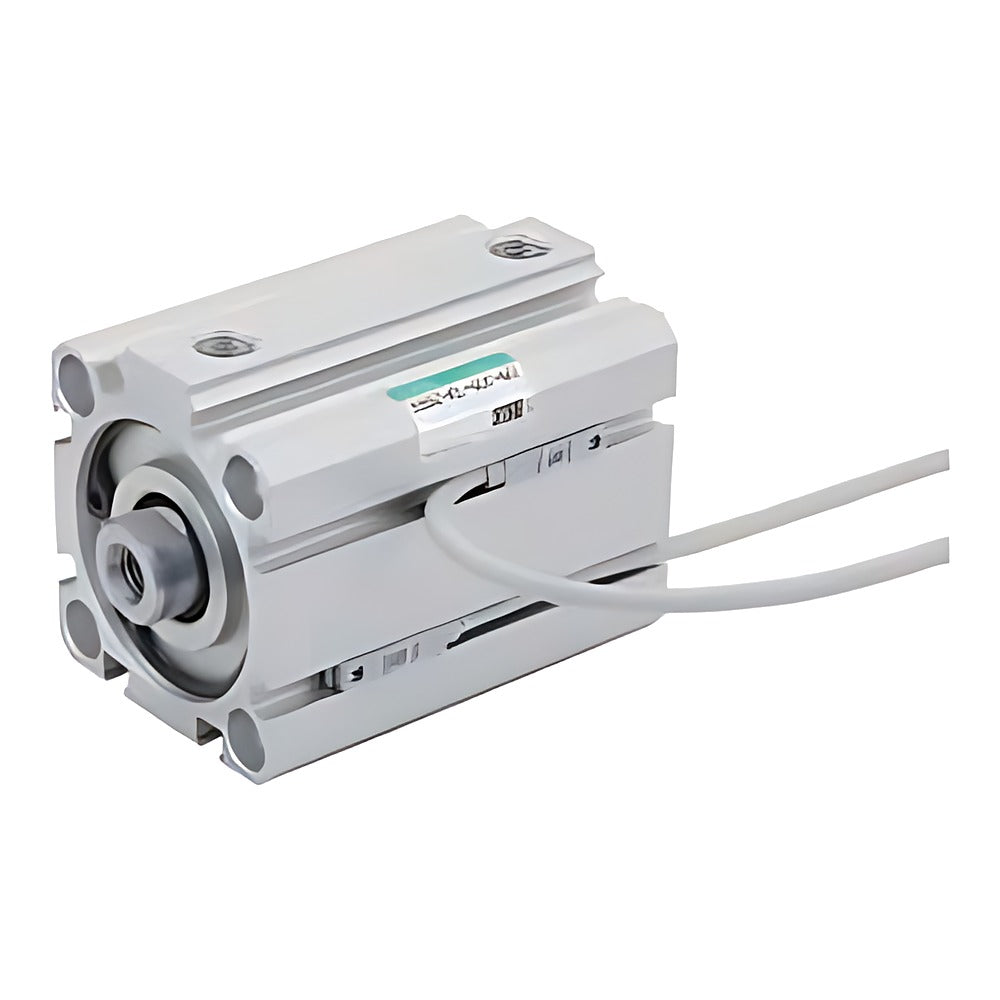

CKD SSD-KG1/KG4 Super Compact Cylinder (High Load, Welding Scraper)

CKD SSD-KG1/KG4 Super Compact Cylinder (High Load, Welding Scraper)

CKD SSD-KG1/KG4 super compact cylinder, double-acting single-rod high-load type with coil scraper (KG1) or anti-spatter construction (KG4) for welding lines, bore 25 to 100 mm.

Key features

  • High-load type with large-diameter rod; rubber cushion standard
  • KG1: coil scraper on the rod; KG4: spatter-adhesion prevention type (G4 parts)
  • L models (SSD-KG1L/KG4L) have a built-in magnet for the AC magnetic field resistant switch T2YD/T2YDT
  • Standard strokes 10-100 mm; intermediate strokes in 1 mm steps, longer strokes in 10 mm steps up to 300 mm
  • Mounting brackets LB/LB2 (foot), CB/CB2 (clevis), FA/FB (flange) are a code suffix, shipped attached; rod end male thread (N) and rod-end accessories I/I2/Y/Y2 are options

Specifications

Action Double-acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Lubrication Not required (turbine oil ISO VG32 if used)
Min. operating pressure 0.15 MPa (25-50), 0.1 MPa (63-100)
Cushion Rubber cushion
Piston speed 50-500 mm/s (25-50), 50-300 mm/s (63-100)
Stroke tolerance +2.0/0 mm
Switch T2YD / T2YDT (AC magnetic field resistant), L models
Source CKD Korea catalog CB-029SK-9, p. 1254-1262
SSD-KG1-25-10 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG1-25-15 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG1-25-20 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG1-25-25 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG1-25-30 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG1-25-40 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG1-25-50 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG1-25-60 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG1-25-70 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG1-25-80 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG1-25-90 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG1-25-100 Model: KG1 coil scraper | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG1-32-10 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG1-32-15 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG1-32-20 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG1-32-25 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG1-32-30 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG1-32-40 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG1-32-50 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG1-32-60 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG1-32-70 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG1-32-80 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG1-32-90 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG1-32-100 Model: KG1 coil scraper | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG1-40-10 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG1-40-15 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG1-40-20 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG1-40-25 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG1-40-30 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG1-40-40 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG1-40-50 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG1-40-60 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG1-40-70 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG1-40-80 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG1-40-90 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG1-40-100 Model: KG1 coil scraper | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG1-50-10 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG1-50-15 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG1-50-20 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG1-50-25 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG1-50-30 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG1-50-40 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG1-50-50 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG1-50-60 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG1-50-70 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG1-50-80 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG1-50-90 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG1-50-100 Model: KG1 coil scraper | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG1-63-10 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG1-63-20 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG1-63-30 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG1-63-40 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG1-63-50 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG1-63-60 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG1-63-70 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG1-63-80 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG1-63-90 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG1-63-100 Model: KG1 coil scraper | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG1-80-10 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG1-80-20 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG1-80-30 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG1-80-40 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG1-80-50 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG1-80-60 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG1-80-70 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG1-80-80 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG1-80-90 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG1-80-100 Model: KG1 coil scraper | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG1-100-10 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG1-100-20 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG1-100-30 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG1-100-40 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG1-100-50 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG1-100-60 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG1-100-70 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG1-100-80 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG1-100-90 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG1-100-100 Model: KG1 coil scraper | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG1L-25-10 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG1L-25-15 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG1L-25-20 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG1L-25-25 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG1L-25-30 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG1L-25-40 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG1L-25-50 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG1L-25-60 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG1L-25-70 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG1L-25-80 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG1L-25-90 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG1L-25-100 Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG1L-32-10 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG1L-32-15 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG1L-32-20 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG1L-32-25 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG1L-32-30 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG1L-32-40 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG1L-32-50 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG1L-32-60 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG1L-32-70 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG1L-32-80 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG1L-32-90 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG1L-32-100 Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG1L-40-10 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG1L-40-15 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG1L-40-20 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG1L-40-25 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG1L-40-30 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG1L-40-40 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG1L-40-50 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG1L-40-60 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG1L-40-70 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG1L-40-80 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG1L-40-90 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG1L-40-100 Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG1L-50-10 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG1L-50-15 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG1L-50-20 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG1L-50-25 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG1L-50-30 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG1L-50-40 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG1L-50-50 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG1L-50-60 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG1L-50-70 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG1L-50-80 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG1L-50-90 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG1L-50-100 Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG1L-63-10 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG1L-63-20 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG1L-63-30 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG1L-63-40 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG1L-63-50 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG1L-63-60 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG1L-63-70 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG1L-63-80 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG1L-63-90 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG1L-63-100 Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG1L-80-10 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG1L-80-20 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG1L-80-30 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG1L-80-40 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG1L-80-50 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG1L-80-60 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG1L-80-70 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG1L-80-80 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG1L-80-90 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG1L-80-100 Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG1L-100-10 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG1L-100-20 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG1L-100-30 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG1L-100-40 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG1L-100-50 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG1L-100-60 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG1L-100-70 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG1L-100-80 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG1L-100-90 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG1L-100-100 Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG4-25-10 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG4-25-15 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG4-25-20 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG4-25-25 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG4-25-30 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG4-25-40 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG4-25-50 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG4-25-60 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG4-25-70 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG4-25-80 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG4-25-90 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG4-25-100 Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG4-32-10 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG4-32-15 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG4-32-20 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG4-32-25 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG4-32-30 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG4-32-40 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG4-32-50 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG4-32-60 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG4-32-70 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG4-32-80 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG4-32-90 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG4-32-100 Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG4-40-10 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG4-40-15 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG4-40-20 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG4-40-25 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG4-40-30 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG4-40-40 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG4-40-50 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG4-40-60 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG4-40-70 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG4-40-80 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG4-40-90 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG4-40-100 Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG4-50-10 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG4-50-15 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG4-50-20 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG4-50-25 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG4-50-30 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG4-50-40 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG4-50-50 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG4-50-60 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG4-50-70 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG4-50-80 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG4-50-90 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG4-50-100 Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG4-63-10 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG4-63-20 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG4-63-30 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG4-63-40 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG4-63-50 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG4-63-60 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG4-63-70 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG4-63-80 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG4-63-90 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG4-63-100 Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG4-80-10 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG4-80-20 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG4-80-30 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG4-80-40 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG4-80-50 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG4-80-60 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG4-80-70 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG4-80-80 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG4-80-90 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG4-80-100 Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG4-100-10 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG4-100-20 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG4-100-30 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG4-100-40 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG4-100-50 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG4-100-60 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG4-100-70 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG4-100-80 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG4-100-90 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG4-100-100 Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG4L-25-10 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG4L-25-15 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG4L-25-20 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG4L-25-25 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG4L-25-30 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG4L-25-40 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG4L-25-50 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG4L-25-60 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG4L-25-70 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG4L-25-80 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG4L-25-90 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG4L-25-100 Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG4L-32-10 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG4L-32-15 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG4L-32-20 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG4L-32-25 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG4L-32-30 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG4L-32-40 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG4L-32-50 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG4L-32-60 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG4L-32-70 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG4L-32-80 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG4L-32-90 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG4L-32-100 Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG4L-40-10 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG4L-40-15 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG4L-40-20 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG4L-40-25 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG4L-40-30 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG4L-40-40 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG4L-40-50 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG4L-40-60 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG4L-40-70 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG4L-40-80 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG4L-40-90 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG4L-40-100 Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG4L-50-10 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG4L-50-15 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG4L-50-20 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG4L-50-25 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG4L-50-30 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG4L-50-40 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG4L-50-50 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG4L-50-60 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG4L-50-70 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG4L-50-80 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG4L-50-90 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG4L-50-100 Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG4L-63-10 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG4L-63-20 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG4L-63-30 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG4L-63-40 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG4L-63-50 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG4L-63-60 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG4L-63-70 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG4L-63-80 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG4L-63-90 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG4L-63-100 Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG4L-80-10 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG4L-80-20 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG4L-80-30 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG4L-80-40 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG4L-80-50 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG4L-80-60 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG4L-80-70 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG4L-80-80 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG4L-80-90 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG4L-80-100 Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG4L-100-10 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG4L-100-20 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG4L-100-30 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG4L-100-40 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG4L-100-50 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG4L-100-60 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG4L-100-70 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG4L-100-80 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG4L-100-90 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG4L-100-100 Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
Pneumatic CylindersCKD
312 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-KG1/KG4 Super Compact Cylinder (High Load, Welding Scraper)

Brand CKD·Pneumatic Cylinders

Available part numbers (312)

SSD-KG1-25-10, SSD-KG1-25-15, SSD-KG1-25-20, SSD-KG1-25-25, SSD-KG1-25-30, SSD-KG1-25-40, SSD-KG1-25-50, SSD-KG1-25-60, SSD-KG1-25-70, SSD-KG1-25-80 + 302 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD-KG1-25-10Model: KG1 coil scraper | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG1-25-15Model: KG1 coil scraper | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG1-25-20Model: KG1 coil scraper | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG1-25-25Model: KG1 coil scraper | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG1-25-30Model: KG1 coil scraper | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG1-25-40Model: KG1 coil scraper | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG1-25-50Model: KG1 coil scraper | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG1-25-60Model: KG1 coil scraper | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG1-25-70Model: KG1 coil scraper | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG1-25-80Model: KG1 coil scraper | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG1-25-90Model: KG1 coil scraper | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG1-25-100Model: KG1 coil scraper | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG1-32-10Model: KG1 coil scraper | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG1-32-15Model: KG1 coil scraper | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG1-32-20Model: KG1 coil scraper | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG1-32-25Model: KG1 coil scraper | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG1-32-30Model: KG1 coil scraper | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG1-32-40Model: KG1 coil scraper | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG1-32-50Model: KG1 coil scraper | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG1-32-60Model: KG1 coil scraper | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG1-32-70Model: KG1 coil scraper | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG1-32-80Model: KG1 coil scraper | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG1-32-90Model: KG1 coil scraper | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG1-32-100Model: KG1 coil scraper | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG1-40-10Model: KG1 coil scraper | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG1-40-15Model: KG1 coil scraper | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG1-40-20Model: KG1 coil scraper | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG1-40-25Model: KG1 coil scraper | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG1-40-30Model: KG1 coil scraper | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG1-40-40Model: KG1 coil scraper | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG1-40-50Model: KG1 coil scraper | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG1-40-60Model: KG1 coil scraper | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG1-40-70Model: KG1 coil scraper | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG1-40-80Model: KG1 coil scraper | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG1-40-90Model: KG1 coil scraper | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG1-40-100Model: KG1 coil scraper | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG1-50-10Model: KG1 coil scraper | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG1-50-15Model: KG1 coil scraper | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG1-50-20Model: KG1 coil scraper | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG1-50-25Model: KG1 coil scraper | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG1-50-30Model: KG1 coil scraper | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG1-50-40Model: KG1 coil scraper | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG1-50-50Model: KG1 coil scraper | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG1-50-60Model: KG1 coil scraper | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG1-50-70Model: KG1 coil scraper | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG1-50-80Model: KG1 coil scraper | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG1-50-90Model: KG1 coil scraper | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG1-50-100Model: KG1 coil scraper | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG1-63-10Model: KG1 coil scraper | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG1-63-20Model: KG1 coil scraper | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG1-63-30Model: KG1 coil scraper | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG1-63-40Model: KG1 coil scraper | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG1-63-50Model: KG1 coil scraper | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG1-63-60Model: KG1 coil scraper | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG1-63-70Model: KG1 coil scraper | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG1-63-80Model: KG1 coil scraper | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG1-63-90Model: KG1 coil scraper | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG1-63-100Model: KG1 coil scraper | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG1-80-10Model: KG1 coil scraper | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG1-80-20Model: KG1 coil scraper | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG1-80-30Model: KG1 coil scraper | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG1-80-40Model: KG1 coil scraper | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG1-80-50Model: KG1 coil scraper | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG1-80-60Model: KG1 coil scraper | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG1-80-70Model: KG1 coil scraper | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG1-80-80Model: KG1 coil scraper | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG1-80-90Model: KG1 coil scraper | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG1-80-100Model: KG1 coil scraper | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG1-100-10Model: KG1 coil scraper | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG1-100-20Model: KG1 coil scraper | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG1-100-30Model: KG1 coil scraper | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG1-100-40Model: KG1 coil scraper | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG1-100-50Model: KG1 coil scraper | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG1-100-60Model: KG1 coil scraper | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG1-100-70Model: KG1 coil scraper | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG1-100-80Model: KG1 coil scraper | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG1-100-90Model: KG1 coil scraper | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG1-100-100Model: KG1 coil scraper | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG1L-25-10Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG1L-25-15Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG1L-25-20Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG1L-25-25Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG1L-25-30Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG1L-25-40Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG1L-25-50Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG1L-25-60Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG1L-25-70Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG1L-25-80Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG1L-25-90Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG1L-25-100Model: KG1L coil scraper, magnet | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG1L-32-10Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG1L-32-15Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG1L-32-20Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG1L-32-25Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG1L-32-30Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG1L-32-40Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG1L-32-50Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG1L-32-60Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG1L-32-70Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG1L-32-80Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG1L-32-90Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG1L-32-100Model: KG1L coil scraper, magnet | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG1L-40-10Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG1L-40-15Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG1L-40-20Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG1L-40-25Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG1L-40-30Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG1L-40-40Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG1L-40-50Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG1L-40-60Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG1L-40-70Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG1L-40-80Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG1L-40-90Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG1L-40-100Model: KG1L coil scraper, magnet | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG1L-50-10Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG1L-50-15Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG1L-50-20Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG1L-50-25Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG1L-50-30Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG1L-50-40Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG1L-50-50Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG1L-50-60Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG1L-50-70Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG1L-50-80Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG1L-50-90Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG1L-50-100Model: KG1L coil scraper, magnet | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG1L-63-10Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG1L-63-20Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG1L-63-30Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG1L-63-40Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG1L-63-50Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG1L-63-60Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG1L-63-70Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG1L-63-80Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG1L-63-90Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG1L-63-100Model: KG1L coil scraper, magnet | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG1L-80-10Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG1L-80-20Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG1L-80-30Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG1L-80-40Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG1L-80-50Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG1L-80-60Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG1L-80-70Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG1L-80-80Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG1L-80-90Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG1L-80-100Model: KG1L coil scraper, magnet | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG1L-100-10Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG1L-100-20Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG1L-100-30Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG1L-100-40Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG1L-100-50Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG1L-100-60Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG1L-100-70Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG1L-100-80Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG1L-100-90Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG1L-100-100Model: KG1L coil scraper, magnet | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG4-25-10Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG4-25-15Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG4-25-20Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG4-25-25Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG4-25-30Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG4-25-40Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG4-25-50Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG4-25-60Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG4-25-70Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG4-25-80Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG4-25-90Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG4-25-100Model: KG4 anti-spatter | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG4-32-10Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG4-32-15Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG4-32-20Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG4-32-25Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG4-32-30Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG4-32-40Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG4-32-50Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG4-32-60Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG4-32-70Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG4-32-80Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG4-32-90Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG4-32-100Model: KG4 anti-spatter | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG4-40-10Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG4-40-15Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG4-40-20Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG4-40-25Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG4-40-30Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG4-40-40Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG4-40-50Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG4-40-60Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG4-40-70Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG4-40-80Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG4-40-90Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG4-40-100Model: KG4 anti-spatter | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG4-50-10Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG4-50-15Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG4-50-20Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG4-50-25Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG4-50-30Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG4-50-40Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG4-50-50Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG4-50-60Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG4-50-70Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG4-50-80Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG4-50-90Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG4-50-100Model: KG4 anti-spatter | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG4-63-10Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG4-63-20Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG4-63-30Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG4-63-40Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG4-63-50Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG4-63-60Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG4-63-70Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG4-63-80Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG4-63-90Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG4-63-100Model: KG4 anti-spatter | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG4-80-10Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG4-80-20Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG4-80-30Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG4-80-40Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG4-80-50Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG4-80-60Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG4-80-70Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG4-80-80Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG4-80-90Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG4-80-100Model: KG4 anti-spatter | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG4-100-10Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG4-100-20Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG4-100-30Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG4-100-40Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG4-100-50Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG4-100-60Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG4-100-70Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG4-100-80Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG4-100-90Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG4-100-100Model: KG4 anti-spatter | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG4L-25-10Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG4L-25-15Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG4L-25-20Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG4L-25-25Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG4L-25-30Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG4L-25-40Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG4L-25-50Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG4L-25-60Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG4L-25-70Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG4L-25-80Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG4L-25-90Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG4L-25-100Model: KG4L anti-spatter, magnet | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG4L-32-10Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG4L-32-15Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG4L-32-20Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG4L-32-25Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG4L-32-30Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG4L-32-40Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG4L-32-50Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG4L-32-60Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG4L-32-70Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG4L-32-80Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG4L-32-90Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG4L-32-100Model: KG4L anti-spatter, magnet | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG4L-40-10Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG4L-40-15Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG4L-40-20Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG4L-40-25Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG4L-40-30Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG4L-40-40Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG4L-40-50Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG4L-40-60Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG4L-40-70Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG4L-40-80Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG4L-40-90Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG4L-40-100Model: KG4L anti-spatter, magnet | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG4L-50-10Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG4L-50-15Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG4L-50-20Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG4L-50-25Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG4L-50-30Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG4L-50-40Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG4L-50-50Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG4L-50-60Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG4L-50-70Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG4L-50-80Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG4L-50-90Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG4L-50-100Model: KG4L anti-spatter, magnet | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG4L-63-10Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG4L-63-20Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG4L-63-30Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG4L-63-40Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG4L-63-50Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG4L-63-60Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG4L-63-70Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG4L-63-80Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG4L-63-90Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG4L-63-100Model: KG4L anti-spatter, magnet | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG4L-80-10Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG4L-80-20Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG4L-80-30Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG4L-80-40Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG4L-80-50Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG4L-80-60Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG4L-80-70Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG4L-80-80Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG4L-80-90Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG4L-80-100Model: KG4L anti-spatter, magnet | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG4L-100-10Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG4L-100-20Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG4L-100-30Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG4L-100-40Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG4L-100-50Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG4L-100-60Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG4L-100-70Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG4L-100-80Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG4L-100-90Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG4L-100-100Model: KG4L anti-spatter, magnet | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
