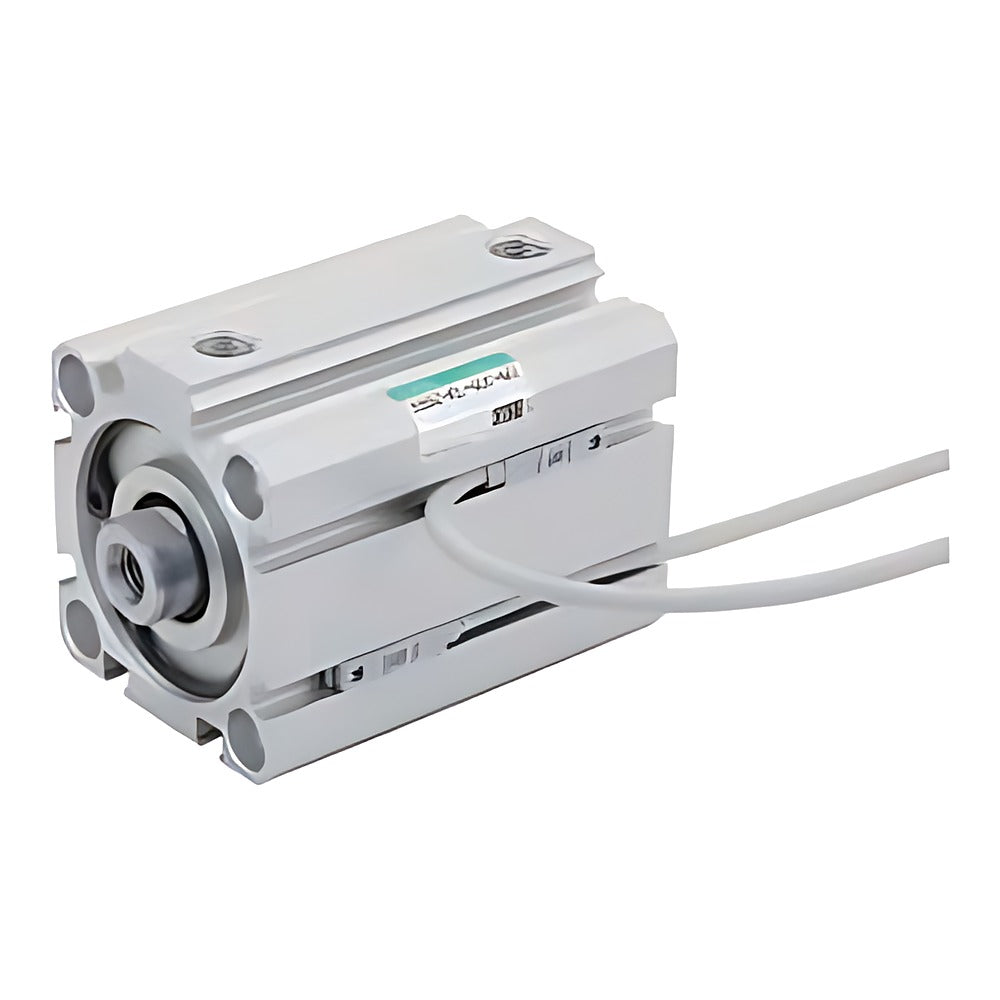

CKD SSD-KG1L4 Super Compact Cylinder (High Load, Mag. Switch, Scraper)

CKD SSD-KG1L4 Super Compact Cylinder (High Load, Mag. Switch, Scraper)

CKD SSD-KG1L4 super compact cylinder, double-acting high-load type with coil scraper and built-in V0 switch resistant to strong magnetic fields, bore 40 to 100 mm.

Key features

  • Supplied with V0 reed switch(es) resistant to strong magnetic fields (welding); 1, 2 or 3 switches (3 switches: min. stroke 35 mm)
  • High-load rod with coil scraper and rubber cushion for welding lines
  • Standard strokes 20-100 mm; max. 150 mm (40, 50) / 200 mm (63-100) in 10 mm steps
  • Mounting LB/LB2/CB/CB2/FA/FB, rod end male thread (N) and accessories I/I2/Y/Y2 as code suffixes; lead wire 3 m/5 m optional

Specifications

Action Double-acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Lubrication Not required (turbine oil ISO VG32 if used)
Min. operating pressure 0.15 MPa (40-50), 0.1 MPa (63-100)
Cushion Rubber cushion
Piston speed 50-500 mm/s (40-50), 50-300 mm/s (63-100)
Stroke tolerance +2.0/0 mm
Switch V0 reed switch (strong magnetic field resistant), 1-colour LED, AC/DC, 2-wire
Source CKD Korea catalog CB-029SK-9, p. 1306-1311
SSD-KG1L4-40-20-V0-R Bore: 40 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-20-V0-H Bore: 40 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-20-V0-D Bore: 40 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-30-V0-R Bore: 40 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-30-V0-H Bore: 40 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-30-V0-D Bore: 40 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-40-V0-R Bore: 40 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-40-V0-H Bore: 40 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-40-V0-D Bore: 40 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-40-V0-T Bore: 40 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-50-V0-R Bore: 40 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-50-V0-H Bore: 40 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-50-V0-D Bore: 40 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-50-V0-T Bore: 40 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-60-V0-R Bore: 40 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-60-V0-H Bore: 40 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-60-V0-D Bore: 40 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-60-V0-T Bore: 40 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-70-V0-R Bore: 40 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-70-V0-H Bore: 40 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-70-V0-D Bore: 40 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-70-V0-T Bore: 40 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-80-V0-R Bore: 40 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-80-V0-H Bore: 40 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-80-V0-D Bore: 40 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-80-V0-T Bore: 40 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-90-V0-R Bore: 40 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-90-V0-H Bore: 40 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-90-V0-D Bore: 40 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-90-V0-T Bore: 40 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-100-V0-R Bore: 40 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-100-V0-H Bore: 40 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-100-V0-D Bore: 40 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-100-V0-T Bore: 40 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-50-20-V0-R Bore: 50 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-20-V0-H Bore: 50 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-20-V0-D Bore: 50 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-30-V0-R Bore: 50 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-30-V0-H Bore: 50 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-30-V0-D Bore: 50 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-40-V0-R Bore: 50 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-40-V0-H Bore: 50 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-40-V0-D Bore: 50 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-40-V0-T Bore: 50 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-50-V0-R Bore: 50 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-50-V0-H Bore: 50 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-50-V0-D Bore: 50 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-50-V0-T Bore: 50 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-60-V0-R Bore: 50 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-60-V0-H Bore: 50 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-60-V0-D Bore: 50 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-60-V0-T Bore: 50 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-70-V0-R Bore: 50 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-70-V0-H Bore: 50 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-70-V0-D Bore: 50 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-70-V0-T Bore: 50 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-80-V0-R Bore: 50 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-80-V0-H Bore: 50 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-80-V0-D Bore: 50 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-80-V0-T Bore: 50 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-90-V0-R Bore: 50 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-90-V0-H Bore: 50 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-90-V0-D Bore: 50 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-90-V0-T Bore: 50 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-100-V0-R Bore: 50 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-100-V0-H Bore: 50 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-100-V0-D Bore: 50 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-100-V0-T Bore: 50 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-20-V0-R Bore: 63 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-20-V0-H Bore: 63 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-20-V0-D Bore: 63 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-30-V0-R Bore: 63 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-30-V0-H Bore: 63 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-30-V0-D Bore: 63 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-40-V0-R Bore: 63 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-40-V0-H Bore: 63 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-40-V0-D Bore: 63 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-40-V0-T Bore: 63 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-50-V0-R Bore: 63 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-50-V0-H Bore: 63 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-50-V0-D Bore: 63 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-50-V0-T Bore: 63 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-60-V0-R Bore: 63 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-60-V0-H Bore: 63 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-60-V0-D Bore: 63 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-60-V0-T Bore: 63 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-70-V0-R Bore: 63 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-70-V0-H Bore: 63 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-70-V0-D Bore: 63 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-70-V0-T Bore: 63 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-80-V0-R Bore: 63 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-80-V0-H Bore: 63 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-80-V0-D Bore: 63 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-80-V0-T Bore: 63 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-90-V0-R Bore: 63 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-90-V0-H Bore: 63 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-90-V0-D Bore: 63 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-90-V0-T Bore: 63 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-100-V0-R Bore: 63 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-100-V0-H Bore: 63 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-100-V0-D Bore: 63 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-100-V0-T Bore: 63 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-80-20-V0-R Bore: 80 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-20-V0-H Bore: 80 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-20-V0-D Bore: 80 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-30-V0-R Bore: 80 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-30-V0-H Bore: 80 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-30-V0-D Bore: 80 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-40-V0-R Bore: 80 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-40-V0-H Bore: 80 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-40-V0-D Bore: 80 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-40-V0-T Bore: 80 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-50-V0-R Bore: 80 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-50-V0-H Bore: 80 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-50-V0-D Bore: 80 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-50-V0-T Bore: 80 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-60-V0-R Bore: 80 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-60-V0-H Bore: 80 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-60-V0-D Bore: 80 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-60-V0-T Bore: 80 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-70-V0-R Bore: 80 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-70-V0-H Bore: 80 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-70-V0-D Bore: 80 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-70-V0-T Bore: 80 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-80-V0-R Bore: 80 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-80-V0-H Bore: 80 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-80-V0-D Bore: 80 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-80-V0-T Bore: 80 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-90-V0-R Bore: 80 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-90-V0-H Bore: 80 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-90-V0-D Bore: 80 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-90-V0-T Bore: 80 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-100-V0-R Bore: 80 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-100-V0-H Bore: 80 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-100-V0-D Bore: 80 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-100-V0-T Bore: 80 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-20-V0-R Bore: 100 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-20-V0-H Bore: 100 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-20-V0-D Bore: 100 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-30-V0-R Bore: 100 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-30-V0-H Bore: 100 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-30-V0-D Bore: 100 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-40-V0-R Bore: 100 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-40-V0-H Bore: 100 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-40-V0-D Bore: 100 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-40-V0-T Bore: 100 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-50-V0-R Bore: 100 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-50-V0-H Bore: 100 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-50-V0-D Bore: 100 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-50-V0-T Bore: 100 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-60-V0-R Bore: 100 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-60-V0-H Bore: 100 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-60-V0-D Bore: 100 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-60-V0-T Bore: 100 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-70-V0-R Bore: 100 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-70-V0-H Bore: 100 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-70-V0-D Bore: 100 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-70-V0-T Bore: 100 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-80-V0-R Bore: 100 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-80-V0-H Bore: 100 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-80-V0-D Bore: 100 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-80-V0-T Bore: 100 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-90-V0-R Bore: 100 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-90-V0-H Bore: 100 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-90-V0-D Bore: 100 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-90-V0-T Bore: 100 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-100-V0-R Bore: 100 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-100-V0-H Bore: 100 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-100-V0-D Bore: 100 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-100-V0-T Bore: 100 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc3/8
Pneumatic CylindersCKD
170 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-KG1L4 Super Compact Cylinder (High Load, Mag. Switch, Scraper)

Brand CKD·Pneumatic Cylinders

Available part numbers (170)

SSD-KG1L4-40-20-V0-R, SSD-KG1L4-40-20-V0-H, SSD-KG1L4-40-20-V0-D, SSD-KG1L4-40-30-V0-R, SSD-KG1L4-40-30-V0-H, SSD-KG1L4-40-30-V0-D, SSD-KG1L4-40-40-V0-R, SSD-KG1L4-40-40-V0-H, SSD-KG1L4-40-40-V0-D, SSD-KG1L4-40-40-V0-T + 160 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD-KG1L4-40-20-V0-RBore: 40 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-20-V0-HBore: 40 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-20-V0-DBore: 40 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-30-V0-RBore: 40 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-30-V0-HBore: 40 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-30-V0-DBore: 40 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-40-V0-RBore: 40 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-40-V0-HBore: 40 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-40-V0-DBore: 40 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-40-V0-TBore: 40 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-50-V0-RBore: 40 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-50-V0-HBore: 40 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-50-V0-DBore: 40 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-50-V0-TBore: 40 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-60-V0-RBore: 40 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-60-V0-HBore: 40 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-60-V0-DBore: 40 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-60-V0-TBore: 40 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-70-V0-RBore: 40 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-70-V0-HBore: 40 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-70-V0-DBore: 40 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-70-V0-TBore: 40 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-80-V0-RBore: 40 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-80-V0-HBore: 40 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-80-V0-DBore: 40 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-80-V0-TBore: 40 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-90-V0-RBore: 40 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-90-V0-HBore: 40 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-90-V0-DBore: 40 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-90-V0-TBore: 40 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-40-100-V0-RBore: 40 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-KG1L4-40-100-V0-HBore: 40 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-KG1L4-40-100-V0-DBore: 40 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc1/8
SSD-KG1L4-40-100-V0-TBore: 40 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc1/8
SSD-KG1L4-50-20-V0-RBore: 50 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-20-V0-HBore: 50 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-20-V0-DBore: 50 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-30-V0-RBore: 50 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-30-V0-HBore: 50 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-30-V0-DBore: 50 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-40-V0-RBore: 50 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-40-V0-HBore: 50 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-40-V0-DBore: 50 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-40-V0-TBore: 50 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-50-V0-RBore: 50 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-50-V0-HBore: 50 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-50-V0-DBore: 50 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-50-V0-TBore: 50 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-60-V0-RBore: 50 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-60-V0-HBore: 50 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-60-V0-DBore: 50 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-60-V0-TBore: 50 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-70-V0-RBore: 50 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-70-V0-HBore: 50 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-70-V0-DBore: 50 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-70-V0-TBore: 50 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-80-V0-RBore: 50 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-80-V0-HBore: 50 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-80-V0-DBore: 50 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-80-V0-TBore: 50 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-90-V0-RBore: 50 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-90-V0-HBore: 50 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-90-V0-DBore: 50 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-90-V0-TBore: 50 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-50-100-V0-RBore: 50 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-50-100-V0-HBore: 50 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-50-100-V0-DBore: 50 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-50-100-V0-TBore: 50 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-20-V0-RBore: 63 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-20-V0-HBore: 63 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-20-V0-DBore: 63 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-30-V0-RBore: 63 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-30-V0-HBore: 63 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-30-V0-DBore: 63 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-40-V0-RBore: 63 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-40-V0-HBore: 63 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-40-V0-DBore: 63 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-40-V0-TBore: 63 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-50-V0-RBore: 63 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-50-V0-HBore: 63 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-50-V0-DBore: 63 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-50-V0-TBore: 63 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-60-V0-RBore: 63 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-60-V0-HBore: 63 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-60-V0-DBore: 63 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-60-V0-TBore: 63 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-70-V0-RBore: 63 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-70-V0-HBore: 63 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-70-V0-DBore: 63 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-70-V0-TBore: 63 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-80-V0-RBore: 63 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-80-V0-HBore: 63 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-80-V0-DBore: 63 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-80-V0-TBore: 63 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-90-V0-RBore: 63 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-90-V0-HBore: 63 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-90-V0-DBore: 63 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-90-V0-TBore: 63 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-63-100-V0-RBore: 63 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-KG1L4-63-100-V0-HBore: 63 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-KG1L4-63-100-V0-DBore: 63 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc1/4
SSD-KG1L4-63-100-V0-TBore: 63 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc1/4
SSD-KG1L4-80-20-V0-RBore: 80 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-20-V0-HBore: 80 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-20-V0-DBore: 80 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-30-V0-RBore: 80 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-30-V0-HBore: 80 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-30-V0-DBore: 80 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-40-V0-RBore: 80 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-40-V0-HBore: 80 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-40-V0-DBore: 80 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-40-V0-TBore: 80 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-50-V0-RBore: 80 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-50-V0-HBore: 80 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-50-V0-DBore: 80 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-50-V0-TBore: 80 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-60-V0-RBore: 80 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-60-V0-HBore: 80 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-60-V0-DBore: 80 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-60-V0-TBore: 80 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-70-V0-RBore: 80 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-70-V0-HBore: 80 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-70-V0-DBore: 80 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-70-V0-TBore: 80 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-80-V0-RBore: 80 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-80-V0-HBore: 80 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-80-V0-DBore: 80 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-80-V0-TBore: 80 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-90-V0-RBore: 80 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-90-V0-HBore: 80 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-90-V0-DBore: 80 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-90-V0-TBore: 80 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-80-100-V0-RBore: 80 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-80-100-V0-HBore: 80 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-80-100-V0-DBore: 80 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-80-100-V0-TBore: 80 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-20-V0-RBore: 100 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-20-V0-HBore: 100 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-20-V0-DBore: 100 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-30-V0-RBore: 100 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-30-V0-HBore: 100 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-30-V0-DBore: 100 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-40-V0-RBore: 100 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-40-V0-HBore: 100 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-40-V0-DBore: 100 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-40-V0-TBore: 100 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-50-V0-RBore: 100 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-50-V0-HBore: 100 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-50-V0-DBore: 100 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-50-V0-TBore: 100 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-60-V0-RBore: 100 mm | Stroke: 60 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-60-V0-HBore: 100 mm | Stroke: 60 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-60-V0-DBore: 100 mm | Stroke: 60 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-60-V0-TBore: 100 mm | Stroke: 60 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-70-V0-RBore: 100 mm | Stroke: 70 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-70-V0-HBore: 100 mm | Stroke: 70 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-70-V0-DBore: 100 mm | Stroke: 70 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-70-V0-TBore: 100 mm | Stroke: 70 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-80-V0-RBore: 100 mm | Stroke: 80 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-80-V0-HBore: 100 mm | Stroke: 80 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-80-V0-DBore: 100 mm | Stroke: 80 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-80-V0-TBore: 100 mm | Stroke: 80 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-90-V0-RBore: 100 mm | Stroke: 90 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-90-V0-HBore: 100 mm | Stroke: 90 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-90-V0-DBore: 100 mm | Stroke: 90 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-90-V0-TBore: 100 mm | Stroke: 90 mm | Switches (V0): 3 | Port: Rc3/8
SSD-KG1L4-100-100-V0-RBore: 100 mm | Stroke: 100 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-KG1L4-100-100-V0-HBore: 100 mm | Stroke: 100 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-KG1L4-100-100-V0-DBore: 100 mm | Stroke: 100 mm | Switches (V0): 2 | Port: Rc3/8
SSD-KG1L4-100-100-V0-TBore: 100 mm | Stroke: 100 mm | Switches (V0): 3 | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
