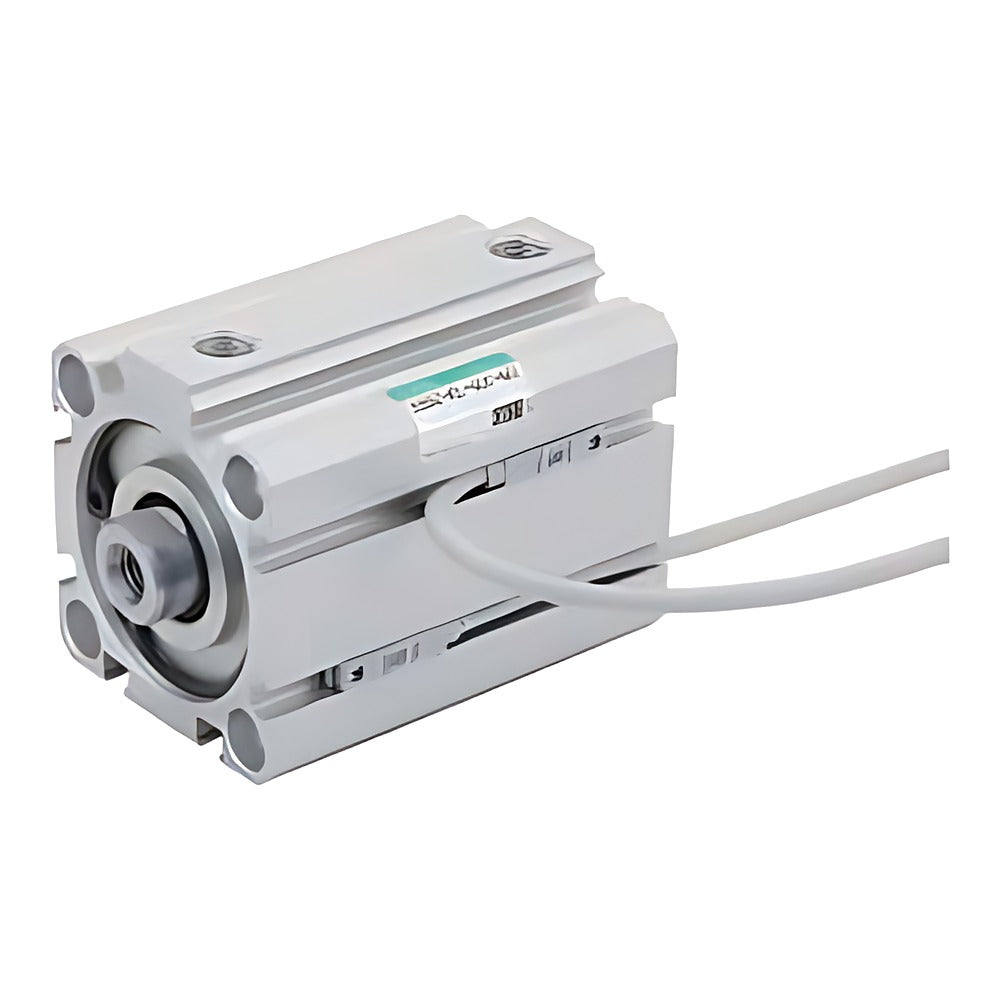

CKD SSD-KG2/KG3 Super Compact Cylinder (High Load, Coolant Resistant)

CKD SSD-KG2/KG3 Super Compact Cylinder (High Load, Coolant Resistant)

CKD SSD-KG2/KG3 super compact cylinder, high-load coolant-resistant type with rubber cushion, coolant-resistant scraper and NBR (KG2) or FKM (KG3) packings, bore 16 to 100 mm.

Key features

  • High-load body with rubber cushion and coolant-resistant scraper
  • KG2 with NBR packing, KG3 with FKM packing
  • Switch-ready versions KG2L/KG3L with T2YLH/T3YLH 2-colour solid-state switches
  • Standard strokes 5 to 100 mm; min. 10 mm with switch; max. 100/150/200 mm by bore
  • Bore 16-25: rod-end foot/flange brackets fitted afterwards are made to order

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (16-50), 0.1 MPa (63-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50-500 mm/s (16-50), 50-300 mm/s (63-100)
Cushion Rubber cushion
Stroke tolerance +2.0/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1326-1332
SSD-KG2-16-5 Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-KG2-16-10 Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KG2-16-15 Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KG2-16-20 Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KG2-16-25 Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KG2-16-30 Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KG2-16-40 Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KG2-16-50 Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KG2-20-5 Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-KG2-20-10 Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KG2-20-15 Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KG2-20-20 Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KG2-20-25 Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KG2-20-30 Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KG2-20-40 Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KG2-20-50 Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KG2-25-10 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG2-25-15 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG2-25-20 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG2-25-25 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG2-25-30 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG2-25-40 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG2-25-50 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG2-25-60 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG2-25-70 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG2-25-80 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG2-25-90 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG2-25-100 Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG2-32-10 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG2-32-15 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG2-32-20 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG2-32-25 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG2-32-30 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG2-32-40 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG2-32-50 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG2-32-60 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG2-32-70 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG2-32-80 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG2-32-90 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG2-32-100 Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG2-40-10 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG2-40-15 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG2-40-20 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG2-40-25 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG2-40-30 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG2-40-40 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG2-40-50 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG2-40-60 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG2-40-70 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG2-40-80 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG2-40-90 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG2-40-100 Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG2-50-10 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG2-50-15 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG2-50-20 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG2-50-25 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG2-50-30 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG2-50-40 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG2-50-50 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG2-50-60 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG2-50-70 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG2-50-80 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG2-50-90 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG2-50-100 Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG2-63-10 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG2-63-20 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG2-63-30 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG2-63-40 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG2-63-50 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG2-63-60 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG2-63-70 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG2-63-80 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG2-63-90 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG2-63-100 Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG2-80-10 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG2-80-20 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG2-80-30 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG2-80-40 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG2-80-50 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG2-80-60 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG2-80-70 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG2-80-80 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG2-80-90 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG2-80-100 Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG2-100-10 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG2-100-20 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG2-100-30 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG2-100-40 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG2-100-50 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG2-100-60 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG2-100-70 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG2-100-80 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG2-100-90 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG2-100-100 Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG2L-16-10 Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KG2L-16-15 Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KG2L-16-20 Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KG2L-16-25 Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KG2L-16-30 Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KG2L-16-40 Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KG2L-16-50 Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KG2L-20-10 Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KG2L-20-15 Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KG2L-20-20 Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KG2L-20-25 Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KG2L-20-30 Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KG2L-20-40 Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KG2L-20-50 Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KG2L-25-10 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG2L-25-15 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG2L-25-20 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG2L-25-25 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG2L-25-30 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG2L-25-40 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG2L-25-50 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG2L-25-60 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG2L-25-70 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG2L-25-80 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG2L-25-90 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG2L-25-100 Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG2L-32-10 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG2L-32-15 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG2L-32-20 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG2L-32-25 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG2L-32-30 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG2L-32-40 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG2L-32-50 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG2L-32-60 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG2L-32-70 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG2L-32-80 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG2L-32-90 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG2L-32-100 Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG2L-40-10 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG2L-40-15 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG2L-40-20 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG2L-40-25 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG2L-40-30 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG2L-40-40 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG2L-40-50 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG2L-40-60 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG2L-40-70 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG2L-40-80 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG2L-40-90 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG2L-40-100 Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG2L-50-10 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG2L-50-15 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG2L-50-20 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG2L-50-25 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG2L-50-30 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG2L-50-40 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG2L-50-50 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG2L-50-60 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG2L-50-70 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG2L-50-80 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG2L-50-90 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG2L-50-100 Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG2L-63-10 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG2L-63-20 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG2L-63-30 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG2L-63-40 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG2L-63-50 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG2L-63-60 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG2L-63-70 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG2L-63-80 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG2L-63-90 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG2L-63-100 Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG2L-80-10 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG2L-80-20 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG2L-80-30 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG2L-80-40 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG2L-80-50 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG2L-80-60 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG2L-80-70 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG2L-80-80 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG2L-80-90 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG2L-80-100 Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG2L-100-10 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG2L-100-20 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG2L-100-30 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG2L-100-40 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG2L-100-50 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG2L-100-60 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG2L-100-70 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG2L-100-80 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG2L-100-90 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG2L-100-100 Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG3-16-5 Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-KG3-16-10 Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KG3-16-15 Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KG3-16-20 Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KG3-16-25 Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KG3-16-30 Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KG3-16-40 Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KG3-16-50 Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KG3-20-5 Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-KG3-20-10 Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KG3-20-15 Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KG3-20-20 Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KG3-20-25 Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KG3-20-30 Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KG3-20-40 Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KG3-20-50 Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KG3-25-10 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG3-25-15 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG3-25-20 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG3-25-25 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG3-25-30 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG3-25-40 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG3-25-50 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG3-25-60 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG3-25-70 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG3-25-80 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG3-25-90 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG3-25-100 Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG3-32-10 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG3-32-15 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG3-32-20 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG3-32-25 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG3-32-30 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG3-32-40 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG3-32-50 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG3-32-60 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG3-32-70 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG3-32-80 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG3-32-90 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG3-32-100 Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG3-40-10 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG3-40-15 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG3-40-20 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG3-40-25 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG3-40-30 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG3-40-40 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG3-40-50 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG3-40-60 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG3-40-70 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG3-40-80 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG3-40-90 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG3-40-100 Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG3-50-10 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG3-50-15 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG3-50-20 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG3-50-25 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG3-50-30 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG3-50-40 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG3-50-50 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG3-50-60 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG3-50-70 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG3-50-80 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG3-50-90 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG3-50-100 Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG3-63-10 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG3-63-20 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG3-63-30 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG3-63-40 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG3-63-50 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG3-63-60 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG3-63-70 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG3-63-80 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG3-63-90 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG3-63-100 Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG3-80-10 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG3-80-20 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG3-80-30 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG3-80-40 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG3-80-50 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG3-80-60 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG3-80-70 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG3-80-80 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG3-80-90 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG3-80-100 Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG3-100-10 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG3-100-20 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG3-100-30 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG3-100-40 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG3-100-50 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG3-100-60 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG3-100-70 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG3-100-80 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG3-100-90 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG3-100-100 Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG3L-16-10 Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KG3L-16-15 Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KG3L-16-20 Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KG3L-16-25 Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KG3L-16-30 Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KG3L-16-40 Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KG3L-16-50 Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KG3L-20-10 Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KG3L-20-15 Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KG3L-20-20 Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KG3L-20-25 Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KG3L-20-30 Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KG3L-20-40 Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KG3L-20-50 Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KG3L-25-10 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG3L-25-15 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG3L-25-20 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG3L-25-25 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG3L-25-30 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG3L-25-40 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG3L-25-50 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG3L-25-60 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG3L-25-70 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG3L-25-80 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG3L-25-90 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG3L-25-100 Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG3L-32-10 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG3L-32-15 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG3L-32-20 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG3L-32-25 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG3L-32-30 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG3L-32-40 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG3L-32-50 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG3L-32-60 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG3L-32-70 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG3L-32-80 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG3L-32-90 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG3L-32-100 Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG3L-40-10 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG3L-40-15 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG3L-40-20 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG3L-40-25 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG3L-40-30 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG3L-40-40 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG3L-40-50 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG3L-40-60 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG3L-40-70 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG3L-40-80 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG3L-40-90 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG3L-40-100 Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG3L-50-10 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG3L-50-15 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG3L-50-20 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG3L-50-25 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG3L-50-30 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG3L-50-40 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG3L-50-50 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG3L-50-60 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG3L-50-70 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG3L-50-80 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG3L-50-90 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG3L-50-100 Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG3L-63-10 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG3L-63-20 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG3L-63-30 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG3L-63-40 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG3L-63-50 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG3L-63-60 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG3L-63-70 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG3L-63-80 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG3L-63-90 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG3L-63-100 Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG3L-80-10 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG3L-80-20 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG3L-80-30 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG3L-80-40 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG3L-80-50 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG3L-80-60 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG3L-80-70 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG3L-80-80 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG3L-80-90 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG3L-80-100 Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG3L-100-10 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG3L-100-20 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG3L-100-30 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG3L-100-40 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG3L-100-50 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG3L-100-60 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG3L-100-70 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG3L-100-80 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG3L-100-90 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG3L-100-100 Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
Compact CylindersCKD
372 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-KG2/KG3 Super Compact Cylinder (High Load, Coolant Resistant)

Brand CKD·Compact Cylinders

Available part numbers (372)

SSD-KG2-16-5, SSD-KG2-16-10, SSD-KG2-16-15, SSD-KG2-16-20, SSD-KG2-16-25, SSD-KG2-16-30, SSD-KG2-16-40, SSD-KG2-16-50, SSD-KG2-20-5, SSD-KG2-20-10 + 362 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD-KG2-16-5Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-KG2-16-10Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KG2-16-15Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KG2-16-20Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KG2-16-25Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KG2-16-30Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KG2-16-40Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KG2-16-50Model: SSD-KG2 (NBR, no magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KG2-20-5Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-KG2-20-10Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KG2-20-15Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KG2-20-20Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KG2-20-25Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KG2-20-30Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KG2-20-40Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KG2-20-50Model: SSD-KG2 (NBR, no magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KG2-25-10Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG2-25-15Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG2-25-20Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG2-25-25Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG2-25-30Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG2-25-40Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG2-25-50Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG2-25-60Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG2-25-70Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG2-25-80Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG2-25-90Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG2-25-100Model: SSD-KG2 (NBR, no magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG2-32-10Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG2-32-15Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG2-32-20Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG2-32-25Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG2-32-30Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG2-32-40Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG2-32-50Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG2-32-60Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG2-32-70Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG2-32-80Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG2-32-90Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG2-32-100Model: SSD-KG2 (NBR, no magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG2-40-10Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG2-40-15Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG2-40-20Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG2-40-25Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG2-40-30Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG2-40-40Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG2-40-50Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG2-40-60Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG2-40-70Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG2-40-80Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG2-40-90Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG2-40-100Model: SSD-KG2 (NBR, no magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG2-50-10Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG2-50-15Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG2-50-20Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG2-50-25Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG2-50-30Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG2-50-40Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG2-50-50Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG2-50-60Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG2-50-70Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG2-50-80Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG2-50-90Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG2-50-100Model: SSD-KG2 (NBR, no magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG2-63-10Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG2-63-20Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG2-63-30Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG2-63-40Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG2-63-50Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG2-63-60Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG2-63-70Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG2-63-80Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG2-63-90Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG2-63-100Model: SSD-KG2 (NBR, no magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG2-80-10Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG2-80-20Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG2-80-30Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG2-80-40Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG2-80-50Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG2-80-60Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG2-80-70Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG2-80-80Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG2-80-90Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG2-80-100Model: SSD-KG2 (NBR, no magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG2-100-10Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG2-100-20Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG2-100-30Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG2-100-40Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG2-100-50Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG2-100-60Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG2-100-70Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG2-100-80Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG2-100-90Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG2-100-100Model: SSD-KG2 (NBR, no magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG2L-16-10Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KG2L-16-15Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KG2L-16-20Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KG2L-16-25Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KG2L-16-30Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KG2L-16-40Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KG2L-16-50Model: SSD-KG2L (NBR, switch magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KG2L-20-10Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KG2L-20-15Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KG2L-20-20Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KG2L-20-25Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KG2L-20-30Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KG2L-20-40Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KG2L-20-50Model: SSD-KG2L (NBR, switch magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KG2L-25-10Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG2L-25-15Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG2L-25-20Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG2L-25-25Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG2L-25-30Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG2L-25-40Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG2L-25-50Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG2L-25-60Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG2L-25-70Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG2L-25-80Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG2L-25-90Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG2L-25-100Model: SSD-KG2L (NBR, switch magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG2L-32-10Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG2L-32-15Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG2L-32-20Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG2L-32-25Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG2L-32-30Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG2L-32-40Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG2L-32-50Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG2L-32-60Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG2L-32-70Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG2L-32-80Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG2L-32-90Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG2L-32-100Model: SSD-KG2L (NBR, switch magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG2L-40-10Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG2L-40-15Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG2L-40-20Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG2L-40-25Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG2L-40-30Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG2L-40-40Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG2L-40-50Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG2L-40-60Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG2L-40-70Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG2L-40-80Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG2L-40-90Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG2L-40-100Model: SSD-KG2L (NBR, switch magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG2L-50-10Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG2L-50-15Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG2L-50-20Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG2L-50-25Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG2L-50-30Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG2L-50-40Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG2L-50-50Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG2L-50-60Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG2L-50-70Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG2L-50-80Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG2L-50-90Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG2L-50-100Model: SSD-KG2L (NBR, switch magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG2L-63-10Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG2L-63-20Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG2L-63-30Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG2L-63-40Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG2L-63-50Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG2L-63-60Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG2L-63-70Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG2L-63-80Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG2L-63-90Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG2L-63-100Model: SSD-KG2L (NBR, switch magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG2L-80-10Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG2L-80-20Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG2L-80-30Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG2L-80-40Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG2L-80-50Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG2L-80-60Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG2L-80-70Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG2L-80-80Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG2L-80-90Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG2L-80-100Model: SSD-KG2L (NBR, switch magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG2L-100-10Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG2L-100-20Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG2L-100-30Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG2L-100-40Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG2L-100-50Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG2L-100-60Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG2L-100-70Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG2L-100-80Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG2L-100-90Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG2L-100-100Model: SSD-KG2L (NBR, switch magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG3-16-5Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-KG3-16-10Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KG3-16-15Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KG3-16-20Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KG3-16-25Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KG3-16-30Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KG3-16-40Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KG3-16-50Model: SSD-KG3 (FKM, no magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KG3-20-5Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-KG3-20-10Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KG3-20-15Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KG3-20-20Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KG3-20-25Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KG3-20-30Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KG3-20-40Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KG3-20-50Model: SSD-KG3 (FKM, no magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KG3-25-10Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG3-25-15Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG3-25-20Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG3-25-25Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG3-25-30Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG3-25-40Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG3-25-50Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG3-25-60Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG3-25-70Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG3-25-80Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG3-25-90Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG3-25-100Model: SSD-KG3 (FKM, no magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG3-32-10Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG3-32-15Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG3-32-20Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG3-32-25Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG3-32-30Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG3-32-40Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG3-32-50Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG3-32-60Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG3-32-70Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG3-32-80Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG3-32-90Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG3-32-100Model: SSD-KG3 (FKM, no magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG3-40-10Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG3-40-15Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG3-40-20Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG3-40-25Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG3-40-30Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG3-40-40Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG3-40-50Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG3-40-60Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG3-40-70Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG3-40-80Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG3-40-90Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG3-40-100Model: SSD-KG3 (FKM, no magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG3-50-10Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG3-50-15Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG3-50-20Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG3-50-25Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG3-50-30Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG3-50-40Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG3-50-50Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG3-50-60Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG3-50-70Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG3-50-80Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG3-50-90Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG3-50-100Model: SSD-KG3 (FKM, no magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG3-63-10Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG3-63-20Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG3-63-30Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG3-63-40Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG3-63-50Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG3-63-60Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG3-63-70Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG3-63-80Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG3-63-90Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG3-63-100Model: SSD-KG3 (FKM, no magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG3-80-10Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG3-80-20Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG3-80-30Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG3-80-40Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG3-80-50Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG3-80-60Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG3-80-70Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG3-80-80Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG3-80-90Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG3-80-100Model: SSD-KG3 (FKM, no magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG3-100-10Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG3-100-20Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG3-100-30Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG3-100-40Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG3-100-50Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG3-100-60Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG3-100-70Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG3-100-80Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG3-100-90Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG3-100-100Model: SSD-KG3 (FKM, no magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG3L-16-10Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-KG3L-16-15Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-KG3L-16-20Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-KG3L-16-25Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-KG3L-16-30Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-KG3L-16-40Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 40 mm | Port: M5
SSD-KG3L-16-50Model: SSD-KG3L (FKM, switch magnet) | Bore: 16 mm | Stroke: 50 mm | Port: M5
SSD-KG3L-20-10Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-KG3L-20-15Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-KG3L-20-20Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-KG3L-20-25Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-KG3L-20-30Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-KG3L-20-40Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 40 mm | Port: M5
SSD-KG3L-20-50Model: SSD-KG3L (FKM, switch magnet) | Bore: 20 mm | Stroke: 50 mm | Port: M5
SSD-KG3L-25-10Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-KG3L-25-15Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-KG3L-25-20Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-KG3L-25-25Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-KG3L-25-30Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-KG3L-25-40Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-KG3L-25-50Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-KG3L-25-60Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 60 mm | Port: M5
SSD-KG3L-25-70Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 70 mm | Port: M5
SSD-KG3L-25-80Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 80 mm | Port: M5
SSD-KG3L-25-90Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 90 mm | Port: M5
SSD-KG3L-25-100Model: SSD-KG3L (FKM, switch magnet) | Bore: 25 mm | Stroke: 100 mm | Port: M5
SSD-KG3L-32-10Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG3L-32-15Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG3L-32-20Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG3L-32-25Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG3L-32-30Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG3L-32-40Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG3L-32-50Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG3L-32-60Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG3L-32-70Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG3L-32-80Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG3L-32-90Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG3L-32-100Model: SSD-KG3L (FKM, switch magnet) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG3L-40-10Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-KG3L-40-15Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-KG3L-40-20Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-KG3L-40-25Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-KG3L-40-30Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-KG3L-40-40Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-KG3L-40-50Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-KG3L-40-60Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 60 mm | Port: Rc1/8
SSD-KG3L-40-70Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 70 mm | Port: Rc1/8
SSD-KG3L-40-80Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 80 mm | Port: Rc1/8
SSD-KG3L-40-90Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 90 mm | Port: Rc1/8
SSD-KG3L-40-100Model: SSD-KG3L (FKM, switch magnet) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
SSD-KG3L-50-10Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG3L-50-15Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-KG3L-50-20Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG3L-50-25Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-KG3L-50-30Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG3L-50-40Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG3L-50-50Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG3L-50-60Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG3L-50-70Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG3L-50-80Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG3L-50-90Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG3L-50-100Model: SSD-KG3L (FKM, switch magnet) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG3L-63-10Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-KG3L-63-20Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-KG3L-63-30Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-KG3L-63-40Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-KG3L-63-50Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-KG3L-63-60Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 60 mm | Port: Rc1/4
SSD-KG3L-63-70Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 70 mm | Port: Rc1/4
SSD-KG3L-63-80Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 80 mm | Port: Rc1/4
SSD-KG3L-63-90Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 90 mm | Port: Rc1/4
SSD-KG3L-63-100Model: SSD-KG3L (FKM, switch magnet) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
SSD-KG3L-80-10Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG3L-80-20Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG3L-80-30Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG3L-80-40Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG3L-80-50Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG3L-80-60Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG3L-80-70Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG3L-80-80Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG3L-80-90Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG3L-80-100Model: SSD-KG3L (FKM, switch magnet) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
SSD-KG3L-100-10Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-KG3L-100-20Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-KG3L-100-30Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-KG3L-100-40Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-KG3L-100-50Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-KG3L-100-60Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 60 mm | Port: Rc3/8
SSD-KG3L-100-70Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 70 mm | Port: Rc3/8
SSD-KG3L-100-80Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 80 mm | Port: Rc3/8
SSD-KG3L-100-90Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 90 mm | Port: Rc3/8
SSD-KG3L-100-100Model: SSD-KG3L (FKM, switch magnet) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
