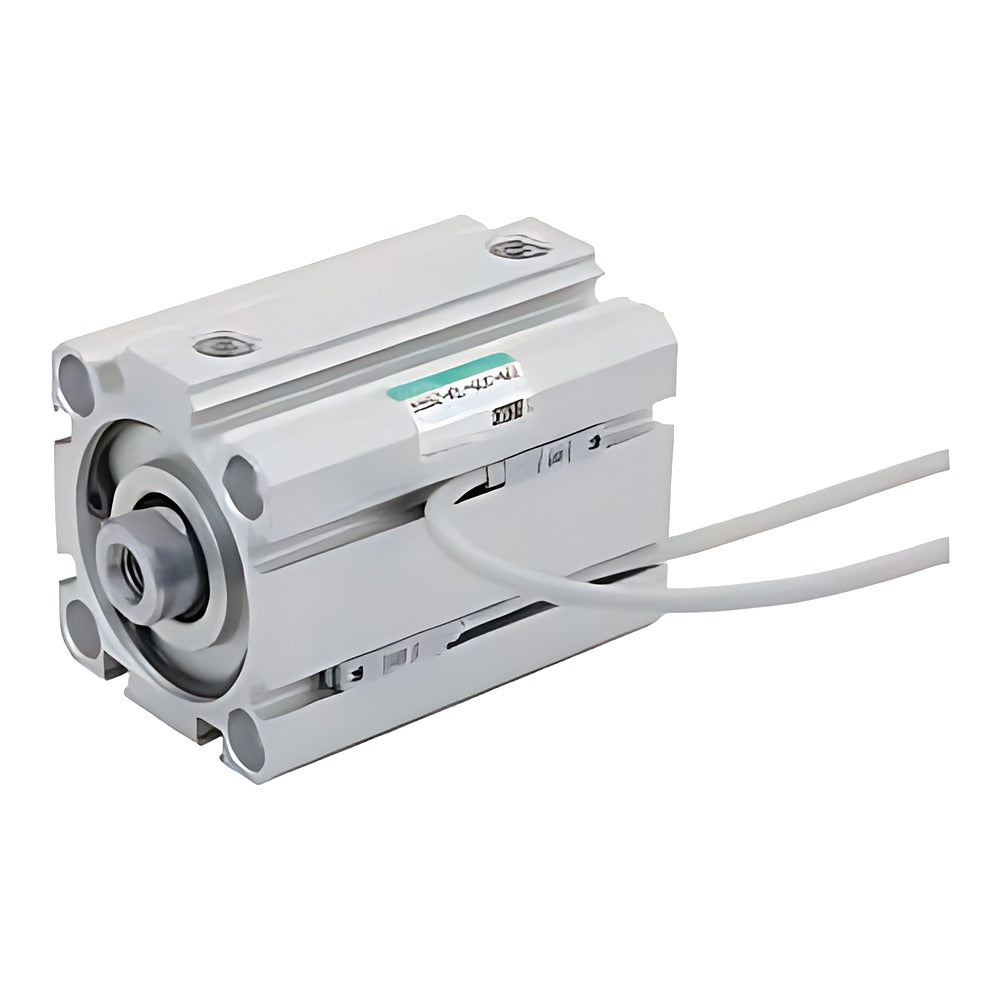

CKD SSD-L4 Super Compact Cylinder (Strong Magnetic Field Switch)

CKD SSD-L4 Super Compact Cylinder (Strong Magnetic Field Switch)

CKD SSD-L4 super compact cylinder, double-acting single-rod type with built-in V0 switch resistant to strong magnetic fields for welding applications, bore 40 to 100 mm.

Key features

  • Supplied with V0 reed switch(es) resistant to strong magnetic fields (welding); 1, 2 or 3 switches (3 switches: min. stroke 35 mm)
  • Standard strokes 20, 30, 40, 50 mm; intermediate strokes in 1 mm steps (min. 20, max. 50 mm)
  • No cushion; compact square body
  • Mounting LB/LB2/CB/CB2/FA/FB, rod end male thread (N) and accessories I/I2/Y/Y2 as code suffixes; lead wire 3 m/5 m optional

Specifications

Action Double-acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Lubrication Not required (turbine oil ISO VG32 if used)
Min. operating pressure 0.1 MPa (40-50), 0.05 MPa (63-100)
Cushion None
Piston speed 50-500 mm/s (40-50), 50-300 mm/s (63-100)
Stroke tolerance +1.0/0 mm
Switch V0 reed switch (strong magnetic field resistant), 1-colour LED, AC/DC, 2-wire
Source CKD Korea catalog CB-029SK-9, p. 1288-1293
SSD-L4-40-20-V0-R Bore: 40 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-L4-40-20-V0-H Bore: 40 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-L4-40-20-V0-D Bore: 40 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc1/8
SSD-L4-40-30-V0-R Bore: 40 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-L4-40-30-V0-H Bore: 40 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-L4-40-30-V0-D Bore: 40 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc1/8
SSD-L4-40-40-V0-R Bore: 40 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-L4-40-40-V0-H Bore: 40 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-L4-40-40-V0-D Bore: 40 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc1/8
SSD-L4-40-40-V0-T Bore: 40 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc1/8
SSD-L4-40-50-V0-R Bore: 40 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc1/8
SSD-L4-40-50-V0-H Bore: 40 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc1/8
SSD-L4-40-50-V0-D Bore: 40 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc1/8
SSD-L4-40-50-V0-T Bore: 40 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc1/8
SSD-L4-50-20-V0-R Bore: 50 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-L4-50-20-V0-H Bore: 50 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-L4-50-20-V0-D Bore: 50 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc1/4
SSD-L4-50-30-V0-R Bore: 50 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-L4-50-30-V0-H Bore: 50 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-L4-50-30-V0-D Bore: 50 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc1/4
SSD-L4-50-40-V0-R Bore: 50 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-L4-50-40-V0-H Bore: 50 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-L4-50-40-V0-D Bore: 50 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc1/4
SSD-L4-50-40-V0-T Bore: 50 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc1/4
SSD-L4-50-50-V0-R Bore: 50 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-L4-50-50-V0-H Bore: 50 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-L4-50-50-V0-D Bore: 50 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc1/4
SSD-L4-50-50-V0-T Bore: 50 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc1/4
SSD-L4-63-20-V0-R Bore: 63 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-L4-63-20-V0-H Bore: 63 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-L4-63-20-V0-D Bore: 63 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc1/4
SSD-L4-63-30-V0-R Bore: 63 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-L4-63-30-V0-H Bore: 63 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-L4-63-30-V0-D Bore: 63 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc1/4
SSD-L4-63-40-V0-R Bore: 63 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-L4-63-40-V0-H Bore: 63 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-L4-63-40-V0-D Bore: 63 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc1/4
SSD-L4-63-40-V0-T Bore: 63 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc1/4
SSD-L4-63-50-V0-R Bore: 63 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc1/4
SSD-L4-63-50-V0-H Bore: 63 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc1/4
SSD-L4-63-50-V0-D Bore: 63 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc1/4
SSD-L4-63-50-V0-T Bore: 63 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc1/4
SSD-L4-80-20-V0-R Bore: 80 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-L4-80-20-V0-H Bore: 80 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-L4-80-20-V0-D Bore: 80 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc3/8
SSD-L4-80-30-V0-R Bore: 80 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-L4-80-30-V0-H Bore: 80 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-L4-80-30-V0-D Bore: 80 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc3/8
SSD-L4-80-40-V0-R Bore: 80 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-L4-80-40-V0-H Bore: 80 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-L4-80-40-V0-D Bore: 80 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc3/8
SSD-L4-80-40-V0-T Bore: 80 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc3/8
SSD-L4-80-50-V0-R Bore: 80 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-L4-80-50-V0-H Bore: 80 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-L4-80-50-V0-D Bore: 80 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc3/8
SSD-L4-80-50-V0-T Bore: 80 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc3/8
SSD-L4-100-20-V0-R Bore: 100 mm | Stroke: 20 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-L4-100-20-V0-H Bore: 100 mm | Stroke: 20 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-L4-100-20-V0-D Bore: 100 mm | Stroke: 20 mm | Switches (V0): 2 | Port: Rc3/8
SSD-L4-100-30-V0-R Bore: 100 mm | Stroke: 30 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-L4-100-30-V0-H Bore: 100 mm | Stroke: 30 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-L4-100-30-V0-D Bore: 100 mm | Stroke: 30 mm | Switches (V0): 2 | Port: Rc3/8
SSD-L4-100-40-V0-R Bore: 100 mm | Stroke: 40 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-L4-100-40-V0-H Bore: 100 mm | Stroke: 40 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-L4-100-40-V0-D Bore: 100 mm | Stroke: 40 mm | Switches (V0): 2 | Port: Rc3/8
SSD-L4-100-40-V0-T Bore: 100 mm | Stroke: 40 mm | Switches (V0): 3 | Port: Rc3/8
SSD-L4-100-50-V0-R Bore: 100 mm | Stroke: 50 mm | Switches (V0): 1 (rod side) | Port: Rc3/8
SSD-L4-100-50-V0-H Bore: 100 mm | Stroke: 50 mm | Switches (V0): 1 (head side) | Port: Rc3/8
SSD-L4-100-50-V0-D Bore: 100 mm | Stroke: 50 mm | Switches (V0): 2 | Port: Rc3/8
SSD-L4-100-50-V0-T Bore: 100 mm | Stroke: 50 mm | Switches (V0): 3 | Port: Rc3/8
