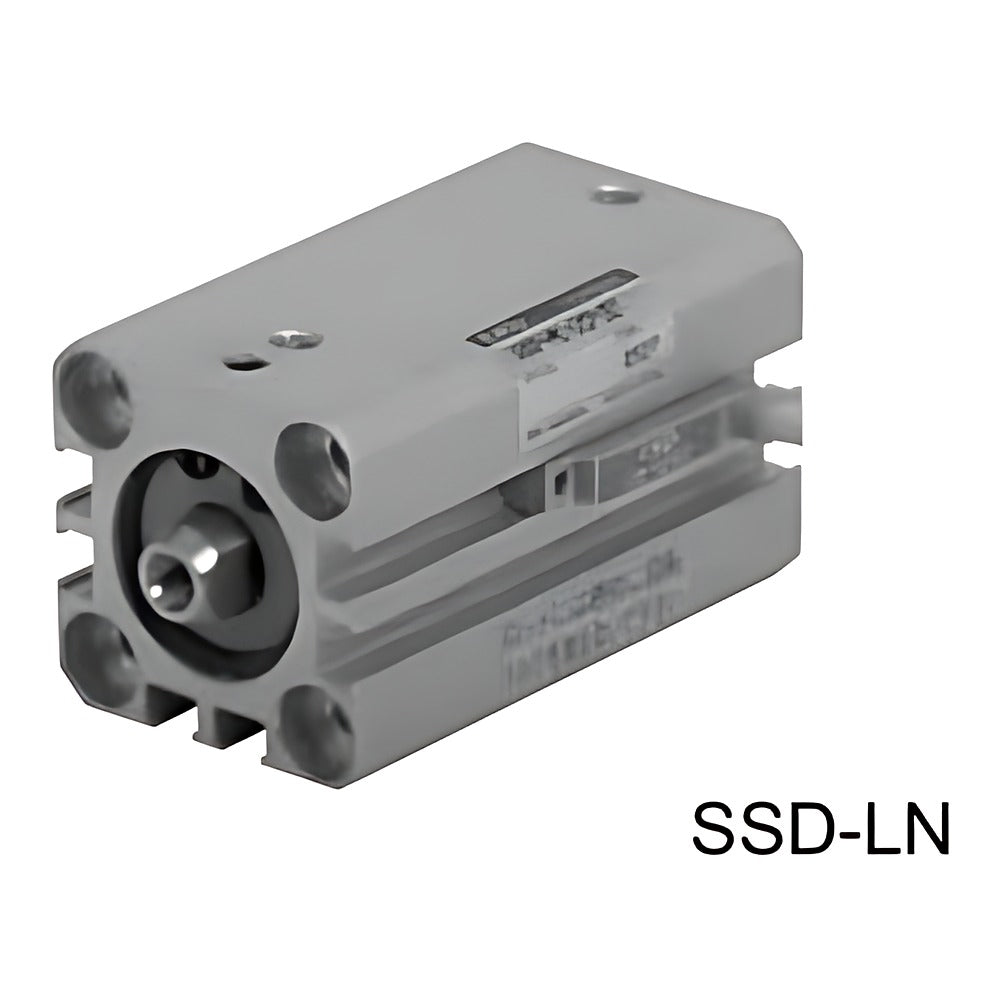

CKD SSD-LN / SSD-O-LN Cylinder with Linear Gnome Sensor

CKD SSD-LN / SSD-O-LN Cylinder with Linear Gnome Sensor

CKD SSD-LN super compact cylinders with a linear gnome (LN) sensor for analog position measurement over an 8 or 10 mm range.

Key features

  • Bores 12-50 mm, strokes 20/30 (o12, o16) or 20/50 (o20-o50); double acting single rod, non-rotating
  • SSD-O-LN low-speed type 10-200 mm/s, min. pressure 0.05 MPa
  • Full code SSD-LN-<bore><stroke>-10<H/V>C<sensor face><switch face><detect position><LS/LDS>[DN], e.g. SSD-LN-2020-10HC125LDSDN
  • Rows list cylinder bodies for maintenance (A-LN-BC) and LN-A-LB axial foot brackets
  • Analog ON-OFF switch SW-T0H5/SW-T0V5 (LS amp) or LN-TH/LN-TV (display type) required; stainless mounting bolts

Specifications

Fluid Compressed air
Max operating pressure 1.0 MPa
Min operating pressure 0.1 MPa (SSD-O: 0.05 MPa)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Stroke tolerance 0 to +1 mm
Port M5 (o12-o20), Rc1/8 (o32), Rc1/4 (o50)
Source CKD Korea catalog CB-030SK-9, p. 1562-1565
SSD-LN-1220 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 12 mm | Stroke: 20 mm
SSD-LN-1230 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 12 mm | Stroke: 30 mm
SSD-LN-1620 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 16 mm | Stroke: 20 mm
SSD-LN-1630 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 16 mm | Stroke: 30 mm
SSD-LN-2020 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 20 mm | Stroke: 20 mm
SSD-LN-2050 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 20 mm | Stroke: 50 mm
SSD-LN-3220 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 32 mm | Stroke: 20 mm
SSD-LN-3250 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 32 mm | Stroke: 50 mm
SSD-LN-5020 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 50 mm | Stroke: 20 mm
SSD-LN-5050 Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 50 mm | Stroke: 50 mm
SSD-O-LN-1220 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 12 mm | Stroke: 20 mm
SSD-O-LN-1230 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 12 mm | Stroke: 30 mm
SSD-O-LN-1620 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 16 mm | Stroke: 20 mm
SSD-O-LN-1630 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 16 mm | Stroke: 30 mm
SSD-O-LN-2020 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 20 mm | Stroke: 20 mm
SSD-O-LN-2050 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 20 mm | Stroke: 50 mm
SSD-O-LN-3220 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 32 mm | Stroke: 20 mm
SSD-O-LN-3250 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 32 mm | Stroke: 50 mm
SSD-O-LN-5020 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 50 mm | Stroke: 20 mm
SSD-O-LN-5050 Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 50 mm | Stroke: 50 mm
LN-A-LB-12 Part: Axial foot bracket | Type: - | Bore: 12 mm | Stroke: -
LN-A-LB-16 Part: Axial foot bracket | Type: - | Bore: 16 mm | Stroke: -
LN-A-LB-20 Part: Axial foot bracket | Type: - | Bore: 20 mm | Stroke: -
LN-A-LB-32 Part: Axial foot bracket | Type: - | Bore: 32 mm | Stroke: -
LN-A-LB-50 Part: Axial foot bracket | Type: - | Bore: 50 mm | Stroke: -
Compact CylindersCKD
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-LN / SSD-O-LN Cylinder with Linear Gnome Sensor

Brand CKD·Compact Cylinders

Available part numbers (25)

SSD-LN-1220, SSD-LN-1230, SSD-LN-1620, SSD-LN-1630, SSD-LN-2020, SSD-LN-2050, SSD-LN-3220, SSD-LN-3250, SSD-LN-5020, SSD-LN-5050 + 15 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD-LN-1220Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 12 mm | Stroke: 20 mm
SSD-LN-1230Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 12 mm | Stroke: 30 mm
SSD-LN-1620Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 16 mm | Stroke: 20 mm
SSD-LN-1630Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 16 mm | Stroke: 30 mm
SSD-LN-2020Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 20 mm | Stroke: 20 mm
SSD-LN-2050Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 20 mm | Stroke: 50 mm
SSD-LN-3220Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 32 mm | Stroke: 20 mm
SSD-LN-3250Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 32 mm | Stroke: 50 mm
SSD-LN-5020Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 50 mm | Stroke: 20 mm
SSD-LN-5050Part: Cylinder body | Type: Standard (50-500 mm/s) | Bore: 50 mm | Stroke: 50 mm
SSD-O-LN-1220Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 12 mm | Stroke: 20 mm
SSD-O-LN-1230Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 12 mm | Stroke: 30 mm
SSD-O-LN-1620Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 16 mm | Stroke: 20 mm
SSD-O-LN-1630Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 16 mm | Stroke: 30 mm
SSD-O-LN-2020Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 20 mm | Stroke: 20 mm
SSD-O-LN-2050Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 20 mm | Stroke: 50 mm
SSD-O-LN-3220Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 32 mm | Stroke: 20 mm
SSD-O-LN-3250Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 32 mm | Stroke: 50 mm
SSD-O-LN-5020Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 50 mm | Stroke: 20 mm
SSD-O-LN-5050Part: Cylinder body | Type: Low speed (10-200 mm/s) | Bore: 50 mm | Stroke: 50 mm
LN-A-LB-12Part: Axial foot bracket | Type: - | Bore: 12 mm | Stroke: -
LN-A-LB-16Part: Axial foot bracket | Type: - | Bore: 16 mm | Stroke: -
LN-A-LB-20Part: Axial foot bracket | Type: - | Bore: 20 mm | Stroke: -
LN-A-LB-32Part: Axial foot bracket | Type: - | Bore: 32 mm | Stroke: -
LN-A-LB-50Part: Axial foot bracket | Type: - | Bore: 50 mm | Stroke: -
