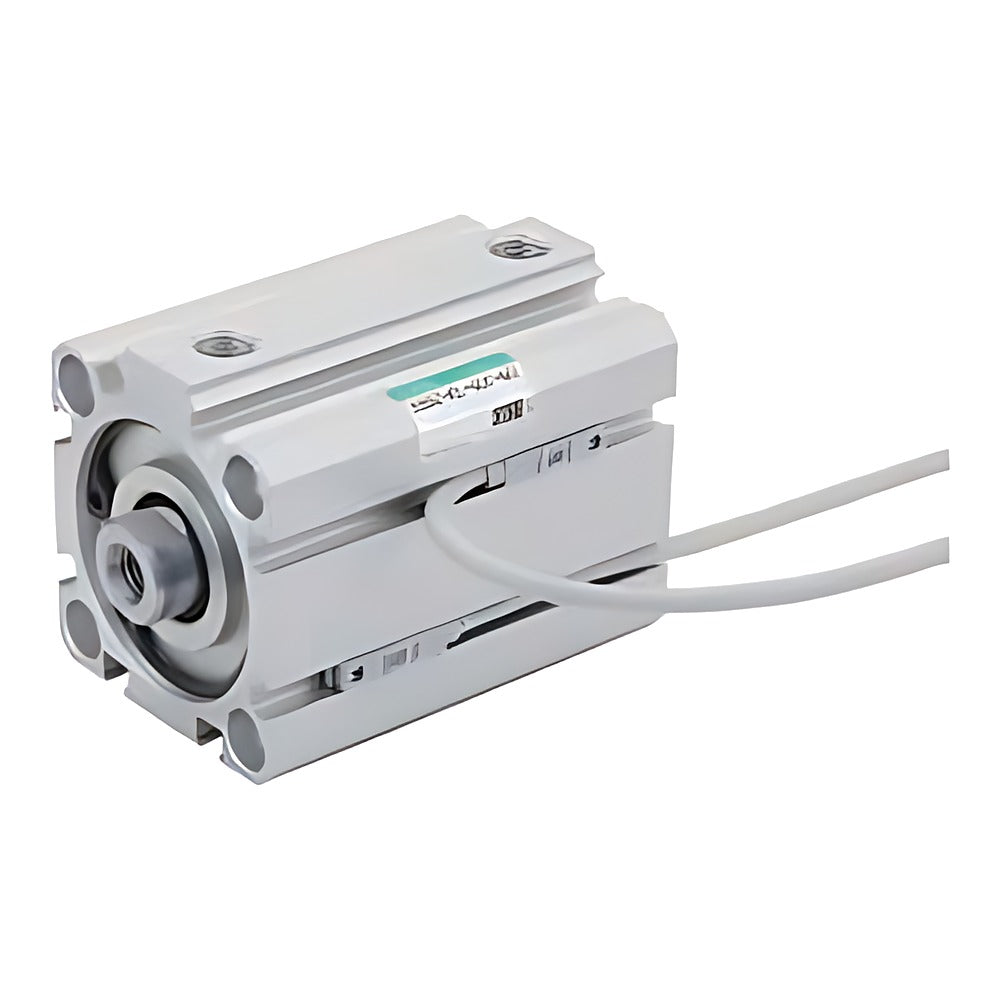

CKD SSD-O Super Compact Cylinder (Double Acting, Low Speed)

CKD SSD-O Super Compact Cylinder (Double Acting, Low Speed)

CKD SSD-O super compact cylinder, double acting low-speed type for stable motion at 10 to 200 mm/s, bore 12 to 100 mm.

Key features

  • Smooth low-speed operation at 10 to 200 mm/s
  • Switch-ready version (L) has a built-in magnet for T-type auto switches (T0H, T2H, T2YH, T3H etc.)
  • SSD-OL1: bore 12/16 version for 2-colour, off-delay or T1 switches (stroke 10 mm and over)
  • Standard strokes 5 to 50 mm, intermediate strokes in 1 mm steps
  • Lubrication not allowed

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (12-50), 0.05 MPa (63-100)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 10-200 mm/s
Cushion None
Stroke tolerance +1.0/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1266-1270
SSD-O-12-5 Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-O-12-10 Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-O-12-15 Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-O-12-20 Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-O-12-25 Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-O-12-30 Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-O-16-5 Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-O-16-10 Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-O-16-15 Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-O-16-20 Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-O-16-25 Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-O-16-30 Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-O-20-5 Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-O-20-10 Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-O-20-15 Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-O-20-20 Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-O-20-25 Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-O-20-30 Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-O-25-5 Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-O-25-10 Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-O-25-15 Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-O-25-20 Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-O-25-25 Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-O-25-30 Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-O-25-40 Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-O-25-50 Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-O-32-5 Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-O-32-10 Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-O-32-15 Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-O-32-20 Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-O-32-25 Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-O-32-30 Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-O-32-40 Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-O-32-50 Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-O-40-5 Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-O-40-10 Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-O-40-15 Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-O-40-20 Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-O-40-25 Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-O-40-30 Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-O-40-40 Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-O-40-50 Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-O-50-5 Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-O-50-10 Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-O-50-15 Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-O-50-20 Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-O-50-25 Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-O-50-30 Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-O-50-40 Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-O-50-50 Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-O-63-5 Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-O-63-10 Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-O-63-20 Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-O-63-30 Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-O-63-40 Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-O-63-50 Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-O-80-5 Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-O-80-10 Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-O-80-20 Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-O-80-30 Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-O-80-40 Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-O-80-50 Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-O-100-5 Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-O-100-10 Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-O-100-20 Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-O-100-30 Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-O-100-40 Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-O-100-50 Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-OL-12-5 Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-OL-12-10 Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-OL-12-15 Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-OL-12-20 Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-OL-12-25 Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-OL-12-30 Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-OL-16-5 Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-OL-16-10 Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-OL-16-15 Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-OL-16-20 Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-OL-16-25 Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-OL-16-30 Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-OL-20-5 Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-OL-20-10 Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-OL-20-15 Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-OL-20-20 Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-OL-20-25 Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-OL-20-30 Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-OL-25-5 Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-OL-25-10 Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-OL-25-15 Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-OL-25-20 Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-OL-25-25 Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-OL-25-30 Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-OL-25-40 Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-OL-25-50 Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-OL-32-5 Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-OL-32-10 Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-OL-32-15 Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-OL-32-20 Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-OL-32-25 Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-OL-32-30 Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-OL-32-40 Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-OL-32-50 Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-OL-40-5 Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-OL-40-10 Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-OL-40-15 Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-OL-40-20 Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-OL-40-25 Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-OL-40-30 Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-OL-40-40 Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-OL-40-50 Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-OL-50-5 Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-OL-50-10 Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-OL-50-15 Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-OL-50-20 Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-OL-50-25 Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-OL-50-30 Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-OL-50-40 Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-OL-50-50 Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-OL-63-5 Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-OL-63-10 Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-OL-63-20 Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-OL-63-30 Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-OL-63-40 Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-OL-63-50 Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-OL-80-5 Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-OL-80-10 Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-OL-80-20 Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-OL-80-30 Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-OL-80-40 Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-OL-80-50 Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-OL-100-5 Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-OL-100-10 Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-OL-100-20 Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-OL-100-30 Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-OL-100-40 Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-OL-100-50 Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-OL1-12-10 Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-OL1-12-15 Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-OL1-12-20 Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-OL1-12-25 Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-OL1-12-30 Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-OL1-16-10 Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-OL1-16-15 Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-OL1-16-20 Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-OL1-16-25 Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-OL1-16-30 Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 30 mm | Port: M5
Compact CylindersCKD
146 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-O Super Compact Cylinder (Double Acting, Low Speed)

Brand CKD·Compact Cylinders

Available part numbers (146)

SSD-O-12-5, SSD-O-12-10, SSD-O-12-15, SSD-O-12-20, SSD-O-12-25, SSD-O-12-30, SSD-O-16-5, SSD-O-16-10, SSD-O-16-15, SSD-O-16-20 + 136 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD-O-12-5Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-O-12-10Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-O-12-15Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-O-12-20Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-O-12-25Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-O-12-30Model: SSD-O (no magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-O-16-5Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-O-16-10Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-O-16-15Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-O-16-20Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-O-16-25Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-O-16-30Model: SSD-O (no magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-O-20-5Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-O-20-10Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-O-20-15Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-O-20-20Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-O-20-25Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-O-20-30Model: SSD-O (no magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-O-25-5Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-O-25-10Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-O-25-15Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-O-25-20Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-O-25-25Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-O-25-30Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-O-25-40Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-O-25-50Model: SSD-O (no magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-O-32-5Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-O-32-10Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-O-32-15Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-O-32-20Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-O-32-25Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-O-32-30Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-O-32-40Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-O-32-50Model: SSD-O (no magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-O-40-5Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-O-40-10Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-O-40-15Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-O-40-20Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-O-40-25Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-O-40-30Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-O-40-40Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-O-40-50Model: SSD-O (no magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-O-50-5Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-O-50-10Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-O-50-15Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-O-50-20Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-O-50-25Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-O-50-30Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-O-50-40Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-O-50-50Model: SSD-O (no magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-O-63-5Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-O-63-10Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-O-63-20Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-O-63-30Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-O-63-40Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-O-63-50Model: SSD-O (no magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-O-80-5Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-O-80-10Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-O-80-20Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-O-80-30Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-O-80-40Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-O-80-50Model: SSD-O (no magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-O-100-5Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-O-100-10Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-O-100-20Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-O-100-30Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-O-100-40Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-O-100-50Model: SSD-O (no magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-OL-12-5Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-OL-12-10Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-OL-12-15Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-OL-12-20Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-OL-12-25Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-OL-12-30Model: SSD-OL (switch magnet) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-OL-16-5Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-OL-16-10Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-OL-16-15Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-OL-16-20Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-OL-16-25Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-OL-16-30Model: SSD-OL (switch magnet) | Bore: 16 mm | Stroke: 30 mm | Port: M5
SSD-OL-20-5Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-OL-20-10Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-OL-20-15Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 15 mm | Port: M5
SSD-OL-20-20Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 20 mm | Port: M5
SSD-OL-20-25Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 25 mm | Port: M5
SSD-OL-20-30Model: SSD-OL (switch magnet) | Bore: 20 mm | Stroke: 30 mm | Port: M5
SSD-OL-25-5Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-OL-25-10Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-OL-25-15Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 15 mm | Port: M5
SSD-OL-25-20Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 20 mm | Port: M5
SSD-OL-25-25Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 25 mm | Port: M5
SSD-OL-25-30Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 30 mm | Port: M5
SSD-OL-25-40Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 40 mm | Port: M5
SSD-OL-25-50Model: SSD-OL (switch magnet) | Bore: 25 mm | Stroke: 50 mm | Port: M5
SSD-OL-32-5Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
SSD-OL-32-10Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
SSD-OL-32-15Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
SSD-OL-32-20Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
SSD-OL-32-25Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
SSD-OL-32-30Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
SSD-OL-32-40Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
SSD-OL-32-50Model: SSD-OL (switch magnet) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
SSD-OL-40-5Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
SSD-OL-40-10Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-OL-40-15Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
SSD-OL-40-20Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-OL-40-25Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
SSD-OL-40-30Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
SSD-OL-40-40Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
SSD-OL-40-50Model: SSD-OL (switch magnet) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
SSD-OL-50-5Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
SSD-OL-50-10Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-OL-50-15Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
SSD-OL-50-20Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-OL-50-25Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
SSD-OL-50-30Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
SSD-OL-50-40Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
SSD-OL-50-50Model: SSD-OL (switch magnet) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
SSD-OL-63-5Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 5 mm | Port: Rc1/4
SSD-OL-63-10Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
SSD-OL-63-20Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
SSD-OL-63-30Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
SSD-OL-63-40Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
SSD-OL-63-50Model: SSD-OL (switch magnet) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
SSD-OL-80-5Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 5 mm | Port: Rc3/8
SSD-OL-80-10Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
SSD-OL-80-20Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
SSD-OL-80-30Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
SSD-OL-80-40Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
SSD-OL-80-50Model: SSD-OL (switch magnet) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
SSD-OL-100-5Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 5 mm | Port: Rc3/8
SSD-OL-100-10Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
SSD-OL-100-20Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
SSD-OL-100-30Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
SSD-OL-100-40Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
SSD-OL-100-50Model: SSD-OL (switch magnet) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
SSD-OL1-12-10Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-OL1-12-15Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 15 mm | Port: M5
SSD-OL1-12-20Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 20 mm | Port: M5
SSD-OL1-12-25Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 25 mm | Port: M5
SSD-OL1-12-30Model: SSD-OL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 30 mm | Port: M5
SSD-OL1-16-10Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-OL1-16-15Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 15 mm | Port: M5
SSD-OL1-16-20Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 20 mm | Port: M5
SSD-OL1-16-25Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 25 mm | Port: M5
SSD-OL1-16-30Model: SSD-OL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 30 mm | Port: M5

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
