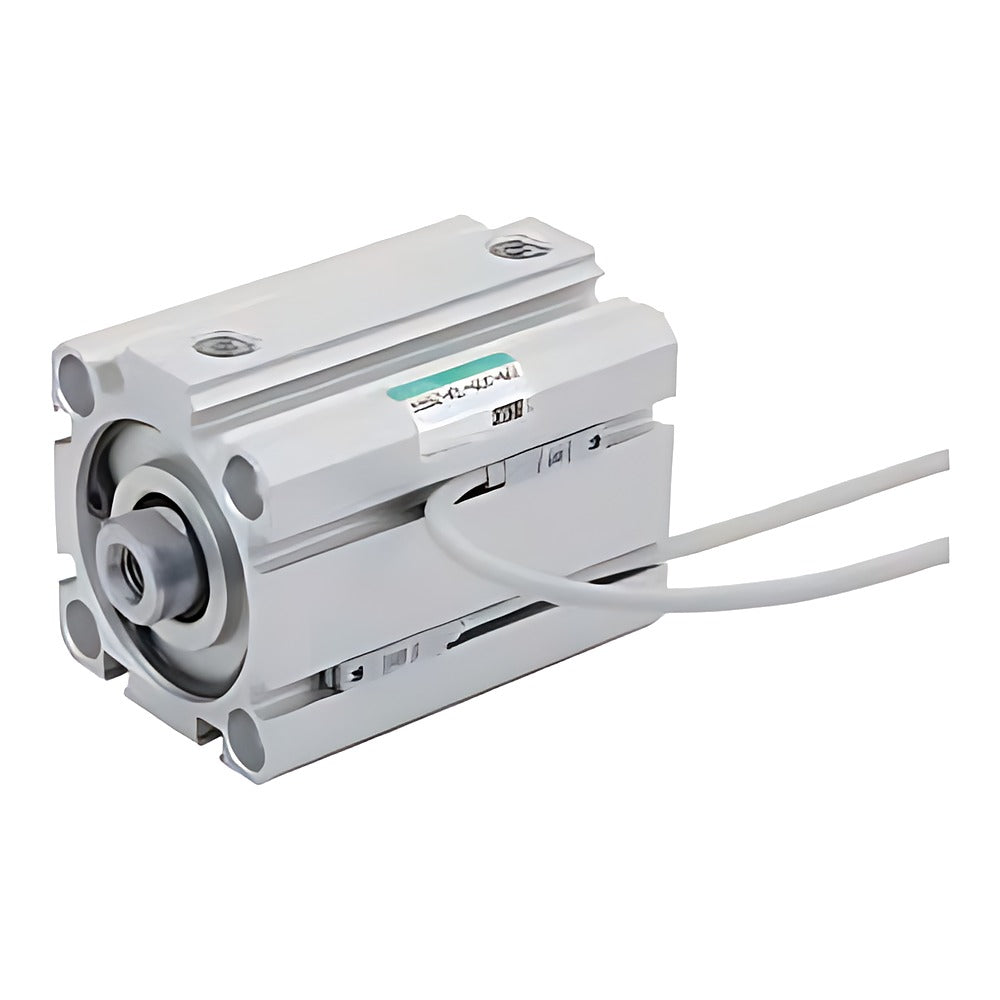

CKD SSD Super Compact Cylinder (Double Acting, No Switch Magnet)

CKD SSD is the standard double-acting single-rod super compact cylinder, bores 12 to 160 mm, here without switch magnet.

Key features

Space-saving super compact body; brackets mount directly on the cylinder
Cushion: none or rubber cushion (D) for bore 12-100; bore 125-160 rubber cushion standard
Mounting LB, LB2, CB, CB2, FA, FB (bore 125-160: LB and CB only); brackets ship attached
Options N (rod-end male thread), P6 (copper/PTFE-free), S (dedicated stroke body), M (stainless rod), knuckles I/I2/Y/Y2
Clean room (P7/P5) and secondary-battery (P4) versions available

Specifications

Action	Double acting, single rod
Bore	12 to 160 mm
Operating pressure	0.1 / 0.05 to 1.0 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Port size	M5 to Rc3/8 (by bore)
Piston speed	50 to 500 mm/s (bore 12-63), 50 to 300 mm/s (80-160)
Port thread options	NN (NPT), GN (G) bore 32+, made to order
Switch magnet	None
Source	CKD Korea catalog CB-029SK-9, p. 1169-1203

SSD-12-5		Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-12-5-LB		Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-12-5-LB2		Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-12-5-CB		Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-12-5-CB2		Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-12-5-FA		Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-12-5-FB		Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-12-10		Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-12-10-LB		Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-12-10-LB2		Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-12-10-CB		Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-12-10-CB2		Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-12-10-FA		Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-12-10-FB		Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-12-15		Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
SSD-12-15-LB		Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-12-15-LB2		Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-12-15-CB		Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-12-15-CB2		Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-12-15-FA		Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-12-15-FB		Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-12-20		Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-12-20-LB		Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-12-20-LB2		Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-12-20-CB		Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-12-20-CB2		Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-12-20-FA		Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-12-20-FB		Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-12-25		Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
SSD-12-25-LB		Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-12-25-LB2		Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-12-25-CB		Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-12-25-CB2		Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-12-25-FA		Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-12-25-FB		Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-12-30		Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-12-30-LB		Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-12-30-LB2		Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-12-30-CB		Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-12-30-CB2		Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-12-30-FA		Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-12-30-FB		Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-12D-5		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-12D-5-LB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-12D-5-LB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-12D-5-CB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-12D-5-CB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-12D-5-FA		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-12D-5-FB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-12D-10		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-12D-10-LB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-12D-10-LB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-12D-10-CB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-12D-10-CB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-12D-10-FA		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-12D-10-FB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-12D-15		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
SSD-12D-15-LB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-12D-15-LB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-12D-15-CB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-12D-15-CB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-12D-15-FA		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-12D-15-FB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-12D-20		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-12D-20-LB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-12D-20-LB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-12D-20-CB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-12D-20-CB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-12D-20-FA		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-12D-20-FB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-12D-25		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
SSD-12D-25-LB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-12D-25-LB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-12D-25-CB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-12D-25-CB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-12D-25-FA		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-12D-25-FB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-12D-30		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-12D-30-LB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-12D-30-LB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-12D-30-CB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-12D-30-CB2		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-12D-30-FA		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-12D-30-FB		Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-16-5		Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-16-5-LB		Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-16-5-LB2		Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-16-5-CB		Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-16-5-CB2		Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-16-5-FA		Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-16-5-FB		Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-16-10		Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-16-10-LB		Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-16-10-LB2		Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-16-10-CB		Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-16-10-CB2		Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-16-10-FA		Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-16-10-FB		Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-16-15		Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
SSD-16-15-LB		Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-16-15-LB2		Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-16-15-CB		Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-16-15-CB2		Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-16-15-FA		Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-16-15-FB		Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-16-20		Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-16-20-LB		Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-16-20-LB2		Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-16-20-CB		Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-16-20-CB2		Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-16-20-FA		Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-16-20-FB		Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-16-25		Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
SSD-16-25-LB		Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-16-25-LB2		Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-16-25-CB		Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-16-25-CB2		Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-16-25-FA		Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-16-25-FB		Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-16-30		Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-16-30-LB		Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-16-30-LB2		Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-16-30-CB		Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-16-30-CB2		Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-16-30-FA		Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-16-30-FB		Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-16D-5		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-16D-5-LB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-16D-5-LB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-16D-5-CB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-16D-5-CB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-16D-5-FA		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-16D-5-FB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-16D-10		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-16D-10-LB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-16D-10-LB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-16D-10-CB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-16D-10-CB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-16D-10-FA		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-16D-10-FB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-16D-15		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
SSD-16D-15-LB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-16D-15-LB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-16D-15-CB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-16D-15-CB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-16D-15-FA		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-16D-15-FB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-16D-20		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-16D-20-LB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-16D-20-LB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-16D-20-CB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-16D-20-CB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-16D-20-FA		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-16D-20-FB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-16D-25		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
SSD-16D-25-LB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-16D-25-LB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-16D-25-CB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-16D-25-CB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-16D-25-FA		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-16D-25-FB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-16D-30		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-16D-30-LB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-16D-30-LB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-16D-30-CB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-16D-30-CB2		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-16D-30-FA		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-16D-30-FB		Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-20-5		Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-20-5-LB		Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-20-5-LB2		Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-20-5-CB		Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-20-5-CB2		Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-20-5-FA		Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-20-5-FB		Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-20-10		Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-20-10-LB		Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-20-10-LB2		Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-20-10-CB		Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-20-10-CB2		Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-20-10-FA		Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-20-10-FB		Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-20-15		Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
SSD-20-15-LB		Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-20-15-LB2		Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-20-15-CB		Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-20-15-CB2		Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-20-15-FA		Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-20-15-FB		Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-20-20		Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-20-20-LB		Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-20-20-LB2		Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-20-20-CB		Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-20-20-CB2		Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-20-20-FA		Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-20-20-FB		Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-20-25		Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
SSD-20-25-LB		Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-20-25-LB2		Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-20-25-CB		Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-20-25-CB2		Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-20-25-FA		Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-20-25-FB		Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-20-30		Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-20-30-LB		Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-20-30-LB2		Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-20-30-CB		Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-20-30-CB2		Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-20-30-FA		Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-20-30-FB		Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-20-40		Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
SSD-20-40-LB		Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-20-40-LB2		Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-20-40-CB		Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-20-40-CB2		Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-20-40-FA		Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-20-40-FB		Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-20-50		Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
SSD-20-50-LB		Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-20-50-LB2		Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-20-50-CB		Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-20-50-CB2		Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-20-50-FA		Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-20-50-FB		Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-20D-5		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-20D-5-LB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-20D-5-LB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-20D-5-CB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-20D-5-CB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-20D-5-FA		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-20D-5-FB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-20D-10		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-20D-10-LB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-20D-10-LB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-20D-10-CB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-20D-10-CB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-20D-10-FA		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-20D-10-FB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-20D-15		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
SSD-20D-15-LB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-20D-15-LB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-20D-15-CB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-20D-15-CB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-20D-15-FA		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-20D-15-FB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-20D-20		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-20D-20-LB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-20D-20-LB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-20D-20-CB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-20D-20-CB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-20D-20-FA		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-20D-20-FB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-20D-25		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
SSD-20D-25-LB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-20D-25-LB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-20D-25-CB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-20D-25-CB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-20D-25-FA		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-20D-25-FB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-20D-30		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-20D-30-LB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-20D-30-LB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-20D-30-CB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-20D-30-CB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-20D-30-FA		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-20D-30-FB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-20D-40		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
SSD-20D-40-LB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-20D-40-LB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-20D-40-CB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-20D-40-CB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-20D-40-FA		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-20D-40-FB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-20D-50		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
SSD-20D-50-LB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-20D-50-LB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-20D-50-CB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-20D-50-CB2		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-20D-50-FA		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-20D-50-FB		Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-25-5		Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-25-5-LB		Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-25-5-LB2		Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-25-5-CB		Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-25-5-CB2		Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-25-5-FA		Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-25-5-FB		Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-25-10		Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-25-10-LB		Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-25-10-LB2		Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-25-10-CB		Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-25-10-CB2		Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-25-10-FA		Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-25-10-FB		Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-25-15		Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
SSD-25-15-LB		Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-25-15-LB2		Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-25-15-CB		Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-25-15-CB2		Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-25-15-FA		Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-25-15-FB		Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-25-20		Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-25-20-LB		Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-25-20-LB2		Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-25-20-CB		Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-25-20-CB2		Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-25-20-FA		Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-25-20-FB		Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-25-25		Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
SSD-25-25-LB		Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-25-25-LB2		Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-25-25-CB		Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-25-25-CB2		Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-25-25-FA		Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-25-25-FB		Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-25-30		Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-25-30-LB		Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-25-30-LB2		Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-25-30-CB		Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-25-30-CB2		Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-25-30-FA		Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-25-30-FB		Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-25-40		Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
SSD-25-40-LB		Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-25-40-LB2		Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-25-40-CB		Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-25-40-CB2		Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-25-40-FA		Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-25-40-FB		Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-25-50		Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
SSD-25-50-LB		Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-25-50-LB2		Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-25-50-CB		Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-25-50-CB2		Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-25-50-FA		Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-25-50-FB		Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-25D-5		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-25D-5-LB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-25D-5-LB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-25D-5-CB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-25D-5-CB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-25D-5-FA		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-25D-5-FB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-25D-10		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-25D-10-LB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-25D-10-LB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-25D-10-CB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-25D-10-CB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-25D-10-FA		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-25D-10-FB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-25D-15		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
SSD-25D-15-LB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-25D-15-LB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-25D-15-CB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-25D-15-CB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-25D-15-FA		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-25D-15-FB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-25D-20		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-25D-20-LB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-25D-20-LB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-25D-20-CB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-25D-20-CB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-25D-20-FA		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-25D-20-FB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-25D-25		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
SSD-25D-25-LB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-25D-25-LB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-25D-25-CB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-25D-25-CB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-25D-25-FA		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-25D-25-FB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-25D-30		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-25D-30-LB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-25D-30-LB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-25D-30-CB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-25D-30-CB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-25D-30-FA		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-25D-30-FB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-25D-40		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
SSD-25D-40-LB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-25D-40-LB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-25D-40-CB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-25D-40-CB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-25D-40-FA		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-25D-40-FB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-25D-50		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
SSD-25D-50-LB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-25D-50-LB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-25D-50-CB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-25D-50-CB2		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-25D-50-FA		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-25D-50-FB		Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-32-5		Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-32-5-LB		Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-32-5-LB2		Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-32-5-CB		Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-32-5-CB2		Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-32-5-FA		Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-32-5-FB		Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-32-10		Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-32-10-LB		Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-32-10-LB2		Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-32-10-CB		Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-32-10-CB2		Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-32-10-FA		Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-32-10-FB		Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-32-15		Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
SSD-32-15-LB		Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-32-15-LB2		Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-32-15-CB		Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-32-15-CB2		Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-32-15-FA		Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-32-15-FB		Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-32-20		Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-32-20-LB		Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-32-20-LB2		Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-32-20-CB		Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-32-20-CB2		Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-32-20-FA		Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-32-20-FB		Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-32-25		Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
SSD-32-25-LB		Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-32-25-LB2		Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-32-25-CB		Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-32-25-CB2		Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-32-25-FA		Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-32-25-FB		Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-32-30		Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-32-30-LB		Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-32-30-LB2		Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-32-30-CB		Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-32-30-CB2		Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-32-30-FA		Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-32-30-FB		Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-32-40		Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
SSD-32-40-LB		Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-32-40-LB2		Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-32-40-CB		Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-32-40-CB2		Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-32-40-FA		Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-32-40-FB		Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-32-50		Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
SSD-32-50-LB		Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-32-50-LB2		Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-32-50-CB		Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-32-50-CB2		Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-32-50-FA		Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-32-50-FB		Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-32D-5		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-32D-5-LB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-32D-5-LB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-32D-5-CB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-32D-5-CB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-32D-5-FA		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-32D-5-FB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-32D-10		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-32D-10-LB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-32D-10-LB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-32D-10-CB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-32D-10-CB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-32D-10-FA		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-32D-10-FB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-32D-15		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
SSD-32D-15-LB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-32D-15-LB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-32D-15-CB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-32D-15-CB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-32D-15-FA		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-32D-15-FB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-32D-20		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-32D-20-LB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-32D-20-LB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-32D-20-CB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-32D-20-CB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-32D-20-FA		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-32D-20-FB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-32D-25		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
SSD-32D-25-LB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-32D-25-LB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-32D-25-CB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-32D-25-CB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-32D-25-FA		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-32D-25-FB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-32D-30		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-32D-30-LB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-32D-30-LB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-32D-30-CB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-32D-30-CB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-32D-30-FA		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-32D-30-FB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-32D-40		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
SSD-32D-40-LB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-32D-40-LB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-32D-40-CB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-32D-40-CB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-32D-40-FA		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-32D-40-FB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-32D-50		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
SSD-32D-50-LB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-32D-50-LB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-32D-50-CB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-32D-50-CB2		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-32D-50-FA		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-32D-50-FB		Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-40-5		Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-40-5-LB		Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-40-5-LB2		Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-40-5-CB		Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-40-5-CB2		Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-40-5-FA		Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-40-5-FB		Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-40-10		Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-40-10-LB		Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-40-10-LB2		Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-40-10-CB		Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-40-10-CB2		Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-40-10-FA		Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-40-10-FB		Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-40-15		Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
SSD-40-15-LB		Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-40-15-LB2		Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-40-15-CB		Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-40-15-CB2		Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-40-15-FA		Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-40-15-FB		Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-40-20		Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-40-20-LB		Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-40-20-LB2		Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-40-20-CB		Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-40-20-CB2		Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-40-20-FA		Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-40-20-FB		Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-40-25		Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
SSD-40-25-LB		Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-40-25-LB2		Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-40-25-CB		Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-40-25-CB2		Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-40-25-FA		Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-40-25-FB		Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-40-30		Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-40-30-LB		Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-40-30-LB2		Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-40-30-CB		Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-40-30-CB2		Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-40-30-FA		Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-40-30-FB		Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-40-40		Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
SSD-40-40-LB		Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-40-40-LB2		Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-40-40-CB		Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-40-40-CB2		Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-40-40-FA		Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-40-40-FB		Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-40-50		Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
SSD-40-50-LB		Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-40-50-LB2		Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-40-50-CB		Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-40-50-CB2		Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-40-50-FA		Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-40-50-FB		Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-40D-5		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-40D-5-LB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-40D-5-LB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-40D-5-CB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-40D-5-CB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-40D-5-FA		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-40D-5-FB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-40D-10		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-40D-10-LB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-40D-10-LB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-40D-10-CB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-40D-10-CB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-40D-10-FA		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-40D-10-FB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-40D-15		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
SSD-40D-15-LB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-40D-15-LB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-40D-15-CB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-40D-15-CB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-40D-15-FA		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-40D-15-FB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-40D-20		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-40D-20-LB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-40D-20-LB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-40D-20-CB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-40D-20-CB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-40D-20-FA		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-40D-20-FB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-40D-25		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
SSD-40D-25-LB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-40D-25-LB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-40D-25-CB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-40D-25-CB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-40D-25-FA		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-40D-25-FB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-40D-30		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-40D-30-LB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-40D-30-LB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-40D-30-CB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-40D-30-CB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-40D-30-FA		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-40D-30-FB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-40D-40		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
SSD-40D-40-LB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-40D-40-LB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-40D-40-CB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-40D-40-CB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-40D-40-FA		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-40D-40-FB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-40D-50		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
SSD-40D-50-LB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-40D-50-LB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-40D-50-CB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-40D-50-CB2		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-40D-50-FA		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-40D-50-FB		Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-50-5		Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-50-5-LB		Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-50-5-LB2		Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-50-5-CB		Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-50-5-CB2		Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-50-5-FA		Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-50-5-FB		Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-50-10		Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-50-10-LB		Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-50-10-LB2		Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-50-10-CB		Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-50-10-CB2		Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-50-10-FA		Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-50-10-FB		Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-50-15		Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
SSD-50-15-LB		Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-50-15-LB2		Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-50-15-CB		Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-50-15-CB2		Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-50-15-FA		Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-50-15-FB		Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-50-20		Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-50-20-LB		Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-50-20-LB2		Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-50-20-CB		Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-50-20-CB2		Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-50-20-FA		Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-50-20-FB		Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-50-25		Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
SSD-50-25-LB		Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-50-25-LB2		Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-50-25-CB		Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-50-25-CB2		Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-50-25-FA		Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-50-25-FB		Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-50-30		Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-50-30-LB		Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-50-30-LB2		Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-50-30-CB		Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-50-30-CB2		Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-50-30-FA		Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-50-30-FB		Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-50-40		Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
SSD-50-40-LB		Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-50-40-LB2		Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-50-40-CB		Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-50-40-CB2		Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-50-40-FA		Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-50-40-FB		Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-50-50		Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
SSD-50-50-LB		Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-50-50-LB2		Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-50-50-CB		Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-50-50-CB2		Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-50-50-FA		Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-50-50-FB		Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-50D-5		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-50D-5-LB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-50D-5-LB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-50D-5-CB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-50D-5-CB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-50D-5-FA		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-50D-5-FB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-50D-10		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-50D-10-LB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-50D-10-LB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-50D-10-CB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-50D-10-CB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-50D-10-FA		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-50D-10-FB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-50D-15		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
SSD-50D-15-LB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD-50D-15-LB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
SSD-50D-15-CB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
SSD-50D-15-CB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
SSD-50D-15-FA		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD-50D-15-FB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
SSD-50D-20		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-50D-20-LB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-50D-20-LB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-50D-20-CB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-50D-20-CB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-50D-20-FA		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-50D-20-FB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-50D-25		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
SSD-50D-25-LB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD-50D-25-LB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
SSD-50D-25-CB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
SSD-50D-25-CB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
SSD-50D-25-FA		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD-50D-25-FB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
SSD-50D-30		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-50D-30-LB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-50D-30-LB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-50D-30-CB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-50D-30-CB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-50D-30-FA		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-50D-30-FB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-50D-40		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
SSD-50D-40-LB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-50D-40-LB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-50D-40-CB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-50D-40-CB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-50D-40-FA		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-50D-40-FB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-50D-50		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
SSD-50D-50-LB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-50D-50-LB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-50D-50-CB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-50D-50-CB2		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-50D-50-FA		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-50D-50-FB		Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-63-5		Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-63-5-LB		Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-63-5-LB2		Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-63-5-CB		Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-63-5-CB2		Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-63-5-FA		Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-63-5-FB		Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-63-10		Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-63-10-LB		Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-63-10-LB2		Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-63-10-CB		Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-63-10-CB2		Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-63-10-FA		Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-63-10-FB		Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-63-20		Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-63-20-LB		Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-63-20-LB2		Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-63-20-CB		Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-63-20-CB2		Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-63-20-FA		Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-63-20-FB		Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-63-30		Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-63-30-LB		Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-63-30-LB2		Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-63-30-CB		Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-63-30-CB2		Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-63-30-FA		Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-63-30-FB		Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-63-40		Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
SSD-63-40-LB		Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-63-40-LB2		Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-63-40-CB		Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-63-40-CB2		Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-63-40-FA		Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-63-40-FB		Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-63-50		Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
SSD-63-50-LB		Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-63-50-LB2		Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-63-50-CB		Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-63-50-CB2		Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-63-50-FA		Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-63-50-FB		Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-63D-5		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-63D-5-LB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-63D-5-LB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-63D-5-CB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-63D-5-CB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-63D-5-FA		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-63D-5-FB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-63D-10		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-63D-10-LB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-63D-10-LB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-63D-10-CB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-63D-10-CB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-63D-10-FA		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-63D-10-FB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-63D-20		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-63D-20-LB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-63D-20-LB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-63D-20-CB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-63D-20-CB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-63D-20-FA		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-63D-20-FB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-63D-30		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-63D-30-LB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-63D-30-LB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-63D-30-CB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-63D-30-CB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-63D-30-FA		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-63D-30-FB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-63D-40		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
SSD-63D-40-LB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-63D-40-LB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-63D-40-CB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-63D-40-CB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-63D-40-FA		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-63D-40-FB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-63D-50		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
SSD-63D-50-LB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-63D-50-LB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-63D-50-CB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-63D-50-CB2		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-63D-50-FA		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-63D-50-FB		Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-80-5		Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-80-5-LB		Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-80-5-LB2		Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-80-5-CB		Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-80-5-CB2		Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-80-5-FA		Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-80-5-FB		Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-80-10		Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-80-10-LB		Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-80-10-LB2		Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-80-10-CB		Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-80-10-CB2		Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-80-10-FA		Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-80-10-FB		Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-80-20		Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-80-20-LB		Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-80-20-LB2		Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-80-20-CB		Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-80-20-CB2		Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-80-20-FA		Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-80-20-FB		Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-80-30		Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-80-30-LB		Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-80-30-LB2		Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-80-30-CB		Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-80-30-CB2		Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-80-30-FA		Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-80-30-FB		Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-80-40		Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
SSD-80-40-LB		Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-80-40-LB2		Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-80-40-CB		Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-80-40-CB2		Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-80-40-FA		Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-80-40-FB		Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-80-50		Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
SSD-80-50-LB		Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-80-50-LB2		Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-80-50-CB		Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-80-50-CB2		Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-80-50-FA		Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-80-50-FB		Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-80D-5		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-80D-5-LB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-80D-5-LB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-80D-5-CB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-80D-5-CB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-80D-5-FA		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-80D-5-FB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-80D-10		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-80D-10-LB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-80D-10-LB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-80D-10-CB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-80D-10-CB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-80D-10-FA		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-80D-10-FB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-80D-20		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-80D-20-LB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-80D-20-LB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-80D-20-CB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-80D-20-CB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-80D-20-FA		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-80D-20-FB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-80D-30		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-80D-30-LB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-80D-30-LB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-80D-30-CB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-80D-30-CB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-80D-30-FA		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-80D-30-FB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-80D-40		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
SSD-80D-40-LB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-80D-40-LB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-80D-40-CB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-80D-40-CB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-80D-40-FA		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-80D-40-FB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-80D-50		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
SSD-80D-50-LB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-80D-50-LB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-80D-50-CB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-80D-50-CB2		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-80D-50-FA		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-80D-50-FB		Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-100-5		Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
SSD-100-5-LB		Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-100-5-LB2		Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-100-5-CB		Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-100-5-CB2		Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-100-5-FA		Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-100-5-FB		Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-100-10		Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
SSD-100-10-LB		Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-100-10-LB2		Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-100-10-CB		Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-100-10-CB2		Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-100-10-FA		Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-100-10-FB		Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-100-20		Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
SSD-100-20-LB		Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-100-20-LB2		Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-100-20-CB		Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-100-20-CB2		Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-100-20-FA		Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-100-20-FB		Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-100-30		Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
SSD-100-30-LB		Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-100-30-LB2		Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-100-30-CB		Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-100-30-CB2		Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-100-30-FA		Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-100-30-FB		Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-100-40		Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
SSD-100-40-LB		Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-100-40-LB2		Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-100-40-CB		Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-100-40-CB2		Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-100-40-FA		Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-100-40-FB		Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-100-50		Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
SSD-100-50-LB		Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-100-50-LB2		Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-100-50-CB		Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-100-50-CB2		Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-100-50-FA		Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-100-50-FB		Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-100D-5		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
SSD-100D-5-LB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD-100D-5-LB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
SSD-100D-5-CB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
SSD-100D-5-CB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
SSD-100D-5-FA		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD-100D-5-FB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
SSD-100D-10		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
SSD-100D-10-LB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-100D-10-LB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
SSD-100D-10-CB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-100D-10-CB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
SSD-100D-10-FA		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD-100D-10-FB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
SSD-100D-20		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
SSD-100D-20-LB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-100D-20-LB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
SSD-100D-20-CB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-100D-20-CB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
SSD-100D-20-FA		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD-100D-20-FB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
SSD-100D-30		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
SSD-100D-30-LB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-100D-30-LB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
SSD-100D-30-CB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-100D-30-CB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
SSD-100D-30-FA		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD-100D-30-FB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
SSD-100D-40		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
SSD-100D-40-LB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-100D-40-LB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
SSD-100D-40-CB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-100D-40-CB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
SSD-100D-40-FA		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD-100D-40-FB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
SSD-100D-50		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
SSD-100D-50-LB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-100D-50-LB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
SSD-100D-50-CB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-100D-50-CB2		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
SSD-100D-50-FA		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD-100D-50-FB		Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
SSD-125-10		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: None (basic)
SSD-125-10-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-125-10-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-125-20		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: None (basic)
SSD-125-20-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-125-20-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-125-30		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: None (basic)
SSD-125-30-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-125-30-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-125-40		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: None (basic)
SSD-125-40-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-125-40-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-125-50		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: None (basic)
SSD-125-50-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-125-50-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-125-60		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: None (basic)
SSD-125-60-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Axial foot (LB)
SSD-125-60-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Double clevis (CB)
SSD-125-70		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: None (basic)
SSD-125-70-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Axial foot (LB)
SSD-125-70-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Double clevis (CB)
SSD-125-80		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: None (basic)
SSD-125-80-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Axial foot (LB)
SSD-125-80-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Double clevis (CB)
SSD-125-90		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: None (basic)
SSD-125-90-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Axial foot (LB)
SSD-125-90-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Double clevis (CB)
SSD-125-100		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: None (basic)
SSD-125-100-LB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD-125-100-CB		Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Double clevis (CB)
SSD-140-10		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: None (basic)
SSD-140-10-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-140-10-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-140-20		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: None (basic)
SSD-140-20-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-140-20-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-140-30		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: None (basic)
SSD-140-30-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-140-30-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-140-40		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: None (basic)
SSD-140-40-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-140-40-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-140-50		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: None (basic)
SSD-140-50-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-140-50-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-140-60		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: None (basic)
SSD-140-60-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Axial foot (LB)
SSD-140-60-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Double clevis (CB)
SSD-140-70		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: None (basic)
SSD-140-70-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Axial foot (LB)
SSD-140-70-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Double clevis (CB)
SSD-140-80		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: None (basic)
SSD-140-80-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Axial foot (LB)
SSD-140-80-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Double clevis (CB)
SSD-140-90		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: None (basic)
SSD-140-90-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Axial foot (LB)
SSD-140-90-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Double clevis (CB)
SSD-140-100		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: None (basic)
SSD-140-100-LB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD-140-100-CB		Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Double clevis (CB)
SSD-160-10		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: None (basic)
SSD-160-10-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD-160-10-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Double clevis (CB)
SSD-160-20		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: None (basic)
SSD-160-20-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD-160-20-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Double clevis (CB)
SSD-160-30		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: None (basic)
SSD-160-30-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD-160-30-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Double clevis (CB)
SSD-160-40		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: None (basic)
SSD-160-40-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD-160-40-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Double clevis (CB)
SSD-160-50		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: None (basic)
SSD-160-50-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD-160-50-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Double clevis (CB)
SSD-160-60		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: None (basic)
SSD-160-60-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Axial foot (LB)
SSD-160-60-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Double clevis (CB)
SSD-160-70		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: None (basic)
SSD-160-70-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Axial foot (LB)
SSD-160-70-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Double clevis (CB)
SSD-160-80		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: None (basic)
SSD-160-80-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Axial foot (LB)
SSD-160-80-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Double clevis (CB)
SSD-160-90		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: None (basic)
SSD-160-90-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Axial foot (LB)
SSD-160-90-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Double clevis (CB)
SSD-160-100		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: None (basic)
SSD-160-100-LB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD-160-100-CB		Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Double clevis (CB)

Compact CylindersCKD

1070 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD Super Compact Cylinder (Double Acting, No Switch Magnet)

Brand CKD·Compact Cylinders

Available part numbers (1070)

SSD-12-5, SSD-12-5-LB, SSD-12-5-LB2, SSD-12-5-CB, SSD-12-5-CB2, SSD-12-5-FA, SSD-12-5-FB, SSD-12-10, SSD-12-10-LB, SSD-12-10-LB2 + 1060 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD-12-5	Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-12-5-LB	Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-12-5-LB2	Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-12-5-CB	Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-12-5-CB2	Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-12-5-FA	Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-12-5-FB	Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-12-10	Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-12-10-LB	Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-12-10-LB2	Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-12-10-CB	Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-12-10-CB2	Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-12-10-FA	Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-12-10-FB	Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-12-15	Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-12-15-LB	Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-12-15-LB2	Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-12-15-CB	Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-12-15-CB2	Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-12-15-FA	Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-12-15-FB	Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-12-20	Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-12-20-LB	Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-12-20-LB2	Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-12-20-CB	Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-12-20-CB2	Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-12-20-FA	Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-12-20-FB	Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-12-25	Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-12-25-LB	Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-12-25-LB2	Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-12-25-CB	Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-12-25-CB2	Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-12-25-FA	Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-12-25-FB	Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-12-30	Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-12-30-LB	Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-12-30-LB2	Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-12-30-CB	Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-12-30-CB2	Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-12-30-FA	Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-12-30-FB	Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-12D-5	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-12D-5-LB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-12D-5-LB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-12D-5-CB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-12D-5-CB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-12D-5-FA	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-12D-5-FB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-12D-10	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-12D-10-LB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-12D-10-LB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-12D-10-CB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-12D-10-CB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-12D-10-FA	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-12D-10-FB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-12D-15	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-12D-15-LB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-12D-15-LB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-12D-15-CB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-12D-15-CB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-12D-15-FA	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-12D-15-FB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-12D-20	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-12D-20-LB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-12D-20-LB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-12D-20-CB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-12D-20-CB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-12D-20-FA	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-12D-20-FB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-12D-25	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-12D-25-LB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-12D-25-LB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-12D-25-CB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-12D-25-CB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-12D-25-FA	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-12D-25-FB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-12D-30	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-12D-30-LB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-12D-30-LB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-12D-30-CB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-12D-30-CB2	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-12D-30-FA	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-12D-30-FB	Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-16-5	Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-16-5-LB	Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-16-5-LB2	Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-16-5-CB	Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-16-5-CB2	Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-16-5-FA	Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-16-5-FB	Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-16-10	Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-16-10-LB	Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-16-10-LB2	Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-16-10-CB	Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-16-10-CB2	Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-16-10-FA	Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-16-10-FB	Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-16-15	Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-16-15-LB	Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-16-15-LB2	Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-16-15-CB	Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-16-15-CB2	Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-16-15-FA	Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-16-15-FB	Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-16-20	Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-16-20-LB	Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-16-20-LB2	Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-16-20-CB	Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-16-20-CB2	Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-16-20-FA	Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-16-20-FB	Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-16-25	Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-16-25-LB	Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-16-25-LB2	Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-16-25-CB	Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-16-25-CB2	Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-16-25-FA	Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-16-25-FB	Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-16-30	Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-16-30-LB	Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-16-30-LB2	Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-16-30-CB	Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-16-30-CB2	Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-16-30-FA	Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-16-30-FB	Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-16D-5	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-16D-5-LB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-16D-5-LB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-16D-5-CB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-16D-5-CB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-16D-5-FA	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-16D-5-FB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-16D-10	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-16D-10-LB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-16D-10-LB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-16D-10-CB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-16D-10-CB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-16D-10-FA	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-16D-10-FB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-16D-15	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-16D-15-LB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-16D-15-LB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-16D-15-CB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-16D-15-CB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-16D-15-FA	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-16D-15-FB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-16D-20	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-16D-20-LB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-16D-20-LB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-16D-20-CB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-16D-20-CB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-16D-20-FA	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-16D-20-FB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-16D-25	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-16D-25-LB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-16D-25-LB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-16D-25-CB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-16D-25-CB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-16D-25-FA	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-16D-25-FB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-16D-30	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-16D-30-LB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-16D-30-LB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-16D-30-CB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-16D-30-CB2	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-16D-30-FA	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-16D-30-FB	Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-20-5	Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-20-5-LB	Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-20-5-LB2	Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-20-5-CB	Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-20-5-CB2	Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-20-5-FA	Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-20-5-FB	Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-20-10	Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-20-10-LB	Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-20-10-LB2	Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-20-10-CB	Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-20-10-CB2	Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-20-10-FA	Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-20-10-FB	Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-20-15	Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-20-15-LB	Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-20-15-LB2	Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-20-15-CB	Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-20-15-CB2	Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-20-15-FA	Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-20-15-FB	Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-20-20	Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-20-20-LB	Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-20-20-LB2	Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-20-20-CB	Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-20-20-CB2	Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-20-20-FA	Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-20-20-FB	Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-20-25	Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-20-25-LB	Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-20-25-LB2	Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-20-25-CB	Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-20-25-CB2	Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-20-25-FA	Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-20-25-FB	Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-20-30	Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-20-30-LB	Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-20-30-LB2	Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-20-30-CB	Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-20-30-CB2	Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-20-30-FA	Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-20-30-FB	Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-20-40	Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-20-40-LB	Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-20-40-LB2	Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-20-40-CB	Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-20-40-CB2	Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-20-40-FA	Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-20-40-FB	Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-20-50	Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-20-50-LB	Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-20-50-LB2	Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-20-50-CB	Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-20-50-CB2	Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-20-50-FA	Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-20-50-FB	Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-20D-5	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-20D-5-LB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-20D-5-LB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-20D-5-CB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-20D-5-CB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-20D-5-FA	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-20D-5-FB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-20D-10	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-20D-10-LB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-20D-10-LB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-20D-10-CB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-20D-10-CB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-20D-10-FA	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-20D-10-FB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-20D-15	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-20D-15-LB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-20D-15-LB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-20D-15-CB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-20D-15-CB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-20D-15-FA	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-20D-15-FB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-20D-20	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-20D-20-LB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-20D-20-LB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-20D-20-CB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-20D-20-CB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-20D-20-FA	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-20D-20-FB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-20D-25	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-20D-25-LB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-20D-25-LB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-20D-25-CB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-20D-25-CB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-20D-25-FA	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-20D-25-FB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-20D-30	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-20D-30-LB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-20D-30-LB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-20D-30-CB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-20D-30-CB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-20D-30-FA	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-20D-30-FB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-20D-40	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-20D-40-LB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-20D-40-LB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-20D-40-CB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-20D-40-CB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-20D-40-FA	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-20D-40-FB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-20D-50	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-20D-50-LB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-20D-50-LB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-20D-50-CB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-20D-50-CB2	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-20D-50-FA	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-20D-50-FB	Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-25-5	Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-25-5-LB	Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-25-5-LB2	Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-25-5-CB	Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-25-5-CB2	Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-25-5-FA	Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-25-5-FB	Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-25-10	Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-25-10-LB	Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-25-10-LB2	Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-25-10-CB	Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-25-10-CB2	Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-25-10-FA	Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-25-10-FB	Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-25-15	Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-25-15-LB	Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-25-15-LB2	Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-25-15-CB	Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-25-15-CB2	Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-25-15-FA	Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-25-15-FB	Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-25-20	Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-25-20-LB	Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-25-20-LB2	Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-25-20-CB	Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-25-20-CB2	Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-25-20-FA	Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-25-20-FB	Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-25-25	Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-25-25-LB	Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-25-25-LB2	Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-25-25-CB	Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-25-25-CB2	Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-25-25-FA	Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-25-25-FB	Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-25-30	Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-25-30-LB	Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-25-30-LB2	Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-25-30-CB	Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-25-30-CB2	Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-25-30-FA	Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-25-30-FB	Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-25-40	Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-25-40-LB	Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-25-40-LB2	Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-25-40-CB	Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-25-40-CB2	Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-25-40-FA	Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-25-40-FB	Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-25-50	Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-25-50-LB	Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-25-50-LB2	Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-25-50-CB	Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-25-50-CB2	Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-25-50-FA	Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-25-50-FB	Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-25D-5	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-25D-5-LB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-25D-5-LB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-25D-5-CB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-25D-5-CB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-25D-5-FA	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-25D-5-FB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-25D-10	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-25D-10-LB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-25D-10-LB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-25D-10-CB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-25D-10-CB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-25D-10-FA	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-25D-10-FB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-25D-15	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-25D-15-LB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-25D-15-LB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-25D-15-CB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-25D-15-CB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-25D-15-FA	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-25D-15-FB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-25D-20	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-25D-20-LB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-25D-20-LB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-25D-20-CB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-25D-20-CB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-25D-20-FA	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-25D-20-FB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-25D-25	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-25D-25-LB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-25D-25-LB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-25D-25-CB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-25D-25-CB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-25D-25-FA	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-25D-25-FB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-25D-30	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-25D-30-LB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-25D-30-LB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-25D-30-CB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-25D-30-CB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-25D-30-FA	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-25D-30-FB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-25D-40	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-25D-40-LB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-25D-40-LB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-25D-40-CB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-25D-40-CB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-25D-40-FA	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-25D-40-FB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-25D-50	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-25D-50-LB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-25D-50-LB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-25D-50-CB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-25D-50-CB2	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-25D-50-FA	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-25D-50-FB	Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-32-5	Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-32-5-LB	Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-32-5-LB2	Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-32-5-CB	Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-32-5-CB2	Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-32-5-FA	Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-32-5-FB	Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-32-10	Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-32-10-LB	Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-32-10-LB2	Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-32-10-CB	Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-32-10-CB2	Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-32-10-FA	Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-32-10-FB	Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-32-15	Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-32-15-LB	Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-32-15-LB2	Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-32-15-CB	Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-32-15-CB2	Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-32-15-FA	Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-32-15-FB	Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-32-20	Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-32-20-LB	Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-32-20-LB2	Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-32-20-CB	Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-32-20-CB2	Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-32-20-FA	Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-32-20-FB	Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-32-25	Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-32-25-LB	Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-32-25-LB2	Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-32-25-CB	Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-32-25-CB2	Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-32-25-FA	Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-32-25-FB	Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-32-30	Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-32-30-LB	Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-32-30-LB2	Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-32-30-CB	Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-32-30-CB2	Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-32-30-FA	Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-32-30-FB	Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-32-40	Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-32-40-LB	Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-32-40-LB2	Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-32-40-CB	Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-32-40-CB2	Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-32-40-FA	Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-32-40-FB	Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-32-50	Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-32-50-LB	Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-32-50-LB2	Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-32-50-CB	Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-32-50-CB2	Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-32-50-FA	Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-32-50-FB	Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-32D-5	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-32D-5-LB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-32D-5-LB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-32D-5-CB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-32D-5-CB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-32D-5-FA	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-32D-5-FB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-32D-10	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-32D-10-LB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-32D-10-LB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-32D-10-CB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-32D-10-CB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-32D-10-FA	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-32D-10-FB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-32D-15	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-32D-15-LB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-32D-15-LB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-32D-15-CB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-32D-15-CB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-32D-15-FA	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-32D-15-FB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-32D-20	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-32D-20-LB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-32D-20-LB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-32D-20-CB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-32D-20-CB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-32D-20-FA	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-32D-20-FB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-32D-25	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-32D-25-LB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-32D-25-LB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-32D-25-CB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-32D-25-CB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-32D-25-FA	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-32D-25-FB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-32D-30	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-32D-30-LB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-32D-30-LB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-32D-30-CB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-32D-30-CB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-32D-30-FA	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-32D-30-FB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-32D-40	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-32D-40-LB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-32D-40-LB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-32D-40-CB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-32D-40-CB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-32D-40-FA	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-32D-40-FB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-32D-50	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-32D-50-LB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-32D-50-LB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-32D-50-CB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-32D-50-CB2	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-32D-50-FA	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-32D-50-FB	Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-40-5	Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-40-5-LB	Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-40-5-LB2	Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-40-5-CB	Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-40-5-CB2	Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-40-5-FA	Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-40-5-FB	Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-40-10	Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-40-10-LB	Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-40-10-LB2	Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-40-10-CB	Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-40-10-CB2	Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-40-10-FA	Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-40-10-FB	Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-40-15	Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-40-15-LB	Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-40-15-LB2	Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-40-15-CB	Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-40-15-CB2	Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-40-15-FA	Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-40-15-FB	Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-40-20	Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-40-20-LB	Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-40-20-LB2	Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-40-20-CB	Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-40-20-CB2	Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-40-20-FA	Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-40-20-FB	Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-40-25	Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-40-25-LB	Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-40-25-LB2	Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-40-25-CB	Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-40-25-CB2	Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-40-25-FA	Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-40-25-FB	Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-40-30	Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-40-30-LB	Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-40-30-LB2	Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-40-30-CB	Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-40-30-CB2	Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-40-30-FA	Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-40-30-FB	Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-40-40	Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-40-40-LB	Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-40-40-LB2	Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-40-40-CB	Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-40-40-CB2	Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-40-40-FA	Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-40-40-FB	Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-40-50	Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-40-50-LB	Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-40-50-LB2	Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-40-50-CB	Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-40-50-CB2	Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-40-50-FA	Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-40-50-FB	Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-40D-5	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-40D-5-LB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-40D-5-LB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-40D-5-CB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-40D-5-CB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-40D-5-FA	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-40D-5-FB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-40D-10	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-40D-10-LB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-40D-10-LB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-40D-10-CB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-40D-10-CB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-40D-10-FA	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-40D-10-FB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-40D-15	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-40D-15-LB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-40D-15-LB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-40D-15-CB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-40D-15-CB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-40D-15-FA	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-40D-15-FB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-40D-20	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-40D-20-LB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-40D-20-LB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-40D-20-CB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-40D-20-CB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-40D-20-FA	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-40D-20-FB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-40D-25	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-40D-25-LB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-40D-25-LB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-40D-25-CB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-40D-25-CB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-40D-25-FA	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-40D-25-FB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-40D-30	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-40D-30-LB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-40D-30-LB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-40D-30-CB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-40D-30-CB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-40D-30-FA	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-40D-30-FB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-40D-40	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-40D-40-LB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-40D-40-LB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-40D-40-CB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-40D-40-CB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-40D-40-FA	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-40D-40-FB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-40D-50	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-40D-50-LB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-40D-50-LB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-40D-50-CB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-40D-50-CB2	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-40D-50-FA	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-40D-50-FB	Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-50-5	Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-50-5-LB	Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-50-5-LB2	Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-50-5-CB	Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-50-5-CB2	Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-50-5-FA	Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-50-5-FB	Bore: 50 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-50-10	Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-50-10-LB	Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-50-10-LB2	Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-50-10-CB	Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-50-10-CB2	Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-50-10-FA	Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-50-10-FB	Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-50-15	Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-50-15-LB	Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-50-15-LB2	Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-50-15-CB	Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-50-15-CB2	Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-50-15-FA	Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-50-15-FB	Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-50-20	Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-50-20-LB	Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-50-20-LB2	Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-50-20-CB	Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-50-20-CB2	Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-50-20-FA	Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-50-20-FB	Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-50-25	Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-50-25-LB	Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-50-25-LB2	Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-50-25-CB	Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-50-25-CB2	Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-50-25-FA	Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-50-25-FB	Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-50-30	Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-50-30-LB	Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-50-30-LB2	Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-50-30-CB	Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-50-30-CB2	Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-50-30-FA	Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-50-30-FB	Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-50-40	Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-50-40-LB	Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-50-40-LB2	Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-50-40-CB	Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-50-40-CB2	Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-50-40-FA	Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-50-40-FB	Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-50-50	Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-50-50-LB	Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-50-50-LB2	Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-50-50-CB	Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-50-50-CB2	Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-50-50-FA	Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-50-50-FB	Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-50D-5	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-50D-5-LB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-50D-5-LB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-50D-5-CB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-50D-5-CB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-50D-5-FA	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-50D-5-FB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-50D-10	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-50D-10-LB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-50D-10-LB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-50D-10-CB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-50D-10-CB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-50D-10-FA	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-50D-10-FB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-50D-15	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (basic)
	SSD-50D-15-LB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD-50D-15-LB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot, small (LB2)
	SSD-50D-15-CB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis (CB)
	SSD-50D-15-CB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Double clevis, small (CB2)
	SSD-50D-15-FA	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD-50D-15-FB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Head flange (FB)
	SSD-50D-20	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-50D-20-LB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-50D-20-LB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-50D-20-CB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-50D-20-CB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-50D-20-FA	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-50D-20-FB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-50D-25	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (basic)
	SSD-50D-25-LB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD-50D-25-LB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot, small (LB2)
	SSD-50D-25-CB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis (CB)
	SSD-50D-25-CB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Double clevis, small (CB2)
	SSD-50D-25-FA	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD-50D-25-FB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Head flange (FB)
	SSD-50D-30	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-50D-30-LB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-50D-30-LB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-50D-30-CB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-50D-30-CB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-50D-30-FA	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-50D-30-FB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-50D-40	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-50D-40-LB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-50D-40-LB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-50D-40-CB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-50D-40-CB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-50D-40-FA	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-50D-40-FB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-50D-50	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-50D-50-LB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-50D-50-LB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-50D-50-CB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-50D-50-CB2	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-50D-50-FA	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-50D-50-FB	Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-63-5	Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-63-5-LB	Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-63-5-LB2	Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-63-5-CB	Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-63-5-CB2	Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-63-5-FA	Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-63-5-FB	Bore: 63 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-63-10	Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-63-10-LB	Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-63-10-LB2	Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-63-10-CB	Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-63-10-CB2	Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-63-10-FA	Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-63-10-FB	Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-63-20	Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-63-20-LB	Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-63-20-LB2	Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-63-20-CB	Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-63-20-CB2	Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-63-20-FA	Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-63-20-FB	Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-63-30	Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-63-30-LB	Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-63-30-LB2	Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-63-30-CB	Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-63-30-CB2	Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-63-30-FA	Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-63-30-FB	Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-63-40	Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-63-40-LB	Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-63-40-LB2	Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-63-40-CB	Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-63-40-CB2	Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-63-40-FA	Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-63-40-FB	Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-63-50	Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-63-50-LB	Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-63-50-LB2	Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-63-50-CB	Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-63-50-CB2	Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-63-50-FA	Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-63-50-FB	Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-63D-5	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-63D-5-LB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-63D-5-LB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-63D-5-CB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-63D-5-CB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-63D-5-FA	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-63D-5-FB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-63D-10	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-63D-10-LB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-63D-10-LB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-63D-10-CB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-63D-10-CB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-63D-10-FA	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-63D-10-FB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-63D-20	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-63D-20-LB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-63D-20-LB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-63D-20-CB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-63D-20-CB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-63D-20-FA	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-63D-20-FB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-63D-30	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-63D-30-LB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-63D-30-LB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-63D-30-CB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-63D-30-CB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-63D-30-FA	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-63D-30-FB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-63D-40	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-63D-40-LB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-63D-40-LB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-63D-40-CB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-63D-40-CB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-63D-40-FA	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-63D-40-FB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-63D-50	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-63D-50-LB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-63D-50-LB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-63D-50-CB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-63D-50-CB2	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-63D-50-FA	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-63D-50-FB	Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-80-5	Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-80-5-LB	Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-80-5-LB2	Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-80-5-CB	Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-80-5-CB2	Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-80-5-FA	Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-80-5-FB	Bore: 80 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-80-10	Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-80-10-LB	Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-80-10-LB2	Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-80-10-CB	Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-80-10-CB2	Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-80-10-FA	Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-80-10-FB	Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-80-20	Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-80-20-LB	Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-80-20-LB2	Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-80-20-CB	Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-80-20-CB2	Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-80-20-FA	Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-80-20-FB	Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-80-30	Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-80-30-LB	Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-80-30-LB2	Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-80-30-CB	Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-80-30-CB2	Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-80-30-FA	Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-80-30-FB	Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-80-40	Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-80-40-LB	Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-80-40-LB2	Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-80-40-CB	Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-80-40-CB2	Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-80-40-FA	Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-80-40-FB	Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-80-50	Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-80-50-LB	Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-80-50-LB2	Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-80-50-CB	Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-80-50-CB2	Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-80-50-FA	Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-80-50-FB	Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-80D-5	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-80D-5-LB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-80D-5-LB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-80D-5-CB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-80D-5-CB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-80D-5-FA	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-80D-5-FB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-80D-10	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-80D-10-LB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-80D-10-LB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-80D-10-CB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-80D-10-CB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-80D-10-FA	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-80D-10-FB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-80D-20	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-80D-20-LB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-80D-20-LB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-80D-20-CB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-80D-20-CB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-80D-20-FA	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-80D-20-FB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-80D-30	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-80D-30-LB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-80D-30-LB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-80D-30-CB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-80D-30-CB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-80D-30-FA	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-80D-30-FB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-80D-40	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-80D-40-LB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-80D-40-LB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-80D-40-CB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-80D-40-CB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-80D-40-FA	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-80D-40-FB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-80D-50	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-80D-50-LB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-80D-50-LB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-80D-50-CB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-80D-50-CB2	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-80D-50-FA	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-80D-50-FB	Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-100-5	Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-100-5-LB	Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-100-5-LB2	Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-100-5-CB	Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-100-5-CB2	Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-100-5-FA	Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-100-5-FB	Bore: 100 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-100-10	Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-100-10-LB	Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-100-10-LB2	Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-100-10-CB	Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-100-10-CB2	Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-100-10-FA	Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-100-10-FB	Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-100-20	Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-100-20-LB	Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-100-20-LB2	Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-100-20-CB	Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-100-20-CB2	Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-100-20-FA	Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-100-20-FB	Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-100-30	Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-100-30-LB	Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-100-30-LB2	Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-100-30-CB	Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-100-30-CB2	Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-100-30-FA	Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-100-30-FB	Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-100-40	Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-100-40-LB	Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-100-40-LB2	Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-100-40-CB	Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-100-40-CB2	Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-100-40-FA	Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-100-40-FB	Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-100-50	Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-100-50-LB	Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-100-50-LB2	Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-100-50-CB	Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-100-50-CB2	Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-100-50-FA	Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-100-50-FB	Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-100D-5	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (basic)
	SSD-100D-5-LB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD-100D-5-LB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot, small (LB2)
	SSD-100D-5-CB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis (CB)
	SSD-100D-5-CB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Double clevis, small (CB2)
	SSD-100D-5-FA	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD-100D-5-FB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Head flange (FB)
	SSD-100D-10	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-100D-10-LB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-100D-10-LB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot, small (LB2)
	SSD-100D-10-CB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-100D-10-CB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Double clevis, small (CB2)
	SSD-100D-10-FA	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD-100D-10-FB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Head flange (FB)
	SSD-100D-20	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-100D-20-LB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-100D-20-LB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot, small (LB2)
	SSD-100D-20-CB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-100D-20-CB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Double clevis, small (CB2)
	SSD-100D-20-FA	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD-100D-20-FB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Head flange (FB)
	SSD-100D-30	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-100D-30-LB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-100D-30-LB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot, small (LB2)
	SSD-100D-30-CB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-100D-30-CB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Double clevis, small (CB2)
	SSD-100D-30-FA	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD-100D-30-FB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Head flange (FB)
	SSD-100D-40	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-100D-40-LB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-100D-40-LB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot, small (LB2)
	SSD-100D-40-CB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-100D-40-CB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Double clevis, small (CB2)
	SSD-100D-40-FA	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD-100D-40-FB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Head flange (FB)
	SSD-100D-50	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-100D-50-LB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-100D-50-LB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot, small (LB2)
	SSD-100D-50-CB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-100D-50-CB2	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Double clevis, small (CB2)
	SSD-100D-50-FA	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD-100D-50-FB	Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Head flange (FB)
	SSD-125-10	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-125-10-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-125-10-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-125-20	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-125-20-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-125-20-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-125-30	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-125-30-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-125-30-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-125-40	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-125-40-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-125-40-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-125-50	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-125-50-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-125-50-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-125-60	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: None (basic)
	SSD-125-60-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Axial foot (LB)
	SSD-125-60-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Double clevis (CB)
	SSD-125-70	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: None (basic)
	SSD-125-70-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Axial foot (LB)
	SSD-125-70-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Double clevis (CB)
	SSD-125-80	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: None (basic)
	SSD-125-80-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Axial foot (LB)
	SSD-125-80-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Double clevis (CB)
	SSD-125-90	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: None (basic)
	SSD-125-90-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Axial foot (LB)
	SSD-125-90-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Double clevis (CB)
	SSD-125-100	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: None (basic)
	SSD-125-100-LB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD-125-100-CB	Bore: 125 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Double clevis (CB)
	SSD-140-10	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-140-10-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-140-10-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-140-20	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-140-20-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-140-20-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-140-30	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-140-30-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-140-30-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-140-40	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-140-40-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-140-40-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-140-50	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-140-50-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-140-50-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-140-60	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: None (basic)
	SSD-140-60-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Axial foot (LB)
	SSD-140-60-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Double clevis (CB)
	SSD-140-70	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: None (basic)
	SSD-140-70-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Axial foot (LB)
	SSD-140-70-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Double clevis (CB)
	SSD-140-80	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: None (basic)
	SSD-140-80-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Axial foot (LB)
	SSD-140-80-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Double clevis (CB)
	SSD-140-90	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: None (basic)
	SSD-140-90-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Axial foot (LB)
	SSD-140-90-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Double clevis (CB)
	SSD-140-100	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: None (basic)
	SSD-140-100-LB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD-140-100-CB	Bore: 140 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Double clevis (CB)
	SSD-160-10	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: None (basic)
	SSD-160-10-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD-160-10-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 10 mm \| Mounting: Double clevis (CB)
	SSD-160-20	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: None (basic)
	SSD-160-20-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD-160-20-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 20 mm \| Mounting: Double clevis (CB)
	SSD-160-30	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: None (basic)
	SSD-160-30-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD-160-30-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 30 mm \| Mounting: Double clevis (CB)
	SSD-160-40	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: None (basic)
	SSD-160-40-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD-160-40-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 40 mm \| Mounting: Double clevis (CB)
	SSD-160-50	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: None (basic)
	SSD-160-50-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD-160-50-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 50 mm \| Mounting: Double clevis (CB)
	SSD-160-60	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: None (basic)
	SSD-160-60-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Axial foot (LB)
	SSD-160-60-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 60 mm \| Mounting: Double clevis (CB)
	SSD-160-70	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: None (basic)
	SSD-160-70-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Axial foot (LB)
	SSD-160-70-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 70 mm \| Mounting: Double clevis (CB)
	SSD-160-80	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: None (basic)
	SSD-160-80-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Axial foot (LB)
	SSD-160-80-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 80 mm \| Mounting: Double clevis (CB)
	SSD-160-90	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: None (basic)
	SSD-160-90-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Axial foot (LB)
	SSD-160-90-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 90 mm \| Mounting: Double clevis (CB)
	SSD-160-100	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: None (basic)
	SSD-160-100-LB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD-160-100-CB	Bore: 160 mm \| Cushion: Rubber cushion (std) \| Stroke: 100 mm \| Mounting: Double clevis (CB)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD Super Compact Cylinder (Double Acting, No Switch Magnet)
