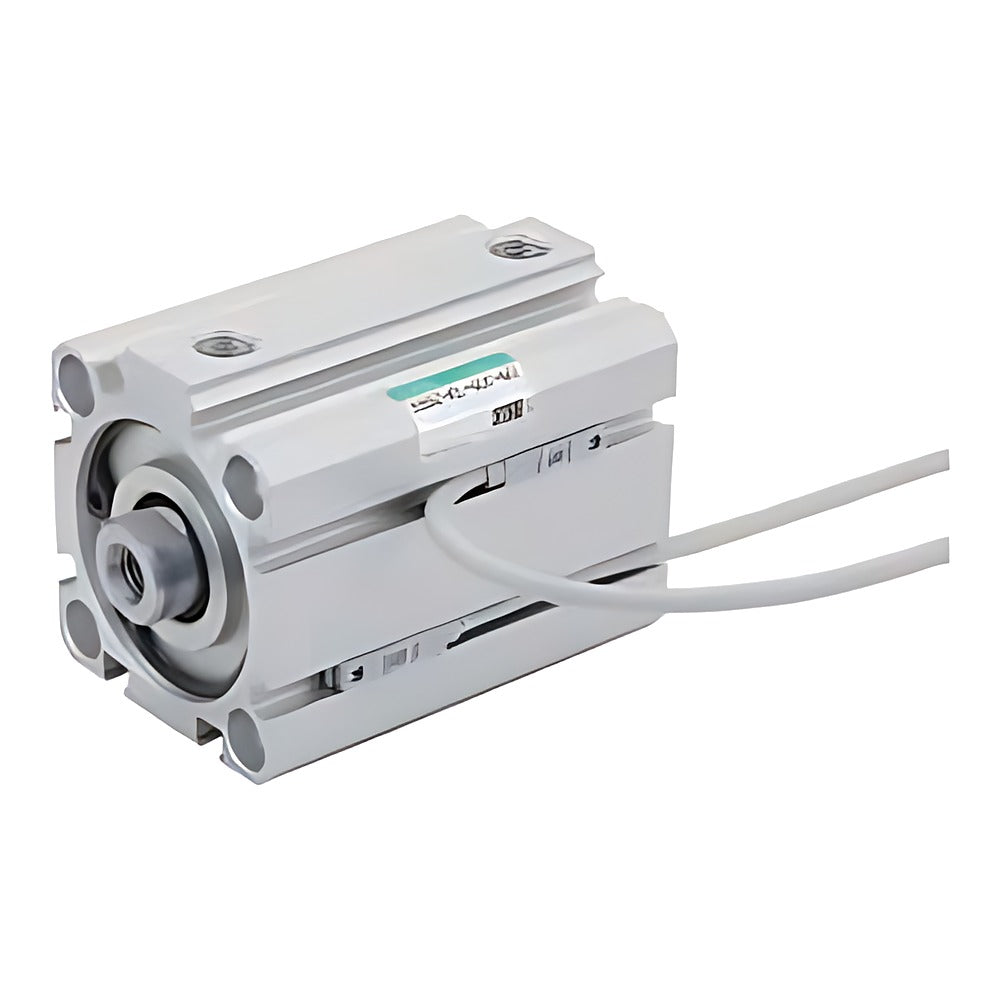

CKD SSD-T Super Compact Cylinder (Double Acting, Heat Resistant)

CKD SSD-T Super Compact Cylinder (Double Acting, Heat Resistant)

CKD SSD-T super compact cylinder, double acting heat-resistant type for ambient temperatures 5 to 120°C, bore 12 to 100 mm.

Key features

  • Heat-resistant seals for 5 to 120°C ambient
  • No switch magnet (switch-ready version is SSD-T1L)
  • Standard strokes 5 to 50 mm, intermediate strokes in 1 mm steps
  • Lubrication not allowed; grease the inside periodically
  • Mounting brackets and rod-end accessories ordered as code suffixes

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (12-50), 0.05 MPa (63-100)
Proof pressure 1.6 MPa
Ambient temperature 5 to 120°C
Piston speed 50-500 mm/s (12-50), 50-300 mm/s (63-100)
Cushion None
Stroke tolerance +1.0/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1226-1229
