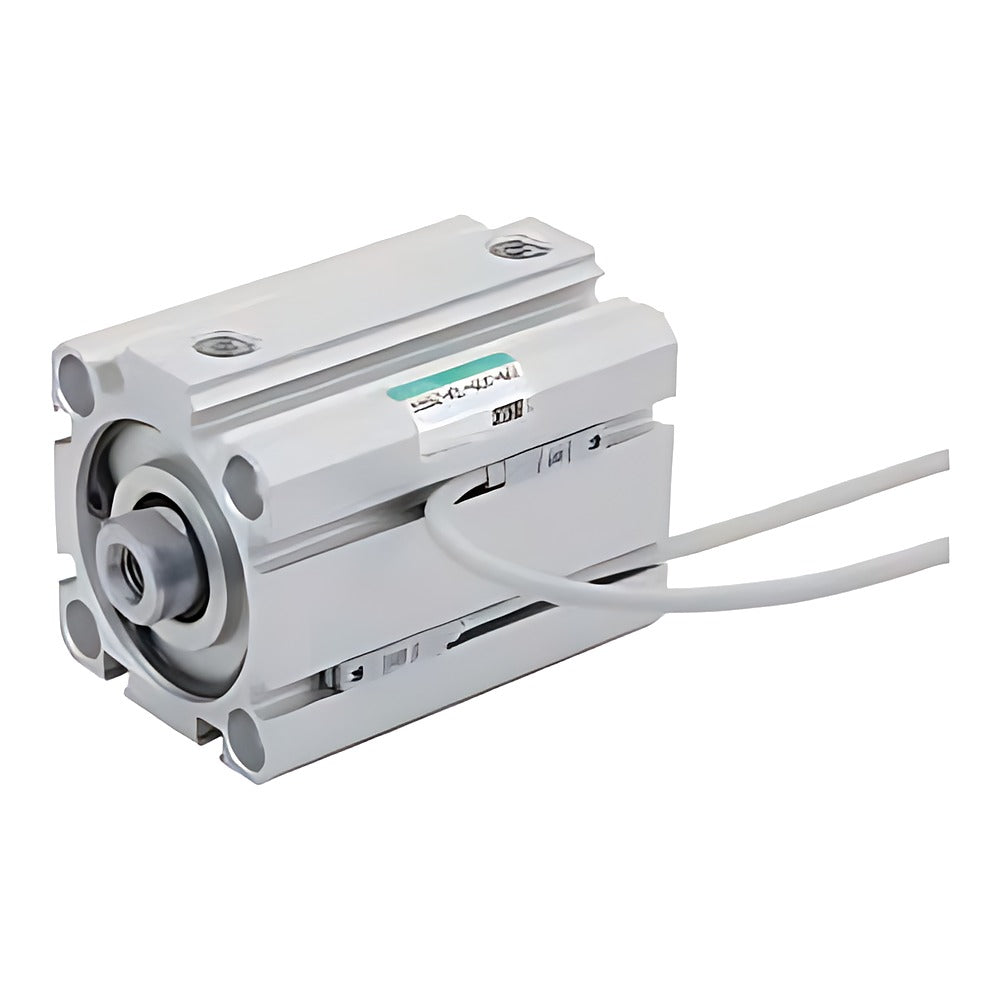

CKD SSD-T1L Super Compact Cylinder (Heat Resistant, 150°C Switch)

CKD SSD-T1L Super Compact Cylinder (Heat Resistant, 150°C Switch)

CKD SSD-T1L super compact cylinder, double acting heat-resistant type with built-in magnet and 150°C heat-resistant reed switch ET0H/ET0V, bore 16 to 63 mm.

Key features

  • Usable at ambient temperatures 5 to 150°C
  • Heat-resistant reed switch ET0H (straight lead) or ET0V (L lead), DC12/24V and AC110V, IP67
  • Switch mounting R (rod end), H (head end) or D (2 pcs); switch shipped with the cylinder
  • Standard strokes 10 to 50 mm; minimum stroke larger with 2 switches
  • Lubrication not allowed; grease the inside periodically

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (16-50), 0.05 MPa (63)
Proof pressure 1.6 MPa
Ambient temperature 5 to 150°C
Piston speed 50-500 mm/s (16-50), 50-300 mm/s (63)
Cushion None
Switch ET0H/ET0V reed, 2-wire, 1 m heat-resistant lead
Source CKD Korea catalog CB-029SK-9, p. 1230-1237
SSD-T1L-16-10-ET0H-R Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-10-ET0H-H Bore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-10-ET0V-R Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-10-ET0V-H Bore: 16 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-15-ET0H-R Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-15-ET0H-H Bore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-15-ET0V-R Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-15-ET0V-H Bore: 16 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-20-ET0H-R Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-20-ET0H-H Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-20-ET0H-D Bore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-20-ET0V-R Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-20-ET0V-H Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-20-ET0V-D Bore: 16 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-25-ET0H-R Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-25-ET0H-H Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-25-ET0H-D Bore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-25-ET0V-R Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-25-ET0V-H Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-25-ET0V-D Bore: 16 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-30-ET0H-R Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-30-ET0H-H Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-30-ET0H-D Bore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-30-ET0V-R Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-30-ET0V-H Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-30-ET0V-D Bore: 16 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-20-15-ET0H-R Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-15-ET0H-H Bore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-15-ET0V-R Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-15-ET0V-H Bore: 20 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-20-ET0H-R Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-20-ET0H-H Bore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-20-ET0V-R Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-20-ET0V-H Bore: 20 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-25-ET0H-R Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-25-ET0H-H Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-25-ET0H-D Bore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-20-25-ET0V-R Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-25-ET0V-H Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-25-ET0V-D Bore: 20 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-20-30-ET0H-R Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-30-ET0H-H Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-30-ET0H-D Bore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-20-30-ET0V-R Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-30-ET0V-H Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-30-ET0V-D Bore: 20 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-15-ET0H-R Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-15-ET0H-H Bore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-15-ET0V-R Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-15-ET0V-H Bore: 25 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-20-ET0H-R Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-20-ET0H-H Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-20-ET0H-D Bore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-20-ET0V-R Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-20-ET0V-H Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-20-ET0V-D Bore: 25 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-25-ET0H-R Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-25-ET0H-H Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-25-ET0H-D Bore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-25-ET0V-R Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-25-ET0V-H Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-25-ET0V-D Bore: 25 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-30-ET0H-R Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-30-ET0H-H Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-30-ET0H-D Bore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-30-ET0V-R Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-30-ET0V-H Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-30-ET0V-D Bore: 25 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-40-ET0H-R Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-40-ET0H-H Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-40-ET0H-D Bore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-40-ET0V-R Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-40-ET0V-H Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-40-ET0V-D Bore: 25 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-50-ET0H-R Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-50-ET0H-H Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-50-ET0H-D Bore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-50-ET0V-R Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-50-ET0V-H Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-50-ET0V-D Bore: 25 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-32-10-ET0H-R Bore: 32 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-10-ET0H-H Bore: 32 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-10-ET0V-R Bore: 32 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-10-ET0V-H Bore: 32 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-15-ET0H-R Bore: 32 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-15-ET0H-H Bore: 32 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-15-ET0V-R Bore: 32 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-15-ET0V-H Bore: 32 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-20-ET0H-R Bore: 32 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-20-ET0H-H Bore: 32 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-20-ET0H-D Bore: 32 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-20-ET0V-R Bore: 32 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-20-ET0V-H Bore: 32 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-20-ET0V-D Bore: 32 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-25-ET0H-R Bore: 32 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-25-ET0H-H Bore: 32 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-25-ET0H-D Bore: 32 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-25-ET0V-R Bore: 32 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-25-ET0V-H Bore: 32 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-25-ET0V-D Bore: 32 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-30-ET0H-R Bore: 32 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-30-ET0H-H Bore: 32 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-30-ET0H-D Bore: 32 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-30-ET0V-R Bore: 32 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-30-ET0V-H Bore: 32 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-30-ET0V-D Bore: 32 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-40-ET0H-R Bore: 32 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-40-ET0H-H Bore: 32 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-40-ET0H-D Bore: 32 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-40-ET0V-R Bore: 32 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-40-ET0V-H Bore: 32 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-40-ET0V-D Bore: 32 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-50-ET0H-R Bore: 32 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-50-ET0H-H Bore: 32 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-50-ET0H-D Bore: 32 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-50-ET0V-R Bore: 32 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-50-ET0V-H Bore: 32 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-50-ET0V-D Bore: 32 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-10-ET0H-R Bore: 40 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-10-ET0H-H Bore: 40 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-10-ET0V-R Bore: 40 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-10-ET0V-H Bore: 40 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-15-ET0H-R Bore: 40 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-15-ET0H-H Bore: 40 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-15-ET0V-R Bore: 40 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-15-ET0V-H Bore: 40 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-20-ET0H-R Bore: 40 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-20-ET0H-H Bore: 40 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-20-ET0H-D Bore: 40 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-20-ET0V-R Bore: 40 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-20-ET0V-H Bore: 40 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-20-ET0V-D Bore: 40 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-25-ET0H-R Bore: 40 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-25-ET0H-H Bore: 40 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-25-ET0H-D Bore: 40 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-25-ET0V-R Bore: 40 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-25-ET0V-H Bore: 40 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-25-ET0V-D Bore: 40 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-30-ET0H-R Bore: 40 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-30-ET0H-H Bore: 40 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-30-ET0H-D Bore: 40 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-30-ET0V-R Bore: 40 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-30-ET0V-H Bore: 40 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-30-ET0V-D Bore: 40 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-40-ET0H-R Bore: 40 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-40-ET0H-H Bore: 40 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-40-ET0H-D Bore: 40 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-40-ET0V-R Bore: 40 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-40-ET0V-H Bore: 40 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-40-ET0V-D Bore: 40 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-50-ET0H-R Bore: 40 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-50-ET0H-H Bore: 40 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-50-ET0H-D Bore: 40 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-50-ET0V-R Bore: 40 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-50-ET0V-H Bore: 40 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-50-ET0V-D Bore: 40 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-50-10-ET0H-R Bore: 50 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-10-ET0H-H Bore: 50 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-10-ET0V-R Bore: 50 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-10-ET0V-H Bore: 50 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-15-ET0H-R Bore: 50 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-15-ET0H-H Bore: 50 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-15-ET0V-R Bore: 50 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-15-ET0V-H Bore: 50 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-20-ET0H-R Bore: 50 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-20-ET0H-H Bore: 50 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-20-ET0H-D Bore: 50 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-20-ET0V-R Bore: 50 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-20-ET0V-H Bore: 50 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-20-ET0V-D Bore: 50 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-25-ET0H-R Bore: 50 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-25-ET0H-H Bore: 50 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-25-ET0H-D Bore: 50 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-25-ET0V-R Bore: 50 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-25-ET0V-H Bore: 50 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-25-ET0V-D Bore: 50 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-30-ET0H-R Bore: 50 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-30-ET0H-H Bore: 50 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-30-ET0H-D Bore: 50 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-30-ET0V-R Bore: 50 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-30-ET0V-H Bore: 50 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-30-ET0V-D Bore: 50 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-40-ET0H-R Bore: 50 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-40-ET0H-H Bore: 50 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-40-ET0H-D Bore: 50 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-40-ET0V-R Bore: 50 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-40-ET0V-H Bore: 50 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-40-ET0V-D Bore: 50 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-50-ET0H-R Bore: 50 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-50-ET0H-H Bore: 50 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-50-ET0H-D Bore: 50 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-50-ET0V-R Bore: 50 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-50-ET0V-H Bore: 50 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-50-ET0V-D Bore: 50 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-10-ET0H-R Bore: 63 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-10-ET0H-H Bore: 63 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-10-ET0V-R Bore: 63 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-10-ET0V-H Bore: 63 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-20-ET0H-R Bore: 63 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-20-ET0H-H Bore: 63 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-20-ET0H-D Bore: 63 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-20-ET0V-R Bore: 63 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-20-ET0V-H Bore: 63 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-20-ET0V-D Bore: 63 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-30-ET0H-R Bore: 63 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-30-ET0H-H Bore: 63 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-30-ET0H-D Bore: 63 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-30-ET0V-R Bore: 63 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-30-ET0V-H Bore: 63 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-30-ET0V-D Bore: 63 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-40-ET0H-R Bore: 63 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-40-ET0H-H Bore: 63 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-40-ET0H-D Bore: 63 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-40-ET0V-R Bore: 63 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-40-ET0V-H Bore: 63 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-40-ET0V-D Bore: 63 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-50-ET0H-R Bore: 63 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-50-ET0H-H Bore: 63 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-50-ET0H-D Bore: 63 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-50-ET0V-R Bore: 63 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-50-ET0V-H Bore: 63 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-50-ET0V-D Bore: 63 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
Compact CylindersCKD
222 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD-T1L Super Compact Cylinder (Heat Resistant, 150°C Switch)

Brand CKD·Compact Cylinders

Available part numbers (222)

SSD-T1L-16-10-ET0H-R, SSD-T1L-16-10-ET0H-H, SSD-T1L-16-10-ET0V-R, SSD-T1L-16-10-ET0V-H, SSD-T1L-16-15-ET0H-R, SSD-T1L-16-15-ET0H-H, SSD-T1L-16-15-ET0V-R, SSD-T1L-16-15-ET0V-H, SSD-T1L-16-20-ET0H-R, SSD-T1L-16-20-ET0H-H + 212 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD-T1L-16-10-ET0H-RBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-10-ET0H-HBore: 16 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-10-ET0V-RBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-10-ET0V-HBore: 16 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-15-ET0H-RBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-15-ET0H-HBore: 16 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-15-ET0V-RBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-15-ET0V-HBore: 16 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-20-ET0H-RBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-20-ET0H-HBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-20-ET0H-DBore: 16 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-20-ET0V-RBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-20-ET0V-HBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-20-ET0V-DBore: 16 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-25-ET0H-RBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-25-ET0H-HBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-25-ET0H-DBore: 16 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-25-ET0V-RBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-25-ET0V-HBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-25-ET0V-DBore: 16 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-30-ET0H-RBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-30-ET0H-HBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-30-ET0H-DBore: 16 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-16-30-ET0V-RBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-16-30-ET0V-HBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-16-30-ET0V-DBore: 16 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-20-15-ET0H-RBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-15-ET0H-HBore: 20 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-15-ET0V-RBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-15-ET0V-HBore: 20 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-20-ET0H-RBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-20-ET0H-HBore: 20 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-20-ET0V-RBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-20-ET0V-HBore: 20 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-25-ET0H-RBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-25-ET0H-HBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-25-ET0H-DBore: 20 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-20-25-ET0V-RBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-25-ET0V-HBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-25-ET0V-DBore: 20 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-20-30-ET0H-RBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-30-ET0H-HBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-30-ET0H-DBore: 20 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-20-30-ET0V-RBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-20-30-ET0V-HBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-20-30-ET0V-DBore: 20 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-15-ET0H-RBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-15-ET0H-HBore: 25 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-15-ET0V-RBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-15-ET0V-HBore: 25 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-20-ET0H-RBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-20-ET0H-HBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-20-ET0H-DBore: 25 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-20-ET0V-RBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-20-ET0V-HBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-20-ET0V-DBore: 25 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-25-ET0H-RBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-25-ET0H-HBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-25-ET0H-DBore: 25 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-25-ET0V-RBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-25-ET0V-HBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-25-ET0V-DBore: 25 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-30-ET0H-RBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-30-ET0H-HBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-30-ET0H-DBore: 25 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-30-ET0V-RBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-30-ET0V-HBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-30-ET0V-DBore: 25 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-40-ET0H-RBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-40-ET0H-HBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-40-ET0H-DBore: 25 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-40-ET0V-RBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-40-ET0V-HBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-40-ET0V-DBore: 25 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-50-ET0H-RBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-50-ET0H-HBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-50-ET0H-DBore: 25 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: M5
SSD-T1L-25-50-ET0V-RBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: M5
SSD-T1L-25-50-ET0V-HBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: M5
SSD-T1L-25-50-ET0V-DBore: 25 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: M5
SSD-T1L-32-10-ET0H-RBore: 32 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-10-ET0H-HBore: 32 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-10-ET0V-RBore: 32 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-10-ET0V-HBore: 32 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-15-ET0H-RBore: 32 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-15-ET0H-HBore: 32 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-15-ET0V-RBore: 32 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-15-ET0V-HBore: 32 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-20-ET0H-RBore: 32 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-20-ET0H-HBore: 32 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-20-ET0H-DBore: 32 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-20-ET0V-RBore: 32 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-20-ET0V-HBore: 32 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-20-ET0V-DBore: 32 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-25-ET0H-RBore: 32 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-25-ET0H-HBore: 32 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-25-ET0H-DBore: 32 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-25-ET0V-RBore: 32 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-25-ET0V-HBore: 32 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-25-ET0V-DBore: 32 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-30-ET0H-RBore: 32 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-30-ET0H-HBore: 32 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-30-ET0H-DBore: 32 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-30-ET0V-RBore: 32 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-30-ET0V-HBore: 32 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-30-ET0V-DBore: 32 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-40-ET0H-RBore: 32 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-40-ET0H-HBore: 32 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-40-ET0H-DBore: 32 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-40-ET0V-RBore: 32 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-40-ET0V-HBore: 32 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-40-ET0V-DBore: 32 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-50-ET0H-RBore: 32 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-50-ET0H-HBore: 32 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-50-ET0H-DBore: 32 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-32-50-ET0V-RBore: 32 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-32-50-ET0V-HBore: 32 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-32-50-ET0V-DBore: 32 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-10-ET0H-RBore: 40 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-10-ET0H-HBore: 40 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-10-ET0V-RBore: 40 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-10-ET0V-HBore: 40 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-15-ET0H-RBore: 40 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-15-ET0H-HBore: 40 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-15-ET0V-RBore: 40 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-15-ET0V-HBore: 40 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-20-ET0H-RBore: 40 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-20-ET0H-HBore: 40 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-20-ET0H-DBore: 40 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-20-ET0V-RBore: 40 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-20-ET0V-HBore: 40 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-20-ET0V-DBore: 40 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-25-ET0H-RBore: 40 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-25-ET0H-HBore: 40 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-25-ET0H-DBore: 40 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-25-ET0V-RBore: 40 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-25-ET0V-HBore: 40 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-25-ET0V-DBore: 40 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-30-ET0H-RBore: 40 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-30-ET0H-HBore: 40 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-30-ET0H-DBore: 40 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-30-ET0V-RBore: 40 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-30-ET0V-HBore: 40 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-30-ET0V-DBore: 40 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-40-ET0H-RBore: 40 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-40-ET0H-HBore: 40 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-40-ET0H-DBore: 40 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-40-ET0V-RBore: 40 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-40-ET0V-HBore: 40 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-40-ET0V-DBore: 40 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-50-ET0H-RBore: 40 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-50-ET0H-HBore: 40 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-50-ET0H-DBore: 40 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-40-50-ET0V-RBore: 40 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/8
SSD-T1L-40-50-ET0V-HBore: 40 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/8
SSD-T1L-40-50-ET0V-DBore: 40 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/8
SSD-T1L-50-10-ET0H-RBore: 50 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-10-ET0H-HBore: 50 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-10-ET0V-RBore: 50 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-10-ET0V-HBore: 50 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-15-ET0H-RBore: 50 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-15-ET0H-HBore: 50 mm | Stroke: 15 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-15-ET0V-RBore: 50 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-15-ET0V-HBore: 50 mm | Stroke: 15 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-20-ET0H-RBore: 50 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-20-ET0H-HBore: 50 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-20-ET0H-DBore: 50 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-20-ET0V-RBore: 50 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-20-ET0V-HBore: 50 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-20-ET0V-DBore: 50 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-25-ET0H-RBore: 50 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-25-ET0H-HBore: 50 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-25-ET0H-DBore: 50 mm | Stroke: 25 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-25-ET0V-RBore: 50 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-25-ET0V-HBore: 50 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-25-ET0V-DBore: 50 mm | Stroke: 25 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-30-ET0H-RBore: 50 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-30-ET0H-HBore: 50 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-30-ET0H-DBore: 50 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-30-ET0V-RBore: 50 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-30-ET0V-HBore: 50 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-30-ET0V-DBore: 50 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-40-ET0H-RBore: 50 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-40-ET0H-HBore: 50 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-40-ET0H-DBore: 50 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-40-ET0V-RBore: 50 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-40-ET0V-HBore: 50 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-40-ET0V-DBore: 50 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-50-ET0H-RBore: 50 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-50-ET0H-HBore: 50 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-50-ET0H-DBore: 50 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-50-50-ET0V-RBore: 50 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-50-50-ET0V-HBore: 50 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-50-50-ET0V-DBore: 50 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-10-ET0H-RBore: 63 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-10-ET0H-HBore: 63 mm | Stroke: 10 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-10-ET0V-RBore: 63 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-10-ET0V-HBore: 63 mm | Stroke: 10 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-20-ET0H-RBore: 63 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-20-ET0H-HBore: 63 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-20-ET0H-DBore: 63 mm | Stroke: 20 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-20-ET0V-RBore: 63 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-20-ET0V-HBore: 63 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-20-ET0V-DBore: 63 mm | Stroke: 20 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-30-ET0H-RBore: 63 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-30-ET0H-HBore: 63 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-30-ET0H-DBore: 63 mm | Stroke: 30 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-30-ET0V-RBore: 63 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-30-ET0V-HBore: 63 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-30-ET0V-DBore: 63 mm | Stroke: 30 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-40-ET0H-RBore: 63 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-40-ET0H-HBore: 63 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-40-ET0H-DBore: 63 mm | Stroke: 40 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-40-ET0V-RBore: 63 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-40-ET0V-HBore: 63 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-40-ET0V-DBore: 63 mm | Stroke: 40 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-50-ET0H-RBore: 63 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-50-ET0H-HBore: 63 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-50-ET0H-DBore: 63 mm | Stroke: 50 mm | Switch: ET0H (straight lead) | Switches: 2 pcs | Port: Rc1/4
SSD-T1L-63-50-ET0V-RBore: 63 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, rod end | Port: Rc1/4
SSD-T1L-63-50-ET0V-HBore: 63 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 1 pc, head end | Port: Rc1/4
SSD-T1L-63-50-ET0V-DBore: 63 mm | Stroke: 50 mm | Switch: ET0V (L lead) | Switches: 2 pcs | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
