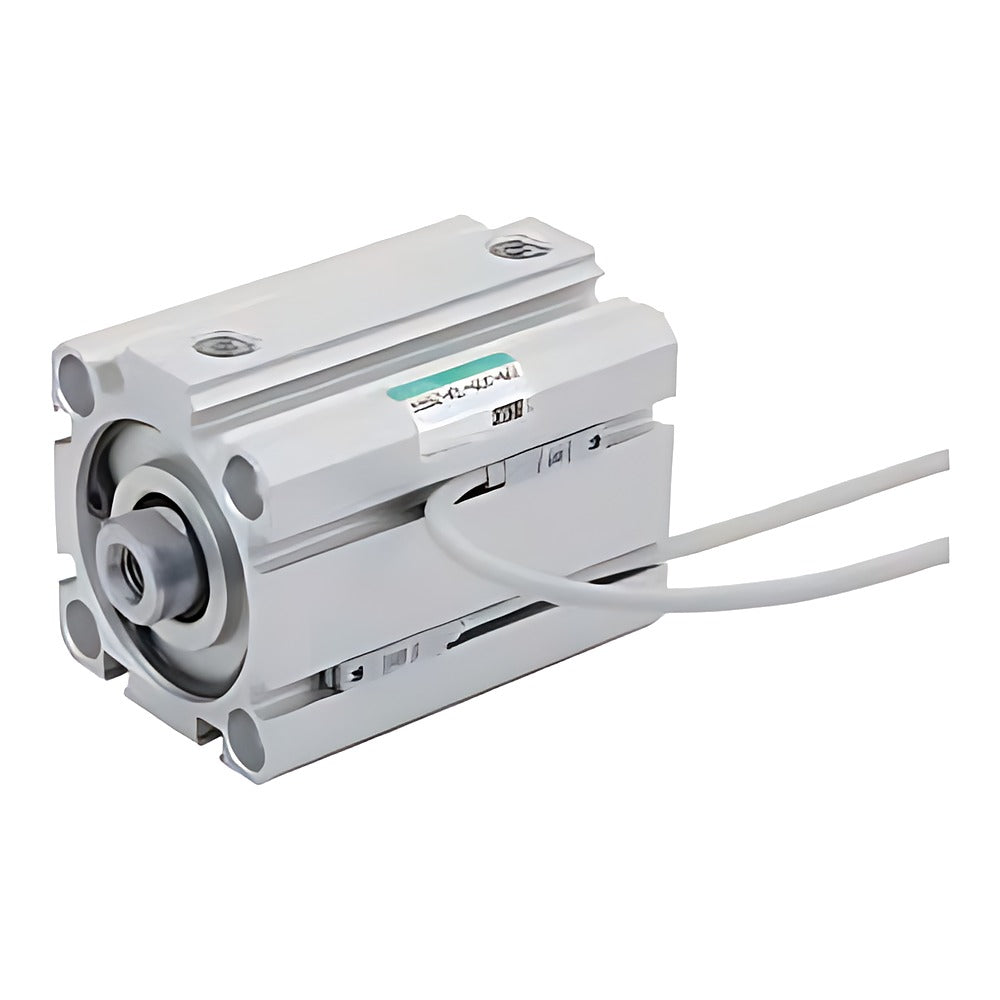

CKD SSD-X Super Compact Cylinder (Single Acting, Push)

CKD SSD-X Super Compact Cylinder (Single Acting, Push)

CKD SSD-X super compact cylinder, single acting, push (spring return), bore 12 to 50 mm.

Key features

  • Single acting, push (spring return); do not leave pressurized for long periods
  • Switch-ready version (L) has a built-in magnet for T-type auto switches (T0H, T2H, T2YH, T3H etc.)
  • SSD-XL1: bore 12/16 version for 2-colour, off-delay or T1 switches (stroke 10 mm)
  • Standard strokes 5/10 mm (bore 12-32) and 10/20 mm (bore 40/50)
  • No cushion; non-lube
  • Mounting brackets and rod-end accessories ordered as code suffixes

Specifications

Action Single acting, push (spring return)
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 MPa (12/16), 0.17 (20/25), 0.12 (32-50)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50-500 mm/s
Cushion None
Stroke tolerance +1.0/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1214-1225
SSD-X-12-5 Model: SSD-X (no magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-X-12-10 Model: SSD-X (no magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-X-16-5 Model: SSD-X (no magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-X-16-10 Model: SSD-X (no magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-X-20-5 Model: SSD-X (no magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-X-20-10 Model: SSD-X (no magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-X-25-5 Model: SSD-X (no magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-X-25-10 Model: SSD-X (no magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-X-32-5 Model: SSD-X (no magnet) | Bore: 32 mm | Stroke: 5 mm | Port: M5
SSD-X-32-10 Model: SSD-X (no magnet) | Bore: 32 mm | Stroke: 10 mm | Port: M5
SSD-X-40-10 Model: SSD-X (no magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-X-40-20 Model: SSD-X (no magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-X-50-10 Model: SSD-X (no magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-X-50-20 Model: SSD-X (no magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-XL-12-5 Model: SSD-XL (switch magnet) | Bore: 12 mm | Stroke: 5 mm | Port: M5
SSD-XL-12-10 Model: SSD-XL (switch magnet) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-XL-16-5 Model: SSD-XL (switch magnet) | Bore: 16 mm | Stroke: 5 mm | Port: M5
SSD-XL-16-10 Model: SSD-XL (switch magnet) | Bore: 16 mm | Stroke: 10 mm | Port: M5
SSD-XL-20-5 Model: SSD-XL (switch magnet) | Bore: 20 mm | Stroke: 5 mm | Port: M5
SSD-XL-20-10 Model: SSD-XL (switch magnet) | Bore: 20 mm | Stroke: 10 mm | Port: M5
SSD-XL-25-5 Model: SSD-XL (switch magnet) | Bore: 25 mm | Stroke: 5 mm | Port: M5
SSD-XL-25-10 Model: SSD-XL (switch magnet) | Bore: 25 mm | Stroke: 10 mm | Port: M5
SSD-XL-32-5 Model: SSD-XL (switch magnet) | Bore: 32 mm | Stroke: 5 mm | Port: M5
SSD-XL-32-10 Model: SSD-XL (switch magnet) | Bore: 32 mm | Stroke: 10 mm | Port: M5
SSD-XL-40-10 Model: SSD-XL (switch magnet) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
SSD-XL-40-20 Model: SSD-XL (switch magnet) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
SSD-XL-50-10 Model: SSD-XL (switch magnet) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
SSD-XL-50-20 Model: SSD-XL (switch magnet) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
SSD-XL1-12-10 Model: SSD-XL1 (T1 2-colour switch) | Bore: 12 mm | Stroke: 10 mm | Port: M5
SSD-XL1-16-10 Model: SSD-XL1 (T1 2-colour switch) | Bore: 16 mm | Stroke: 10 mm | Port: M5
