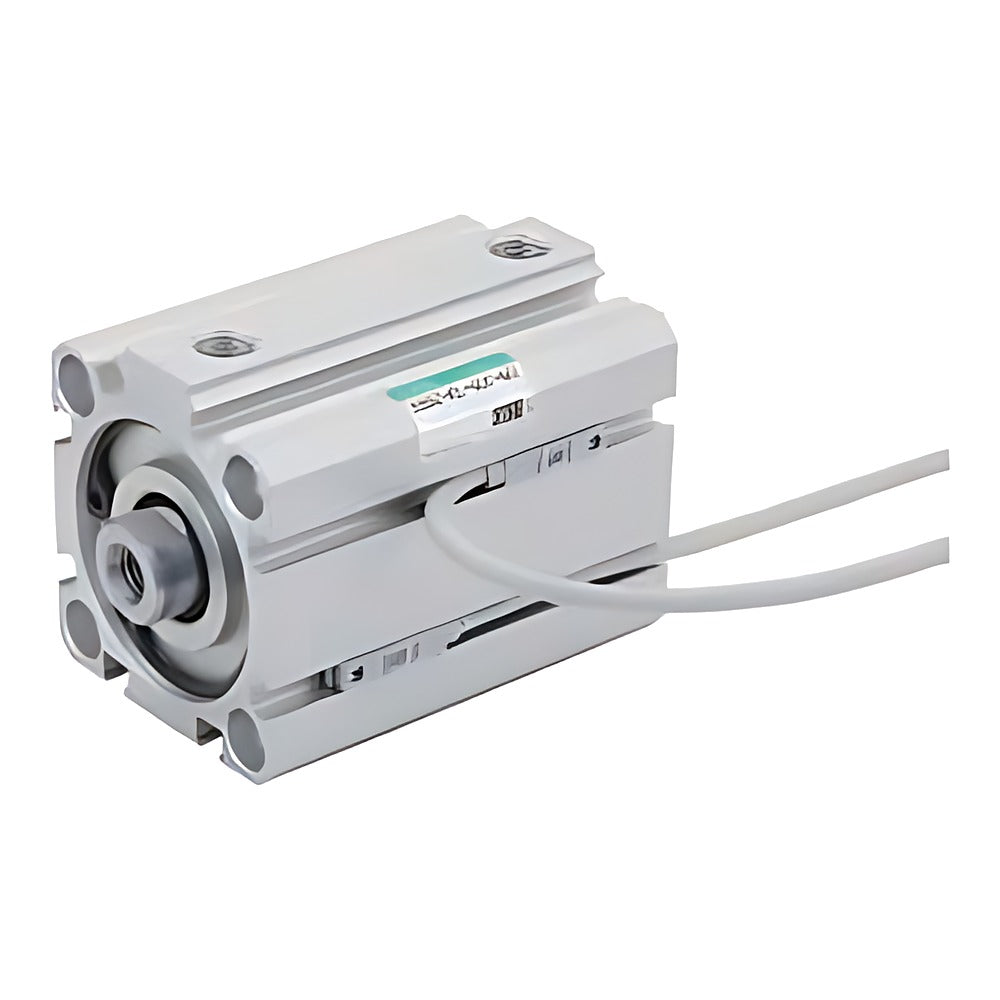

CKD SSD2-D Super Compact Cylinder (Double Rod, Bore 12-100)

CKD SSD2-D double-acting double-rod super compact cylinder with equal thrust in both directions and rod ends available on both sides.

Key features

Double-rod design with equal effective area on both sides
Without cushion or with rubber cushion (D) selectable
Bores 12 to 100 mm with standard strokes 5 to 100 mm
Switch-ready SSD2-DL version with built-in magnet
Mounting brackets LB and FA supplied attached
Options: male rod end (N), low-particle P6, secondary battery P4/P40

Specifications

Action	Double acting, double rod
Fluid	Compressed air
Max. working pressure	1.0 MPa
Min. working pressure	0.15 MPa (50-100: 0.1 MPa)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Piston speed	50-500 mm/s (80/100: 50-300 mm/s)
Lubrication	Not required
Source	CKD Korea catalog CB-029SK-9, p. 956-969

SSD2-D-12-5		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12-5-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12-5-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12-10		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12-10-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12-10-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12-15		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12-15-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12-15-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12-20		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12-20-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12-20-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12-25		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12-25-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12-25-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12-30		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12-30-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12-30-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12D-5		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12D-5-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12D-5-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12D-10		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12D-10-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12D-10-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12D-15		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12D-15-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12D-15-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12D-20		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12D-20-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12D-20-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12D-25		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12D-25-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12D-25-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-12D-30		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-12D-30-LB		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-12D-30-FA		Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16-5		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16-5-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16-5-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16-10		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16-10-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16-10-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16-15		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16-15-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16-15-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16-20		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16-20-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16-20-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16-25		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16-25-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16-25-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16-30		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16-30-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16-30-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16D-5		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16D-5-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16D-5-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16D-10		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16D-10-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16D-10-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16D-15		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16D-15-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16D-15-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16D-20		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16D-20-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16D-20-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16D-25		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16D-25-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16D-25-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-16D-30		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-16D-30-LB		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-16D-30-FA		Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-5		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-5-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-5-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-10		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-10-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-10-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-15		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-15-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-15-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-20		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-20-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-20-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-25		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-25-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-25-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-30		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-30-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-30-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-35		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-35-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-35-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-40		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-40-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-40-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-45		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-45-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-45-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20-50		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20-50-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20-50-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-5		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-5-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-5-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-10		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-10-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-10-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-15		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-15-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-15-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-20		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-20-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-20-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-25		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-25-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-25-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-30		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-30-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-30-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-35		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-35-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-35-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-40		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-40-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-40-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-45		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-45-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-45-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-20D-50		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-20D-50-LB		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-20D-50-FA		Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-5		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-5-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-5-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-10		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-10-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-10-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-15		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-15-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-15-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-20		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-20-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-20-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-25		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-25-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-25-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-30		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-30-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-30-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-35		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-35-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-35-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-40		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-40-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-40-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-45		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-45-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-45-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25-50		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25-50-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25-50-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-5		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-5-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-5-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-10		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-10-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-10-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-15		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-15-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-15-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-20		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-20-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-20-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-25		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-25-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-25-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-30		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-30-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-30-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-35		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-35-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-35-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-40		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-40-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-40-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-45		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-45-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-45-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-25D-50		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-25D-50-LB		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-25D-50-FA		Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-32-5		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-32-5-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-32-5-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-32-10		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-10-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-10-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-15		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-15-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-15-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-20		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-20-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-20-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-25		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-25-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-25-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-30		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-30-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-30-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-35		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-35-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-35-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-40		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-40-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-40-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-45		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-45-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-45-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-50		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-50-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-50-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-75		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-75-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-75-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32-100		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32-100-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32-100-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-5		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-D-32D-5-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-D-32D-5-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-D-32D-10		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-10-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-10-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-15		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-15-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-15-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-20		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-20-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-20-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-25		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-25-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-25-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-30		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-30-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-30-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-35		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-35-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-35-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-40		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-40-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-40-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-45		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-45-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-45-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-50		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-50-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-50-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-75		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-75-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-75-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-32D-100		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-32D-100-LB		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-32D-100-FA		Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-5		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-5-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-5-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-10		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-10-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-10-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-15		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-15-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-15-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-20		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-20-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-20-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-25		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-25-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-25-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-30		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-30-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-30-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-35		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-35-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-35-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-40		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-40-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-40-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-45		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-45-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-45-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-50		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-50-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-50-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-75		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-75-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-75-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40-100		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40-100-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40-100-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-5		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-5-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-5-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-10		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-10-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-10-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-15		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-15-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-15-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-20		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-20-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-20-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-25		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-25-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-25-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-30		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-30-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-30-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-35		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-35-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-35-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-40		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-40-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-40-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-45		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-45-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-45-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-50		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-50-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-50-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-75		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-75-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-75-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-40D-100		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-D-40D-100-LB		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-D-40D-100-FA		Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-D-50-10		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-10-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-10-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-15		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-15-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-15-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-20		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-20-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-20-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-25		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-25-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-25-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-30		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-30-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-30-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-35		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-35-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-35-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-40		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-40-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-40-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-45		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-45-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-45-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-50		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-50-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-50-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-75		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-75-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-75-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50-100		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50-100-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50-100-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-10		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-10-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-10-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-15		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-15-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-15-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-20		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-20-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-20-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-25		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-25-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-25-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-30		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-30-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-30-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-35		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-35-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-35-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-40		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-40-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-40-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-45		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-45-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-45-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-50		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-50-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-50-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-75		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-75-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-75-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-50D-100		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-50D-100-LB		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-50D-100-FA		Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-10		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-10-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-10-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-15		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-15-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-15-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-20		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-20-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-20-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-25		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-25-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-25-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-30		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-30-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-30-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-35		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-35-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-35-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-40		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-40-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-40-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-45		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-45-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-45-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-50		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-50-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-50-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-75		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-75-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-75-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63-100		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63-100-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63-100-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-10		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-10-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-10-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-15		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-15-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-15-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-20		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-20-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-20-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-25		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-25-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-25-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-30		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-30-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-30-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-35		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-35-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-35-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-40		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-40-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-40-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-45		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-45-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-45-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-50		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-50-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-50-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-75		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-75-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-75-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-63D-100		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-D-63D-100-LB		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-D-63D-100-FA		Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-D-80-10		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-10-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-10-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-15		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-15-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-15-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-20		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-20-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-20-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-25		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-25-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-25-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-30		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-30-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-30-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-35		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-35-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-35-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-40		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-40-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-40-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-45		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-45-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-45-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-50		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-50-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-50-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-75		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-75-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-75-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80-100		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80-100-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80-100-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-10		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-10-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-10-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-15		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-15-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-15-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-20		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-20-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-20-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-25		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-25-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-25-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-30		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-30-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-30-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-35		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-35-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-35-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-40		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-40-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-40-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-45		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-45-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-45-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-50		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-50-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-50-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-75		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-75-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-75-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-80D-100		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-80D-100-LB		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-80D-100-FA		Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-10		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-10-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-10-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-15		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-15-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-15-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-20		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-20-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-20-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-25		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-25-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-25-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-30		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-30-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-30-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-35		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-35-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-35-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-40		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-40-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-40-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-45		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-45-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-45-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-50		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-50-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-50-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-75		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-75-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-75-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100-100		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100-100-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100-100-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-10		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-10-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-10-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-15		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-15-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-15-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-20		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-20-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-20-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-25		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-25-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-25-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-30		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-30-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-30-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-35		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-35-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-35-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-40		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-40-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-40-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-45		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-45-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-45-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-50		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-50-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-50-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-75		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-75-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-75-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-D-100D-100		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-D-100D-100-LB		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-D-100D-100-FA		Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-12-5		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12-5-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12-5-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12-10		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12-10-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12-10-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12-15		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12-15-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12-15-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12-20		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12-20-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12-20-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12-25		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12-25-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12-25-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12-30		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12-30-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12-30-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12D-5		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12D-5-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12D-5-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12D-10		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12D-10-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12D-10-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12D-15		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12D-15-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12D-15-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12D-20		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12D-20-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12D-20-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12D-25		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12D-25-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12D-25-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-12D-30		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-12D-30-LB		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-12D-30-FA		Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16-5		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16-5-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16-5-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16-10		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16-10-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16-10-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16-15		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16-15-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16-15-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16-20		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16-20-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16-20-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16-25		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16-25-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16-25-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16-30		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16-30-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16-30-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16D-5		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16D-5-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16D-5-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16D-10		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16D-10-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16D-10-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16D-15		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16D-15-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16D-15-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16D-20		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16D-20-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16D-20-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16D-25		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16D-25-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16D-25-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-16D-30		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-16D-30-LB		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-16D-30-FA		Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-5		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-5-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-5-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-10		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-10-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-10-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-15		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-15-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-15-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-20		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-20-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-20-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-25		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-25-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-25-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-30		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-30-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-30-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-35		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-35-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-35-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-40		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-40-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-40-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-45		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-45-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-45-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20-50		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20-50-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20-50-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-5		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-5-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-5-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-10		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-10-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-10-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-15		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-15-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-15-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-20		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-20-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-20-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-25		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-25-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-25-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-30		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-30-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-30-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-35		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-35-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-35-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-40		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-40-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-40-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-45		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-45-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-45-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-20D-50		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-20D-50-LB		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-20D-50-FA		Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-5		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-5-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-5-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-10		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-10-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-10-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-15		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-15-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-15-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-20		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-20-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-20-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-25		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-25-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-25-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-30		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-30-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-30-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-35		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-35-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-35-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-40		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-40-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-40-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-45		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-45-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-45-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25-50		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25-50-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25-50-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-5		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-5-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-5-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-10		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-10-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-10-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-15		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-15-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-15-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-20		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-20-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-20-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-25		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-25-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-25-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-30		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-30-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-30-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-35		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-35-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-35-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-40		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-40-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-40-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-45		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-45-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-45-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-25D-50		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
SSD2-DL-25D-50-LB		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
SSD2-DL-25D-50-FA		Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
SSD2-DL-32-5		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-5-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-5-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-10		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-10-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-10-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-15		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-15-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-15-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-20		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-20-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-20-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-25		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-25-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-25-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-30		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-30-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-30-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-35		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-35-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-35-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-40		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-40-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-40-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-45		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-45-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-45-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-50		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-50-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-50-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-75		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-75-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-75-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32-100		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32-100-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32-100-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-5		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-5-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-5-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-10		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-10-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-10-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-15		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-15-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-15-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-20		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-20-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-20-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-25		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-25-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-25-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-30		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-30-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-30-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-35		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-35-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-35-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-40		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-40-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-40-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-45		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-45-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-45-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-50		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-50-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-50-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-75		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-75-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-75-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-32D-100		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-32D-100-LB		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-32D-100-FA		Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-5		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-5-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-5-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-10		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-10-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-10-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-15		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-15-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-15-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-20		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-20-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-20-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-25		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-25-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-25-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-30		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-30-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-30-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-35		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-35-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-35-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-40		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-40-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-40-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-45		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-45-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-45-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-50		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-50-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-50-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-75		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-75-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-75-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40-100		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40-100-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40-100-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-5		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-5-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-5-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-10		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-10-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-10-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-15		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-15-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-15-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-20		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-20-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-20-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-25		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-25-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-25-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-30		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-30-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-30-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-35		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-35-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-35-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-40		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-40-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-40-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-45		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-45-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-45-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-50		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-50-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-50-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-75		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-75-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-75-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-40D-100		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
SSD2-DL-40D-100-LB		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
SSD2-DL-40D-100-FA		Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
SSD2-DL-50-10		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-10-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-10-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-15		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-15-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-15-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-20		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-20-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-20-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-25		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-25-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-25-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-30		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-30-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-30-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-35		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-35-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-35-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-40		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-40-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-40-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-45		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-45-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-45-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-50		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-50-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-50-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-75		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-75-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-75-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50-100		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50-100-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50-100-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-10		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-10-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-10-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-15		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-15-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-15-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-20		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-20-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-20-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-25		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-25-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-25-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-30		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-30-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-30-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-35		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-35-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-35-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-40		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-40-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-40-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-45		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-45-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-45-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-50		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-50-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-50-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-75		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-75-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-75-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-50D-100		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-50D-100-LB		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-50D-100-FA		Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-10		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-10-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-10-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-15		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-15-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-15-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-20		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-20-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-20-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-25		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-25-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-25-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-30		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-30-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-30-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-35		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-35-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-35-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-40		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-40-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-40-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-45		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-45-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-45-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-50		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-50-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-50-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-75		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-75-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-75-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63-100		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63-100-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63-100-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-10		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-10-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-10-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-15		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-15-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-15-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-20		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-20-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-20-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-25		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-25-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-25-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-30		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-30-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-30-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-35		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-35-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-35-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-40		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-40-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-40-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-45		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-45-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-45-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-50		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-50-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-50-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-75		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-75-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-75-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-63D-100		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
SSD2-DL-63D-100-LB		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
SSD2-DL-63D-100-FA		Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
SSD2-DL-80-10		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-10-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-10-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-15		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-15-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-15-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-20		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-20-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-20-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-25		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-25-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-25-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-30		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-30-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-30-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-35		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-35-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-35-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-40		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-40-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-40-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-45		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-45-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-45-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-50		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-50-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-50-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-75		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-75-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-75-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80-100		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80-100-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80-100-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-10		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-10-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-10-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-15		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-15-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-15-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-20		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-20-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-20-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-25		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-25-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-25-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-30		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-30-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-30-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-35		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-35-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-35-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-40		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-40-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-40-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-45		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-45-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-45-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-50		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-50-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-50-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-75		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-75-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-75-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-80D-100		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-80D-100-LB		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-80D-100-FA		Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-10		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-10-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-10-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-15		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-15-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-15-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-20		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-20-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-20-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-25		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-25-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-25-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-30		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-30-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-30-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-35		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-35-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-35-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-40		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-40-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-40-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-45		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-45-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-45-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-50		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-50-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-50-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-75		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-75-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-75-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100-100		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100-100-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100-100-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-10		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-10-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-10-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-15		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-15-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-15-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-20		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-20-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-20-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-25		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-25-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-25-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-30		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-30-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-30-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-35		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-35-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-35-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-40		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-40-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-40-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-45		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-45-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-45-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-50		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-50-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-50-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-75		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-75-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-75-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
SSD2-DL-100D-100		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
SSD2-DL-100D-100-LB		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
SSD2-DL-100D-100-FA		Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8

Compact CylindersCKD

1200 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-D Super Compact Cylinder (Double Rod, Bore 12-100)

Brand CKD·Compact Cylinders

Available part numbers (1200)

SSD2-D-12-5, SSD2-D-12-5-LB, SSD2-D-12-5-FA, SSD2-D-12-10, SSD2-D-12-10-LB, SSD2-D-12-10-FA, SSD2-D-12-15, SSD2-D-12-15-LB, SSD2-D-12-15-FA, SSD2-D-12-20 + 1190 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-D-12-5	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12-5-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12-5-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12-10	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12-10-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12-10-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12-15	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12-15-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12-15-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12-20	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12-20-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12-20-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12-25	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12-25-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12-25-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12-30	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12-30-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12-30-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12D-5	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12D-5-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12D-5-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12D-10	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12D-10-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12D-10-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12D-15	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12D-15-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12D-15-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12D-20	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12D-20-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12D-20-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12D-25	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12D-25-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12D-25-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-12D-30	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-12D-30-LB	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-12D-30-FA	Body: No switch magnet \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16-5	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16-5-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16-5-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16-10	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16-10-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16-10-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16-15	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16-15-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16-15-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16-20	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16-20-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16-20-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16-25	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16-25-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16-25-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16-30	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16-30-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16-30-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16D-5	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16D-5-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16D-5-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16D-10	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16D-10-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16D-10-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16D-15	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16D-15-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16D-15-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16D-20	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16D-20-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16D-20-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16D-25	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16D-25-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16D-25-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-16D-30	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-16D-30-LB	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-16D-30-FA	Body: No switch magnet \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-5	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-5-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-5-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-10	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-10-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-10-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-15	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-15-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-15-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-20	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-20-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-20-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-25	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-25-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-25-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-30	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-30-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-30-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-35	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-35-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-35-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-40	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-40-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-40-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-45	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-45-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-45-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20-50	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20-50-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20-50-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-5	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-5-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-5-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-10	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-10-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-10-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-15	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-15-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-15-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-20	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-20-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-20-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-25	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-25-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-25-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-30	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-30-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-30-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-35	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-35-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-35-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-40	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-40-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-40-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-45	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-45-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-45-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-20D-50	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-20D-50-LB	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-20D-50-FA	Body: No switch magnet \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-5	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-5-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-5-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-10	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-10-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-10-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-15	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-15-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-15-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-20	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-20-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-20-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-25	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-25-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-25-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-30	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-30-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-30-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-35	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-35-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-35-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-40	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-40-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-40-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-45	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-45-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-45-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25-50	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25-50-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25-50-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-5	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-5-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-5-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-10	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-10-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-10-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-15	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-15-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-15-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-20	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-20-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-20-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-25	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-25-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-25-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-30	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-30-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-30-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-35	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-35-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-35-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-40	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-40-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-40-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-45	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-45-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-45-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-25D-50	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-25D-50-LB	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-25D-50-FA	Body: No switch magnet \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-32-5	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-32-5-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-32-5-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-32-10	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-10-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-10-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-15	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-15-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-15-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-20	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-20-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-20-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-25	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-25-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-25-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-30	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-30-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-30-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-35	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-35-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-35-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-40	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-40-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-40-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-45	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-45-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-45-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-50	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-50-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-50-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-75	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-75-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-75-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32-100	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32-100-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32-100-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-5	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-D-32D-5-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-D-32D-5-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-D-32D-10	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-10-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-10-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-15	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-15-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-15-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-20	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-20-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-20-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-25	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-25-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-25-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-30	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-30-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-30-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-35	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-35-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-35-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-40	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-40-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-40-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-45	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-45-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-45-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-50	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-50-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-50-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-75	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-75-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-75-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-32D-100	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-32D-100-LB	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-32D-100-FA	Body: No switch magnet \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-5	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-5-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-5-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-10	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-10-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-10-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-15	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-15-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-15-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-20	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-20-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-20-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-25	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-25-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-25-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-30	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-30-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-30-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-35	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-35-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-35-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-40	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-40-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-40-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-45	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-45-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-45-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-50	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-50-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-50-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-75	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-75-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-75-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40-100	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40-100-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40-100-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-5	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-5-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-5-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-10	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-10-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-10-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-15	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-15-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-15-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-20	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-20-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-20-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-25	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-25-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-25-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-30	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-30-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-30-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-35	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-35-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-35-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-40	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-40-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-40-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-45	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-45-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-45-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-50	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-50-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-50-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-75	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-75-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-75-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-40D-100	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-D-40D-100-LB	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-D-40D-100-FA	Body: No switch magnet \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-D-50-10	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-10-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-10-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-15	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-15-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-15-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-20	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-20-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-20-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-25	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-25-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-25-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-30	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-30-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-30-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-35	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-35-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-35-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-40	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-40-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-40-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-45	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-45-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-45-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-50	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-50-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-50-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-75	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-75-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-75-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50-100	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50-100-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50-100-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-10	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-10-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-10-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-15	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-15-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-15-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-20	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-20-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-20-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-25	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-25-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-25-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-30	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-30-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-30-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-35	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-35-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-35-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-40	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-40-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-40-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-45	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-45-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-45-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-50	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-50-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-50-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-75	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-75-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-75-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-50D-100	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-50D-100-LB	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-50D-100-FA	Body: No switch magnet \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-10	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-10-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-10-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-15	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-15-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-15-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-20	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-20-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-20-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-25	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-25-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-25-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-30	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-30-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-30-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-35	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-35-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-35-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-40	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-40-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-40-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-45	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-45-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-45-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-50	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-50-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-50-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-75	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-75-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-75-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63-100	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63-100-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63-100-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-10	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-10-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-10-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-15	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-15-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-15-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-20	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-20-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-20-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-25	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-25-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-25-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-30	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-30-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-30-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-35	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-35-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-35-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-40	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-40-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-40-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-45	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-45-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-45-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-50	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-50-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-50-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-75	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-75-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-75-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-63D-100	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-D-63D-100-LB	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-D-63D-100-FA	Body: No switch magnet \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-D-80-10	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-10-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-10-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-15	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-15-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-15-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-20	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-20-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-20-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-25	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-25-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-25-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-30	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-30-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-30-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-35	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-35-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-35-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-40	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-40-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-40-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-45	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-45-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-45-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-50	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-50-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-50-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-75	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-75-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-75-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80-100	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80-100-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80-100-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-10	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-10-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-10-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-15	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-15-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-15-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-20	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-20-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-20-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-25	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-25-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-25-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-30	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-30-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-30-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-35	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-35-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-35-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-40	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-40-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-40-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-45	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-45-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-45-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-50	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-50-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-50-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-75	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-75-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-75-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-80D-100	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-80D-100-LB	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-80D-100-FA	Body: No switch magnet \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-10	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-10-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-10-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-15	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-15-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-15-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-20	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-20-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-20-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-25	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-25-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-25-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-30	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-30-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-30-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-35	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-35-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-35-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-40	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-40-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-40-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-45	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-45-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-45-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-50	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-50-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-50-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-75	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-75-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-75-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100-100	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100-100-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100-100-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-10	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-10-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-10-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-15	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-15-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-15-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-20	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-20-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-20-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-25	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-25-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-25-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-30	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-30-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-30-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-35	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-35-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-35-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-40	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-40-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-40-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-45	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-45-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-45-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-50	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-50-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-50-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-75	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-75-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-75-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-D-100D-100	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-D-100D-100-LB	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-D-100D-100-FA	Body: No switch magnet \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-12-5	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12-5-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12-5-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12-10	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12-10-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12-10-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12-15	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12-15-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12-15-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12-20	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12-20-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12-20-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12-25	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12-25-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12-25-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12-30	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12-30-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12-30-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12D-5	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12D-5-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12D-5-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12D-10	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12D-10-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12D-10-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12D-15	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12D-15-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12D-15-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12D-20	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12D-20-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12D-20-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12D-25	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12D-25-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12D-25-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-12D-30	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-12D-30-LB	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-12D-30-FA	Body: Switch magnet built in \| Bore: 12 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16-5	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16-5-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16-5-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16-10	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16-10-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16-10-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16-15	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16-15-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16-15-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16-20	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16-20-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16-20-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16-25	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16-25-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16-25-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16-30	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16-30-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16-30-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16D-5	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16D-5-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16D-5-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16D-10	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16D-10-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16D-10-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16D-15	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16D-15-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16D-15-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16D-20	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16D-20-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16D-20-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16D-25	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16D-25-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16D-25-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-16D-30	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-16D-30-LB	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-16D-30-FA	Body: Switch magnet built in \| Bore: 16 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-5	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-5-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-5-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-10	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-10-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-10-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-15	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-15-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-15-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-20	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-20-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-20-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-25	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-25-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-25-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-30	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-30-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-30-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-35	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-35-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-35-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-40	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-40-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-40-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-45	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-45-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-45-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20-50	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20-50-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20-50-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-5	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-5-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-5-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-10	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-10-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-10-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-15	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-15-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-15-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-20	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-20-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-20-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-25	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-25-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-25-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-30	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-30-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-30-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-35	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-35-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-35-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-40	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-40-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-40-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-45	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-45-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-45-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-20D-50	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-20D-50-LB	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-20D-50-FA	Body: Switch magnet built in \| Bore: 20 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-5	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-5-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-5-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-10	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-10-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-10-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-15	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-15-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-15-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-20	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-20-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-20-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-25	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-25-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-25-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-30	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-30-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-30-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-35	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-35-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-35-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-40	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-40-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-40-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-45	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-45-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-45-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25-50	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25-50-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25-50-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-5	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-5-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-5-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-10	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-10-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-10-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-15	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-15-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-15-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-20	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-20-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-20-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-25	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-25-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-25-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-30	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-30-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-30-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-35	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-35-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-35-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-40	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-40-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-40-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-45	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-45-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-45-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-25D-50	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: M5
	SSD2-DL-25D-50-LB	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: M5
	SSD2-DL-25D-50-FA	Body: Switch magnet built in \| Bore: 25 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: M5
	SSD2-DL-32-5	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-5-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-5-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-10	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-10-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-10-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-15	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-15-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-15-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-20	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-20-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-20-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-25	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-25-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-25-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-30	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-30-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-30-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-35	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-35-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-35-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-40	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-40-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-40-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-45	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-45-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-45-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-50	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-50-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-50-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-75	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-75-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-75-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32-100	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32-100-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32-100-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-5	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-5-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-5-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-10	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-10-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-10-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-15	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-15-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-15-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-20	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-20-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-20-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-25	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-25-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-25-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-30	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-30-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-30-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-35	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-35-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-35-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-40	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-40-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-40-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-45	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-45-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-45-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-50	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-50-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-50-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-75	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-75-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-75-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-32D-100	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-32D-100-LB	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-32D-100-FA	Body: Switch magnet built in \| Bore: 32 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-5	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-5-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-5-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-10	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-10-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-10-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-15	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-15-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-15-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-20	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-20-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-20-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-25	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-25-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-25-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-30	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-30-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-30-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-35	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-35-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-35-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-40	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-40-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-40-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-45	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-45-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-45-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-50	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-50-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-50-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-75	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-75-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-75-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40-100	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40-100-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40-100-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-5	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-5-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-5-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 5 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-10	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-10-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-10-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-15	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-15-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-15-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-20	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-20-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-20-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-25	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-25-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-25-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-30	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-30-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-30-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-35	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-35-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-35-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-40	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-40-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-40-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-45	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-45-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-45-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-50	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-50-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-50-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-75	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-75-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-75-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-40D-100	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/8
	SSD2-DL-40D-100-LB	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/8
	SSD2-DL-40D-100-FA	Body: Switch magnet built in \| Bore: 40 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/8
	SSD2-DL-50-10	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-10-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-10-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-15	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-15-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-15-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-20	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-20-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-20-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-25	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-25-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-25-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-30	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-30-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-30-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-35	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-35-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-35-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-40	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-40-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-40-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-45	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-45-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-45-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-50	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-50-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-50-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-75	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-75-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-75-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50-100	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50-100-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50-100-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-10	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-10-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-10-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-15	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-15-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-15-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-20	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-20-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-20-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-25	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-25-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-25-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-30	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-30-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-30-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-35	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-35-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-35-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-40	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-40-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-40-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-45	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-45-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-45-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-50	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-50-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-50-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-75	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-75-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-75-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-50D-100	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-50D-100-LB	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-50D-100-FA	Body: Switch magnet built in \| Bore: 50 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-10	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-10-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-10-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-15	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-15-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-15-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-20	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-20-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-20-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-25	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-25-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-25-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-30	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-30-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-30-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-35	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-35-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-35-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-40	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-40-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-40-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-45	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-45-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-45-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-50	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-50-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-50-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-75	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-75-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-75-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63-100	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63-100-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63-100-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-10	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-10-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-10-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-15	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-15-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-15-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-20	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-20-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-20-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-25	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-25-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-25-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-30	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-30-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-30-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-35	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-35-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-35-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-40	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-40-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-40-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-45	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-45-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-45-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-50	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-50-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-50-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-75	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-75-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-75-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-63D-100	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc1/4
	SSD2-DL-63D-100-LB	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc1/4
	SSD2-DL-63D-100-FA	Body: Switch magnet built in \| Bore: 63 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc1/4
	SSD2-DL-80-10	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-10-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-10-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-15	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-15-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-15-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-20	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-20-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-20-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-25	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-25-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-25-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-30	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-30-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-30-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-35	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-35-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-35-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-40	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-40-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-40-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-45	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-45-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-45-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-50	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-50-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-50-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-75	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-75-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-75-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80-100	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80-100-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80-100-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-10	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-10-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-10-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-15	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-15-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-15-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-20	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-20-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-20-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-25	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-25-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-25-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-30	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-30-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-30-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-35	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-35-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-35-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-40	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-40-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-40-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-45	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-45-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-45-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-50	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-50-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-50-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-75	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-75-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-75-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-80D-100	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-80D-100-LB	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-80D-100-FA	Body: Switch magnet built in \| Bore: 80 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-10	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-10-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-10-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-15	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-15-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-15-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-20	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-20-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-20-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-25	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-25-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-25-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-30	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-30-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-30-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-35	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-35-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-35-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-40	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-40-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-40-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-45	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-45-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-45-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-50	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-50-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-50-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-75	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-75-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-75-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100-100	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100-100-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100-100-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-10	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-10-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-10-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 10 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-15	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-15-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-15-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 15 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-20	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-20-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-20-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 20 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-25	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-25-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-25-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 25 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-30	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-30-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-30-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 30 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-35	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-35-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-35-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 35 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-40	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-40-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-40-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 40 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-45	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-45-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-45-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 45 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-50	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-50-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-50-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 50 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-75	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-75-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-75-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 75 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8
	SSD2-DL-100D-100	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: None (cylinder only) \| Port: Rc3/8
	SSD2-DL-100D-100-LB	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Axial foot (LB) \| Port: Rc3/8
	SSD2-DL-100D-100-FA	Body: Switch magnet built in \| Bore: 100 mm \| Cushion: Rubber cushion \| Stroke: 100 mm \| Mounting: Rod-end flange (FA) \| Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-D Super Compact Cylinder (Double Rod, Bore 12-100)
