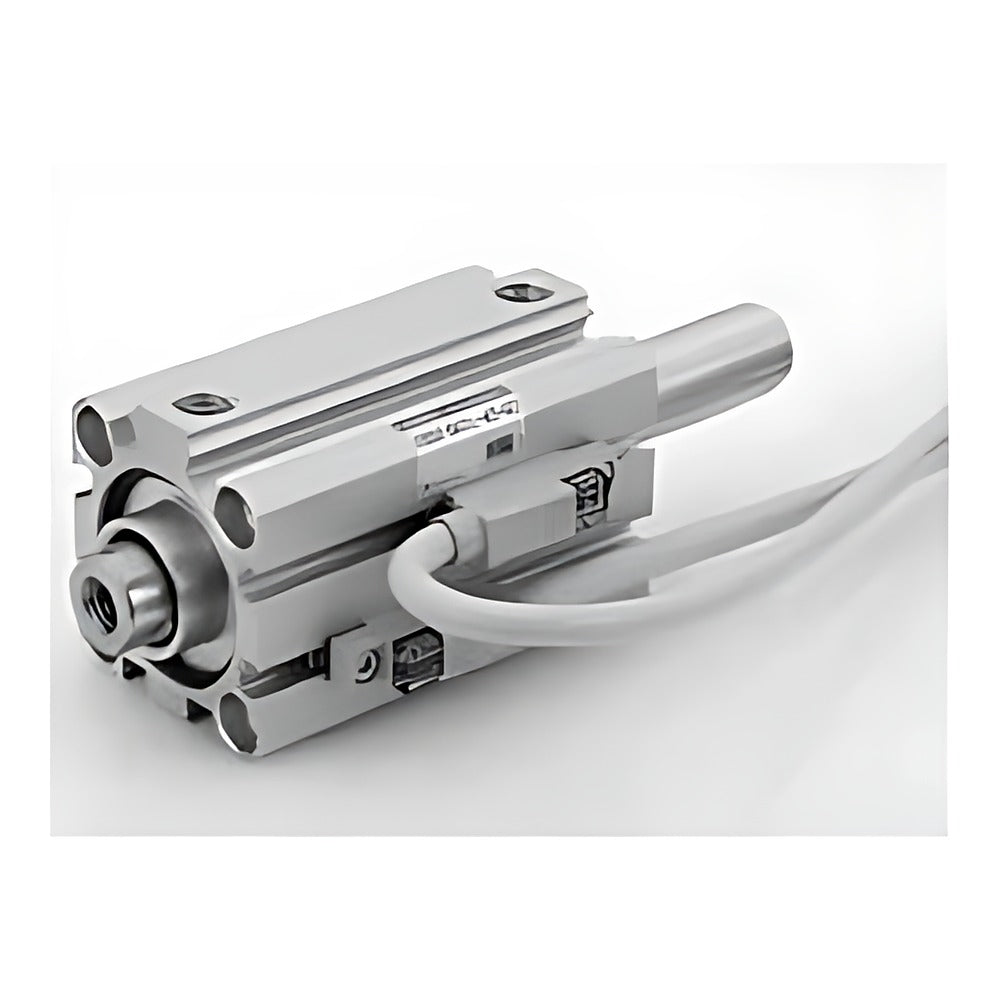

CKD SSD2-DG1/DG4 Super Compact Cylinder (Double Rod, Scraper)

CKD SSD2-DG1/DG4 is a double-acting, double-rod super compact cylinder with a coil scraper (DG1) or spatter-resistant construction (DG4).

Key features

Double-rod construction gives equal force and stroke on both rod ends
DG1: coil scraper for chips; DG4: spatter-resistant for welding lines
L models have a built-in magnet for T2YD/T2YDT AC-magnetic-field-resistant switches
Mounting: none, axial foot (LB) or rod flange (FA), both made to order
Intermediate strokes in 1 mm steps using spacers (e.g. SSD2-DG1-32-38)

Specifications

Action	Double acting, double rod
Bore	25 to 100 mm
Operating pressure	0.2 (bore 25) / 0.15 to 1.0 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Port size	Rc1/8 to Rc3/8 (by bore)
Cushion	None
Min. stroke with switch	10 mm
Source	CKD Korea catalog CB-029SK-9, p. 1072-1079

SSD2-DG1-25-5		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (basic)
SSD2-DG1-25-5-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-5-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD2-DG1-25-10		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1-25-10-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-10-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1-25-15		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1-25-15-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-15-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1-25-20		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1-25-20-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-20-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1-25-25		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1-25-25-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-25-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1-25-30		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1-25-30-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-30-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1-25-35		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1-25-35-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-35-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1-25-40		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1-25-40-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-40-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1-25-45		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1-25-45-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-45-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1-25-50		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1-25-50-LB		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1-25-50-FA		Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-5		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (basic)
SSD2-DG1-32-5-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-5-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-10		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1-32-10-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-10-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-15		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1-32-15-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-15-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-20		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1-32-20-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-20-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-25		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1-32-25-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-25-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-30		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1-32-30-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-30-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-35		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1-32-35-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-35-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-40		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1-32-40-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-40-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-45		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1-32-45-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-45-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-50		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1-32-50-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-50-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-75		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1-32-75-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-75-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1-32-100		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1-32-100-LB		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1-32-100-FA		Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-5		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (basic)
SSD2-DG1-40-5-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-5-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-10		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1-40-10-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-10-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-15		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1-40-15-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-15-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-20		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1-40-20-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-20-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-25		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1-40-25-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-25-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-30		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1-40-30-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-30-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-35		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1-40-35-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-35-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-40		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1-40-40-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-40-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-45		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1-40-45-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-45-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-50		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1-40-50-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-50-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-75		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1-40-75-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-75-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1-40-100		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1-40-100-LB		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1-40-100-FA		Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-10		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1-50-10-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-10-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-15		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1-50-15-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-15-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-20		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1-50-20-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-20-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-25		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1-50-25-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-25-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-30		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1-50-30-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-30-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-35		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1-50-35-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-35-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-40		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1-50-40-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-40-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-45		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1-50-45-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-45-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-50		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1-50-50-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-50-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-75		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1-50-75-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-75-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1-50-100		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1-50-100-LB		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1-50-100-FA		Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-10		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1-63-10-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-10-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-15		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1-63-15-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-15-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-20		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1-63-20-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-20-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-25		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1-63-25-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-25-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-30		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1-63-30-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-30-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-35		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1-63-35-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-35-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-40		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1-63-40-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-40-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-45		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1-63-45-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-45-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-50		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1-63-50-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-50-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-75		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1-63-75-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-75-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1-63-100		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1-63-100-LB		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1-63-100-FA		Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-10		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1-80-10-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-10-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-15		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1-80-15-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-15-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-20		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1-80-20-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-20-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-25		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1-80-25-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-25-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-30		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1-80-30-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-30-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-35		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1-80-35-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-35-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-40		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1-80-40-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-40-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-45		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1-80-45-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-45-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-50		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1-80-50-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-50-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-75		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1-80-75-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-75-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1-80-100		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1-80-100-LB		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1-80-100-FA		Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-10		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1-100-10-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-10-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-15		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1-100-15-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-15-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-20		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1-100-20-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-20-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-25		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1-100-25-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-25-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-30		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1-100-30-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-30-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-35		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1-100-35-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-35-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-40		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1-100-40-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-40-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-45		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1-100-45-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-45-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-50		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1-100-50-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-50-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-75		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1-100-75-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-75-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1-100-100		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1-100-100-LB		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1-100-100-FA		Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-25-10		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1L-25-10-LB		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-25-10-FA		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-25-15		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1L-25-15-LB		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-25-15-FA		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-25-20		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1L-25-20-LB		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-25-20-FA		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-25-25		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1L-25-25-LB		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-25-25-FA		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-25-30		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1L-25-30-LB		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-25-30-FA		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-25-35		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1L-25-35-LB		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-25-35-FA		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-25-40		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1L-25-40-LB		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-25-40-FA		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-25-45		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1L-25-45-LB		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-25-45-FA		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-25-50		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1L-25-50-LB		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-25-50-FA		Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-10		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1L-32-10-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-10-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-15		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1L-32-15-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-15-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-20		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1L-32-20-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-20-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-25		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1L-32-25-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-25-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-30		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1L-32-30-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-30-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-35		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1L-32-35-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-35-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-40		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1L-32-40-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-40-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-45		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1L-32-45-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-45-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-50		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1L-32-50-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-50-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-75		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1L-32-75-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-75-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-32-100		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1L-32-100-LB		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-32-100-FA		Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-10		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1L-40-10-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-10-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-15		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1L-40-15-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-15-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-20		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1L-40-20-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-20-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-25		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1L-40-25-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-25-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-30		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1L-40-30-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-30-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-35		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1L-40-35-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-35-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-40		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1L-40-40-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-40-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-45		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1L-40-45-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-45-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-50		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1L-40-50-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-50-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-75		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1L-40-75-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-75-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-40-100		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1L-40-100-LB		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-40-100-FA		Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-10		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1L-50-10-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-10-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-15		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1L-50-15-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-15-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-20		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1L-50-20-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-20-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-25		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1L-50-25-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-25-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-30		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1L-50-30-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-30-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-35		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1L-50-35-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-35-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-40		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1L-50-40-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-40-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-45		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1L-50-45-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-45-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-50		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1L-50-50-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-50-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-75		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1L-50-75-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-75-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-50-100		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1L-50-100-LB		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-50-100-FA		Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-10		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1L-63-10-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-10-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-15		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1L-63-15-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-15-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-20		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1L-63-20-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-20-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-25		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1L-63-25-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-25-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-30		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1L-63-30-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-30-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-35		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1L-63-35-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-35-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-40		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1L-63-40-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-40-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-45		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1L-63-45-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-45-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-50		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1L-63-50-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-50-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-75		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1L-63-75-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-75-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-63-100		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1L-63-100-LB		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-63-100-FA		Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-10		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1L-80-10-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-10-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-15		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1L-80-15-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-15-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-20		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1L-80-20-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-20-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-25		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1L-80-25-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-25-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-30		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1L-80-30-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-30-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-35		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1L-80-35-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-35-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-40		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1L-80-40-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-40-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-45		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1L-80-45-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-45-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-50		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1L-80-50-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-50-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-75		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1L-80-75-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-75-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-80-100		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1L-80-100-LB		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-80-100-FA		Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-10		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG1L-100-10-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-10-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-15		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG1L-100-15-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-15-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-20		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG1L-100-20-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-20-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-25		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG1L-100-25-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-25-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-30		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG1L-100-30-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-30-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-35		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG1L-100-35-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-35-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-40		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG1L-100-40-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-40-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-45		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG1L-100-45-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-45-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-50		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG1L-100-50-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-50-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-75		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG1L-100-75-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-75-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG1L-100-100		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG1L-100-100-LB		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG1L-100-100-FA		Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-5		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (basic)
SSD2-DG4-25-5-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-5-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-10		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4-25-10-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-10-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-15		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4-25-15-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-15-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-20		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4-25-20-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-20-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-25		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4-25-25-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-25-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-30		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4-25-30-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-30-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-35		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4-25-35-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-35-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-40		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4-25-40-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-40-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-45		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4-25-45-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-45-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4-25-50		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4-25-50-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4-25-50-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-5		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (basic)
SSD2-DG4-32-5-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-5-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-10		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4-32-10-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-10-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-15		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4-32-15-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-15-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-20		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4-32-20-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-20-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-25		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4-32-25-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-25-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-30		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4-32-30-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-30-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-35		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4-32-35-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-35-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-40		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4-32-40-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-40-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-45		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4-32-45-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-45-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-50		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4-32-50-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-50-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-75		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4-32-75-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-75-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4-32-100		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4-32-100-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4-32-100-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-5		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (basic)
SSD2-DG4-40-5-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-5-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-10		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4-40-10-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-10-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-15		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4-40-15-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-15-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-20		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4-40-20-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-20-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-25		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4-40-25-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-25-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-30		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4-40-30-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-30-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-35		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4-40-35-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-35-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-40		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4-40-40-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-40-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-45		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4-40-45-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-45-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-50		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4-40-50-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-50-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-75		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4-40-75-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-75-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4-40-100		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4-40-100-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4-40-100-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-10		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4-50-10-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-10-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-15		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4-50-15-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-15-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-20		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4-50-20-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-20-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-25		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4-50-25-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-25-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-30		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4-50-30-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-30-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-35		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4-50-35-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-35-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-40		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4-50-40-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-40-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-45		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4-50-45-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-45-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-50		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4-50-50-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-50-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-75		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4-50-75-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-75-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4-50-100		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4-50-100-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4-50-100-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-10		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4-63-10-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-10-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-15		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4-63-15-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-15-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-20		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4-63-20-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-20-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-25		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4-63-25-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-25-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-30		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4-63-30-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-30-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-35		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4-63-35-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-35-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-40		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4-63-40-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-40-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-45		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4-63-45-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-45-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-50		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4-63-50-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-50-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-75		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4-63-75-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-75-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4-63-100		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4-63-100-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4-63-100-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-10		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4-80-10-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-10-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-15		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4-80-15-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-15-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-20		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4-80-20-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-20-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-25		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4-80-25-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-25-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-30		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4-80-30-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-30-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-35		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4-80-35-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-35-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-40		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4-80-40-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-40-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-45		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4-80-45-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-45-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-50		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4-80-50-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-50-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-75		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4-80-75-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-75-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4-80-100		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4-80-100-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4-80-100-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-10		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4-100-10-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-10-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-15		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4-100-15-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-15-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-20		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4-100-20-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-20-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-25		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4-100-25-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-25-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-30		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4-100-30-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-30-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-35		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4-100-35-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-35-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-40		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4-100-40-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-40-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-45		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4-100-45-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-45-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-50		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4-100-50-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-50-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-75		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4-100-75-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-75-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4-100-100		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4-100-100-LB		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4-100-100-FA		Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-25-10		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4L-25-10-LB		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-25-10-FA		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-25-15		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4L-25-15-LB		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-25-15-FA		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-25-20		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4L-25-20-LB		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-25-20-FA		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-25-25		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4L-25-25-LB		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-25-25-FA		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-25-30		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4L-25-30-LB		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-25-30-FA		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-25-35		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4L-25-35-LB		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-25-35-FA		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-25-40		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4L-25-40-LB		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-25-40-FA		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-25-45		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4L-25-45-LB		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-25-45-FA		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-25-50		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4L-25-50-LB		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-25-50-FA		Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-10		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4L-32-10-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-10-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-15		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4L-32-15-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-15-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-20		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4L-32-20-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-20-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-25		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4L-32-25-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-25-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-30		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4L-32-30-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-30-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-35		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4L-32-35-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-35-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-40		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4L-32-40-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-40-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-45		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4L-32-45-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-45-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-50		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4L-32-50-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-50-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-75		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4L-32-75-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-75-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-32-100		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4L-32-100-LB		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-32-100-FA		Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-10		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4L-40-10-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-10-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-15		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4L-40-15-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-15-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-20		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4L-40-20-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-20-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-25		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4L-40-25-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-25-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-30		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4L-40-30-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-30-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-35		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4L-40-35-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-35-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-40		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4L-40-40-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-40-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-45		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4L-40-45-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-45-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-50		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4L-40-50-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-50-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-75		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4L-40-75-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-75-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-40-100		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4L-40-100-LB		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-40-100-FA		Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-10		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4L-50-10-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-10-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-15		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4L-50-15-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-15-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-20		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4L-50-20-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-20-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-25		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4L-50-25-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-25-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-30		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4L-50-30-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-30-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-35		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4L-50-35-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-35-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-40		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4L-50-40-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-40-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-45		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4L-50-45-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-45-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-50		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4L-50-50-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-50-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-75		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4L-50-75-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-75-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-50-100		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4L-50-100-LB		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-50-100-FA		Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-10		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4L-63-10-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-10-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-15		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4L-63-15-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-15-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-20		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4L-63-20-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-20-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-25		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4L-63-25-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-25-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-30		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4L-63-30-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-30-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-35		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4L-63-35-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-35-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-40		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4L-63-40-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-40-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-45		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4L-63-45-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-45-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-50		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4L-63-50-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-50-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-75		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4L-63-75-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-75-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-63-100		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4L-63-100-LB		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-63-100-FA		Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-10		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4L-80-10-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-10-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-15		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4L-80-15-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-15-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-20		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4L-80-20-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-20-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-25		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4L-80-25-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-25-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-30		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4L-80-30-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-30-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-35		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4L-80-35-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-35-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-40		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4L-80-40-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-40-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-45		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4L-80-45-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-45-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-50		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4L-80-50-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-50-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-75		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4L-80-75-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-75-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-80-100		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4L-80-100-LB		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-80-100-FA		Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-10		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (basic)
SSD2-DG4L-100-10-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-10-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-15		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (basic)
SSD2-DG4L-100-15-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-15-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-20		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (basic)
SSD2-DG4L-100-20-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-20-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-25		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (basic)
SSD2-DG4L-100-25-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-25-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-30		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (basic)
SSD2-DG4L-100-30-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-30-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-35		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (basic)
SSD2-DG4L-100-35-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-35-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-40		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (basic)
SSD2-DG4L-100-40-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-40-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-45		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (basic)
SSD2-DG4L-100-45-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-45-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-50		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (basic)
SSD2-DG4L-100-50-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-50-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-75		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (basic)
SSD2-DG4L-100-75-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-75-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
SSD2-DG4L-100-100		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (basic)
SSD2-DG4L-100-100-LB		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
SSD2-DG4L-100-100-FA		Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)

Compact CylindersCKD

918 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-DG1/DG4 Super Compact Cylinder (Double Rod, Scraper)

Brand CKD·Compact Cylinders

Available part numbers (918)

SSD2-DG1-25-5, SSD2-DG1-25-5-LB, SSD2-DG1-25-5-FA, SSD2-DG1-25-10, SSD2-DG1-25-10-LB, SSD2-DG1-25-10-FA, SSD2-DG1-25-15, SSD2-DG1-25-15-LB, SSD2-DG1-25-15-FA, SSD2-DG1-25-20 + 908 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-DG1-25-5	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (basic)
	SSD2-DG1-25-5-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-5-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-25-10	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1-25-10-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-10-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-25-15	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1-25-15-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-15-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-25-20	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1-25-20-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-20-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-25-25	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1-25-25-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-25-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-25-30	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1-25-30-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-30-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-25-35	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1-25-35-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-35-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-25-40	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1-25-40-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-40-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-25-45	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1-25-45-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-45-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-25-50	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1-25-50-LB	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-25-50-FA	Model: DG1 coil scraper (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-5	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (basic)
	SSD2-DG1-32-5-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-5-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-10	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1-32-10-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-10-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-15	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1-32-15-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-15-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-20	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1-32-20-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-20-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-25	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1-32-25-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-25-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-30	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1-32-30-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-30-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-35	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1-32-35-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-35-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-40	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1-32-40-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-40-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-45	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1-32-45-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-45-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-50	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1-32-50-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-50-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-75	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1-32-75-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-75-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-32-100	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1-32-100-LB	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-32-100-FA	Model: DG1 coil scraper (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-5	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (basic)
	SSD2-DG1-40-5-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-5-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-10	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1-40-10-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-10-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-15	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1-40-15-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-15-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-20	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1-40-20-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-20-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-25	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1-40-25-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-25-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-30	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1-40-30-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-30-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-35	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1-40-35-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-35-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-40	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1-40-40-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-40-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-45	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1-40-45-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-45-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-50	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1-40-50-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-50-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-75	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1-40-75-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-75-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-40-100	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1-40-100-LB	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-40-100-FA	Model: DG1 coil scraper (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-10	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1-50-10-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-10-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-15	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1-50-15-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-15-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-20	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1-50-20-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-20-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-25	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1-50-25-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-25-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-30	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1-50-30-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-30-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-35	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1-50-35-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-35-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-40	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1-50-40-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-40-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-45	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1-50-45-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-45-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-50	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1-50-50-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-50-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-75	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1-50-75-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-75-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-50-100	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1-50-100-LB	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-50-100-FA	Model: DG1 coil scraper (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-10	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1-63-10-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-10-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-15	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1-63-15-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-15-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-20	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1-63-20-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-20-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-25	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1-63-25-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-25-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-30	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1-63-30-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-30-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-35	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1-63-35-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-35-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-40	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1-63-40-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-40-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-45	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1-63-45-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-45-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-50	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1-63-50-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-50-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-75	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1-63-75-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-75-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-63-100	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1-63-100-LB	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-63-100-FA	Model: DG1 coil scraper (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-10	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1-80-10-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-10-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-15	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1-80-15-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-15-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-20	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1-80-20-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-20-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-25	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1-80-25-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-25-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-30	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1-80-30-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-30-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-35	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1-80-35-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-35-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-40	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1-80-40-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-40-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-45	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1-80-45-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-45-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-50	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1-80-50-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-50-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-75	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1-80-75-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-75-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-80-100	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1-80-100-LB	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-80-100-FA	Model: DG1 coil scraper (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-10	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1-100-10-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-10-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-15	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1-100-15-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-15-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-20	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1-100-20-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-20-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-25	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1-100-25-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-25-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-30	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1-100-30-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-30-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-35	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1-100-35-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-35-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-40	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1-100-40-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-40-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-45	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1-100-45-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-45-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-50	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1-100-50-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-50-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-75	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1-100-75-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-75-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1-100-100	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1-100-100-LB	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1-100-100-FA	Model: DG1 coil scraper (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-25-10	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1L-25-10-LB	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-25-10-FA	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-25-15	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1L-25-15-LB	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-25-15-FA	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-25-20	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1L-25-20-LB	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-25-20-FA	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-25-25	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1L-25-25-LB	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-25-25-FA	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-25-30	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1L-25-30-LB	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-25-30-FA	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-25-35	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1L-25-35-LB	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-25-35-FA	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-25-40	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1L-25-40-LB	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-25-40-FA	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-25-45	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1L-25-45-LB	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-25-45-FA	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-25-50	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1L-25-50-LB	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-25-50-FA	Model: DG1L coil scraper (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-10	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1L-32-10-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-10-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-15	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1L-32-15-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-15-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-20	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1L-32-20-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-20-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-25	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1L-32-25-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-25-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-30	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1L-32-30-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-30-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-35	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1L-32-35-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-35-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-40	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1L-32-40-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-40-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-45	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1L-32-45-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-45-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-50	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1L-32-50-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-50-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-75	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1L-32-75-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-75-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-32-100	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1L-32-100-LB	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-32-100-FA	Model: DG1L coil scraper (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-10	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1L-40-10-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-10-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-15	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1L-40-15-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-15-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-20	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1L-40-20-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-20-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-25	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1L-40-25-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-25-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-30	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1L-40-30-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-30-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-35	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1L-40-35-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-35-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-40	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1L-40-40-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-40-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-45	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1L-40-45-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-45-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-50	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1L-40-50-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-50-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-75	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1L-40-75-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-75-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-40-100	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1L-40-100-LB	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-40-100-FA	Model: DG1L coil scraper (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-10	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1L-50-10-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-10-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-15	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1L-50-15-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-15-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-20	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1L-50-20-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-20-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-25	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1L-50-25-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-25-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-30	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1L-50-30-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-30-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-35	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1L-50-35-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-35-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-40	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1L-50-40-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-40-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-45	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1L-50-45-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-45-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-50	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1L-50-50-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-50-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-75	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1L-50-75-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-75-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-50-100	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1L-50-100-LB	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-50-100-FA	Model: DG1L coil scraper (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-10	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1L-63-10-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-10-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-15	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1L-63-15-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-15-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-20	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1L-63-20-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-20-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-25	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1L-63-25-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-25-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-30	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1L-63-30-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-30-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-35	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1L-63-35-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-35-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-40	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1L-63-40-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-40-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-45	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1L-63-45-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-45-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-50	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1L-63-50-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-50-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-75	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1L-63-75-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-75-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-63-100	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1L-63-100-LB	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-63-100-FA	Model: DG1L coil scraper (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-10	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1L-80-10-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-10-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-15	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1L-80-15-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-15-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-20	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1L-80-20-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-20-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-25	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1L-80-25-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-25-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-30	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1L-80-30-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-30-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-35	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1L-80-35-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-35-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-40	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1L-80-40-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-40-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-45	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1L-80-45-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-45-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-50	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1L-80-50-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-50-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-75	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1L-80-75-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-75-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-80-100	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1L-80-100-LB	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-80-100-FA	Model: DG1L coil scraper (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-10	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG1L-100-10-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-10-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-15	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG1L-100-15-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-15-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-20	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG1L-100-20-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-20-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-25	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG1L-100-25-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-25-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-30	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG1L-100-30-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-30-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-35	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG1L-100-35-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-35-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-40	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG1L-100-40-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-40-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-45	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG1L-100-45-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-45-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-50	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG1L-100-50-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-50-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-75	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG1L-100-75-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-75-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG1L-100-100	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG1L-100-100-LB	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG1L-100-100-FA	Model: DG1L coil scraper (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-5	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: None (basic)
	SSD2-DG4-25-5-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-5-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-10	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4-25-10-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-10-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-15	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4-25-15-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-15-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-20	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4-25-20-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-20-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-25	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4-25-25-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-25-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-30	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4-25-30-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-30-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-35	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4-25-35-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-35-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-40	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4-25-40-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-40-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-45	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4-25-45-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-45-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-25-50	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4-25-50-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-25-50-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-5	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: None (basic)
	SSD2-DG4-32-5-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-5-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-10	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4-32-10-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-10-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-15	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4-32-15-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-15-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-20	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4-32-20-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-20-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-25	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4-32-25-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-25-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-30	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4-32-30-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-30-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-35	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4-32-35-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-35-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-40	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4-32-40-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-40-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-45	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4-32-45-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-45-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-50	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4-32-50-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-50-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-75	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4-32-75-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-75-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-32-100	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4-32-100-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-32-100-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-5	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: None (basic)
	SSD2-DG4-40-5-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-5-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-10	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4-40-10-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-10-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-15	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4-40-15-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-15-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-20	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4-40-20-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-20-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-25	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4-40-25-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-25-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-30	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4-40-30-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-30-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-35	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4-40-35-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-35-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-40	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4-40-40-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-40-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-45	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4-40-45-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-45-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-50	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4-40-50-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-50-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-75	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4-40-75-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-75-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-40-100	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4-40-100-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-40-100-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-10	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4-50-10-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-10-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-15	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4-50-15-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-15-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-20	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4-50-20-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-20-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-25	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4-50-25-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-25-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-30	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4-50-30-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-30-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-35	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4-50-35-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-35-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-40	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4-50-40-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-40-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-45	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4-50-45-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-45-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-50	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4-50-50-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-50-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-75	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4-50-75-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-75-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-50-100	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4-50-100-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-50-100-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-10	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4-63-10-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-10-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-15	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4-63-15-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-15-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-20	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4-63-20-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-20-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-25	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4-63-25-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-25-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-30	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4-63-30-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-30-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-35	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4-63-35-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-35-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-40	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4-63-40-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-40-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-45	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4-63-45-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-45-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-50	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4-63-50-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-50-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-75	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4-63-75-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-75-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-63-100	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4-63-100-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-63-100-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-10	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4-80-10-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-10-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-15	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4-80-15-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-15-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-20	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4-80-20-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-20-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-25	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4-80-25-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-25-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-30	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4-80-30-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-30-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-35	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4-80-35-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-35-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-40	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4-80-40-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-40-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-45	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4-80-45-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-45-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-50	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4-80-50-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-50-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-75	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4-80-75-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-75-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-80-100	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4-80-100-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-80-100-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-10	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4-100-10-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-10-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-15	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4-100-15-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-15-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-20	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4-100-20-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-20-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-25	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4-100-25-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-25-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-30	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4-100-30-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-30-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-35	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4-100-35-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-35-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-40	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4-100-40-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-40-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-45	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4-100-45-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-45-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-50	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4-100-50-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-50-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-75	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4-100-75-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-75-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4-100-100	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4-100-100-LB	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4-100-100-FA	Model: DG4 spatter resistant (no magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-25-10	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4L-25-10-LB	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-25-10-FA	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-25-15	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4L-25-15-LB	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-25-15-FA	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-25-20	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4L-25-20-LB	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-25-20-FA	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-25-25	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4L-25-25-LB	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-25-25-FA	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-25-30	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4L-25-30-LB	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-25-30-FA	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-25-35	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4L-25-35-LB	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-25-35-FA	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-25-40	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4L-25-40-LB	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-25-40-FA	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-25-45	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4L-25-45-LB	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-25-45-FA	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-25-50	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4L-25-50-LB	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-25-50-FA	Model: DG4L spatter resistant (magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-10	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4L-32-10-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-10-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-15	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4L-32-15-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-15-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-20	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4L-32-20-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-20-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-25	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4L-32-25-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-25-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-30	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4L-32-30-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-30-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-35	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4L-32-35-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-35-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-40	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4L-32-40-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-40-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-45	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4L-32-45-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-45-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-50	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4L-32-50-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-50-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-75	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4L-32-75-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-75-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-32-100	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4L-32-100-LB	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-32-100-FA	Model: DG4L spatter resistant (magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-10	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4L-40-10-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-10-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-15	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4L-40-15-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-15-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-20	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4L-40-20-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-20-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-25	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4L-40-25-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-25-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-30	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4L-40-30-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-30-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-35	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4L-40-35-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-35-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-40	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4L-40-40-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-40-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-45	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4L-40-45-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-45-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-50	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4L-40-50-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-50-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-75	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4L-40-75-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-75-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-40-100	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4L-40-100-LB	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-40-100-FA	Model: DG4L spatter resistant (magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-10	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4L-50-10-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-10-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-15	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4L-50-15-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-15-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-20	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4L-50-20-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-20-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-25	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4L-50-25-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-25-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-30	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4L-50-30-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-30-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-35	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4L-50-35-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-35-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-40	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4L-50-40-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-40-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-45	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4L-50-45-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-45-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-50	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4L-50-50-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-50-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-75	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4L-50-75-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-75-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-50-100	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4L-50-100-LB	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-50-100-FA	Model: DG4L spatter resistant (magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-10	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4L-63-10-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-10-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-15	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4L-63-15-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-15-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-20	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4L-63-20-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-20-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-25	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4L-63-25-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-25-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-30	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4L-63-30-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-30-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-35	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4L-63-35-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-35-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-40	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4L-63-40-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-40-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-45	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4L-63-45-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-45-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-50	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4L-63-50-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-50-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-75	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4L-63-75-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-75-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-63-100	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4L-63-100-LB	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-63-100-FA	Model: DG4L spatter resistant (magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-10	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4L-80-10-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-10-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-15	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4L-80-15-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-15-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-20	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4L-80-20-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-20-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-25	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4L-80-25-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-25-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-30	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4L-80-30-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-30-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-35	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4L-80-35-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-35-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-40	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4L-80-40-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-40-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-45	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4L-80-45-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-45-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-50	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4L-80-50-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-50-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-75	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4L-80-75-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-75-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-80-100	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4L-80-100-LB	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-80-100-FA	Model: DG4L spatter resistant (magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-10	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: None (basic)
	SSD2-DG4L-100-10-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-10-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-15	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: None (basic)
	SSD2-DG4L-100-15-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-15-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-20	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: None (basic)
	SSD2-DG4L-100-20-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-20-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-25	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: None (basic)
	SSD2-DG4L-100-25-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-25-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-30	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: None (basic)
	SSD2-DG4L-100-30-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-30-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-35	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: None (basic)
	SSD2-DG4L-100-35-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-35-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-40	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: None (basic)
	SSD2-DG4L-100-40-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-40-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-45	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: None (basic)
	SSD2-DG4L-100-45-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-45-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-50	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: None (basic)
	SSD2-DG4L-100-50-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-50-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-75	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: None (basic)
	SSD2-DG4L-100-75-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-75-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Mounting: Rod flange (FA)
	SSD2-DG4L-100-100	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: None (basic)
	SSD2-DG4L-100-100-LB	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Axial foot (LB)
	SSD2-DG4L-100-100-FA	Model: DG4L spatter resistant (magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Mounting: Rod flange (FA)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-DG1/DG4 Super Compact Cylinder (Double Rod, Scraper)
