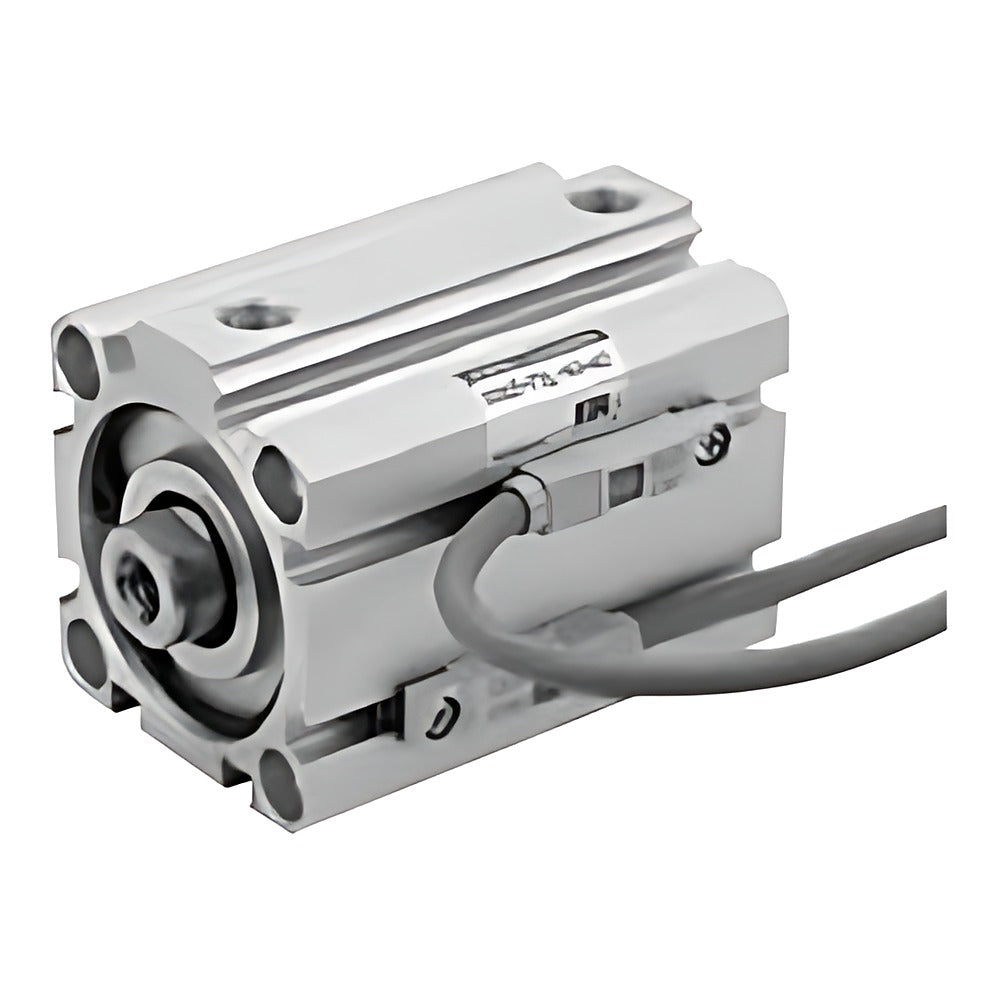

CKD SSD2-G-FP1 Super Compact Cylinder (Strong Scraper, Bore 20-40)

CKD SSD2-G-FP1 super compact cylinder (strong scraper type), bore 20-40 mm, with NSF H1 food-grade grease.

Key features

NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
Super compact cylinder; each type with (L) or without switch magnet; rubber cushion (D) or no cushion
Mounting bracket (LB, CB, FA, FB) is specified after FP1 and shipped with the cylinder
Auto switches (T0H, T2H, T2WH, F2H etc.) with count R/H/D, rod-end male thread N, stainless rod M, intermediate-stroke body S and knuckles I/Y ordered as suffixes
NPT/G threads (bore 32 and over) made to order
Scraper type for harsh environments

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa (12-63), 0.05 MPa (80/100)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Port	M5 (12-25), Rc1/8 (32-40), Rc1/4 (50-63), Rc3/8 (80/100)
Type	Double acting, strong scraper (G)
Source	CKD Korea catalog CC-1271K, p. 82-84

SSD2-G-20-5-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-G-20-5-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-G-20-5-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-G-20-5-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-G-20-5-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-G-20-10-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-G-20-10-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-G-20-10-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-G-20-10-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-G-20-10-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-G-20-15-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-G-20-15-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-G-20-15-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-G-20-15-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-G-20-15-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-G-20-20-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-G-20-20-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-G-20-20-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-G-20-20-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-G-20-20-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-G-20-25-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-G-20-25-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-G-20-25-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-G-20-25-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-G-20-25-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-G-20-30-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-G-20-30-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-G-20-30-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-G-20-30-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-G-20-30-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-G-20-35-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-G-20-35-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-G-20-35-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-G-20-35-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-G-20-35-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-G-20-40-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-G-20-40-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-G-20-40-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-G-20-40-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-G-20-40-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-G-20-45-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-G-20-45-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-G-20-45-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-G-20-45-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-G-20-45-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-G-20-50-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-G-20-50-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-G-20-50-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-G-20-50-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-G-20-50-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-G-20D-5-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-G-20D-5-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-G-20D-5-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-G-20D-5-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-G-20D-5-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-G-20D-10-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-G-20D-10-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-G-20D-10-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-G-20D-10-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-G-20D-10-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-G-20D-15-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-G-20D-15-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-G-20D-15-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-G-20D-15-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-G-20D-15-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-G-20D-20-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-G-20D-20-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-G-20D-20-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-G-20D-20-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-G-20D-20-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-G-20D-25-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-G-20D-25-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-G-20D-25-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-G-20D-25-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-G-20D-25-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-G-20D-30-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-G-20D-30-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-G-20D-30-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-G-20D-30-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-G-20D-30-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-G-20D-35-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-G-20D-35-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-G-20D-35-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-G-20D-35-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-G-20D-35-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-G-20D-40-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-G-20D-40-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-G-20D-40-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-G-20D-40-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-G-20D-40-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-G-20D-45-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-G-20D-45-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-G-20D-45-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-G-20D-45-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-G-20D-45-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-G-20D-50-FP1		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-G-20D-50-FP1-LB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-G-20D-50-FP1-CB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-G-20D-50-FP1-FA		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-G-20D-50-FP1-FB		Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-G-25-5-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-G-25-5-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-G-25-5-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-G-25-5-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-G-25-5-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-G-25-10-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-G-25-10-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-G-25-10-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-G-25-10-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-G-25-10-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-G-25-15-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-G-25-15-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-G-25-15-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-G-25-15-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-G-25-15-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-G-25-20-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-G-25-20-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-G-25-20-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-G-25-20-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-G-25-20-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-G-25-25-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-G-25-25-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-G-25-25-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-G-25-25-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-G-25-25-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-G-25-30-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-G-25-30-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-G-25-30-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-G-25-30-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-G-25-30-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-G-25-35-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-G-25-35-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-G-25-35-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-G-25-35-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-G-25-35-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-G-25-40-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-G-25-40-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-G-25-40-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-G-25-40-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-G-25-40-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-G-25-45-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-G-25-45-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-G-25-45-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-G-25-45-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-G-25-45-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-G-25-50-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-G-25-50-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-G-25-50-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-G-25-50-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-G-25-50-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-G-25D-5-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-G-25D-5-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-G-25D-5-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-G-25D-5-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-G-25D-5-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-G-25D-10-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-G-25D-10-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-G-25D-10-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-G-25D-10-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-G-25D-10-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-G-25D-15-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-G-25D-15-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-G-25D-15-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-G-25D-15-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-G-25D-15-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-G-25D-20-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-G-25D-20-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-G-25D-20-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-G-25D-20-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-G-25D-20-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-G-25D-25-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-G-25D-25-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-G-25D-25-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-G-25D-25-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-G-25D-25-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-G-25D-30-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-G-25D-30-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-G-25D-30-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-G-25D-30-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-G-25D-30-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-G-25D-35-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-G-25D-35-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-G-25D-35-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-G-25D-35-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-G-25D-35-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-G-25D-40-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-G-25D-40-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-G-25D-40-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-G-25D-40-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-G-25D-40-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-G-25D-45-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-G-25D-45-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-G-25D-45-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-G-25D-45-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-G-25D-45-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-G-25D-50-FP1		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-G-25D-50-FP1-LB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-G-25D-50-FP1-CB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-G-25D-50-FP1-FA		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-G-25D-50-FP1-FB		Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-G-32-5-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-G-32-5-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-G-32-5-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-G-32-5-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-G-32-5-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-G-32-10-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-G-32-10-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-G-32-10-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-G-32-10-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-G-32-10-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-G-32-15-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-G-32-15-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-G-32-15-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-G-32-15-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-G-32-15-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-G-32-20-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-G-32-20-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-G-32-20-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-G-32-20-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-G-32-20-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-G-32-25-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-G-32-25-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-G-32-25-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-G-32-25-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-G-32-25-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-G-32-30-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-G-32-30-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-G-32-30-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-G-32-30-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-G-32-30-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-G-32-35-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-G-32-35-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-G-32-35-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-G-32-35-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-G-32-35-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-G-32-40-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-G-32-40-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-G-32-40-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-G-32-40-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-G-32-40-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-G-32-45-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-G-32-45-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-G-32-45-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-G-32-45-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-G-32-45-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-G-32-50-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-G-32-50-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-G-32-50-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-G-32-50-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-G-32-50-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-G-32-75-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-G-32-75-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-G-32-75-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-G-32-75-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-G-32-75-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-G-32-100-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-G-32-100-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-G-32-100-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-G-32-100-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-G-32-100-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-G-32D-5-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-G-32D-5-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-G-32D-5-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-G-32D-5-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-G-32D-5-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-G-32D-10-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-G-32D-10-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-G-32D-10-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-G-32D-10-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-G-32D-10-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-G-32D-15-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-G-32D-15-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-G-32D-15-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-G-32D-15-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-G-32D-15-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-G-32D-20-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-G-32D-20-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-G-32D-20-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-G-32D-20-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-G-32D-20-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-G-32D-25-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-G-32D-25-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-G-32D-25-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-G-32D-25-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-G-32D-25-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-G-32D-30-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-G-32D-30-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-G-32D-30-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-G-32D-30-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-G-32D-30-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-G-32D-35-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-G-32D-35-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-G-32D-35-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-G-32D-35-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-G-32D-35-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-G-32D-40-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-G-32D-40-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-G-32D-40-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-G-32D-40-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-G-32D-40-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-G-32D-45-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-G-32D-45-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-G-32D-45-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-G-32D-45-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-G-32D-45-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-G-32D-50-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-G-32D-50-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-G-32D-50-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-G-32D-50-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-G-32D-50-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-G-32D-75-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-G-32D-75-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-G-32D-75-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-G-32D-75-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-G-32D-75-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-G-32D-100-FP1		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-G-32D-100-FP1-LB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-G-32D-100-FP1-CB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-G-32D-100-FP1-FA		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-G-32D-100-FP1-FB		Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-G-40-5-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-G-40-5-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-G-40-5-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-G-40-5-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-G-40-5-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-G-40-10-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-G-40-10-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-G-40-10-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-G-40-10-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-G-40-10-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-G-40-15-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-G-40-15-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-G-40-15-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-G-40-15-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-G-40-15-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-G-40-20-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-G-40-20-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-G-40-20-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-G-40-20-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-G-40-20-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-G-40-25-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-G-40-25-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-G-40-25-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-G-40-25-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-G-40-25-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-G-40-30-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-G-40-30-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-G-40-30-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-G-40-30-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-G-40-30-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-G-40-35-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-G-40-35-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-G-40-35-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-G-40-35-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-G-40-35-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-G-40-40-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-G-40-40-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-G-40-40-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-G-40-40-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-G-40-40-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-G-40-45-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-G-40-45-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-G-40-45-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-G-40-45-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-G-40-45-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-G-40-50-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-G-40-50-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-G-40-50-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-G-40-50-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-G-40-50-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-G-40-75-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-G-40-75-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-G-40-75-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-G-40-75-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-G-40-75-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-G-40-100-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-G-40-100-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-G-40-100-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-G-40-100-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-G-40-100-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-G-40D-5-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-G-40D-5-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-G-40D-5-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-G-40D-5-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-G-40D-5-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-G-40D-10-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-G-40D-10-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-G-40D-10-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-G-40D-10-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-G-40D-10-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-G-40D-15-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-G-40D-15-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-G-40D-15-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-G-40D-15-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-G-40D-15-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-G-40D-20-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-G-40D-20-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-G-40D-20-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-G-40D-20-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-G-40D-20-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-G-40D-25-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-G-40D-25-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-G-40D-25-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-G-40D-25-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-G-40D-25-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-G-40D-30-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-G-40D-30-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-G-40D-30-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-G-40D-30-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-G-40D-30-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-G-40D-35-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-G-40D-35-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-G-40D-35-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-G-40D-35-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-G-40D-35-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-G-40D-40-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-G-40D-40-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-G-40D-40-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-G-40D-40-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-G-40D-40-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-G-40D-45-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-G-40D-45-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-G-40D-45-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-G-40D-45-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-G-40D-45-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-G-40D-50-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-G-40D-50-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-G-40D-50-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-G-40D-50-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-G-40D-50-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-G-40D-75-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-G-40D-75-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-G-40D-75-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-G-40D-75-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-G-40D-75-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-G-40D-100-FP1		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-G-40D-100-FP1-LB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-G-40D-100-FP1-CB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-G-40D-100-FP1-FA		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-G-40D-100-FP1-FB		Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-GL-20-5-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-GL-20-5-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-GL-20-5-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-GL-20-5-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-GL-20-5-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-GL-20-10-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-GL-20-10-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-GL-20-10-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-GL-20-10-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-GL-20-10-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-GL-20-15-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-GL-20-15-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-GL-20-15-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-GL-20-15-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-GL-20-15-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-GL-20-20-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-GL-20-20-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-GL-20-20-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-GL-20-20-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-GL-20-20-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-GL-20-25-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-GL-20-25-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-GL-20-25-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-GL-20-25-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-GL-20-25-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-GL-20-30-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-GL-20-30-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-GL-20-30-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-GL-20-30-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-GL-20-30-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-GL-20-35-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-GL-20-35-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-GL-20-35-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-GL-20-35-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-GL-20-35-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-GL-20-40-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-GL-20-40-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-GL-20-40-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-GL-20-40-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-GL-20-40-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-GL-20-45-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-GL-20-45-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-GL-20-45-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-GL-20-45-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-GL-20-45-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-GL-20-50-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-GL-20-50-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-GL-20-50-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-GL-20-50-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-GL-20-50-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-GL-20D-5-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-5-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-GL-20D-5-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-GL-20D-5-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-GL-20D-5-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-GL-20D-10-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-10-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-GL-20D-10-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-GL-20D-10-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-GL-20D-10-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-GL-20D-15-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-15-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-GL-20D-15-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-GL-20D-15-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-GL-20D-15-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-GL-20D-20-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-20-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-GL-20D-20-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-GL-20D-20-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-GL-20D-20-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-GL-20D-25-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-25-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-GL-20D-25-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-GL-20D-25-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-GL-20D-25-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-GL-20D-30-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-30-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-GL-20D-30-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-GL-20D-30-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-GL-20D-30-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-GL-20D-35-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-35-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-GL-20D-35-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-GL-20D-35-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-GL-20D-35-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-GL-20D-40-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-40-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-GL-20D-40-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-GL-20D-40-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-GL-20D-40-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-GL-20D-45-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-45-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-GL-20D-45-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-GL-20D-45-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-GL-20D-45-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-GL-20D-50-FP1		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-GL-20D-50-FP1-LB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-GL-20D-50-FP1-CB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-GL-20D-50-FP1-FA		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-GL-20D-50-FP1-FB		Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-GL-25-5-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-GL-25-5-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-GL-25-5-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-GL-25-5-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-GL-25-5-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-GL-25-10-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-GL-25-10-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-GL-25-10-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-GL-25-10-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-GL-25-10-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-GL-25-15-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-GL-25-15-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-GL-25-15-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-GL-25-15-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-GL-25-15-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-GL-25-20-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-GL-25-20-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-GL-25-20-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-GL-25-20-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-GL-25-20-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-GL-25-25-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-GL-25-25-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-GL-25-25-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-GL-25-25-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-GL-25-25-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-GL-25-30-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-GL-25-30-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-GL-25-30-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-GL-25-30-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-GL-25-30-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-GL-25-35-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-GL-25-35-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-GL-25-35-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-GL-25-35-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-GL-25-35-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-GL-25-40-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-GL-25-40-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-GL-25-40-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-GL-25-40-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-GL-25-40-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-GL-25-45-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-GL-25-45-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-GL-25-45-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-GL-25-45-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-GL-25-45-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-GL-25-50-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-GL-25-50-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-GL-25-50-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-GL-25-50-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-GL-25-50-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-GL-25D-5-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-5-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-GL-25D-5-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-GL-25D-5-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-GL-25D-5-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-GL-25D-10-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-10-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-GL-25D-10-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-GL-25D-10-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-GL-25D-10-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-GL-25D-15-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-15-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-GL-25D-15-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-GL-25D-15-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-GL-25D-15-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-GL-25D-20-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-20-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-GL-25D-20-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-GL-25D-20-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-GL-25D-20-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-GL-25D-25-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-25-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-GL-25D-25-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-GL-25D-25-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-GL-25D-25-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-GL-25D-30-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-30-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-GL-25D-30-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-GL-25D-30-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-GL-25D-30-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-GL-25D-35-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-35-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-GL-25D-35-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-GL-25D-35-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-GL-25D-35-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-GL-25D-40-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-40-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-GL-25D-40-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-GL-25D-40-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-GL-25D-40-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-GL-25D-45-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-45-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-GL-25D-45-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-GL-25D-45-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-GL-25D-45-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-GL-25D-50-FP1		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-GL-25D-50-FP1-LB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-GL-25D-50-FP1-CB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-GL-25D-50-FP1-FA		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-GL-25D-50-FP1-FB		Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-GL-32-5-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-GL-32-5-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-GL-32-5-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-GL-32-5-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-GL-32-5-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-GL-32-10-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-GL-32-10-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-GL-32-10-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-GL-32-10-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-GL-32-10-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-GL-32-15-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-GL-32-15-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-GL-32-15-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-GL-32-15-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-GL-32-15-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-GL-32-20-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-GL-32-20-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-GL-32-20-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-GL-32-20-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-GL-32-20-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-GL-32-25-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-GL-32-25-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-GL-32-25-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-GL-32-25-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-GL-32-25-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-GL-32-30-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-GL-32-30-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-GL-32-30-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-GL-32-30-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-GL-32-30-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-GL-32-35-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-GL-32-35-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-GL-32-35-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-GL-32-35-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-GL-32-35-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-GL-32-40-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-GL-32-40-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-GL-32-40-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-GL-32-40-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-GL-32-40-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-GL-32-45-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-GL-32-45-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-GL-32-45-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-GL-32-45-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-GL-32-45-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-GL-32-50-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-GL-32-50-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-GL-32-50-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-GL-32-50-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-GL-32-50-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-GL-32-75-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-GL-32-75-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-GL-32-75-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-GL-32-75-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-GL-32-75-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-GL-32-100-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-GL-32-100-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-GL-32-100-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-GL-32-100-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-GL-32-100-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-GL-32D-5-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-5-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-GL-32D-5-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-GL-32D-5-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-GL-32D-5-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-GL-32D-10-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-10-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-GL-32D-10-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-GL-32D-10-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-GL-32D-10-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-GL-32D-15-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-15-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-GL-32D-15-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-GL-32D-15-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-GL-32D-15-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-GL-32D-20-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-20-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-GL-32D-20-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-GL-32D-20-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-GL-32D-20-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-GL-32D-25-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-25-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-GL-32D-25-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-GL-32D-25-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-GL-32D-25-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-GL-32D-30-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-30-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-GL-32D-30-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-GL-32D-30-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-GL-32D-30-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-GL-32D-35-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-35-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-GL-32D-35-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-GL-32D-35-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-GL-32D-35-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-GL-32D-40-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-40-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-GL-32D-40-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-GL-32D-40-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-GL-32D-40-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-GL-32D-45-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-45-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-GL-32D-45-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-GL-32D-45-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-GL-32D-45-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-GL-32D-50-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-50-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-GL-32D-50-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-GL-32D-50-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-GL-32D-50-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-GL-32D-75-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-75-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-GL-32D-75-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-GL-32D-75-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-GL-32D-75-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-GL-32D-100-FP1		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-GL-32D-100-FP1-LB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-GL-32D-100-FP1-CB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-GL-32D-100-FP1-FA		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-GL-32D-100-FP1-FB		Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-GL-40-5-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-GL-40-5-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-GL-40-5-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-GL-40-5-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-GL-40-5-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-GL-40-10-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-GL-40-10-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-GL-40-10-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-GL-40-10-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-GL-40-10-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-GL-40-15-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-GL-40-15-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-GL-40-15-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-GL-40-15-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-GL-40-15-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-GL-40-20-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-GL-40-20-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-GL-40-20-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-GL-40-20-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-GL-40-20-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-GL-40-25-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-GL-40-25-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-GL-40-25-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-GL-40-25-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-GL-40-25-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-GL-40-30-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-GL-40-30-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-GL-40-30-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-GL-40-30-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-GL-40-30-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-GL-40-35-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-GL-40-35-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-GL-40-35-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-GL-40-35-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-GL-40-35-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-GL-40-40-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-GL-40-40-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-GL-40-40-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-GL-40-40-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-GL-40-40-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-GL-40-45-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-GL-40-45-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-GL-40-45-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-GL-40-45-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-GL-40-45-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-GL-40-50-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-GL-40-50-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-GL-40-50-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-GL-40-50-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-GL-40-50-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-GL-40-75-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-GL-40-75-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-GL-40-75-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-GL-40-75-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-GL-40-75-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-GL-40-100-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-GL-40-100-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-GL-40-100-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-GL-40-100-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-GL-40-100-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
SSD2-GL-40D-5-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-5-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
SSD2-GL-40D-5-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
SSD2-GL-40D-5-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
SSD2-GL-40D-5-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
SSD2-GL-40D-10-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-10-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
SSD2-GL-40D-10-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
SSD2-GL-40D-10-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
SSD2-GL-40D-10-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
SSD2-GL-40D-15-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-15-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
SSD2-GL-40D-15-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
SSD2-GL-40D-15-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
SSD2-GL-40D-15-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
SSD2-GL-40D-20-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-20-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
SSD2-GL-40D-20-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
SSD2-GL-40D-20-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
SSD2-GL-40D-20-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
SSD2-GL-40D-25-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-25-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
SSD2-GL-40D-25-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
SSD2-GL-40D-25-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
SSD2-GL-40D-25-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
SSD2-GL-40D-30-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-30-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
SSD2-GL-40D-30-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
SSD2-GL-40D-30-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
SSD2-GL-40D-30-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
SSD2-GL-40D-35-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-35-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
SSD2-GL-40D-35-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
SSD2-GL-40D-35-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
SSD2-GL-40D-35-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
SSD2-GL-40D-40-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-40-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
SSD2-GL-40D-40-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
SSD2-GL-40D-40-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
SSD2-GL-40D-40-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
SSD2-GL-40D-45-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-45-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
SSD2-GL-40D-45-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
SSD2-GL-40D-45-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
SSD2-GL-40D-45-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
SSD2-GL-40D-50-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-50-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
SSD2-GL-40D-50-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
SSD2-GL-40D-50-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
SSD2-GL-40D-50-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
SSD2-GL-40D-75-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-75-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
SSD2-GL-40D-75-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
SSD2-GL-40D-75-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
SSD2-GL-40D-75-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
SSD2-GL-40D-100-FP1		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
SSD2-GL-40D-100-FP1-LB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
SSD2-GL-40D-100-FP1-CB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
SSD2-GL-40D-100-FP1-FA		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
SSD2-GL-40D-100-FP1-FB		Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange

Compact CylindersCKD

880 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-G-FP1 Super Compact Cylinder (Strong Scraper, Bore 20-40)

Brand CKD·Compact Cylinders

Available part numbers (880)

SSD2-G-20-5-FP1, SSD2-G-20-5-FP1-LB, SSD2-G-20-5-FP1-CB, SSD2-G-20-5-FP1-FA, SSD2-G-20-5-FP1-FB, SSD2-G-20-10-FP1, SSD2-G-20-10-FP1-LB, SSD2-G-20-10-FP1-CB, SSD2-G-20-10-FP1-FA, SSD2-G-20-10-FP1-FB + 870 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-G-20-5-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-G-20-5-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-G-20-5-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-G-20-5-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-G-20-5-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-G-20-10-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-G-20-10-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-G-20-10-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-G-20-10-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-G-20-10-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-G-20-15-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-G-20-15-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-G-20-15-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-G-20-15-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-G-20-15-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-G-20-20-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-G-20-20-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-G-20-20-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-G-20-20-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-G-20-20-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-G-20-25-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-G-20-25-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-G-20-25-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-G-20-25-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-G-20-25-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-G-20-30-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-G-20-30-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-G-20-30-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-G-20-30-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-G-20-30-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-G-20-35-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-G-20-35-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-G-20-35-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-G-20-35-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-G-20-35-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-G-20-40-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-G-20-40-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-G-20-40-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-G-20-40-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-G-20-40-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-G-20-45-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-G-20-45-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-G-20-45-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-G-20-45-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-G-20-45-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-G-20-50-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-G-20-50-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-G-20-50-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-G-20-50-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-G-20-50-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-G-20D-5-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-5-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-G-20D-5-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-G-20D-5-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-G-20D-5-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-G-20D-10-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-10-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-G-20D-10-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-G-20D-10-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-G-20D-10-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-G-20D-15-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-15-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-G-20D-15-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-G-20D-15-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-G-20D-15-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-G-20D-20-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-20-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-G-20D-20-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-G-20D-20-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-G-20D-20-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-G-20D-25-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-25-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-G-20D-25-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-G-20D-25-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-G-20D-25-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-G-20D-30-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-30-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-G-20D-30-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-G-20D-30-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-G-20D-30-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-G-20D-35-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-35-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-G-20D-35-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-G-20D-35-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-G-20D-35-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-G-20D-40-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-40-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-G-20D-40-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-G-20D-40-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-G-20D-40-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-G-20D-45-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-45-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-G-20D-45-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-G-20D-45-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-G-20D-45-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-G-20D-50-FP1	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-G-20D-50-FP1-LB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-G-20D-50-FP1-CB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-G-20D-50-FP1-FA	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-G-20D-50-FP1-FB	Switch magnet: No \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-G-25-5-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-G-25-5-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-G-25-5-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-G-25-5-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-G-25-5-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-G-25-10-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-G-25-10-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-G-25-10-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-G-25-10-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-G-25-10-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-G-25-15-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-G-25-15-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-G-25-15-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-G-25-15-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-G-25-15-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-G-25-20-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-G-25-20-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-G-25-20-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-G-25-20-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-G-25-20-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-G-25-25-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-G-25-25-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-G-25-25-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-G-25-25-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-G-25-25-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-G-25-30-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-G-25-30-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-G-25-30-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-G-25-30-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-G-25-30-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-G-25-35-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-G-25-35-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-G-25-35-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-G-25-35-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-G-25-35-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-G-25-40-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-G-25-40-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-G-25-40-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-G-25-40-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-G-25-40-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-G-25-45-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-G-25-45-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-G-25-45-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-G-25-45-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-G-25-45-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-G-25-50-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-G-25-50-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-G-25-50-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-G-25-50-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-G-25-50-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-G-25D-5-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-5-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-G-25D-5-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-G-25D-5-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-G-25D-5-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-G-25D-10-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-10-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-G-25D-10-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-G-25D-10-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-G-25D-10-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-G-25D-15-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-15-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-G-25D-15-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-G-25D-15-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-G-25D-15-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-G-25D-20-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-20-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-G-25D-20-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-G-25D-20-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-G-25D-20-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-G-25D-25-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-25-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-G-25D-25-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-G-25D-25-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-G-25D-25-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-G-25D-30-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-30-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-G-25D-30-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-G-25D-30-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-G-25D-30-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-G-25D-35-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-35-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-G-25D-35-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-G-25D-35-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-G-25D-35-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-G-25D-40-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-40-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-G-25D-40-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-G-25D-40-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-G-25D-40-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-G-25D-45-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-45-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-G-25D-45-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-G-25D-45-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-G-25D-45-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-G-25D-50-FP1	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-G-25D-50-FP1-LB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-G-25D-50-FP1-CB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-G-25D-50-FP1-FA	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-G-25D-50-FP1-FB	Switch magnet: No \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-G-32-5-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-G-32-5-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-G-32-5-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-G-32-5-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-G-32-5-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-G-32-10-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-G-32-10-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-G-32-10-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-G-32-10-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-G-32-10-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-G-32-15-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-G-32-15-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-G-32-15-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-G-32-15-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-G-32-15-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-G-32-20-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-G-32-20-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-G-32-20-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-G-32-20-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-G-32-20-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-G-32-25-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-G-32-25-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-G-32-25-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-G-32-25-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-G-32-25-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-G-32-30-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-G-32-30-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-G-32-30-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-G-32-30-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-G-32-30-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-G-32-35-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-G-32-35-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-G-32-35-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-G-32-35-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-G-32-35-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-G-32-40-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-G-32-40-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-G-32-40-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-G-32-40-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-G-32-40-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-G-32-45-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-G-32-45-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-G-32-45-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-G-32-45-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-G-32-45-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-G-32-50-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-G-32-50-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-G-32-50-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-G-32-50-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-G-32-50-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-G-32-75-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-G-32-75-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-G-32-75-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-G-32-75-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-G-32-75-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-G-32-100-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-G-32-100-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-G-32-100-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-G-32-100-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-G-32-100-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-G-32D-5-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-5-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-G-32D-5-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-G-32D-5-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-G-32D-5-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-G-32D-10-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-10-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-G-32D-10-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-G-32D-10-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-G-32D-10-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-G-32D-15-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-15-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-G-32D-15-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-G-32D-15-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-G-32D-15-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-G-32D-20-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-20-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-G-32D-20-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-G-32D-20-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-G-32D-20-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-G-32D-25-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-25-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-G-32D-25-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-G-32D-25-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-G-32D-25-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-G-32D-30-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-30-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-G-32D-30-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-G-32D-30-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-G-32D-30-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-G-32D-35-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-35-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-G-32D-35-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-G-32D-35-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-G-32D-35-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-G-32D-40-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-40-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-G-32D-40-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-G-32D-40-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-G-32D-40-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-G-32D-45-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-45-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-G-32D-45-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-G-32D-45-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-G-32D-45-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-G-32D-50-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-50-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-G-32D-50-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-G-32D-50-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-G-32D-50-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-G-32D-75-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-75-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-G-32D-75-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-G-32D-75-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-G-32D-75-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-G-32D-100-FP1	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-G-32D-100-FP1-LB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-G-32D-100-FP1-CB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-G-32D-100-FP1-FA	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-G-32D-100-FP1-FB	Switch magnet: No \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-G-40-5-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-G-40-5-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-G-40-5-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-G-40-5-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-G-40-5-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-G-40-10-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-G-40-10-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-G-40-10-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-G-40-10-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-G-40-10-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-G-40-15-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-G-40-15-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-G-40-15-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-G-40-15-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-G-40-15-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-G-40-20-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-G-40-20-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-G-40-20-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-G-40-20-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-G-40-20-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-G-40-25-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-G-40-25-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-G-40-25-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-G-40-25-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-G-40-25-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-G-40-30-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-G-40-30-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-G-40-30-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-G-40-30-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-G-40-30-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-G-40-35-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-G-40-35-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-G-40-35-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-G-40-35-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-G-40-35-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-G-40-40-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-G-40-40-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-G-40-40-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-G-40-40-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-G-40-40-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-G-40-45-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-G-40-45-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-G-40-45-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-G-40-45-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-G-40-45-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-G-40-50-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-G-40-50-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-G-40-50-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-G-40-50-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-G-40-50-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-G-40-75-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-G-40-75-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-G-40-75-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-G-40-75-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-G-40-75-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-G-40-100-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-G-40-100-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-G-40-100-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-G-40-100-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-G-40-100-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-G-40D-5-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-5-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-G-40D-5-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-G-40D-5-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-G-40D-5-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-G-40D-10-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-10-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-G-40D-10-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-G-40D-10-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-G-40D-10-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-G-40D-15-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-15-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-G-40D-15-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-G-40D-15-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-G-40D-15-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-G-40D-20-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-20-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-G-40D-20-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-G-40D-20-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-G-40D-20-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-G-40D-25-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-25-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-G-40D-25-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-G-40D-25-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-G-40D-25-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-G-40D-30-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-30-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-G-40D-30-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-G-40D-30-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-G-40D-30-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-G-40D-35-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-35-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-G-40D-35-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-G-40D-35-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-G-40D-35-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-G-40D-40-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-40-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-G-40D-40-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-G-40D-40-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-G-40D-40-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-G-40D-45-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-45-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-G-40D-45-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-G-40D-45-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-G-40D-45-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-G-40D-50-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-50-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-G-40D-50-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-G-40D-50-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-G-40D-50-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-G-40D-75-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-75-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-G-40D-75-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-G-40D-75-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-G-40D-75-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-G-40D-100-FP1	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-G-40D-100-FP1-LB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-G-40D-100-FP1-CB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-G-40D-100-FP1-FA	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-G-40D-100-FP1-FB	Switch magnet: No \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-GL-20-5-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-5-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-GL-20-5-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-GL-20-5-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-GL-20-5-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-GL-20-10-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-10-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-GL-20-10-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-GL-20-10-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-GL-20-10-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-GL-20-15-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-15-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-GL-20-15-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-GL-20-15-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-GL-20-15-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-GL-20-20-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-20-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-GL-20-20-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-GL-20-20-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-GL-20-20-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-GL-20-25-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-25-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-GL-20-25-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-GL-20-25-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-GL-20-25-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-GL-20-30-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-30-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-GL-20-30-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-GL-20-30-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-GL-20-30-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-GL-20-35-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-35-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-GL-20-35-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-GL-20-35-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-GL-20-35-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-GL-20-40-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-40-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-GL-20-40-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-GL-20-40-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-GL-20-40-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-GL-20-45-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-45-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-GL-20-45-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-GL-20-45-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-GL-20-45-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-GL-20-50-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-GL-20-50-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-GL-20-50-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-GL-20-50-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-GL-20-50-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-GL-20D-5-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-5-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-GL-20D-5-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-GL-20D-5-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-5-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-GL-20D-10-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-10-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-GL-20D-10-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-GL-20D-10-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-10-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-GL-20D-15-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-15-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-GL-20D-15-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-GL-20D-15-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-15-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-GL-20D-20-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-20-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-GL-20D-20-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-GL-20D-20-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-20-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-GL-20D-25-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-25-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-GL-20D-25-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-GL-20D-25-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-25-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-GL-20D-30-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-30-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-GL-20D-30-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-GL-20D-30-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-30-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-GL-20D-35-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-35-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-GL-20D-35-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-GL-20D-35-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-35-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-GL-20D-40-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-40-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-GL-20D-40-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-GL-20D-40-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-40-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-GL-20D-45-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-45-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-GL-20D-45-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-GL-20D-45-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-45-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-GL-20D-50-FP1	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-GL-20D-50-FP1-LB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-GL-20D-50-FP1-CB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-GL-20D-50-FP1-FA	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-GL-20D-50-FP1-FB	Switch magnet: Yes \| Bore: 20 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-GL-25-5-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-5-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-GL-25-5-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-GL-25-5-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-GL-25-5-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-GL-25-10-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-10-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-GL-25-10-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-GL-25-10-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-GL-25-10-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-GL-25-15-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-15-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-GL-25-15-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-GL-25-15-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-GL-25-15-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-GL-25-20-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-20-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-GL-25-20-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-GL-25-20-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-GL-25-20-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-GL-25-25-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-25-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-GL-25-25-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-GL-25-25-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-GL-25-25-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-GL-25-30-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-30-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-GL-25-30-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-GL-25-30-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-GL-25-30-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-GL-25-35-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-35-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-GL-25-35-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-GL-25-35-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-GL-25-35-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-GL-25-40-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-40-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-GL-25-40-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-GL-25-40-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-GL-25-40-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-GL-25-45-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-45-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-GL-25-45-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-GL-25-45-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-GL-25-45-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-GL-25-50-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-GL-25-50-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-GL-25-50-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-GL-25-50-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-GL-25-50-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-GL-25D-5-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-5-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-GL-25D-5-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-GL-25D-5-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-5-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-GL-25D-10-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-10-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-GL-25D-10-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-GL-25D-10-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-10-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-GL-25D-15-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-15-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-GL-25D-15-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-GL-25D-15-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-15-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-GL-25D-20-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-20-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-GL-25D-20-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-GL-25D-20-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-20-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-GL-25D-25-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-25-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-GL-25D-25-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-GL-25D-25-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-25-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-GL-25D-30-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-30-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-GL-25D-30-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-GL-25D-30-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-30-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-GL-25D-35-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-35-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-GL-25D-35-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-GL-25D-35-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-35-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-GL-25D-40-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-40-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-GL-25D-40-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-GL-25D-40-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-40-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-GL-25D-45-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-45-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-GL-25D-45-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-GL-25D-45-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-45-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-GL-25D-50-FP1	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-GL-25D-50-FP1-LB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-GL-25D-50-FP1-CB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-GL-25D-50-FP1-FA	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-GL-25D-50-FP1-FB	Switch magnet: Yes \| Bore: 25 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-GL-32-5-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-5-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-GL-32-5-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-GL-32-5-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-GL-32-5-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-GL-32-10-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-10-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-GL-32-10-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-GL-32-10-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-GL-32-10-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-GL-32-15-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-15-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-GL-32-15-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-GL-32-15-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-GL-32-15-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-GL-32-20-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-20-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-GL-32-20-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-GL-32-20-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-GL-32-20-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-GL-32-25-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-25-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-GL-32-25-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-GL-32-25-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-GL-32-25-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-GL-32-30-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-30-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-GL-32-30-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-GL-32-30-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-GL-32-30-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-GL-32-35-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-35-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-GL-32-35-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-GL-32-35-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-GL-32-35-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-GL-32-40-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-40-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-GL-32-40-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-GL-32-40-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-GL-32-40-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-GL-32-45-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-45-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-GL-32-45-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-GL-32-45-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-GL-32-45-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-GL-32-50-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-50-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-GL-32-50-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-GL-32-50-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-GL-32-50-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-GL-32-75-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-75-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-GL-32-75-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-GL-32-75-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-GL-32-75-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-GL-32-100-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-GL-32-100-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-GL-32-100-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-GL-32-100-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-GL-32-100-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-GL-32D-5-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-5-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-GL-32D-5-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-GL-32D-5-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-5-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-GL-32D-10-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-10-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-GL-32D-10-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-GL-32D-10-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-10-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-GL-32D-15-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-15-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-GL-32D-15-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-GL-32D-15-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-15-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-GL-32D-20-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-20-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-GL-32D-20-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-GL-32D-20-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-20-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-GL-32D-25-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-25-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-GL-32D-25-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-GL-32D-25-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-25-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-GL-32D-30-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-30-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-GL-32D-30-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-GL-32D-30-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-30-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-GL-32D-35-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-35-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-GL-32D-35-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-GL-32D-35-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-35-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-GL-32D-40-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-40-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-GL-32D-40-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-GL-32D-40-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-40-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-GL-32D-45-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-45-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-GL-32D-45-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-GL-32D-45-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-45-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-GL-32D-50-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-50-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-GL-32D-50-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-GL-32D-50-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-50-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-GL-32D-75-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-75-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-GL-32D-75-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-GL-32D-75-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-75-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-GL-32D-100-FP1	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-GL-32D-100-FP1-LB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-GL-32D-100-FP1-CB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-GL-32D-100-FP1-FA	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-GL-32D-100-FP1-FB	Switch magnet: Yes \| Bore: 32 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-GL-40-5-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-5-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-GL-40-5-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-GL-40-5-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-GL-40-5-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-GL-40-10-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-10-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-GL-40-10-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-GL-40-10-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-GL-40-10-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-GL-40-15-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-15-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-GL-40-15-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-GL-40-15-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-GL-40-15-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-GL-40-20-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-20-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-GL-40-20-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-GL-40-20-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-GL-40-20-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-GL-40-25-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-25-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-GL-40-25-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-GL-40-25-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-GL-40-25-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-GL-40-30-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-30-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-GL-40-30-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-GL-40-30-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-GL-40-30-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-GL-40-35-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-35-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-GL-40-35-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-GL-40-35-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-GL-40-35-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-GL-40-40-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-40-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-GL-40-40-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-GL-40-40-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-GL-40-40-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-GL-40-45-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-45-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-GL-40-45-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-GL-40-45-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-GL-40-45-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-GL-40-50-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-50-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-GL-40-50-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-GL-40-50-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-GL-40-50-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-GL-40-75-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-75-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-GL-40-75-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-GL-40-75-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-GL-40-75-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-GL-40-100-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-GL-40-100-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-GL-40-100-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-GL-40-100-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-GL-40-100-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm \| Mounting: Head-side flange
	SSD2-GL-40D-5-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-5-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Axial foot
	SSD2-GL-40D-5-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Double clevis
	SSD2-GL-40D-5-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-5-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 5 mm \| Mounting: Head-side flange
	SSD2-GL-40D-10-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-10-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Axial foot
	SSD2-GL-40D-10-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Double clevis
	SSD2-GL-40D-10-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-10-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 10 mm \| Mounting: Head-side flange
	SSD2-GL-40D-15-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-15-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Axial foot
	SSD2-GL-40D-15-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Double clevis
	SSD2-GL-40D-15-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-15-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 15 mm \| Mounting: Head-side flange
	SSD2-GL-40D-20-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-20-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Axial foot
	SSD2-GL-40D-20-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Double clevis
	SSD2-GL-40D-20-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-20-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 20 mm \| Mounting: Head-side flange
	SSD2-GL-40D-25-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-25-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Axial foot
	SSD2-GL-40D-25-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Double clevis
	SSD2-GL-40D-25-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-25-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 25 mm \| Mounting: Head-side flange
	SSD2-GL-40D-30-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-30-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Axial foot
	SSD2-GL-40D-30-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Double clevis
	SSD2-GL-40D-30-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-30-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 30 mm \| Mounting: Head-side flange
	SSD2-GL-40D-35-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-35-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Axial foot
	SSD2-GL-40D-35-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Double clevis
	SSD2-GL-40D-35-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-35-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 35 mm \| Mounting: Head-side flange
	SSD2-GL-40D-40-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-40-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Axial foot
	SSD2-GL-40D-40-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Double clevis
	SSD2-GL-40D-40-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-40-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 40 mm \| Mounting: Head-side flange
	SSD2-GL-40D-45-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-45-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Axial foot
	SSD2-GL-40D-45-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Double clevis
	SSD2-GL-40D-45-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-45-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 45 mm \| Mounting: Head-side flange
	SSD2-GL-40D-50-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-50-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Axial foot
	SSD2-GL-40D-50-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Double clevis
	SSD2-GL-40D-50-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-50-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 50 mm \| Mounting: Head-side flange
	SSD2-GL-40D-75-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-75-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Axial foot
	SSD2-GL-40D-75-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Double clevis
	SSD2-GL-40D-75-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-75-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 75 mm \| Mounting: Head-side flange
	SSD2-GL-40D-100-FP1	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: None (cylinder only)
	SSD2-GL-40D-100-FP1-LB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Axial foot
	SSD2-GL-40D-100-FP1-CB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Double clevis
	SSD2-GL-40D-100-FP1-FA	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Rod-side flange
	SSD2-GL-40D-100-FP1-FB	Switch magnet: Yes \| Bore: 40 mm \| Cushion: Rubber (D) \| Stroke: 100 mm \| Mounting: Head-side flange

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-G-FP1 Super Compact Cylinder (Strong Scraper, Bore 20-40)
