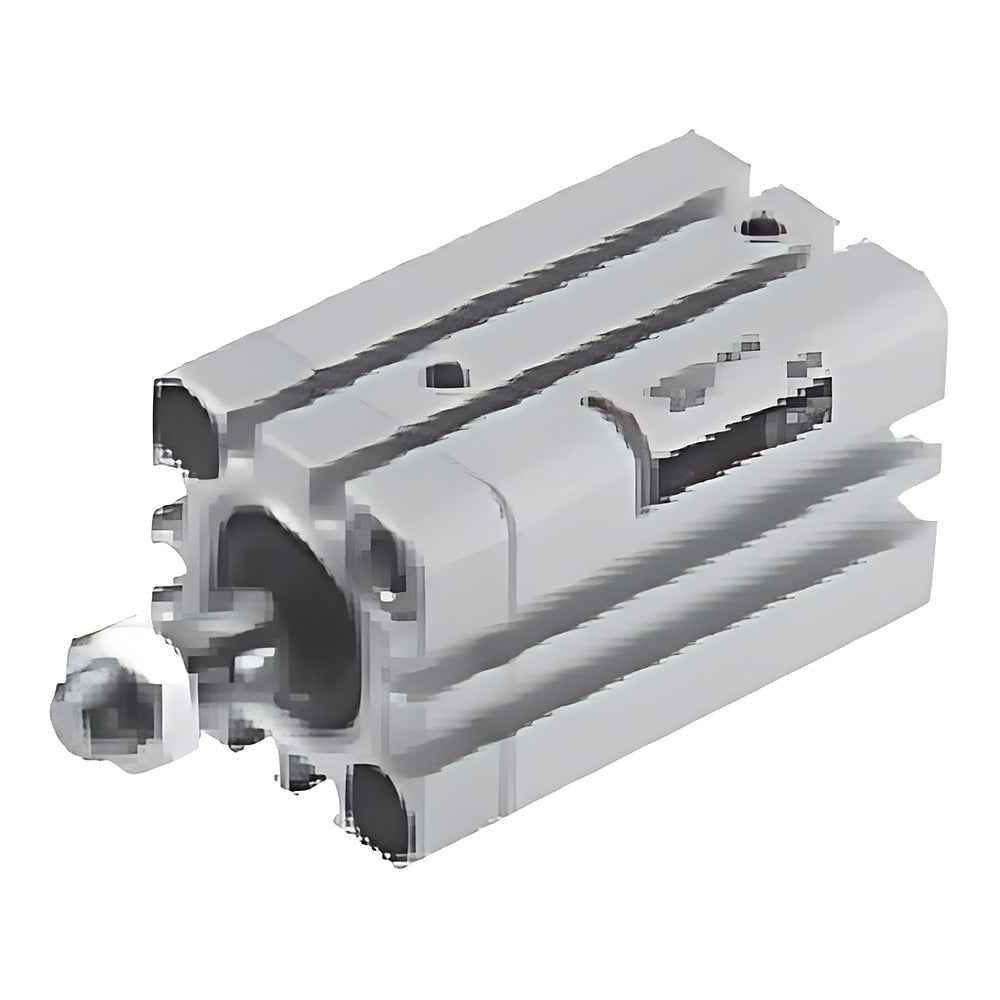

CKD SSD2-G-HP1 Environment-resistant Super Compact Cylinder

CKD SSD2-G-HP1 environment-resistant long-life super compact cylinder with strong scraper, bores 12-100 mm.

Key features

G-HP1 environment-resistant design: strong scraper and long-life seals for dusty / swarf environments
SSD2-G (no magnet) or SSD2-GL (switch magnet built in)
Bracket code: none, CB double clevis, FB head flange; LB foot and FA rod flange listed for 40-100 only
Standard strokes 5-30 (12/16), 5-50 (20/25), 5-100 (32/40), 10-100 mm (50-100)
Options not expanded: NN/GN threads, F/T auto switches, N male rod end with I/Y accessories

Specifications

Operation	Double acting, single rod, strong scraper
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa (12), 0.2 MPa (16-63), 0.15 MPa (80, 100)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Port size	M5 (12-25), Rc1/8 (32, 40), Rc1/4 (50, 63), Rc3/8 (80, 100)
Piston speed	50-500 mm/s (80, 100: 50-300)
Cushion	None
Code format	SSD2-G[L]-<bore>-<stroke>[-<bracket>]-HP1
Source	CKD Korea catalog CC-1421KR-7, p. 88-91

SSD2-G-12-5-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: None
SSD2-G-12-5-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-G-12-5-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-G-12-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-12-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-12-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-12-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-12-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-12-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-12-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-12-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-12-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-12-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-12-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-12-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-12-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-12-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-12-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-16-5-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: None
SSD2-G-16-5-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-G-16-5-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-G-16-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-16-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-16-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-16-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-16-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-16-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-16-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-16-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-16-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-16-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-16-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-16-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-16-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-16-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-16-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-20-5-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: None
SSD2-G-20-5-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-G-20-5-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-G-20-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-20-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-20-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-20-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-20-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-20-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-20-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-20-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-20-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-20-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-20-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-20-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-20-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-20-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-20-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-20-35-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: None
SSD2-G-20-35-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-G-20-35-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-G-20-40-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: None
SSD2-G-20-40-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-G-20-40-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-G-20-45-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: None
SSD2-G-20-45-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-G-20-45-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-G-20-50-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: None
SSD2-G-20-50-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-G-20-50-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-G-25-5-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: None
SSD2-G-25-5-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-G-25-5-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-G-25-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-25-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-25-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-25-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-25-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-25-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-25-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-25-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-25-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-25-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-25-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-25-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-25-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-25-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-25-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-25-35-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: None
SSD2-G-25-35-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-G-25-35-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-G-25-40-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: None
SSD2-G-25-40-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-G-25-40-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-G-25-45-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: None
SSD2-G-25-45-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-G-25-45-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-G-25-50-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: None
SSD2-G-25-50-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-G-25-50-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-G-32-5-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: None
SSD2-G-32-5-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-G-32-5-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-G-32-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-32-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-32-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-32-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-32-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-32-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-32-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-32-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-32-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-32-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-32-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-32-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-32-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-32-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-32-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-32-35-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: None
SSD2-G-32-35-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-G-32-35-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-G-32-40-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: None
SSD2-G-32-40-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-G-32-40-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-G-32-45-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: None
SSD2-G-32-45-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-G-32-45-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-G-32-50-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: None
SSD2-G-32-50-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-G-32-50-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-G-32-75-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: None
SSD2-G-32-75-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-G-32-75-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-G-32-100-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: None
SSD2-G-32-100-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-G-32-100-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-G-40-5-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: None
SSD2-G-40-5-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Axial foot
SSD2-G-40-5-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-G-40-5-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Rod-end flange
SSD2-G-40-5-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-G-40-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-40-10-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-G-40-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-40-10-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-G-40-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-40-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-40-15-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-G-40-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-40-15-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-G-40-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-40-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-40-20-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-G-40-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-40-20-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-G-40-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-40-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-40-25-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-G-40-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-40-25-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-G-40-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-40-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-40-30-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-G-40-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-40-30-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-G-40-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-40-35-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: None
SSD2-G-40-35-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-G-40-35-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-G-40-35-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-G-40-35-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-G-40-40-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: None
SSD2-G-40-40-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-G-40-40-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-G-40-40-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-G-40-40-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-G-40-45-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: None
SSD2-G-40-45-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-G-40-45-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-G-40-45-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-G-40-45-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-G-40-50-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: None
SSD2-G-40-50-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-G-40-50-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-G-40-50-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-G-40-50-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-G-40-75-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: None
SSD2-G-40-75-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-G-40-75-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-G-40-75-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-G-40-75-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-G-40-100-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: None
SSD2-G-40-100-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-G-40-100-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-G-40-100-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-G-40-100-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-G-50-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-50-10-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-G-50-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-50-10-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-G-50-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-50-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-50-15-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-G-50-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-50-15-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-G-50-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-50-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-50-20-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-G-50-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-50-20-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-G-50-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-50-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-50-25-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-G-50-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-50-25-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-G-50-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-50-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-50-30-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-G-50-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-50-30-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-G-50-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-50-35-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: None
SSD2-G-50-35-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-G-50-35-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-G-50-35-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-G-50-35-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-G-50-40-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: None
SSD2-G-50-40-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-G-50-40-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-G-50-40-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-G-50-40-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-G-50-45-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: None
SSD2-G-50-45-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-G-50-45-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-G-50-45-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-G-50-45-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-G-50-50-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: None
SSD2-G-50-50-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-G-50-50-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-G-50-50-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-G-50-50-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-G-50-75-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: None
SSD2-G-50-75-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-G-50-75-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-G-50-75-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-G-50-75-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-G-50-100-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: None
SSD2-G-50-100-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-G-50-100-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-G-50-100-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-G-50-100-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-G-63-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-63-10-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-G-63-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-63-10-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-G-63-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-63-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-63-15-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-G-63-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-63-15-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-G-63-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-63-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-63-20-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-G-63-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-63-20-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-G-63-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-63-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-63-25-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-G-63-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-63-25-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-G-63-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-63-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-63-30-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-G-63-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-63-30-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-G-63-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-63-35-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: None
SSD2-G-63-35-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-G-63-35-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-G-63-35-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-G-63-35-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-G-63-40-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: None
SSD2-G-63-40-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-G-63-40-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-G-63-40-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-G-63-40-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-G-63-45-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: None
SSD2-G-63-45-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-G-63-45-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-G-63-45-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-G-63-45-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-G-63-50-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: None
SSD2-G-63-50-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-G-63-50-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-G-63-50-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-G-63-50-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-G-63-75-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: None
SSD2-G-63-75-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-G-63-75-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-G-63-75-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-G-63-75-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-G-63-100-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: None
SSD2-G-63-100-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-G-63-100-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-G-63-100-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-G-63-100-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-G-80-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-80-10-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-G-80-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-80-10-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-G-80-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-80-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-80-15-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-G-80-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-80-15-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-G-80-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-80-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-80-20-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-G-80-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-80-20-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-G-80-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-80-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-80-25-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-G-80-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-80-25-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-G-80-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-80-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-80-30-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-G-80-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-80-30-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-G-80-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-80-35-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: None
SSD2-G-80-35-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-G-80-35-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-G-80-35-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-G-80-35-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-G-80-40-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: None
SSD2-G-80-40-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-G-80-40-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-G-80-40-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-G-80-40-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-G-80-45-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: None
SSD2-G-80-45-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-G-80-45-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-G-80-45-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-G-80-45-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-G-80-50-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: None
SSD2-G-80-50-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-G-80-50-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-G-80-50-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-G-80-50-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-G-80-75-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: None
SSD2-G-80-75-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-G-80-75-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-G-80-75-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-G-80-75-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-G-80-100-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: None
SSD2-G-80-100-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-G-80-100-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-G-80-100-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-G-80-100-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-G-100-10-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: None
SSD2-G-100-10-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-G-100-10-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-G-100-10-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-G-100-10-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-G-100-15-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: None
SSD2-G-100-15-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-G-100-15-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-G-100-15-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-G-100-15-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-G-100-20-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: None
SSD2-G-100-20-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-G-100-20-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-G-100-20-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-G-100-20-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-G-100-25-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: None
SSD2-G-100-25-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-G-100-25-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-G-100-25-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-G-100-25-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-G-100-30-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: None
SSD2-G-100-30-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-G-100-30-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-G-100-30-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-G-100-30-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-G-100-35-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: None
SSD2-G-100-35-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-G-100-35-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-G-100-35-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-G-100-35-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-G-100-40-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: None
SSD2-G-100-40-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-G-100-40-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-G-100-40-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-G-100-40-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-G-100-45-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: None
SSD2-G-100-45-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-G-100-45-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-G-100-45-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-G-100-45-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-G-100-50-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: None
SSD2-G-100-50-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-G-100-50-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-G-100-50-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-G-100-50-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-G-100-75-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: None
SSD2-G-100-75-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-G-100-75-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-G-100-75-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-G-100-75-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-G-100-100-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: None
SSD2-G-100-100-LB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-G-100-100-CB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-G-100-100-FA-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-G-100-100-FB-HP1		Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-GL-12-5-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: None
SSD2-GL-12-5-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-GL-12-5-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-GL-12-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-12-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-12-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-12-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-12-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-12-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-12-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-12-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-12-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-12-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-12-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-12-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-12-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-12-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-12-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-16-5-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: None
SSD2-GL-16-5-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-GL-16-5-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-GL-16-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-16-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-16-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-16-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-16-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-16-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-16-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-16-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-16-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-16-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-16-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-16-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-16-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-16-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-16-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-20-5-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: None
SSD2-GL-20-5-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-GL-20-5-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-GL-20-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-20-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-20-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-20-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-20-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-20-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-20-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-20-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-20-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-20-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-20-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-20-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-20-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-20-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-20-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-20-35-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: None
SSD2-GL-20-35-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-GL-20-35-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-GL-20-40-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: None
SSD2-GL-20-40-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-GL-20-40-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-GL-20-45-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: None
SSD2-GL-20-45-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-GL-20-45-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-GL-20-50-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: None
SSD2-GL-20-50-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-GL-20-50-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-GL-25-5-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: None
SSD2-GL-25-5-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-GL-25-5-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-GL-25-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-25-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-25-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-25-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-25-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-25-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-25-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-25-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-25-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-25-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-25-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-25-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-25-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-25-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-25-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-25-35-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: None
SSD2-GL-25-35-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-GL-25-35-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-GL-25-40-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: None
SSD2-GL-25-40-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-GL-25-40-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-GL-25-45-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: None
SSD2-GL-25-45-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-GL-25-45-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-GL-25-50-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: None
SSD2-GL-25-50-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-GL-25-50-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-GL-32-5-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: None
SSD2-GL-32-5-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-GL-32-5-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-GL-32-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-32-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-32-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-32-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-32-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-32-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-32-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-32-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-32-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-32-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-32-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-32-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-32-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-32-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-32-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-32-35-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: None
SSD2-GL-32-35-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-GL-32-35-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-GL-32-40-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: None
SSD2-GL-32-40-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-GL-32-40-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-GL-32-45-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: None
SSD2-GL-32-45-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-GL-32-45-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-GL-32-50-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: None
SSD2-GL-32-50-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-GL-32-50-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-GL-32-75-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: None
SSD2-GL-32-75-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-GL-32-75-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-GL-32-100-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: None
SSD2-GL-32-100-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-GL-32-100-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-GL-40-5-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: None
SSD2-GL-40-5-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Axial foot
SSD2-GL-40-5-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Double clevis
SSD2-GL-40-5-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Rod-end flange
SSD2-GL-40-5-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Head-end flange
SSD2-GL-40-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-40-10-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-GL-40-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-40-10-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-GL-40-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-40-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-40-15-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-GL-40-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-40-15-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-GL-40-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-40-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-40-20-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-GL-40-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-40-20-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-GL-40-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-40-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-40-25-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-GL-40-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-40-25-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-GL-40-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-40-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-40-30-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-GL-40-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-40-30-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-GL-40-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-40-35-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: None
SSD2-GL-40-35-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-GL-40-35-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-GL-40-35-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-GL-40-35-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-GL-40-40-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: None
SSD2-GL-40-40-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-GL-40-40-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-GL-40-40-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-GL-40-40-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-GL-40-45-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: None
SSD2-GL-40-45-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-GL-40-45-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-GL-40-45-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-GL-40-45-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-GL-40-50-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: None
SSD2-GL-40-50-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-GL-40-50-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-GL-40-50-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-GL-40-50-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-GL-40-75-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: None
SSD2-GL-40-75-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-GL-40-75-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-GL-40-75-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-GL-40-75-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-GL-40-100-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: None
SSD2-GL-40-100-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-GL-40-100-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-GL-40-100-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-GL-40-100-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-GL-50-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-50-10-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-GL-50-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-50-10-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-GL-50-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-50-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-50-15-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-GL-50-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-50-15-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-GL-50-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-50-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-50-20-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-GL-50-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-50-20-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-GL-50-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-50-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-50-25-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-GL-50-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-50-25-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-GL-50-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-50-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-50-30-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-GL-50-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-50-30-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-GL-50-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-50-35-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: None
SSD2-GL-50-35-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-GL-50-35-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-GL-50-35-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-GL-50-35-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-GL-50-40-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: None
SSD2-GL-50-40-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-GL-50-40-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-GL-50-40-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-GL-50-40-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-GL-50-45-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: None
SSD2-GL-50-45-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-GL-50-45-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-GL-50-45-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-GL-50-45-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-GL-50-50-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: None
SSD2-GL-50-50-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-GL-50-50-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-GL-50-50-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-GL-50-50-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-GL-50-75-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: None
SSD2-GL-50-75-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-GL-50-75-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-GL-50-75-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-GL-50-75-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-GL-50-100-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: None
SSD2-GL-50-100-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-GL-50-100-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-GL-50-100-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-GL-50-100-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-GL-63-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-63-10-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-GL-63-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-63-10-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-GL-63-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-63-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-63-15-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-GL-63-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-63-15-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-GL-63-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-63-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-63-20-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-GL-63-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-63-20-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-GL-63-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-63-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-63-25-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-GL-63-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-63-25-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-GL-63-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-63-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-63-30-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-GL-63-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-63-30-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-GL-63-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-63-35-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: None
SSD2-GL-63-35-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-GL-63-35-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-GL-63-35-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-GL-63-35-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-GL-63-40-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: None
SSD2-GL-63-40-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-GL-63-40-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-GL-63-40-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-GL-63-40-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-GL-63-45-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: None
SSD2-GL-63-45-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-GL-63-45-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-GL-63-45-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-GL-63-45-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-GL-63-50-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: None
SSD2-GL-63-50-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-GL-63-50-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-GL-63-50-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-GL-63-50-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-GL-63-75-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: None
SSD2-GL-63-75-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-GL-63-75-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-GL-63-75-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-GL-63-75-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-GL-63-100-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: None
SSD2-GL-63-100-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-GL-63-100-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-GL-63-100-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-GL-63-100-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-GL-80-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-80-10-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-GL-80-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-80-10-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-GL-80-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-80-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-80-15-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-GL-80-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-80-15-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-GL-80-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-80-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-80-20-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-GL-80-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-80-20-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-GL-80-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-80-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-80-25-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-GL-80-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-80-25-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-GL-80-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-80-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-80-30-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-GL-80-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-80-30-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-GL-80-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-80-35-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: None
SSD2-GL-80-35-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-GL-80-35-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-GL-80-35-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-GL-80-35-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-GL-80-40-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: None
SSD2-GL-80-40-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-GL-80-40-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-GL-80-40-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-GL-80-40-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-GL-80-45-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: None
SSD2-GL-80-45-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-GL-80-45-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-GL-80-45-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-GL-80-45-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-GL-80-50-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: None
SSD2-GL-80-50-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-GL-80-50-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-GL-80-50-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-GL-80-50-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-GL-80-75-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: None
SSD2-GL-80-75-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-GL-80-75-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-GL-80-75-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-GL-80-75-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-GL-80-100-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: None
SSD2-GL-80-100-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-GL-80-100-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-GL-80-100-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-GL-80-100-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Head-end flange
SSD2-GL-100-10-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: None
SSD2-GL-100-10-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Axial foot
SSD2-GL-100-10-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Double clevis
SSD2-GL-100-10-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
SSD2-GL-100-10-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Head-end flange
SSD2-GL-100-15-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: None
SSD2-GL-100-15-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Axial foot
SSD2-GL-100-15-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Double clevis
SSD2-GL-100-15-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
SSD2-GL-100-15-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Head-end flange
SSD2-GL-100-20-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: None
SSD2-GL-100-20-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Axial foot
SSD2-GL-100-20-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Double clevis
SSD2-GL-100-20-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
SSD2-GL-100-20-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Head-end flange
SSD2-GL-100-25-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: None
SSD2-GL-100-25-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Axial foot
SSD2-GL-100-25-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Double clevis
SSD2-GL-100-25-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
SSD2-GL-100-25-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Head-end flange
SSD2-GL-100-30-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: None
SSD2-GL-100-30-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Axial foot
SSD2-GL-100-30-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Double clevis
SSD2-GL-100-30-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
SSD2-GL-100-30-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Head-end flange
SSD2-GL-100-35-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: None
SSD2-GL-100-35-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Axial foot
SSD2-GL-100-35-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Double clevis
SSD2-GL-100-35-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
SSD2-GL-100-35-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Head-end flange
SSD2-GL-100-40-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: None
SSD2-GL-100-40-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Axial foot
SSD2-GL-100-40-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Double clevis
SSD2-GL-100-40-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
SSD2-GL-100-40-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Head-end flange
SSD2-GL-100-45-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: None
SSD2-GL-100-45-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Axial foot
SSD2-GL-100-45-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Double clevis
SSD2-GL-100-45-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
SSD2-GL-100-45-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Head-end flange
SSD2-GL-100-50-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: None
SSD2-GL-100-50-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Axial foot
SSD2-GL-100-50-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Double clevis
SSD2-GL-100-50-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
SSD2-GL-100-50-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Head-end flange
SSD2-GL-100-75-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: None
SSD2-GL-100-75-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Axial foot
SSD2-GL-100-75-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Double clevis
SSD2-GL-100-75-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
SSD2-GL-100-75-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Head-end flange
SSD2-GL-100-100-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: None
SSD2-GL-100-100-LB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Axial foot
SSD2-GL-100-100-CB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Double clevis
SSD2-GL-100-100-FA-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
SSD2-GL-100-100-FB-HP1		Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Head-end flange

Compact CylindersCKD

824 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-G-HP1 Environment-resistant Super Compact Cylinder

Brand CKD·Compact Cylinders

Available part numbers (824)

SSD2-G-12-5-HP1, SSD2-G-12-5-CB-HP1, SSD2-G-12-5-FB-HP1, SSD2-G-12-10-HP1, SSD2-G-12-10-CB-HP1, SSD2-G-12-10-FB-HP1, SSD2-G-12-15-HP1, SSD2-G-12-15-CB-HP1, SSD2-G-12-15-FB-HP1, SSD2-G-12-20-HP1 + 814 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSD2-G-12-5-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-G-12-5-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-G-12-5-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-G-12-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-12-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-12-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-12-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-12-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-12-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-12-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-12-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-12-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-12-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-12-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-12-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-12-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-12-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-12-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-16-5-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-G-16-5-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-G-16-5-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-G-16-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-16-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-16-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-16-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-16-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-16-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-16-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-16-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-16-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-16-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-16-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-16-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-16-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-16-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-16-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-20-5-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-G-20-5-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-G-20-5-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-G-20-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-20-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-20-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-20-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-20-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-20-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-20-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-20-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-20-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-20-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-20-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-20-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-20-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-20-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-20-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-20-35-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-G-20-35-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-G-20-35-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-G-20-40-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-G-20-40-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-G-20-40-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-G-20-45-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-G-20-45-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-G-20-45-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-G-20-50-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-G-20-50-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-G-20-50-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-G-25-5-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-G-25-5-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-G-25-5-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-G-25-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-25-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-25-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-25-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-25-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-25-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-25-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-25-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-25-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-25-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-25-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-25-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-25-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-25-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-25-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-25-35-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-G-25-35-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-G-25-35-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-G-25-40-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-G-25-40-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-G-25-40-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-G-25-45-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-G-25-45-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-G-25-45-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-G-25-50-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-G-25-50-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-G-25-50-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-G-32-5-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-G-32-5-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-G-32-5-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-G-32-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-32-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-32-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-32-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-32-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-32-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-32-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-32-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-32-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-32-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-32-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-32-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-32-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-32-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-32-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-32-35-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-G-32-35-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-G-32-35-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-G-32-40-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-G-32-40-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-G-32-40-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-G-32-45-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-G-32-45-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-G-32-45-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-G-32-50-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-G-32-50-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-G-32-50-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-G-32-75-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-G-32-75-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-G-32-75-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-G-32-100-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-G-32-100-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-G-32-100-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-G-40-5-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-G-40-5-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Axial foot
	SSD2-G-40-5-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-G-40-5-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Rod-end flange
	SSD2-G-40-5-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-G-40-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-40-10-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-G-40-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-40-10-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-G-40-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-40-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-40-15-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-G-40-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-40-15-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-G-40-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-40-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-40-20-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-G-40-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-40-20-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-G-40-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-40-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-40-25-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-G-40-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-40-25-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-G-40-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-40-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-40-30-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-G-40-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-40-30-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-G-40-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-40-35-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-G-40-35-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-G-40-35-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-G-40-35-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-G-40-35-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-G-40-40-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-G-40-40-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-G-40-40-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-G-40-40-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-G-40-40-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-G-40-45-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-G-40-45-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-G-40-45-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-G-40-45-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-G-40-45-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-G-40-50-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-G-40-50-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-G-40-50-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-G-40-50-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-G-40-50-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-G-40-75-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-G-40-75-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-G-40-75-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-G-40-75-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-G-40-75-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-G-40-100-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-G-40-100-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-G-40-100-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-G-40-100-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-G-40-100-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-G-50-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-50-10-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-G-50-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-50-10-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-G-50-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-50-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-50-15-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-G-50-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-50-15-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-G-50-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-50-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-50-20-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-G-50-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-50-20-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-G-50-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-50-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-50-25-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-G-50-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-50-25-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-G-50-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-50-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-50-30-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-G-50-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-50-30-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-G-50-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-50-35-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-G-50-35-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-G-50-35-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-G-50-35-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-G-50-35-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-G-50-40-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-G-50-40-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-G-50-40-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-G-50-40-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-G-50-40-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-G-50-45-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-G-50-45-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-G-50-45-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-G-50-45-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-G-50-45-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-G-50-50-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-G-50-50-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-G-50-50-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-G-50-50-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-G-50-50-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-G-50-75-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-G-50-75-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-G-50-75-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-G-50-75-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-G-50-75-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-G-50-100-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-G-50-100-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-G-50-100-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-G-50-100-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-G-50-100-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-G-63-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-63-10-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-G-63-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-63-10-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-G-63-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-63-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-63-15-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-G-63-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-63-15-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-G-63-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-63-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-63-20-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-G-63-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-63-20-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-G-63-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-63-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-63-25-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-G-63-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-63-25-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-G-63-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-63-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-63-30-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-G-63-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-63-30-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-G-63-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-63-35-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-G-63-35-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-G-63-35-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-G-63-35-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-G-63-35-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-G-63-40-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-G-63-40-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-G-63-40-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-G-63-40-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-G-63-40-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-G-63-45-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-G-63-45-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-G-63-45-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-G-63-45-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-G-63-45-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-G-63-50-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-G-63-50-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-G-63-50-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-G-63-50-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-G-63-50-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-G-63-75-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-G-63-75-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-G-63-75-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-G-63-75-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-G-63-75-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-G-63-100-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-G-63-100-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-G-63-100-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-G-63-100-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-G-63-100-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-G-80-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-80-10-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-G-80-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-80-10-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-G-80-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-80-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-80-15-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-G-80-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-80-15-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-G-80-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-80-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-80-20-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-G-80-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-80-20-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-G-80-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-80-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-80-25-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-G-80-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-80-25-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-G-80-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-80-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-80-30-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-G-80-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-80-30-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-G-80-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-80-35-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-G-80-35-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-G-80-35-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-G-80-35-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-G-80-35-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-G-80-40-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-G-80-40-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-G-80-40-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-G-80-40-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-G-80-40-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-G-80-45-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-G-80-45-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-G-80-45-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-G-80-45-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-G-80-45-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-G-80-50-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-G-80-50-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-G-80-50-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-G-80-50-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-G-80-50-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-G-80-75-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-G-80-75-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-G-80-75-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-G-80-75-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-G-80-75-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-G-80-100-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-G-80-100-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-G-80-100-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-G-80-100-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-G-80-100-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-G-100-10-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-G-100-10-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-G-100-10-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-G-100-10-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-G-100-10-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-G-100-15-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-G-100-15-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-G-100-15-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-G-100-15-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-G-100-15-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-G-100-20-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-G-100-20-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-G-100-20-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-G-100-20-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-G-100-20-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-G-100-25-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-G-100-25-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-G-100-25-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-G-100-25-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-G-100-25-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-G-100-30-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-G-100-30-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-G-100-30-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-G-100-30-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-G-100-30-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-G-100-35-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-G-100-35-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-G-100-35-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-G-100-35-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-G-100-35-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-G-100-40-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-G-100-40-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-G-100-40-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-G-100-40-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-G-100-40-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-G-100-45-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-G-100-45-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-G-100-45-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-G-100-45-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-G-100-45-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-G-100-50-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-G-100-50-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-G-100-50-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-G-100-50-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-G-100-50-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-G-100-75-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-G-100-75-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-G-100-75-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-G-100-75-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-G-100-75-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-G-100-100-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-G-100-100-LB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-G-100-100-CB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-G-100-100-FA-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-G-100-100-FB-HP1	Model: SSD2-G (No switch magnet) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-GL-12-5-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-GL-12-5-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-GL-12-5-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-GL-12-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-12-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-12-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-12-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-12-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-12-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-12-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-12-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-12-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-12-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-12-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-12-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-12-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-12-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-12-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 12 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-16-5-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-GL-16-5-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-GL-16-5-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-GL-16-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-16-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-16-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-16-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-16-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-16-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-16-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-16-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-16-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-16-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-16-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-16-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-16-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-16-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-16-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 16 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-20-5-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-GL-20-5-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-GL-20-5-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-GL-20-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-20-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-20-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-20-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-20-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-20-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-20-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-20-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-20-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-20-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-20-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-20-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-20-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-20-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-20-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-20-35-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-GL-20-35-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-GL-20-35-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-GL-20-40-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-GL-20-40-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-GL-20-40-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-GL-20-45-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-GL-20-45-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-GL-20-45-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-GL-20-50-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-GL-20-50-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-GL-20-50-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 20 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-GL-25-5-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-GL-25-5-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-GL-25-5-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-GL-25-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-25-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-25-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-25-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-25-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-25-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-25-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-25-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-25-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-25-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-25-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-25-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-25-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-25-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-25-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-25-35-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-GL-25-35-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-GL-25-35-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-GL-25-40-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-GL-25-40-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-GL-25-40-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-GL-25-45-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-GL-25-45-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-GL-25-45-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-GL-25-50-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-GL-25-50-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-GL-25-50-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 25 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-GL-32-5-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-GL-32-5-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-GL-32-5-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-GL-32-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-32-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-32-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-32-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-32-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-32-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-32-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-32-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-32-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-32-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-32-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-32-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-32-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-32-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-32-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-32-35-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-GL-32-35-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-GL-32-35-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-GL-32-40-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-GL-32-40-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-GL-32-40-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-GL-32-45-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-GL-32-45-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-GL-32-45-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-GL-32-50-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-GL-32-50-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-GL-32-50-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-GL-32-75-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-GL-32-75-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-GL-32-75-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-GL-32-100-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-GL-32-100-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-GL-32-100-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 32 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-GL-40-5-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: None
	SSD2-GL-40-5-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Axial foot
	SSD2-GL-40-5-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Double clevis
	SSD2-GL-40-5-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Rod-end flange
	SSD2-GL-40-5-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 5 mm \| Bracket: Head-end flange
	SSD2-GL-40-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-40-10-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-GL-40-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-40-10-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-GL-40-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-40-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-40-15-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-GL-40-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-40-15-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-GL-40-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-40-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-40-20-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-GL-40-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-40-20-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-GL-40-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-40-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-40-25-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-GL-40-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-40-25-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-GL-40-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-40-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-40-30-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-GL-40-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-40-30-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-GL-40-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-40-35-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-GL-40-35-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-GL-40-35-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-GL-40-35-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-GL-40-35-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-GL-40-40-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-GL-40-40-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-GL-40-40-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-GL-40-40-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-GL-40-40-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-GL-40-45-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-GL-40-45-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-GL-40-45-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-GL-40-45-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-GL-40-45-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-GL-40-50-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-GL-40-50-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-GL-40-50-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-GL-40-50-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-GL-40-50-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-GL-40-75-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-GL-40-75-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-GL-40-75-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-GL-40-75-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-GL-40-75-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-GL-40-100-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-GL-40-100-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-GL-40-100-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-GL-40-100-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-GL-40-100-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 40 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-GL-50-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-50-10-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-GL-50-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-50-10-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-GL-50-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-50-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-50-15-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-GL-50-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-50-15-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-GL-50-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-50-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-50-20-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-GL-50-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-50-20-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-GL-50-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-50-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-50-25-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-GL-50-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-50-25-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-GL-50-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-50-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-50-30-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-GL-50-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-50-30-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-GL-50-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-50-35-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-GL-50-35-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-GL-50-35-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-GL-50-35-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-GL-50-35-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-GL-50-40-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-GL-50-40-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-GL-50-40-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-GL-50-40-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-GL-50-40-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-GL-50-45-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-GL-50-45-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-GL-50-45-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-GL-50-45-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-GL-50-45-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-GL-50-50-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-GL-50-50-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-GL-50-50-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-GL-50-50-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-GL-50-50-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-GL-50-75-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-GL-50-75-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-GL-50-75-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-GL-50-75-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-GL-50-75-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-GL-50-100-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-GL-50-100-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-GL-50-100-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-GL-50-100-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-GL-50-100-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 50 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-GL-63-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-63-10-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-GL-63-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-63-10-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-GL-63-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-63-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-63-15-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-GL-63-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-63-15-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-GL-63-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-63-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-63-20-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-GL-63-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-63-20-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-GL-63-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-63-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-63-25-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-GL-63-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-63-25-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-GL-63-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-63-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-63-30-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-GL-63-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-63-30-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-GL-63-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-63-35-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-GL-63-35-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-GL-63-35-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-GL-63-35-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-GL-63-35-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-GL-63-40-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-GL-63-40-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-GL-63-40-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-GL-63-40-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-GL-63-40-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-GL-63-45-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-GL-63-45-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-GL-63-45-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-GL-63-45-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-GL-63-45-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-GL-63-50-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-GL-63-50-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-GL-63-50-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-GL-63-50-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-GL-63-50-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-GL-63-75-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-GL-63-75-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-GL-63-75-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-GL-63-75-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-GL-63-75-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-GL-63-100-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-GL-63-100-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-GL-63-100-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-GL-63-100-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-GL-63-100-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 63 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-GL-80-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-80-10-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-GL-80-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-80-10-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-GL-80-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-80-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-80-15-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-GL-80-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-80-15-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-GL-80-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-80-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-80-20-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-GL-80-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-80-20-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-GL-80-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-80-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-80-25-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-GL-80-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-80-25-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-GL-80-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-80-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-80-30-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-GL-80-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-80-30-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-GL-80-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-80-35-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-GL-80-35-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-GL-80-35-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-GL-80-35-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-GL-80-35-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-GL-80-40-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-GL-80-40-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-GL-80-40-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-GL-80-40-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-GL-80-40-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-GL-80-45-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-GL-80-45-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-GL-80-45-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-GL-80-45-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-GL-80-45-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-GL-80-50-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-GL-80-50-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-GL-80-50-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-GL-80-50-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-GL-80-50-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-GL-80-75-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-GL-80-75-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-GL-80-75-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-GL-80-75-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-GL-80-75-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-GL-80-100-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-GL-80-100-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-GL-80-100-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-GL-80-100-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-GL-80-100-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 80 mm \| Stroke: 100 mm \| Bracket: Head-end flange
	SSD2-GL-100-10-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: None
	SSD2-GL-100-10-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Axial foot
	SSD2-GL-100-10-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Double clevis
	SSD2-GL-100-10-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Rod-end flange
	SSD2-GL-100-10-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 10 mm \| Bracket: Head-end flange
	SSD2-GL-100-15-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: None
	SSD2-GL-100-15-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Axial foot
	SSD2-GL-100-15-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Double clevis
	SSD2-GL-100-15-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Rod-end flange
	SSD2-GL-100-15-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 15 mm \| Bracket: Head-end flange
	SSD2-GL-100-20-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: None
	SSD2-GL-100-20-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Axial foot
	SSD2-GL-100-20-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Double clevis
	SSD2-GL-100-20-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Rod-end flange
	SSD2-GL-100-20-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 20 mm \| Bracket: Head-end flange
	SSD2-GL-100-25-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: None
	SSD2-GL-100-25-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Axial foot
	SSD2-GL-100-25-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Double clevis
	SSD2-GL-100-25-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Rod-end flange
	SSD2-GL-100-25-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 25 mm \| Bracket: Head-end flange
	SSD2-GL-100-30-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: None
	SSD2-GL-100-30-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Axial foot
	SSD2-GL-100-30-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Double clevis
	SSD2-GL-100-30-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Rod-end flange
	SSD2-GL-100-30-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 30 mm \| Bracket: Head-end flange
	SSD2-GL-100-35-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: None
	SSD2-GL-100-35-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Axial foot
	SSD2-GL-100-35-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Double clevis
	SSD2-GL-100-35-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Rod-end flange
	SSD2-GL-100-35-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 35 mm \| Bracket: Head-end flange
	SSD2-GL-100-40-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: None
	SSD2-GL-100-40-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Axial foot
	SSD2-GL-100-40-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Double clevis
	SSD2-GL-100-40-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Rod-end flange
	SSD2-GL-100-40-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 40 mm \| Bracket: Head-end flange
	SSD2-GL-100-45-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: None
	SSD2-GL-100-45-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Axial foot
	SSD2-GL-100-45-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Double clevis
	SSD2-GL-100-45-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Rod-end flange
	SSD2-GL-100-45-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 45 mm \| Bracket: Head-end flange
	SSD2-GL-100-50-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: None
	SSD2-GL-100-50-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Axial foot
	SSD2-GL-100-50-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Double clevis
	SSD2-GL-100-50-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Rod-end flange
	SSD2-GL-100-50-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 50 mm \| Bracket: Head-end flange
	SSD2-GL-100-75-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: None
	SSD2-GL-100-75-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Axial foot
	SSD2-GL-100-75-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Double clevis
	SSD2-GL-100-75-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Rod-end flange
	SSD2-GL-100-75-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 75 mm \| Bracket: Head-end flange
	SSD2-GL-100-100-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: None
	SSD2-GL-100-100-LB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Axial foot
	SSD2-GL-100-100-CB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Double clevis
	SSD2-GL-100-100-FA-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Rod-end flange
	SSD2-GL-100-100-FB-HP1	Model: SSD2-GL (Switch magnet built in) \| Bore: 100 mm \| Stroke: 100 mm \| Bracket: Head-end flange

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SSD2-G-HP1 Environment-resistant Super Compact Cylinder
