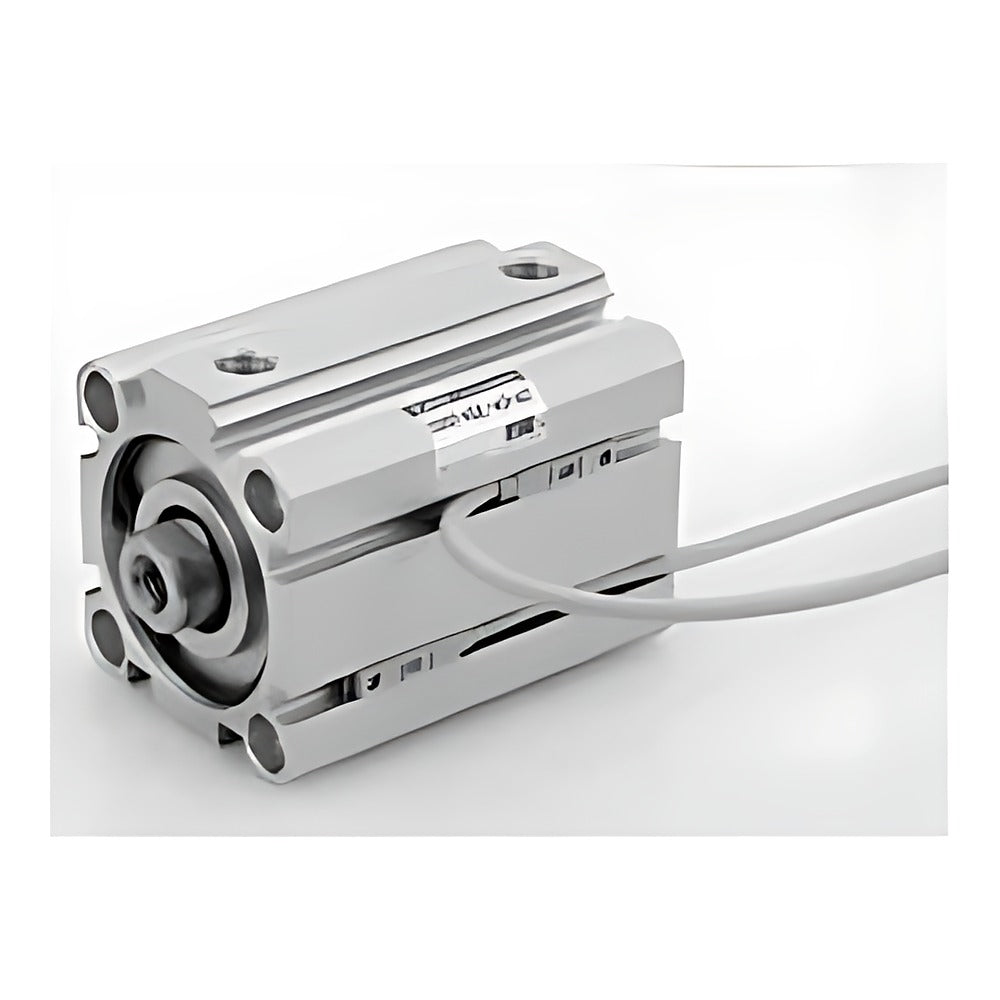

CKD SSD2-G Super Compact Cylinder (Strong Scraper)

CKD SSD2-G Super Compact Cylinder (Strong Scraper)

CKD SSD2-G super compact cylinder with a strong scraper that removes dust and particles adhering to the piston rod.

Key features

  • Strong scraper for dusty environments
  • Bores 20 to 100 mm with standard strokes 5 to 100 mm
  • Switch-ready SSD2-GL version with built-in magnet
  • Standard mountings CB and FB attached; LB and FA made to order
  • Intermediate strokes in 1 mm steps via spacer

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. working pressure 1.0 MPa
Min. working pressure 0.15 MPa (63-100: 0.1 MPa)
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50-500 mm/s (63-100: 50-300 mm/s)
Cushion None
Source CKD Korea catalog CB-029SK-9, p. 1024-1033
SSD2-G-20-5 Body: No switch magnet | Bore: 20 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-5-CB Body: No switch magnet | Bore: 20 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-5-FB Body: No switch magnet | Bore: 20 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-10 Body: No switch magnet | Bore: 20 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-10-CB Body: No switch magnet | Bore: 20 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-10-FB Body: No switch magnet | Bore: 20 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-15 Body: No switch magnet | Bore: 20 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-15-CB Body: No switch magnet | Bore: 20 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-15-FB Body: No switch magnet | Bore: 20 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-20 Body: No switch magnet | Bore: 20 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-20-CB Body: No switch magnet | Bore: 20 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-20-FB Body: No switch magnet | Bore: 20 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-25 Body: No switch magnet | Bore: 20 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-25-CB Body: No switch magnet | Bore: 20 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-25-FB Body: No switch magnet | Bore: 20 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-30 Body: No switch magnet | Bore: 20 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-30-CB Body: No switch magnet | Bore: 20 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-30-FB Body: No switch magnet | Bore: 20 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-35 Body: No switch magnet | Bore: 20 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-35-CB Body: No switch magnet | Bore: 20 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-35-FB Body: No switch magnet | Bore: 20 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-40 Body: No switch magnet | Bore: 20 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-40-CB Body: No switch magnet | Bore: 20 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-40-FB Body: No switch magnet | Bore: 20 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-45 Body: No switch magnet | Bore: 20 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-45-CB Body: No switch magnet | Bore: 20 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-45-FB Body: No switch magnet | Bore: 20 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-50 Body: No switch magnet | Bore: 20 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-50-CB Body: No switch magnet | Bore: 20 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-50-FB Body: No switch magnet | Bore: 20 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-5 Body: No switch magnet | Bore: 25 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-5-CB Body: No switch magnet | Bore: 25 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-5-FB Body: No switch magnet | Bore: 25 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-10 Body: No switch magnet | Bore: 25 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-10-CB Body: No switch magnet | Bore: 25 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-10-FB Body: No switch magnet | Bore: 25 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-15 Body: No switch magnet | Bore: 25 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-15-CB Body: No switch magnet | Bore: 25 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-15-FB Body: No switch magnet | Bore: 25 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-20 Body: No switch magnet | Bore: 25 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-20-CB Body: No switch magnet | Bore: 25 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-20-FB Body: No switch magnet | Bore: 25 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-25 Body: No switch magnet | Bore: 25 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-25-CB Body: No switch magnet | Bore: 25 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-25-FB Body: No switch magnet | Bore: 25 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-30 Body: No switch magnet | Bore: 25 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-30-CB Body: No switch magnet | Bore: 25 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-30-FB Body: No switch magnet | Bore: 25 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-35 Body: No switch magnet | Bore: 25 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-35-CB Body: No switch magnet | Bore: 25 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-35-FB Body: No switch magnet | Bore: 25 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-40 Body: No switch magnet | Bore: 25 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-40-CB Body: No switch magnet | Bore: 25 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-40-FB Body: No switch magnet | Bore: 25 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-45 Body: No switch magnet | Bore: 25 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-45-CB Body: No switch magnet | Bore: 25 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-45-FB Body: No switch magnet | Bore: 25 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-50 Body: No switch magnet | Bore: 25 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-50-CB Body: No switch magnet | Bore: 25 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-50-FB Body: No switch magnet | Bore: 25 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-32-5 Body: No switch magnet | Bore: 32 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-32-5-CB Body: No switch magnet | Bore: 32 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-32-5-FB Body: No switch magnet | Bore: 32 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-32-10 Body: No switch magnet | Bore: 32 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-10-CB Body: No switch magnet | Bore: 32 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-10-FB Body: No switch magnet | Bore: 32 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-15 Body: No switch magnet | Bore: 32 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-15-CB Body: No switch magnet | Bore: 32 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-15-FB Body: No switch magnet | Bore: 32 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-20 Body: No switch magnet | Bore: 32 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-20-CB Body: No switch magnet | Bore: 32 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-20-FB Body: No switch magnet | Bore: 32 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-25 Body: No switch magnet | Bore: 32 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-25-CB Body: No switch magnet | Bore: 32 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-25-FB Body: No switch magnet | Bore: 32 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-30 Body: No switch magnet | Bore: 32 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-30-CB Body: No switch magnet | Bore: 32 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-30-FB Body: No switch magnet | Bore: 32 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-35 Body: No switch magnet | Bore: 32 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-35-CB Body: No switch magnet | Bore: 32 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-35-FB Body: No switch magnet | Bore: 32 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-40 Body: No switch magnet | Bore: 32 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-40-CB Body: No switch magnet | Bore: 32 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-40-FB Body: No switch magnet | Bore: 32 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-45 Body: No switch magnet | Bore: 32 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-45-CB Body: No switch magnet | Bore: 32 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-45-FB Body: No switch magnet | Bore: 32 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-50 Body: No switch magnet | Bore: 32 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-50-CB Body: No switch magnet | Bore: 32 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-50-FB Body: No switch magnet | Bore: 32 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-75 Body: No switch magnet | Bore: 32 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-75-CB Body: No switch magnet | Bore: 32 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-75-FB Body: No switch magnet | Bore: 32 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-100 Body: No switch magnet | Bore: 32 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-100-CB Body: No switch magnet | Bore: 32 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-100-FB Body: No switch magnet | Bore: 32 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-5 Body: No switch magnet | Bore: 40 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-5-CB Body: No switch magnet | Bore: 40 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-5-FB Body: No switch magnet | Bore: 40 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-10 Body: No switch magnet | Bore: 40 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-10-CB Body: No switch magnet | Bore: 40 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-10-FB Body: No switch magnet | Bore: 40 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-15 Body: No switch magnet | Bore: 40 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-15-CB Body: No switch magnet | Bore: 40 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-15-FB Body: No switch magnet | Bore: 40 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-20 Body: No switch magnet | Bore: 40 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-20-CB Body: No switch magnet | Bore: 40 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-20-FB Body: No switch magnet | Bore: 40 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-25 Body: No switch magnet | Bore: 40 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-25-CB Body: No switch magnet | Bore: 40 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-25-FB Body: No switch magnet | Bore: 40 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-30 Body: No switch magnet | Bore: 40 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-30-CB Body: No switch magnet | Bore: 40 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-30-FB Body: No switch magnet | Bore: 40 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-35 Body: No switch magnet | Bore: 40 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-35-CB Body: No switch magnet | Bore: 40 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-35-FB Body: No switch magnet | Bore: 40 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-40 Body: No switch magnet | Bore: 40 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-40-CB Body: No switch magnet | Bore: 40 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-40-FB Body: No switch magnet | Bore: 40 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-45 Body: No switch magnet | Bore: 40 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-45-CB Body: No switch magnet | Bore: 40 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-45-FB Body: No switch magnet | Bore: 40 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-50 Body: No switch magnet | Bore: 40 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-50-CB Body: No switch magnet | Bore: 40 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-50-FB Body: No switch magnet | Bore: 40 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-75 Body: No switch magnet | Bore: 40 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-75-CB Body: No switch magnet | Bore: 40 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-75-FB Body: No switch magnet | Bore: 40 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-100 Body: No switch magnet | Bore: 40 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-100-CB Body: No switch magnet | Bore: 40 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-100-FB Body: No switch magnet | Bore: 40 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-50-10 Body: No switch magnet | Bore: 50 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-10-CB Body: No switch magnet | Bore: 50 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-10-FB Body: No switch magnet | Bore: 50 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-15 Body: No switch magnet | Bore: 50 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-15-CB Body: No switch magnet | Bore: 50 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-15-FB Body: No switch magnet | Bore: 50 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-20 Body: No switch magnet | Bore: 50 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-20-CB Body: No switch magnet | Bore: 50 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-20-FB Body: No switch magnet | Bore: 50 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-25 Body: No switch magnet | Bore: 50 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-25-CB Body: No switch magnet | Bore: 50 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-25-FB Body: No switch magnet | Bore: 50 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-30 Body: No switch magnet | Bore: 50 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-30-CB Body: No switch magnet | Bore: 50 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-30-FB Body: No switch magnet | Bore: 50 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-35 Body: No switch magnet | Bore: 50 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-35-CB Body: No switch magnet | Bore: 50 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-35-FB Body: No switch magnet | Bore: 50 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-40 Body: No switch magnet | Bore: 50 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-40-CB Body: No switch magnet | Bore: 50 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-40-FB Body: No switch magnet | Bore: 50 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-45 Body: No switch magnet | Bore: 50 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-45-CB Body: No switch magnet | Bore: 50 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-45-FB Body: No switch magnet | Bore: 50 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-50 Body: No switch magnet | Bore: 50 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-50-CB Body: No switch magnet | Bore: 50 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-50-FB Body: No switch magnet | Bore: 50 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-75 Body: No switch magnet | Bore: 50 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-75-CB Body: No switch magnet | Bore: 50 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-75-FB Body: No switch magnet | Bore: 50 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-100 Body: No switch magnet | Bore: 50 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-100-CB Body: No switch magnet | Bore: 50 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-100-FB Body: No switch magnet | Bore: 50 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-10 Body: No switch magnet | Bore: 63 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-10-CB Body: No switch magnet | Bore: 63 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-10-FB Body: No switch magnet | Bore: 63 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-15 Body: No switch magnet | Bore: 63 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-15-CB Body: No switch magnet | Bore: 63 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-15-FB Body: No switch magnet | Bore: 63 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-20 Body: No switch magnet | Bore: 63 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-20-CB Body: No switch magnet | Bore: 63 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-20-FB Body: No switch magnet | Bore: 63 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-25 Body: No switch magnet | Bore: 63 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-25-CB Body: No switch magnet | Bore: 63 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-25-FB Body: No switch magnet | Bore: 63 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-30 Body: No switch magnet | Bore: 63 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-30-CB Body: No switch magnet | Bore: 63 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-30-FB Body: No switch magnet | Bore: 63 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-35 Body: No switch magnet | Bore: 63 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-35-CB Body: No switch magnet | Bore: 63 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-35-FB Body: No switch magnet | Bore: 63 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-40 Body: No switch magnet | Bore: 63 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-40-CB Body: No switch magnet | Bore: 63 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-40-FB Body: No switch magnet | Bore: 63 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-45 Body: No switch magnet | Bore: 63 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-45-CB Body: No switch magnet | Bore: 63 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-45-FB Body: No switch magnet | Bore: 63 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-50 Body: No switch magnet | Bore: 63 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-50-CB Body: No switch magnet | Bore: 63 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-50-FB Body: No switch magnet | Bore: 63 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-75 Body: No switch magnet | Bore: 63 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-75-CB Body: No switch magnet | Bore: 63 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-75-FB Body: No switch magnet | Bore: 63 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-100 Body: No switch magnet | Bore: 63 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-100-CB Body: No switch magnet | Bore: 63 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-100-FB Body: No switch magnet | Bore: 63 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-80-10 Body: No switch magnet | Bore: 80 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-10-CB Body: No switch magnet | Bore: 80 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-10-FB Body: No switch magnet | Bore: 80 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-15 Body: No switch magnet | Bore: 80 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-15-CB Body: No switch magnet | Bore: 80 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-15-FB Body: No switch magnet | Bore: 80 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-20 Body: No switch magnet | Bore: 80 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-20-CB Body: No switch magnet | Bore: 80 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-20-FB Body: No switch magnet | Bore: 80 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-25 Body: No switch magnet | Bore: 80 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-25-CB Body: No switch magnet | Bore: 80 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-25-FB Body: No switch magnet | Bore: 80 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-30 Body: No switch magnet | Bore: 80 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-30-CB Body: No switch magnet | Bore: 80 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-30-FB Body: No switch magnet | Bore: 80 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-35 Body: No switch magnet | Bore: 80 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-35-CB Body: No switch magnet | Bore: 80 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-35-FB Body: No switch magnet | Bore: 80 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-40 Body: No switch magnet | Bore: 80 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-40-CB Body: No switch magnet | Bore: 80 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-40-FB Body: No switch magnet | Bore: 80 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-45 Body: No switch magnet | Bore: 80 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-45-CB Body: No switch magnet | Bore: 80 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-45-FB Body: No switch magnet | Bore: 80 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-50 Body: No switch magnet | Bore: 80 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-50-CB Body: No switch magnet | Bore: 80 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-50-FB Body: No switch magnet | Bore: 80 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-75 Body: No switch magnet | Bore: 80 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-75-CB Body: No switch magnet | Bore: 80 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-75-FB Body: No switch magnet | Bore: 80 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-100 Body: No switch magnet | Bore: 80 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-100-CB Body: No switch magnet | Bore: 80 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-100-FB Body: No switch magnet | Bore: 80 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-10 Body: No switch magnet | Bore: 100 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-10-CB Body: No switch magnet | Bore: 100 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-10-FB Body: No switch magnet | Bore: 100 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-15 Body: No switch magnet | Bore: 100 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-15-CB Body: No switch magnet | Bore: 100 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-15-FB Body: No switch magnet | Bore: 100 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-20 Body: No switch magnet | Bore: 100 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-20-CB Body: No switch magnet | Bore: 100 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-20-FB Body: No switch magnet | Bore: 100 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-25 Body: No switch magnet | Bore: 100 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-25-CB Body: No switch magnet | Bore: 100 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-25-FB Body: No switch magnet | Bore: 100 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-30 Body: No switch magnet | Bore: 100 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-30-CB Body: No switch magnet | Bore: 100 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-30-FB Body: No switch magnet | Bore: 100 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-35 Body: No switch magnet | Bore: 100 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-35-CB Body: No switch magnet | Bore: 100 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-35-FB Body: No switch magnet | Bore: 100 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-40 Body: No switch magnet | Bore: 100 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-40-CB Body: No switch magnet | Bore: 100 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-40-FB Body: No switch magnet | Bore: 100 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-45 Body: No switch magnet | Bore: 100 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-45-CB Body: No switch magnet | Bore: 100 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-45-FB Body: No switch magnet | Bore: 100 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-50 Body: No switch magnet | Bore: 100 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-50-CB Body: No switch magnet | Bore: 100 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-50-FB Body: No switch magnet | Bore: 100 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-75 Body: No switch magnet | Bore: 100 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-75-CB Body: No switch magnet | Bore: 100 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-75-FB Body: No switch magnet | Bore: 100 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-100 Body: No switch magnet | Bore: 100 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-100-CB Body: No switch magnet | Bore: 100 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-100-FB Body: No switch magnet | Bore: 100 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-20-5 Body: Switch magnet built in | Bore: 20 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-5-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-5-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-10 Body: Switch magnet built in | Bore: 20 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-10-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-10-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-15 Body: Switch magnet built in | Bore: 20 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-15-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-15-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-20 Body: Switch magnet built in | Bore: 20 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-20-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-20-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-25 Body: Switch magnet built in | Bore: 20 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-25-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-25-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-30 Body: Switch magnet built in | Bore: 20 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-30-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-30-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-35 Body: Switch magnet built in | Bore: 20 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-35-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-35-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-40 Body: Switch magnet built in | Bore: 20 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-40-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-40-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-45 Body: Switch magnet built in | Bore: 20 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-45-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-45-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-50 Body: Switch magnet built in | Bore: 20 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-50-CB Body: Switch magnet built in | Bore: 20 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-50-FB Body: Switch magnet built in | Bore: 20 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-5 Body: Switch magnet built in | Bore: 25 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-5-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-5-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-10 Body: Switch magnet built in | Bore: 25 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-10-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-10-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-15 Body: Switch magnet built in | Bore: 25 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-15-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-15-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-20 Body: Switch magnet built in | Bore: 25 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-20-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-20-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-25 Body: Switch magnet built in | Bore: 25 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-25-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-25-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-30 Body: Switch magnet built in | Bore: 25 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-30-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-30-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-35 Body: Switch magnet built in | Bore: 25 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-35-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-35-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-40 Body: Switch magnet built in | Bore: 25 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-40-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-40-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-45 Body: Switch magnet built in | Bore: 25 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-45-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-45-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-50 Body: Switch magnet built in | Bore: 25 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-50-CB Body: Switch magnet built in | Bore: 25 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-50-FB Body: Switch magnet built in | Bore: 25 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-32-5 Body: Switch magnet built in | Bore: 32 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-5-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-5-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-10 Body: Switch magnet built in | Bore: 32 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-10-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-10-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-15 Body: Switch magnet built in | Bore: 32 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-15-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-15-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-20 Body: Switch magnet built in | Bore: 32 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-20-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-20-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-25 Body: Switch magnet built in | Bore: 32 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-25-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-25-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-30 Body: Switch magnet built in | Bore: 32 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-30-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-30-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-35 Body: Switch magnet built in | Bore: 32 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-35-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-35-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-40 Body: Switch magnet built in | Bore: 32 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-40-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-40-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-45 Body: Switch magnet built in | Bore: 32 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-45-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-45-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-50 Body: Switch magnet built in | Bore: 32 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-50-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-50-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-75 Body: Switch magnet built in | Bore: 32 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-75-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-75-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-100 Body: Switch magnet built in | Bore: 32 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-100-CB Body: Switch magnet built in | Bore: 32 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-100-FB Body: Switch magnet built in | Bore: 32 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-5 Body: Switch magnet built in | Bore: 40 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-5-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-5-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-10 Body: Switch magnet built in | Bore: 40 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-10-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-10-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-15 Body: Switch magnet built in | Bore: 40 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-15-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-15-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-20 Body: Switch magnet built in | Bore: 40 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-20-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-20-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-25 Body: Switch magnet built in | Bore: 40 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-25-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-25-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-30 Body: Switch magnet built in | Bore: 40 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-30-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-30-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-35 Body: Switch magnet built in | Bore: 40 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-35-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-35-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-40 Body: Switch magnet built in | Bore: 40 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-40-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-40-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-45 Body: Switch magnet built in | Bore: 40 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-45-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-45-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-50 Body: Switch magnet built in | Bore: 40 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-50-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-50-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-75 Body: Switch magnet built in | Bore: 40 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-75-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-75-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-100 Body: Switch magnet built in | Bore: 40 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-100-CB Body: Switch magnet built in | Bore: 40 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-100-FB Body: Switch magnet built in | Bore: 40 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-50-10 Body: Switch magnet built in | Bore: 50 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-10-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-10-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-15 Body: Switch magnet built in | Bore: 50 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-15-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-15-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-20 Body: Switch magnet built in | Bore: 50 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-20-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-20-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-25 Body: Switch magnet built in | Bore: 50 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-25-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-25-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-30 Body: Switch magnet built in | Bore: 50 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-30-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-30-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-35 Body: Switch magnet built in | Bore: 50 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-35-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-35-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-40 Body: Switch magnet built in | Bore: 50 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-40-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-40-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-45 Body: Switch magnet built in | Bore: 50 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-45-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-45-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-50 Body: Switch magnet built in | Bore: 50 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-50-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-50-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-75 Body: Switch magnet built in | Bore: 50 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-75-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-75-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-100 Body: Switch magnet built in | Bore: 50 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-100-CB Body: Switch magnet built in | Bore: 50 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-100-FB Body: Switch magnet built in | Bore: 50 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-10 Body: Switch magnet built in | Bore: 63 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-10-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-10-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-15 Body: Switch magnet built in | Bore: 63 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-15-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-15-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-20 Body: Switch magnet built in | Bore: 63 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-20-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-20-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-25 Body: Switch magnet built in | Bore: 63 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-25-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-25-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-30 Body: Switch magnet built in | Bore: 63 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-30-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-30-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-35 Body: Switch magnet built in | Bore: 63 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-35-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-35-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-40 Body: Switch magnet built in | Bore: 63 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-40-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-40-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-45 Body: Switch magnet built in | Bore: 63 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-45-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-45-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-50 Body: Switch magnet built in | Bore: 63 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-50-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-50-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-75 Body: Switch magnet built in | Bore: 63 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-75-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-75-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-100 Body: Switch magnet built in | Bore: 63 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-100-CB Body: Switch magnet built in | Bore: 63 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-100-FB Body: Switch magnet built in | Bore: 63 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-80-10 Body: Switch magnet built in | Bore: 80 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-10-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-10-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-15 Body: Switch magnet built in | Bore: 80 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-15-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-15-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-20 Body: Switch magnet built in | Bore: 80 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-20-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-20-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-25 Body: Switch magnet built in | Bore: 80 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-25-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-25-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-30 Body: Switch magnet built in | Bore: 80 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-30-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-30-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-35 Body: Switch magnet built in | Bore: 80 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-35-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-35-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-40 Body: Switch magnet built in | Bore: 80 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-40-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-40-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-45 Body: Switch magnet built in | Bore: 80 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-45-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-45-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-50 Body: Switch magnet built in | Bore: 80 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-50-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-50-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-75 Body: Switch magnet built in | Bore: 80 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-75-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-75-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-100 Body: Switch magnet built in | Bore: 80 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-100-CB Body: Switch magnet built in | Bore: 80 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-100-FB Body: Switch magnet built in | Bore: 80 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-10 Body: Switch magnet built in | Bore: 100 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-10-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-10-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-15 Body: Switch magnet built in | Bore: 100 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-15-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-15-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-20 Body: Switch magnet built in | Bore: 100 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-20-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-20-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-25 Body: Switch magnet built in | Bore: 100 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-25-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-25-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-30 Body: Switch magnet built in | Bore: 100 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-30-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-30-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-35 Body: Switch magnet built in | Bore: 100 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-35-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-35-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-40 Body: Switch magnet built in | Bore: 100 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-40-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-40-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-45 Body: Switch magnet built in | Bore: 100 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-45-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-45-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-50 Body: Switch magnet built in | Bore: 100 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-50-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-50-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-75 Body: Switch magnet built in | Bore: 100 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-75-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-75-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-100 Body: Switch magnet built in | Bore: 100 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-100-CB Body: Switch magnet built in | Bore: 100 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-100-FB Body: Switch magnet built in | Bore: 100 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
Compact CylindersCKD
528 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SSD2-G Super Compact Cylinder (Strong Scraper)

Brand CKD·Compact Cylinders

Available part numbers (528)

SSD2-G-20-5, SSD2-G-20-5-CB, SSD2-G-20-5-FB, SSD2-G-20-10, SSD2-G-20-10-CB, SSD2-G-20-10-FB, SSD2-G-20-15, SSD2-G-20-15-CB, SSD2-G-20-15-FB, SSD2-G-20-20 + 518 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSD2-G-20-5Body: No switch magnet | Bore: 20 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-5-CBBody: No switch magnet | Bore: 20 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-5-FBBody: No switch magnet | Bore: 20 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-10Body: No switch magnet | Bore: 20 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-10-CBBody: No switch magnet | Bore: 20 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-10-FBBody: No switch magnet | Bore: 20 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-15Body: No switch magnet | Bore: 20 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-15-CBBody: No switch magnet | Bore: 20 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-15-FBBody: No switch magnet | Bore: 20 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-20Body: No switch magnet | Bore: 20 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-20-CBBody: No switch magnet | Bore: 20 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-20-FBBody: No switch magnet | Bore: 20 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-25Body: No switch magnet | Bore: 20 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-25-CBBody: No switch magnet | Bore: 20 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-25-FBBody: No switch magnet | Bore: 20 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-30Body: No switch magnet | Bore: 20 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-30-CBBody: No switch magnet | Bore: 20 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-30-FBBody: No switch magnet | Bore: 20 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-35Body: No switch magnet | Bore: 20 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-35-CBBody: No switch magnet | Bore: 20 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-35-FBBody: No switch magnet | Bore: 20 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-40Body: No switch magnet | Bore: 20 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-40-CBBody: No switch magnet | Bore: 20 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-40-FBBody: No switch magnet | Bore: 20 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-45Body: No switch magnet | Bore: 20 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-45-CBBody: No switch magnet | Bore: 20 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-45-FBBody: No switch magnet | Bore: 20 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-20-50Body: No switch magnet | Bore: 20 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-20-50-CBBody: No switch magnet | Bore: 20 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-20-50-FBBody: No switch magnet | Bore: 20 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-5Body: No switch magnet | Bore: 25 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-5-CBBody: No switch magnet | Bore: 25 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-5-FBBody: No switch magnet | Bore: 25 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-10Body: No switch magnet | Bore: 25 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-10-CBBody: No switch magnet | Bore: 25 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-10-FBBody: No switch magnet | Bore: 25 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-15Body: No switch magnet | Bore: 25 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-15-CBBody: No switch magnet | Bore: 25 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-15-FBBody: No switch magnet | Bore: 25 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-20Body: No switch magnet | Bore: 25 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-20-CBBody: No switch magnet | Bore: 25 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-20-FBBody: No switch magnet | Bore: 25 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-25Body: No switch magnet | Bore: 25 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-25-CBBody: No switch magnet | Bore: 25 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-25-FBBody: No switch magnet | Bore: 25 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-30Body: No switch magnet | Bore: 25 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-30-CBBody: No switch magnet | Bore: 25 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-30-FBBody: No switch magnet | Bore: 25 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-35Body: No switch magnet | Bore: 25 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-35-CBBody: No switch magnet | Bore: 25 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-35-FBBody: No switch magnet | Bore: 25 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-40Body: No switch magnet | Bore: 25 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-40-CBBody: No switch magnet | Bore: 25 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-40-FBBody: No switch magnet | Bore: 25 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-45Body: No switch magnet | Bore: 25 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-45-CBBody: No switch magnet | Bore: 25 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-45-FBBody: No switch magnet | Bore: 25 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-25-50Body: No switch magnet | Bore: 25 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-25-50-CBBody: No switch magnet | Bore: 25 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-25-50-FBBody: No switch magnet | Bore: 25 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-32-5Body: No switch magnet | Bore: 32 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-G-32-5-CBBody: No switch magnet | Bore: 32 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-G-32-5-FBBody: No switch magnet | Bore: 32 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-G-32-10Body: No switch magnet | Bore: 32 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-10-CBBody: No switch magnet | Bore: 32 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-10-FBBody: No switch magnet | Bore: 32 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-15Body: No switch magnet | Bore: 32 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-15-CBBody: No switch magnet | Bore: 32 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-15-FBBody: No switch magnet | Bore: 32 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-20Body: No switch magnet | Bore: 32 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-20-CBBody: No switch magnet | Bore: 32 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-20-FBBody: No switch magnet | Bore: 32 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-25Body: No switch magnet | Bore: 32 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-25-CBBody: No switch magnet | Bore: 32 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-25-FBBody: No switch magnet | Bore: 32 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-30Body: No switch magnet | Bore: 32 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-30-CBBody: No switch magnet | Bore: 32 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-30-FBBody: No switch magnet | Bore: 32 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-35Body: No switch magnet | Bore: 32 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-35-CBBody: No switch magnet | Bore: 32 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-35-FBBody: No switch magnet | Bore: 32 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-40Body: No switch magnet | Bore: 32 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-40-CBBody: No switch magnet | Bore: 32 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-40-FBBody: No switch magnet | Bore: 32 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-45Body: No switch magnet | Bore: 32 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-45-CBBody: No switch magnet | Bore: 32 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-45-FBBody: No switch magnet | Bore: 32 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-50Body: No switch magnet | Bore: 32 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-50-CBBody: No switch magnet | Bore: 32 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-50-FBBody: No switch magnet | Bore: 32 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-75Body: No switch magnet | Bore: 32 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-75-CBBody: No switch magnet | Bore: 32 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-75-FBBody: No switch magnet | Bore: 32 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-32-100Body: No switch magnet | Bore: 32 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-32-100-CBBody: No switch magnet | Bore: 32 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-32-100-FBBody: No switch magnet | Bore: 32 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-5Body: No switch magnet | Bore: 40 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-5-CBBody: No switch magnet | Bore: 40 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-5-FBBody: No switch magnet | Bore: 40 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-10Body: No switch magnet | Bore: 40 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-10-CBBody: No switch magnet | Bore: 40 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-10-FBBody: No switch magnet | Bore: 40 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-15Body: No switch magnet | Bore: 40 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-15-CBBody: No switch magnet | Bore: 40 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-15-FBBody: No switch magnet | Bore: 40 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-20Body: No switch magnet | Bore: 40 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-20-CBBody: No switch magnet | Bore: 40 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-20-FBBody: No switch magnet | Bore: 40 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-25Body: No switch magnet | Bore: 40 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-25-CBBody: No switch magnet | Bore: 40 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-25-FBBody: No switch magnet | Bore: 40 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-30Body: No switch magnet | Bore: 40 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-30-CBBody: No switch magnet | Bore: 40 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-30-FBBody: No switch magnet | Bore: 40 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-35Body: No switch magnet | Bore: 40 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-35-CBBody: No switch magnet | Bore: 40 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-35-FBBody: No switch magnet | Bore: 40 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-40Body: No switch magnet | Bore: 40 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-40-CBBody: No switch magnet | Bore: 40 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-40-FBBody: No switch magnet | Bore: 40 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-45Body: No switch magnet | Bore: 40 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-45-CBBody: No switch magnet | Bore: 40 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-45-FBBody: No switch magnet | Bore: 40 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-50Body: No switch magnet | Bore: 40 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-50-CBBody: No switch magnet | Bore: 40 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-50-FBBody: No switch magnet | Bore: 40 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-75Body: No switch magnet | Bore: 40 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-75-CBBody: No switch magnet | Bore: 40 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-75-FBBody: No switch magnet | Bore: 40 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-40-100Body: No switch magnet | Bore: 40 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-G-40-100-CBBody: No switch magnet | Bore: 40 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-G-40-100-FBBody: No switch magnet | Bore: 40 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-G-50-10Body: No switch magnet | Bore: 50 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-10-CBBody: No switch magnet | Bore: 50 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-10-FBBody: No switch magnet | Bore: 50 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-15Body: No switch magnet | Bore: 50 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-15-CBBody: No switch magnet | Bore: 50 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-15-FBBody: No switch magnet | Bore: 50 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-20Body: No switch magnet | Bore: 50 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-20-CBBody: No switch magnet | Bore: 50 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-20-FBBody: No switch magnet | Bore: 50 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-25Body: No switch magnet | Bore: 50 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-25-CBBody: No switch magnet | Bore: 50 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-25-FBBody: No switch magnet | Bore: 50 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-30Body: No switch magnet | Bore: 50 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-30-CBBody: No switch magnet | Bore: 50 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-30-FBBody: No switch magnet | Bore: 50 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-35Body: No switch magnet | Bore: 50 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-35-CBBody: No switch magnet | Bore: 50 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-35-FBBody: No switch magnet | Bore: 50 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-40Body: No switch magnet | Bore: 50 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-40-CBBody: No switch magnet | Bore: 50 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-40-FBBody: No switch magnet | Bore: 50 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-45Body: No switch magnet | Bore: 50 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-45-CBBody: No switch magnet | Bore: 50 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-45-FBBody: No switch magnet | Bore: 50 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-50Body: No switch magnet | Bore: 50 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-50-CBBody: No switch magnet | Bore: 50 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-50-FBBody: No switch magnet | Bore: 50 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-75Body: No switch magnet | Bore: 50 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-75-CBBody: No switch magnet | Bore: 50 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-75-FBBody: No switch magnet | Bore: 50 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-50-100Body: No switch magnet | Bore: 50 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-50-100-CBBody: No switch magnet | Bore: 50 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-50-100-FBBody: No switch magnet | Bore: 50 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-10Body: No switch magnet | Bore: 63 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-10-CBBody: No switch magnet | Bore: 63 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-10-FBBody: No switch magnet | Bore: 63 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-15Body: No switch magnet | Bore: 63 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-15-CBBody: No switch magnet | Bore: 63 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-15-FBBody: No switch magnet | Bore: 63 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-20Body: No switch magnet | Bore: 63 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-20-CBBody: No switch magnet | Bore: 63 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-20-FBBody: No switch magnet | Bore: 63 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-25Body: No switch magnet | Bore: 63 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-25-CBBody: No switch magnet | Bore: 63 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-25-FBBody: No switch magnet | Bore: 63 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-30Body: No switch magnet | Bore: 63 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-30-CBBody: No switch magnet | Bore: 63 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-30-FBBody: No switch magnet | Bore: 63 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-35Body: No switch magnet | Bore: 63 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-35-CBBody: No switch magnet | Bore: 63 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-35-FBBody: No switch magnet | Bore: 63 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-40Body: No switch magnet | Bore: 63 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-40-CBBody: No switch magnet | Bore: 63 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-40-FBBody: No switch magnet | Bore: 63 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-45Body: No switch magnet | Bore: 63 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-45-CBBody: No switch magnet | Bore: 63 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-45-FBBody: No switch magnet | Bore: 63 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-50Body: No switch magnet | Bore: 63 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-50-CBBody: No switch magnet | Bore: 63 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-50-FBBody: No switch magnet | Bore: 63 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-75Body: No switch magnet | Bore: 63 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-75-CBBody: No switch magnet | Bore: 63 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-75-FBBody: No switch magnet | Bore: 63 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-63-100Body: No switch magnet | Bore: 63 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-G-63-100-CBBody: No switch magnet | Bore: 63 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-G-63-100-FBBody: No switch magnet | Bore: 63 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-G-80-10Body: No switch magnet | Bore: 80 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-10-CBBody: No switch magnet | Bore: 80 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-10-FBBody: No switch magnet | Bore: 80 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-15Body: No switch magnet | Bore: 80 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-15-CBBody: No switch magnet | Bore: 80 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-15-FBBody: No switch magnet | Bore: 80 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-20Body: No switch magnet | Bore: 80 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-20-CBBody: No switch magnet | Bore: 80 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-20-FBBody: No switch magnet | Bore: 80 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-25Body: No switch magnet | Bore: 80 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-25-CBBody: No switch magnet | Bore: 80 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-25-FBBody: No switch magnet | Bore: 80 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-30Body: No switch magnet | Bore: 80 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-30-CBBody: No switch magnet | Bore: 80 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-30-FBBody: No switch magnet | Bore: 80 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-35Body: No switch magnet | Bore: 80 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-35-CBBody: No switch magnet | Bore: 80 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-35-FBBody: No switch magnet | Bore: 80 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-40Body: No switch magnet | Bore: 80 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-40-CBBody: No switch magnet | Bore: 80 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-40-FBBody: No switch magnet | Bore: 80 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-45Body: No switch magnet | Bore: 80 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-45-CBBody: No switch magnet | Bore: 80 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-45-FBBody: No switch magnet | Bore: 80 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-50Body: No switch magnet | Bore: 80 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-50-CBBody: No switch magnet | Bore: 80 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-50-FBBody: No switch magnet | Bore: 80 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-75Body: No switch magnet | Bore: 80 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-75-CBBody: No switch magnet | Bore: 80 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-75-FBBody: No switch magnet | Bore: 80 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-80-100Body: No switch magnet | Bore: 80 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-80-100-CBBody: No switch magnet | Bore: 80 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-80-100-FBBody: No switch magnet | Bore: 80 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-10Body: No switch magnet | Bore: 100 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-10-CBBody: No switch magnet | Bore: 100 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-10-FBBody: No switch magnet | Bore: 100 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-15Body: No switch magnet | Bore: 100 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-15-CBBody: No switch magnet | Bore: 100 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-15-FBBody: No switch magnet | Bore: 100 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-20Body: No switch magnet | Bore: 100 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-20-CBBody: No switch magnet | Bore: 100 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-20-FBBody: No switch magnet | Bore: 100 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-25Body: No switch magnet | Bore: 100 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-25-CBBody: No switch magnet | Bore: 100 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-25-FBBody: No switch magnet | Bore: 100 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-30Body: No switch magnet | Bore: 100 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-30-CBBody: No switch magnet | Bore: 100 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-30-FBBody: No switch magnet | Bore: 100 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-35Body: No switch magnet | Bore: 100 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-35-CBBody: No switch magnet | Bore: 100 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-35-FBBody: No switch magnet | Bore: 100 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-40Body: No switch magnet | Bore: 100 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-40-CBBody: No switch magnet | Bore: 100 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-40-FBBody: No switch magnet | Bore: 100 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-45Body: No switch magnet | Bore: 100 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-45-CBBody: No switch magnet | Bore: 100 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-45-FBBody: No switch magnet | Bore: 100 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-50Body: No switch magnet | Bore: 100 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-50-CBBody: No switch magnet | Bore: 100 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-50-FBBody: No switch magnet | Bore: 100 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-75Body: No switch magnet | Bore: 100 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-75-CBBody: No switch magnet | Bore: 100 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-75-FBBody: No switch magnet | Bore: 100 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-G-100-100Body: No switch magnet | Bore: 100 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-G-100-100-CBBody: No switch magnet | Bore: 100 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-G-100-100-FBBody: No switch magnet | Bore: 100 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-20-5Body: Switch magnet built in | Bore: 20 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-5-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-5-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-10Body: Switch magnet built in | Bore: 20 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-10-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-10-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-15Body: Switch magnet built in | Bore: 20 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-15-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-15-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-20Body: Switch magnet built in | Bore: 20 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-20-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-20-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-25Body: Switch magnet built in | Bore: 20 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-25-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-25-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-30Body: Switch magnet built in | Bore: 20 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-30-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-30-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-35Body: Switch magnet built in | Bore: 20 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-35-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-35-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-40Body: Switch magnet built in | Bore: 20 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-40-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-40-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-45Body: Switch magnet built in | Bore: 20 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-45-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-45-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-20-50Body: Switch magnet built in | Bore: 20 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-20-50-CBBody: Switch magnet built in | Bore: 20 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-20-50-FBBody: Switch magnet built in | Bore: 20 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-5Body: Switch magnet built in | Bore: 25 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-5-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-5-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-10Body: Switch magnet built in | Bore: 25 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-10-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-10-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-15Body: Switch magnet built in | Bore: 25 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-15-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-15-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-20Body: Switch magnet built in | Bore: 25 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-20-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-20-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-25Body: Switch magnet built in | Bore: 25 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-25-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-25-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-30Body: Switch magnet built in | Bore: 25 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-30-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-30-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-35Body: Switch magnet built in | Bore: 25 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-35-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-35-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-40Body: Switch magnet built in | Bore: 25 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-40-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-40-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-45Body: Switch magnet built in | Bore: 25 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-45-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-45-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-25-50Body: Switch magnet built in | Bore: 25 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: M5
SSD2-GL-25-50-CBBody: Switch magnet built in | Bore: 25 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: M5
SSD2-GL-25-50-FBBody: Switch magnet built in | Bore: 25 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: M5
SSD2-GL-32-5Body: Switch magnet built in | Bore: 32 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-5-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-5-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-10Body: Switch magnet built in | Bore: 32 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-10-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-10-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-15Body: Switch magnet built in | Bore: 32 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-15-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-15-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-20Body: Switch magnet built in | Bore: 32 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-20-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-20-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-25Body: Switch magnet built in | Bore: 32 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-25-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-25-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-30Body: Switch magnet built in | Bore: 32 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-30-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-30-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-35Body: Switch magnet built in | Bore: 32 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-35-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-35-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-40Body: Switch magnet built in | Bore: 32 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-40-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-40-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-45Body: Switch magnet built in | Bore: 32 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-45-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-45-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-50Body: Switch magnet built in | Bore: 32 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-50-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-50-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-75Body: Switch magnet built in | Bore: 32 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-75-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-75-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-32-100Body: Switch magnet built in | Bore: 32 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-32-100-CBBody: Switch magnet built in | Bore: 32 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-32-100-FBBody: Switch magnet built in | Bore: 32 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-5Body: Switch magnet built in | Bore: 40 mm | Stroke: 5 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-5-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 5 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-5-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 5 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-10Body: Switch magnet built in | Bore: 40 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-10-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-10-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-15Body: Switch magnet built in | Bore: 40 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-15-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-15-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-20Body: Switch magnet built in | Bore: 40 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-20-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-20-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-25Body: Switch magnet built in | Bore: 40 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-25-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-25-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-30Body: Switch magnet built in | Bore: 40 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-30-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-30-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-35Body: Switch magnet built in | Bore: 40 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-35-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-35-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-40Body: Switch magnet built in | Bore: 40 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-40-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-40-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-45Body: Switch magnet built in | Bore: 40 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-45-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-45-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-50Body: Switch magnet built in | Bore: 40 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-50-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-50-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-75Body: Switch magnet built in | Bore: 40 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-75-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-75-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-40-100Body: Switch magnet built in | Bore: 40 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/8
SSD2-GL-40-100-CBBody: Switch magnet built in | Bore: 40 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/8
SSD2-GL-40-100-FBBody: Switch magnet built in | Bore: 40 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/8
SSD2-GL-50-10Body: Switch magnet built in | Bore: 50 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-10-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-10-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-15Body: Switch magnet built in | Bore: 50 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-15-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-15-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-20Body: Switch magnet built in | Bore: 50 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-20-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-20-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-25Body: Switch magnet built in | Bore: 50 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-25-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-25-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-30Body: Switch magnet built in | Bore: 50 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-30-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-30-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-35Body: Switch magnet built in | Bore: 50 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-35-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-35-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-40Body: Switch magnet built in | Bore: 50 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-40-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-40-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-45Body: Switch magnet built in | Bore: 50 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-45-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-45-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-50Body: Switch magnet built in | Bore: 50 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-50-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-50-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-75Body: Switch magnet built in | Bore: 50 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-75-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-75-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-50-100Body: Switch magnet built in | Bore: 50 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-50-100-CBBody: Switch magnet built in | Bore: 50 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-50-100-FBBody: Switch magnet built in | Bore: 50 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-10Body: Switch magnet built in | Bore: 63 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-10-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-10-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-15Body: Switch magnet built in | Bore: 63 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-15-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-15-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-20Body: Switch magnet built in | Bore: 63 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-20-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-20-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-25Body: Switch magnet built in | Bore: 63 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-25-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-25-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-30Body: Switch magnet built in | Bore: 63 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-30-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-30-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-35Body: Switch magnet built in | Bore: 63 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-35-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-35-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-40Body: Switch magnet built in | Bore: 63 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-40-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-40-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-45Body: Switch magnet built in | Bore: 63 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-45-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-45-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-50Body: Switch magnet built in | Bore: 63 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-50-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-50-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-75Body: Switch magnet built in | Bore: 63 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-75-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-75-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-63-100Body: Switch magnet built in | Bore: 63 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc1/4
SSD2-GL-63-100-CBBody: Switch magnet built in | Bore: 63 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc1/4
SSD2-GL-63-100-FBBody: Switch magnet built in | Bore: 63 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc1/4
SSD2-GL-80-10Body: Switch magnet built in | Bore: 80 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-10-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-10-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-15Body: Switch magnet built in | Bore: 80 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-15-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-15-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-20Body: Switch magnet built in | Bore: 80 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-20-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-20-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-25Body: Switch magnet built in | Bore: 80 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-25-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-25-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-30Body: Switch magnet built in | Bore: 80 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-30-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-30-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-35Body: Switch magnet built in | Bore: 80 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-35-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-35-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-40Body: Switch magnet built in | Bore: 80 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-40-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-40-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-45Body: Switch magnet built in | Bore: 80 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-45-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-45-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-50Body: Switch magnet built in | Bore: 80 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-50-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-50-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-75Body: Switch magnet built in | Bore: 80 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-75-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-75-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-80-100Body: Switch magnet built in | Bore: 80 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-80-100-CBBody: Switch magnet built in | Bore: 80 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-80-100-FBBody: Switch magnet built in | Bore: 80 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-10Body: Switch magnet built in | Bore: 100 mm | Stroke: 10 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-10-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 10 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-10-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 10 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-15Body: Switch magnet built in | Bore: 100 mm | Stroke: 15 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-15-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 15 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-15-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 15 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-20Body: Switch magnet built in | Bore: 100 mm | Stroke: 20 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-20-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 20 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-20-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 20 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-25Body: Switch magnet built in | Bore: 100 mm | Stroke: 25 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-25-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 25 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-25-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 25 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-30Body: Switch magnet built in | Bore: 100 mm | Stroke: 30 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-30-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 30 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-30-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 30 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-35Body: Switch magnet built in | Bore: 100 mm | Stroke: 35 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-35-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 35 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-35-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 35 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-40Body: Switch magnet built in | Bore: 100 mm | Stroke: 40 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-40-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 40 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-40-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 40 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-45Body: Switch magnet built in | Bore: 100 mm | Stroke: 45 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-45-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 45 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-45-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 45 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-50Body: Switch magnet built in | Bore: 100 mm | Stroke: 50 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-50-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 50 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-50-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 50 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-75Body: Switch magnet built in | Bore: 100 mm | Stroke: 75 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-75-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 75 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-75-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 75 mm | Mounting: Head-end flange (FB) | Port: Rc3/8
SSD2-GL-100-100Body: Switch magnet built in | Bore: 100 mm | Stroke: 100 mm | Mounting: None (cylinder only) | Port: Rc3/8
SSD2-GL-100-100-CBBody: Switch magnet built in | Bore: 100 mm | Stroke: 100 mm | Mounting: Double clevis (CB) | Port: Rc3/8
SSD2-GL-100-100-FBBody: Switch magnet built in | Bore: 100 mm | Stroke: 100 mm | Mounting: Head-end flange (FB) | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
